SawStop Jobsite Saw PRO Applications
- Residential and commercial construction projects
- Finish carpentry and trim installation
- Cabinet installation and custom millwork
- Remodeling and renovation projects
- Workshop and jobsite woodworking operations
- Furniture building and precision wood fabrication
- Rip cutting sheet goods, hardwoods, softwoods, and dimensional lumber
- Professional contractors requiring portable table saw performance
Built for professionals who need workshop-level accuracy combined with true jobsite portability and industry-leading safety technology.
SawStop Jobsite Saw PRO Specifications
| Model | Jobsite Saw PRO with Mobile Cart Assembly |
|---|---|
| Power Supply | 120 VAC, 60 Hz |
| Motor Type | Universal Motor |
| Amperage | 15A |
| Continuous Horsepower | 1.5 HP |
| Peak Horsepower | 4 HP |
| Cord Length | 116" |
| Blade Diameter | 10" |
| Dado Blade Capacity | 8" |
| Maximum Dado Width | 29/32" |
| Maximum Depth of Cut at 0° | 3-1/8" |
| Maximum Depth of Cut at 45° | 2-1/8" |
| Bevel Range | -1° to 46° |
| Maximum Rip Capacity Right of Blade | 25-1/2" |
| Maximum Rip Capacity Left of Blade | 9-3/4" |
| Blade Tilt | Left |
| Table Dimensions (Retracted) | 31-1/4" W x 24-5/8" D |
| Table Dimensions (Extended) | 43-3/8" W x 24-5/8" D |
| Stowed Dimensions | 26-1/2" L x 29" W x 45" H |
| Dimensions with Open Cart | 48" W x 29" D x 36" H |
| Saw Weight | 84 lbs |
| Weight with Cart | 113 lbs |
| Shipping Dimensions | 32" W x 43" D x 26" H |
| Shipping Weight | 137 lbs |
| Dust Collection Port | 2-9/16" OD, 2-1/4" ID |
| Blade Guard Dust Port | 1-11/16" OD, 1-3/8" ID |
| Warranty | Two-Year Warranty with Registration |
SawStop Jobsite Saw PRO Performance & Construction
- Powerful 15A Motor System delivers dependable cutting performance with 1.5 HP continuous output and up to 4 HP peak power for demanding cutting applications.
- Class-Leading 24-5/8" Table Depth provides a larger and more stable work surface that improves material support, cutting control, and accuracy.
- One-Turn Blade Elevation System allows the blade to be raised or lowered through its full range with a single turn of the handwheel, improving efficiency and ease of use.
- 10" Blade Capacity provides excellent cutting depth for dimensional lumber, sheet goods, hardwoods, plywood, and trim materials.
- Dado Compatibility supports 8" dado blade sets up to 29/32" wide for joinery and cabinetry applications.
- Precision Left-Tilt Arbor Design helps improve cutting versatility while supporting accurate bevel operations.
- T-Shaped Miter Slot System accommodates professional accessories and precision-guided cutting operations.
- Heavy-Duty Internal Components utilize quality bearings, Poly-V static dissipative belts, and durable construction for long-term reliability.
SawStop Jobsite Saw PRO Fence & Cutting Accuracy

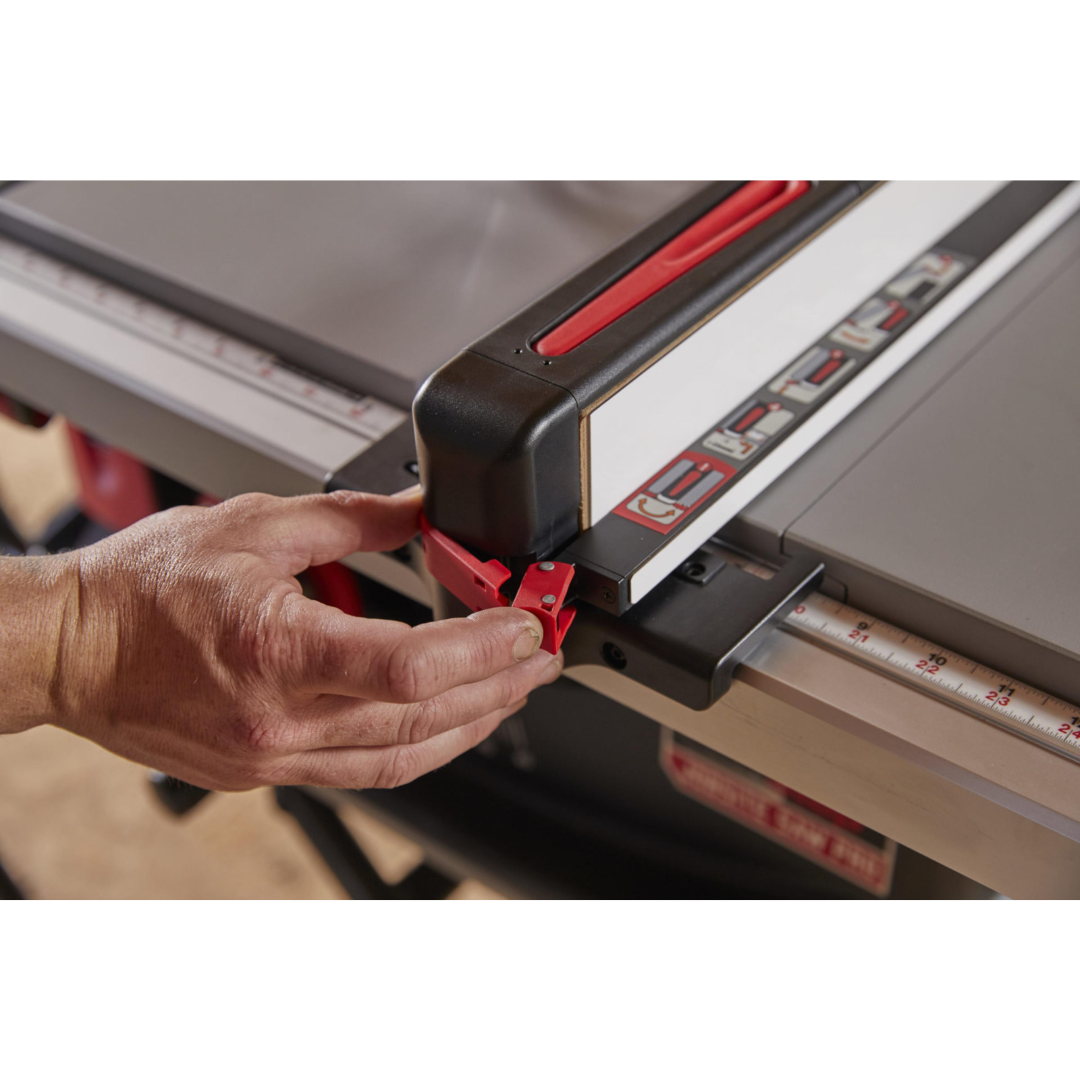

- Solid Hi-Low T-Style Fence provides exceptional material support while maintaining precise alignment across the full cutting range.
- Innovative Ergolock Fence System slides smoothly into position and locks securely with a simple push for quick setup and repeatable accuracy.
- 25-1/2" Rip Capacity allows efficient cutting of plywood, panels, shelving, and larger workpieces.

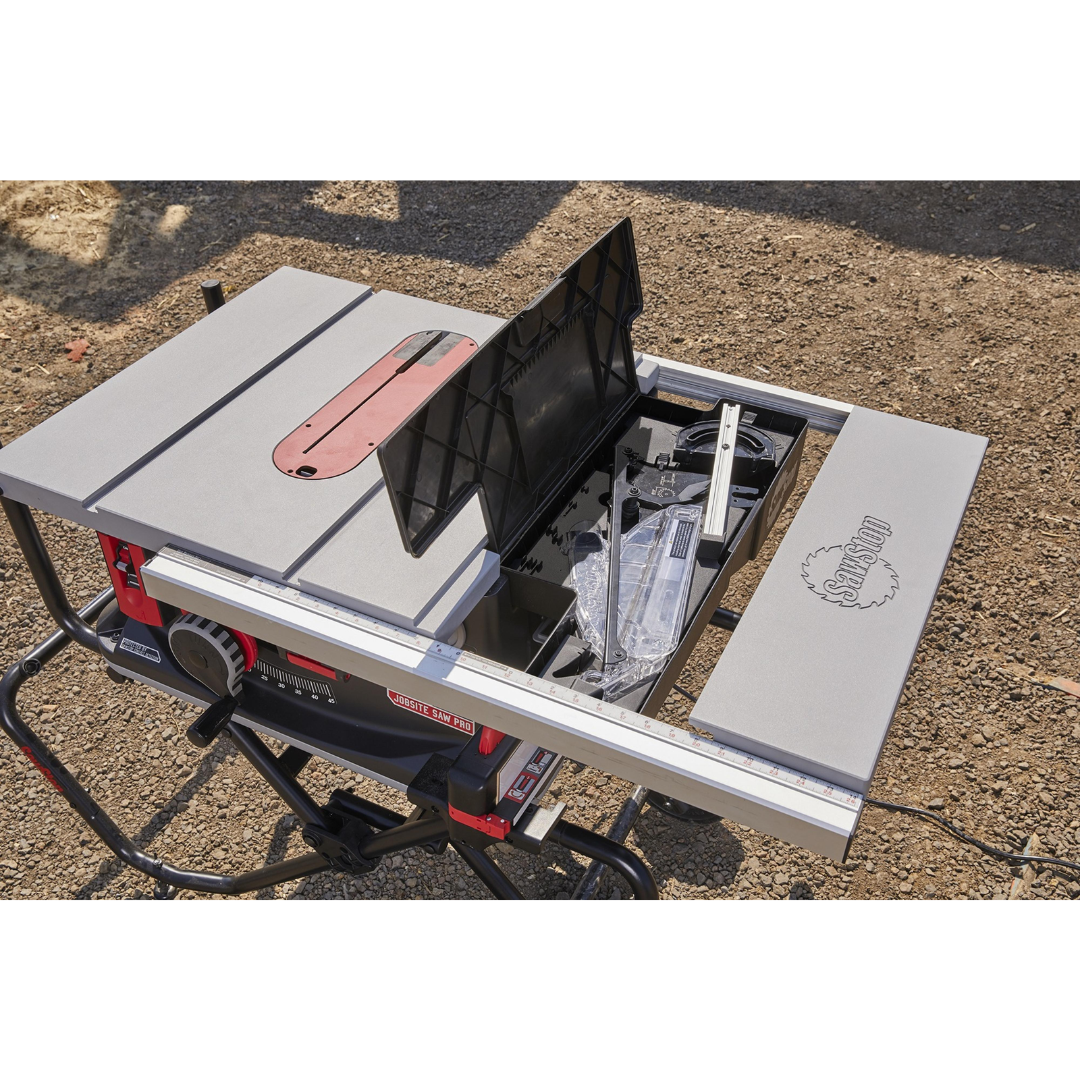

- Extended Table Width increases support for wider materials and improves cutting stability.
- Precision Fence Alignment helps ensure straight, accurate cuts throughout demanding jobsite conditions.
The Hi-Low T-Style Fence with Ergolock is engineered to provide fast adjustments, reliable locking performance, and professional-grade cutting precision.
SawStop Jobsite Saw PRO Dust Collection System
- Active Dust Collection Blade Guard captures dust above the table surface, helping create a cleaner and safer work environment.
- Internal Dust Collection Shroud is engineered to maximize dust extraction efficiency beneath the table.
- Dual Dust Collection Design captures debris from both above and below the blade for superior collection performance.
- Integrated Dust Ports simplify connection to dust extraction systems and jobsite vacuums.
- Polycarbonate Blade Guard Assembly improves visibility while enhancing dust capture effectiveness.
The advanced dust collection system helps improve visibility, reduce cleanup time, and maintain a cleaner working environment on active jobsites.
SawStop Jobsite Saw PRO Mobility & Safety Features
- SawStop Patented Safety System helps protect operators by stopping the blade upon contact with skin and dropping it below the table surface.

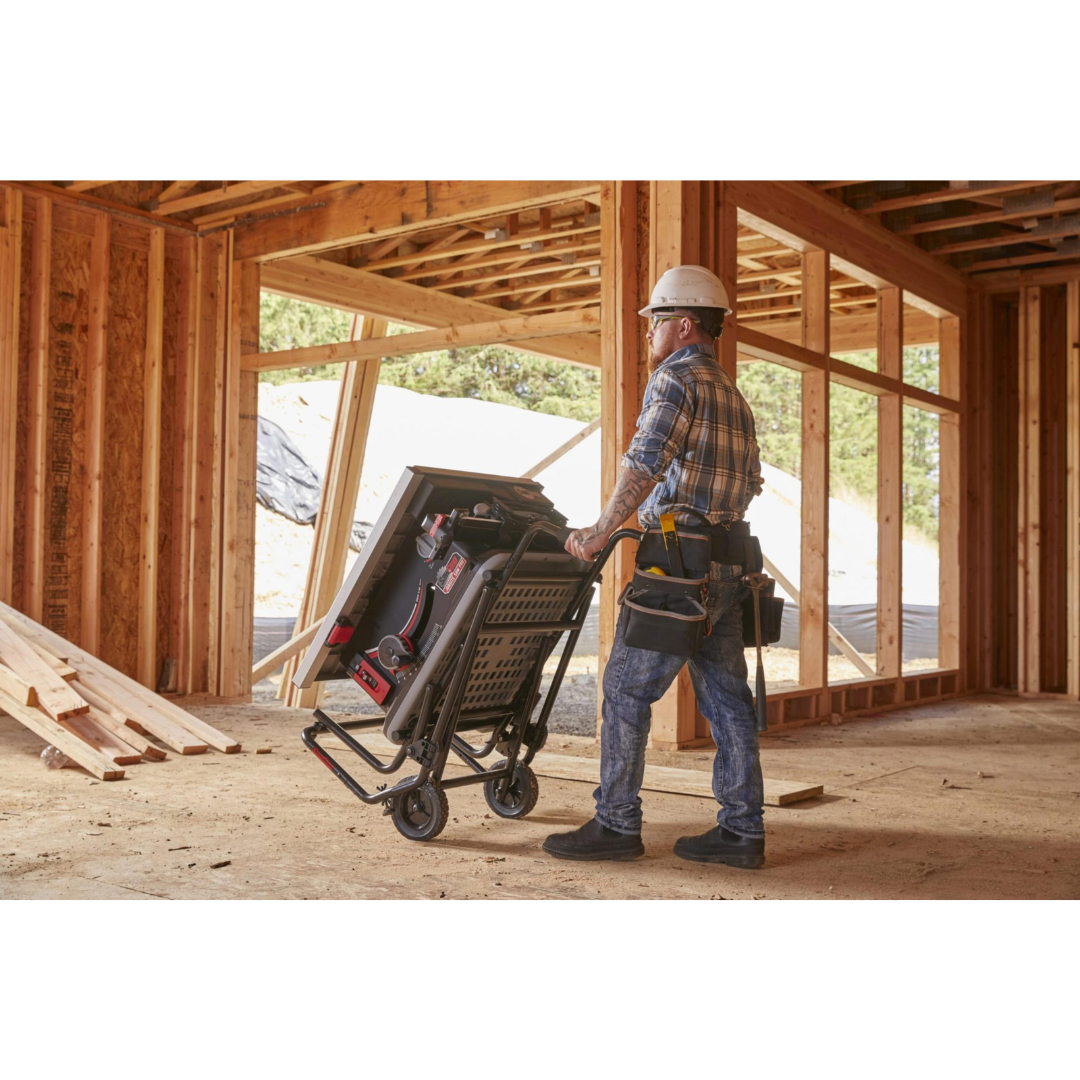

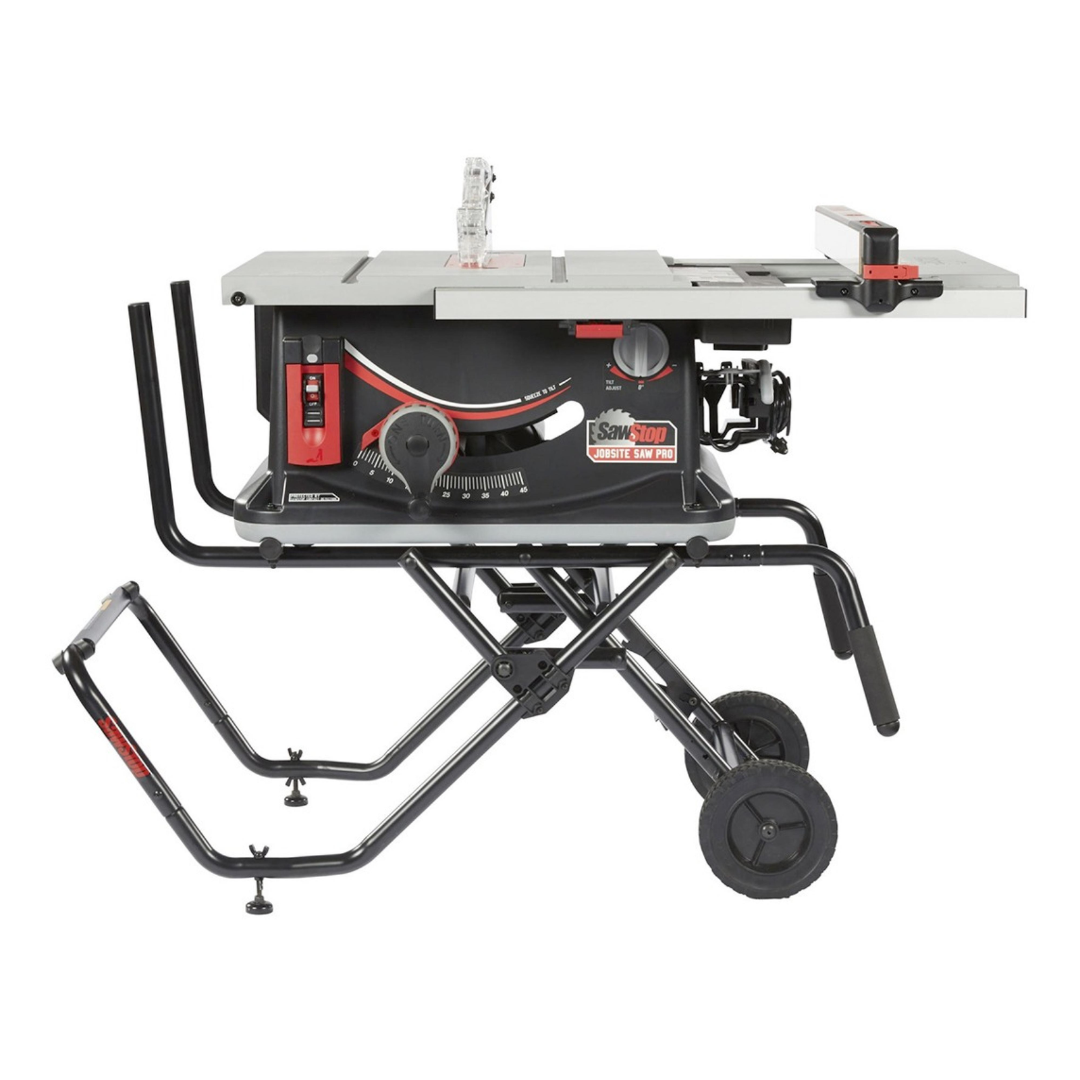

- Integrated Mobile Cart System quickly deploys for use and collapses for transportation and storage.
- Easy Mobility Design allows one person to move the saw efficiently around jobsites and workshops.

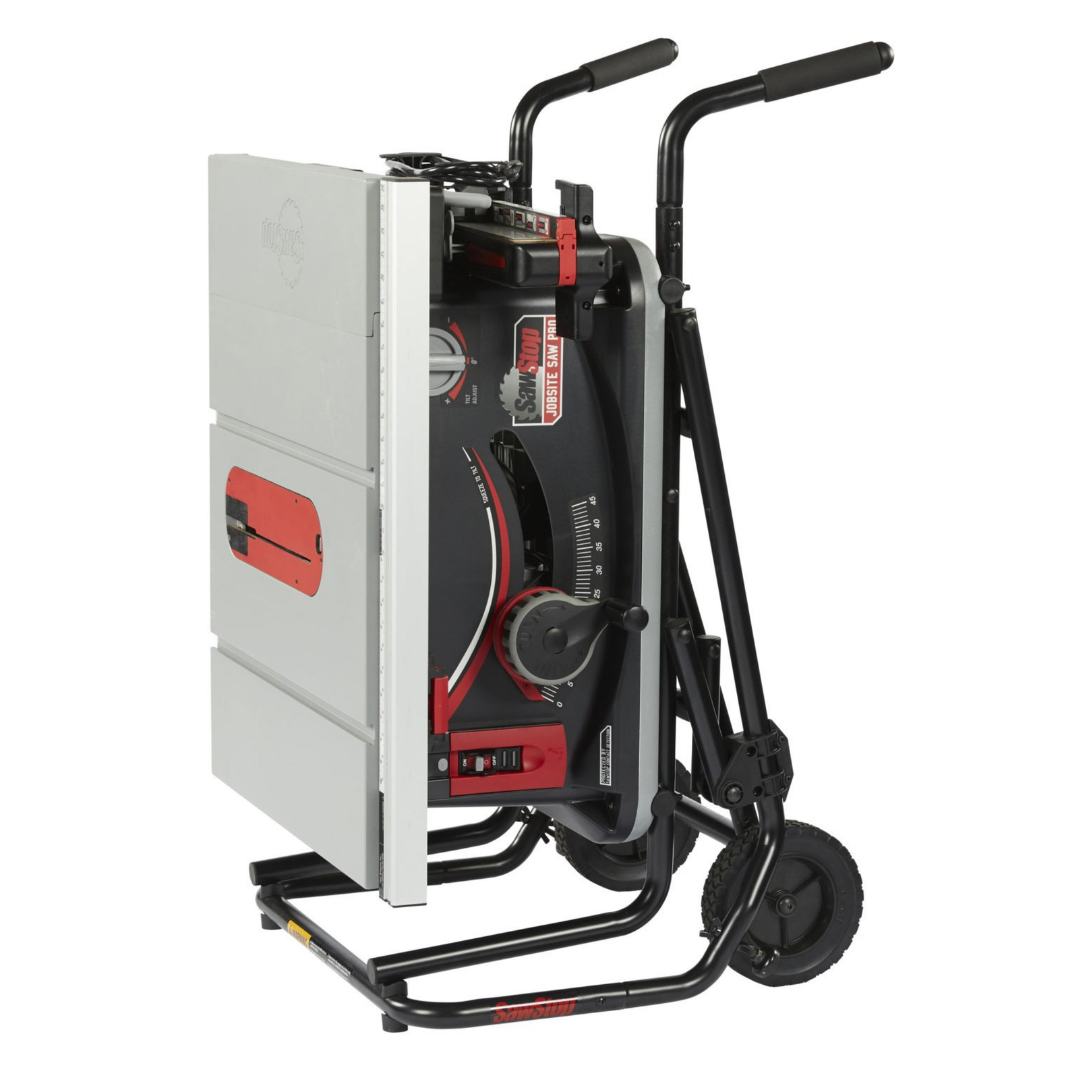

- Compact Stowed Footprint measures only 26-1/2" x 29" x 45" for convenient storage and transport.
- Durable Rolling Cart Construction withstands daily transportation and demanding professional use.
- Professional Jobsite Configuration includes the saw and mobile cart as a complete integrated package.
Why Choose the SawStop Jobsite Saw PRO
- Industry-leading SawStop safety technology.
- Professional-grade Hi-Low T-Style fence with Ergolock system.
- Large 25-1/2" rip capacity for versatile cutting applications.
- Class-leading table depth for improved stability and accuracy.
- One-turn blade elevation system for faster adjustments.
- Advanced dual-stage dust collection system.
- Integrated mobile cart for transportation and storage.
- Dado blade compatibility for expanded woodworking capabilities.
- Built for demanding professional jobsite environments.
- Two-year warranty with product registration.
The SawStop Jobsite Saw PRO combines precision engineering, superior mobility, advanced dust collection, and revolutionary safety technology into one of the most capable portable table saws available for professional contractors and serious woodworkers.
