SawStop Industrial Cabinet Saw Applications
- High-volume cabinet and furniture manufacturing facilities
- Industrial woodworking and millwork production environments
- Architectural woodworking and commercial fabrication shops
- Educational institutions and vocational training centers
- Production cutting of hardwoods, engineered panels, MDF, and composites
- Precision ripping, crosscutting, beveling, and joinery operations
- Multi-shift manufacturing environments requiring maximum reliability
- Custom woodworking shops seeking industrial-grade performance and safety
The SawStop Industrial Cabinet Saw is engineered for operations that demand maximum horsepower, extreme durability, exceptional precision, and the highest level of operator protection available.
SawStop Industrial Cabinet Saw Specifications
| Model Configuration | ICS73230-ATGI52 with 52" Industrial T-Glide Advance Fence Assembly |
|---|---|
| Motor Power | 7.5 HP TEFC Motor |
| Electrical Configuration | 230V, 3 Phase, 17.8A, 60Hz |
| Available Motor Options | 3 HP, 5 HP, and 7.5 HP Configurations |
| Blade Diameter | 10" |
| Included Blade | 40-Tooth Titanium Blade |
| Arbor Diameter | 5/8" |
| Dado Blade Capacity | 8" Dado Set Compatible |
| Maximum Dado Width | 29/32" |
| Maximum Depth of Cut at 0° | 3-1/8" |
| Maximum Depth of Cut at 45° | 2-1/4" |
| Maximum Rip Capacity Right of Blade | 52" |
| Maximum Rip Capacity Left of Blade | 12" |
| Blade Tilt | Left Tilt |
| Overall Dimensions | 85-1/4" W x 36-1/2" D x 34" H |
| Cabinet Footprint | 20" W x 25" D |
| Cast Iron Main Table | 24" W x 30" D |
| Cast Iron Table with Wings | 44" W x 30" D |
| Extension Wings | 10" W x 30" D Each |
| 52" Extension Table | 40" W x 30" D |
| Dust Collection Port | 4" |
| Approximate Saw Weight | 530 lbs |
| Assembled Weight with 52" Fence System | 685 lbs |
| Shipping Weight | 787 lbs (4 Boxes) |
| Shipping Dimensions | 40" W x 40" D x 40" H |
SawStop Industrial Cabinet Saw Strength & Stability
- Nearly 700 Pounds of Iron and Steel Construction delivers exceptional rigidity and vibration control for industrial production environments.
- Heavy-Duty Cabinet Architecture is engineered for continuous-duty operation in demanding manufacturing settings.
- Oversized Cast Iron Work Surface provides increased material support and cutting stability for large workpieces.

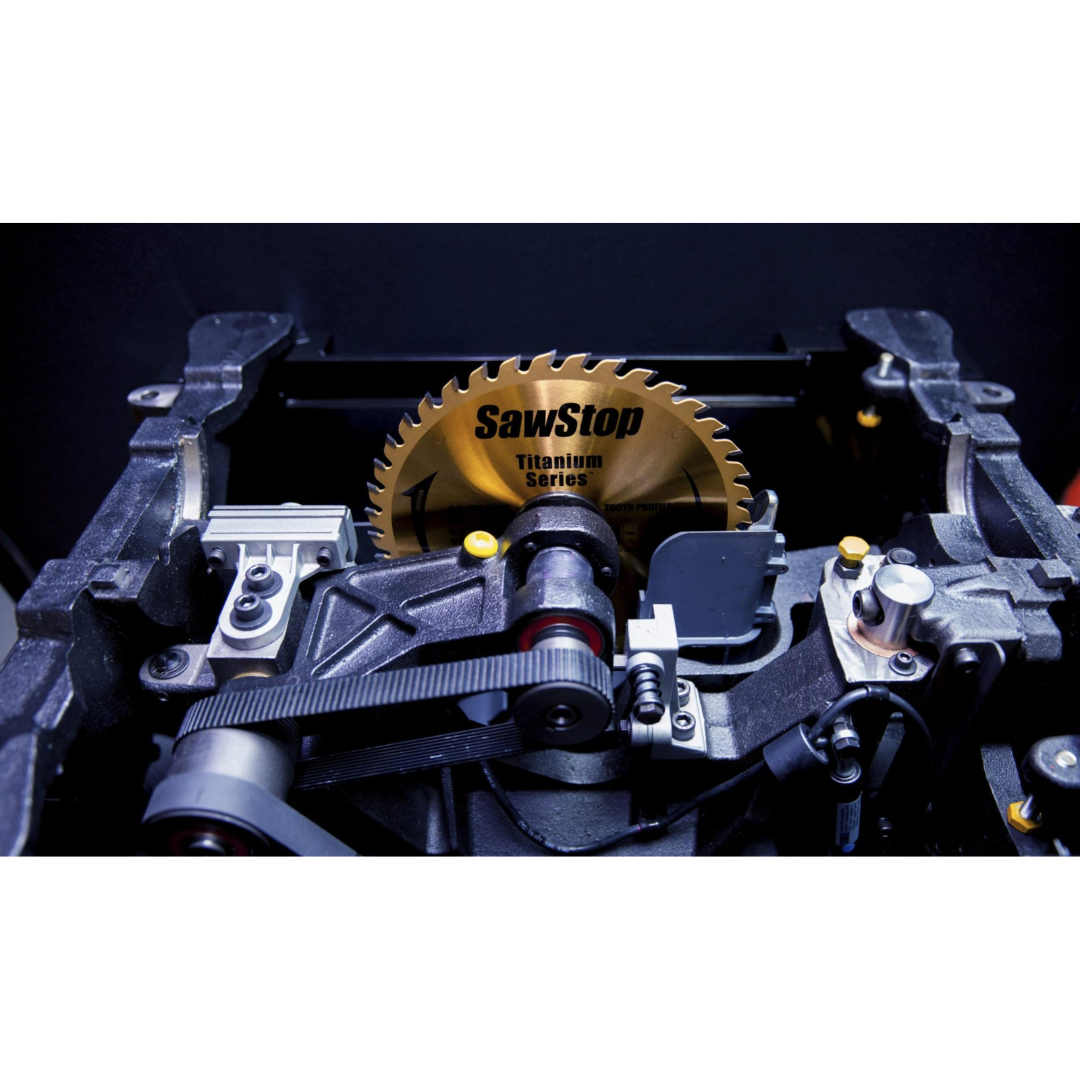

- Industrial-Grade Trunnion System delivers long-term alignment accuracy, strength, and cutting precision.
- Precision Arbor Assembly is designed for superior durability and smooth operation under heavy workloads.
- Ultra-Low Arbor Runout maintains a maximum allowable runout of just 0.001" for exceptional cut quality.
- Table Flatness Tolerance is measured diagonally with a maximum gap of only 0.010" for outstanding accuracy.

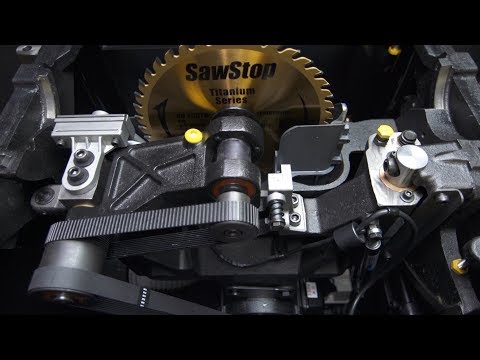

- Dual Static-Dissipative V-Ribbed Belts improve power transfer while minimizing vibration and enhancing cut quality.
Built specifically for industrial production environments, the SawStop Industrial Cabinet Saw delivers the strength, stability, and precision required for years of continuous operation.

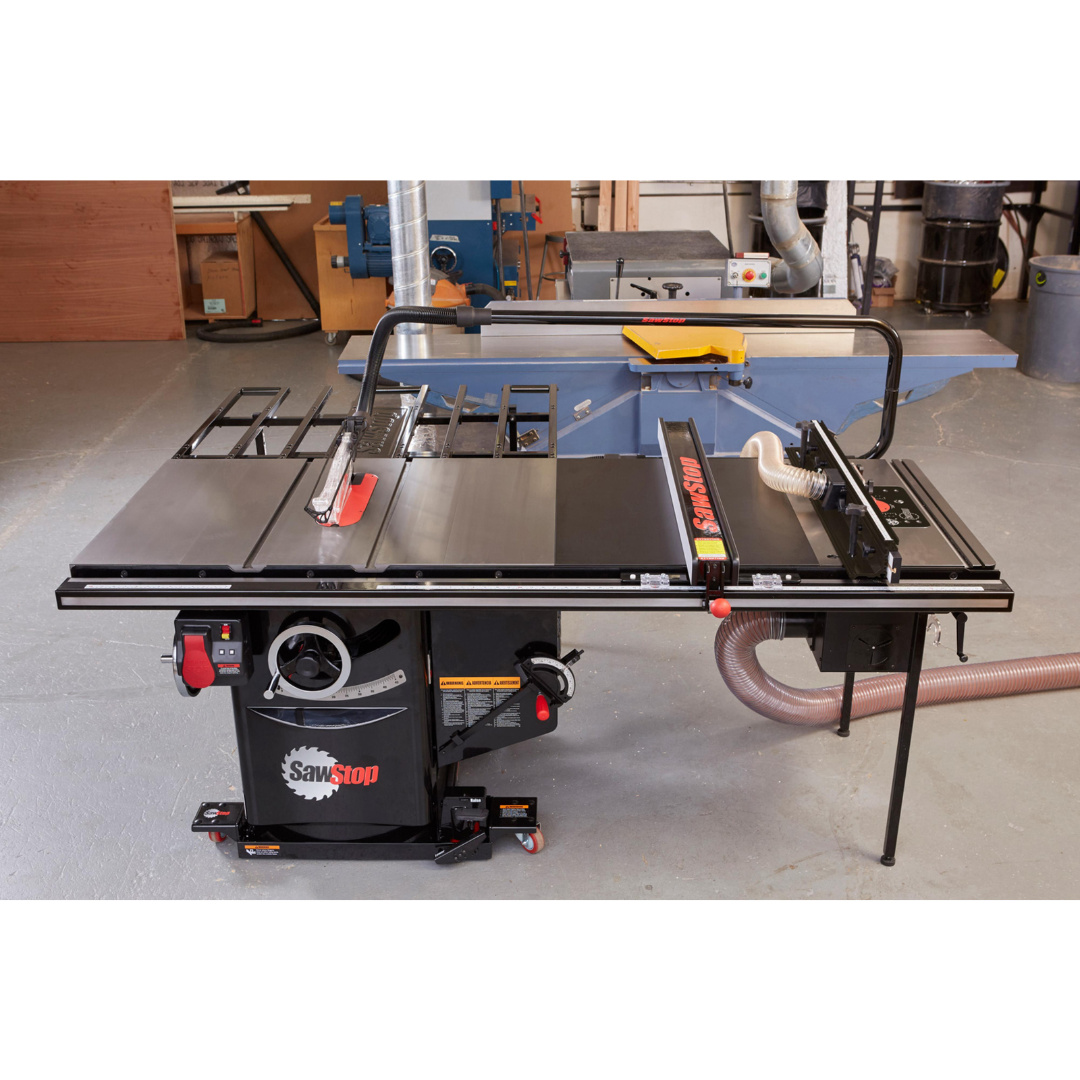

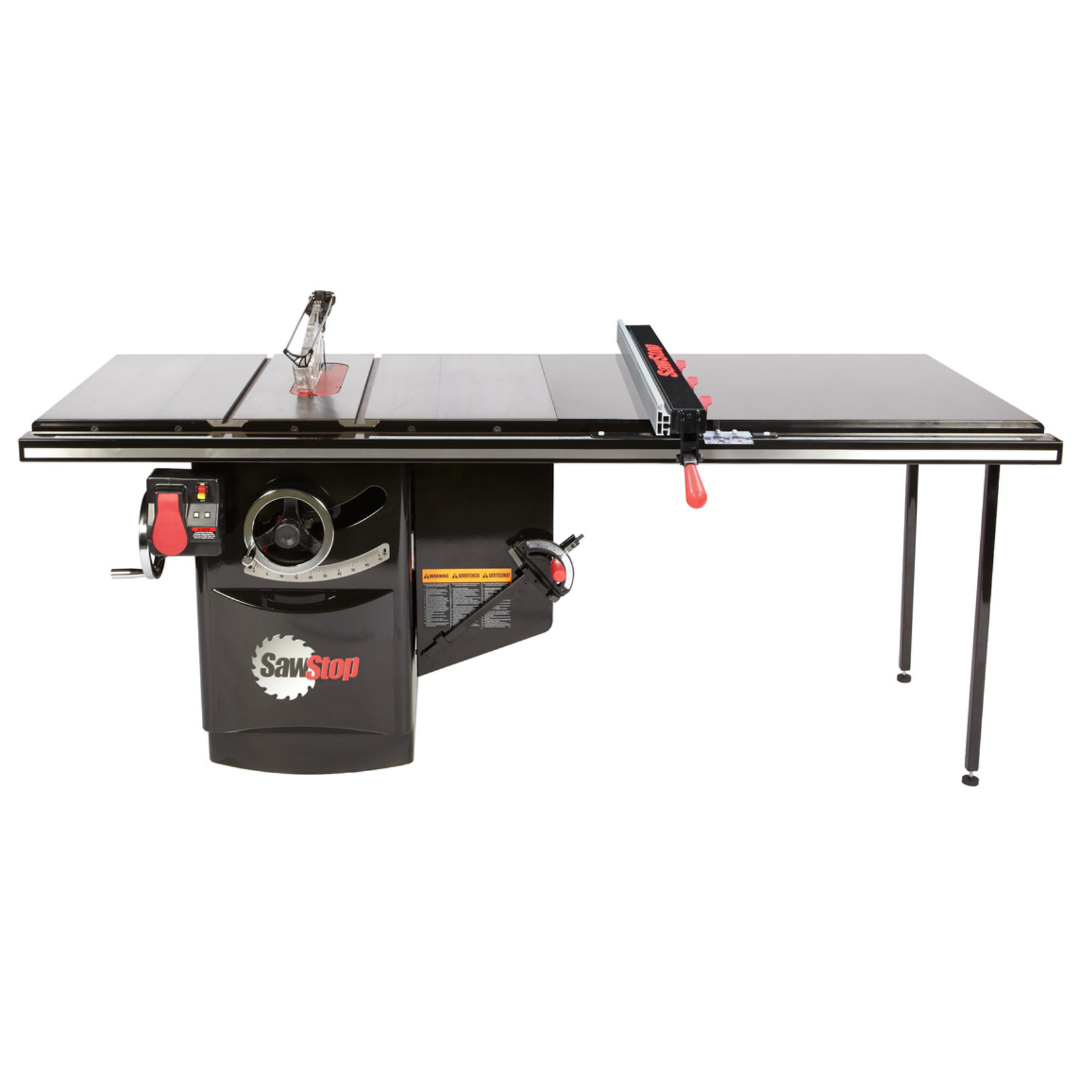

SawStop Industrial Cabinet Saw 52" T-Glide Advance Fence System
- Heavy-Gauge Steel Fence and Rail Construction provides exceptional rigidity and reliable long-term accuracy.
- 52" Rip Capacity supports full sheet processing, large cabinetry components, and oversized production workpieces.

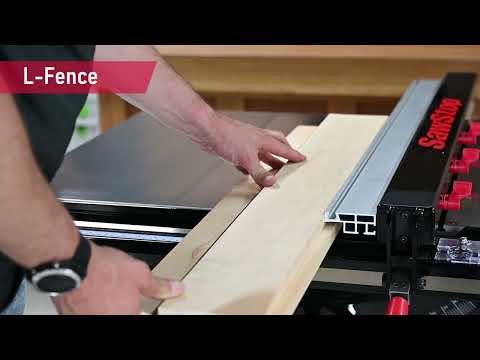

- Three Operating Positions include High Fence, Low Fence, and L-Fence configurations for maximum versatility.
- Dovetail Accessory Groove allows attachment of jigs, stops, featherboards, and production fixtures.
- Dual Magnified Measurement Indicators ensure accurate fence positioning in both high and low fence configurations.
- Positive Lockdown System delivers repeatable fence accuracy without deflection.
- Multi-Function Aluminum Fence Face improves flexibility across a wide range of cutting applications.
SawStop Industrial Cabinet Saw Dust Collection System
- 99% Dust Collection Efficiency helps maintain cleaner air and improved visibility in production environments.
- Included Dust Collection Blade Guard captures dust directly above the blade and work surface.
- Advanced Internal Blade Shrouding enhances below-table dust extraction performance.
- 4" Dust Collection Port easily integrates into central dust collection systems.
- Polycarbonate Dust Collection Blade Guard maintains visibility while maximizing dust capture effectiveness.
- Optional Overarm Dust Collection System (Model TSA-ODC, sold separately) further improves dust management by routing debris directly into the collection system.
The advanced dust collection system captures dust above and below the blade, helping maintain cleaner, safer, and more productive industrial workspaces.
SawStop Industrial Cabinet Saw Safety & Reliability
- SawStop Patented Safety System detects contact with skin and stops the blade in less than 5 milliseconds before dropping it beneath the table surface.
- Integrated Lock-Out / Tag-Out Switch prevents unauthorized operation and supports workplace safety protocols.
- Motor Access Panel Interlock Switches automatically prohibit operation whenever access doors are unlatched.
- Advanced Control Box Assembly houses the power controls, safety electronics, and onboard computer.
- Continuous System Monitoring constantly checks all critical operating systems to ensure safe operation.
- Professional Riving Knife System helps reduce kickback potential while maintaining cutting efficiency.
The SawStop Industrial Cabinet Saw combines patented blade-braking technology with industrial safety features to create one of the safest production cabinet saws available.
SawStop Industrial Cabinet Saw Included Components
- (2) Cast Iron Extension Wings
- (1) Miter Gauge
- (1) Dust Collection Blade Guard
- (1) Riving Knife
- (2) Blade Wrenches
- (1) Push Stick
- (1) 10" Titanium Blade
- (1) Standard Lockdown Insert
- (1) Standard Brake Cartridge
- (1) Owner's Manual
- (2) Hardware Packs
- (1) 3mm Hex Key
- (1) 5mm Hex Key
- (1) 8mm Hex Key
- (1) Blade Spacing Adjustment Gauge
Why Choose the SawStop Industrial Cabinet Saw
- Most powerful and heaviest-duty 10" cabinet saw in the SawStop lineup.
- Industrial-grade 7.5 HP motor for maximum production performance.
- Massive 685 lb assembled weight for exceptional stability.
- Professional 52" Industrial T-Glide Advance Fence System.
- 99% dust collection performance.
- Integrated Lock-Out / Tag-Out and interlock safety systems.
- Premium cast iron construction throughout.
- Ultra-low arbor runout and precision machining tolerances.
- Industry-leading SawStop safety technology.
- Designed for demanding industrial manufacturing environments.
The SawStop Industrial Cabinet Saw sets the standard for industrial woodworking equipment by combining unmatched power, extraordinary build quality, precision engineering, advanced dust collection, and revolutionary safety technology into a single production-ready machine built for the most demanding applications.
