SawStop Floating Overarm Dust Collection TSG-FDC Applications
- Professional woodworking and cabinet shops
- Furniture manufacturing operations
- Educational woodworking facilities and trade schools
- Production woodworking environments
- Fine woodworking and custom fabrication shops
- Table saw operations requiring enhanced dust control
- Standard through-cutting applications
- Non-through cutting and specialty woodworking operations
Ideal for woodworkers seeking improved dust collection performance, cleaner shop air, enhanced operator protection, and greater visibility during cutting operations.
SawStop Floating Overarm Dust Collection TSG-FDC Specifications
| Part Number | TSG-FDC |
|---|---|
| Net Weight | 58 lbs |
| Blade Guard Dimensions | 3-1/2" x 18-1/2" |
| Distance Between Blade and End of Extension Table | 35-3/4" to 68" |
| Inner Dust Tube Diameter | 3" |
| Outer Dust Tube Diameter | 4" |
| Outer Dust Tube Height Above Table | 13-1/2" |
| Outer Dust Tube Height Above Floor | 33-1/2" to 50" |
| Recommended Minimum Airflow | 400 CFM |
SawStop Floating Overarm Dust Collection TSG-FDC Dust Collection Performance

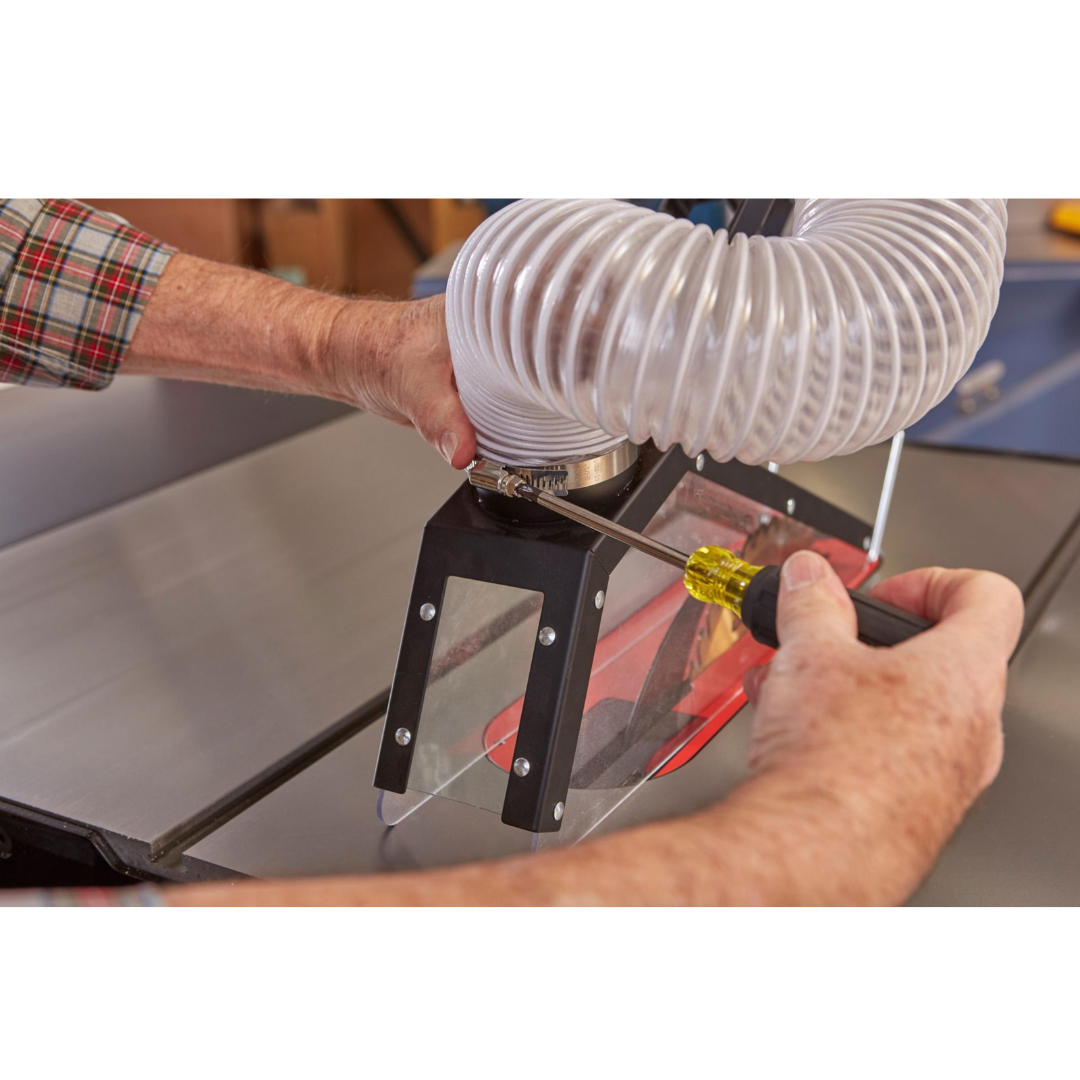

- Large 4" Dust Collection Tube provides high-volume airflow for efficient above-table dust extraction.
- Direct Source Dust Capture removes airborne particles at the blade before they disperse throughout the shop.
- Dedicated 4" Extraction Port maximizes dust collection efficiency while requiring only a minimum of 400 CFM airflow.
- Above-Table Dust Collection Design helps reduce airborne wood dust and improves shop cleanliness.
- Improved Air Quality helps create a safer and healthier woodworking environment.
- Compatible with Standard Dust Collection Systems for easy integration into existing shop setups.

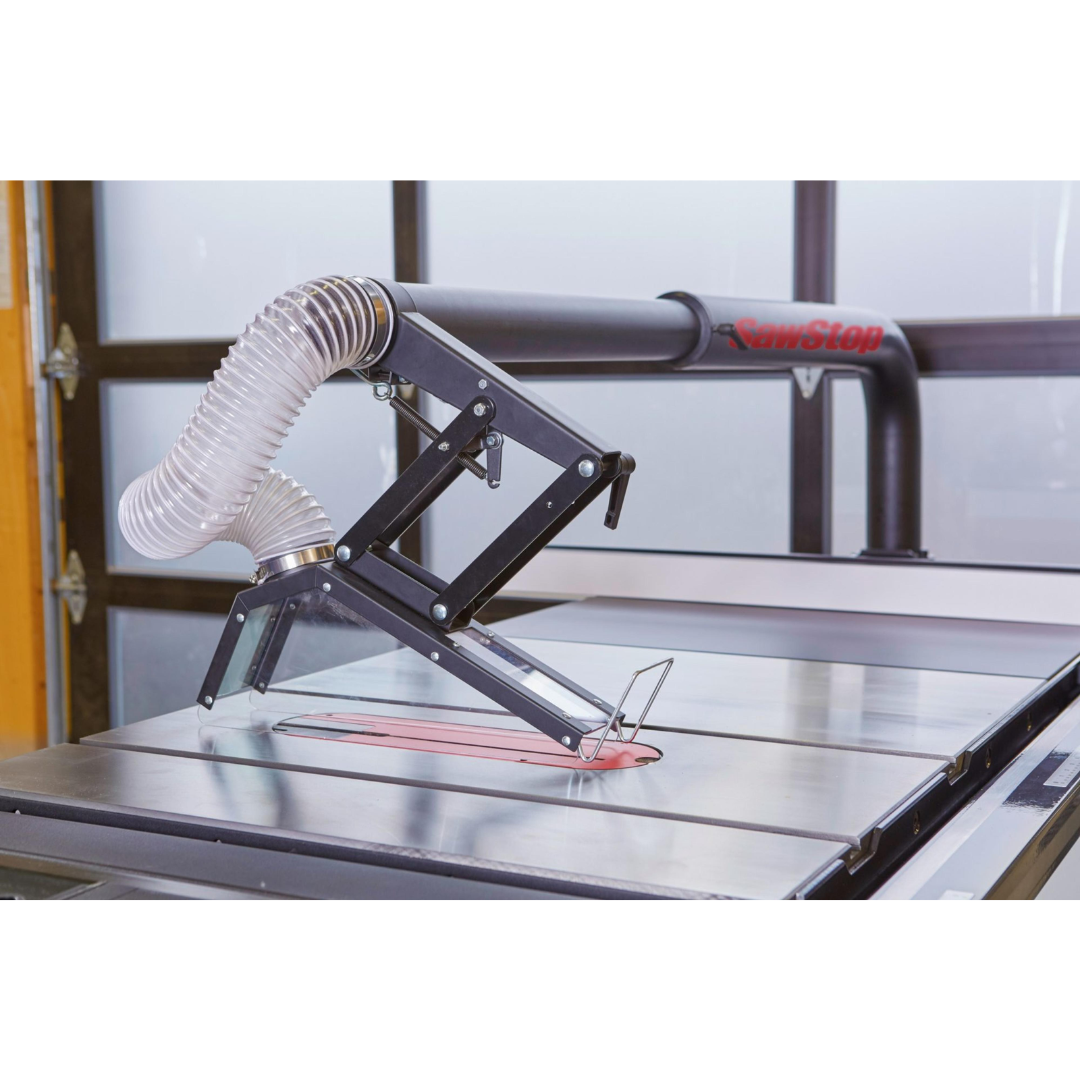

Capturing dust directly above the blade significantly reduces airborne particles and improves visibility during cutting operations.
SawStop Floating Overarm Dust Collection TSG-FDC Adjustable Blade Guard

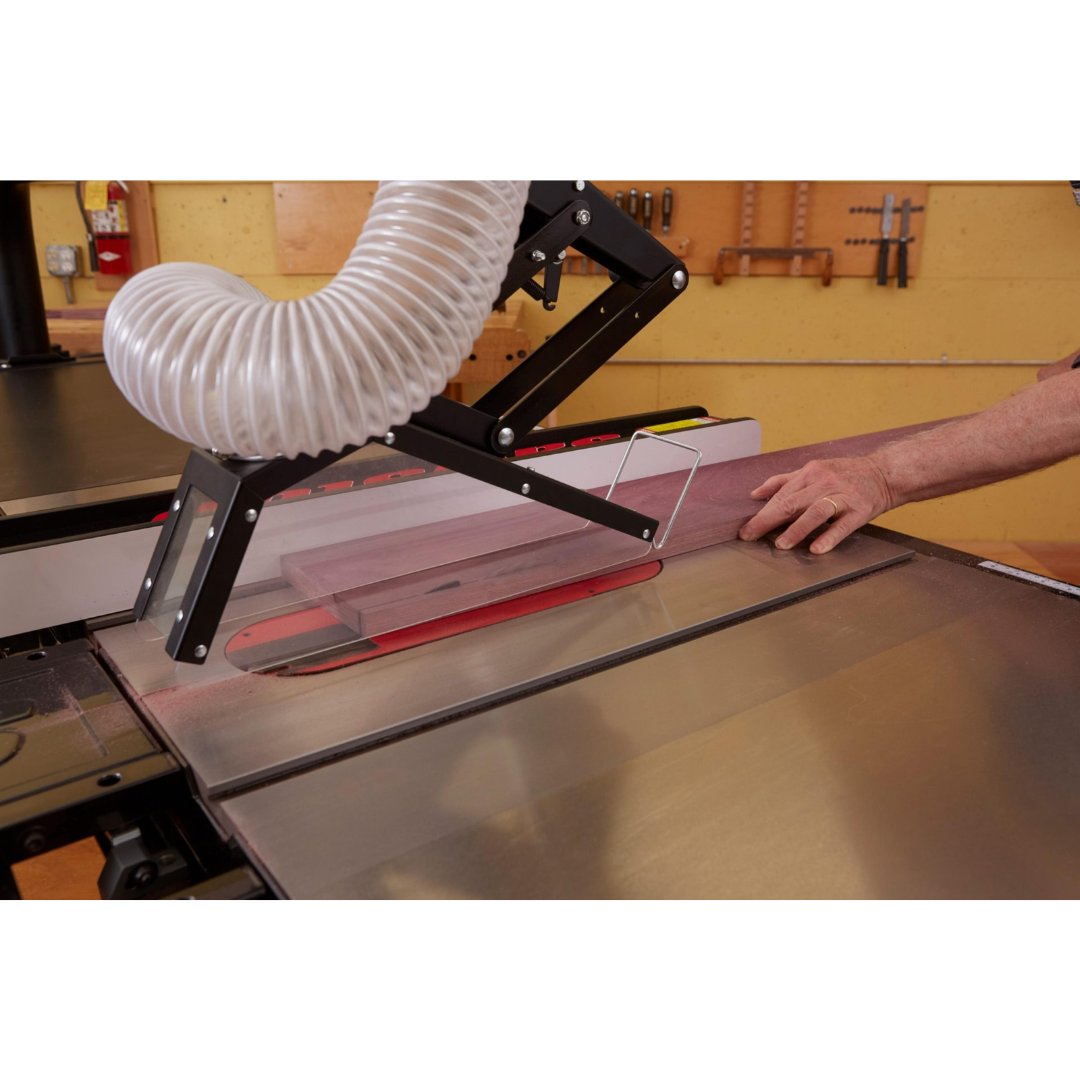

- Transparent Blade Cover improves visibility while maintaining operator protection during cutting operations.
- Supports Standard and Non-Through Cuts for greater versatility across different woodworking applications.

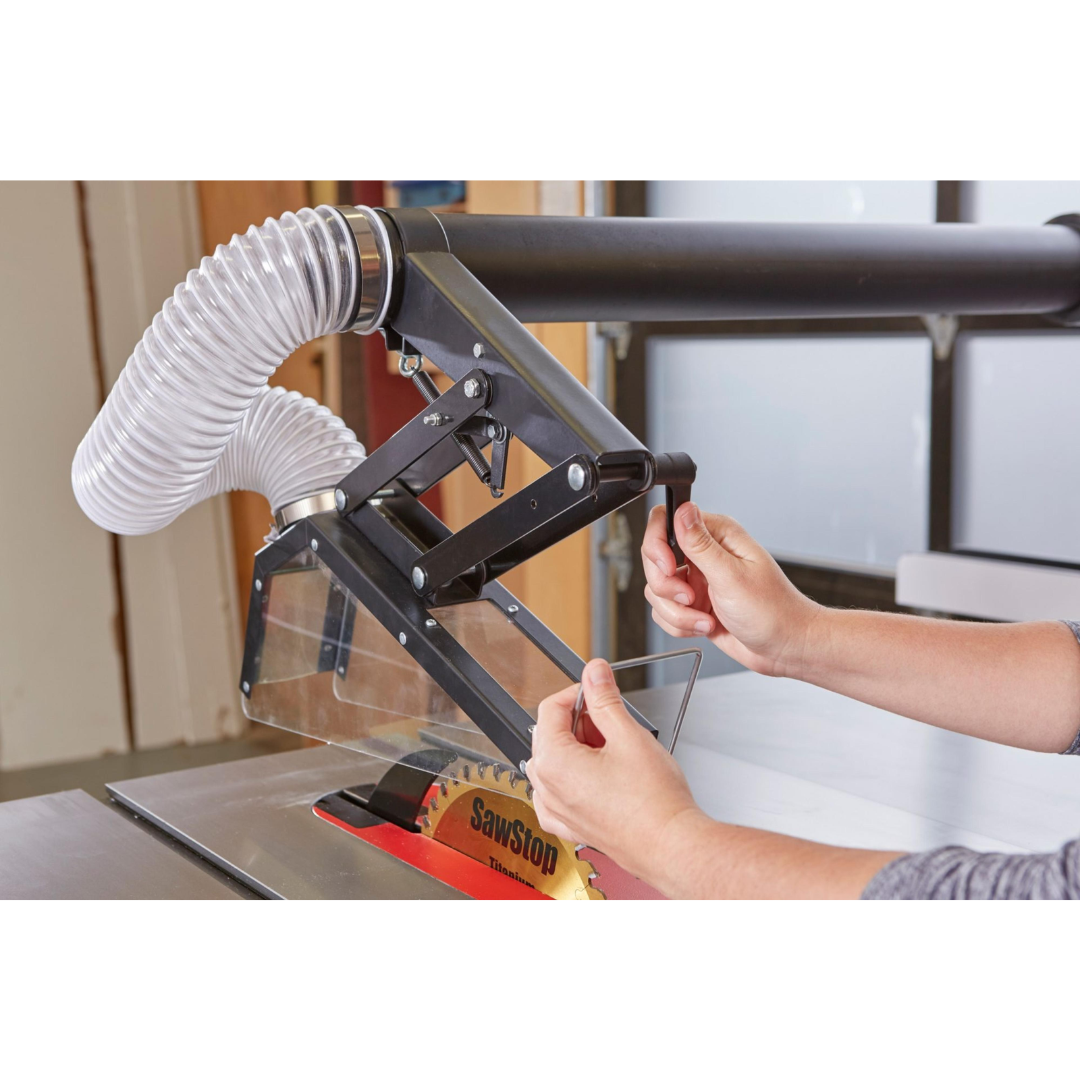

- Quick-Lift Design allows fast and convenient blade access for blade changes and adjustments.
- Locking Mechanism secures the blade guard in position when not actively being used.
- Narrow-Cut Visibility Enhancement helps operators maintain precise control while performing detailed cutting tasks.
- Integrated Safety Protection adds an additional layer of protection while maintaining productivity.
SawStop Floating Overarm Dust Collection TSG-FDC Versatility & Adjustment
- Adjustable Dust Collection Tube accommodates various SawStop cast iron table saw configurations.

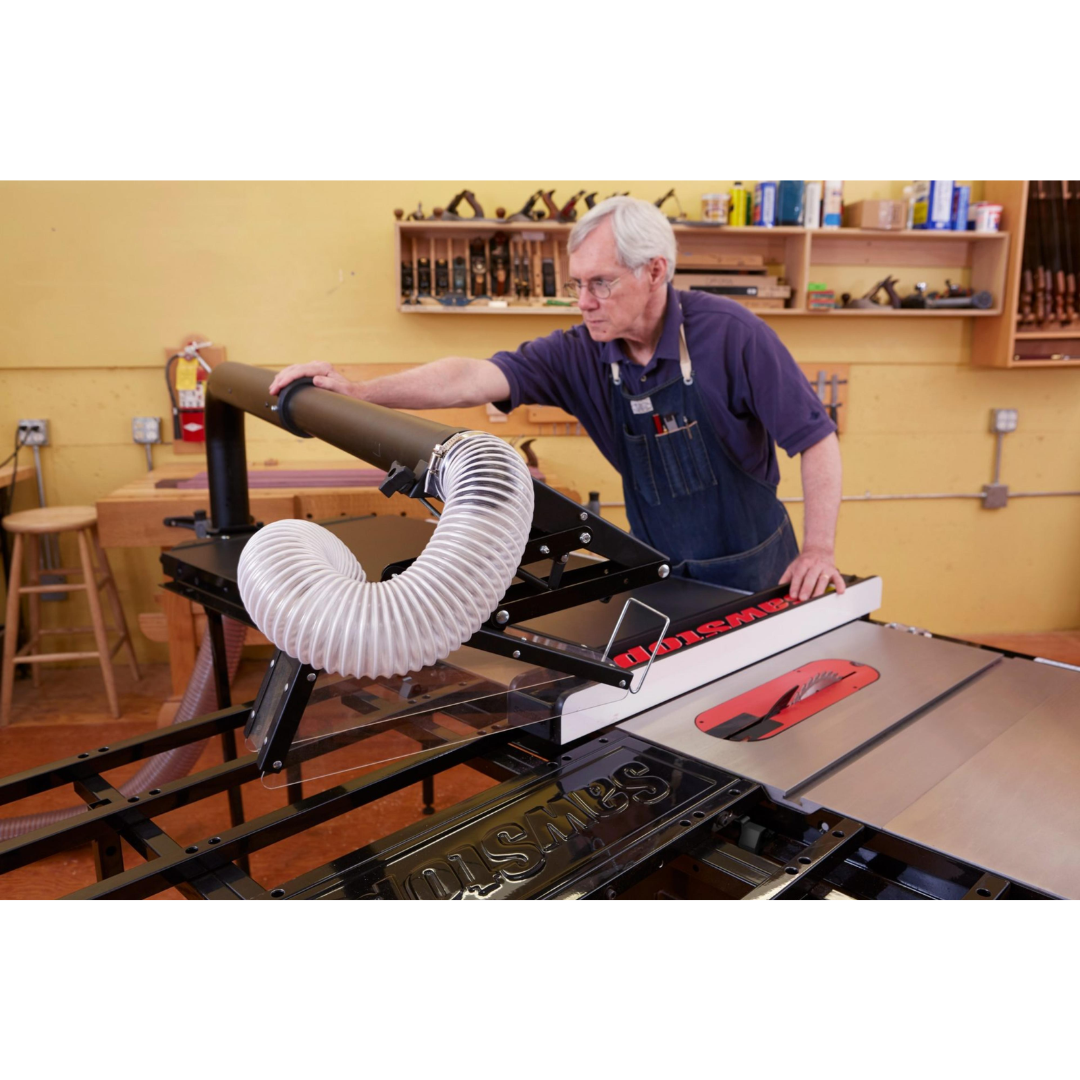

- Smooth Swing-Away Operation allows the overarm to move out of the work area when necessary.
- Quick Positioning System returns the arm easily to its operating position.
- Dust Tube Lock Knob enables simple adjustment and secure positioning.
- Removable Assembly can be detached and stored when not required.
- Wide Adjustment Range supports extension table configurations from 35-3/4" to 68".

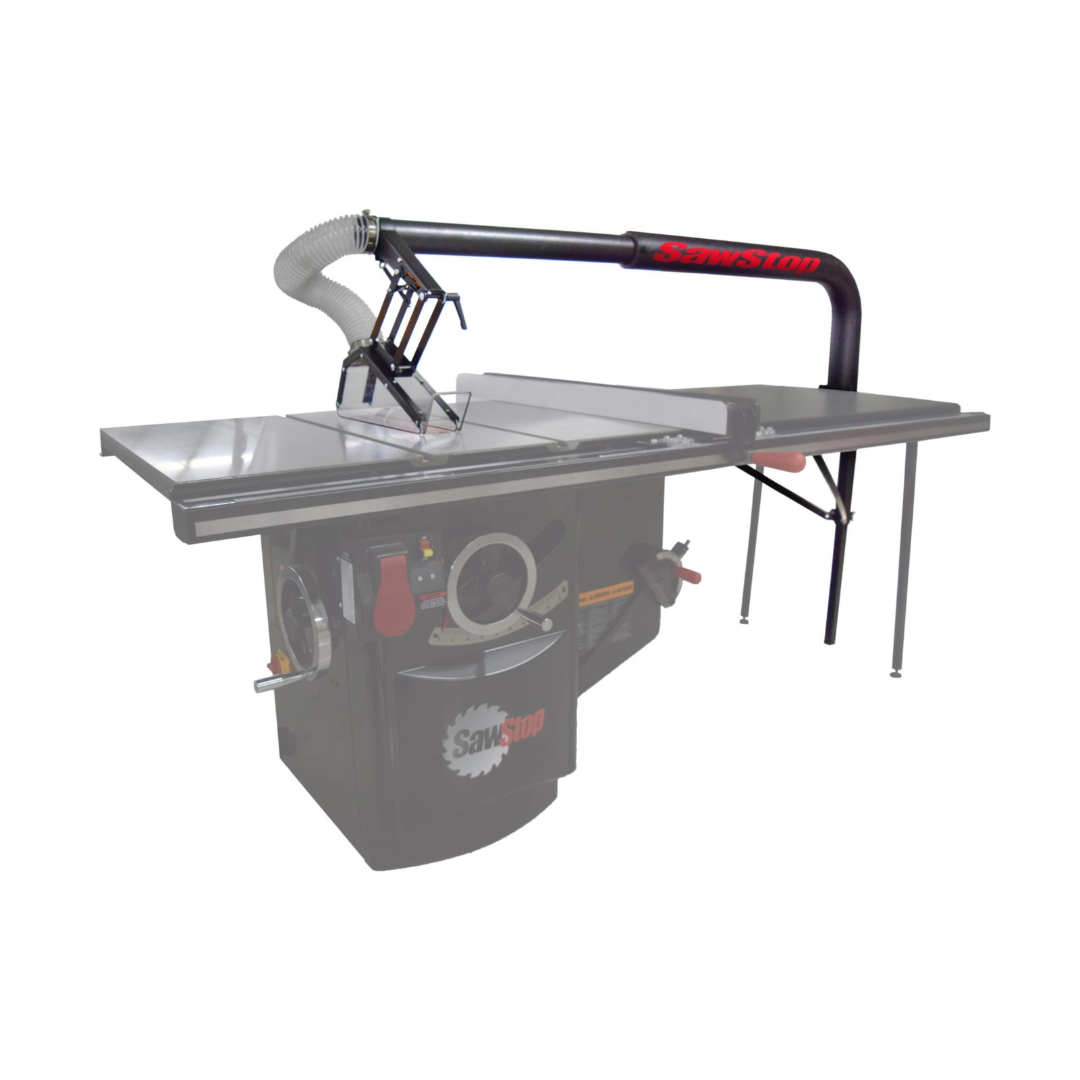

The floating overarm design provides flexibility for changing work requirements while maintaining effective dust collection performance.
SawStop Floating Overarm Dust Collection TSG-FDC Construction & Durability
- Heavy-Duty Powder-Coated Aluminum Construction provides long-term durability and corrosion resistance.
- Rigid Support Structure maintains stability during operation and supports the large dust collection tube.
- Steel Overarm Assembly swings smoothly while maintaining precise positioning.
- Under-Table Support Leg System connects beneath the extension table to maximize rigidity.
- Industrial-Grade Components are designed for daily professional woodworking use.
- Precision Engineered Design balances durability, functionality, and ease of operation.
Why Choose the SawStop Floating Overarm Dust Collection TSG-FDC
- Captures dust directly above the blade for cleaner operation.
- Large 4" dust collection tube supports high-volume airflow.
- Requires only 400 CFM minimum airflow.
- Transparent blade guard improves visibility and protection.
- Compatible with standard and non-through cutting operations.
- Adjustable design accommodates multiple SawStop configurations.
- Heavy-duty powder-coated aluminum construction.
- Smooth swing-away operation for easy access and setup.
- Quick-lift blade guard simplifies blade changes and maintenance.
- Improves air quality and workplace cleanliness.
The SawStop Floating Overarm Dust Collection TSG-FDC combines effective above-table dust extraction, enhanced operator protection, excellent visibility, and rugged construction to create a professional dust management solution for demanding woodworking environments.
