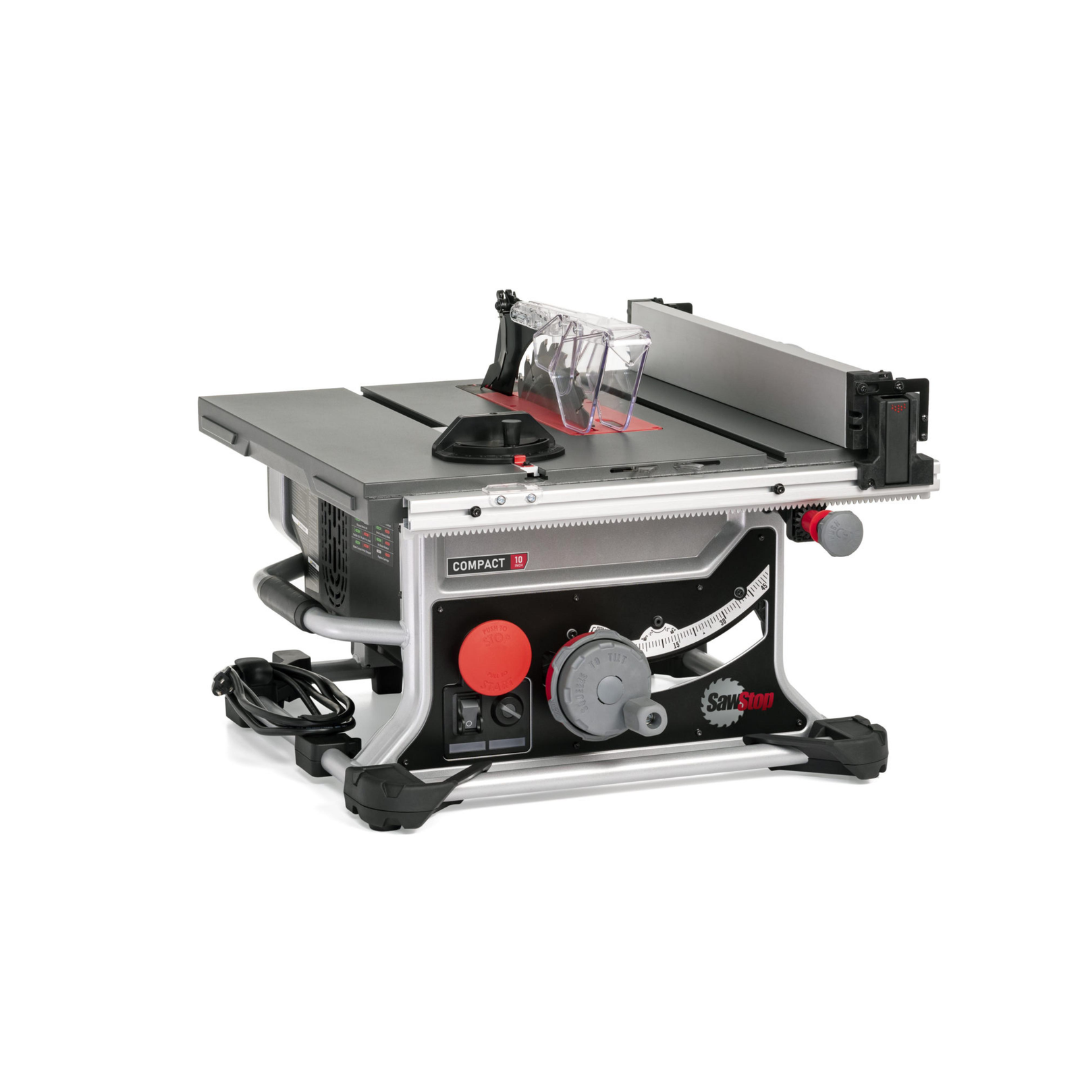

SawStop Compact Table Saw Applications
- Residential and commercial construction projects
- Jobsite ripping, crosscutting, bevel cutting, and trim work
- Cabinet installation and custom woodworking projects
- Finish carpentry and remodeling applications
- Workshop and garage-based woodworking operations
- Furniture building and hobby woodworking
- Contractors requiring portable precision cutting equipment
- Mobile woodworking professionals needing compact transportation
The SawStop Compact Table Saw is ideal for professionals and serious woodworkers who need maximum portability without sacrificing accuracy, power, or safety.
SawStop Compact Table Saw Specifications
| Motor Configuration | 120 VAC, 60 Hz Universal Motor |
|---|---|
| Amperage | 15A |
| No-Load Speed | 4,000 RPM |
| Blade Size | 10" (Not Compatible with Dado Blades) |
| Maximum Depth of Cut at 0° | 3-1/8" (79.5 mm) |
| Maximum Depth of Cut at 45° | 2-1/8" (54 mm) |
| Maximum Rip Capacity Right of Blade | 24-1/2" (648 mm) |
| Maximum Rip Capacity Left of Blade | 9-1/2" (241 mm) |
| Table Surface | 23" W x 22-5/8" D |
| Overall Footprint | 14-1/4" H x 23-1/2" W x 27" D |
| Dust Port Diameter | 2-1/2" |
| Machine Weight | 68 lbs |
| Shipping Dimensions | 27" W x 31" D x 18" H |
| Shipping Weight | 79 lbs |
| Warranty | Two-Year Warranty with Product Registration |
SawStop Compact Table Saw Performance & Features
- SawStop Patented Safety System instantly detects contact with skin and stops the blade in less than 5 milliseconds before dropping it below the table surface, helping reduce the severity of potential injuries.
- 10" High-Capacity Blade provides excellent cutting depth and versatility for handling dimensional lumber, sheet goods, hardwoods, plywood, and trim materials.

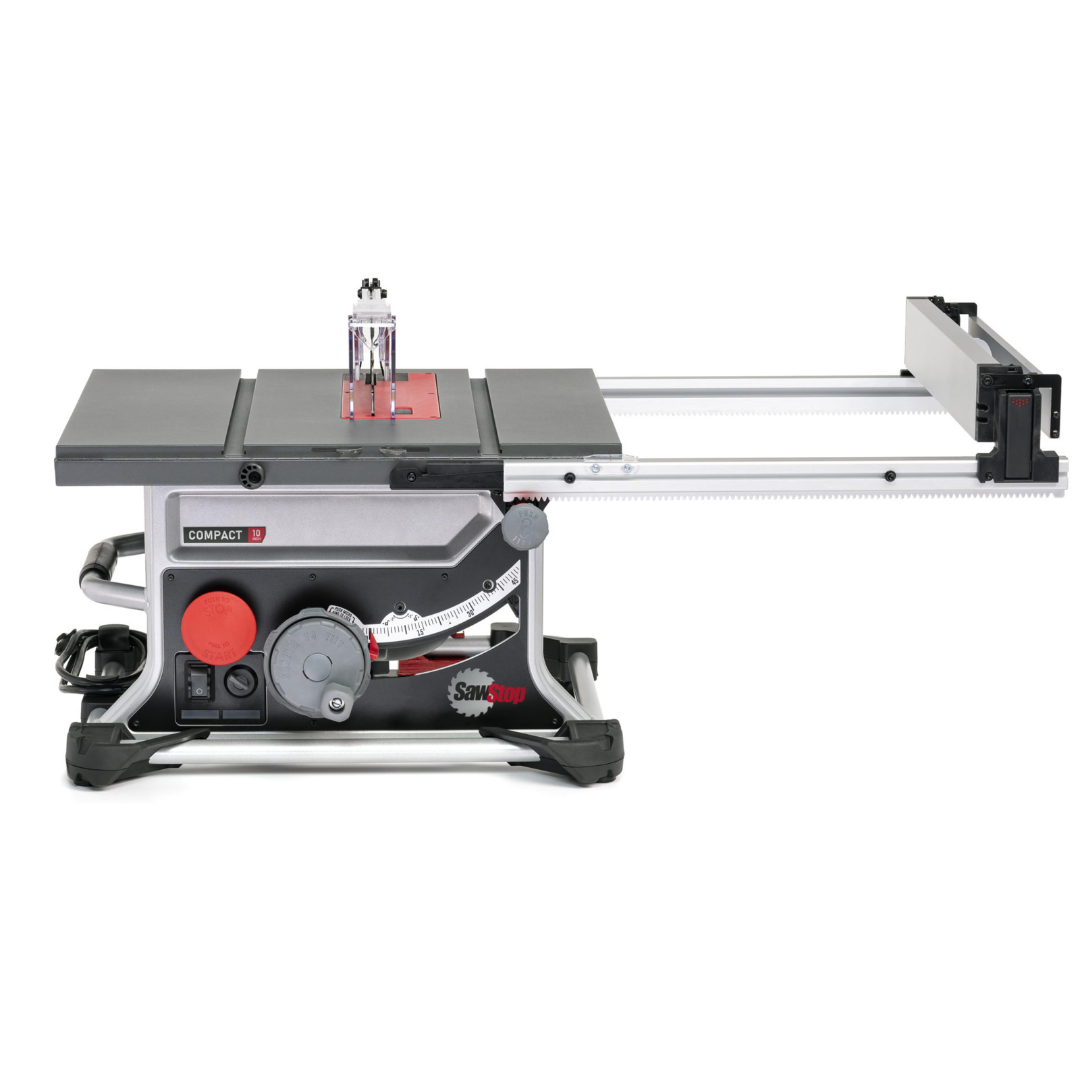

- Rack & Pinion Fence System delivers smooth adjustments and reliable squareness while supporting rip capacities up to 24-1/2" to the right of the blade.
- Hi-Low Fence Faces offer enhanced material support for a wide variety of cuts while improving control and accuracy during operation.
- Exclusive Micro-Adjust Bevel System allows users to dial in highly precise bevel settings for professional-quality angled cuts.
- Quick-Tilt Bevel Adjustment enables fast one-handed blade angle changes for increased productivity and jobsite efficiency.
- 15 Amp Universal Motor generates dependable cutting power with a no-load speed of 4,000 RPM for smooth material processing.
- Rigid Tube Frame Construction provides durability and stability while maintaining lightweight portability.
- Rubber Foot Design helps reduce movement and vibration while improving overall cutting stability.

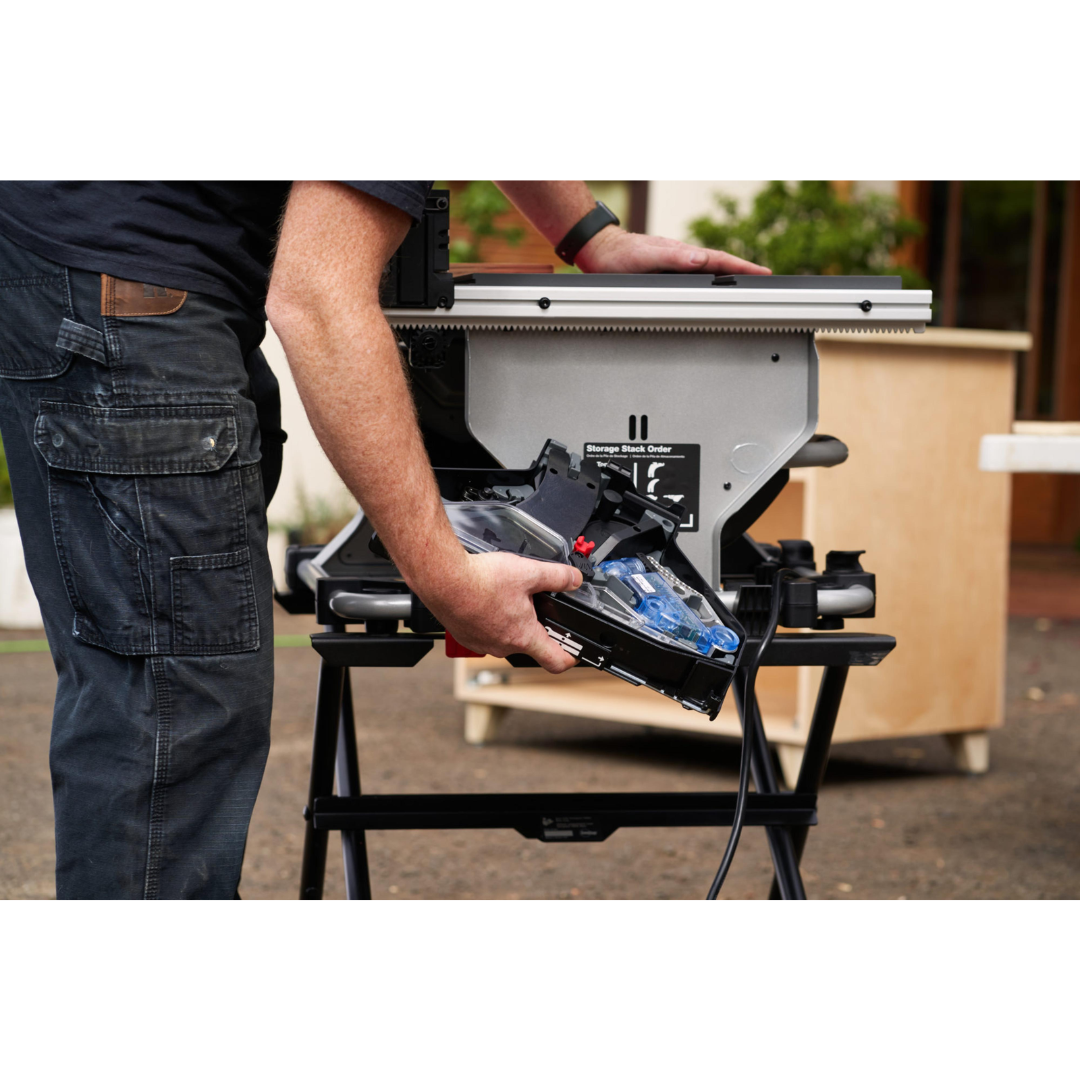

- Integrated On-Saw Storage Compartment keeps essential accessories, tools, and components organized and readily accessible.
- Standard Width Miter Slot supports a variety of accessories and precision-guided cutting operations.

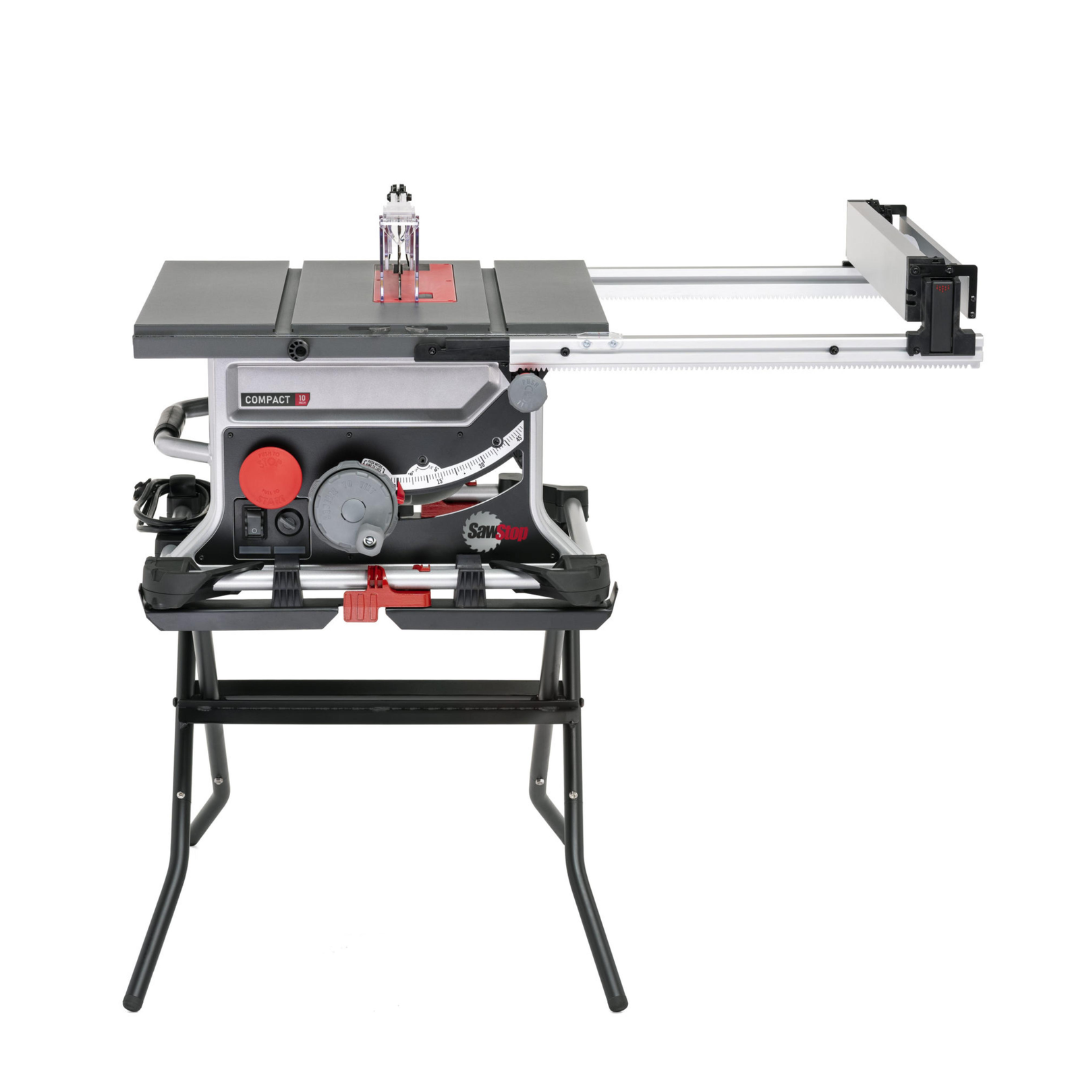

- Optional Folding Stand Compatibility allows users to create a convenient workstation for improved mobility and setup flexibility.
- Compact Lightweight Design weighs only 68 pounds and can be carried using the integrated suitcase-style handle or dual side grips.
SawStop Compact Table Saw Safety Technology
The defining feature of the SawStop Compact Table Saw is its revolutionary patented safety system. Unlike traditional table saws, this technology continuously monitors the blade for contact with human skin. Upon detection, the system activates immediately, stopping the blade in less than 5 milliseconds and retracting it beneath the table surface. This innovative protection system has helped establish SawStop as one of the most trusted names in woodworking safety.
SawStop's patented safety technology provides an additional layer of protection that helps minimize the risk of severe blade-related injuries while maintaining professional cutting performance.

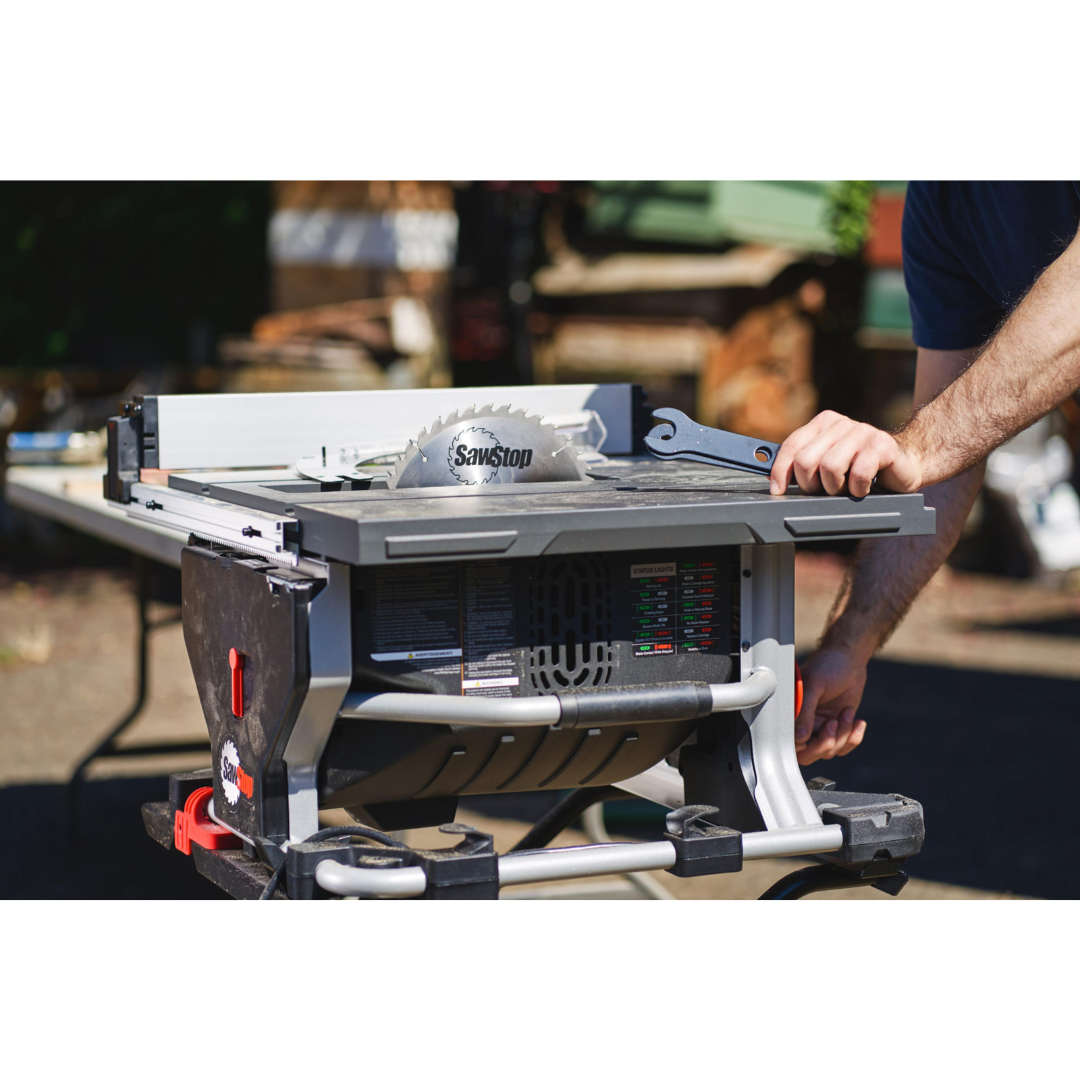

SawStop Compact Table Saw Portability & Jobsite Convenience
- Lightweight 68 lb design for easy transportation.
- Integrated carry handle functions like a suitcase for convenient mobility.
- Dual side grip carrying points support two-handed transport.
- Compact footprint fits easily into work vehicles, trailers, and storage areas.
- Built-in storage compartment keeps accessories organized during transport.
- Fast setup and teardown for efficient jobsite workflow.
Designed specifically for professionals on the move, the SawStop Compact Table Saw combines portability, durability, and precision cutting performance in one compact package.
Why Choose the SawStop Compact Table Saw
- Industry-leading SawStop safety technology.
- Compact and lightweight design for easy transportation.
- Professional-grade rack and pinion fence accuracy.
- Exclusive micro-adjust bevel system for precision angle control.
- Powerful 15A motor with 4,000 RPM blade speed.
- Large 24-1/2" rip capacity for versatile cutting applications.
- Durable construction engineered for demanding jobsite use.
- Integrated storage and optional folding stand compatibility.
- Two-year warranty with product registration.
The SawStop Compact Table Saw delivers a rare combination of advanced safety, professional cutting accuracy, powerful performance, and true portability. Whether you're working on a construction site, remodeling project, or woodworking shop floor, this compact table saw provides the confidence and capability needed to produce exceptional results.
