SawStop 30″ In-Line Router Table RT-TGI Applications
- Cabinet and furniture manufacturing
- Decorative edge profiling and trimming
- Precision joinery including rabbets, dados, and grooves
- Raised panel door construction
- Template routing and pattern duplication
- Professional woodworking and custom millwork production
- Workshops seeking to combine table saw and router functionality into one efficient workstation
Designed for woodworkers who want premium cast iron routing performance while maximizing workspace efficiency within their SawStop table saw setup.
SawStop 30″ In-Line Router Table RT-TGI Specifications
| Model | RT-TGI |
|---|---|
| Cast Iron Table Size | 30" × 16" |
| Router Table Opening | 11-3/4" × 9-1/4" |
| Maximum Fence Travel | 5-1/2" |
| Front T-Slot to Arbor Center | 6-1/2" |
| Rear T-Slot to Arbor Center | 5" |
| Fence Length | 35-3/4" |
| Fence Height | 3-1/2" |
| Fence Depth | 4" |
| Front Miter T-Slot Width | 3/8" Top × 1/2" Bottom |
| Rear Miter T-Slot Width | 3/4" Top × 1" Bottom × 3/8" Deep |
| Dust Collection Port | 2.25" |
SawStop 30″ In-Line Router Table RT-TGI Features & Performance
- Heavy-Duty Cast Iron Construction provides exceptional rigidity, vibration reduction, and long-term durability for precision routing operations.
- Large 30" × 16" Work Surface offers generous support for larger workpieces while maintaining routing accuracy and control.

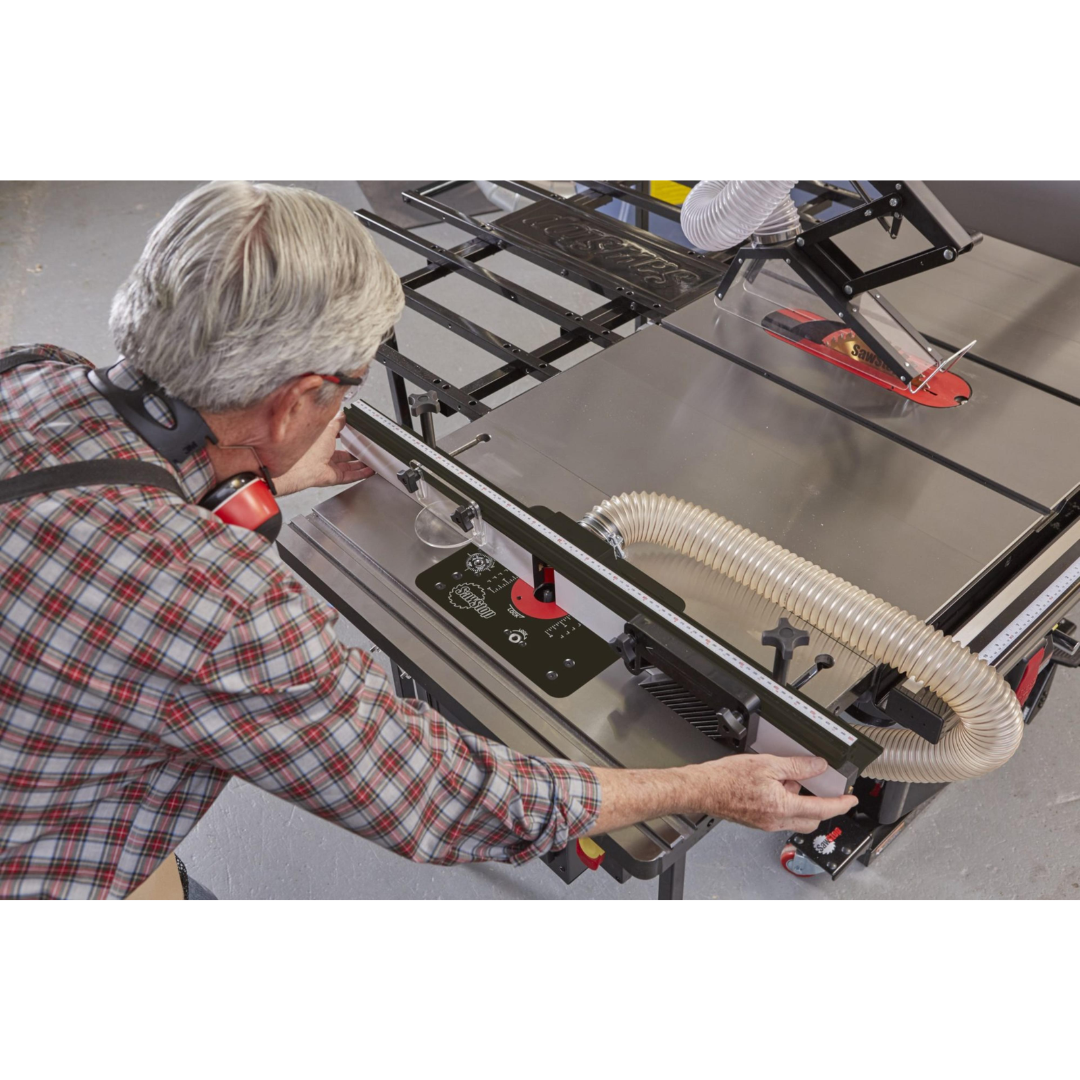

- Professional 32-Inch Fence Assembly features independently adjustable fence faces with shims for precise setup and superior routing performance.
- Integrated Internal Fence Channels provide compatibility with feather boards, flip stops, hold-downs, and other routing accessories.
- Built-In Dust Collection Port utilizes a 2.25-inch dust port to help remove chips and dust directly from the cutting area.
- Adjustable Fence Scales allow accurate fence positioning and repeatable setups for production routing tasks.
- Maximum Fence Travel of 5-1/2 Inches offers excellent versatility across a wide range of routing applications.
- External Router Power Switch provides convenient and accessible router control during operation.
- Dual Support Legs securely attach beneath the table to maximize stability and maintain a solid working platform.
- Precision Machined Surface ensures consistent flatness and smooth material handling.
SawStop 30″ In-Line Router Table RT-TGI Installation Flexibility

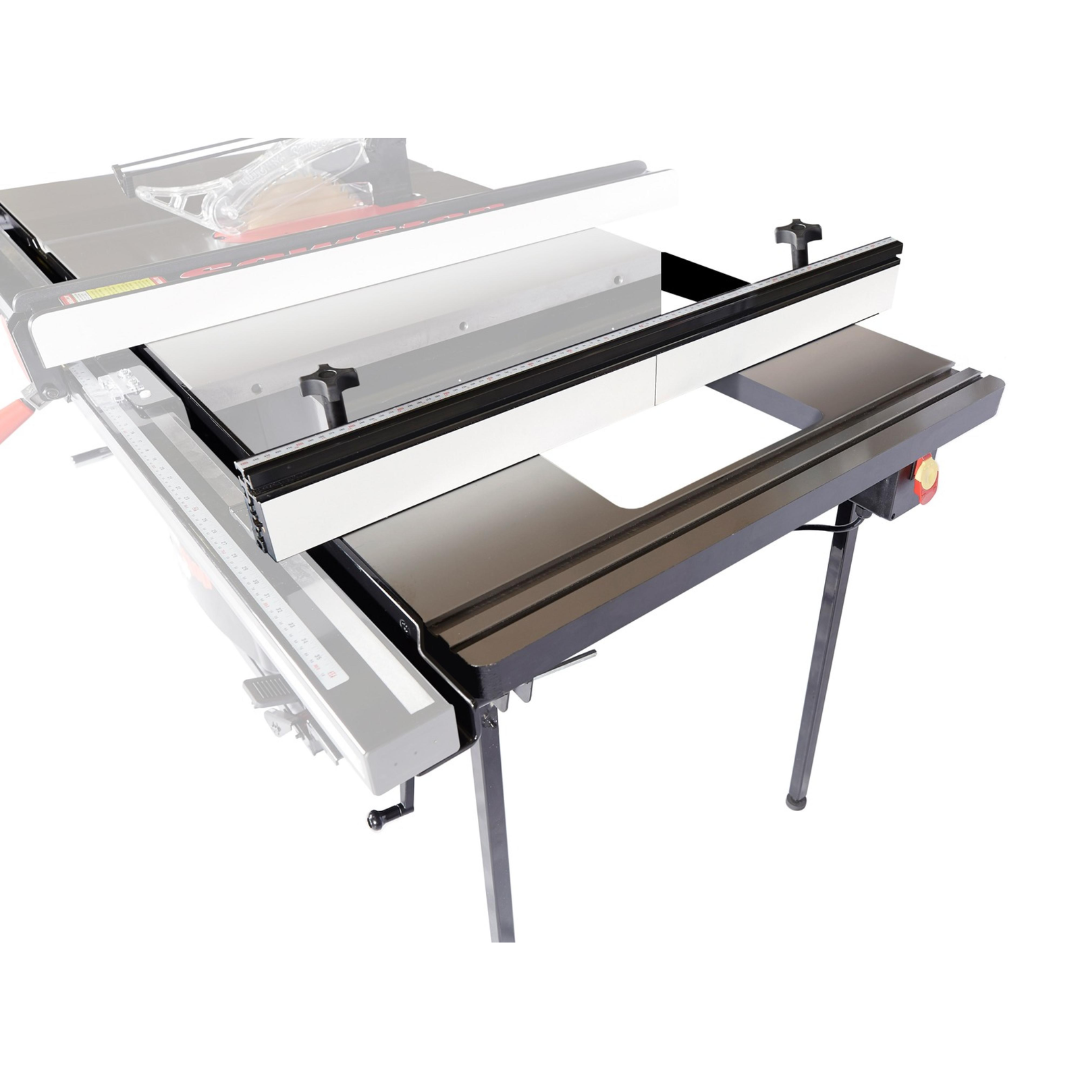

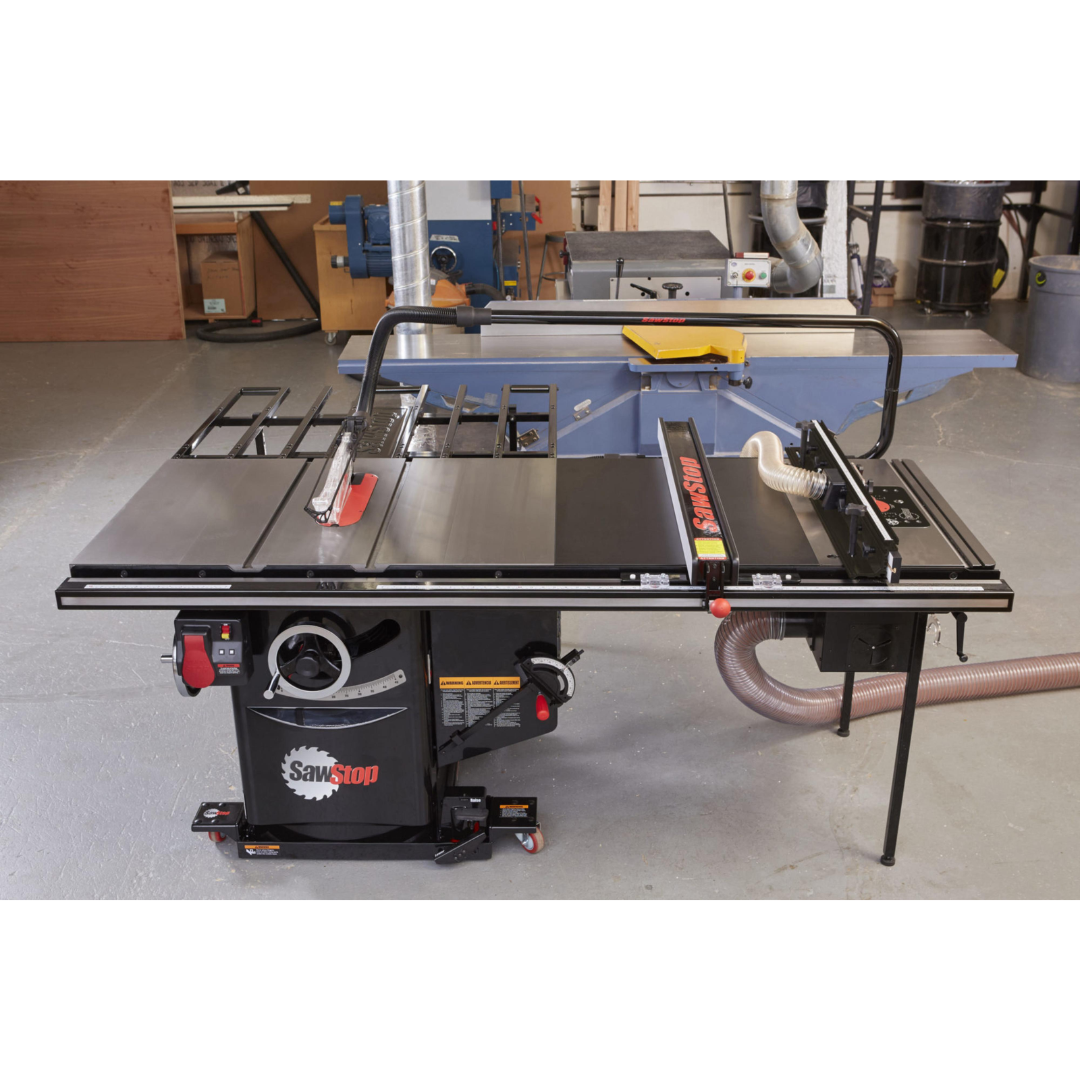

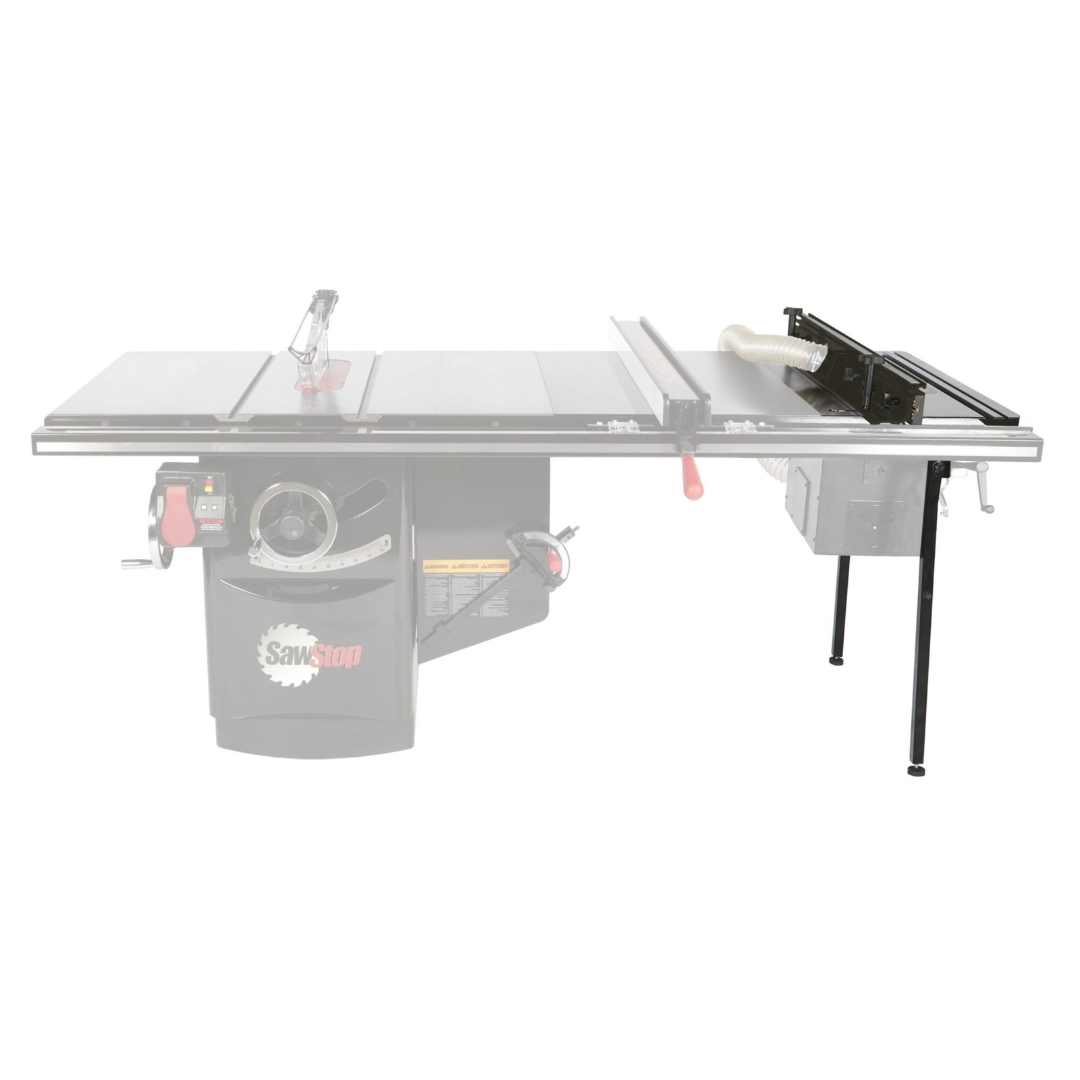

- In-Line Configuration: Replace the existing extension table between the rails for a space-saving integrated router station.
- Left-Side Configuration: Mount the router table to the left cast iron wing to suit unique shop layouts and workflow requirements.
- Space Optimization: Combines table saw and router capabilities into a single workstation footprint.
- Adaptable Workshop Integration: Designed to fit a variety of professional and hobbyist woodworking environments.
Two mounting configurations allow users to customize installation based on available space, workflow preferences, and shop organization requirements.
SawStop 30″ In-Line Router Table RT-TGI Included Components

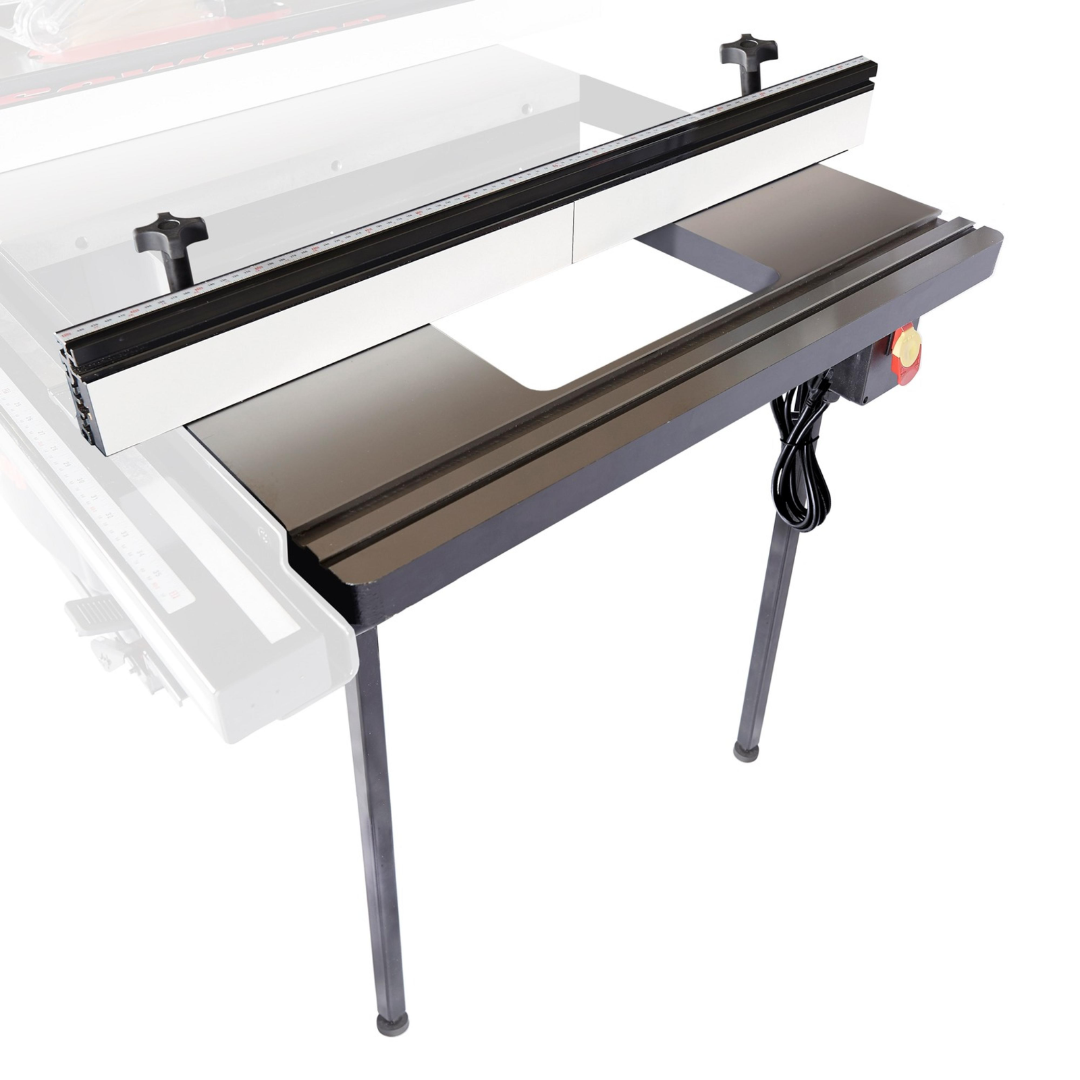

- RT-C30 30" Cast Iron Router Table
- RT-F32 32" Router Fence Assembly
- RT-PSW Router Power Switch
- RT-ST2 Support Legs
- Owner's Manual
- Installation Hardware
Important: Router Lift (RT-LFT) and Dust Collection Box (RT-DCB) are optional accessories and are sold separately.
Why Choose the SawStop 30″ In-Line Router Table RT-TGI
- Premium cast iron construction provides outstanding stability and accuracy.
- Integrates routing capability directly into your SawStop table saw system.
- Dual mounting options offer exceptional installation flexibility.
- Professional fence assembly supports advanced routing applications.
- Built-in dust collection and power controls improve convenience.
- Maximizes workshop efficiency while minimizing floor space requirements.
The SawStop 30″ In-Line Router Table RT-TGI delivers professional routing performance in a compact, integrated design. With its precision cast iron construction, advanced fence system, versatile mounting options, and premium woodworking features, it provides an efficient and highly accurate routing solution for demanding woodworking environments.
