SawStop 27″ In-Line Router Table RT-TGP Applications
- Cabinet and furniture manufacturing
- Precision edge profiling and decorative trim work
- Joinery applications including dados, rabbets, and grooves
- Raised panel door production
- Template routing and pattern duplication
- Professional woodworking and custom millwork operations
- Integrated table saw and router workstation configurations
Ideal for woodworkers who want professional routing capabilities while maximizing available workshop space and workflow efficiency.
SawStop 27″ In-Line Router Table RT-TGP Specifications
| Model | RT-TGP |
|---|---|
| Cast Iron Table Size | 27" × 16" |
| Router Table Opening | 11-3/4" × 9-1/4" |
| Maximum Fence Travel | 5-1/2" |
| Front T-Slot to Arbor Center | 6-1/2" |
| Rear T-Slot to Arbor Center | 5" |
| Fence Assembly Length | 30-3/4" |
| Fence Assembly Height | 3-1/2" |
| Fence Assembly Depth | 4" |
| Front Miter T-Slot Width | 3/8" Top × 1/2" Bottom |
| Rear Miter T-Slot Width | 3/4" Top × 1" Bottom × 3/8" Deep |
| Dust Collection Port | 2.25" |
SawStop 27″ In-Line Router Table RT-TGP Features & Performance

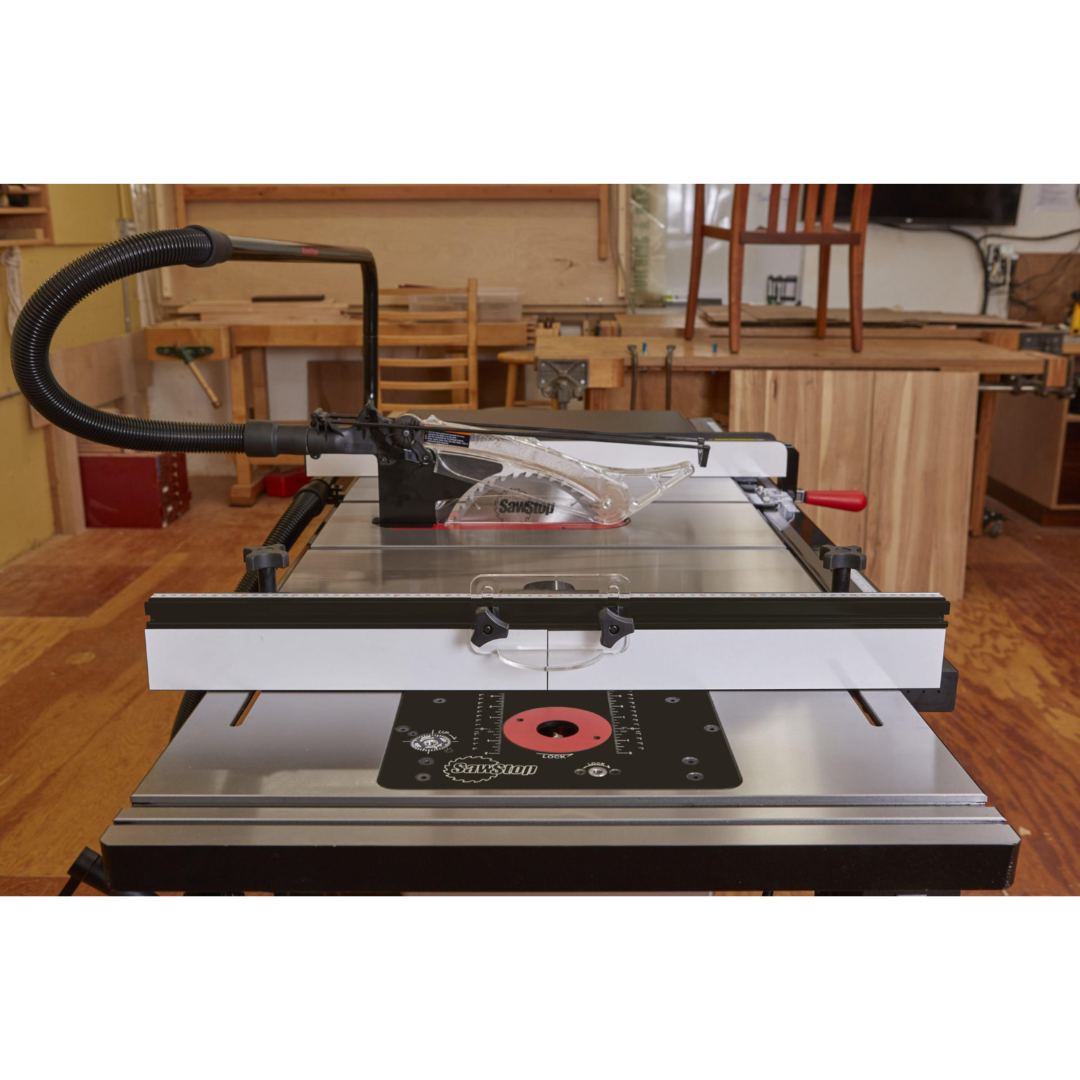

- Precision Cast Iron Table provides exceptional rigidity, vibration reduction, and long-term accuracy for demanding routing operations.
- Large 27" × 16" Work Surface supports a wide range of workpiece sizes while maintaining excellent control and stability.
- Professional 27-Inch Fence Assembly features independently adjustable fence faces with shims for precise setup and routing accuracy.
- Integrated Fence Channels support routing accessories including feather boards, flip stops, hold-downs, and production setup tools.
- Built-In Dust Collection Capability utilizes a 2.25-inch dust port to help maintain a cleaner working environment.
- Adjustable Fence Scales simplify fence positioning and provide repeatable setup accuracy.
- External Router Power Switch allows convenient router control directly from the workstation.
- Heavy-Duty Support Leg System securely attaches beneath the table to maximize rigidity and workspace stability.
- Maximum Fence Travel of 5-1/2 Inches accommodates a broad range of routing operations.
- Professional Shop Durability built to withstand years of demanding woodworking use.
SawStop 27″ In-Line Router Table RT-TGP Installation Versatility

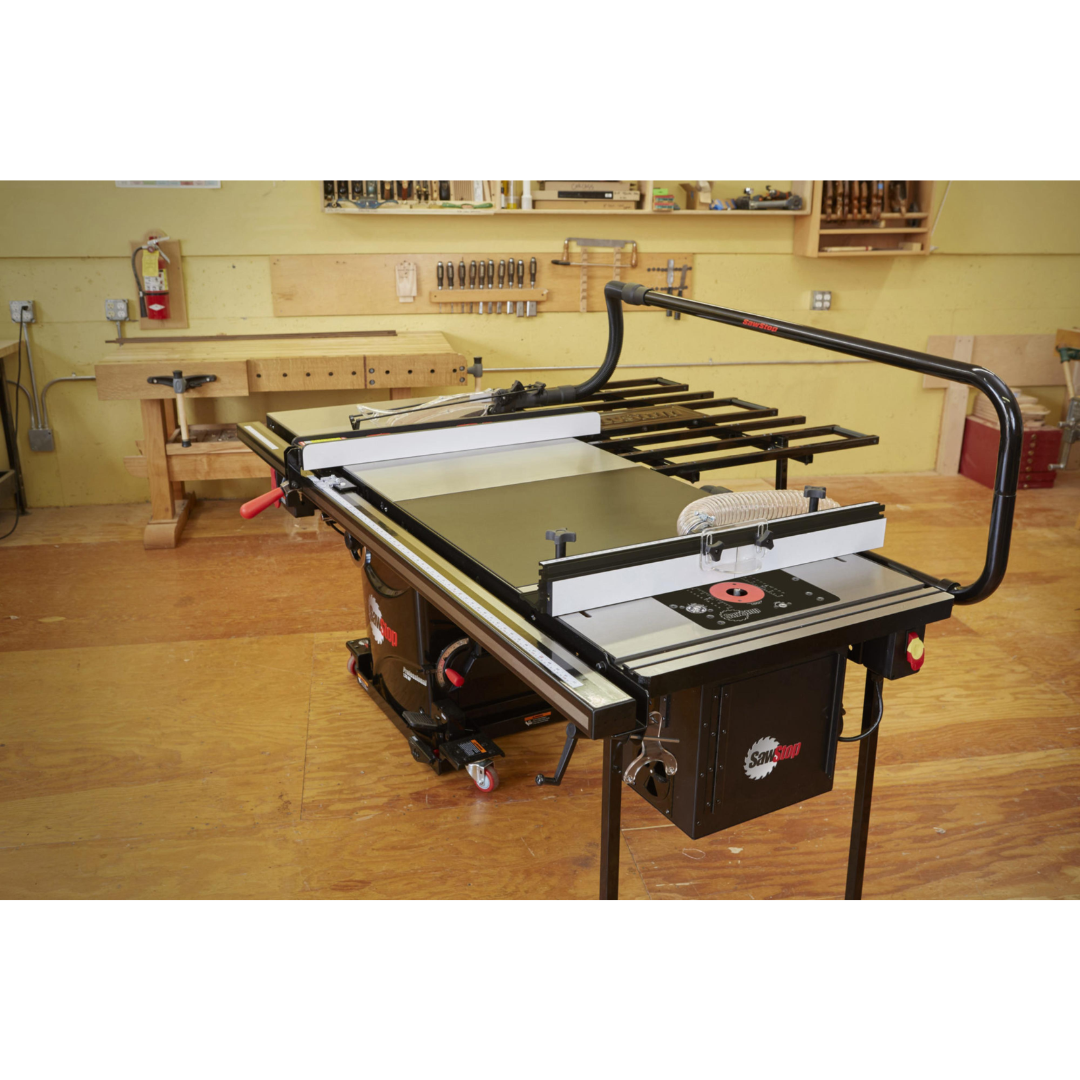

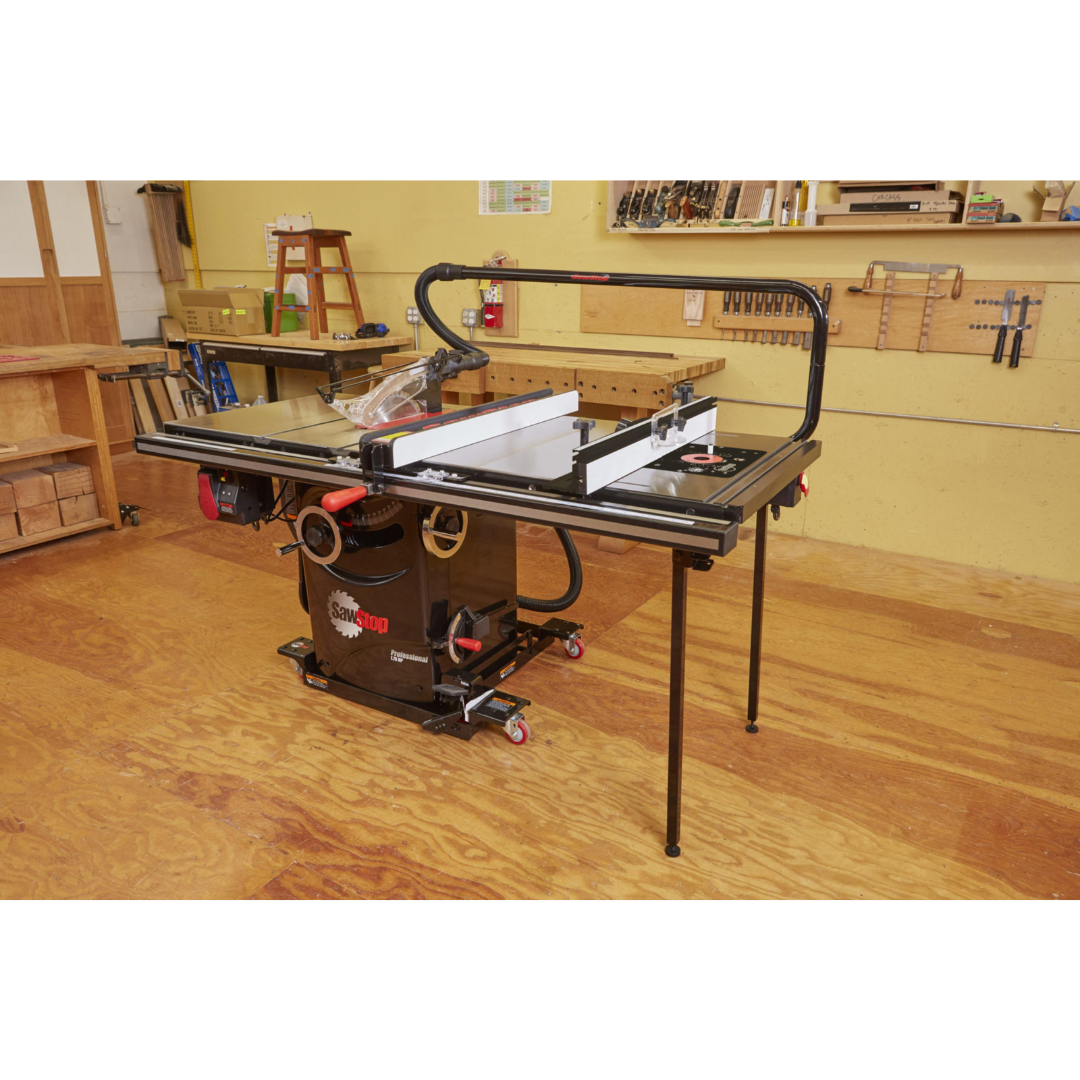

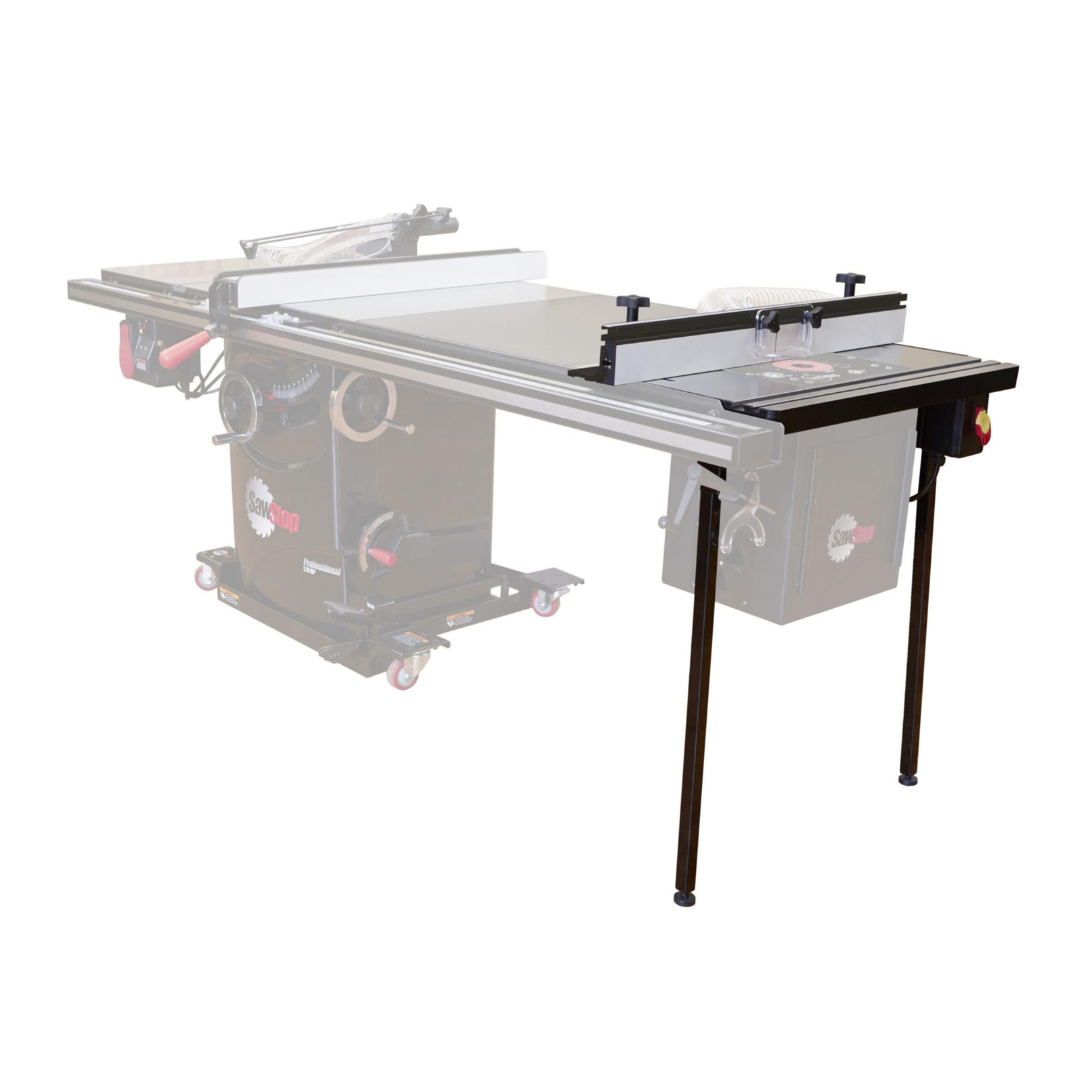

- In-Line Installation: Replace the existing extension table between the rails to create a compact, integrated routing workstation.

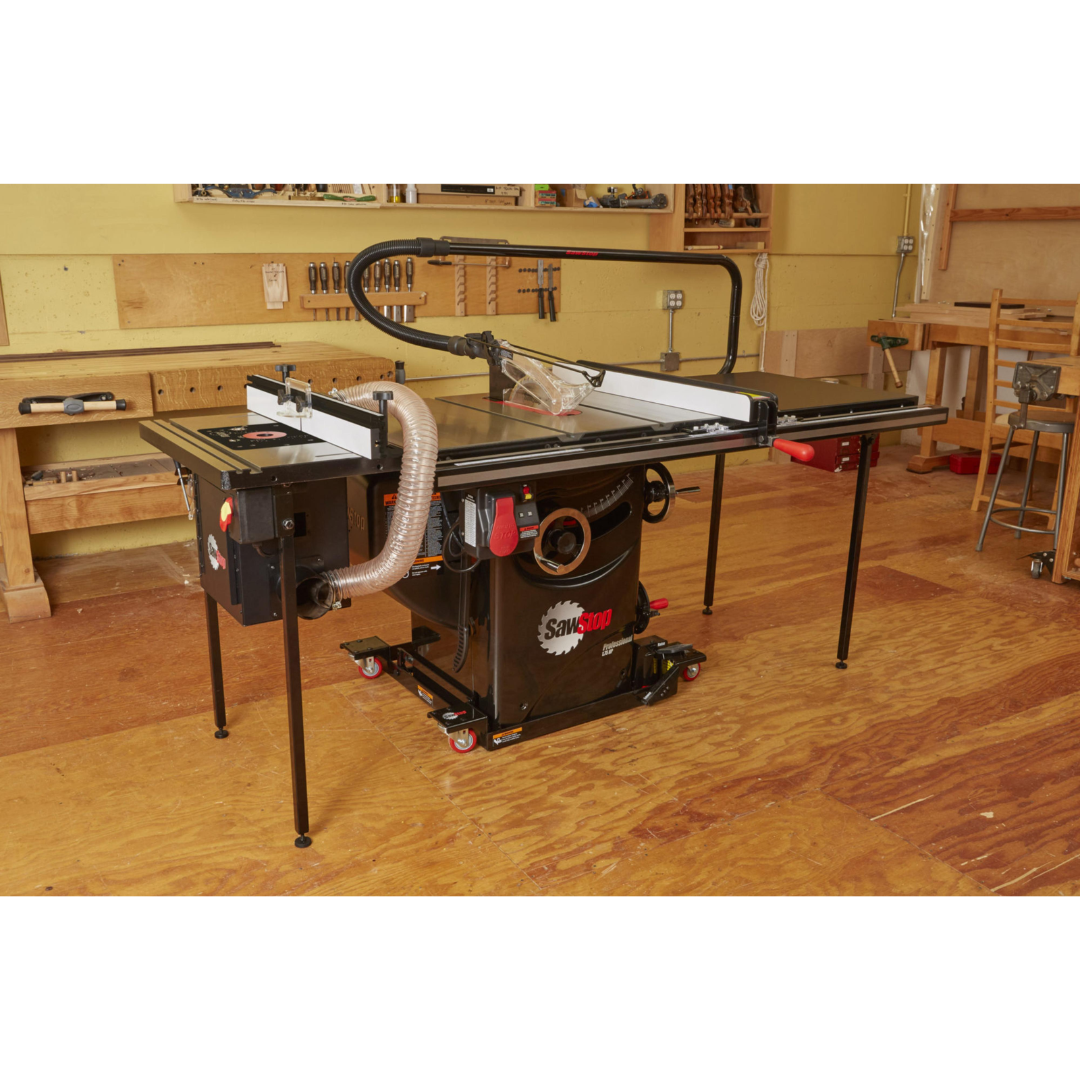

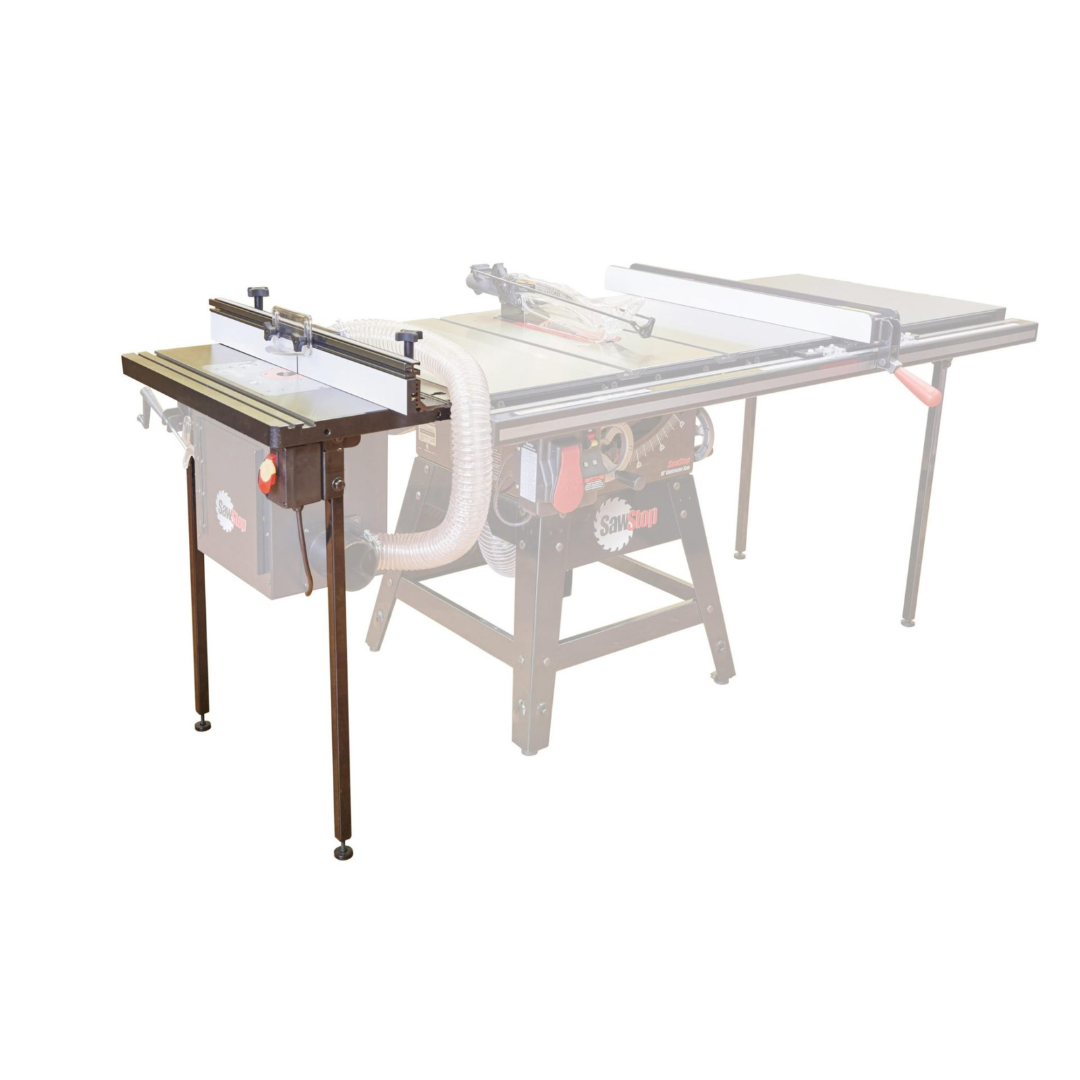

- Left-Side Installation: Mount the router table to the left cast iron wing for additional workspace flexibility.
- Contractor Saw Compatibility: Left-side mounting configuration is required when installing on SawStop Contractor Saws.
- Professional Cabinet Saw Enhancement: An optional cast iron filler table is available for 36" Professional Cabinet Saw models to create a continuous full-length cast iron work surface.
- Space-Saving Design: Combines table saw and router functionality into a single efficient workstation footprint.
Multiple installation configurations allow the RT-TGP to adapt to various SawStop models, workshop layouts, and woodworking workflows.
SawStop 27″ In-Line Router Table RT-TGP Included Components
- RT-C27 27" Cast Iron Router Table
- RT-F27 27" Router Fence Assembly
- RT-PSW Router Power Switch
- RT-ST2 Support Legs
- Owner’s Manual
- Installation Hardware
Important: Router Lift (RT-LFT) and Dust Collection Box (RT-DCB) are optional accessories and sold separately.
SawStop 27″ In-Line Router Table RT-TGP Construction & Routing Precision
- Solid cast iron construction minimizes vibration for cleaner cuts.
- Precision-machined surface promotes smooth material handling and accuracy.
- Heavy-duty support legs reinforce the workstation during demanding routing operations.
- Accessory-ready fence system expands functionality for advanced woodworking tasks.
- Designed to integrate seamlessly with SawStop table saw systems.
- Built to deliver professional routing performance for years of dependable service.
Why Choose the SawStop 27″ In-Line Router Table RT-TGP
- Premium cast iron construction provides superior routing stability.
- Multiple installation options accommodate different SawStop configurations.
- Professional fence system delivers accurate, repeatable results.
- Integrated accessory support expands routing capabilities.
- External power controls improve convenience and workflow efficiency.
- Transforms your SawStop table saw into a complete routing workstation.
The SawStop 27″ In-Line Router Table RT-TGP combines premium cast iron construction, flexible installation options, and professional-grade routing features into one highly capable woodworking solution. Designed to maximize both precision and shop efficiency, it provides an ideal routing platform for serious woodworkers and production environments.
