Safetyspeed Triton Work Station Applications
- Sign making and graphics production
- Packaging and cardboard fabrication
- Print shops and digital finishing operations
- Foamboard, acrylic, and PVC processing
- Textile and banner cutting applications
- Industrial workshops requiring accurate substrate trimming
Ideal for professionals needing clean, repeatable cuts across a wide range of rigid and flexible materials.
Safetyspeed Triton Work Station Specifications
| Country of Origin | United Kingdom |
|---|---|
| Weight | 85 lbs |
| Overall Dimensions | 49" x 71" x 38" |
| Triton 160 Size | 71” (W) x 49” (D) x 38” (H) |
| Triton 260 Size | 110” (W) x 49” (D) x 38” (H) |
| Triton 310 Size | 130” (W) x 49” (D) x 38” (H) |
| Maximum Cutting Lengths | 63", 102", 122" |
| Max Acrylic Thickness | 1/4" (6mm) |
| Max Foamboard Thickness | 1/2" (12mm) |
| Max PVC Thickness | 1/2" (12mm) |
| Max Corrugated Plastic Thickness | 1/2" (12mm) |
| Max Cardboard Thickness | 1/2" (12mm) |
| Max Magnetic Sheet Thickness | 1/2" (12mm) |
| Max ACM Thickness | .16" (4mm) |
| Max Xanita Thickness | 3/4" (19mm) |
| Max Falconboard Thickness | 1/2" (12mm) |
Safetyspeed Triton Work Station Performance & Construction
- Integrated HELIOS Cutter System provides precise, controlled cutting with lift-and-hold functionality for easy material handling.
- Dual Cutting Tracks allow quick switching between utility blade and rotary blade operations for maximum versatility.
- Rotatable Cutter Design enables safe storage under the table, freeing the workspace for additional tasks.
- Adjustable Lift & Hold Mechanism secures materials above the cut line for improved alignment and efficiency.
- Full-Length Metric/Imperial Scale ensures accurate measurements and repeatable cuts.

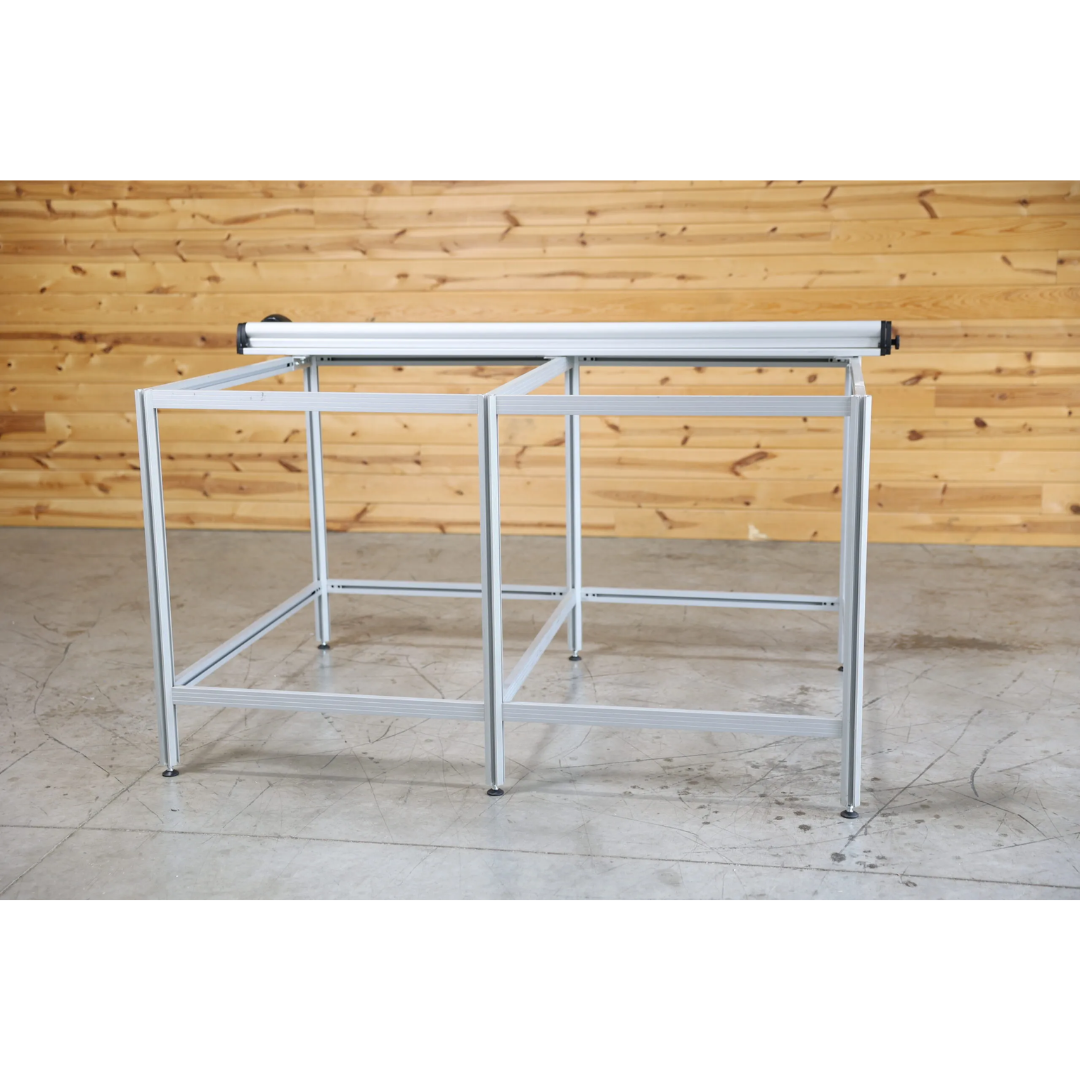

- Heavy-Duty Extruded Aluminum Frame delivers exceptional strength, rigidity, and long-term durability.
- Leveling Adjustment System allows precise cutter alignment on materials up to 20mm (3/4") thick.
- Customizable Table Height with adjustable feet for ergonomic operation.
- High-Profile Leading Edge prevents material movement during cutting for improved accuracy.
Safetyspeed Triton Work Station Material Capabilities
- Acrylic (score and snap) up to 1/4" (6mm)
- Cardboard up to 3/4" (19mm)
- Corrugated plastic up to 1/2" (13mm)
- Foamboard up to 1/2" (13mm)
- PVC foamboard up to 1/2" (13mm)
- Polystyrene and film materials
- Banner materials and textiles
- Self-adhesive vinyl and magnetic sheets
- Paper, fabric, and rubber materials
Designed to handle both rigid and flexible substrates with precision cutting performance across multiple industries.
Why Choose the Safetyspeed Triton Work Station
- Integrated cutter and workstation for streamlined workflow.
- Handles a wide variety of materials with precision and consistency.
- Adjustable, ergonomic design improves operator efficiency.
- Durable aluminum construction built for industrial environments.
- Multiple size options to fit different production needs.
The Safetyspeed Triton Work Station is a complete cutting solution engineered for professionals who demand accuracy, versatility, and long-lasting performance in their workflow.
