Safetyspeed SSC 250A Substrate Cutter with 98″ Maximum Crosscut Applications
- Sign making and large-format graphics production
- Print finishing and display fabrication
- Processing oversized rigid panels and substrates
- Packaging prototyping and industrial fabrication
- Retail, exhibition, and commercial signage production
Ideal for shops that require extended cutting capacity while maintaining precision, cleanliness, and efficiency.
Safetyspeed SSC 250A Substrate Cutter with 98″ Maximum Crosscut Specifications
| Maximum Crosscut | 98" / 2489 mm |
|---|---|
| Frame Height | 119" / 3023 mm |
| Frame Length | 84" (Shop Configuration) |
| Frame Depth | 34" / 867 mm |
| Machine Weight | 197 lbs |
| Shipping Dimensions | 124" x 14" x 11" |
| Country of Origin | United Kingdom |
Safetyspeed SSC 250A Substrate Cutter with 98″ Maximum Crosscut Performance & Construction

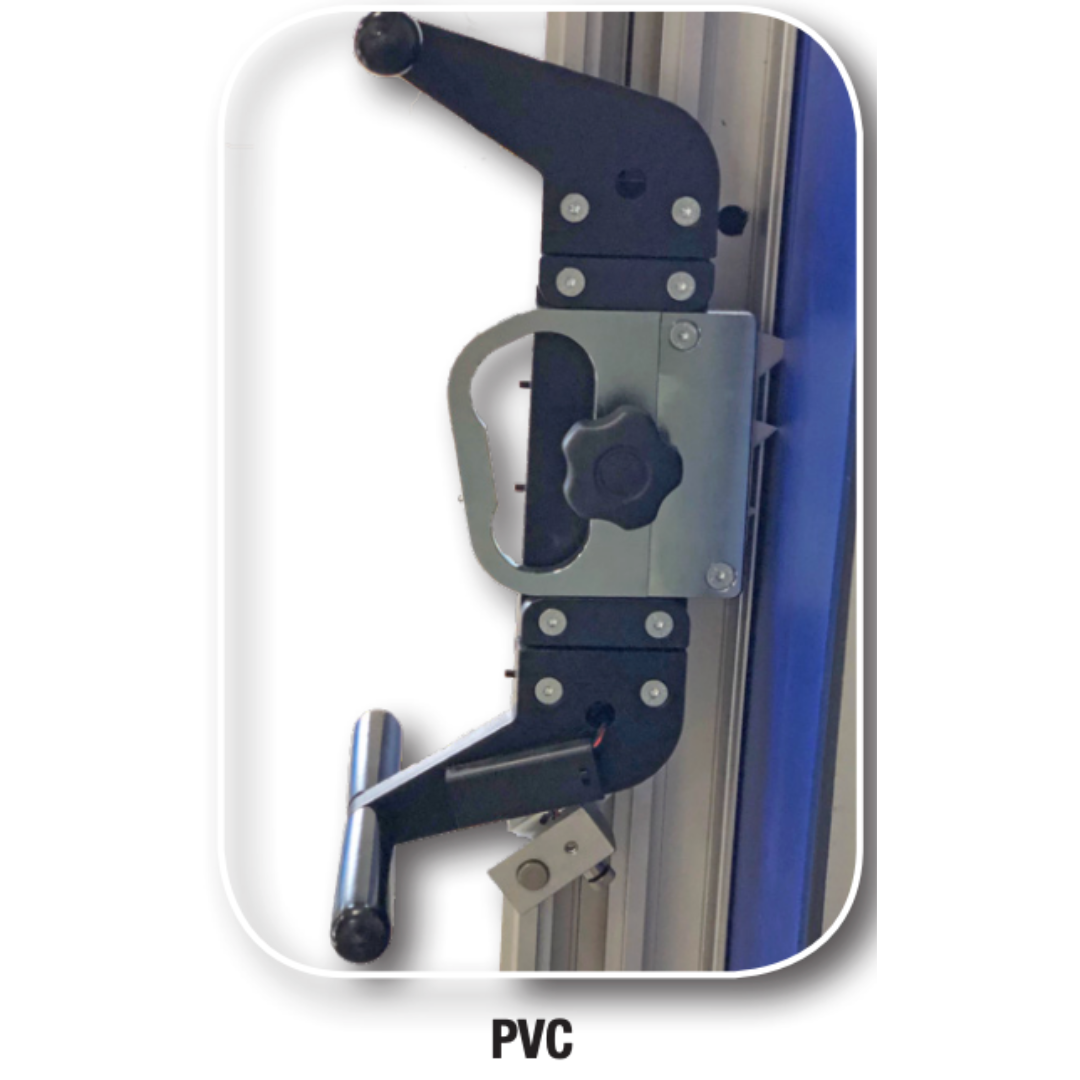

- Interchangeable Cartridge System allows tool changes in under 10 seconds, maximizing workflow efficiency.
- Dust-Free & Low-Noise Operation creates a cleaner, safer working environment.
- Integrated Laser Sight Line ensures precise alignment for accurate, repeatable cuts.

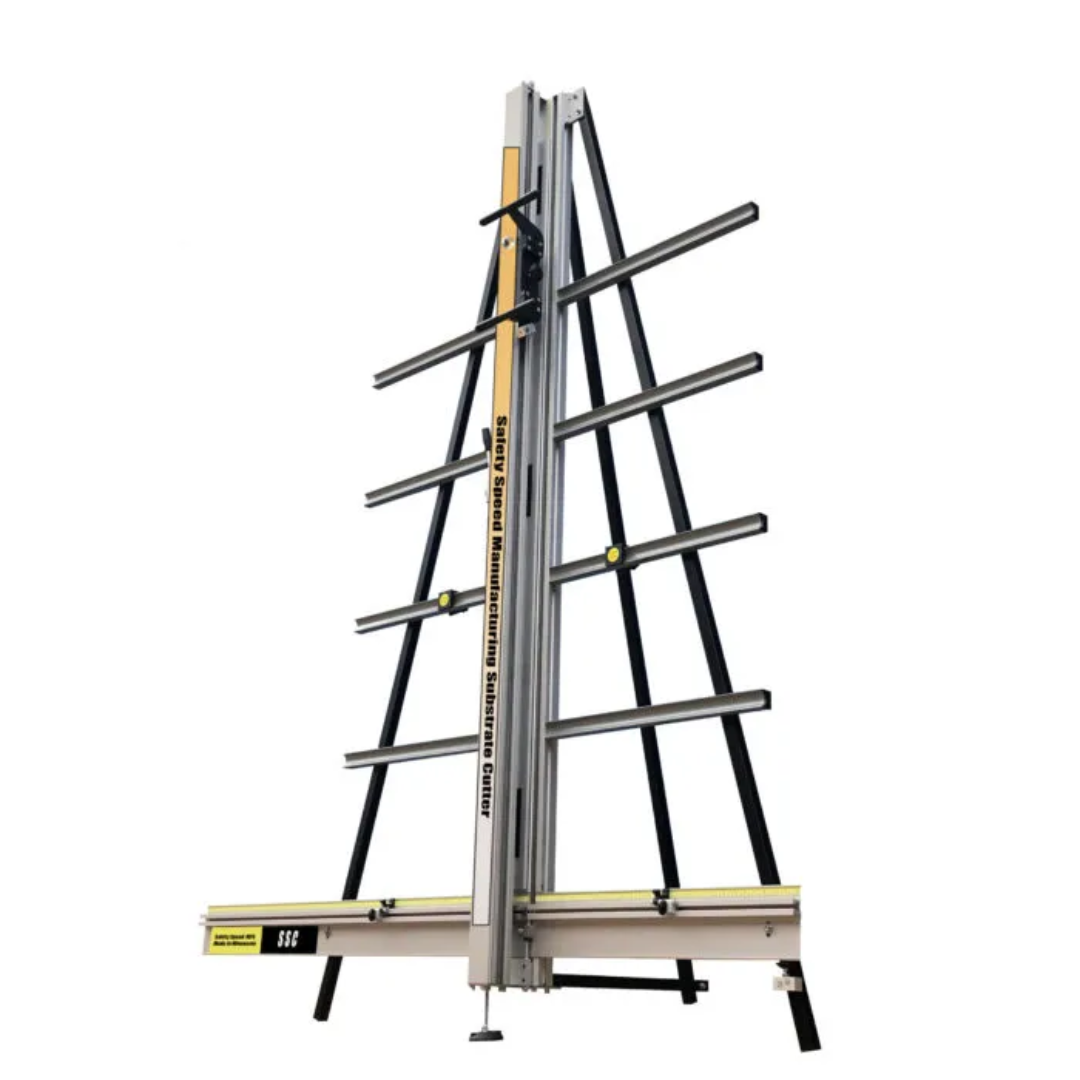

- Heavy-Duty Vertical Frame provides rigidity and stability for large panel processing.
- Clamping System securely holds materials in place during cutting.
- Integral Counterweight System enables smooth, controlled cutting head movement.
- Production Stops & Quick Stops improve repeatability and batch processing efficiency.
- Wall Mounting Capability optimizes shop space and workflow organization.
Safetyspeed SSC 250A Substrate Cutter with 98″ Maximum Crosscut Standard Equipment
- Single blade cartridge (up to 20mm / 0.75")
- Three blade utility cartridge (up to 13mm / 0.5")
- ACM cutting wheel cartridge
- Acrylic scoring cartridge
- Two upper frame quick stops
- Integral counterweight system
- Integrated laser sight line
- Two production stops
- Clamping system
- Wall mounting kit
Safetyspeed SSC 250A Substrate Cutter with 98″ Maximum Crosscut Material Capabilities
- Corrugated plastic up to 1/2" (13mm)
- PVC up to 1/2" (13mm)

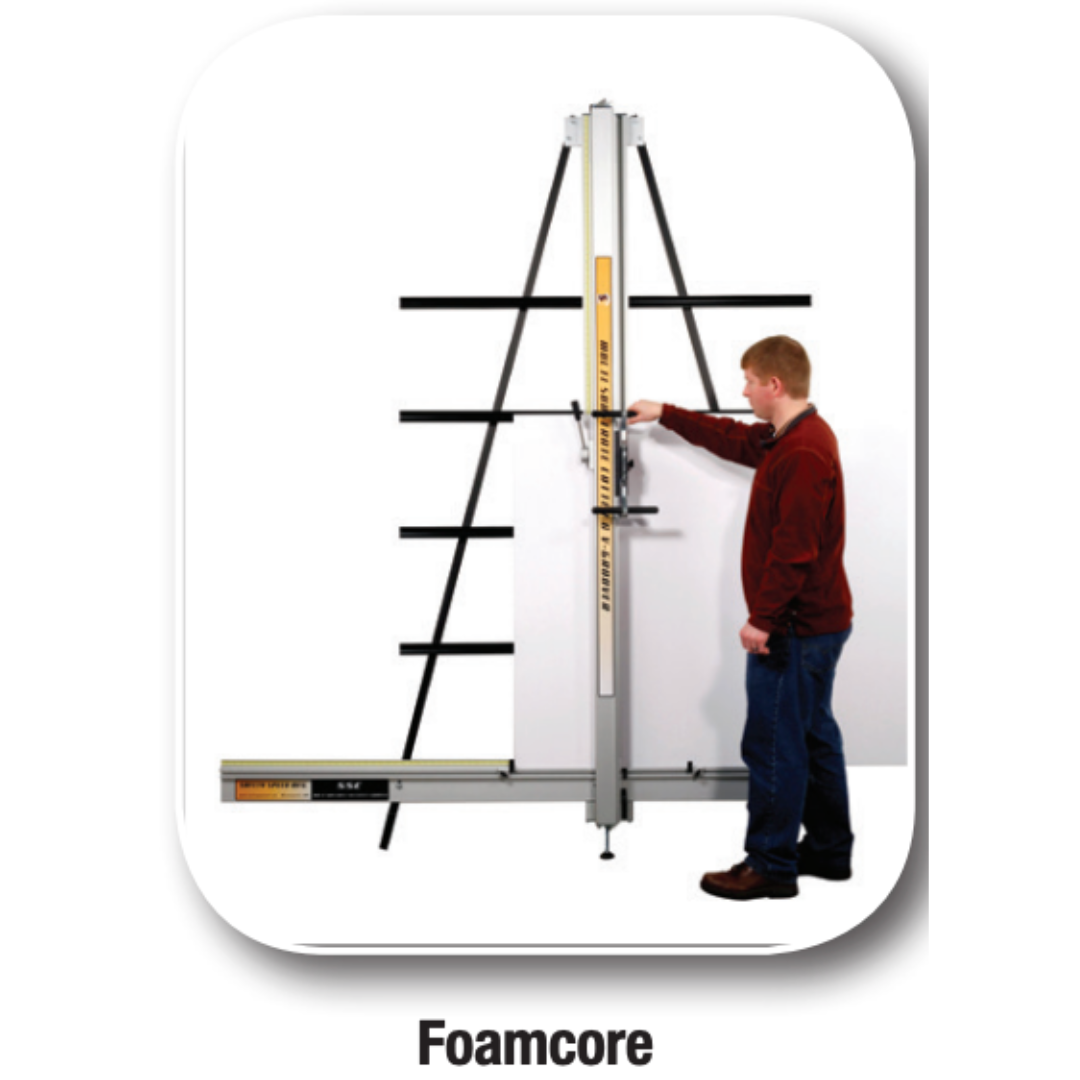

- Foam board up to 1/2" (13mm)

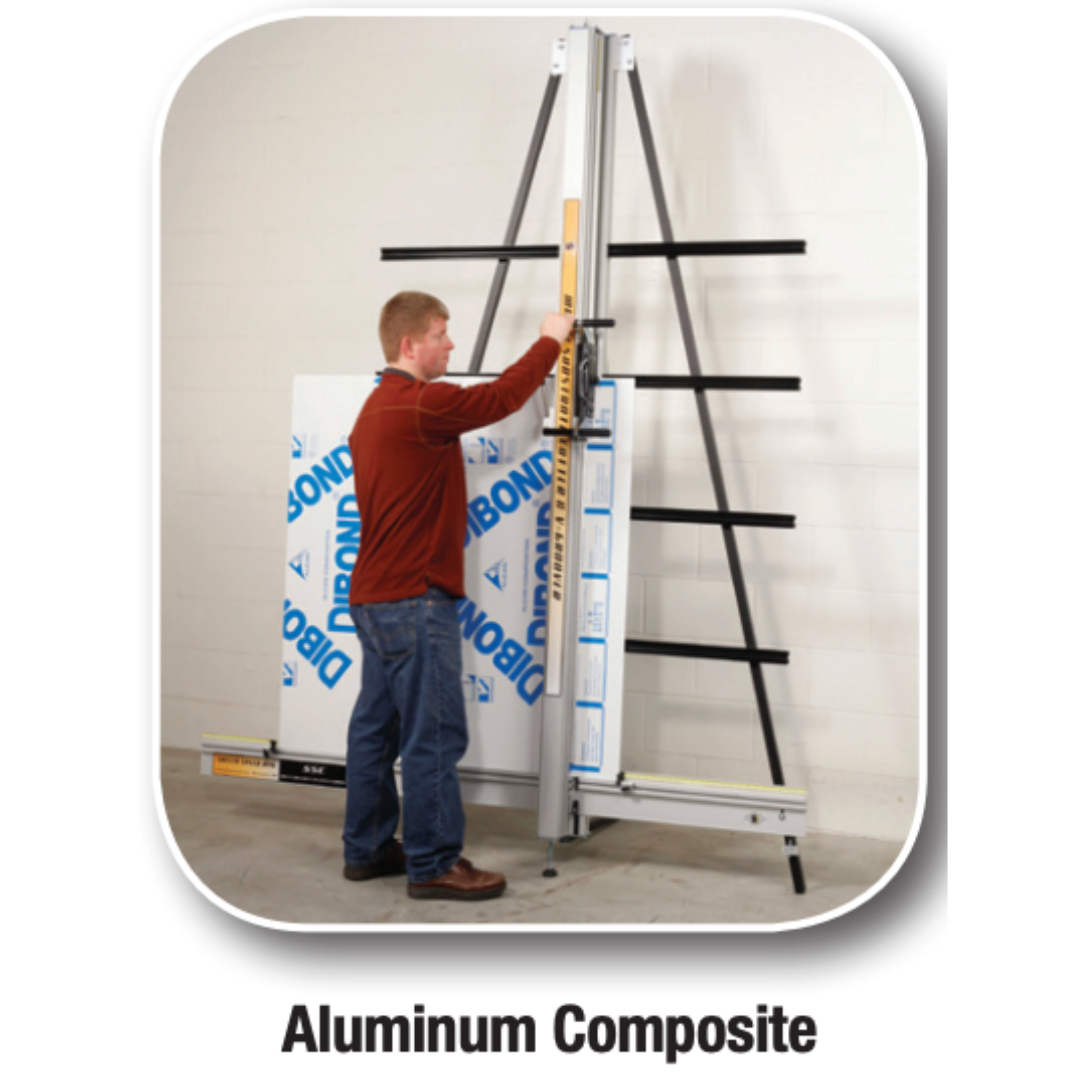

- Aluminum composite panel (ACP) up to .16" (4mm)
- MDF up to .12" (3mm)
- Acrylic up to 1/4" (6mm)
- Honeycomb board up to 3/4" (20mm)
- Magnetic sheets up to .16" (4mm)
Engineered to process a wide range of rigid and semi-rigid materials commonly used in sign-making and industrial fabrication.
Why Choose the Safetyspeed SSC 250A Substrate Cutter with 98″ Maximum Crosscut
- Large 98" crosscut capacity for oversized materials.
- Quick-change cartridge system for maximum versatility.
- Clean, quiet cutting eliminates dust and reduces cleanup.
- Precision laser alignment for consistent results.
- Scalable system adaptable to future materials and tooling.
The Safetyspeed SSC 250A Substrate Cutter with 98″ Maximum Crosscut is a powerful, scalable solution built for high-capacity cutting environments that demand precision, efficiency, and long-term flexibility.
