Safetyspeed SSC 165A Substrate Cutter with 65″ Maximum Crosscut Applications
- Sign making and graphics production environments
- Print shops and finishing departments
- Cutting rigid and semi-rigid substrates for displays
- Packaging and prototyping operations
- Industrial fabrication and panel processing
An ideal solution for shops requiring clean, accurate cuts without generating dust or excessive noise.
Safetyspeed SSC 165A Substrate Cutter with 65″ Maximum Crosscut Specifications
| Maximum Crosscut | 65" / 1651 mm |
|---|---|
| Frame Height | 85" / 2159 mm |
| Frame Depth | 23" / 584 mm |
| Shop Dimensions | 84" (L) x 85" (H) x 23" (D) |
| Shipping Weight | 140 lbs (63 kg) |
| Machine Weight | 197 lbs |
| Shipping Dimensions | 108" x 14" x 11" |
| Country of Origin | United Kingdom |
Safetyspeed SSC 165A Substrate Cutter with 65″ Maximum Crosscut Performance & Construction
- Interchangeable Cartridge System allows tool changes in under 10 seconds for maximum efficiency and flexibility.
- Dust-Free & Quiet Operation ensures a cleaner and safer working environment.
- Integrated Laser Sight Line provides precise visual alignment for accurate cuts.
- Heavy-Duty Vertical Frame delivers stability and consistent cutting accuracy.
- Clamping System securely holds materials in place during cutting.
- Integral Counterweight System allows smooth and controlled cutting head movement.
- Dual Production Stops & Quick Stops enable repeatable and efficient batch cutting.
- Wall Mounting Capability saves floor space and enhances shop workflow.
Safetyspeed SSC 165A Substrate Cutter with 65″ Maximum Crosscut Standard Equipment
- Single blade cartridge (up to 20mm / 0.75")
- Three-blade utility cartridge (up to 13mm / 0.5")
- ACM cutting wheel cartridge
- Acrylic scoring cartridge
- Wall mounting kit
- Material clamping system
- Two production stops
- Integrated laser sight line
- Integral counterweight system
- Two upper frame quick stops
Safetyspeed SSC 165A Substrate Cutter with 65″ Maximum Crosscut Material Capabilities
- Corrugated plastic up to 1/2" (13mm)
- PVC up to 1/2" (13mm)

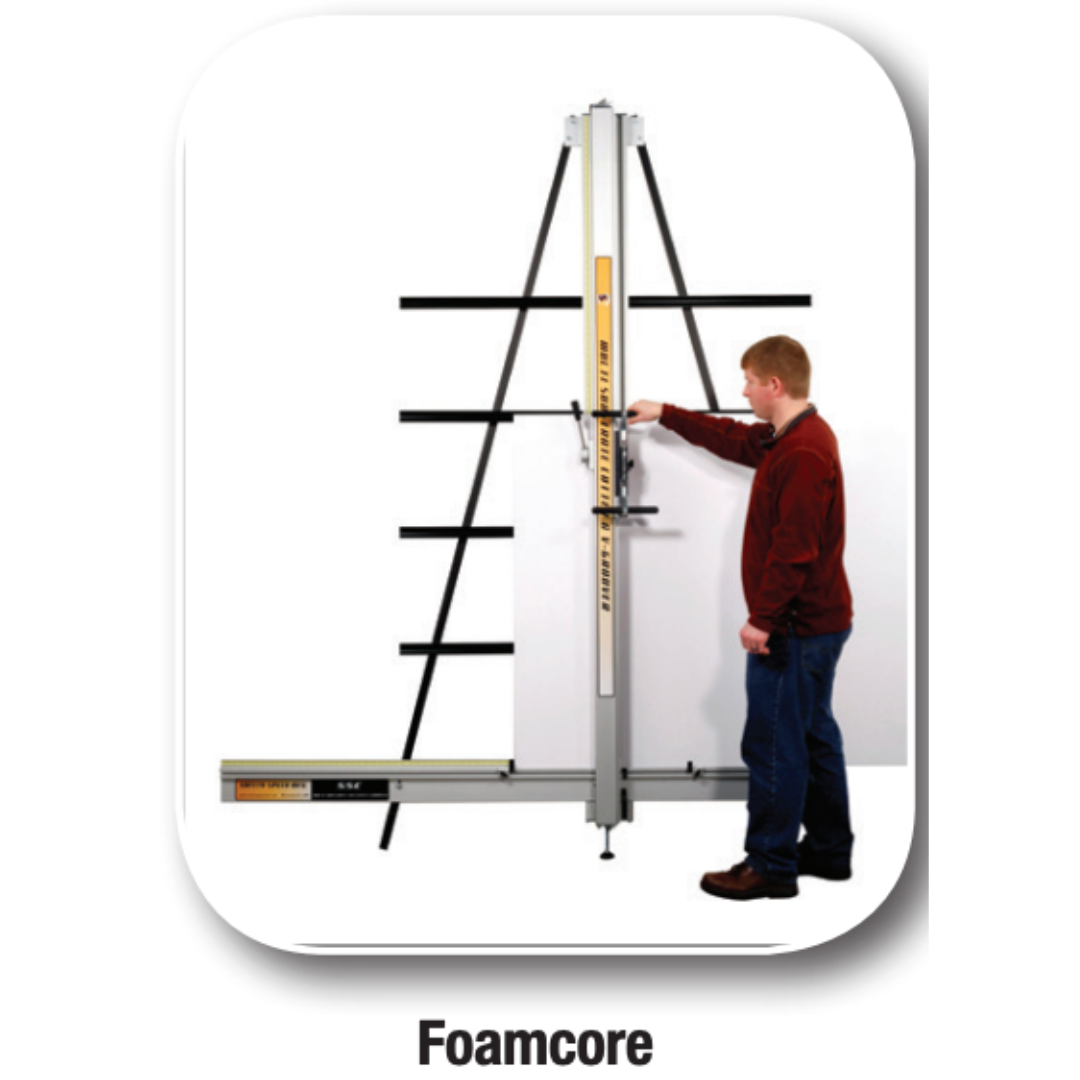

- Foam board up to 1/2" (13mm)

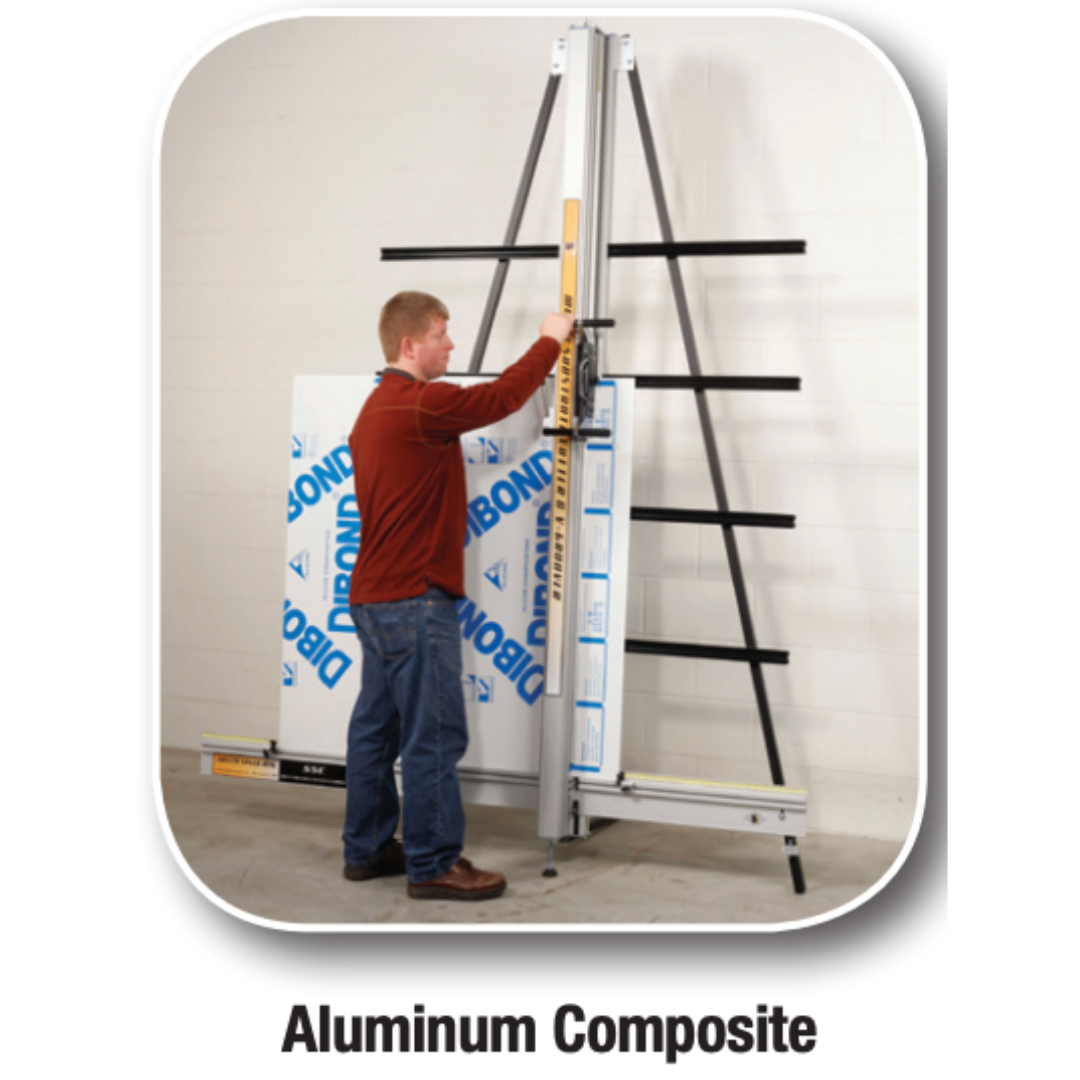

- Aluminum composite (ACM) up to .16" (4mm)
- MDF up to .12" (3mm)
- Acrylic up to 1/4" (6mm)
- Honeycomb board up to 3/4" (20mm)
- Magnetic sheets up to .16" (4mm)
Engineered to handle a broad range of rigid and semi-rigid materials commonly used in sign-making and fabrication industries.
Why Choose the Safetyspeed SSC 165A Substrate Cutter with 65″ Maximum Crosscut
- Fast tool changes with modular cartridge system.
- Clean, dust-free cutting improves workspace safety.
- High precision with laser-guided alignment.
- Space-saving vertical design with wall-mount capability.
- Wide material compatibility for versatile production use.
The Safetyspeed SSC 165A Substrate Cutter with 65″ Maximum Crosscut delivers professional-level accuracy, efficiency, and adaptability—making it an essential cutting solution for modern sign shops and fabrication environments.
