Safetyspeed SR5UA ACM Panel Saw and Router Combo Applications

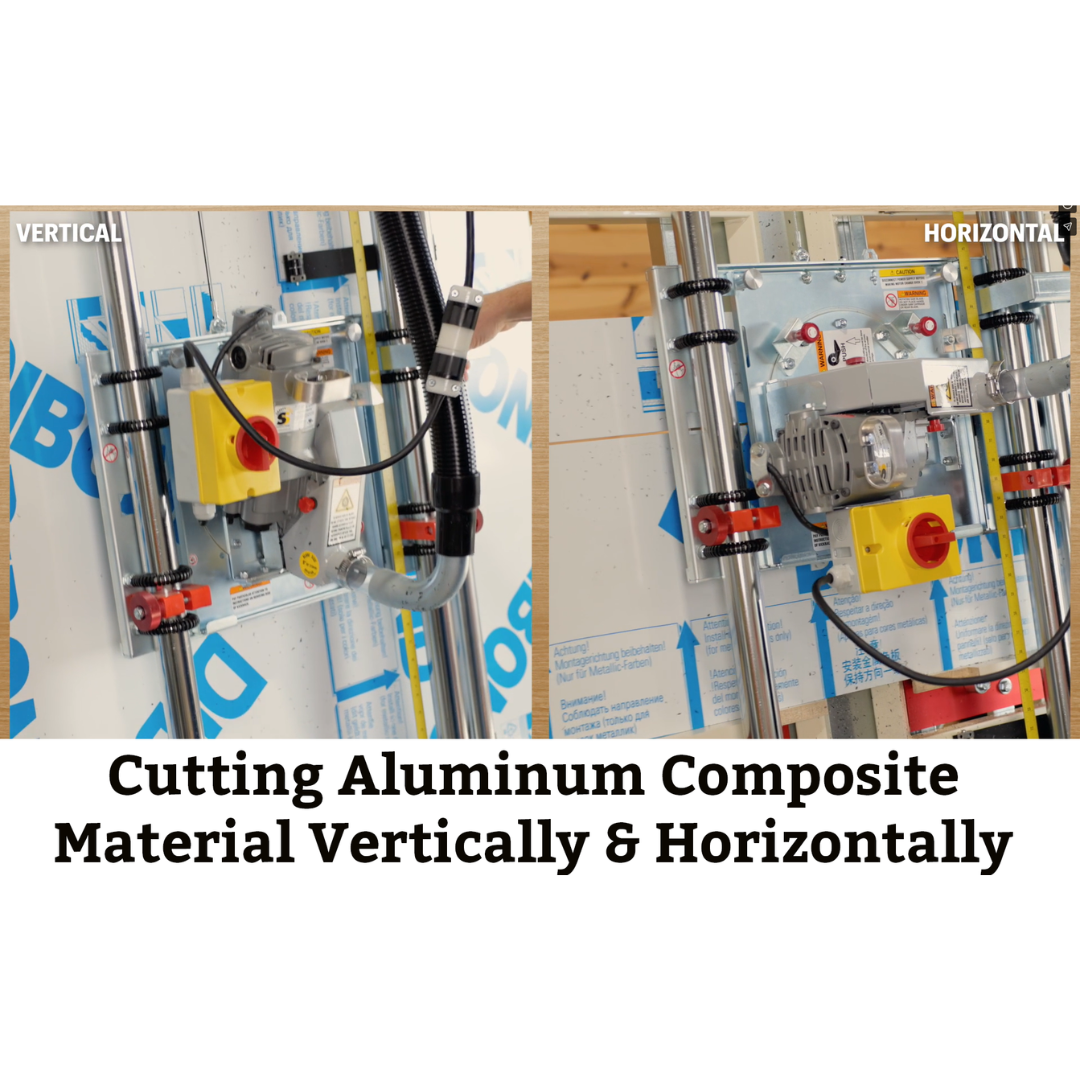

- ACM (Aluminum Composite Material) cutting and V-grooving
- Sign making and architectural panel fabrication

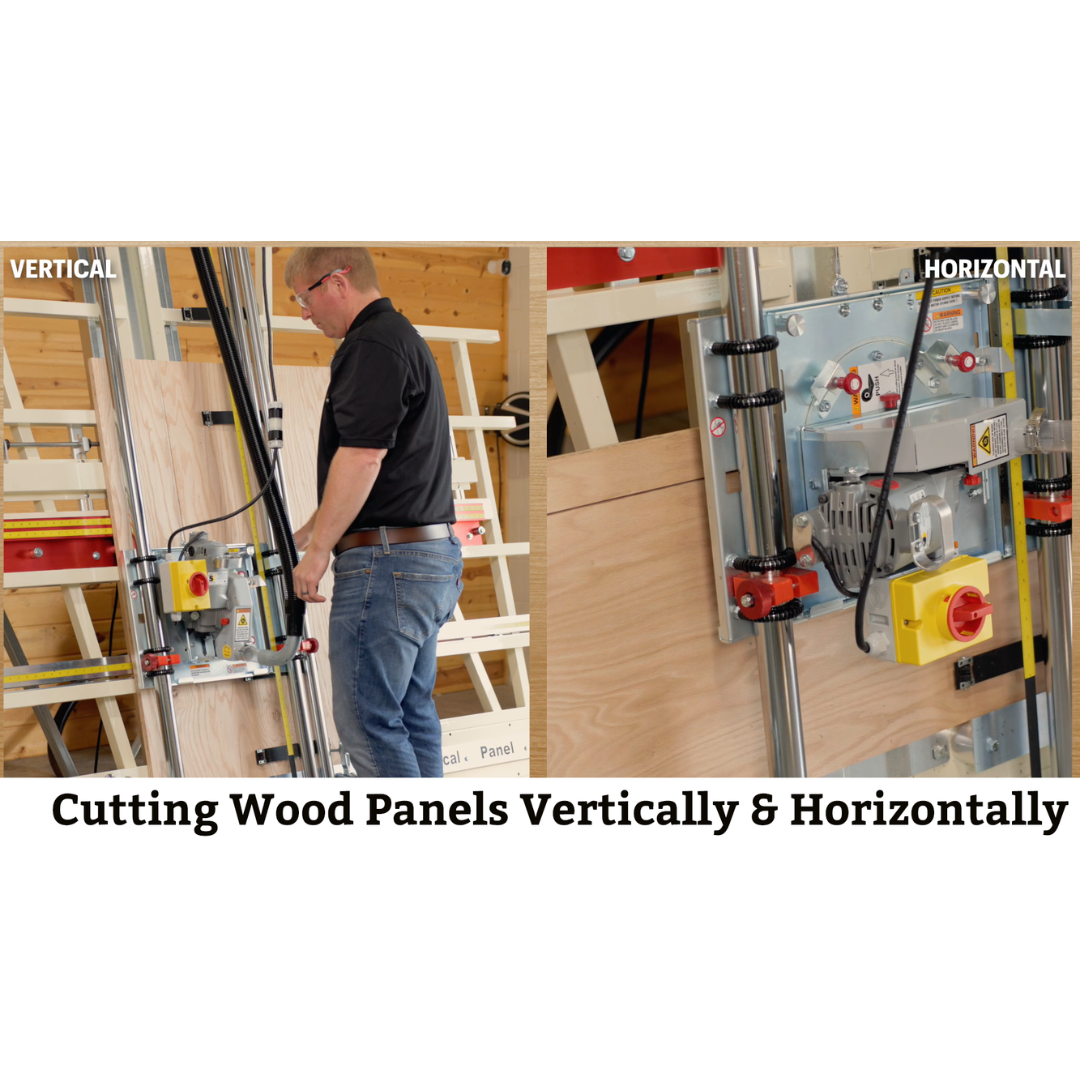

- Wood panel processing and cabinetry work

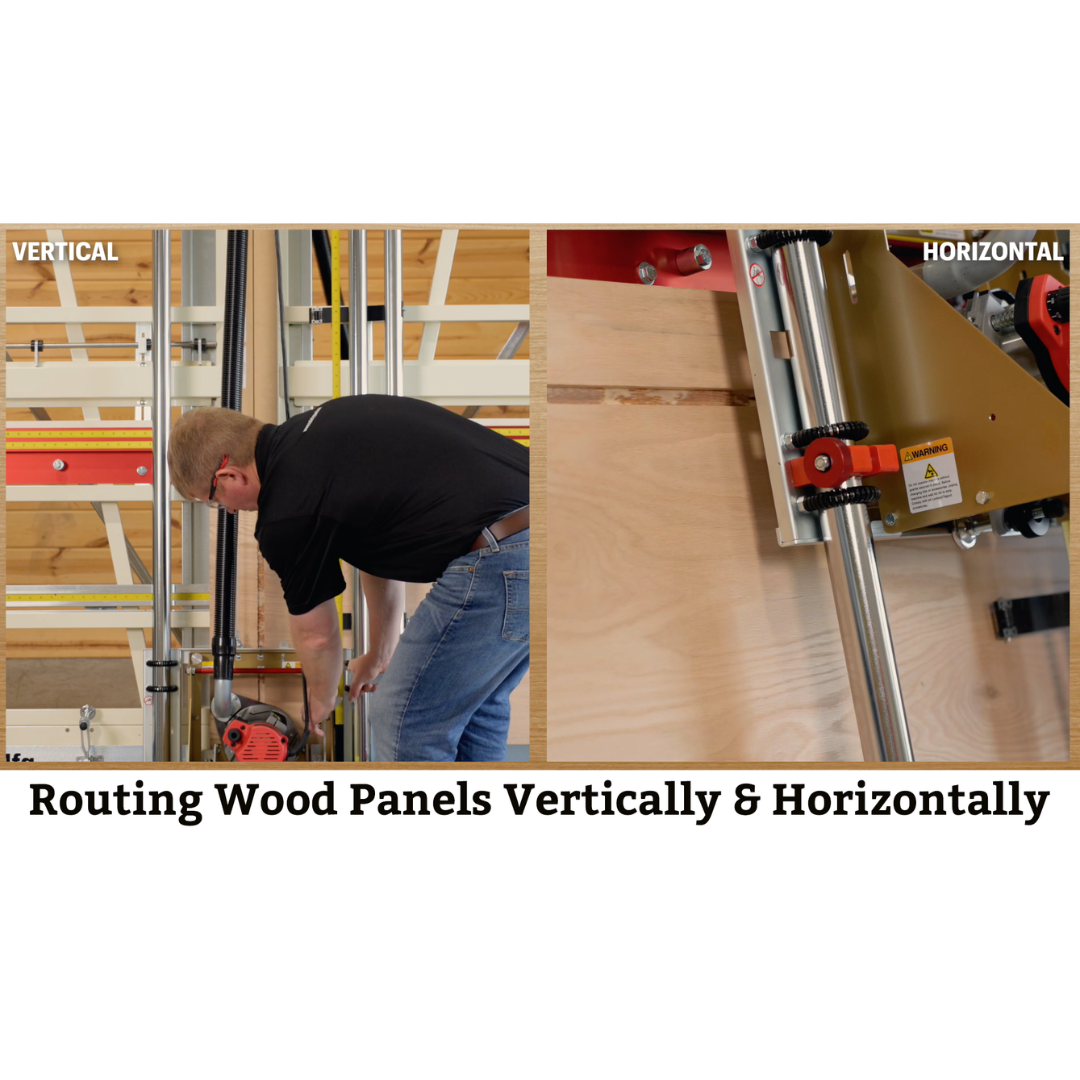

- Routing operations including dados, rabbets, and grooves
- Large panel sizing for industrial and commercial applications
Built for high-production environments requiring power, precision, and versatility in both cutting and routing operations.
Safetyspeed SR5UA ACM Panel Saw and Router Combo Specifications
| Maximum Crosscut | 62" / 1575 mm |
|---|---|
| Maximum Rip Cut | Unlimited |
| Maximum Cut Thickness | 1 3/4" (44–45 mm) |
| Cut Accuracy | 1/64" (0.4 mm) |
| Saw Blade Diameter | 8" (200–210 mm) |
| Saw Motor | 3 HP Worm Drive, 13 Amp, 120V |
| Router Motor | 3+ HP Variable Speed, 15 Amp, 120V |
| Router Collet | 1/4" or 1/2" |
| Frame Length | 120" (3050 mm) |
| Machine Weight | 687 lbs |
| Shipping Dimensions | 124" x 17" x 92" |
| Country of Origin | USA |
Safetyspeed SR5UA ACM Panel Saw and Router Combo Performance & Construction
- Upgraded 3+ HP Motors deliver increased cutting and routing power for demanding applications.
- Dual Function Saw & Router System allows seamless switching between operations in under one minute.
- Floating Router Head with Nylon Guide ensures consistent depth for precision V-grooving.
- Welded Steel Frame provides exceptional rigidity and long-term durability.
- Chrome-Plated Guide Tubes & Nylatron Bearings enable smooth, accurate movement.
- Dust Collection System captures debris during cutting and routing for a cleaner workspace.
- Counterweight System allows controlled, balanced cutting head operation.
- Thin Material Pressure Guard ensures accuracy when processing delicate materials.
Safetyspeed SR5UA ACM Panel Saw and Router Combo Standard Equipment
- MID-WAY FENCE® with stop and flip stop
- Aluminum material rollers and backerboard
- Four material clamps and hold-down bar
- Two blind dado stops
- Left (8') and right (5') Quick Stop® gauges
- Fixed stand with mobility wheels
- Extensions adding 22" to each side
- Dust hood and hose collection kit
- Thin material pressure guard
- Specialty 860NRTCG saw blade and router bit for V-grooving
Safetyspeed SR5UA ACM Panel Saw and Router Combo Routing Capabilities

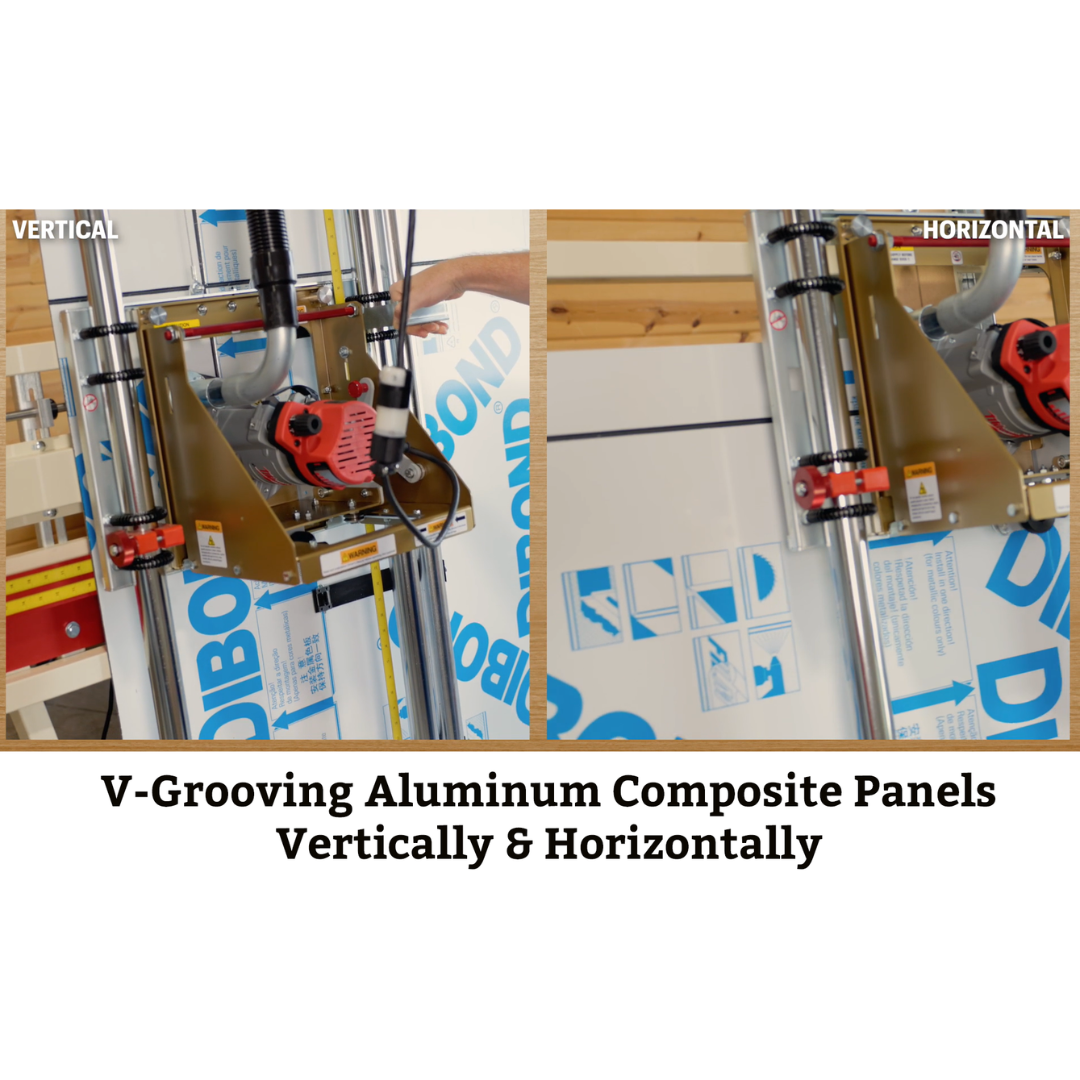

- Precision V-grooving for ACM panel fabrication
- Plow cuts, cross dados, and rabbets
- On-demand plunge routing with floating head system
- Consistent depth control across large panels
Advanced routing functionality expands production capabilities beyond standard panel cutting systems.
Why Choose the Safetyspeed SR5UA ACM Panel Saw and Router Combo
- Upgraded high-horsepower motors for increased productivity.
- All-in-one cutting and routing system saves space and cost.
- Over $1,400 in included accessories and upgrades.
- Precision V-grooving and routing for advanced fabrication.
- Built in the USA with industrial-grade components.
The Safetyspeed SR5UA ACM Panel Saw and Router Combo is a premium, production-ready solution designed for professionals who require maximum power, flexibility, and precision in a single vertical cutting and routing system.
