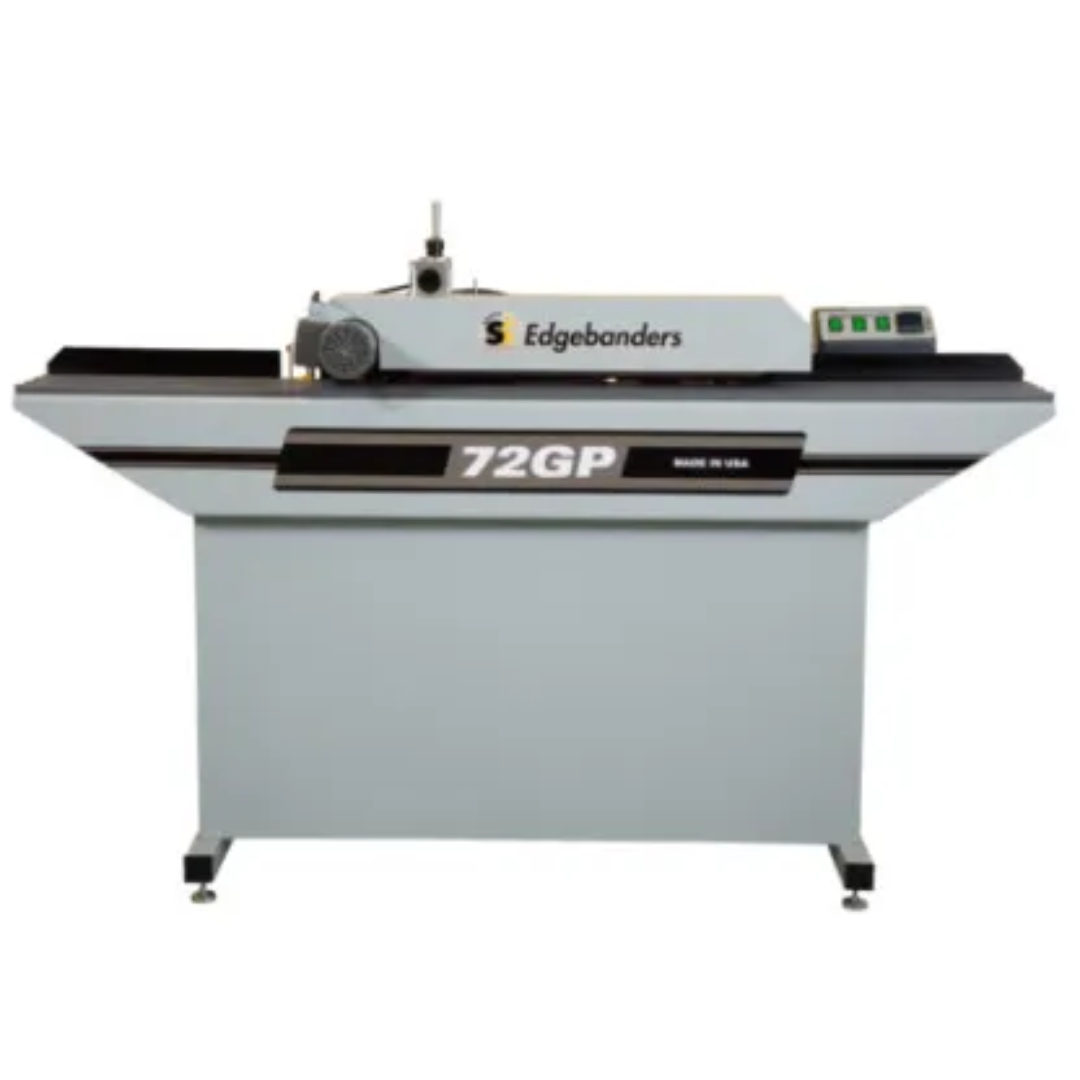

Safety speed Edgebander Glue Pot EZ72GP Applications
- Cabinet and furniture manufacturing
- Panel processing with PVC, polyester, wood, and laminate edge banding
- Millwork and woodworking shops
- Small to medium production environments
- Shops transitioning from manual or inefficient edgebanding processes
Ideal for improving production speed and edge quality while reducing labor-intensive hand finishing.
Safety speed Edgebander Glue Pot EZ72GP Specifications
| Model | 72GP (EZ72GP) |
|---|---|
| Power Supply | 220V, 20 Amp, Single Phase |
| Tape Types | Polyester / PVC / Wood / Single Laminate Strips |
| Tape Width Range | 1/2″ – 1.75″ (13 mm – 45 mm) |
| Maximum Tape Thickness | 1 mm |
| Minimum Panel Length | 6″ / 152 mm |
| Minimum Panel Width | 3.5″ / 89 mm |
| Maximum Feed Rate | Up to 24 FPM |
| Machine Dimensions | 80″ × 28″ × 52″ |
| Shop Dimensions | 72″ L × 48″ H × 37″ D |
| Weight | 450–540 lbs |
| Country of Origin | USA |
Safety speed Edgebander Glue Pot EZ72GP Features & Performance

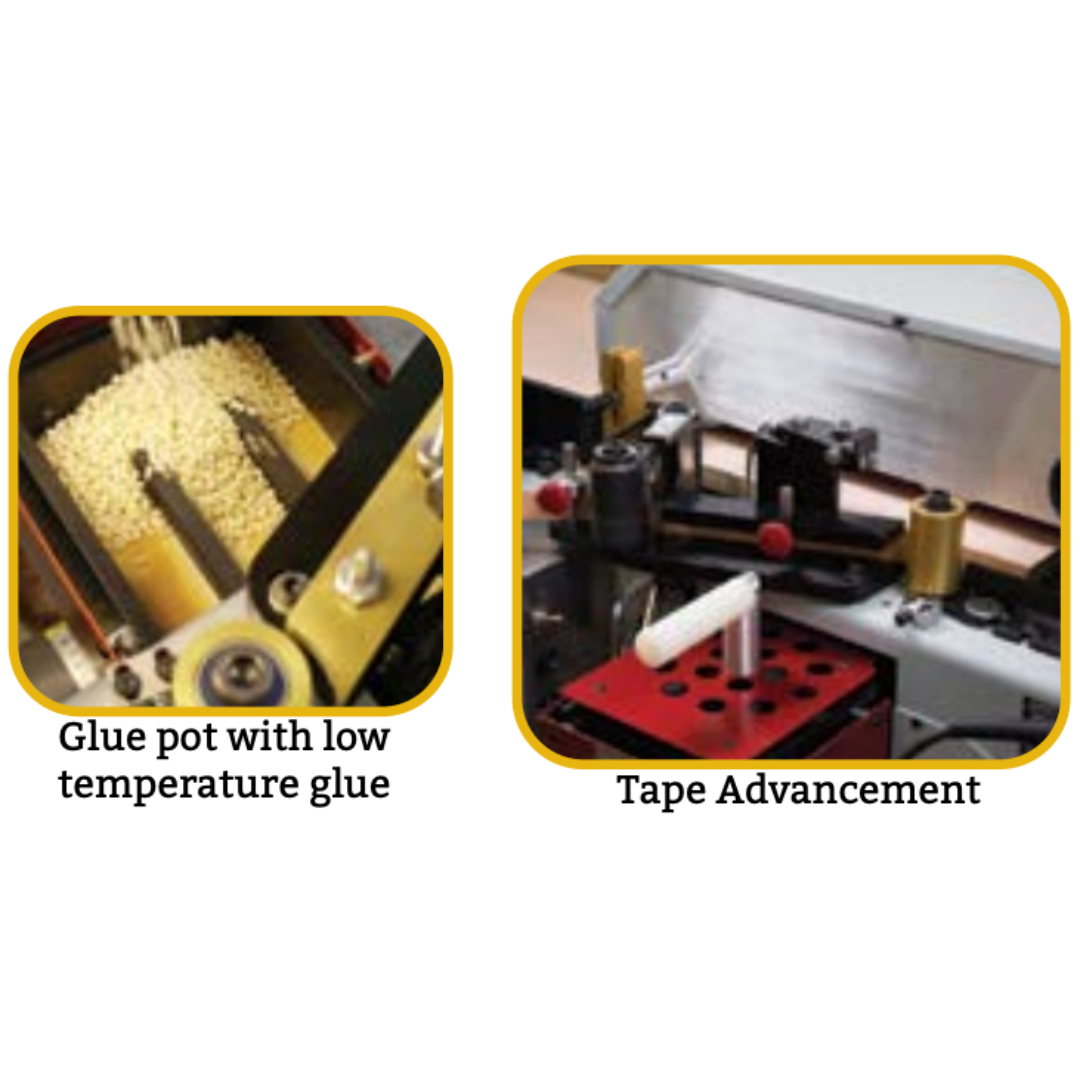

- Temperature-controlled glue pot prevents overheating, burning, and glue splatter.
- Digital P.I.D. temperature control with standby mode for consistent adhesive performance.
- Fast heat-up time (10–12 minutes) reduces downtime and improves workflow efficiency.

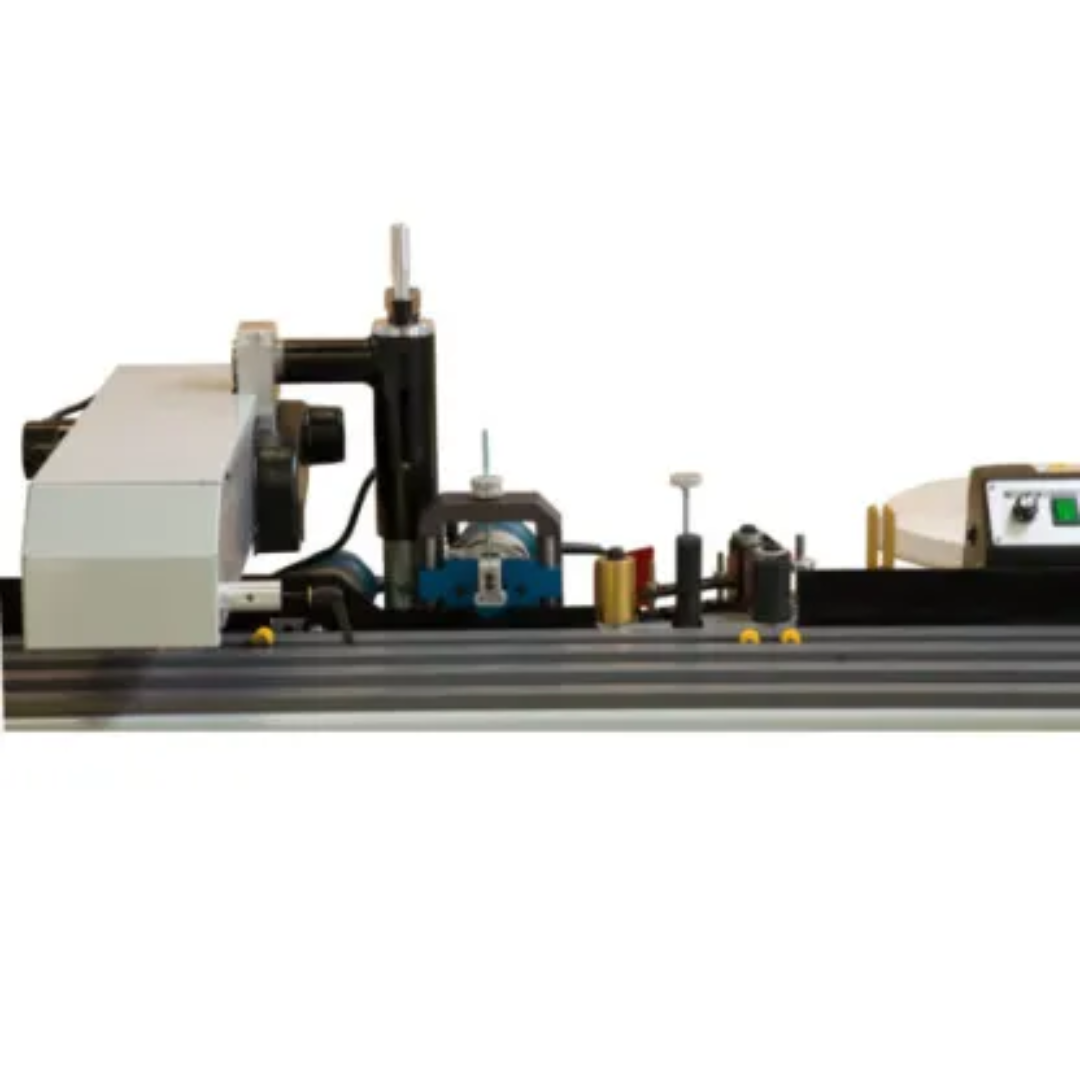

- Adjustable glue extrusion system provides precise adhesive application.
- Micro-adjust tape guide allows quick and accurate tape width changes.
- Electromagnetic end cutters eliminate the need for compressed air systems.
- Accutrim edge trim system with industrial router motors ensures clean, professional finishes.
- Automatic conveyor system maintains consistent feed rates up to 24 FPM.
- Solid edge flush trimming and molding capability enhances versatility.
- Anodized glue pot interior simplifies cleaning and maintenance.
- Built-in safety control prevents operation before glue reaches proper temperature.
- Dust collection outlet keeps the workspace clean and efficient.
- Machined billet aluminum components ensure durability and precision.
- Easy setup and operation minimizes training time and improves productivity.
- 3-year warranty provides long-term reliability and confidence.
Why Choose the Safety speed Edgebander Glue Pot EZ72GP
- High-speed edgebanding up to 24 FPM for increased production
- Superior adhesion with controlled glue application system
- Reduces need for sanding and manual edge finishing
- Cost-effective alternative to higher-priced industrial machines
- Durable American-made construction for long-term performance
The Safety Speed Edgebander Glue Pot EZ72GP delivers powerful, precise, and efficient edgebanding performance—making it the ideal upgrade for shops looking to improve quality, speed, and consistency.
