Safetyspeed 6480-20C Vertical Panel Saw Applications
- Cabinet and furniture panel processing
- Woodworking and fabrication shops
- Cutting plywood, MDF, and composite panels
- Small to mid-size production environments
- Job sites requiring portable panel cutting solutions
Ideal for shops needing a compact, mobile panel saw without sacrificing accuracy or performance.
Safetyspeed 6480-20C Vertical Panel Saw Specifications
| Model | 6480-20C |
|---|---|
| Maximum Crosscut | 50" (1270 mm) |
| Maximum Rip Cut | 96" (2450 mm) |
| Maximum Cut Depth | 1 3/4" (45 mm) |
| Cut Accuracy | 1/32" (0.8 mm) |
| Frame Length | 60" (5 ft) |
| Saw Blade Diameter | 8" (210 mm) |
| Motor | 3.25 HP, 15 Amp, 120V (Milwaukee Tool) |
| RPM | 5,800 RPM |
| Dust Port Diameter | 1.5" |
| Machine Weight | 154 – 189 lbs |
| Shipping Weight | 177 – 200 lbs |
| Machine Dimensions | 60" L x 36" W x 75" H |
| Country of Origin | USA |
Safetyspeed 6480-20C Vertical Panel Saw Performance & Construction

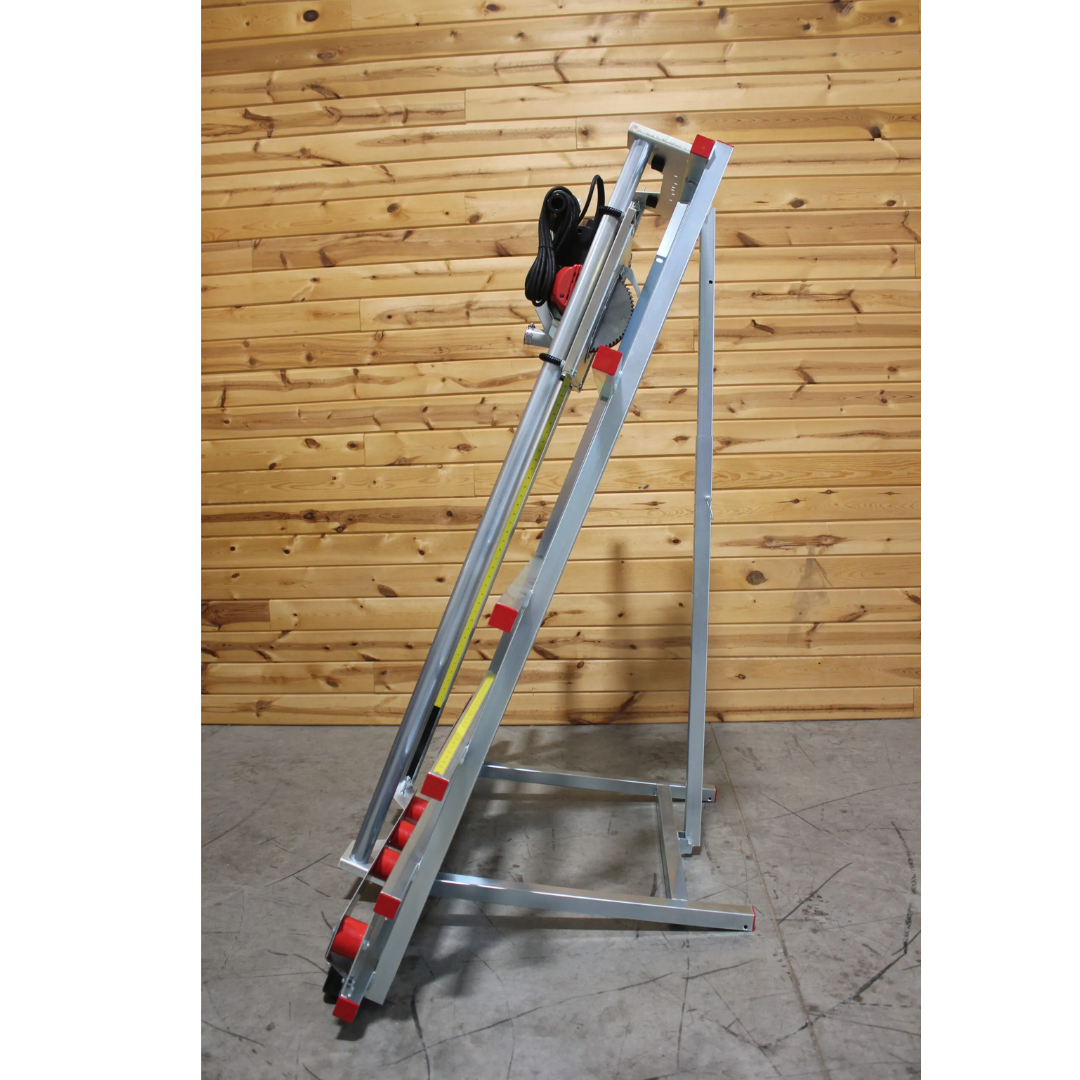

- Compact 5' Frame Design provides full panel cutting capability in a space-saving footprint.
- Portable Folding Stand & Wheels allow one-person mobility and flexible shop layout.
- Industrial Milwaukee Motor delivers reliable power for consistent cutting performance.
- Precision Guide System with steel tubes and Nylatron bearings ensures smooth, accurate operation.
- Quick Vertical/Horizontal Changeover increases efficiency for different cutting applications.
- Integrated Dust Collection Bonnet helps maintain a cleaner workspace.
- Spring Counterbalance System allows controlled and effortless cutting head movement.
- Heavy-Duty Welded Steel Frame ensures long-term durability and rigidity.
Safetyspeed 6480-20C Vertical Panel Saw Standard Equipment
- 3.25 HP Milwaukee industrial motor

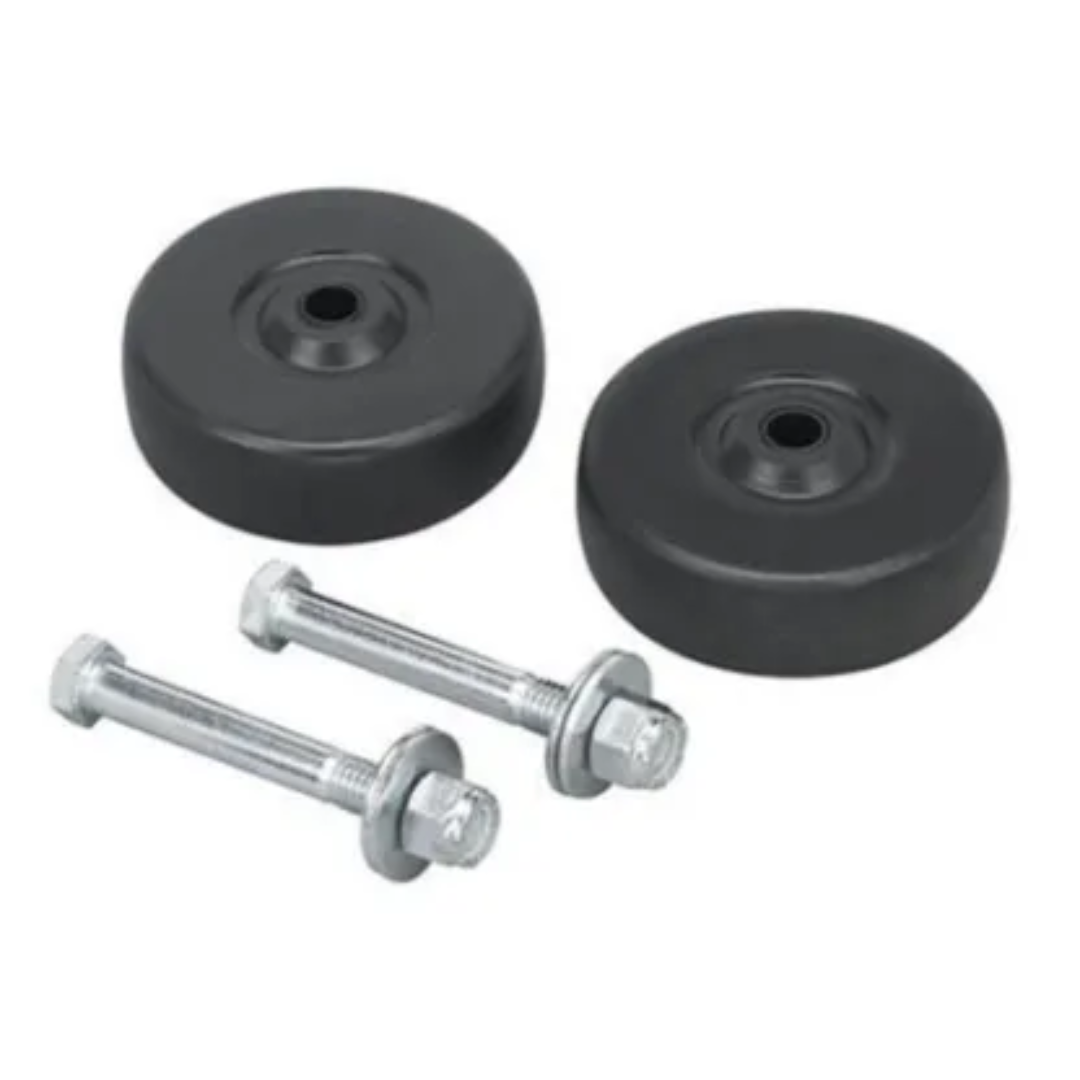

- Portable folding stand and mobility wheels
- General-purpose saw blade
- Integrated dust collection bonnet
- Adjustable vertical and horizontal rulers
- Thin material pressure guard
- Injection-molded material rollers
- Spring-loaded counterbalance system
- Extended warranty
- TUV certified to UL/CSA standards
Safetyspeed 6480-20C Vertical Panel Saw Benefits
- Compact footprint requires only 15 square feet of space.
- One-person operation from loading to finished cut.
- Easy mobility allows repositioning within the shop or job site.
- Clean, accurate cuts with minimal setup time.
- Reliable performance for daily light-to-medium duty use.
Built in Minnesota and engineered for precision, the Safetyspeed 6480-20C Vertical Panel Saw combines portability, accuracy, and industrial performance in a compact system.
