Safety Speed SPM301HD Screw Pocket Machine Applications
- High-volume cabinet and furniture manufacturing
- Production pocket hole joinery operations
- Frame assembly and panel construction
- Industrial woodworking and millwork facilities
- Shops requiring continuous, all-day pocketing performance
Engineered for production environments capable of running 8+ hours per day with consistent output.
Safety Speed SPM301HD Screw Pocket Machine Specifications
| Model | SPM301HD |
|---|---|
| Spindle Motor | 5 Amp, 18,000 RPM, 3/8″ (ER20) Collet |
| Air Drill | 0.7 HP, 25,000 RPM Max, 1/4″ Collet |
| Screw Pocket Angle | 6° |
| Air Requirement | 6.25 CFM at 90 PSI |
| Vacuum Requirement | 220 CFM, 3″ Hose Connection |
| Dimensions (Shop) | 22″ W × 44″ H × 32″ D |
| Machine Dimensions | 32″ × 22″ × 44″ |
| Weight | 350–353 lbs |
| Recommended Usage | 8+ Hours Per Day |
| Country of Origin | USA |
Safety Speed SPM301HD Screw Pocket Machine Features & Performance

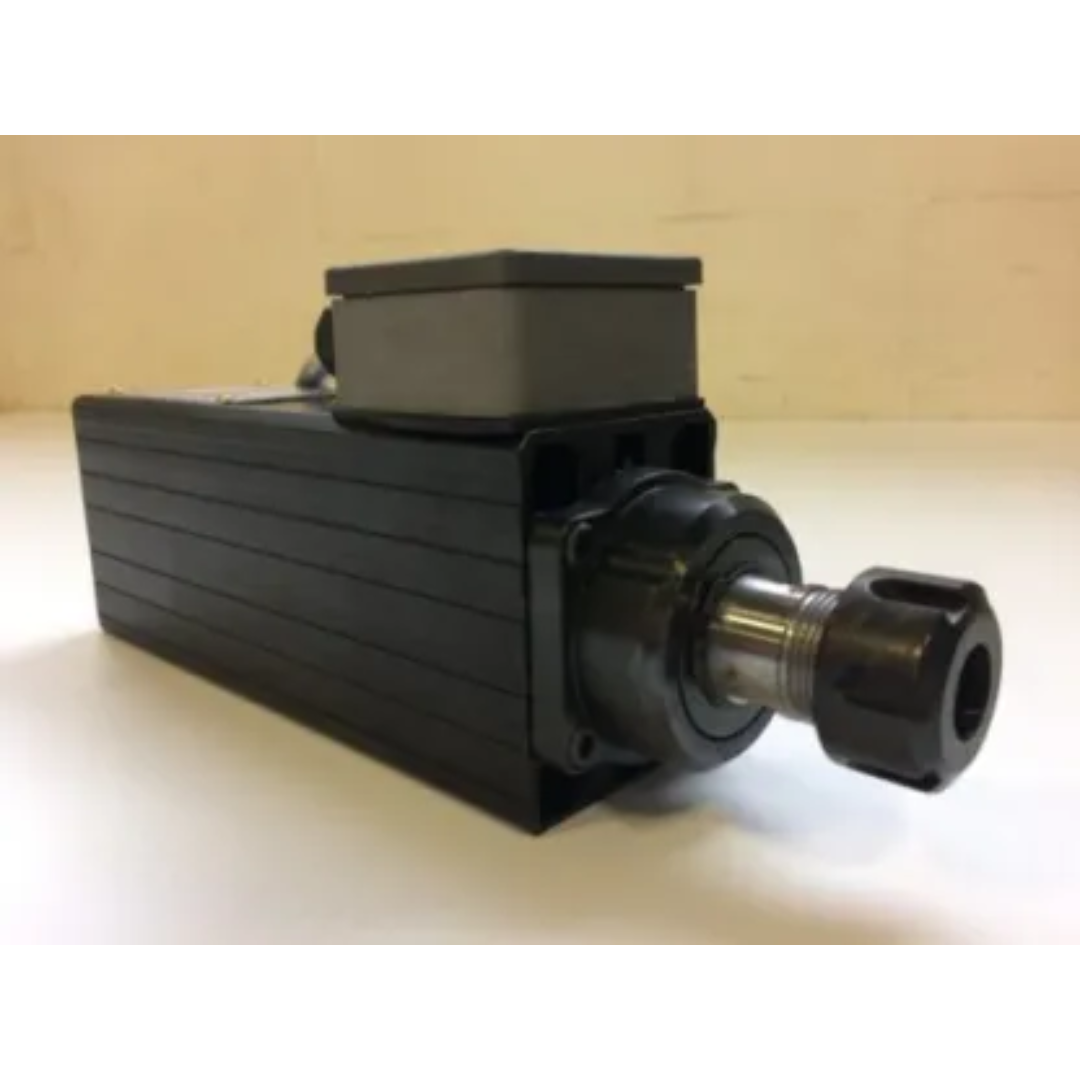

- Direct-drive continuous spindle motor provides CNC-style performance with minimal maintenance.
- Self-oiling air drill system replaces traditional router motors for improved durability and performance.

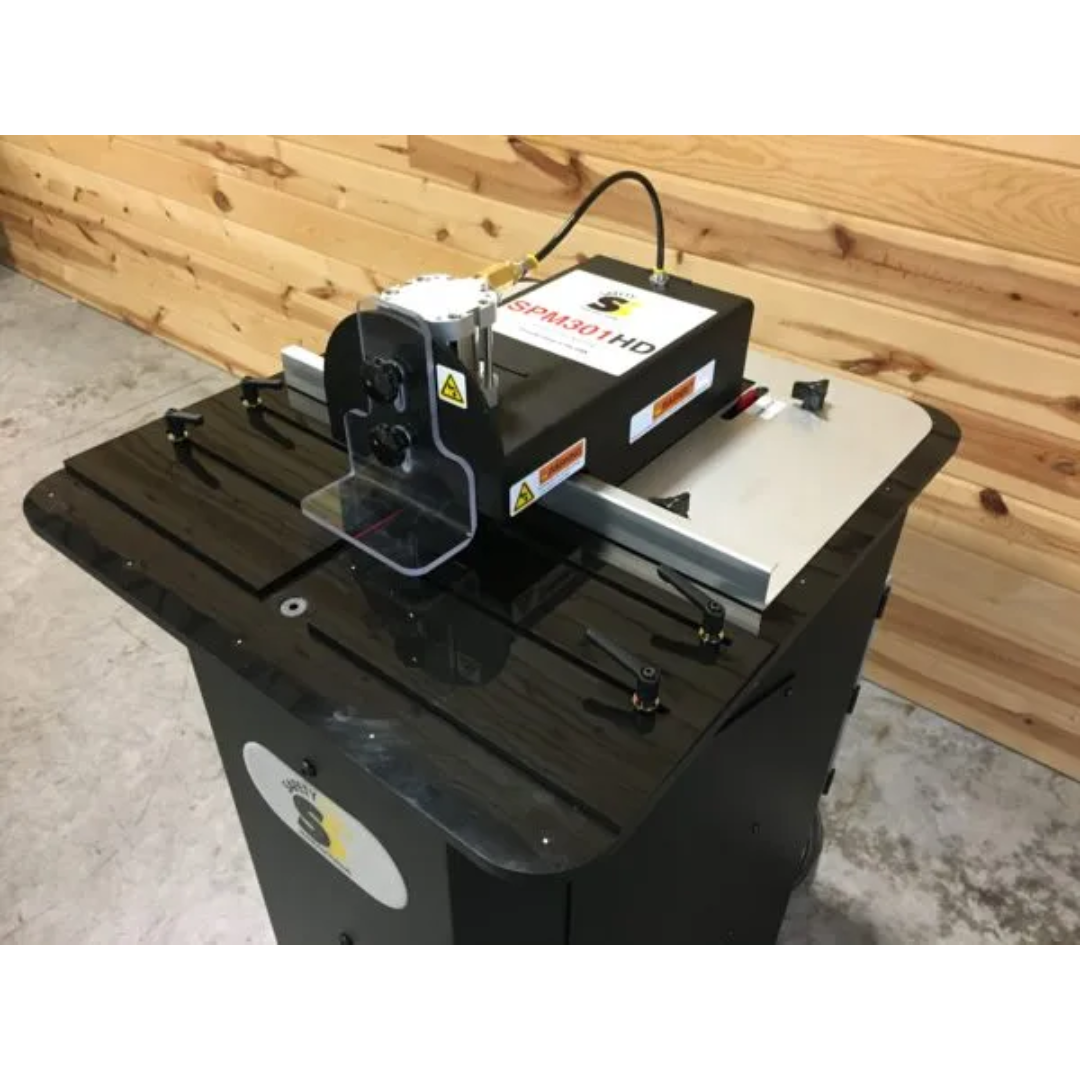

- Simultaneous drilling and routing produces a pilot hole and screw pocket in a single cycle.
- Cycle time under one second significantly increases production throughput.
- CAM-driven mechanical linkage ensures smooth, controlled cutting action throughout the cycle.
- Heavy-duty construction designed for continuous operation in demanding environments.

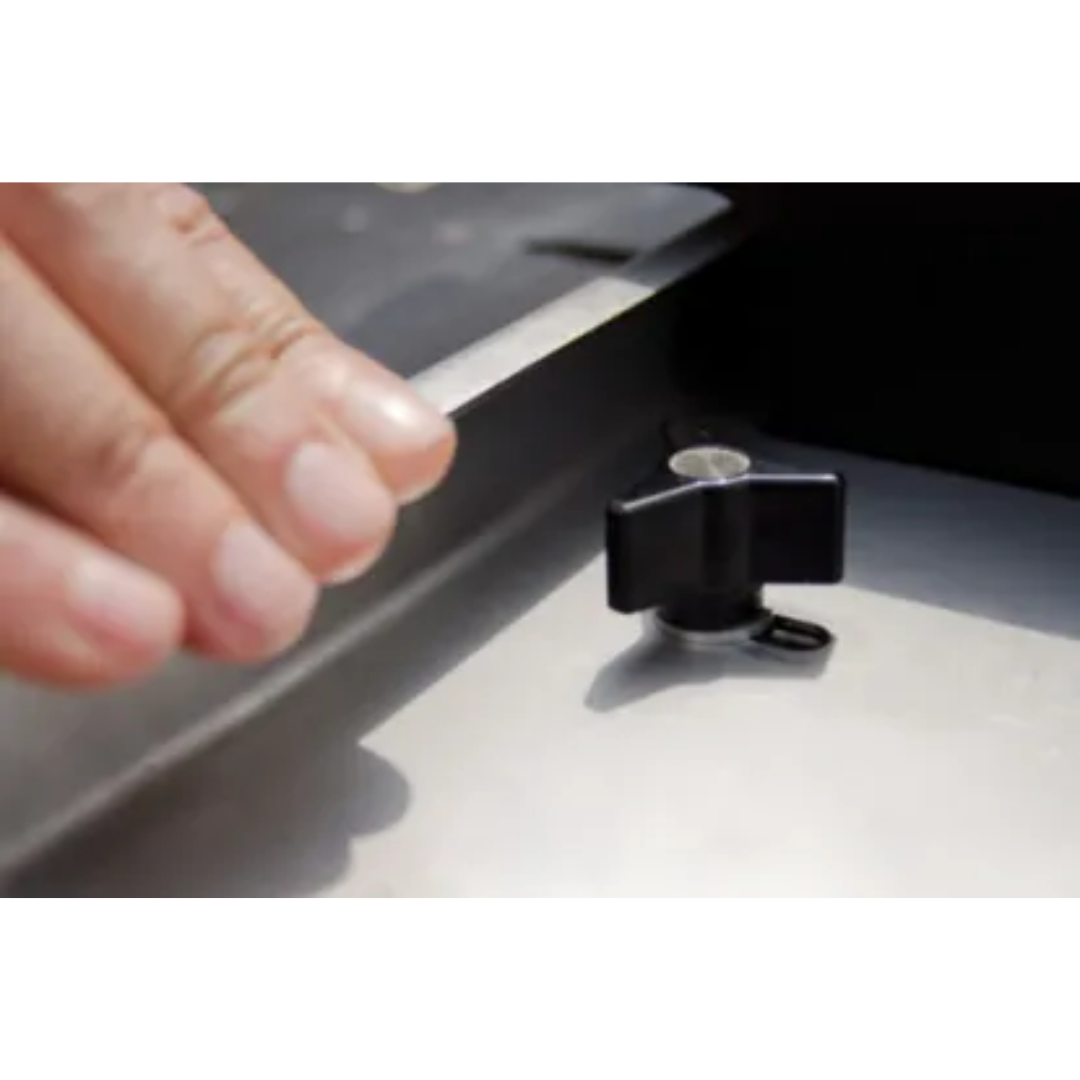

- Adjustable fence and stop system allows quick setup for different screw lengths.
- Crank-adjustable pocket depth provides precise control for varying material thicknesses (0.5″ to 1.5″).
- Pocket alignment guide ensures consistent and repeatable placement.
- Reduced air consumption improves efficiency compared to fully pneumatic systems.
- Easy top access simplifies maintenance and tooling changes.
- Quieter operation compared to traditional systems due to mechanical control design.
Safety Speed SPM301HD Screw Pocket Machine Capabilities

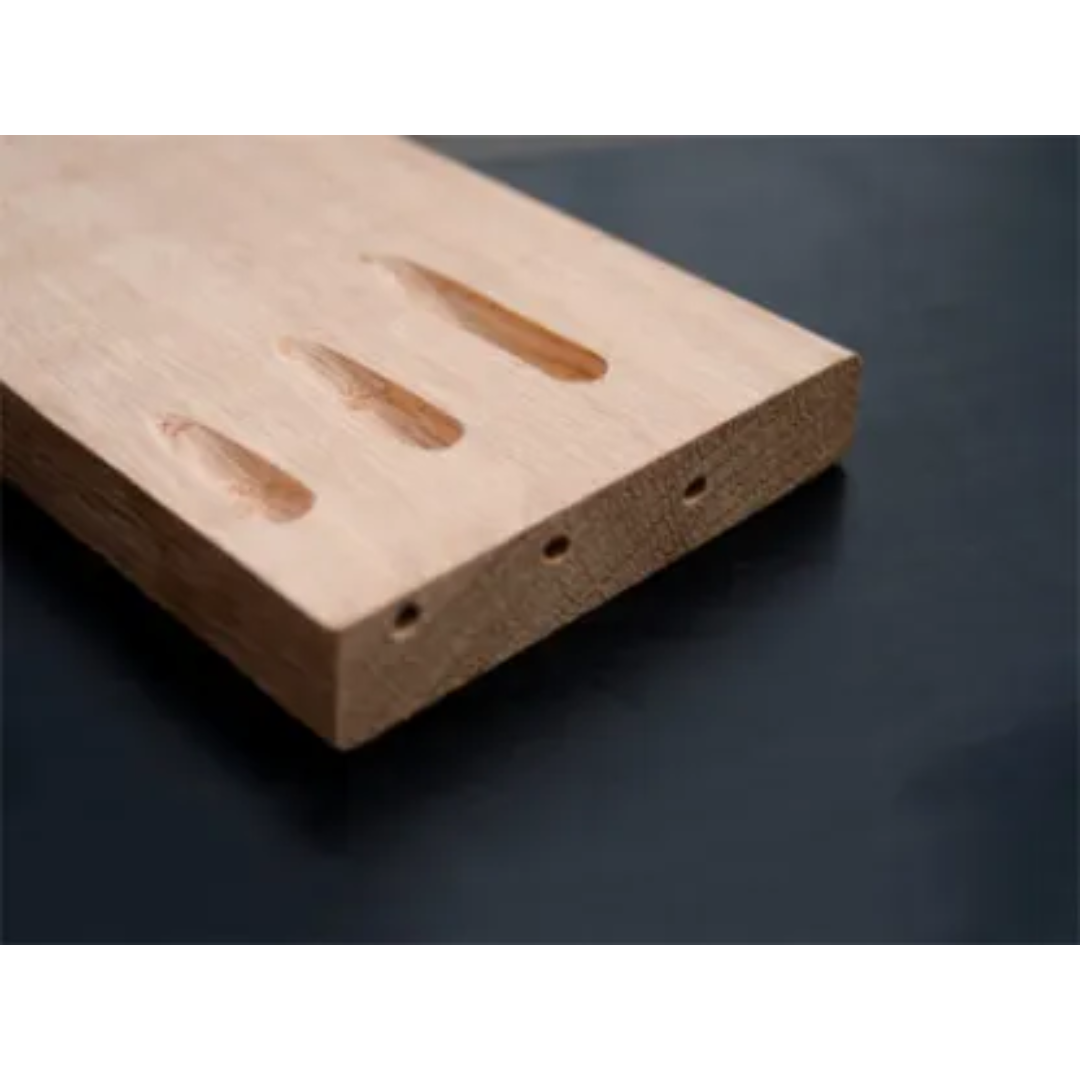

- Produces 6° screw pockets and pilot holes in a single, rapid cycle
- Handles continuous, high-volume production runs
- Maintains consistent depth and alignment across large batches
- Supports a wide range of material thicknesses
- Capable of producing hundreds of thousands to millions of pocket holes annually
Why Choose the Safety Speed SPM301HD Screw Pocket Machine
- Built for continuous, heavy-duty production environments
- Faster cycle times with simultaneous drilling and routing
- Advanced spindle motor design for long-term reliability
- Reduced maintenance and improved operational efficiency
- American-made construction for durability and performance
The Safety Speed SPM301HD Screw Pocket Machine is the ultimate high-production solution for woodworking professionals seeking maximum efficiency, durability, and precision in continuous pocket hole operations.
