Safety Speed SPM301 Screw Pocket Machine Applications
- Cabinet and furniture manufacturing
- High-volume pocket hole joinery
- Frame and panel assembly operations
- Woodworking and millwork production environments
- Shops requiring fast, repeatable and precise pocketing
Ideal for production shops looking to significantly reduce cycle time while maintaining superior joint quality.
Safety Speed SPM301 Screw Pocket Machine Specifications
| Model | SPM301 |
|---|---|
| Pocket Motor | 1.75 HP, 11 Amp, Max 27,500 RPM, 1/2″ Collet |
| Drill Motor | 1.25 HP, 7 Amp, Max 27,000 RPM, 1/4″ Collet |
| Screw Pocket Angle | 6° |
| Air Requirement | 1–2 CFM at 80 PSI |
| Vacuum Requirement | 220 CFM, 3″ Hose Connection |
| Dimensions (Shop) | 22″ W × 44″ H × 26″ D |
| Machine Dimensions | 27″ × 34″ × 49″ |
| Weight | 294–302 lbs |
| Recommended Usage | 3–5 Hours Per Day |
| Country of Origin | USA |

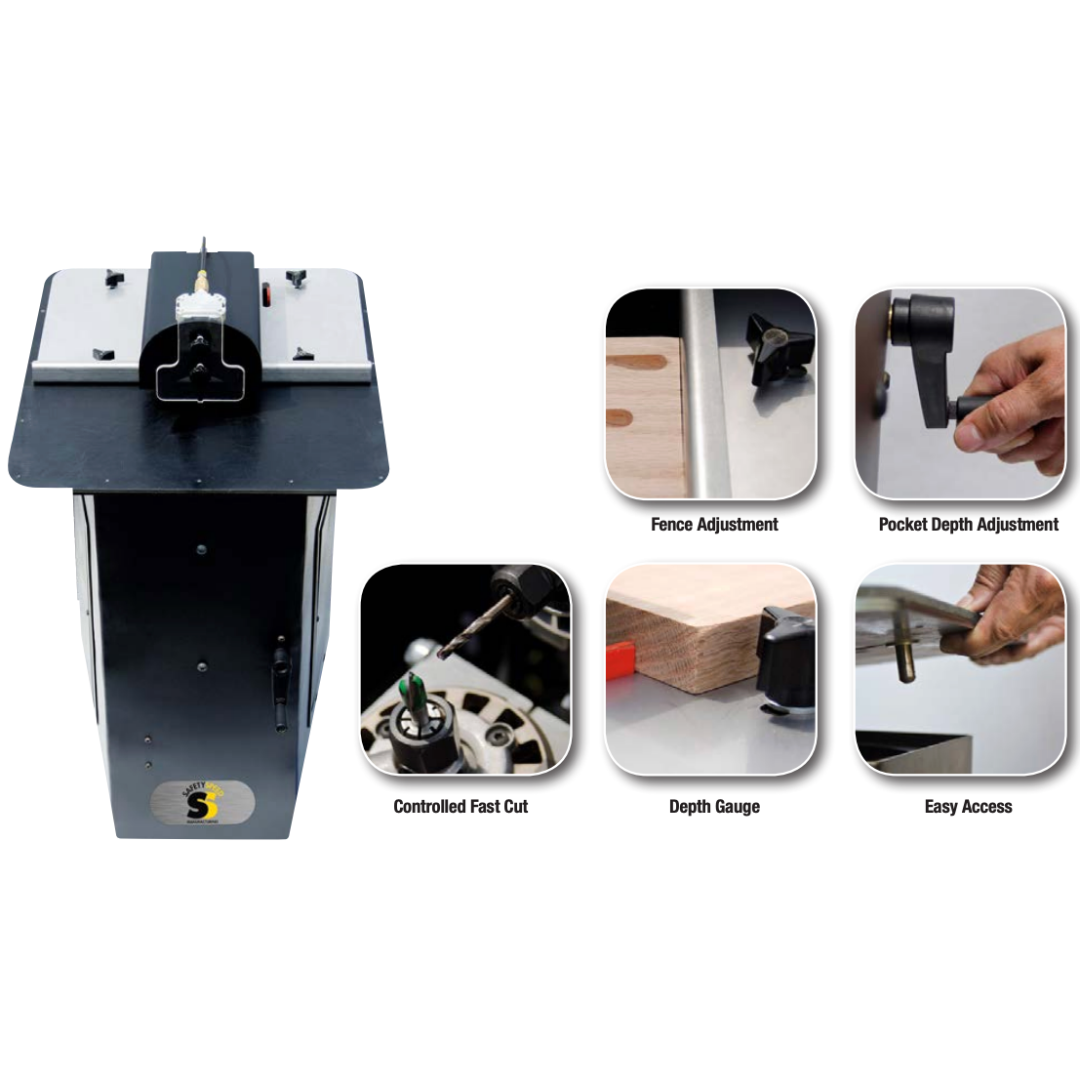

Safety Speed SPM301 Screw Pocket Machine Features & Performance
- CAM-driven mechanical action provides smooth, controlled cutting without reliance on full pneumatic systems.

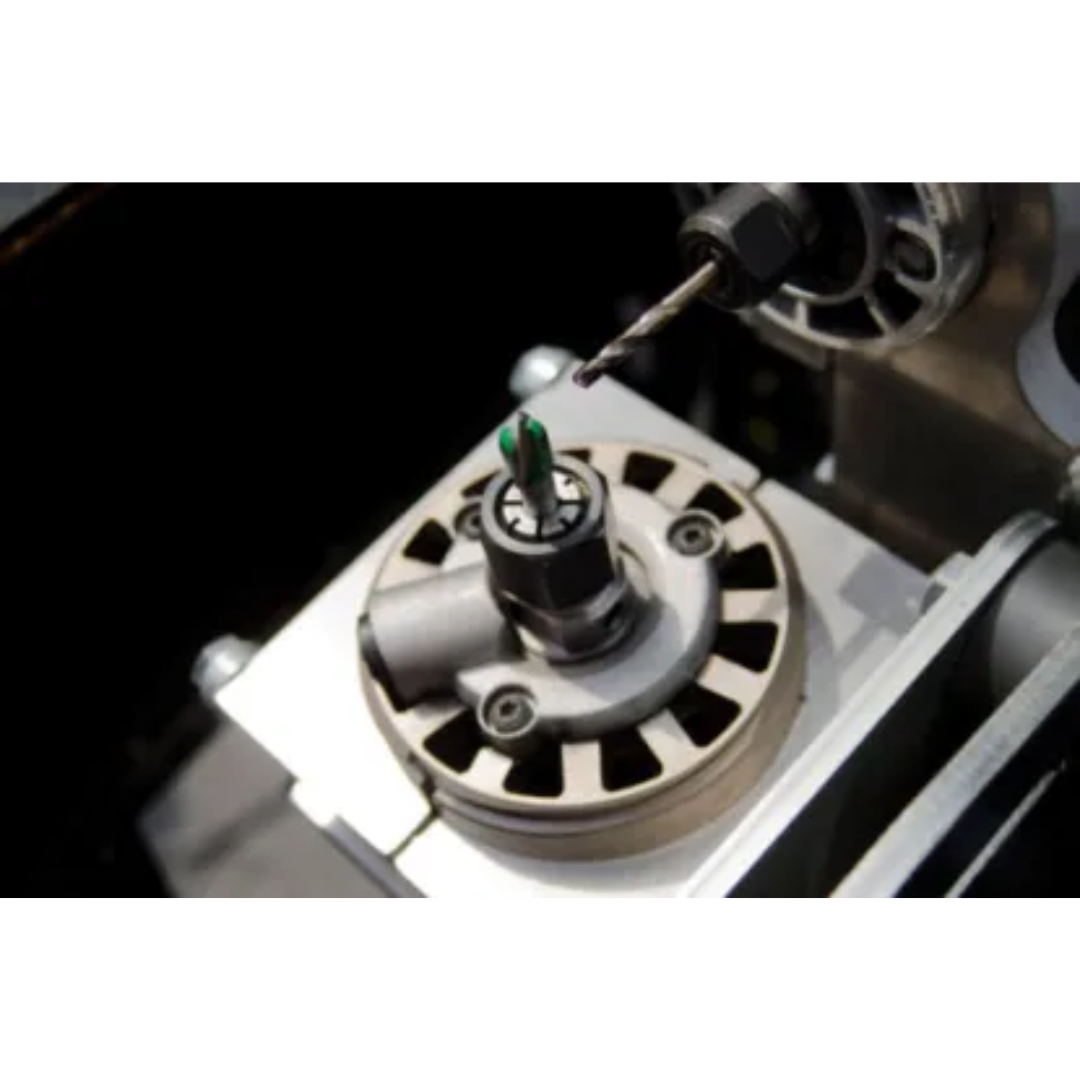

- Simultaneous drilling and routing allows pilot hole and pocket creation in a single cycle.
- Cycle time under one second significantly increases production efficiency.
- Reduced air consumption requires only 1–2 CFM compared to traditional pneumatic machines.
- Heavy-duty industrial construction ensures long-term durability and reliability.

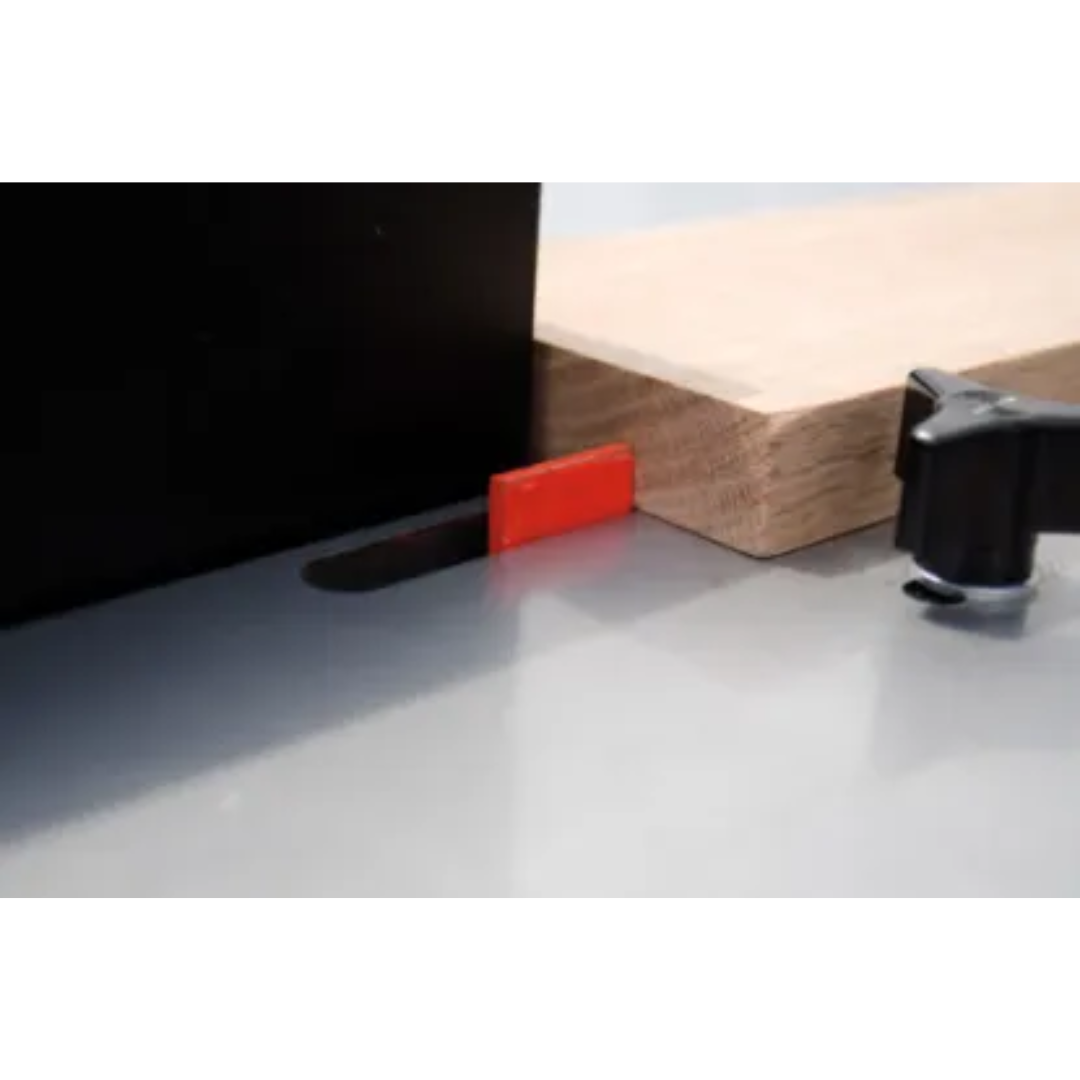

- Adjustable back fence and stop rail allow quick setup for different screw lengths and pocket positions.
- Built-in analog depth gauge enables fast adjustments for varying material thicknesses.

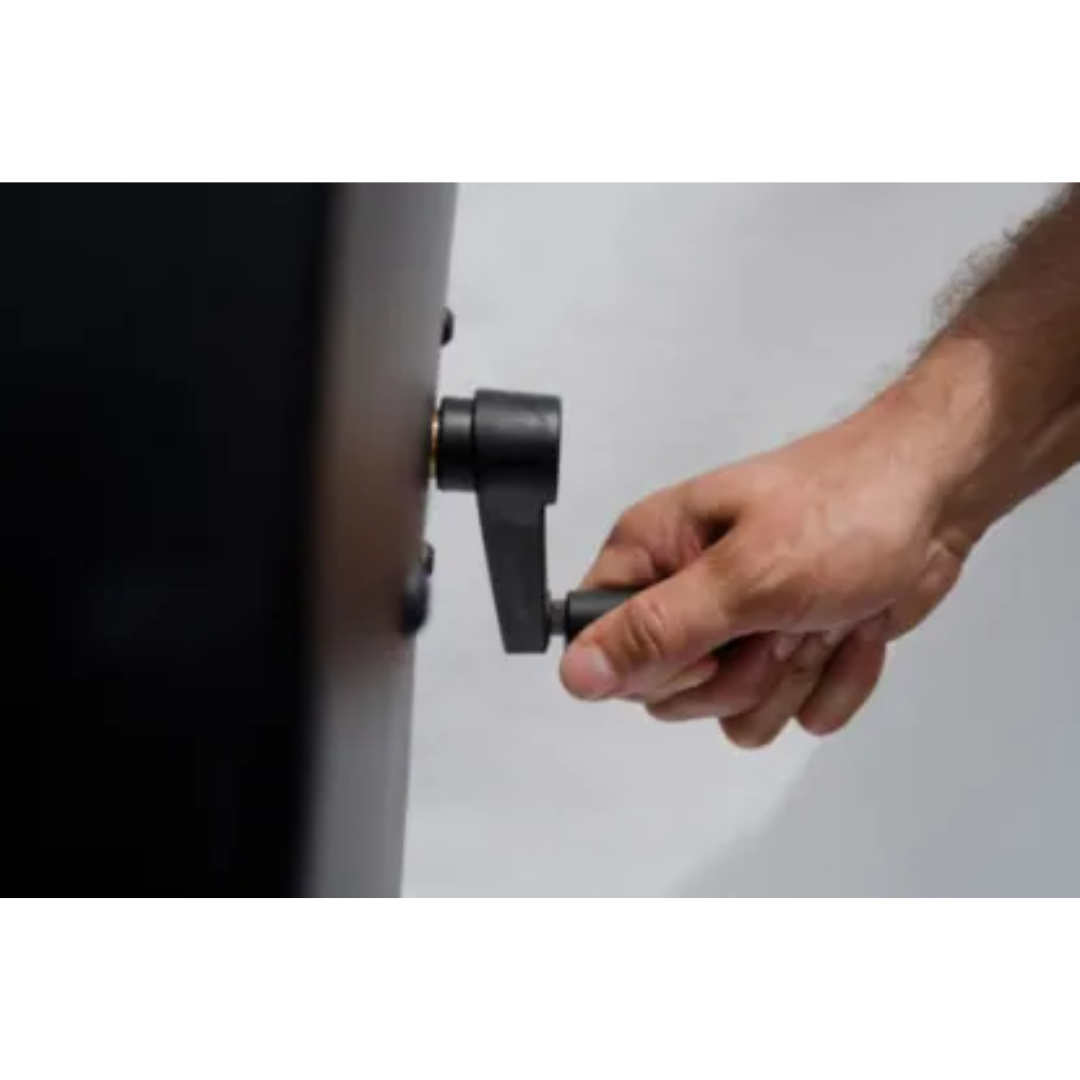

- Crank-style depth adjustment provides precise control over pocket depth.

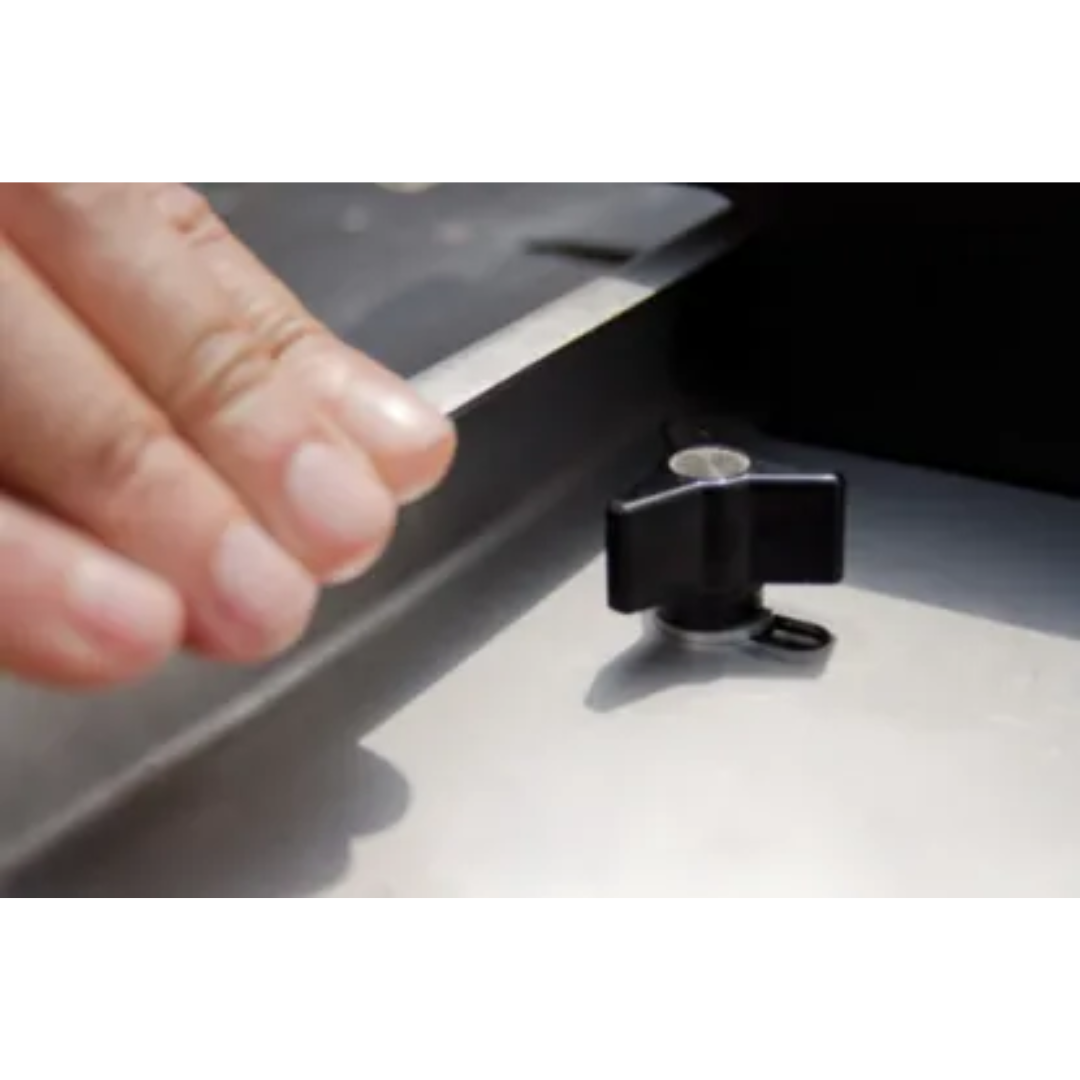

- Pocket alignment guide ensures consistent and accurate placement.

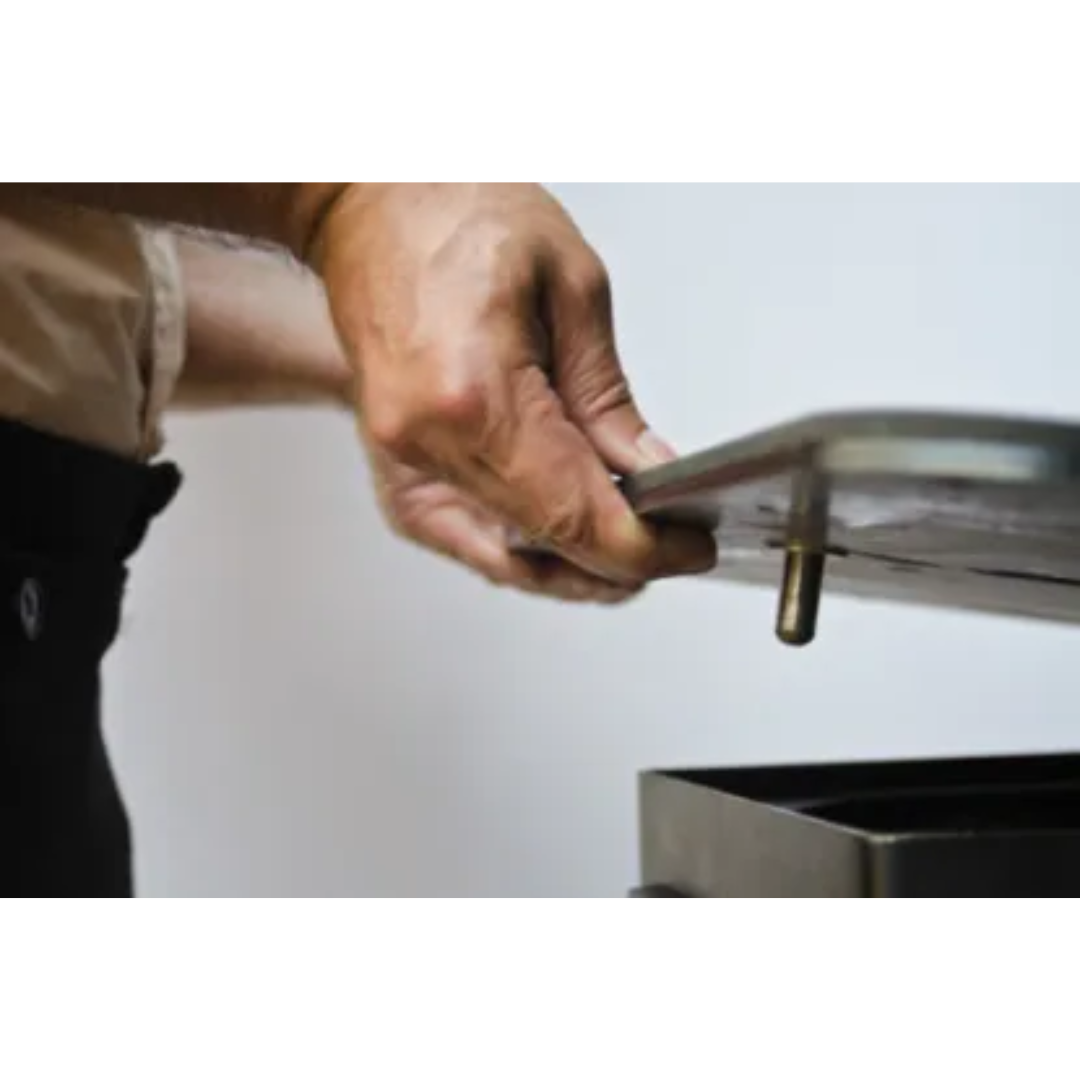

- Easy top access design simplifies tooling changes and maintenance.
- Mechanical linkage system reduces vibration and improves cut quality.
Safety Speed SPM301 Screw Pocket Machine Capabilities

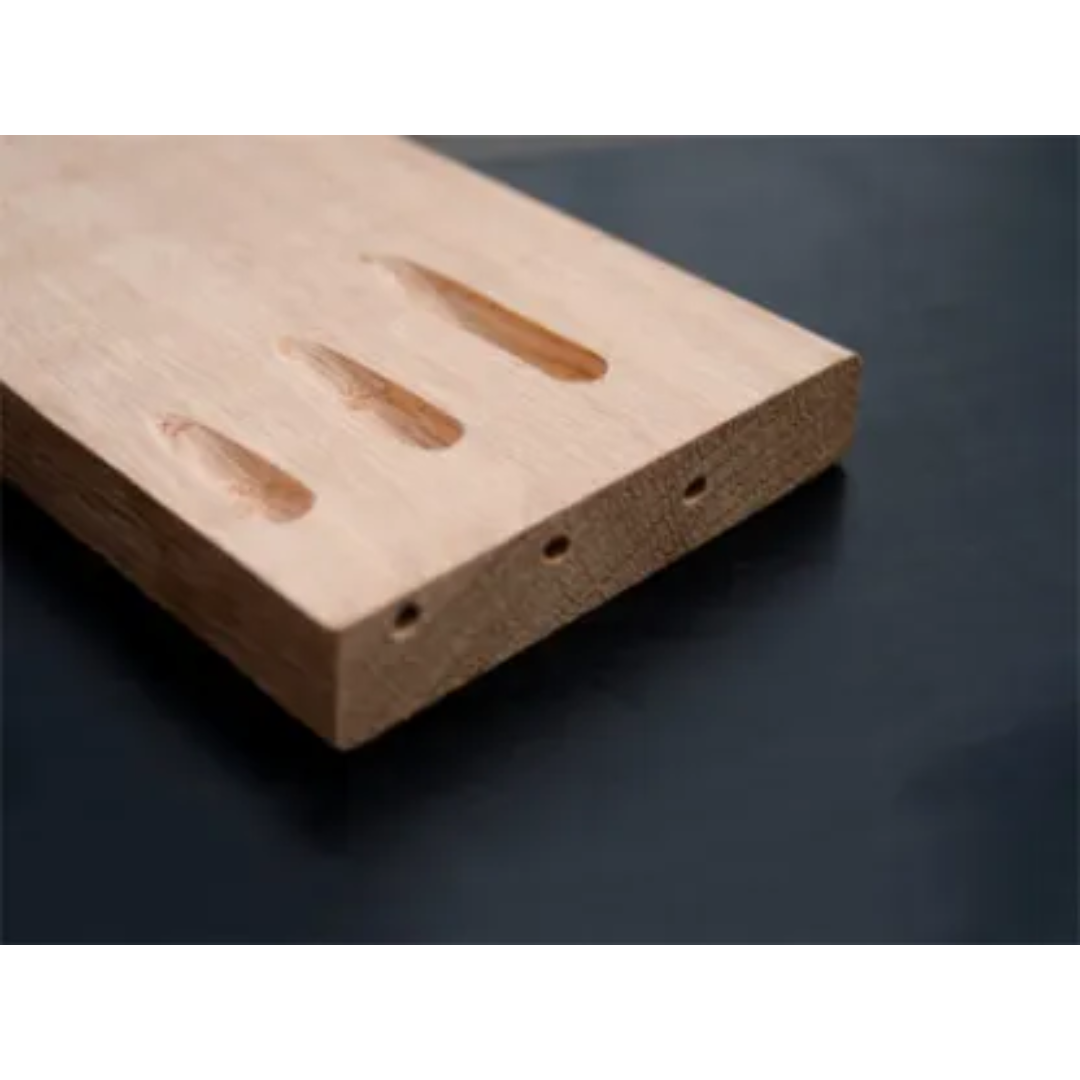

- Produces 6° screw pockets and pilot holes in a single, rapid cycle
- Handles a range of material thicknesses with quick adjustments
- Supports high-volume production with consistent repeatability
- Reduces operator fatigue with smooth mechanical operation
- Improves joint strength and accuracy across production runs
Why Choose the Safety Speed SPM301 Screw Pocket Machine
- Faster cycle times compared to pneumatic pocket machines
- Simultaneous drilling and routing improves efficiency
- Low air consumption reduces operating costs
- Heavy-duty American-made construction for long service life
- Precision adjustments for consistent, high-quality joinery
The Safety Speed SPM301 Screw Pocket Machine is a production-ready solution built for speed, precision, and durability—making it the ideal choice for shops focused on maximizing efficiency and output.
