Safety Speed SPM101EZ Screw Pocket Machine Applications
- Cabinet and furniture manufacturing
- Pocket hole joinery for frames and assemblies
- Woodworking and millwork shops
- Production environments requiring fast, repeatable pocketing
- Small shops needing a portable yet industrial solution
Perfect for producing strong, accurate pocket joints quickly with minimal operator effort.
Safety Speed SPM101EZ Screw Pocket Machine Specifications
| Model | SPM101EZ |
|---|---|
| Pocket Motor | 1.75 HP |
| Drill Motor | 1 HP |
| Router Collet | 1/2″ |
| Drill Collet | 1/4″ |
| Screw Pocket Angle | 6° |
| Dimensions | 25″ W × 22″ H × 15″ D |
| Weight | 66 lbs / 30 kg |
| Recommended Vacuum | Minimum 600 CFM (with dust chute accessory) |
| General Usage | 1–3 Hours Per Day |
| Motor Brand | DeWalt |
| Country of Origin | USA |
Safety Speed SPM101EZ Screw Pocket Machine Features & Performance
- Dual operation system machines a 6° screw pocket and drills a pilot hole simultaneously.
- “EZ” action lever allows fast, smooth operation in two simple movements without finding a neutral position.
- CAM linkage system synchronizes both motors to reduce cycle time while maintaining cut quality.
- Adjustable fence system enables quick setup for different screw lengths and pocket positions.
- Adjustable pocket depth allows precise control for varying material thicknesses (1/2″ to 1 1/2″).
- Pocket alignment guide ensures consistent and accurate positioning for repeatable results.
- Controlled mechanical cutting action produces smoother, cleaner cuts without requiring compressed air.
- Single switch operation activates both router and drill motors with integrated emergency stops.
- Industrial construction in a compact form provides durability while remaining portable at 66 lbs.
Safety Speed SPM101EZ Screw Pocket Machine Capabilities
- Produces pocket holes and pilot holes in under one second
- Handles a variety of material thicknesses with adjustable settings
- Supports high-repeat production with consistent accuracy
- Reduces setup time and operator fatigue with ergonomic controls
- Compatible with optional dust collection and material stop accessories

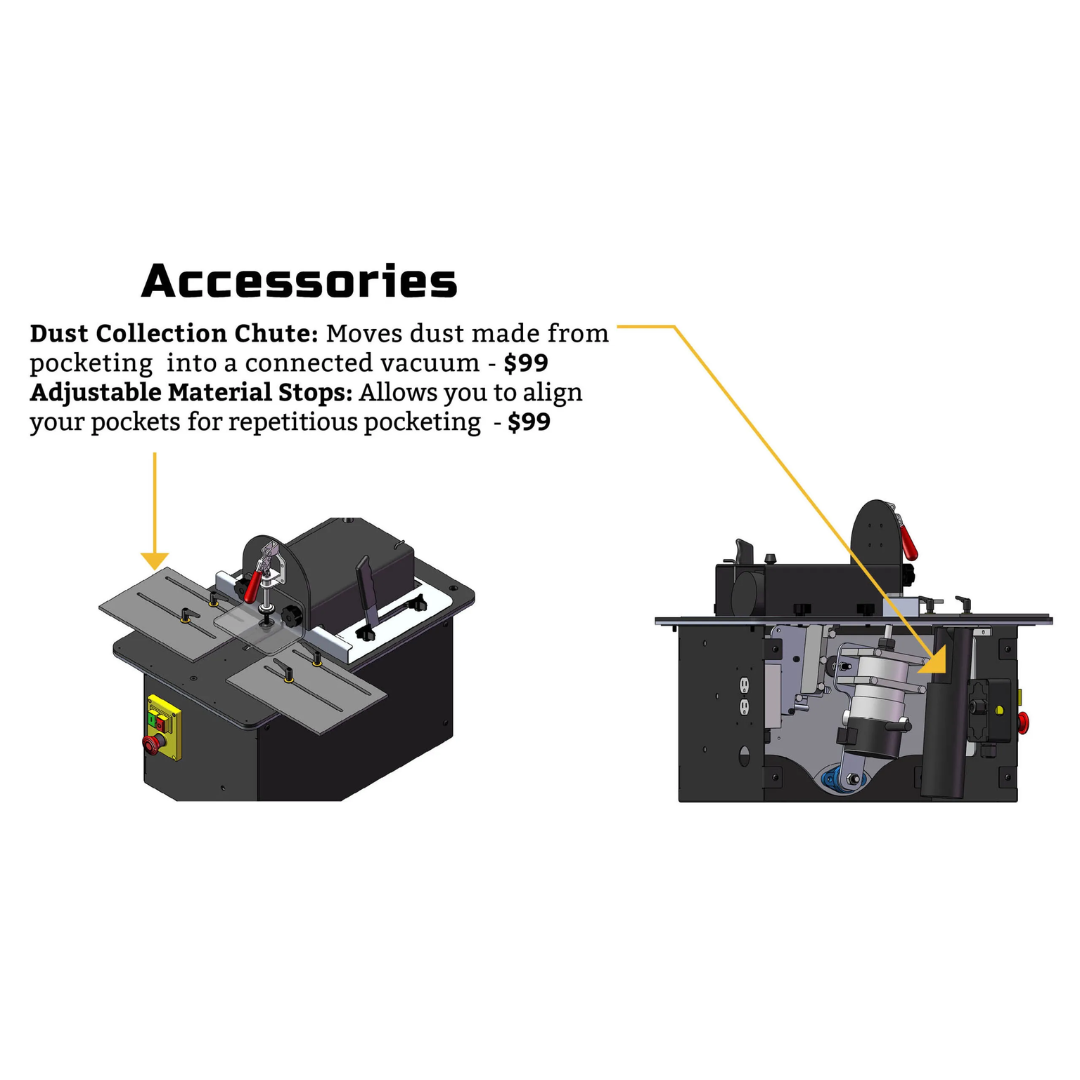

Safety Speed SPM101EZ Screw Pocket Machine Optional Accessories
- Dust collection chute for cleaner operation
- Adjustable material stops for repeatable pocketing
- Configurations available with table stops and dust collection systems
Why Choose the Safety Speed SPM101EZ Screw Pocket Machine
- Fast, one-motion pocketing and drilling increases productivity
- Compact and portable design without sacrificing industrial performance
- Highly adjustable for different materials and screw applications
- Reduces labor time and improves consistency in joinery
- Built in the USA for durability and long-term reliability
The Safety Speed SPM101EZ Screw Pocket Machine is a powerful, efficient solution for creating strong, precise pocket joints—perfect for shops looking to increase speed, accuracy, and production efficiency.
