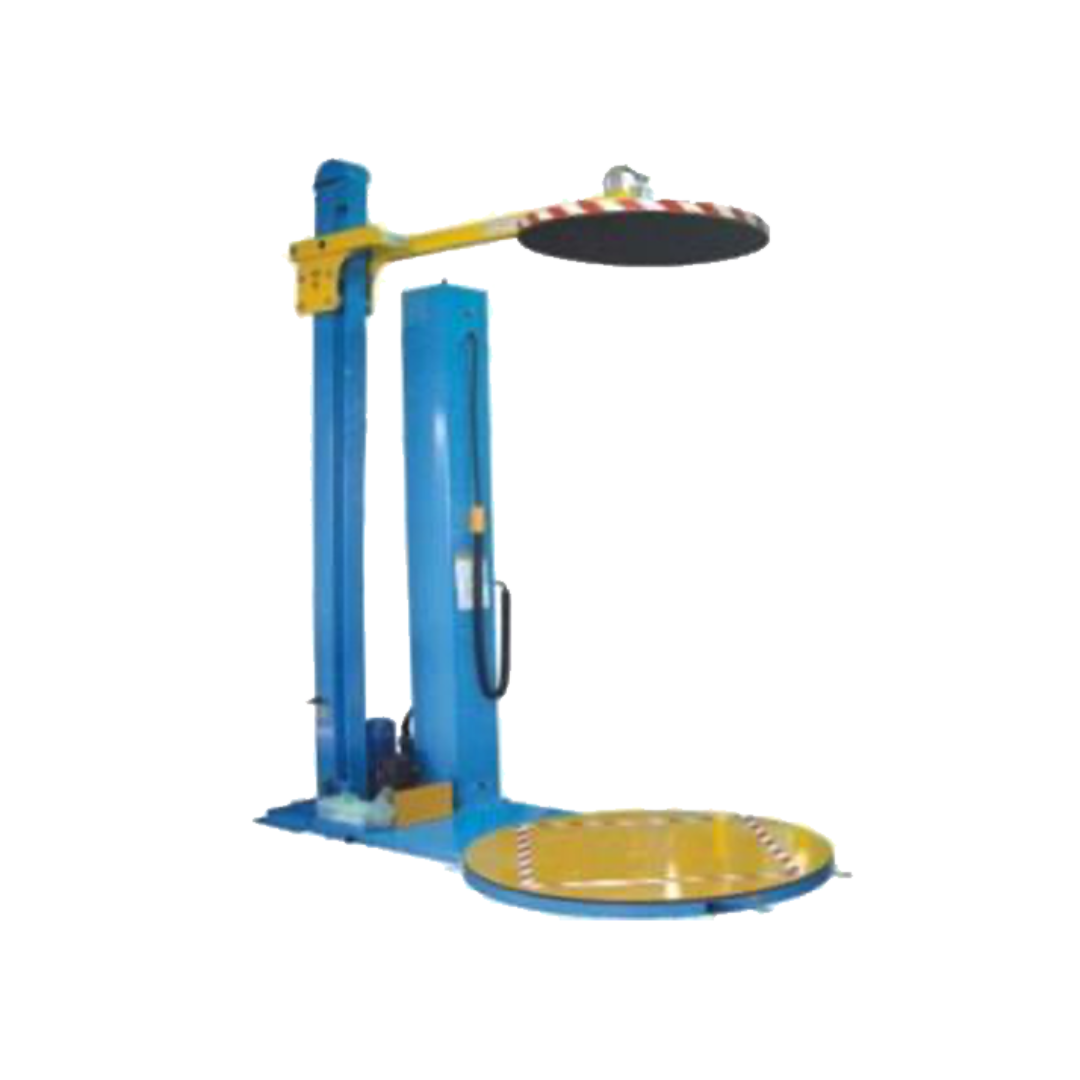

Castaly Pallet Auto Wrapping Machine (with Top Holder) PK-1521P Applications
- Warehouses handling tall or unstable pallet loads
- Manufacturing end-of-line pallet packaging
- Distribution centers requiring extra load stabilization
- Heavy pallet wrapping up to 4,400 lbs capacity
The integrated top holder provides downward stabilization during wrapping, making this model ideal for lightweight, tall, or loosely stacked products.
Castaly Pallet Auto Wrapping Machine (with Top Holder) PK-1521P Specifications
| Model | PK-1521P |
|---|---|
| Power | 220V or 440V, 1 or 3 Phase |
| Main Motor | 2 HP |
| Wrapping Height | 82.5" |
| Turntable Diameter | 59" |
| Turntable Height | 3.5" |
| Max. Turntable Loading Weight | 4,400 LBS |
| Turntable Speed (Variable) | 5 – 15 RPM |
| Film Carriage Speed (Variable) | 20 FPM |
| PE Stretch Film Internal Diameter | 3" |
| PE Stretch Film External Diameter | 13-3/4" |
| PE Stretch Film Width | 21.5" |
| Film Thickness | 17 – 35 Microns |
| Mechanical Size (L × W × H) | 103" × 59" × 95" |
| Net Weight | 1,570 LBS |
Castaly Pallet Auto Wrapping Machine (with Top Holder) PK-1521P Performance & Construction
- Top Holder Stabilizing System secures pallet loads from above during the wrapping cycle.
- PLC Control System enables both automatic and manual operation modes.
- Inverter Motor Control ensures steady, smooth machine operation with controlled acceleration and deceleration.
- Adjustable Turntable Speed (5–15 RPM) allows customized wrapping intensity.
- Hinged Drive Film Carriage provides smooth vertical movement with adjustable speed control.
- Electromagnetic Brake System allows unlimited adjustment of film tension.
- Automatic Photoelectric Height Detection reads pallet height for precise film coverage.
- Gentle Start & Stop Turntable protects products from shifting or tipping.
- Forklift-Friendly Two-Dent Base Design allows easy relocation without disassembly.
- Lay-Down Mast Design enables transport without dismantling, reducing installation errors.
- Safety Limit Switch installed at the bottom of the film rack for enhanced operator safety.
- Optional Pre-Stretch System improves film efficiency and load containment performance.
- Custom sizes available upon request.
Why Choose the Pallet Auto Wrapping Machine (with Top Holder) PK-1521P
- Top press holder enhances load stability during wrapping.
- Handles heavy loads up to 4,400 lbs with consistent performance.
- Adjustable speeds for both turntable and film carriage.
- Automatic height sensing for efficient and accurate wrapping.
- Durable mechanical structure designed for industrial environments.
The Pallet Auto Wrapping Machine (with Top Holder) PK-1521P combines advanced control technology, load stabilization, and industrial durability to deliver safe, efficient, and professional pallet packaging performance.
