Available Configurations
| Laser Type & Power | Model / SKU |
|---|---|
| MOPA 100W | FMM-JHW2-U2 |
| MOPA 80W | FMM-J8W2-U2 |
| MOPA 60W | FMM-J6W2-U2 |
| MOPA 30W | FMM-J3W2-U2 |
| MOPA 20W | FMM-J2W2-US |
| Galvo 50W | FMM-5RW2-U3 |
| Galvo 30W | FMM-3RW2-U4 |
| Galvo 20W | FMM-2RW2-U3 |
MOPA 100W (FMM-JHW2-U2)
- 100W JPT MOPA source with adjustable frequency (1-4000 kHz) and pulse width (2-500 ns)
- Two marking fields: 110 x 110 mm and 175 x 175 mm
- Marking speed up to 10,000 mm/s
- Works on brass, stainless steel and plastics; color marking supported
- Split design with the laser source separate from the galvo head; air cooled
- Runs EzCad2 and is LightBurn compatible; foot switch included
| Brand | OMTech |
|---|---|
| Model / SKU | FMM-JHW2-U2 |
| Laser Source | JPT |
| Galvanometer Source | Galvo-Tech |
| Laser Source Max. Output | 100 W |
| Laser Wavelength | 1064 nm |
| Laser Frequency | 1-4000 kHz |
| Pulse Width | 2-500 ns |
| Marking Area | 4.3 x 4.3 in. (110 x 110 mm) and 6.9 x 6.9 in. (175 x 175 mm) |
| Max. Marking Speed | 394 ips (10,000 mm/s) |
| Max. Marking Depth | 0.15 mm |
| Positioning Accuracy | ±0.000004 in. (±0.1 μm) |
| Est. Laser Service Life (MTTF) | 100,000 hr. |
| Cooling System | Air cooling |
| Operating Software | EzCad2 for Windows XP, Vista, 7, 8, or 10 (32/64 bit) |
| Supported Image Formats | .ai, .bmp, .dx, .dxf, .gif, .jpg, .plt, .png, .tga, .tif |
| Net Weight | 35 kg / 77 lb. |
| Product Dimensions (LxWxH) | 57 x 35 x 65 cm / 22.4 x 13.7 x 25.5 in. |
| Package Dimensions (LxWxH) | 78 x 46 x 57 cm / 30.7 x 18.1 x 22.4 in. |
| Package Weight | 50 kg / 110 lb. |
| Warranty | 2 years |
| What's Included | 1x 100W MOPA Fiber Laser Engraver; 2x Positioning Bars; 4x Attaching Bolts; 1x Tape Measure; 1x USB Flash Drive with Software; 1x Protective Eyewear; 1x Foot Switch; 1x Power Cable; 1x Set of Hex Wrenches; 1x Tool Box; 1x Instruction Manual |
MOPA 80W (FMM-J8W2-U2)
- JPT MOPA source with independently adjustable pulse frequency and width
- Color marking on stainless steel, titanium and chromium; dark marks on anodized aluminum
- Two marking areas: 4.3 x 4.3 in and 6.9 x 6.9 in via interchangeable F-theta lenses
- Split design with tall column for taller workpieces
- Red-dot preview of the marking outline
- Under 1% distortion
| Brand | OMTech |
|---|---|
| Model / SKU | FMM-J8W2-U2 |
| Laser Source | JPT |
| Galvanometer Source | Galvo-Tech |
| Output Power | 80 W |
| Laser Wavelength | 1064 nm |
| Laser Frequency | 1–4000 kHz |
| Pulse Width | 2–500 ns |
| Min. Beam Quality | 1.4 |
| Marking Area | 110×110 mm (4.3×4.3 in) and 175×175 mm (6.9×6.9 in) |
| Max. Marking Speed | 394 ips (10,000 mm/s) |
| Max. Marking Depth | 0.13 mm |
| Positioning Accuracy | ±0.1 micron (±0.000004 in) |
| Est. Laser Service Life (MTTF) | 100,000 hr |
| Cooling System | Air cooling |
| Operating Software | EzCad2 for Windows XP, Vista, 7, 8, or 10 (32/64 bit) |
| Supported Image Formats | .ai, .bmp, .dx, .dxf, .gif, .jpg, .plt, .png, .tga, .tif |
| Net Weight | 30 kg (66.1 lb) |
| Product Dimensions (L×W×H) | 57×35×65 cm (22.4×13.7×25.5 in) |
| Package Dimensions (L×W×H) | 78×46×57 cm (30.7×18.1×22.4 in) |
| Product (Gross) Weight | 52 kg (114 lb) |
| Certification | FDA, CE |
| Warranty | 2 years |
| What's Included | 1 x 80W MOPA Fiber Laser Engraver; 2 x F-Theta Lenses; 2 x Positioning Bars; 4 x Attaching Bolts; 1 x Tape Measure; 1 x USB Flash Drive with Software; 1 x Protective Eyewear; 1 x Foot Switch; 1 x Power Cable; 1 x Tool Set; 1 x Instruction Manual |

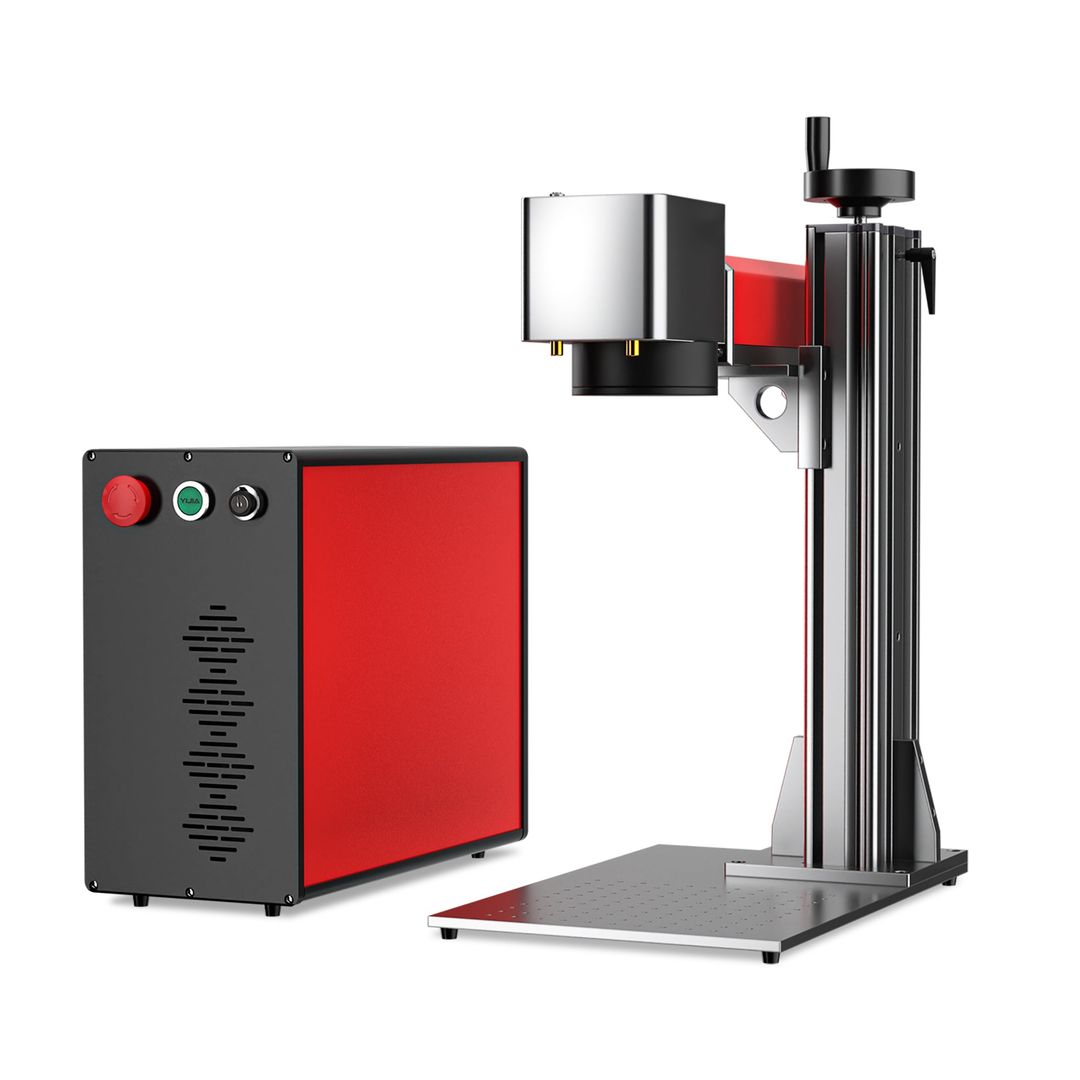

MOPA 60W (FMM-J6W2-U2)
- 60W JPT MOPA source with adjustable frequency (1-4000 kHz) and pulse width (2-500 ns) for color marking
- 6.9 x 6.9 in. marking area with speeds up to 10,000 mm/s
- Marks brass, carbide, granite, stainless steel, metal and plastic
- Split design with tall columns and a large platform for bigger workpieces
- LightBurn compatible (license optional) with a downloadable color chart file; EzCad2 software supplied
- Two free 90-minute virtual tech-support sessions and a 2-year warranty
| Brand | OMTech |
|---|---|
| Model / SKU | FMM-J6W2-U2 |
| Laser Source | JPT |
| Galvanometer Source | Galvo-Tech |
| Output Power | 60 W |
| Laser Wavelength | 1064 nm |
| Laser Frequency | 1-4000 kHz |
| Pulse Width | 2-500 ns |
| Min. Beam Quality | 1.4 |
| Marking Area | 6.9 x 6.9 in. (175 x 175 mm) |
| Max. Marking Speed | 394 ips (10,000 mm/s) |
| Max. Marking Depth | 0.1 mm |
| Positioning Accuracy | +/-0.000004 in. (+/-0.1 um) |
| Est. Laser Service Life (MTTF) | 100,000 hr |
| Operating Software | EzCad2 for Windows XP, Vista, 7, 8, or 10 (32/64 bit) |
| Supported Image Formats | .ai, .bmp, .dx, .dxf, .gif, .jpg, .plt, .png, .tga, .tif |
| Cooling System | Air cooling |
| Net Weight | 31 kg / 68 lb |
| Product Dimensions (L x W x H) | 57 x 35 x 65 cm / 22.4 x 13.7 x 25.5 in |
| Package Dimensions (L x W x H) | 78 x 46 x 57 cm / 30.7 x 18.1 x 22.4 in |
| Package Weight | 45 kg / 99 lb |
| Warranty | 2 years |
| What's Included | 1 x 60W MOPA Fiber Laser Engraver; 2 x Positioning Bars; 4 x Attaching Bolts; 1 x Tape Measure; 1 x USB Flash Drive with Software; 1 x Protective Eyewear; 1 x Foot Switch; 1 x Power Cable; 1 x Set of Hex Wrenches; 1 x Tool Box; 1 x Instruction Manual |

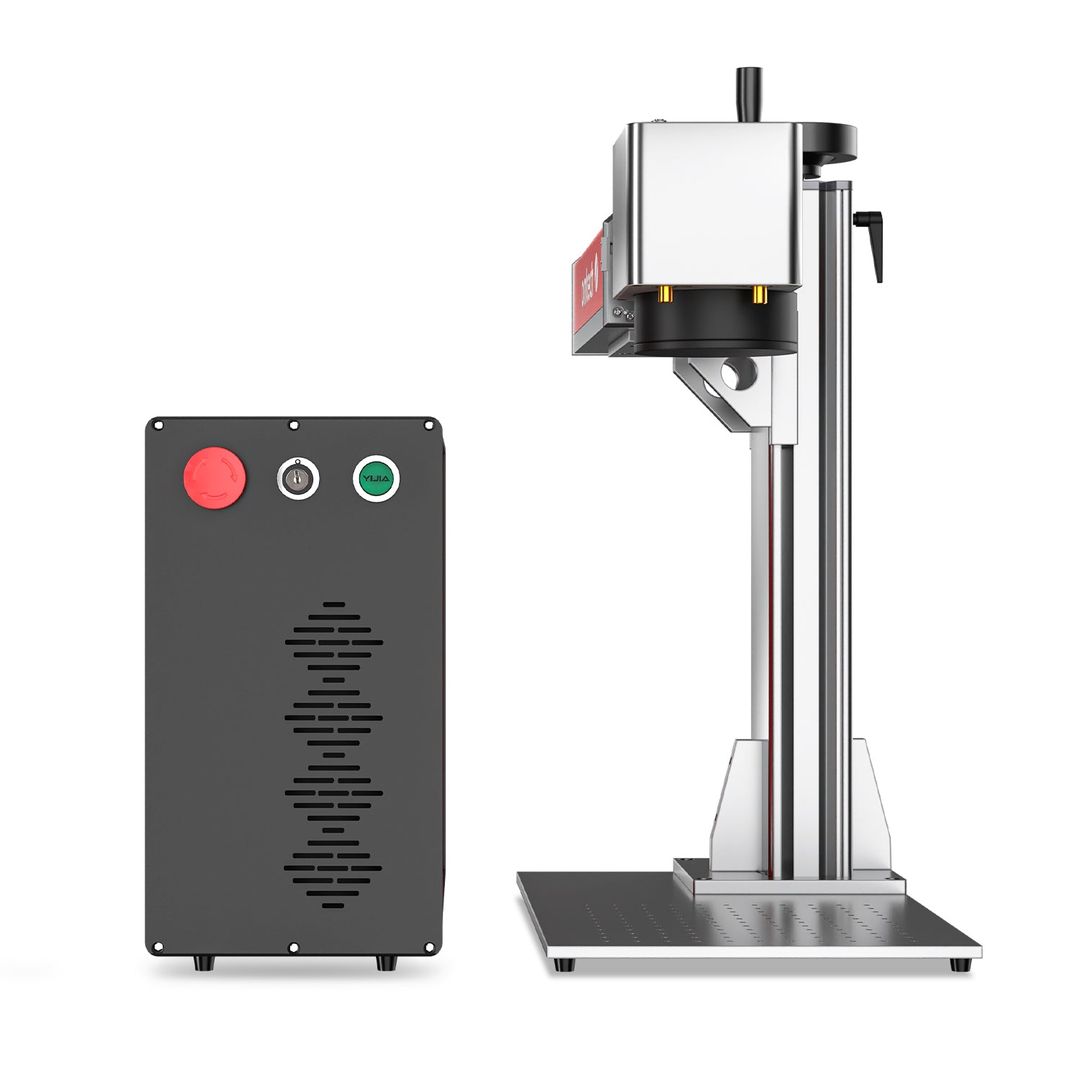

MOPA 30W (FMM-J3W2-U2)
- MOPA source with adjustable pulse width (2-500 ns) for color marking on metals
- 175 x 175 mm marking area on a split column-and-platform layout
- Marks brass, carbide, granite, stainless steel and plastics
- Max marking speed 10,000 mm/s; air cooled; rated laser life 100,000 hr MTTF
- LightBurn compatible; ships with EzCad2 software and a foot switch
| Brand | OMTech |
|---|---|
| Model / SKU | FMM-J3W2-U2 |
| Laser Source | JPT |
| Galvanometer Source | Galvo-Tech |
| Output Power | 30 W |
| Laser Wavelength | 1064 nm |
| Laser Frequency | 1-4000 kHz |
| Pulse Width | 2-500 ns |
| Min. Beam Quality | 1.4 |
| Marking Area | 6.9 x 6.9 in. (175 x 175 mm) |
| Max. Marking Speed | 394 ips (10,000 mm/s) |
| Max. Marking Depth | 0.08 mm |
| Positioning Accuracy | ±0.000004 in. (±0.1 μm) |
| Est. Laser Service Life (MTTF) | 100,000 hr |
| Cooling System | Air Cooling |
| Operating Software | EzCad2 for Windows XP, Vista, 7, 8, or 10 (32/64 bit) |
| Supported Image Formats | .ai, .bmp, .dx, .dxf, .gif, .jpg, .plt, .png, .tga, .tif |
| Net Weight | 30 kg / 66 lb |
| Product Dimensions (L x W x H) | 57 x 35 x 65 cm / 22.4 x 13.7 x 25.5 in |
| Package Dimensions (L x W x H) | 78 x 46 x 57 cm / 30.7 x 18.1 x 22.4 in |
| Package Weight | 44 kg / 97 lb |
| What's Included | 30W MOPA Fiber Laser Engraver x1; Positioning Bars x2; Attaching Bolts x4; Tape Measure x1; USB Flash Drive with Software x1; Protective Eyewear x1; Foot Switch x1; Power Cable x1; Set of Hex Wrenches x1; Tool Box x1; Instruction Manual x1 |
MOPA 20W (FMM-J2W2-US)
- 20W solid-state JPT MOPA source with adjustable pulse width (2-500 ns) and frequency (1-4000 kHz) enabling color marking
- Marks up to 10,000 mm/s over a 175 x 175 mm field
- Handles brass, carbide, granite, stainless steel, other metals and plastics
- F-theta lens with red-dot guidance and under 1% distortion
- Air-cooled; runs EzCad2 and is compatible with LightBurn
- Includes two free 90-minute virtual support sessions and up to 2-year machine-only warranty
| Brand | OMTech |
|---|---|
| Model / SKU | FMM-J2W2-US |
| Laser Source | JPT |
| Galvanometer Source | Galvo-Tech |
| Output Power | 20 W |
| Laser Wavelength | 1064 nm |
| Laser Frequency | 1-4000 kHz |
| Pulse Width | 2-500 ns |
| Marking Area | 6.9 x 6.9 in (175 x 175 mm) |
| Max. Marking Speed | 394 ips (10,000 mm/s) |
| Max. Marking Depth | 0.04 mm |
| Positioning Accuracy | +/-0.000004 in (+/-0.1 um) |
| Est. Laser Service Life (MTTF) | 100,000 hr |
| Cooling System | Air cooling |
| Operating Software | EzCad2 for Windows XP, Vista, 7, 8 or 10 (32/64-bit) |
| Supported Image Formats | .ai, .bmp, .dx, .dxf, .gif, .jpg, .plt, .png, .tga, .tif |
| Net Weight | 28 kg (62 lb) |
| Product Dimensions (L x W x H) | 57 x 35 x 65 cm (22.4 x 13.7 x 25.5 in) |
| Package Dimensions (L x W x H) | 78 x 46 x 57 cm (30.7 x 18.1 x 22.4 in) |
| Package Weight | 42 kg (92 lb) |
| Warranty | 2 years |
| What's Included | 1 x 20W MOPA Fiber Laser Engraver; 2 x Positioning Bars; 4 x Attaching Bolts; 1 x Tape Measure; 1 x USB Flash Drive with Software; 1 x Protective Eyewear; 1 x Foot Switch; 1 x Power Cable; 1 x Set of Hex Wrenches; 1 x Tool Box; 1 x Instruction Manual |
Galvo 50W (FMM-5RW2-U3)
- Split design with tall column and large processing area
- Raycus 50W source, 1064 nm, MTTF above 100,000 hours
- Marking speed up to 10,000 mm/s, accuracy to 0.01 mm
- Fθ field lens keeps a consistent spot across 200 x 200 mm
- Manual focus; EzCad2 operating software, LightBurn compatible
- Engraves brass, carbide, granite, stainless steel, metal and plastic
| Brand | OMTech |
|---|---|
| Model / SKU | FMM-5RW2-U3 |
| Laser Source | Raycus |
| Galvanometer Source | Galvo-Tech |
| Output Power | 50 W |
| Laser Wavelength | 1064 nm |
| Frequency Range | 50-100 kHz |
| Pulse Width | 120-150 ns |
| Marking Area | 7.9 x 7.9 in. (200 x 200 mm) |
| Max. Marking Speed | 394 ips (10,000 mm/s) |
| Max. Marking Depth | 0.004 in. (0.1 mm) single pass |
| Positioning Accuracy | ±0.000004 in. (±0.1 μm) (estimated) |
| Focus Mode | Manual |
| Color Marking | No |
| Laser Service Life (MTTF) | 100,000 hr. |
| Operating Software | EzCad2 for Windows XP, 7, 8 or 10 (32/64 bit) |
| Supported Image Formats | .ai, .bmp, .dx, .dxf, .gif, .jpg, .plt, .png, .tga, .tif |
| Product Dimensions (L x W x H) | 58 x 35 x 65 cm / 22.8 x 13.7 x 25.5 in. |
| Package Dimensions (L x W x H) | 78 x 46 x 57 cm / 30.7 x 18.1 x 22.4 in. |
| Net Weight | 35 kg / 77 lb |
| Package Weight | 49 kg / 108 lb |
| Certification | CE, FDA |
| Warranty | 2 Years |
| What's Included | Fiber Laser Engraver; 2x Positioning Bars; 8x Attaching Bolts; 2x Tape Measure; USB Flash Drive (with software); Protective Eyewear; Foot Switch; Power Cord; Hex Wrench Set; Tool Box; Monitor Mount; Ground Wire; USB Cable; Height Lock; Instruction Manual |
Galvo 30W (FMM-3RW2-U4)
- 30W Raycus fiber source at 1064 nm with a Galvo-Tech galvanometer
- 6.9" x 6.9" (175 x 175 mm) marking field, up to 10,000 mm/s marking speed
- Red-dot guide beam for positioning and a compact footprint for small studios
- Marks metals, plastics and wood; compatible with LightBurn
- 100,000 hr laser life (MTTF) and a 2-year warranty
| Brand | OMTech |
|---|---|
| Model / SKU | FMM-3RW2-U4 |
| Laser Source | Raycus |
| Galvanometer Source | Galvo-Tech |
| Output Power | 30 W |
| Laser Wavelength | 1064 nm |
| Laser Frequency | 30-60 kHz |
| Marking Area | 6.9 x 6.9 in. (175 x 175 mm) |
| Max. Marking Speed | 394 ips (10,000 mm/s) |
| Max. Marking Depth | 0.003 in. (0.08 mm) single pass |
| Positioning Accuracy | +/-0.000004 in. (+/-0.1 um) |
| Est. Laser Service Life (MTTF) | 100,000 hr. |
| Operating Software | EzCad2 for Windows XP, 7, 8, 10 (32/64 bit) |
| Supported Image Formats | .ai, .bmp, .dx, .dxf, .gif, .jpg, .plt, .png, .tga, .tif |
| Product Dimensions (L x W x H) | 58 x 35 x 65 cm / 22.8 x 13.7 x 25.5 in. |
| Product Weight | 32.5 kg / 72 lb. |
| Package Dimensions (L x W x H) | 78 x 46 x 57 cm / 30.7 x 18.1 x 22.4 in. |
| Package Weight | 47 kg / 103 lb. |
| Warranty | 2 years |
| What's Included | 1 x Fiber Laser Engraver; 2 x Positioning Bars; 8 x Attaching Bolts; 1 x Tape Measure; 1 x USB Flash Drive (with Software); 1 x Protective Eyewear; 1 x Foot Switch; 1 x Power Cord; 1 x Hex Wrench Set; 1 x Tool Box; 1 x Monitor Mount; 1 x Ground Wire; 1 x USB Cable; 1 x Height Lock; 1 x Instruction Manual |
Galvo 20W (FMM-2RW2-U3)
- Industry-grade Raycus fiber source with mean time to failure over 100,000 hours
- Galvo scanning system with marking speeds up to 10,000 mm/s
- F-theta lens with less than 1% distortion
- Built-in red dot guidance laser
- LightBurn compatible on Windows, macOS and Linux
- Built-in support for standard 4-pin rotary axes (sold separately)
| Brand | OMTech |
|---|---|
| Model / SKU | FMM-2RW2-U3 |
| Rated power | 20W |
| Laser source | Raycus |
| Work area | 4.3 x 4.3 in. (110 x 110 mm) |
| Laser frequency | 30-60 kHz |
| Max marking speed | 10,000 mm/s (275.6 in/s) |
| Mean time to failure | Over 100,000 hours |
| Lens distortion | Less than 1% |
| Autofocus | No |
| Color marking | No |
| Cooling | Air-cooled |
| LightBurn compatible | Yes |
