Available Configurations
| Printhead | Model / SKU |
|---|---|
| Single Printhead | PUA-1401-US |
| Dual Printhead | PUA-2401-US |
Single Printhead (PUA-1401-US)
- 13.8 x 17.7 in honeycomb vacuum bed with IR auto height sensing and up to 5.5 in media height
- Up to 720 x 1440 dpi with 3D embossing up to 5 mm via stacked layers
- Open ink platform (no proprietary cartridges); low-VOC GREENGUARD Gold inks
- Automatic cleaning, white-ink circulation and moisturizing maintenance
- 4.3 in touchscreen and OMTech Print software with auto layer mapping for white and gloss
- Prints on 300+ materials including acrylic, wood, metal, glass and leather
| Brand | OMTech |
|---|---|
| Model / SKU | PUA-1401-US |
| Color | Matte Black, Matte Silver |
| Product Dimensions (L×W×H) | 30.7 × 22.6 × 22.0 in (780 × 575 × 560 mm) |
| Net Weight | 153.0 lb (69.4 kg) |
| Display | 4.3 in color touchscreen |
| Print Area | 13.8 × 17.7 in (350 × 450 mm) |
| Print Bed Type | Honeycomb aluminum vacuum table (with ruler) |
| Max. Media Height | 5.5 in (140 mm) |
| Height Sensing | IR auto height sensing |
| Printhead Model | F1080 |
| Number of Printheads | 1 (single-head package) |
| Channels | 6 |
| Nozzles per Printhead | 1080 |
| Firing Frequency | 46 kHz |
| Min. Droplet Size | 4.5 pL |
| Ink Configuration | CMYKWW (dual-head: CMYKWW + V varnish) |
| Ink Tank Capacity | 250 ml |
| Ink Consumption | 20 ml/m² |
| Max. Resolution | 720 × 1440 dpi |
| Output | 2.4 m²/h |
| Head Speed | 400 mm/s |
| UV Lamp | 100 W × 1, air-cooled |
| Input Power | AC 110/220 V ±10%, 50/60 Hz |
| Machine Power Consumption | 280 W (single-head) |
| Sleep Mode Power | 15 W |
| Controller | Hoson P1 (single-head) |
| Data Transmission | Ethernet |
| Bundled Software | OMTech Print |
| Supported File Formats | TIFF, JPG, JPEG, PNG, PDF, EPS |
| Operating Temperature | 59–104°F (15–40°C) |
| Operating Humidity | 40%–60% RH (non-condensing) |
| Air Purification | 24V fan (0.91A, 2600 rpm, 6.09 CFM) + replaceable activated carbon filter |
| Certifications | CE, FCC, RoHS, TUV |
| Package Dimensions (L×W×H) | 35.4 × 25.0 × 28.7 in (900 × 635 × 730 mm) |
| Gross Weight (with crate) | 211.6 lb (96 kg) |

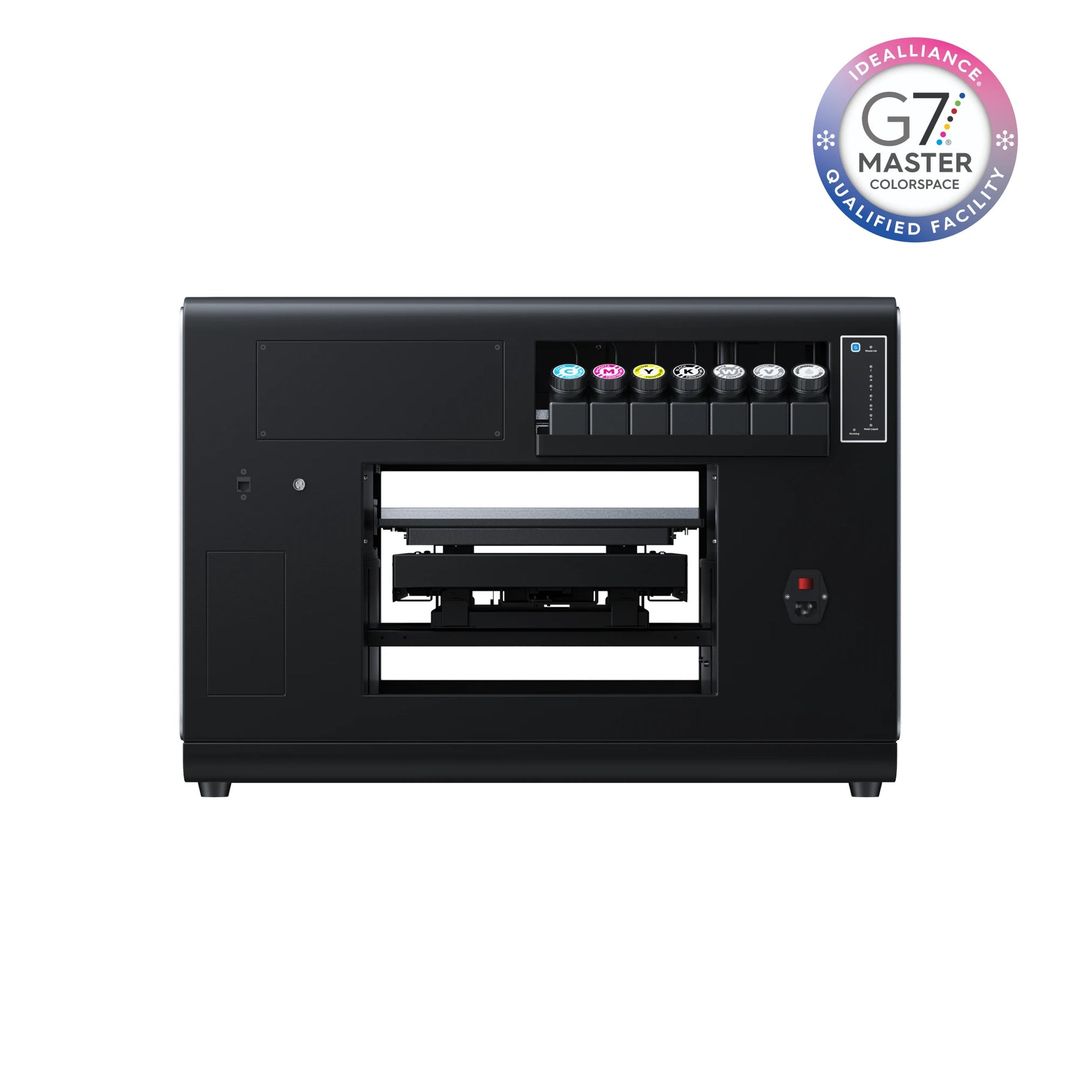

Dual Printhead (PUA-2401-US)
- Dual Epson F1080 printheads with up to 720 x 1440 DPI resolution and CMYKWW + V (varnish) inks
- Textured, stackable 3D embossing up to 5 mm and one-click spot gloss coating
- 13.8 x 17.7 in. honeycomb vacuum bed, 5.5 in. max media height with IR auto height sensing
- Automatic cleaning, white-ink circulation and moisturizing, with 250 ml ink tanks and an open ink platform
- Prints acrylic, plastic, wood, leather, metal, glass, ceramics and more; optional rotary attachment for round items
| Brand | OMTech |
|---|---|
| Model / SKU | PUA-2401-US |
| Color | Matte Black, Matte Silver |
| Product Dimensions (L x W x H) | 30.7 x 22.6 x 22.0 in. (780 x 575 x 560 mm) |
| Net Weight | 153.0 lb (69.4 kg) |
| Display | 4.3 in. color touchscreen |
| Materials | Sheet metal + acrylic |
| Print Area | 13.8 x 17.7 in. (350 x 450 mm) |
| Print Bed Type | Honeycomb aluminum vacuum table (with ruler) |
| Print Bed Size | 13.8 x 17.7 in. (350 x 450 mm) |
| Max. Media Height | 5.5 in. (140 mm) |
| Height Sensing | IR auto height sensing |
| Printhead Model | F1080 |
| Number of Printheads | 2 (dual-head package) |
| Channels | 6 |
| Nozzles per Printhead | 1080 |
| Firing Frequency | 46 kHz |
| Min. Droplet Size | 4.5 pL |
| Max. Resolution | 720 x 1440 DPI |
| Ink Configuration | CMYKWW + V varnish (dual-head) |
| Ink Tank Capacity | 250 ml |
| Ink Consumption | 20 ml/m2 |
| UV Lamp | 100 W x 2, air-cooled (dual-head) |
| Input Power | AC 110/220 V +/-10%, 50/60 Hz |
| Machine Power Consumption | 380 W (dual-head) |
| Sleep Mode Power | 15 W |
| Controller | Hoson N10 (dual-head) |
| Connectivity | Ethernet |
| Bundled Software | OMTech Print |
| Supported File Formats | TIFF, JPG, JPEG, PNG, PDF, EPS |
| Operating Temperature | 59-104 F (15-40 C) |
| Operating Humidity | 40%-60% RH (non-condensing) |
| Certifications | CE, FCC, RoHS, TUV |
| Package Dimensions (L x W x H) | 35.4 x 25.0 x 28.7 in. (900 x 635 x 730 mm) |
| Gross Weight (with crate) | 211.6 lb (96 kg) |
| Output / Head Speed | 2.4 m2/h; 400 mm/s head speed |
| What's Included | OMTech Spectra Dual Head UV Printer; FREE 500ml Hard UV Ink Set, CMYKWV 6-Pack; FREE PU Leather Key Fob Pack; FREE Acrylic Sheet Pack |
