Available Configurations
| Laser Power | Model / SKU |
|---|---|
| 20W Fiber + 20W Diode | FMM-RB22-US |
| 30W Fiber + 20W Diode | FMM-RB32-US |
| 50W Fiber + 40W Diode | FMM-RB54-US |

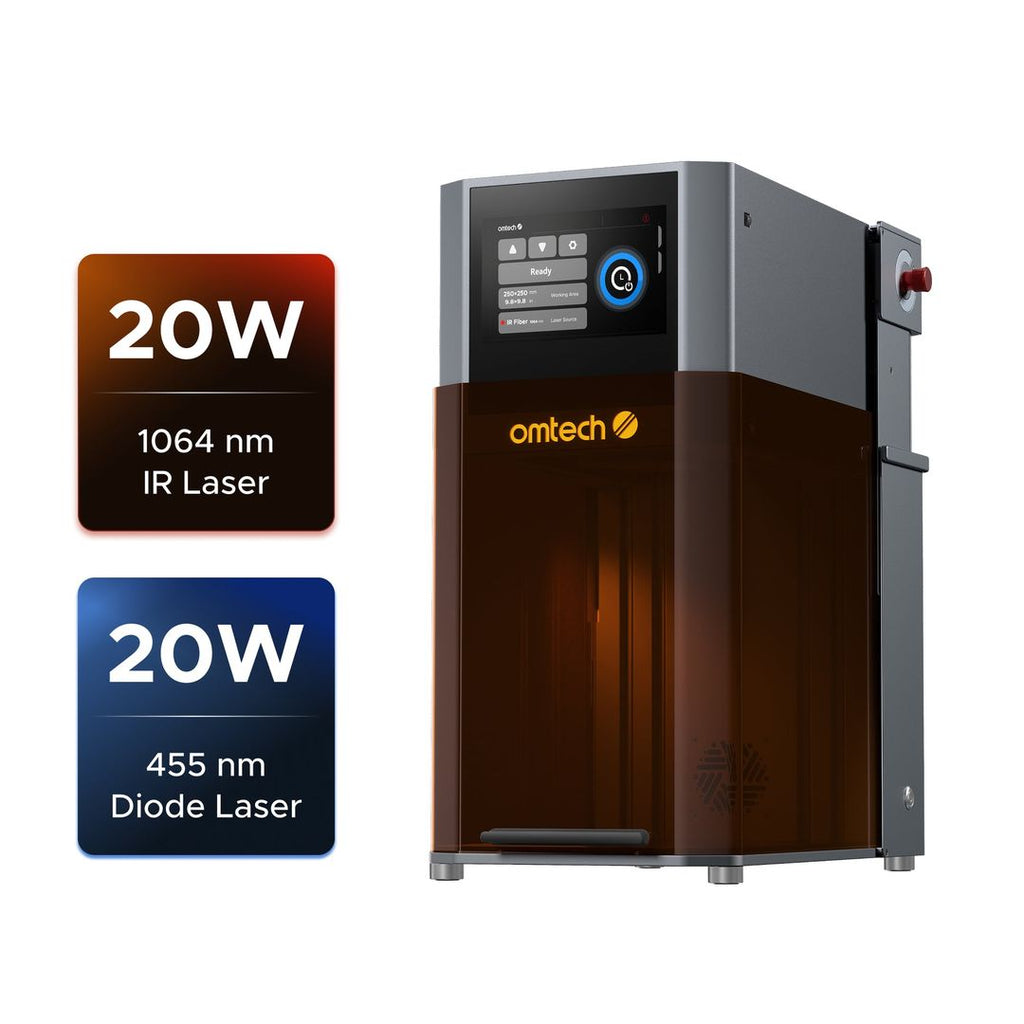

20W Fiber + 20W Diode (FMM-RB22-US)
- Switches between 1064 nm fiber and 455 nm diode lasers without changing equipment, with one-touch autofocus
- Marks metals (stainless steel, copper, silver) and non-metals (wood, acrylic, leather)
- Up to 10,000 mm/s marking speed, 0.002 mm marking accuracy
- 7-inch touchscreen and remote control, plus built-in software compatible with LightBurn
- Fully enclosed with tinted window, independent exhaust ports; FDA and CE enclosure standards, Class 1
- Rotary axis compatible; optional conveyor extends work area to 250 x 900 mm
| Brand | OMTech |
|---|---|
| Model / SKU | FMM-RB22-US |
| Rated power | 360 W |
| Processing area | 9.8 x 9.8 in. (250 x 250 mm) |
| Workbed area | 12.5 x 12.5 in. (320 x 320 mm) |
| Fiber laser power | 20 W |
| Fiber laser wavelength | 1064 nm |
| Fiber laser pulse width | 80-120 ns |
| Diode laser power | 20 W |
| Diode laser wavelength | 455 nm |
| Max marking speed | 393.7 ips (10,000 mm/s) |
| Marking accuracy | 0.00008 in. (0.002 mm) |
| Operating software | OMTech Lab |
| Compatible software | LightBurn |
| Overall dimensions (L x W x H) | 12.6 x 19.7 x 18.7-35.2 in. (320 x 500 x 475-895 mm) |
| Net weight | 55.3 lb. (25.1 kg) |
| Laser safety class | Class 1 |
| Laser source life | Up to 100,000 hours |
| Warranty | 1 year (machine) |
| What's Included | OMTech Solis Duo 20W Fiber & 20W Diode dual laser engraver x1; LightBurn software license; 2 random OMTech tumbler sets (12-pack each); Standard machine accessories (full contents shown only in a packing-list image on the page) |
30W Fiber + 20W Diode (FMM-RB32-US)
- Two laser sources (1064 nm fiber and 455 nm diode) in one machine, no hardware swap
- Autofocus calibrates the lens with a button press
- 16 MP HD camera for aligning and capturing multiple targets
- Enclosed housing with tinted window; Class 1 laser safety
- 7-inch touchscreen, remote control and software control; built-in OMTech Lab software, LightBurn compatible
- Rotary axis compatible; optional 250 x 900 mm conveyor extends the work area
| Brand | OMTech |
|---|---|
| Model / SKU | FMM-RB32-US |
| Processing Area | 9.8 x 9.8 in. (250 x 250 mm) and 5.9 x 5.9 in. (150 x 150 mm) |
| Rated Power | 360 W |
| Fiber Laser Power | 30 W |
| Fiber Laser Wavelength | 1064 nm |
| Fiber Laser Pulse Width | 80-120 ns |
| Diode Laser Power | 20 W |
| Diode Laser Wavelength | 455 nm |
| Workbed Area | 12.5 x 12.5 in. (320 x 320 mm) |
| Max. Marking Speed | 393.7 ips (10,000 mm/s) |
| Marking Accuracy | 0.00008 in. (0.002 mm) |
| Operating Software | OMTech Lab |
| Compatible Software | LightBurn |
| Overall Dimensions (L x W x H) | 12.6 x 19.7 x 18.7-35.2 in. (320 x 500 x 475-895 mm) |
| Net Weight | 55.1 lb. (25 kg) |
| Safety Certification | Class 1 Laser Safety |
| What's Included | OMTech Solis Duo 30W Fiber & 20W Diode Dual Laser Engraver with Autofocus x1; LightBurn Software License x1; 250x900 mm conveyor belt (second variant only) |

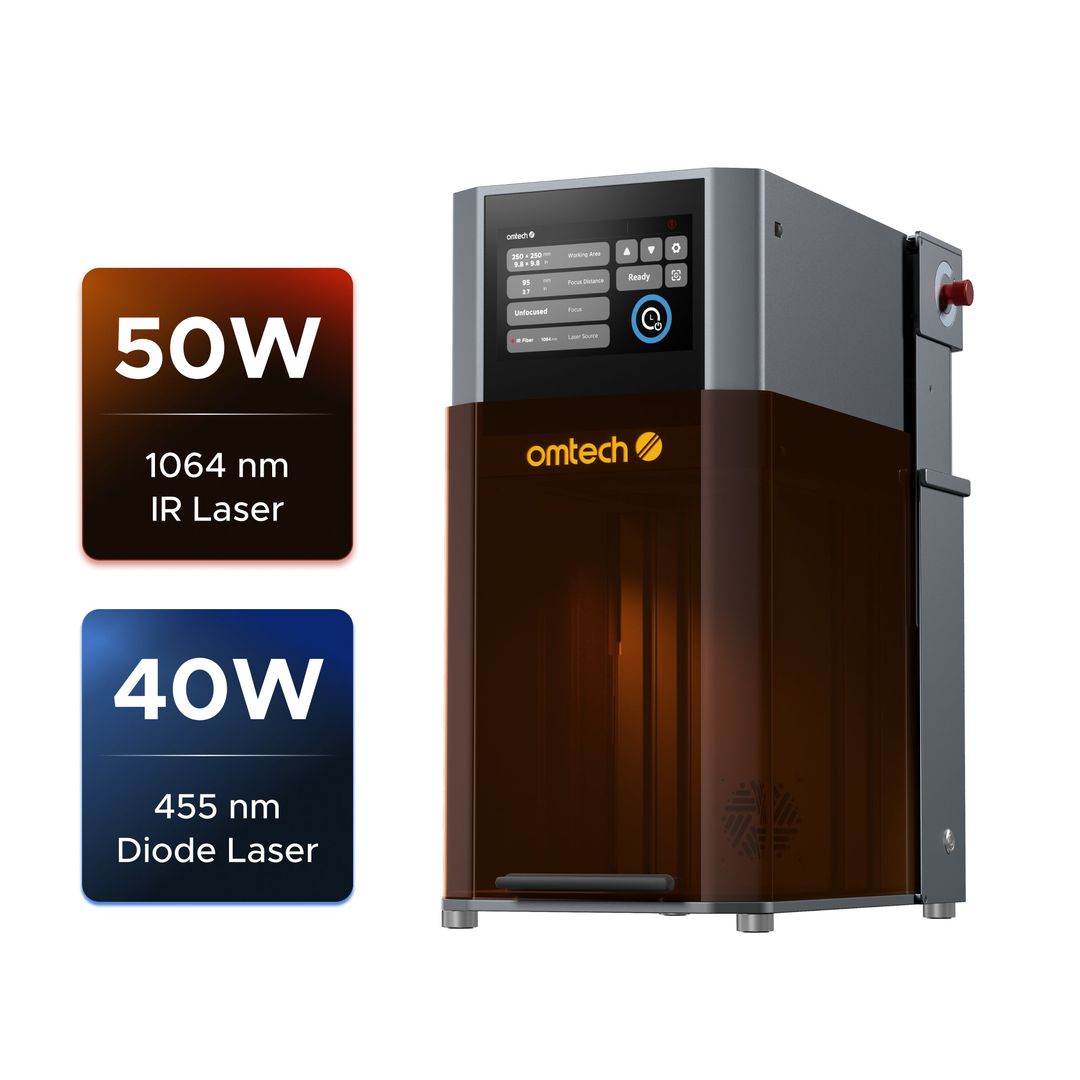

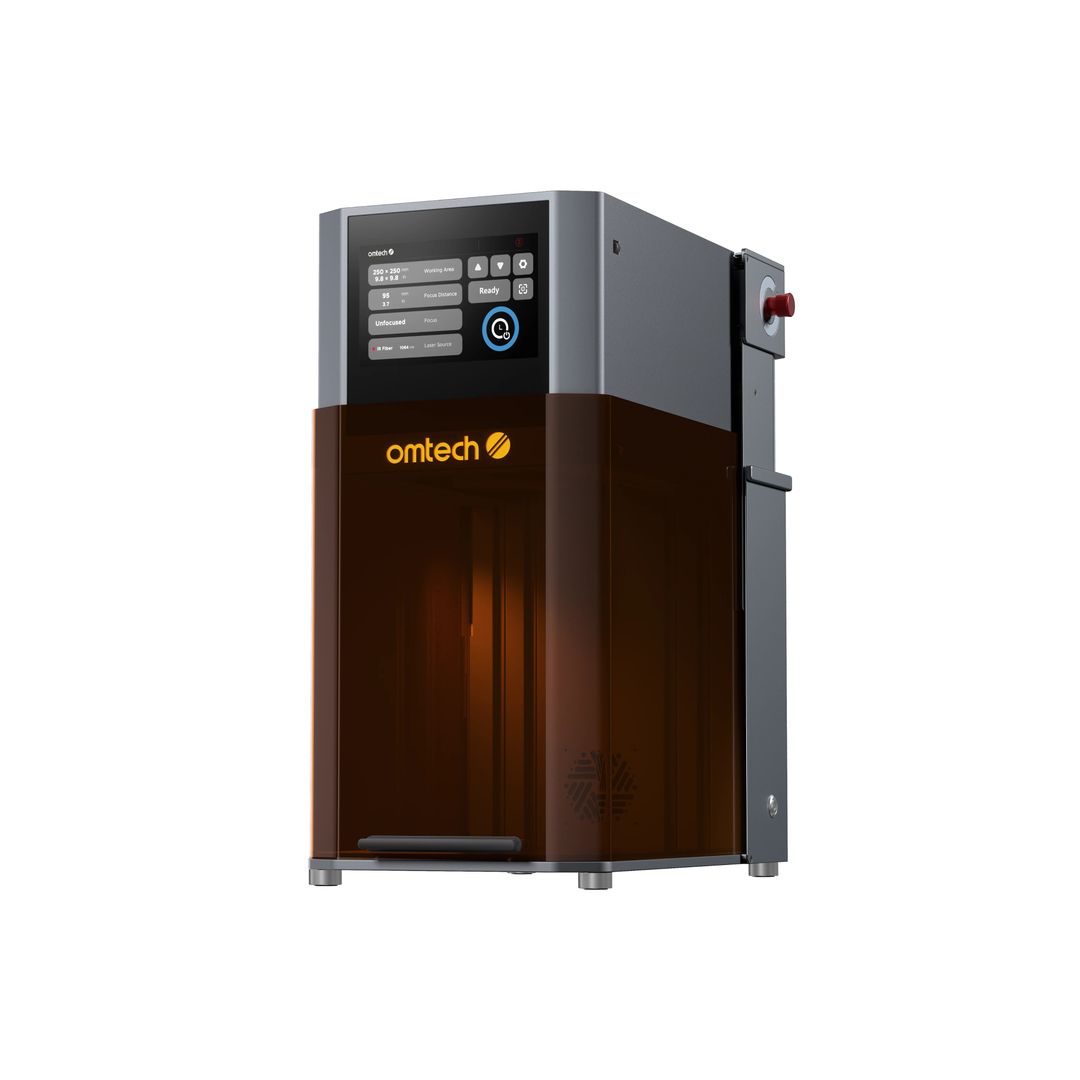

50W Fiber + 40W Diode (FMM-RB54-US)
- Fiber and diode lasers in one machine for metals plus wood, acrylic, leather, glass and more
- One-button autofocus and a 16 MP HD camera for positioning
- Two work areas (250 x 250 mm and 150 x 150 mm) for batch engraving; optional conveyor extends to 250 x 900 mm
- Marks at up to 10,000 mm/s with 0.002 mm accuracy
- Fully enclosed with tinted window; Class 1 laser safety; control by touchscreen, remote or software
- Works with LightBurn and OMTech's own software; rotary axis support is optional
| Brand | OMTech |
|---|---|
| Model / SKU | FMM-RB54-US |
| Processing Area | 9.8 x 9.8 in (250 x 250 mm) and 5.9 x 5.9 in (150 x 150 mm) |
| Fiber Laser Power | 50 W |
| Fiber Laser Wavelength | 1064 nm |
| Fiber Laser Pulse Width | 80-120 ns |
| Diode Laser Power | 40 W |
| Diode Laser Wavelength | 455 nm |
| Workbed Area | 12.5 x 12.5 in (320 x 320 mm) |
| Max. Marking Speed | 393.7 ips (10,000 mm/s) |
| Marking Accuracy | 0.00008 in (0.002 mm) |
| Operating Software | OMTech Lab |
| Compatible Software | LightBurn |
| Overall Dimensions (L x W x H) | 12.6 x 19.7 x 18.7-35.2 in (320 x 500 x 475-895 mm) |
| Net Weight | 58 lb (26.3 kg) |
| Focus | Autofocus |
| Safety Certification | Class 1 Laser Safety |
| What's Included | 1 x OMTech Solis Duo 50W Fiber & 40W Diode Dual Laser Engraver with Autofocus; 1 x LightBurn Software License (free with either variant); Standard accessories (itemised only in a package-list image); 1 x 250x900 mm conveyor belt (conveyor bundle only) |
