Available Configurations
| Model | Model / SKU |
|---|---|
| Rotary Axis Attachment (Upgraded 2020) | LRA-0730-00 |
| 4-Wheel Rotary Axis | LRA-GL49-01 |
| Rotary Axis with Jaw Chuck | LRA-KP58-00 |
| PiBurn V Roller Rotary | LRA-PBV5-US |
| PiBurn Grip 2 Chuck Rotary | LRA-GRP2-US |
| PiBurn OMNI 2 Advanced Rotary | LRA-MNI2-US |

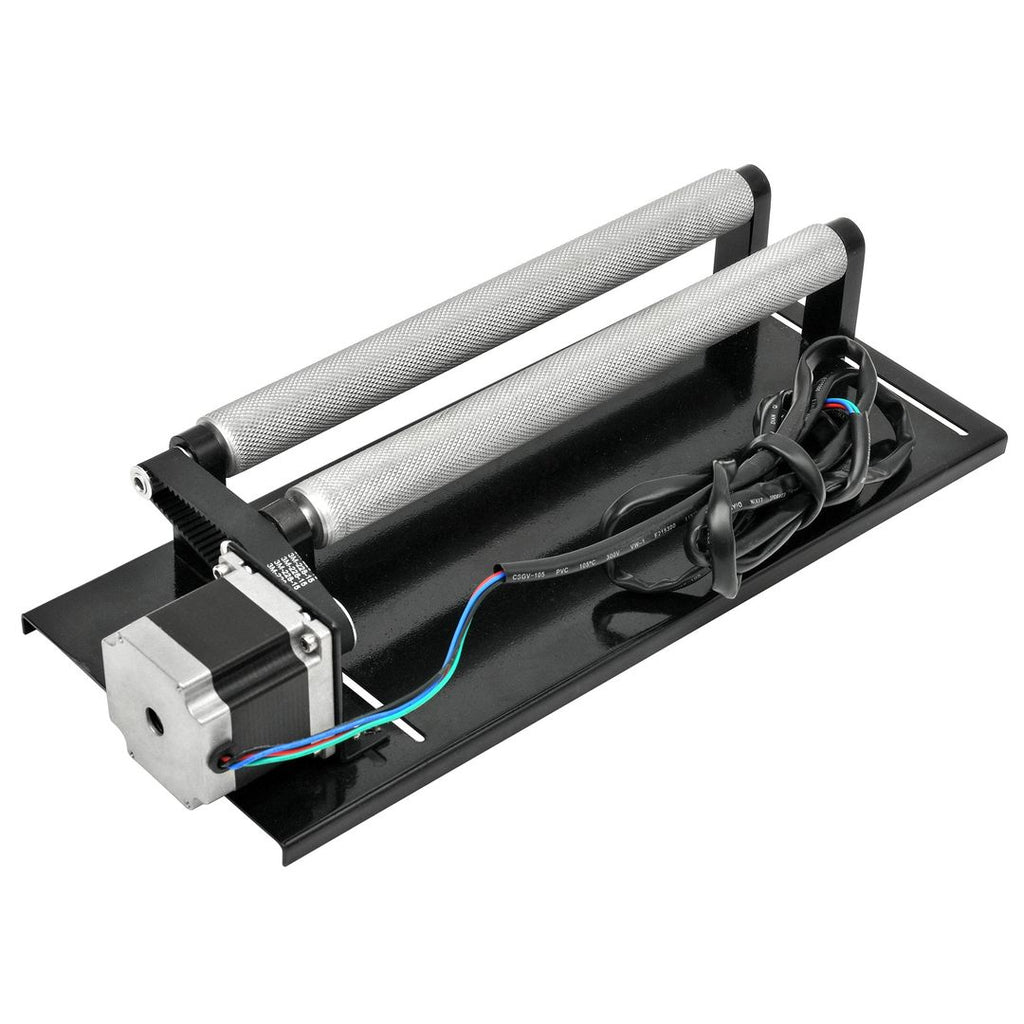

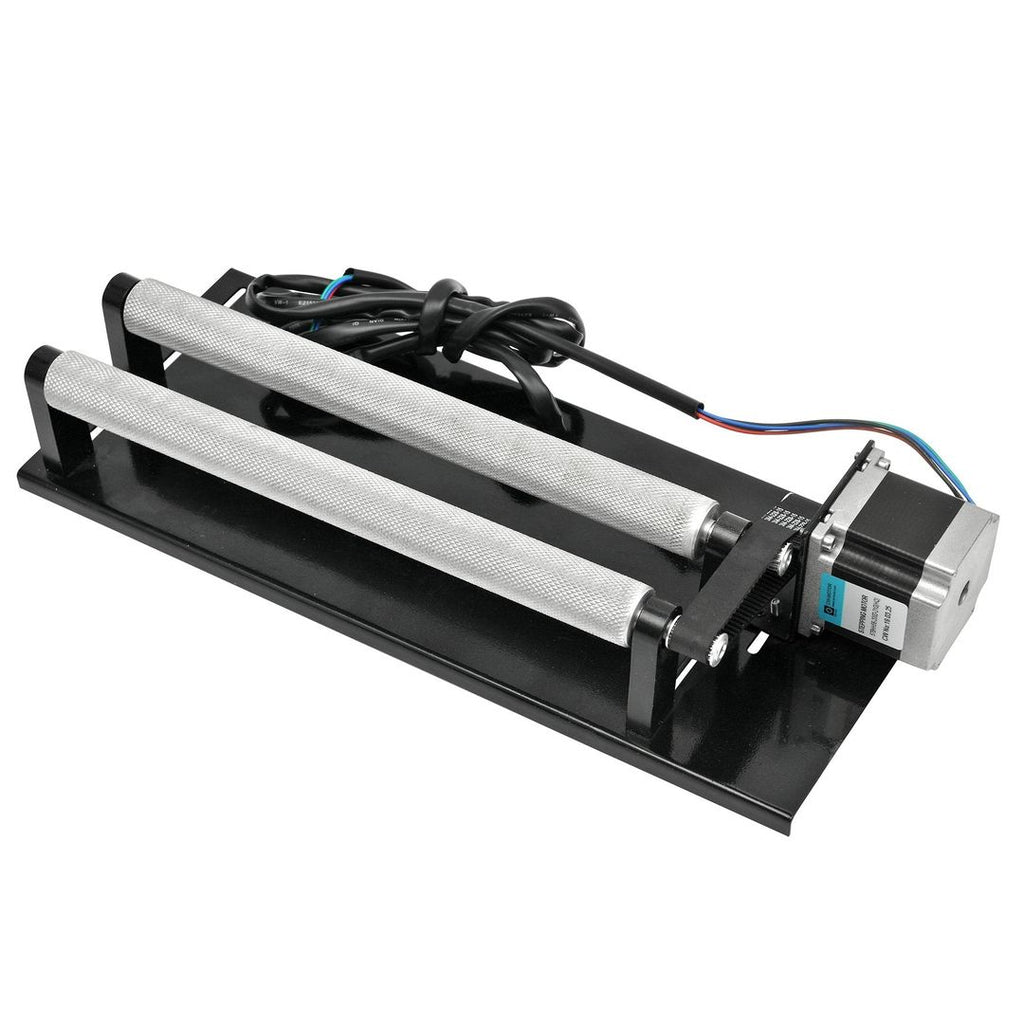

Rotary Axis Attachment (Upgraded 2020) (LRA-0730-00)
- Engraves handleless cups, bottles, bowls, pipes and tubes
- Needs only one cable; powered directly by the engraver
- Compatible with 50W+ machines that accept a 2-phase, 4-wire motor attachment (check connector size)
- Upgraded NEMA 17 stepper motor with iron and aluminum construction
- Setup is cable connection plus configuring the rotary in the engraver software
| Brand | OMTech |
|---|---|
| Model / SKU | LRA-0730-00 |
| Overall Dimensions | 15 x 6 x 2.35 in. |
| Net Weight | 4.4 lb (2 kg) |
| Input Voltage | 12 V, 0.8 A per phase |
| Motor Type | NEMA 17 stepper motor |
| Motor Wiring | 2-phase, 4-wire |
| Warranty | 1 year on all rotary axis accessories |
| Certifications | FDA Compliant, CE Certified, ISO9001 Quality Certified |
| What's Included | Rotary Axis x1 |

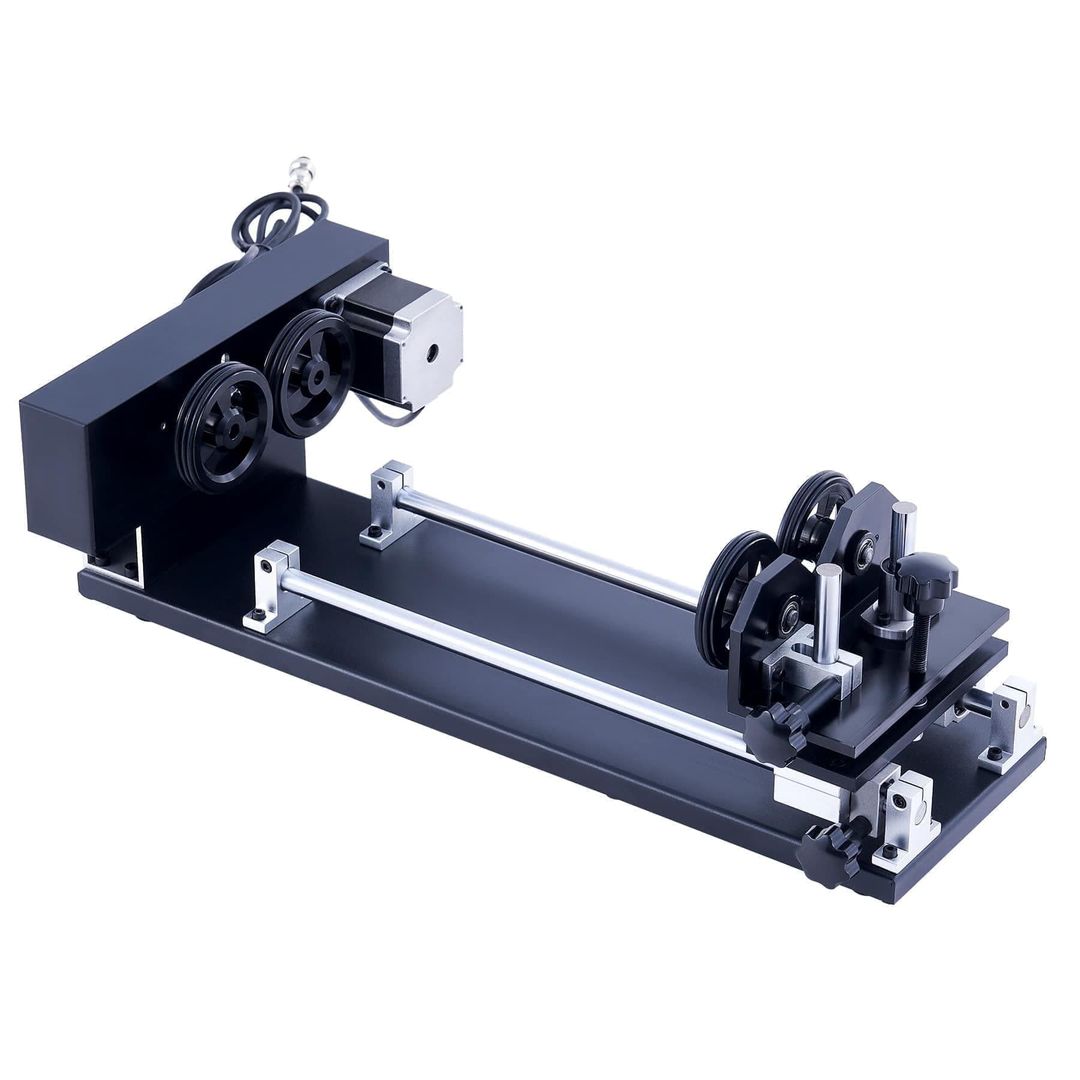

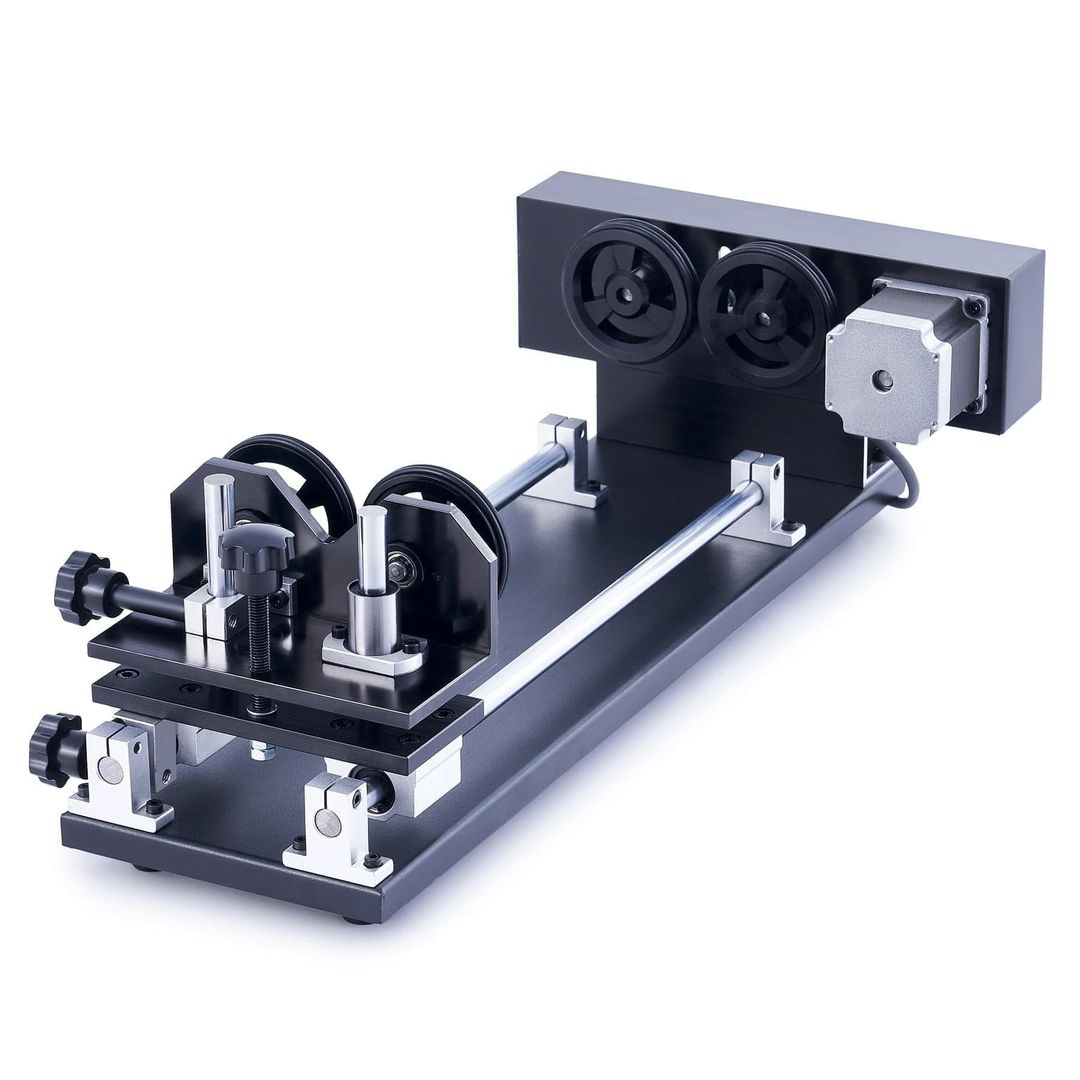

4-Wheel Rotary Axis (LRA-GL49-01)
- Works with most CO2 engravers rated 50W or higher
- Two drive wheels, up to 12 in apart; handles objects 2-14 in long and 0.4-6 in in diameter
- Nema 23 2-phase stepper motor
- Connects via 4-wire cable to the engraver's rotary port, then set up in software
- Precision tailstock for smooth, quiet rotation
| Brand | OMTech |
|---|---|
| Model / SKU | LRA-GL49-01 |
| Material | Iron, Steel, Aluminum Alloy |
| Color | Black, Silver |
| Motor | Nema 23 2-Phase Stepper Motor |
| Base Area | 20 x 6 in. (49 x 15 cm) |
| Max. Distance between Wheels | 12 in. (30 cm) |
| Wheel Diameter | 0.3 in. (0.7 cm) |
| Cord Length | 6 ft. 7 in. (2 m) |
| Net Weight | 13.2 lb. (6 kg) |
| Object Length Range | 2-14 in. |
| Object Diameter Range | 0.4-6 in. |
| Compatible Machines | MF1624-60, AF2028-60, MF2028-80, AF2435-80, AF2028-80, AF2440-100, MF2028-100, AF3555-130, ZF3551-130, AF4063-150, and Pro series |
| Warranty | 1 year (feature text; page badge says 2-Year) |
| What's Included | 1 x Rotary Axis; 1 x Cable |

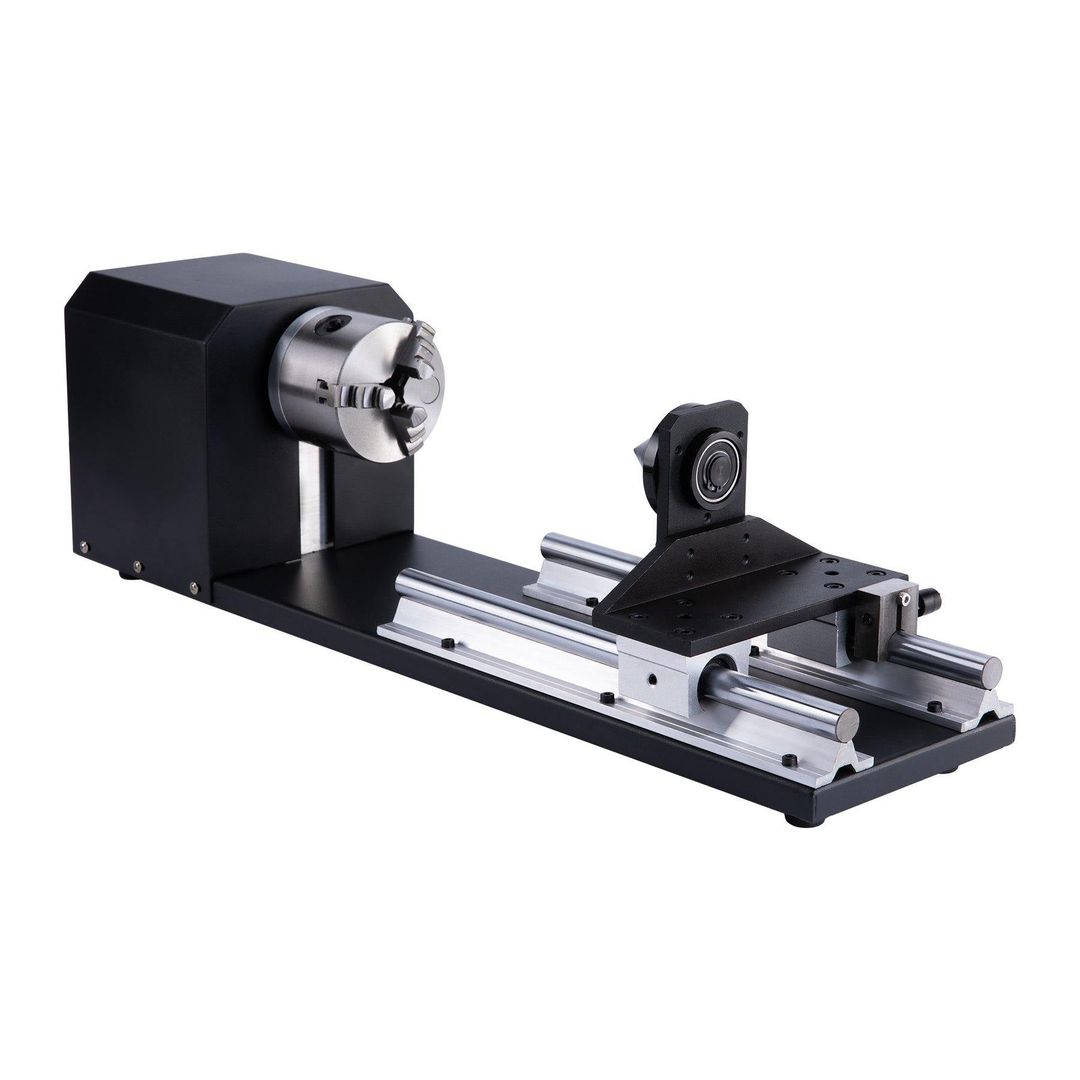

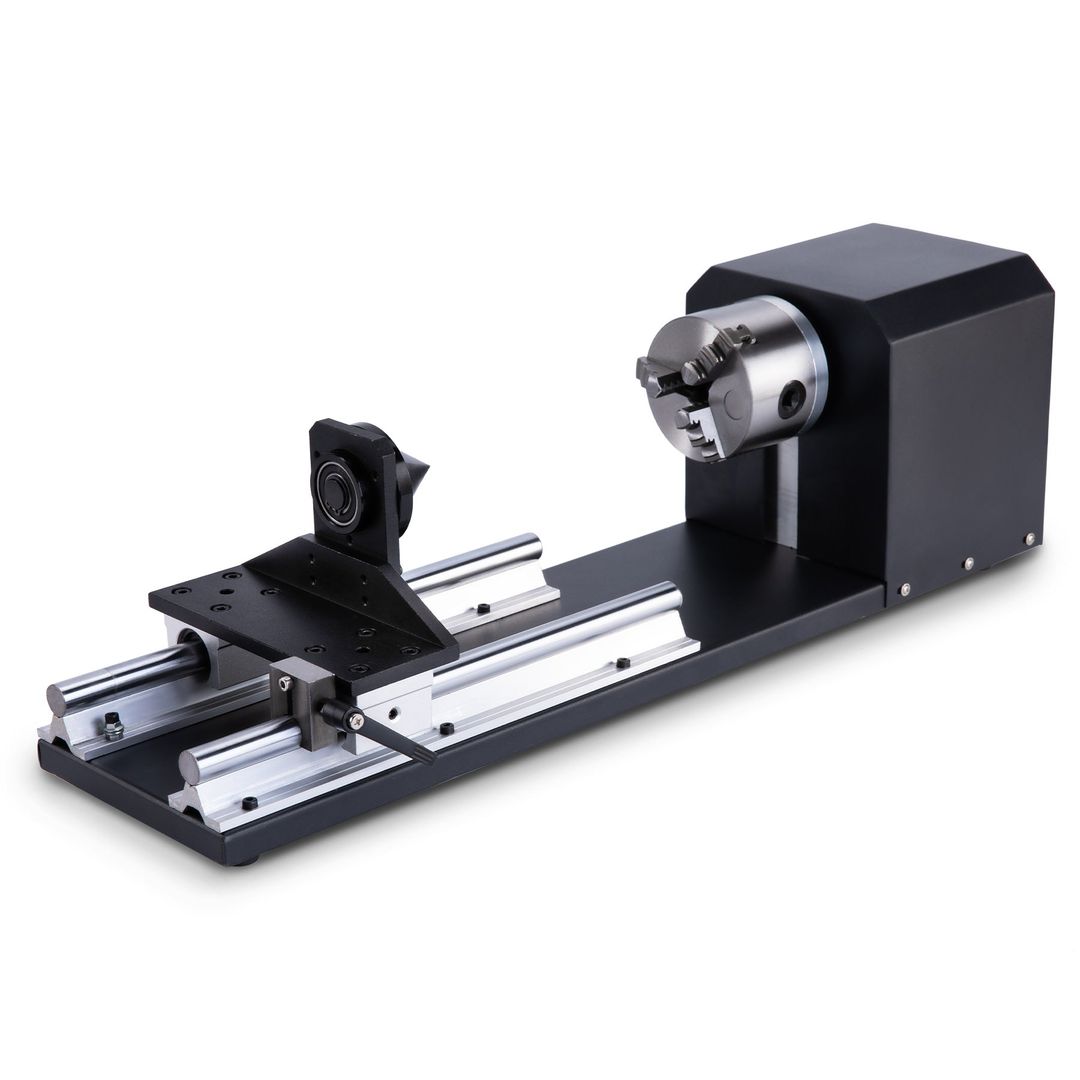

Rotary Axis with Jaw Chuck (LRA-KP58-00)
- Works with most 50W+ OMTech CO2 laser engravers for 360-degree engraving on round objects
- Handles items 0.8 to 8.6 in. long and 0.2 to 3.1 in. in diameter
- Iron and aluminum alloy construction with a corrosion-resistant coating
- Connects via a 4-wire cable to a dedicated rotary port; configured in the laser software
- Precision 3-jaw chuck and tailstock for smooth, quiet rotation
| Brand | OMTech |
|---|---|
| Model / SKU | LRA-KP58-00 |
| Dimensions | 23" x 6" x 7" (58 x 15 x 18 cm) |
| Center Height | 3 in. (7.5 cm) |
| Rail Length | 11.8 in. (30 cm) |
| Engraving Length | 0.8-8.6 in. (2-22 cm) |
| Engraving Diameter | 0.2-3.1 in. (0.5-8 cm) |
| Net Weight | 19.9 lb. (9 kg) |
| Compatible Machines | MF1624-60, AF2028-60, MF2028-80, AF2435-80, AF2028-80, AF2440-100, MF2028-100, AF3555-130, ZF3551-130, AF4063-150, and Pro series |
| What's Included | 1 x Rotary Axis |

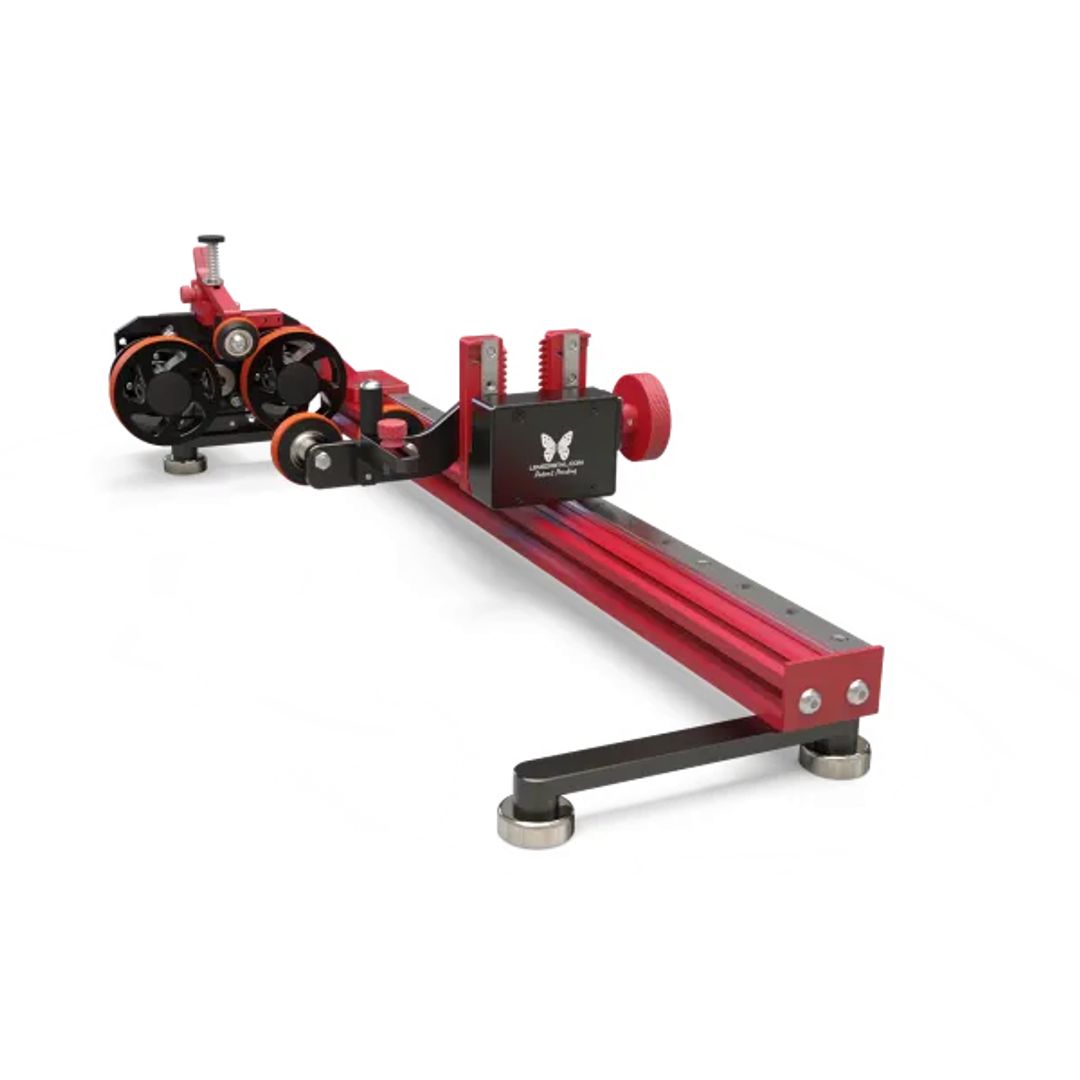

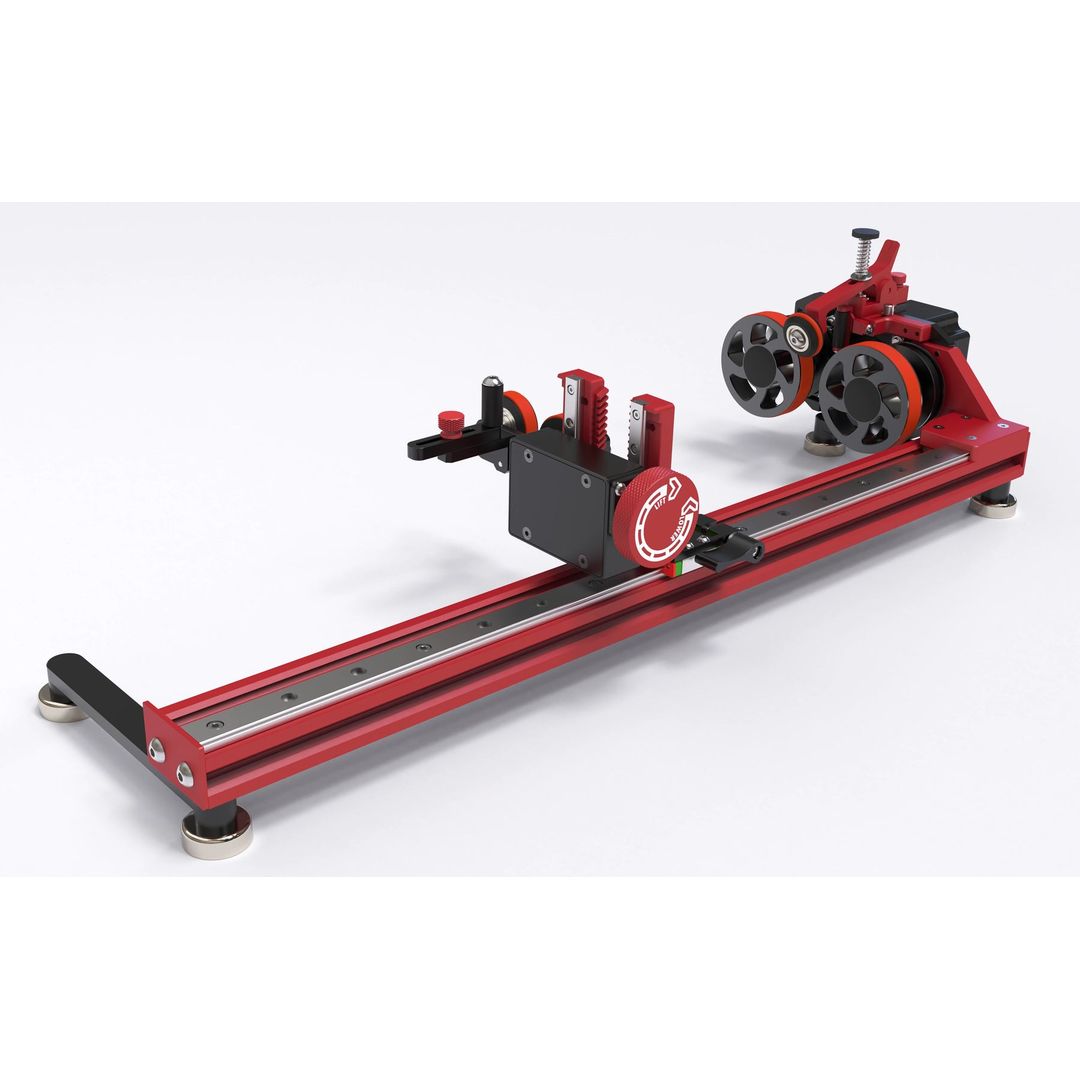

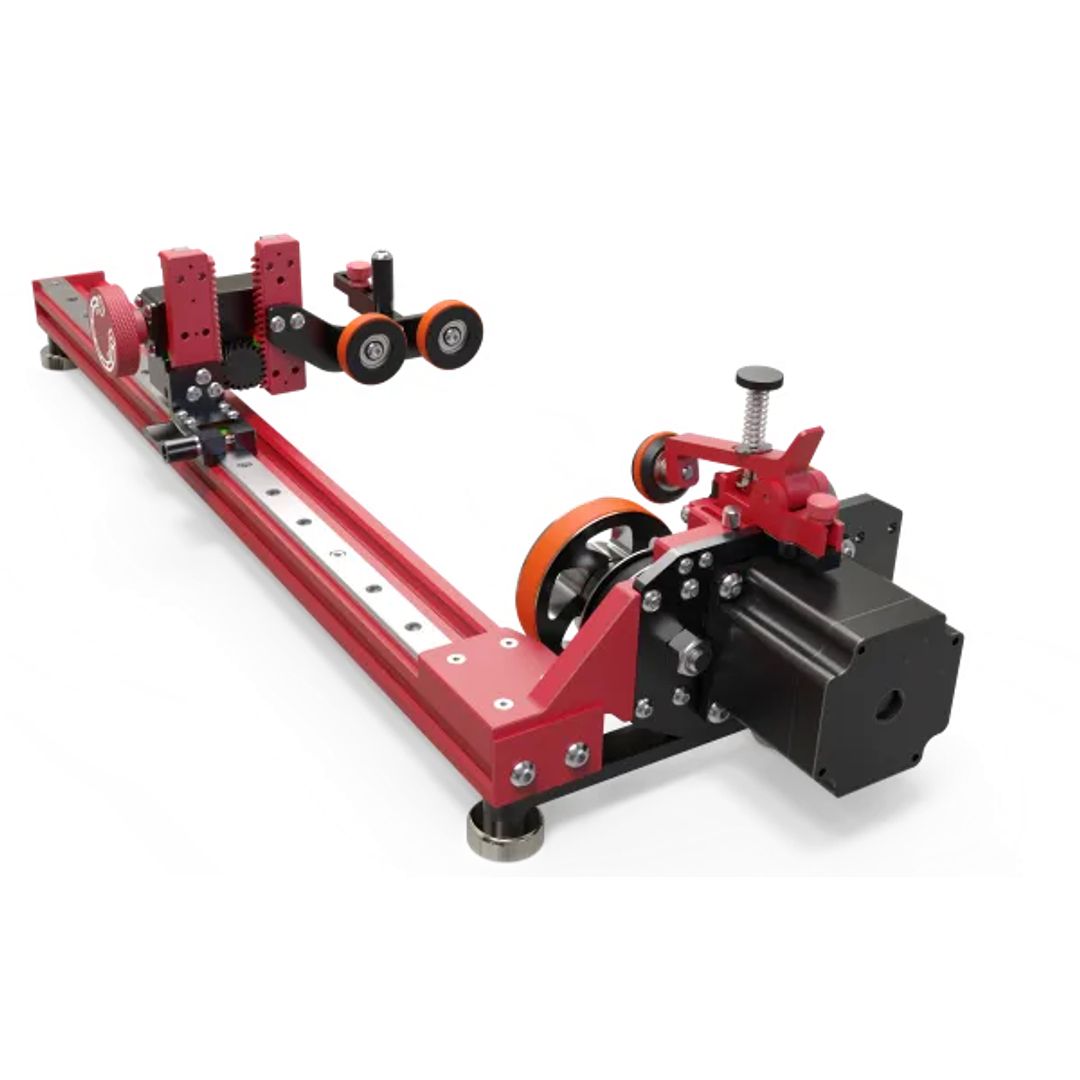

PiBurn V Roller Rotary (LRA-PBV5-US)
- Magnetic feet included at no extra cost
- Self-locking telescoping back wheel support and repositionable footboard for stability and range
- Linear rail guide with built-in brake reduces wobble and misalignment
- Wide one-piece silicone tires reduce slipping
- Compact head unit with centered motor and improved belt drive; higher gear reduction for finer engraving resolution
- One-hand lever length adjustment and redesigned clamp for easier setup
| Brand | OMTech |
|---|---|
| Model / SKU | LRA-PBV5-US |
| Weight | 125 oz |
| Dimensions | 24 x 10 x 10 in |
| Motor type options | 2-phase motor, 3-phase motor, Choose For Me |
| Gear reduction | 4.5x (3.6x for Thunder motor) |
| Compatibility | CO2 laser machines only |

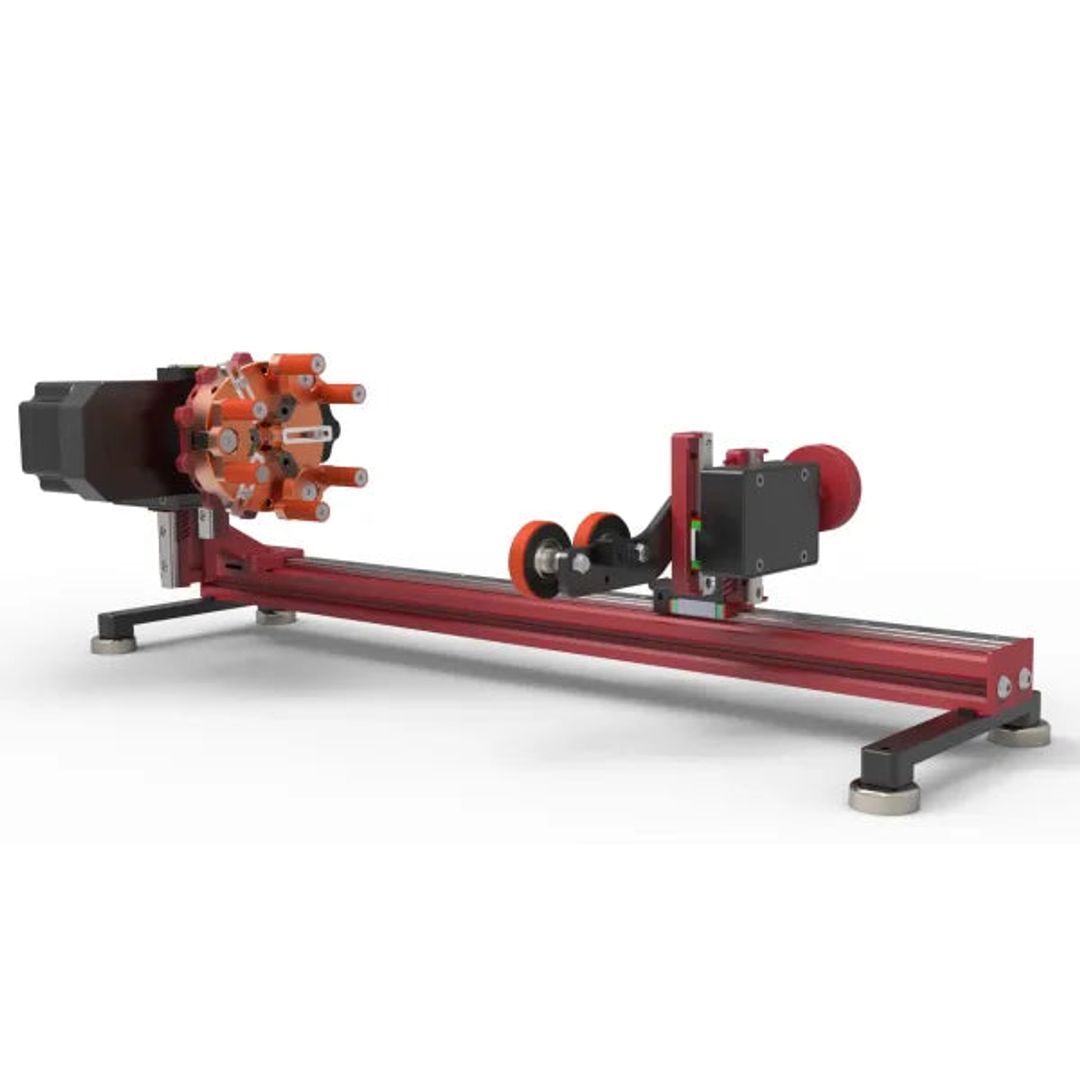

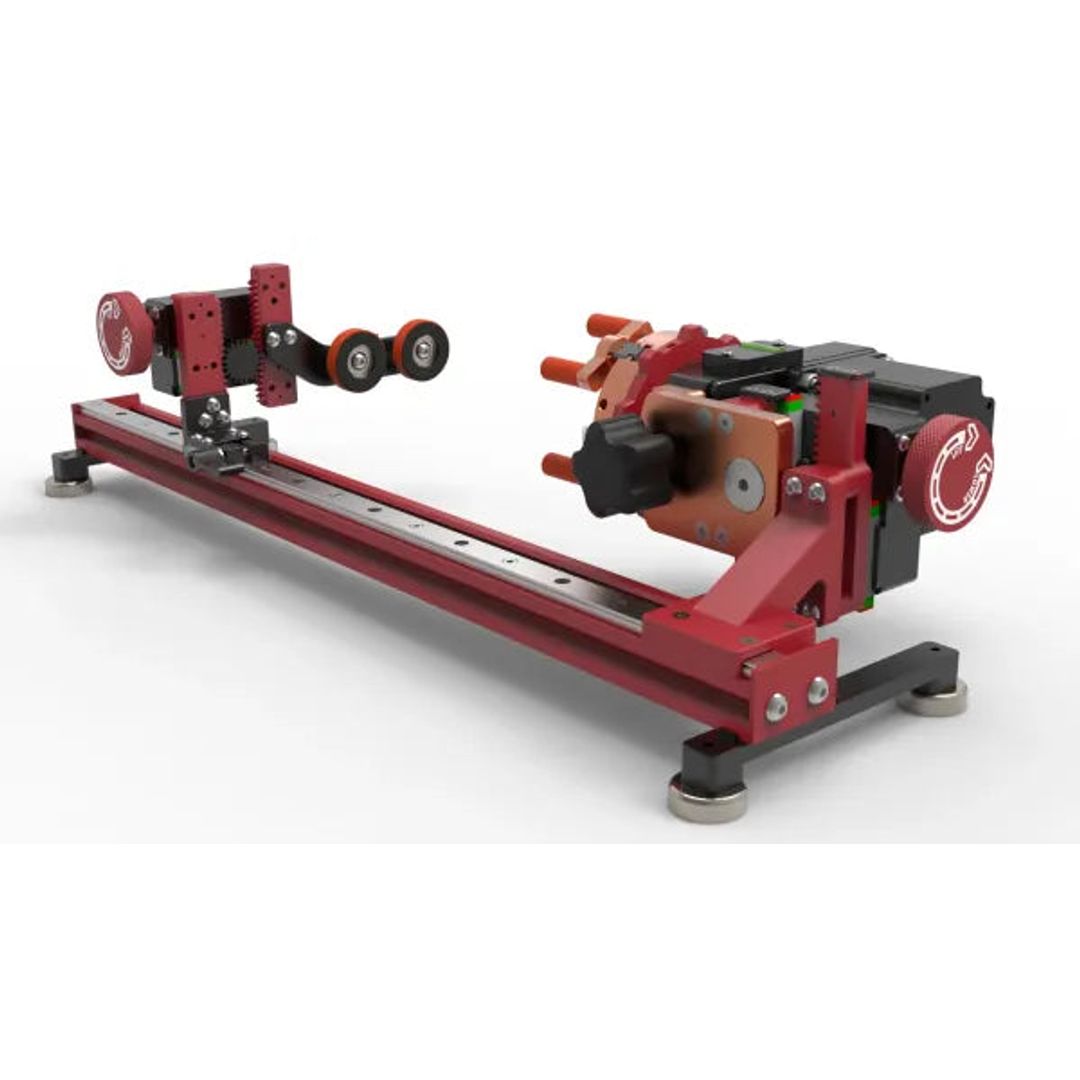

PiBurn Grip 2 Chuck Rotary (LRA-GRP2-US)
- Patent-pending six-jaw Hexa-Jaw system spreads load for heavier objects
- Belt gear reduction up to 3.75x for finer resolution and torque, no DIP-switch changes
- Self-locking telescoping lift adjusts height with a knob
- Low-profile body takes items up to 11.5 in. diameter with dog-bowl jaw extenders
- Up to 15-degree swivel, built-in level and center-line indicator
- Magnetic feet included; linear-guide back support removes wheel alignment
| Brand | OMTech |
|---|---|
| Model / SKU | LRA-GRP2-US |
| Weight | 180 oz |
| Dimensions | 24 x 10 x 8 in. |
| Maximum Item Diameter | 11.5 in. (with dog bowl jaw extenders) |
| Gear Reduction | Up to 3.75x |
| Swivel Range | Up to 15 degrees |
| Jaws | 6 (Hexa-Jaw system) |
| Warranty | 2 years |
PiBurn OMNI 2 Advanced Rotary (LRA-MNI2-US)
- Switches between roller and chuck rotary modes
- Belt-free, gear-free direct drive for zero backlash
- Low-profile tower avoids interfering with the laser head
- Linear rail system and dual height adjustments for different object sizes
- Adjustable angle for tapered items; rubber-padded fingers for delicate pieces

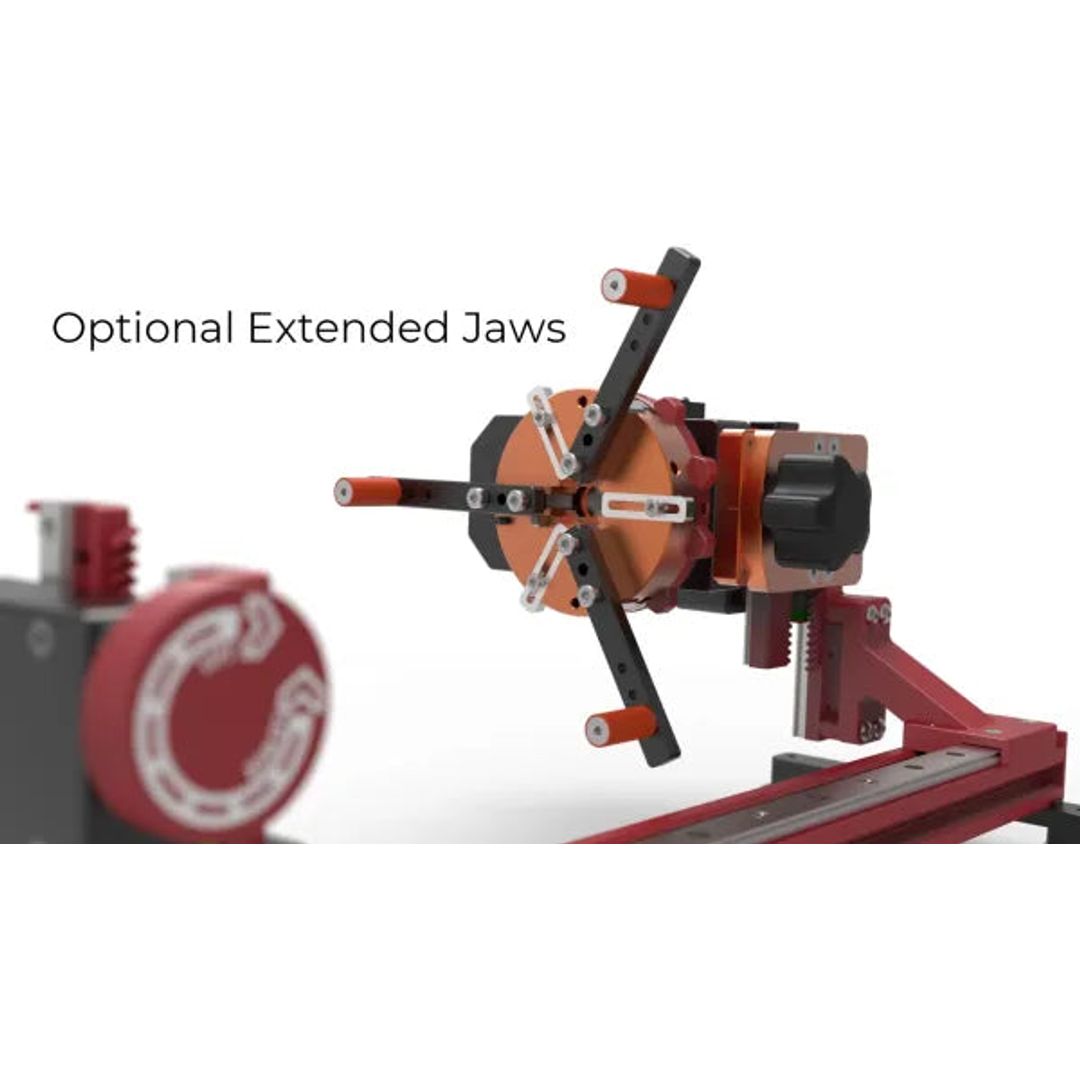

- Optional extended jaws for pet bowls (sold separately)
| Brand | OMTech |
|---|---|
| Model / SKU | LRA-MNI2-US |
| Repeat Accuracy | 0.01 mm |
| Rotation | 360° full rotation |
