Available Configurations
| Power | Model / SKU |
|---|---|
| 60W | USB-V570-US |
| 90W | USB-V570-U1 |
| 100W | USB-V570-U2 |

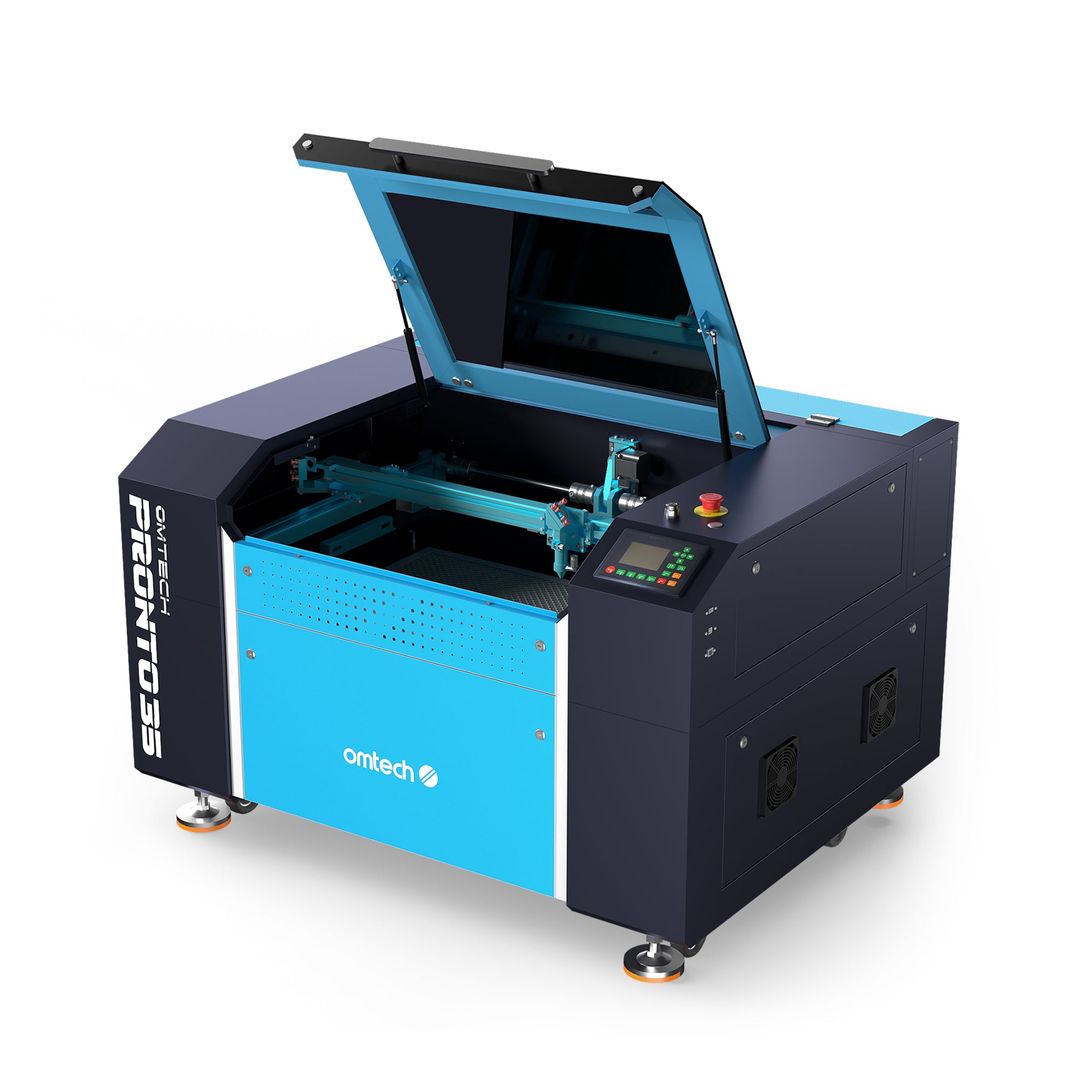

60W (USB-V570-US)
- Engraving speed up to 1,000 mm/s from an upgraded transmission (V-wheel X, belt Y, ball-screw Z)
- Autofocus with red-dot indicator
- Up to 8.7 in workpiece height and front/back pass-through
- Smokeless-oriented ventilation: boosted air pump and 318 cfm fan
- Safety features including temperature monitoring, pressure sensors and flame-retardant PC board
- Honeycomb bed with stainless-steel edging
| Brand | OMTech |
|---|---|
| Model / SKU | USB-V570-US |
| Color | Blue, Gray |
| Product Dimensions (L×W×H) | 51.6 × 39.8 × 32.3 in (1310 × 1010 × 820 mm) |
| Package Dimensions (L×W×H) | 55.9 × 44.5 × 40.2 in (1420 × 1130 × 1020 mm) |
| Engraving Area | 27.6 x 19.7 in (700 x 500 mm) |
| Front & Back Pass-Through | Supports materials up to 0.75 in (19 mm) thick |
| Rated Power | 60 W |
| Est. Service Life (at <40% Power) | 12,000 hr |
| Max. Engraving Speed | 39.4 ips (1000 mm/s) |
| Laser Tube Length | 39.3 in (1000 mm) |
| Laser Tube Diameter | 2 in (50 mm) |
| Max. Workpiece Height | 8.7 in |
| Compatible Operating Systems | Windows 2000, XP, Vista, 7, 8, 10 |
| Bundled Software | RDWorks |
| Compatible Software (not included) | LightBurn, CorelLaser, RDWorks |
| Supported Image Formats | .ai, .bmp, .dxf, .gif, .hpgl, .jpeg, .pdf, .plt, .png, .rd, .svg, .tiff, .tga |
| Data Transmission | USB Cable, WiFi, Ethernet Cable |
| Certification | CE, FDA |
| Net Weight | 467 lb (212 kg) |
| Warranty | 2 years |
| What's Included | 1x Laser Engraver; 1x Exhaust Fan; 2x Exhaust Pipes; 1x Power Cord; 1x USB Cable; 1x Ethernet Cable; 3x Pipe Clamps; 2x Laser Keys; 4x Access Keys; 1x USB Flash Drive; 2x Focus Lens Repair Tools; 1x Hex Wrench Set; 1x Flat-Head Screwdriver; 1x Phillips Screwdriver; 2x Water Hoses; 1x Water Chiller Alarm Cable; 1x Reverse Compensation Card; 1x Air Assist Pump; 1x Double-Sided Tape; 1x Silicone Sealant; 2x Water Hose Clamps; 1x Ceramic Testing Resistor; 1x Tool Box; 1x User Manual |

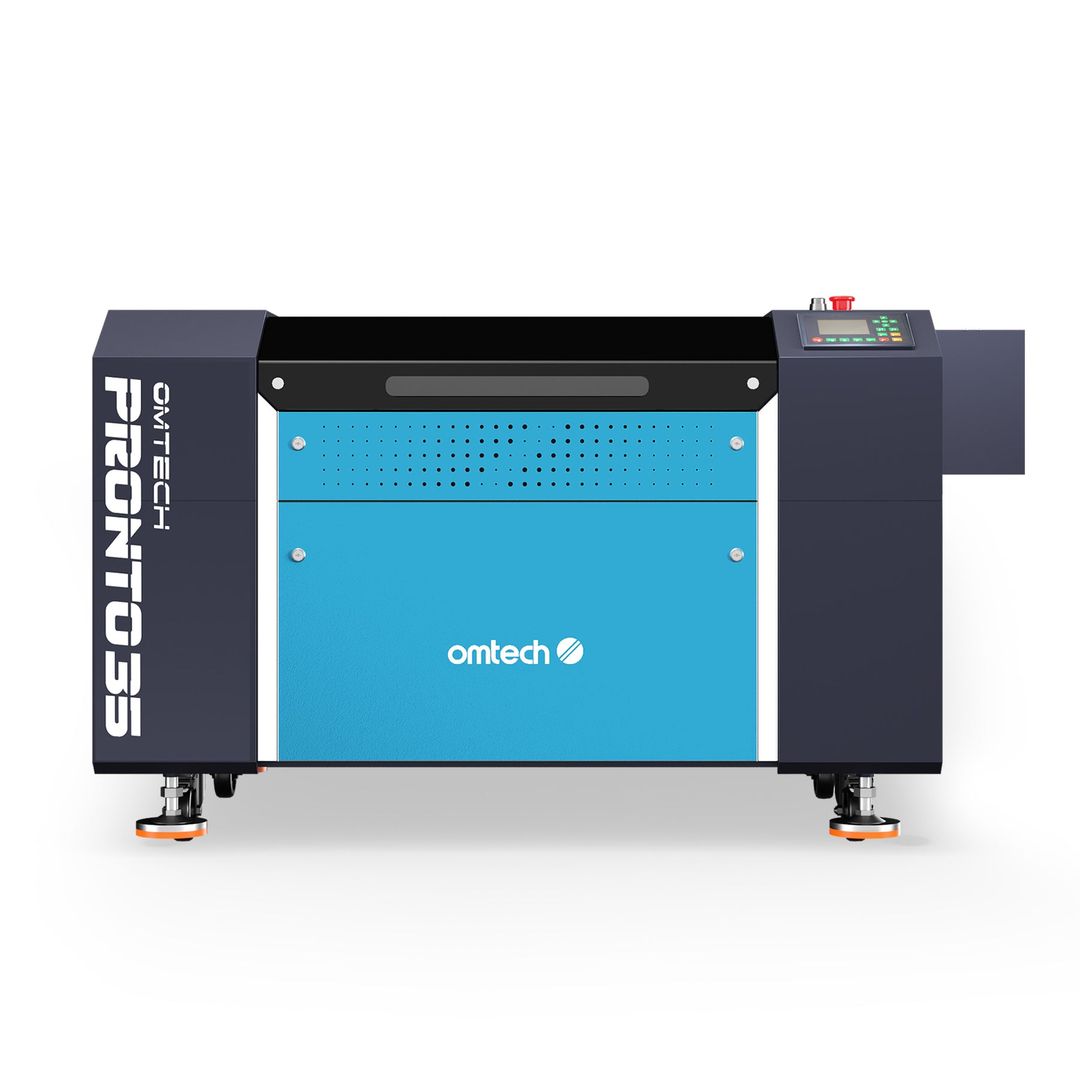

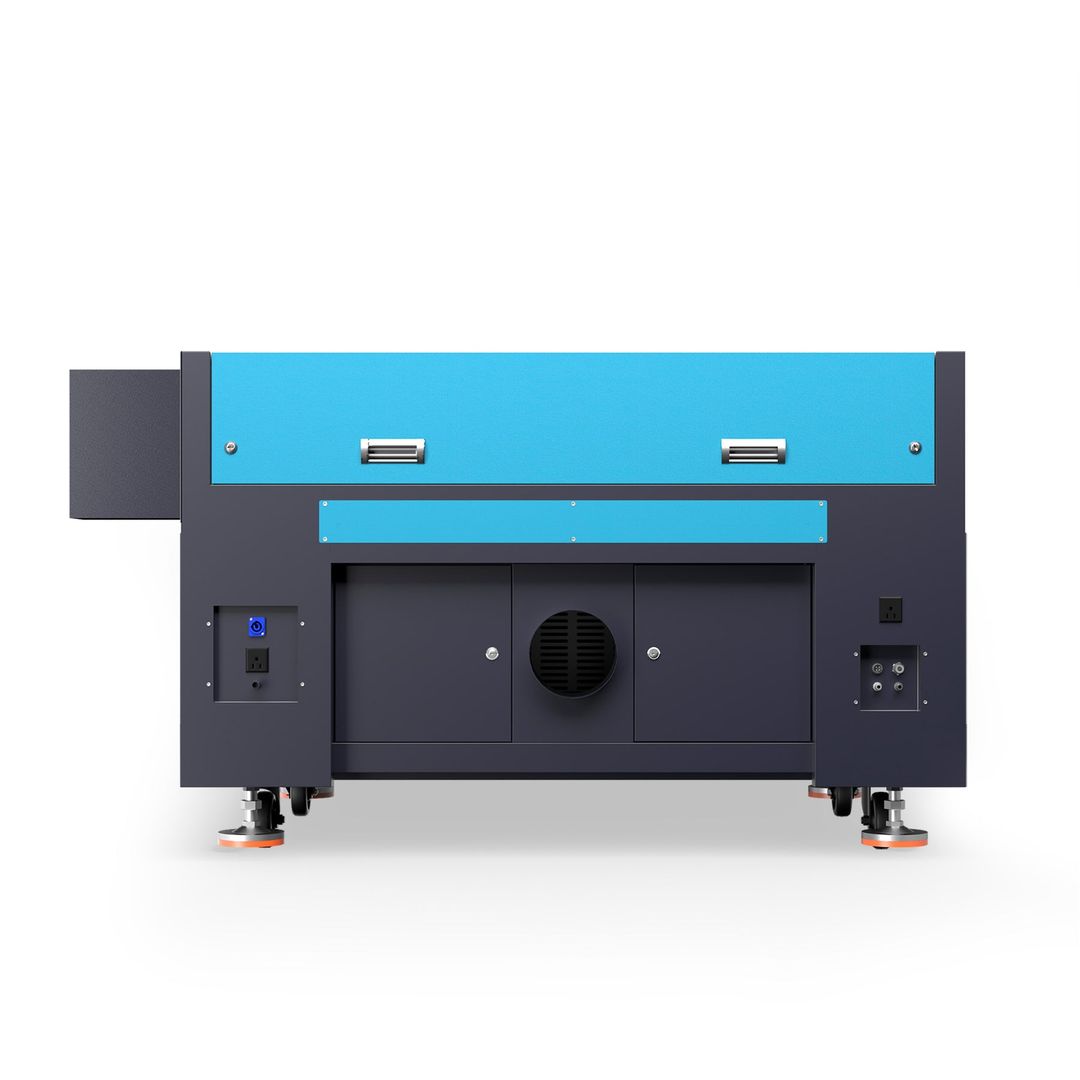

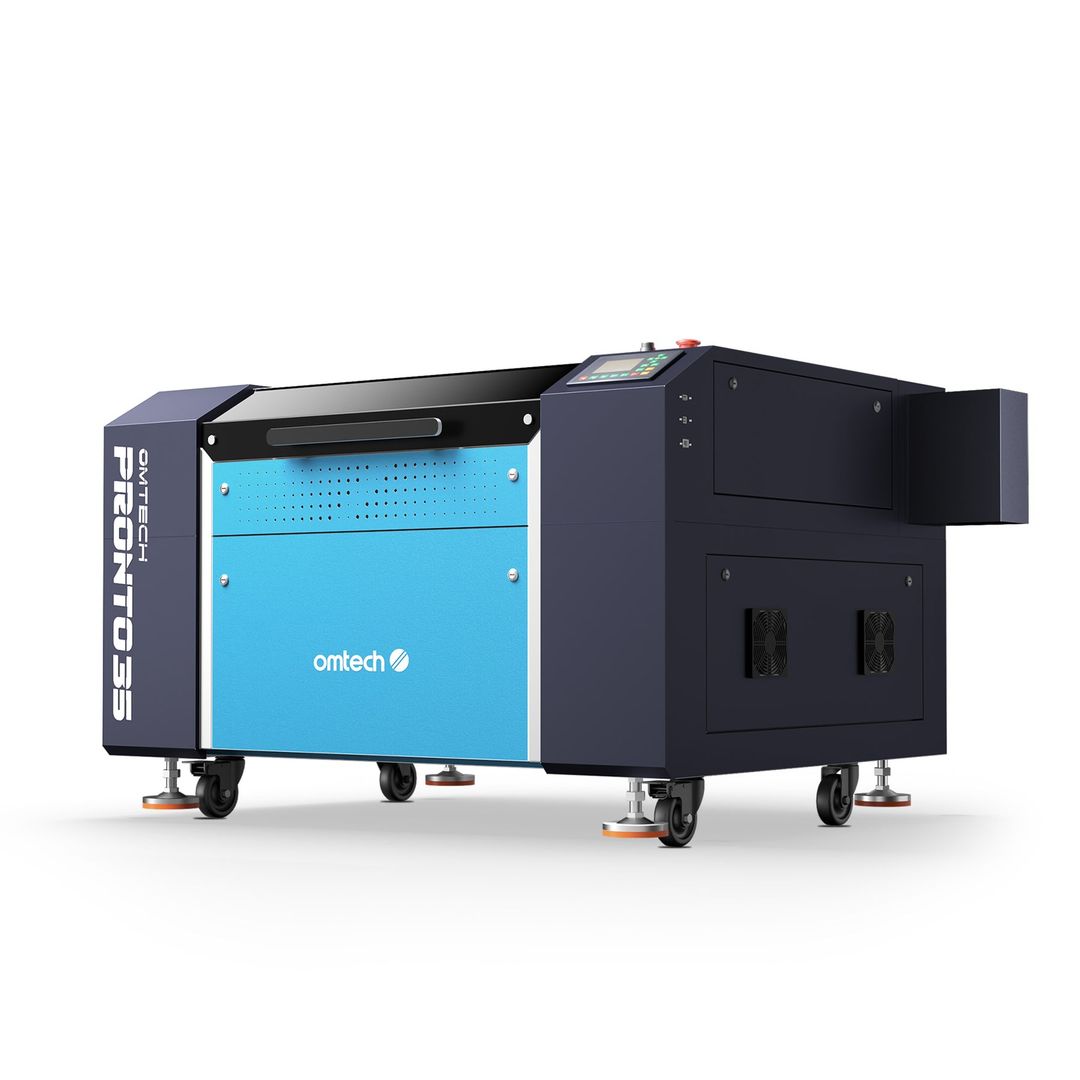

90W (USB-V570-U1)
- Engraves at up to 1000 mm/s
- X-axis V-wheel, Y-axis precision belt and Z-axis ball screw transmission
- Autofocus with red dot indicator for optical path alignment; up to 8.7 in workpiece height
- Front and back pass-through for materials up to 0.75 in thick
- Upgraded air pump and 318 cfm fan for smoke removal during engraving
- Class 1 safety with temperature monitoring that stops the machine on overheating and pressure sensors that alarm on pressure loss
| Brand | OMTech |
|---|---|
| Model / SKU | USB-V570-U1 |
| Rated power | 90 W |
| Engraving area | 27.6 x 19.7 in. (700 x 500 mm) |
| Max engraving speed | 39.4 ips (1000 mm/s) |
| Front & back pass-through | Up to 0.75 in. (19 mm) thick |
| Max workpiece height | 8.7 in. |
| Laser tube length | 49.2 in. (1250 mm) |
| Laser tube diameter | 2.4 in. (60 mm) |
| Estimated service life (at <40% power) | 12,000 hr. |
| Product dimensions (L x W x H) | 59.1 x 39.8 x 32.3 in. (1500 x 1010 x 820 mm) |
| Package dimensions (L x W x H) | 63.4 x 44.5 x 40.2 in. (1610 x 1130 x 1020 mm) |
| Net weight | 474 lb. (215 kg) |
| Color | Blue, Gray |
| Data transmission | USB cable, Ethernet cable |
| Bundled software | RDWorks |
| Compatible software (not included) | LightBurn, CorelLaser, RDWorks |
| Compatible OS | Windows 2000, XP, Vista, 7, 8, 10 |
| Supported image formats | .ai, .bmp, .dxf, .gif, .hpgl, .jpeg, .pdf, .plt, .png, .rd, .svg, .tiff, .tga |
| Certification | CE, FDA |
| What's Included | Laser engraver x1; Exhaust fan x1; Exhaust pipes x2; Power cord x1; USB cable x1; Ethernet cable x1; Pipe clamps x3; Laser keys x2; Access keys x4; USB flash drive x1; Focus lens repair tools x2; Hex wrench set x1; Flat-head screwdriver x1; Phillips screwdriver x1; Water hoses x2; Water chiller alarm cable x1; Reverse compensation card x1; Air assist pump x1; Double-sided tape x1; Silicone sealant x1; Water hose clamps x2; Ceramic testing resistor x1; Tool box x1; User manual x1 |

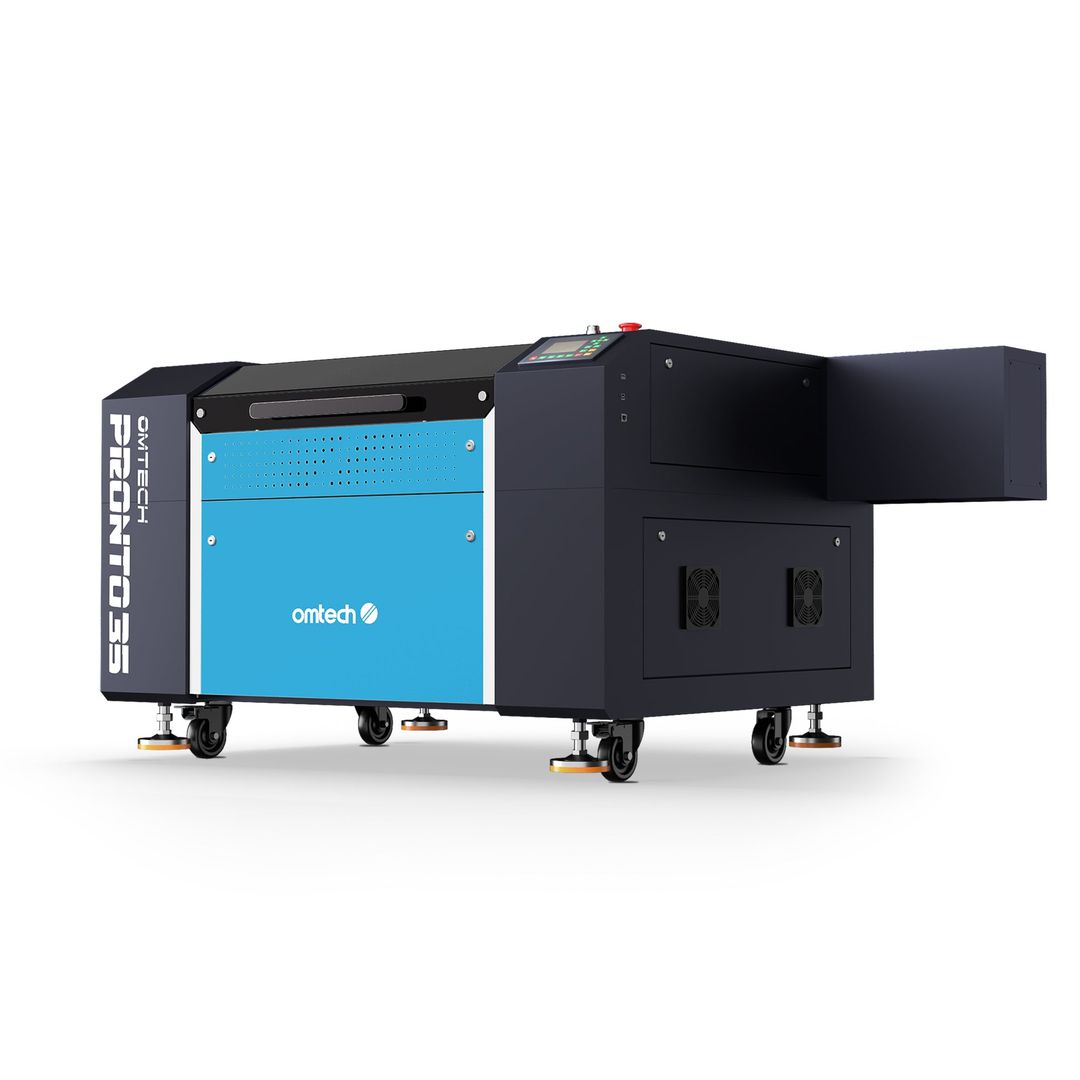

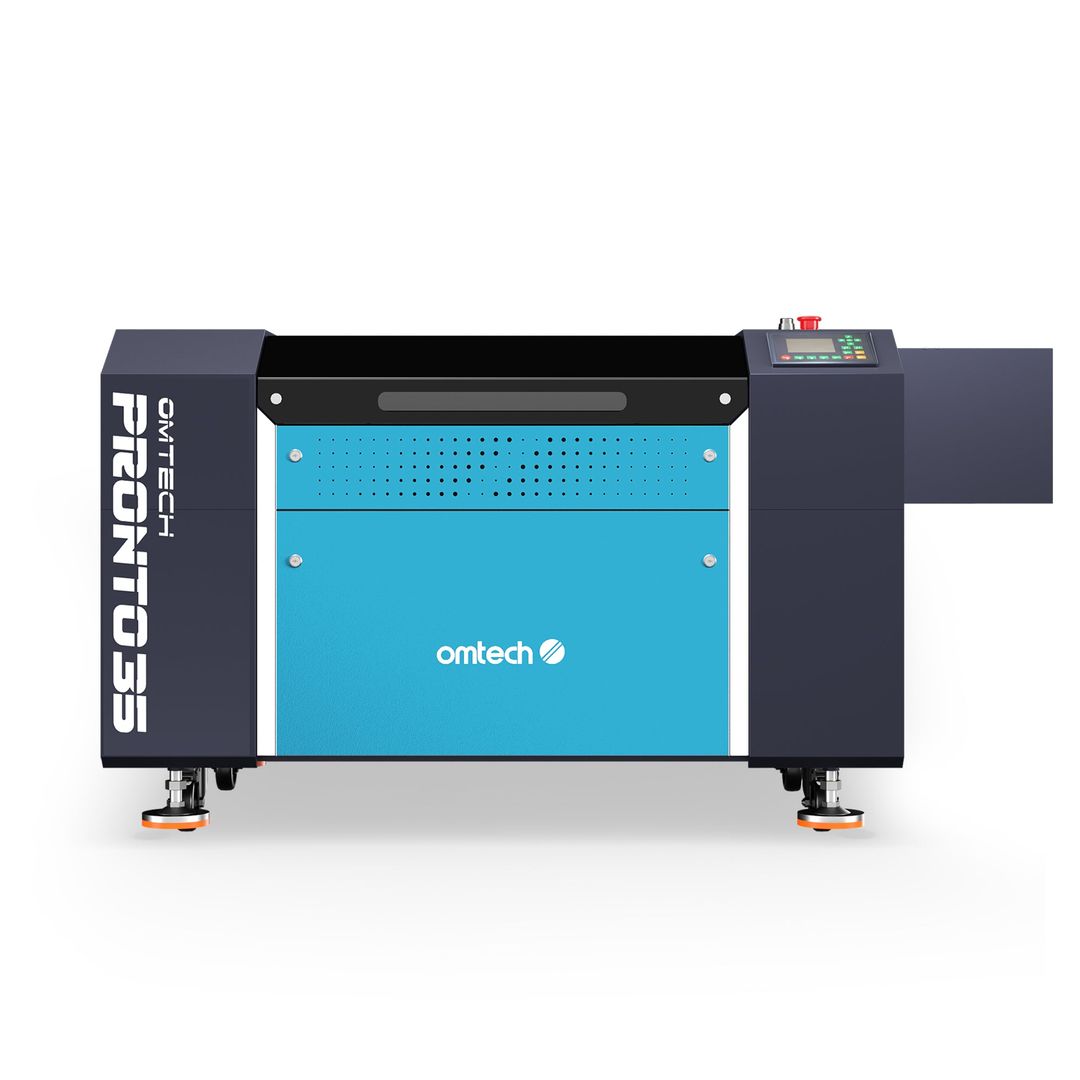

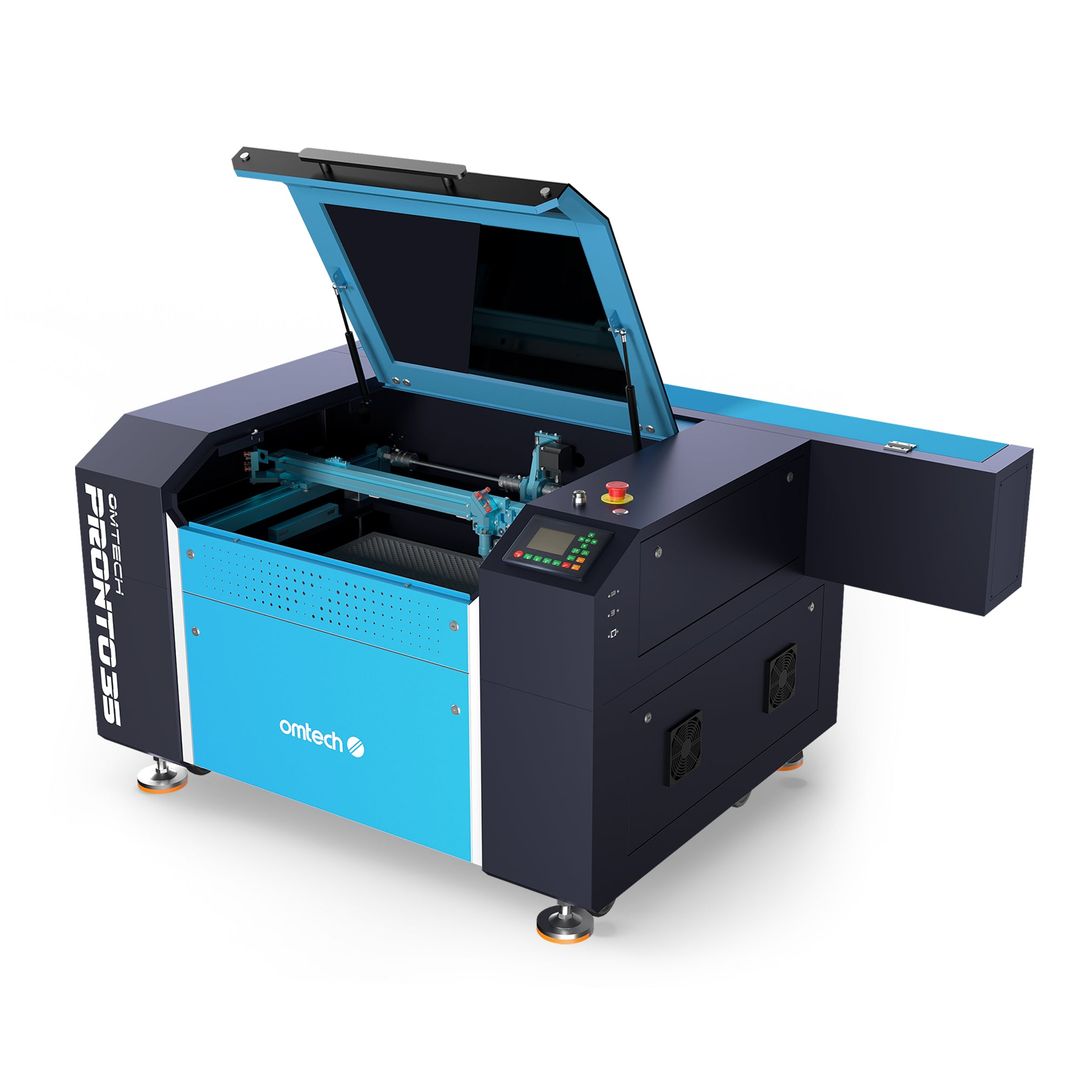

100W (USB-V570-U2)
- Engraves at up to 1000 mm/s with a V-wheel X axis, belt-driven Y axis and ball-screw Z axis
- Autofocus with a red dot indicator; workpieces up to 8.7 in tall
- Upgraded air pump and 318 cfm turbo fan for low-smoke operation
- Reinforced frame with aluminum plate brackets and a honeycomb bed with stainless-steel edging
- Class-1 laser safety enclosure, overheating monitoring and pressure sensors with alarms
- No built-in chiller; works with LightBurn and ships with RDWorks
| Brand | OMTech |
|---|---|
| Model / SKU | USB-V570-U2 |
| Color | Blue, Gray |
| Product Dimensions (L x W x H) | 67.3 x 39.8 x 32.3 in (1710 x 1010 x 820 mm) |
| Package Dimensions (L x W x H) | 71.7 x 44.5 x 40.2 in (1820 x 1130 x 1020 mm) |
| Engraving Area | 27.6 x 19.7 in (700 x 500 mm) |
| Front & Back Pass-Through | supports materials up to 0.75 in (19 mm) thick |
| Rated Power | 100 W |
| Est. Service Life (below 40% power) | 12,000 hr |
| Max. Engraving Speed | 39.4 ips (1000 mm/s) |
| Max. Workpiece Height | 8.7 in |
| Laser Tube Length | 57 in (1450 mm) |
| Laser Tube Diameter | 2.7 in (70 mm) |
| Focus Mode | Autofocus |
| Built-in Water Chiller | No |
| Compatible Operating Systems | Windows 2000, XP, Vista, 7, 8, 10 |
| Bundled Software | RDWorks |
| Compatible Software (not included) | LightBurn, CorelLaser, RDWorks |
| Supported Image Formats | .ai, .bmp, .dxf, .gif, .hpgl, .jpeg, .pdf, .plt, .png, .rd, .svg, .tiff, .tga |
| Data Transmission | USB cable, WiFi, Ethernet cable |
| Certification | CE, FDA |
| Net Weight | 492 lb (223 kg) |
| What's Included | 1x Laser Engraver; 1x Exhaust Fan; 2x Exhaust Pipes; 1x Power Cord; 1x USB Cable; 1x Ethernet Cable; 3x Pipe Clamps; 2x Laser Keys; 4x Access Keys; 1x USB Flash Drive; 2x Focus Lens Repair Tools; 1x Hex Wrench Set; 1x Flat-Head Screwdriver; 1x Phillips Screwdriver; 2x Water Hoses; 1x Water Chiller Alarm Cable; 1x Reverse Compensation Card; 1x Air Assist Pump; 1x Double-Sided Tape; 1x Silicone Sealant; 2x Water Hose Clamps; 1x Ceramic Testing Resistor; 1x Tool Box |
