Available Configurations
| Power | Model / SKU |
|---|---|
| 60W RF | USB-RF40-US |
| 80W RF | USB-RF40-U2 |

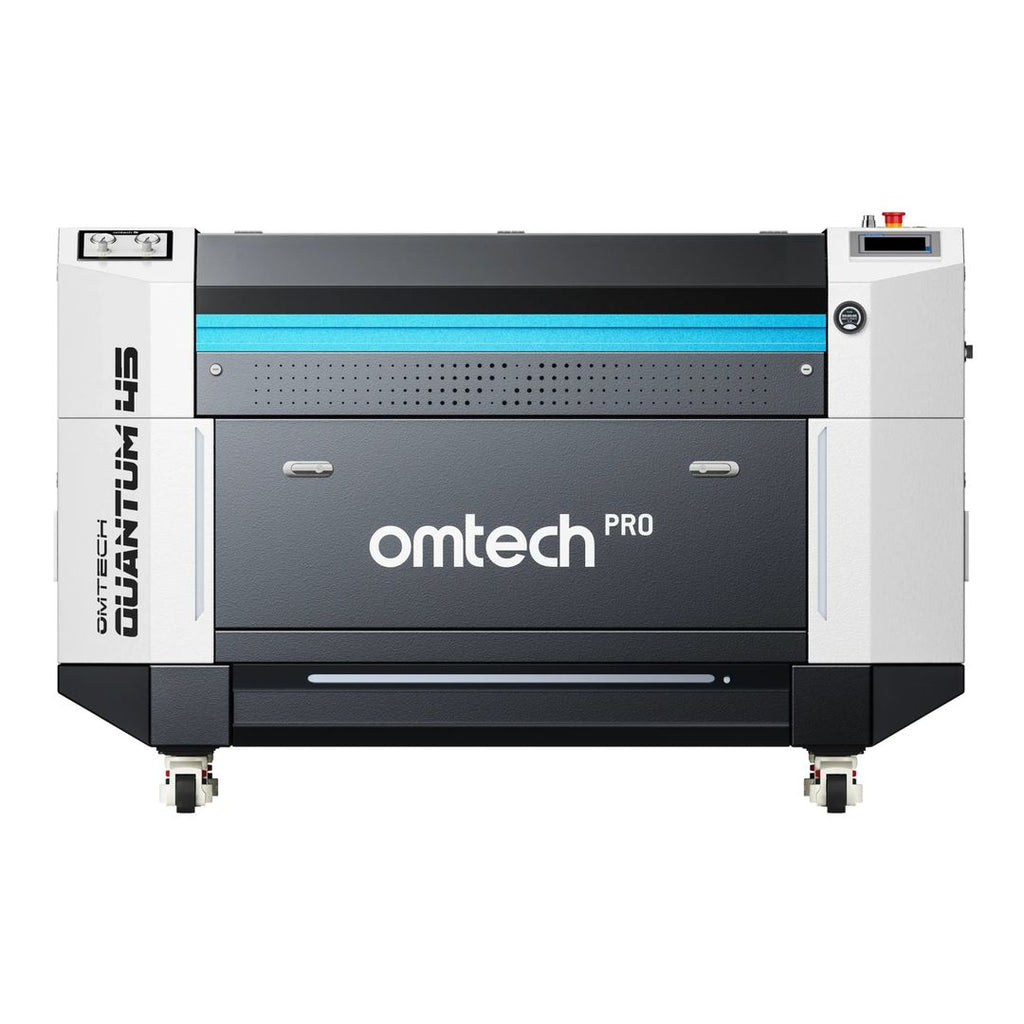

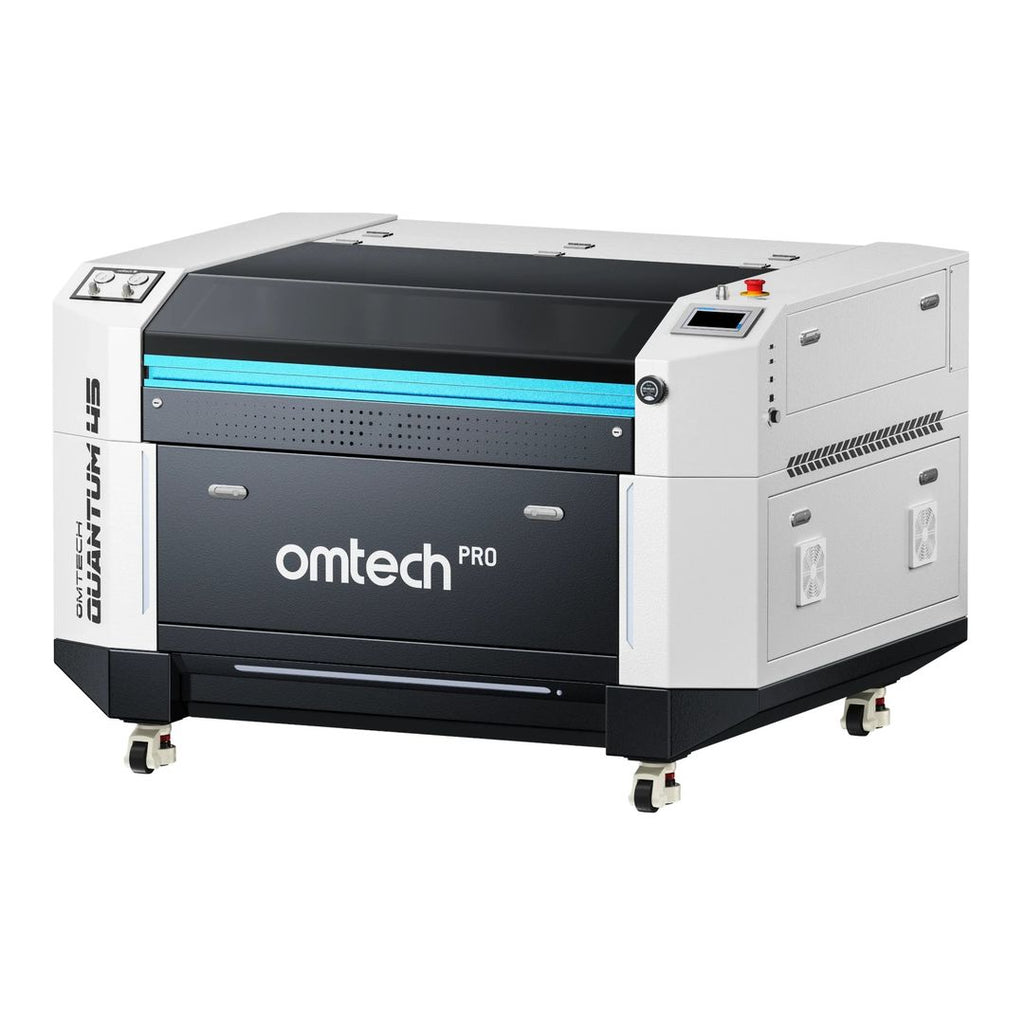

60W RF (USB-RF40-US)
- RF tube engraves at up to 4200 mm/s, claimed about 3x faster than ordinary glass tubes
- 0.07 mm smallest spot size
- Autofocus, with a 48MP fisheye camera for work-area positioning
- 30L built-in dual-pressure air compressor; cuts wood up to 22 mm and acrylic up to 24 mm
- Built-in 660 m3/h dust extraction fan with air cooling for the RF tube
- WiFi, Ethernet and USB connectivity; LightBurn compatible; fully isolated optical path
| Brand | OMTech |
|---|---|
| Model / SKU | USB-RF40-US |
| Rated power | 60W |
| Laser tube type | Radio Frequency (RF) CO2 |
| Engraving area | 39.4 x 23.6 in. (100 x 60 cm) |
| Spot size | 0.003 in. (0.07 mm) |
| Max engraving speed | 165.4 ips (4200 mm/s) |
| Camera resolution | 48 MP |
| Airflow capacity | 390 cfm (660 m3/h) |
| Focus | Auto focus |
| Water chiller | Built-in |
| Data transmission | USB cable, Ethernet cable, WiFi |
| Bundled software | RDWorks |
| Compatible software (not included) | LightBurn, CorelLaser |
| Overall dimensions (L x W x H) | 63.4 x 48.8 x 40.9 in. (161 x 124 x 104 cm) |
| Certification | FDA |
| Supported image formats | .ai, .bmp, .dxf, .gif, .hpgl, .jpeg, .pdf, .plt, .png, .rd, .svg, .tiff, .tga |
| What's Included | 60W CO2 cabinet laser engraver x1; Exhaust pipe x1; Set of wrenches x1; Flathead screwdriver x1; Phillips screwdriver x1; Ethernet cable x1; USB cable x1; Clamp x1; Power cables x2; Lens tools x2; Laser keys x2; Access keys x4; Calibration card x1; USB flash drive x1; Focusing rulers x2; Tape x1; Silicone gel x1; Package extras per variant: rotary attachment, 2MP monitoring camera, laser marking spray, PU leather key fob pack, LightBurn license |

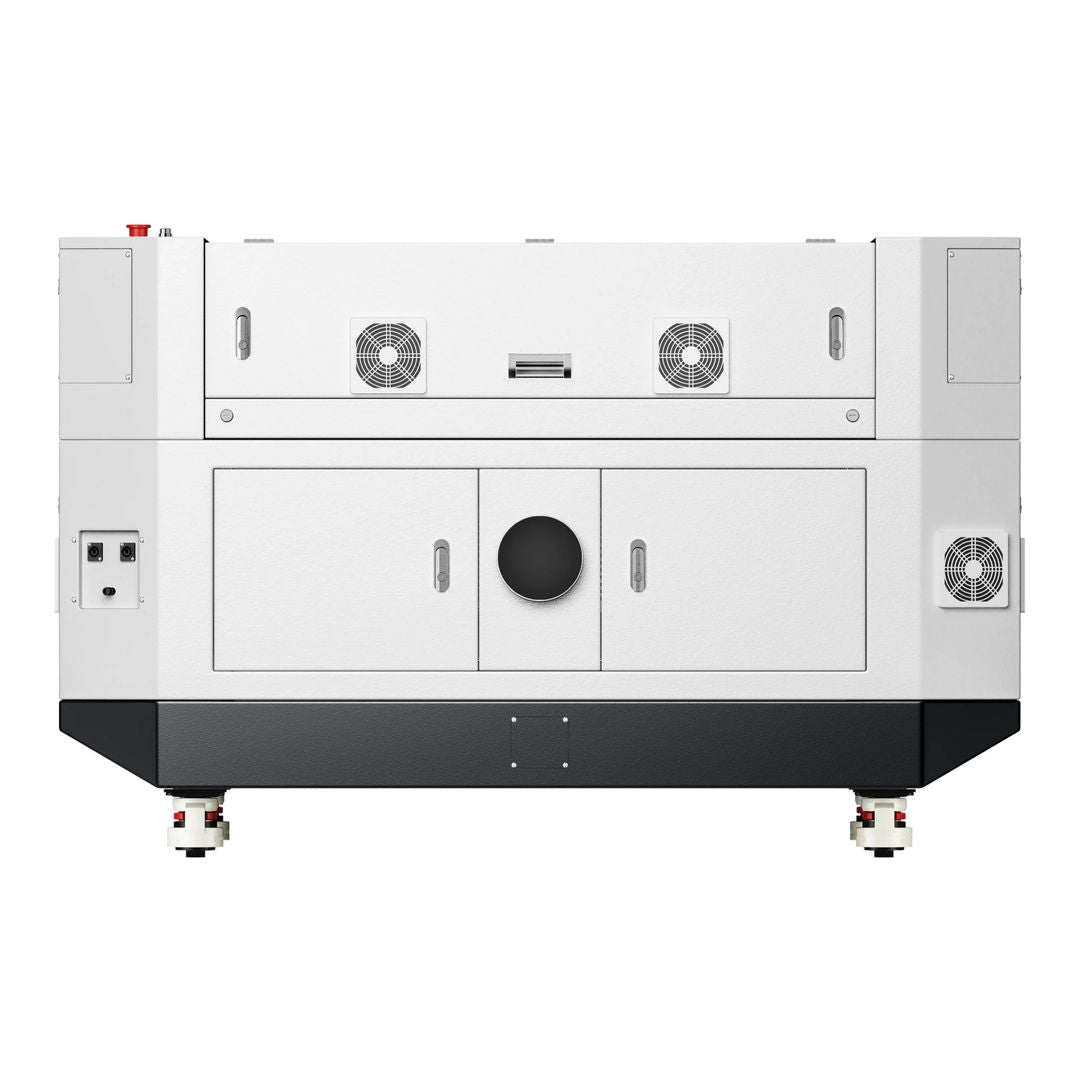

80W RF (USB-RF40-U2)
- RF metal tube with a replaceable laser tube and autofocus
- Engraving speed up to 4,200 mm/s with a 0.07 mm minimum spot size
- Built-in water chiller, dual-pressure 30L air compressor and 390 cfm extraction fan
- 48MP camera for work-area positioning; WiFi, USB and Ethernet connectivity
- Real-time mirror temperature monitoring and isolated optical path
| Brand | OMTech |
|---|---|
| Model / SKU | USB-RF40-U2 |
| Model (spec table) | OMTech Quantum 40 |
| Engraving Area | 39.4 x 23.6 in. (100 x 60 cm) |
| Spot Size | 0.003 in. (0.07 mm) |
| Type of CO2 Laser Tube | Radio Frequency |
| Max. Engraving Speed | 165.4 ips (4,200 mm/s) |
| Camera Resolution | 48 MP |
| Airflow Capacity | 390 cfm (660 m3/h) |
| Bundled Software | RDWorks |
| Compatible Software (not included) | LightBurn, CorelLaser |
| Data Transmission | USB Cable, Ethernet Cable, WiFi |
| Overall Dimensions (L x W x H) | 63.4 x 48.8 x 40.9 in. (161 x 124 x 104 cm) |
| Certification | FDA |
| Focus | Auto Focus |
| Water Chiller | Built-in |
| Supported Image Formats | .ai, .bmp, .dxf, .gif, .hpgl, .jpeg, .pdf, .plt, .png, .rd, .svg, .tiff, .tga |
| What's Included | 60W CO2 Cabinet Laser Engraver x1; Exhaust Pipe x1; Set of Wrenches x1; Flathead Screwdriver x1; Phillips Screwdriver x1; Ethernet Cable x1; USB Cable x1; Clamp x1; Power Cables x2; Lens Tools x2; Laser Keys x2; Access Keys x4; Calibration Card x1; USB Flash Drive x1; Focusing Rulers x2; Tape x1; Silicone Gel x1 |
