Highlights

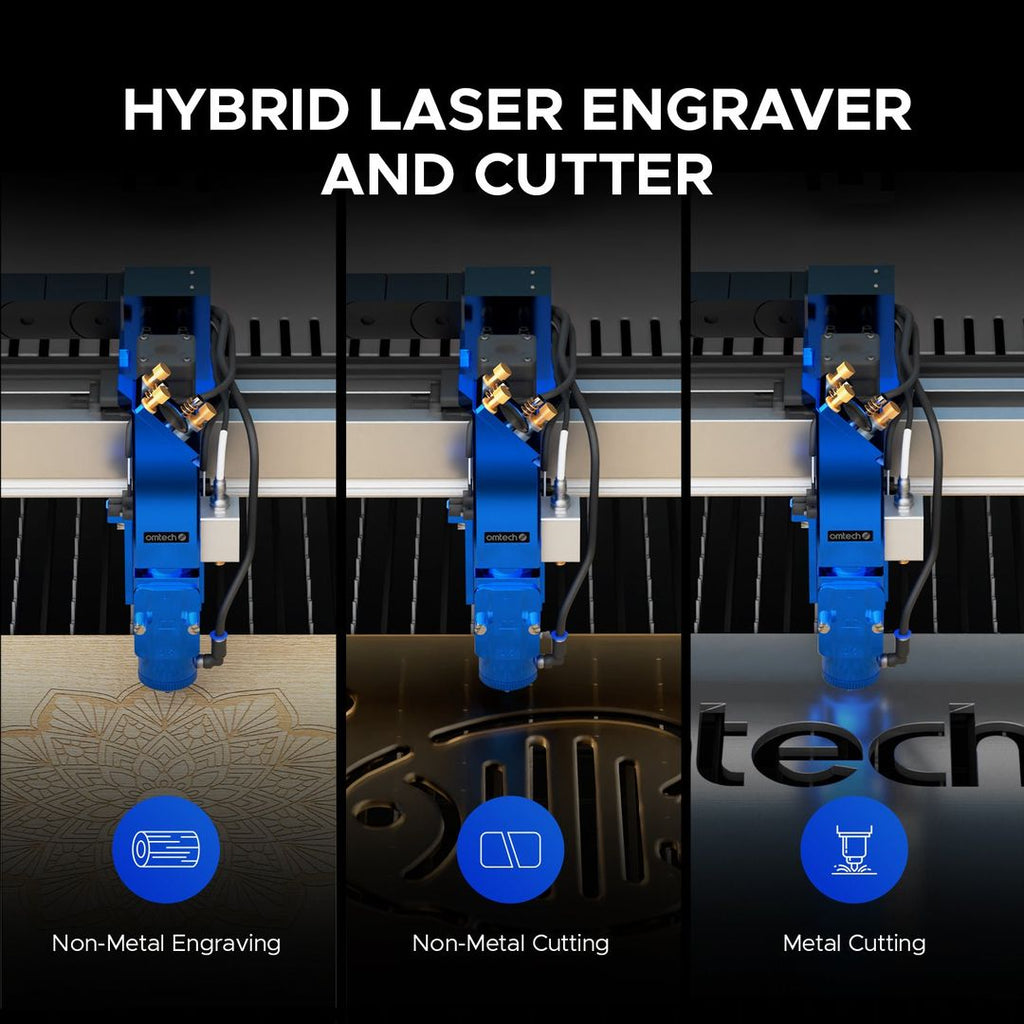

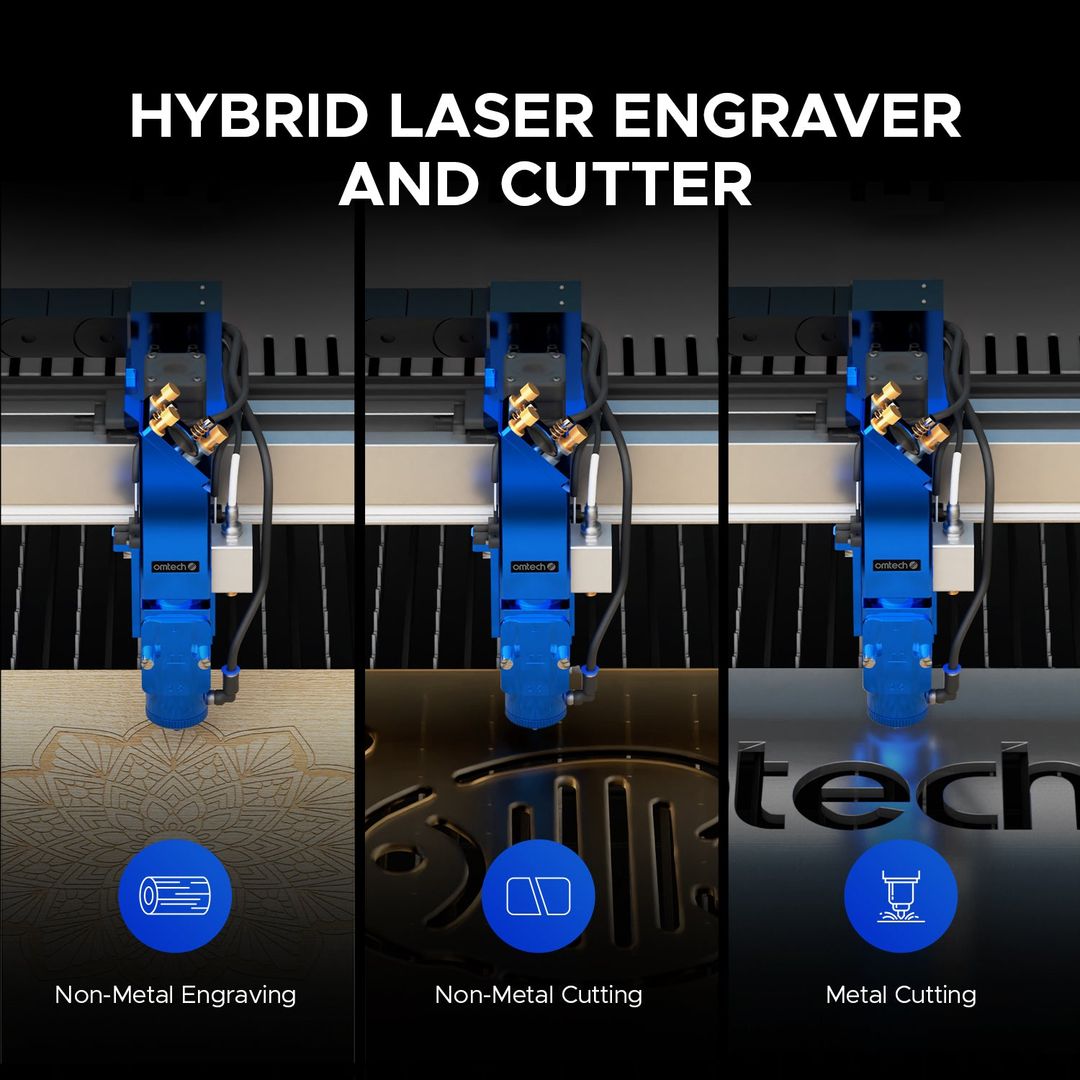

- Hybrid dual-head design for sheet metal cutting plus CO2 cutting and engraving, each head with its own nozzle and air assist
- 150W Yongli A8s coaxial CO2 tube rated up to 10,000 hours, with a 63.5 mm ZnSe lens and three US-made mirrors
- One-touch autofocus on both heads, X/Y servo motors and HIWIN linear rails for fast, precise motion
- Built-in industrial water chiller (page names a TEYU RMCW-5200)
- Four-way pass-through doors, knife-blade bed, touchscreen panel, USB/USB drive/Wi-Fi connectivity
- Safety features include emergency stop, mechanical and magnetic interlocks, air pressure sensor and 3-color status light
Specifications
| Brand | OMTech |
|---|---|
| Model / SKU | CEH-1409-U3 |
| Color | Black, Gray |
| Engraving Area | 54.3 x 33.5 in (1380 x 850 mm) |
| Dimensions | 82.5 x 64.7 x 42.3 in (209.5 x 167 x 107.5 cm) |
| Package Dimensions | 87.8 x 70.5 x 48.6 in (223 x 179 x 123.5 cm) |
| Max Metal (Stainless Steel) Cutting Depth | 0.06 in (1.5 mm) |
| Front Pass-Through Size | 54.3 x 1.6 in (1430 x 40 mm) |
| Back Pass-Through Size | 54.3 x 1.6 in (1430 x 40 mm) |
| Left Pass-Through Size | 37.4 x 1.6 in (95 x 40 mm) |
| Right Pass-Through Size | 37.4 x 1.6 in (95 x 40 mm) |
| Laser Power | 150 W |
| Max Speed | 1,200 mm/s |
| Lens | 63.5 mm |
| Laser Tube Lifespan | Up to 10,000 hours |
| Warranty | 2-year general; 1-year laser tube |
What's Included
- 1x Hybrid Laser Cutter
- 2x Laser Heads
- 1x USB Cable
- 1x Ethernet Cable
- 2x Power Cables
- 2x Laser Cables
- 1x USB Flash Drive
- 1x External Fan
- 2x Laser Keys
- 4x Access Keys
- 1x Focal Lens
- 2x Oxygen Tubes
- 2x Limit Switches
- 1x Protective Glasses
- 1x Storage Box with Tools
- 1x User Manual
- 2x Exhaust Pipes with Hose Clamps
