Available Configurations
| Power | Model / SKU |
|---|---|
| 130W | USB-3655-U2 |
| 150W | USB-3655-U3 |
130W (USB-3655-U2)
- 130W tube (150W available as a separate model) with estimated life up to 11,000 hours
- Hybrid servo motors on X and Y with embedded guide rails for speeds up to 1200 mm/s
- Autofocus with a 63.5 mm focus lens, red-dot guidance and a pullable laser head for maintenance
- Built-in water chiller and built-in air assist (90 L/min), plus an external exhaust fan
- 4-way pass-through doors and compatibility with any rotary axis
- Safety features include an emergency stop, status light, air pressure sensor and mechanical and magnetic interlocks; USB and Wi-Fi connectivity
| Brand | OMTech |
|---|---|
| Model / SKU | USB-3655-U2 |
| SKU (130W) | USB-3655-U2 |
| Rated Laser Power | 130 W |
| Working Area | 55.1 x 35.4 in. (1400 x 900 mm) |
| Max. Engraving Speed | Up to 1200 mm/s |
| Positioning Accuracy | +/-0.02 mm |
| Repeatability | +/-0.01 mm |
| Laser Tube Length (130W) | 65.0 in. (1650 mm) |
| Laser Tube Diameter | 3.2 in. (80 mm) |
| Est. Laser Tube Life | Up to 11,000 hr. |
| Max. Material Height (engraving) | 7.1 in. (180 mm) |
| Workbed | Aluminum slat + honeycomb |
| Focus Lens | 63.5 mm focal length |
| Cooling | Built-in water chiller |
| Air Assist | Built in, 90 L/min |
| Exhaust Fan | External, 520 m3/h |
| Controller | Ruida RDC6445GT5 + touchscreen |
| Connection | USB + Wi-Fi |
| Compatible Software | RDWorks V8, LightBurn |
| Input Power | 110-120 V / 60 Hz |
| What's Included | Essential Package: 130W laser engraver, autofocus system, built-in industrial water chiller; LightBurn Package adds a LightBurn software license |

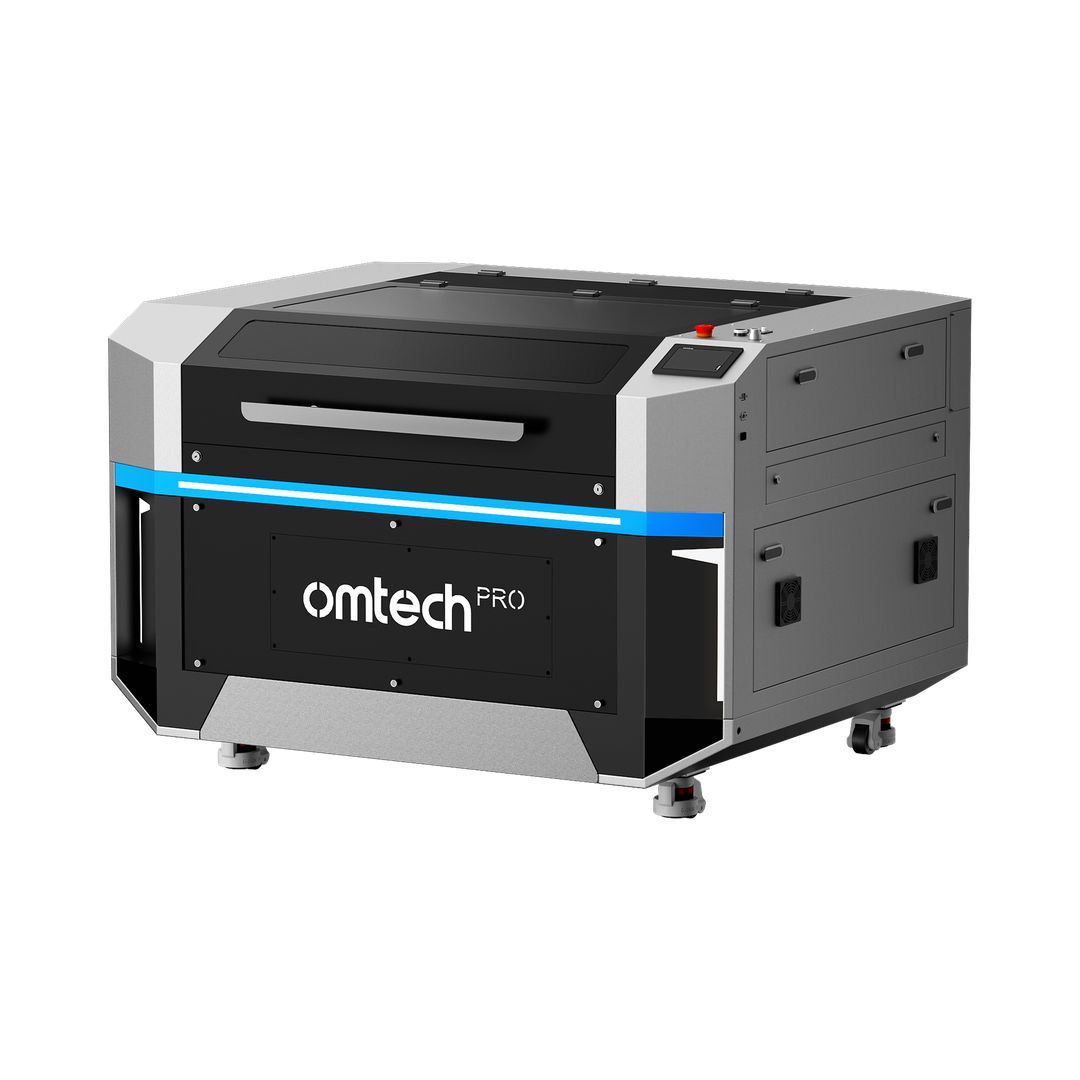

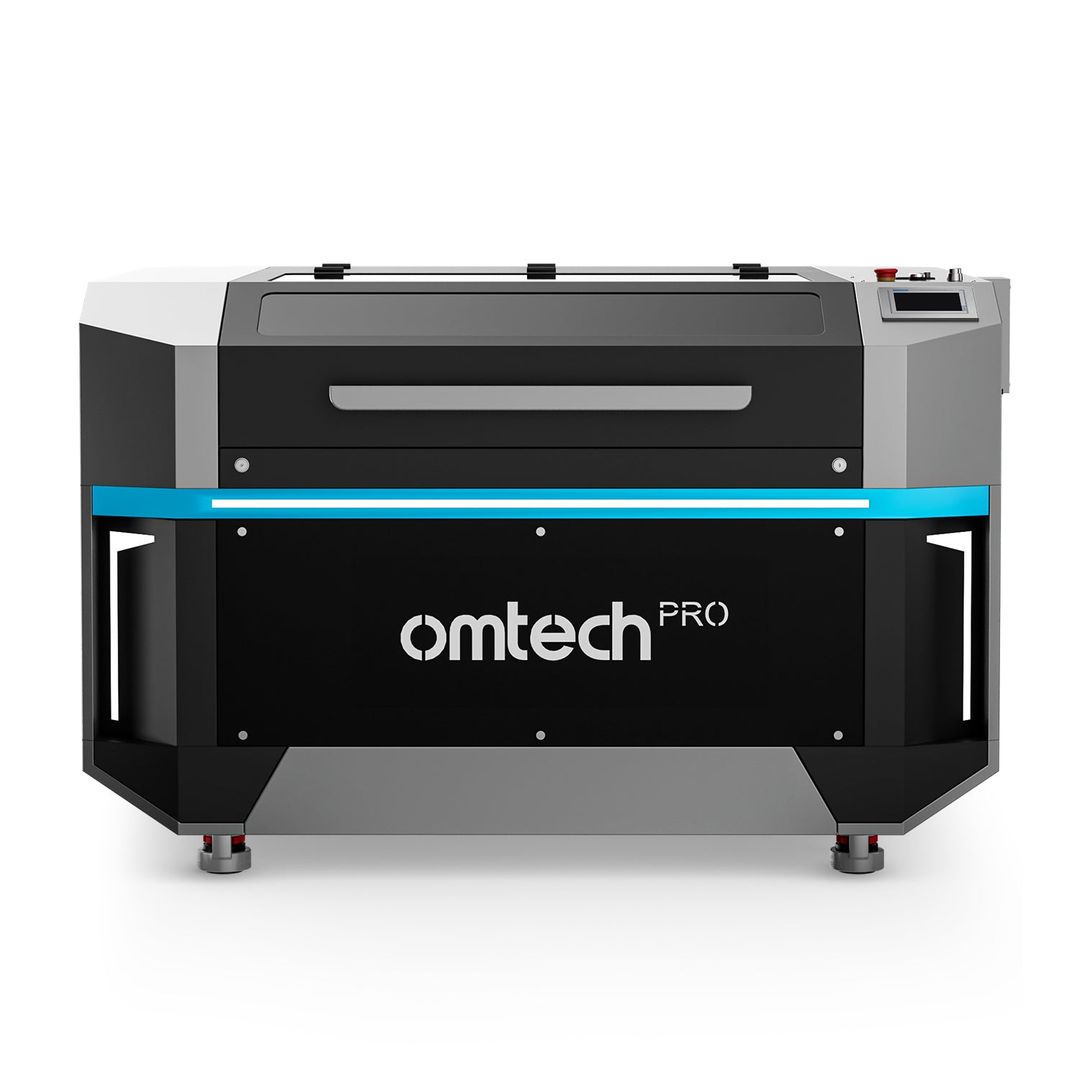

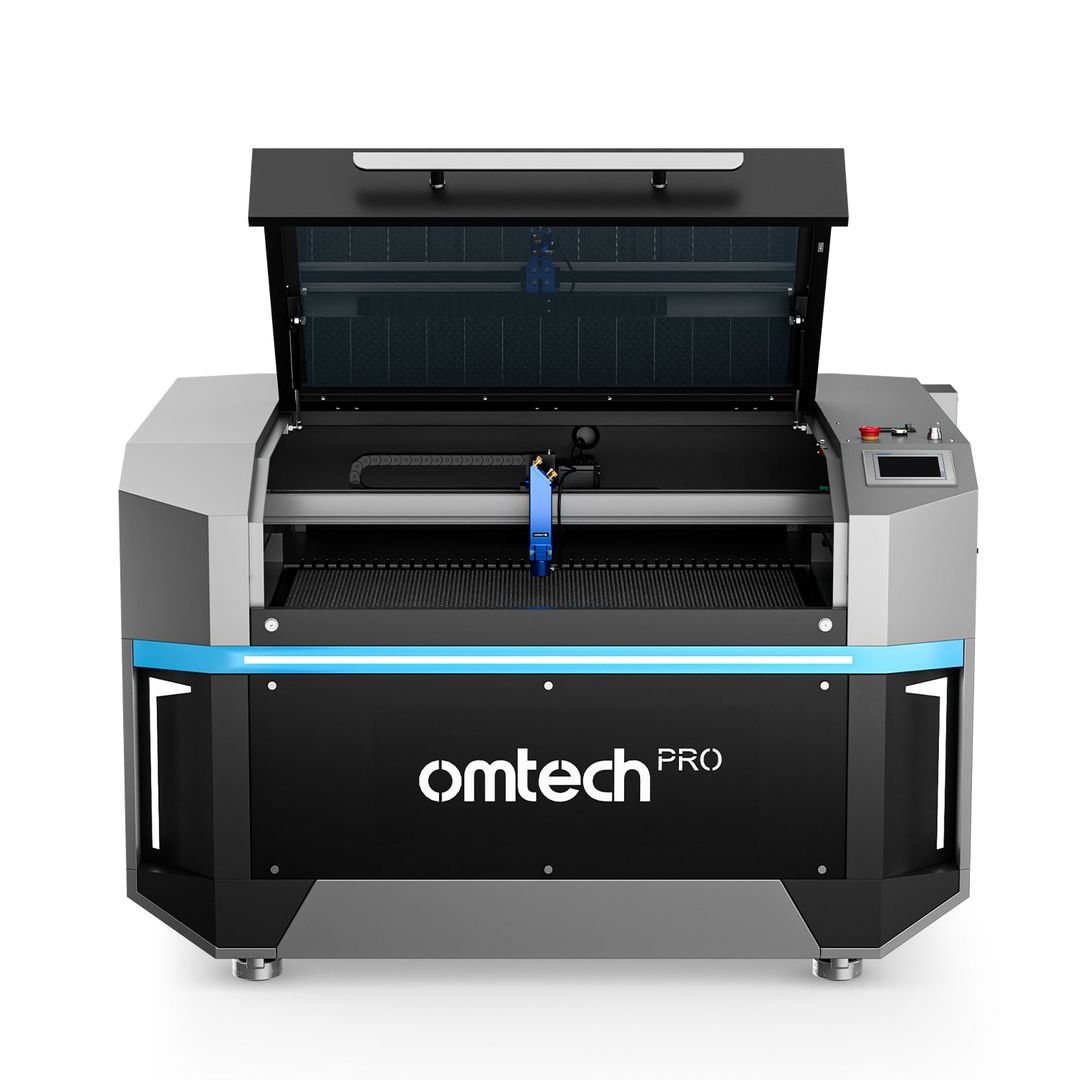

150W (USB-3655-U3)
- 150W CO2 tube (130W on the sister model) with an estimated life up to 11,000 hours
- Hybrid servo motors with embedded X and Y rails reach speeds up to 1200 mm/s
- Autofocus and a pullable laser head with red dot guidance
- Built-in water chiller and built-in air assist (90 L/min), with an external 520 m3/h exhaust fan
- Front, back and side doors allow oversized material to pass through
- Safety set includes emergency stop, 3-color status light, air pressure sensor and magnetic/mechanical interlocks
| Brand | OMTech |
|---|---|
| Model / SKU | USB-3655-U3 |
| Rated Laser Power | 130 W (USB-3655-U2) / 150 W (USB-3655-U3) |
| Working Area | 55.1 x 35.4 in (1400 x 900 mm) |
| Max. Engraving Speed | up to 1200 mm/s |
| Positioning Accuracy | +/-0.02 mm |
| Repeatability | +/-0.01 mm |
| Laser Tube Length | 65.0 in (1650 mm) for 130W; 72.8 in (1850 mm) for 150W |
| Laser Tube Diameter | 3.2 in (80 mm) |
| Est. Laser Tube Life | up to 11,000 hr |
| Max. Material Height (engraving) | 7.1 in (180 mm) |
| Workbed | Aluminum slat + honeycomb |
| Focus Lens | 63.5 mm focal length |
| Cooling | Built-in water chiller |
| Air Assist | Built-in, 90 L/min |
| Exhaust Fan | External, 520 m3/h |
| Controller | Ruida RDC6445GT5 with touchscreen |
| Connection | USB + Wi-Fi |
| Compatible Software | RDWorks V8, LightBurn |
| Input Power | 110-120 V / 60 Hz |
| What's Included | Laser engraver with autofocus system and built-in industrial water chiller; LightBurn software (LightBurn and rotary packages); Jaw Chuck or Roller Rotary attachment (150W rotary packages) |
