Highlights
- MOPA fiber source with adjustable pulse frequency (1-4000 kHz) and width (2-500 ns) for color marking and fine etching

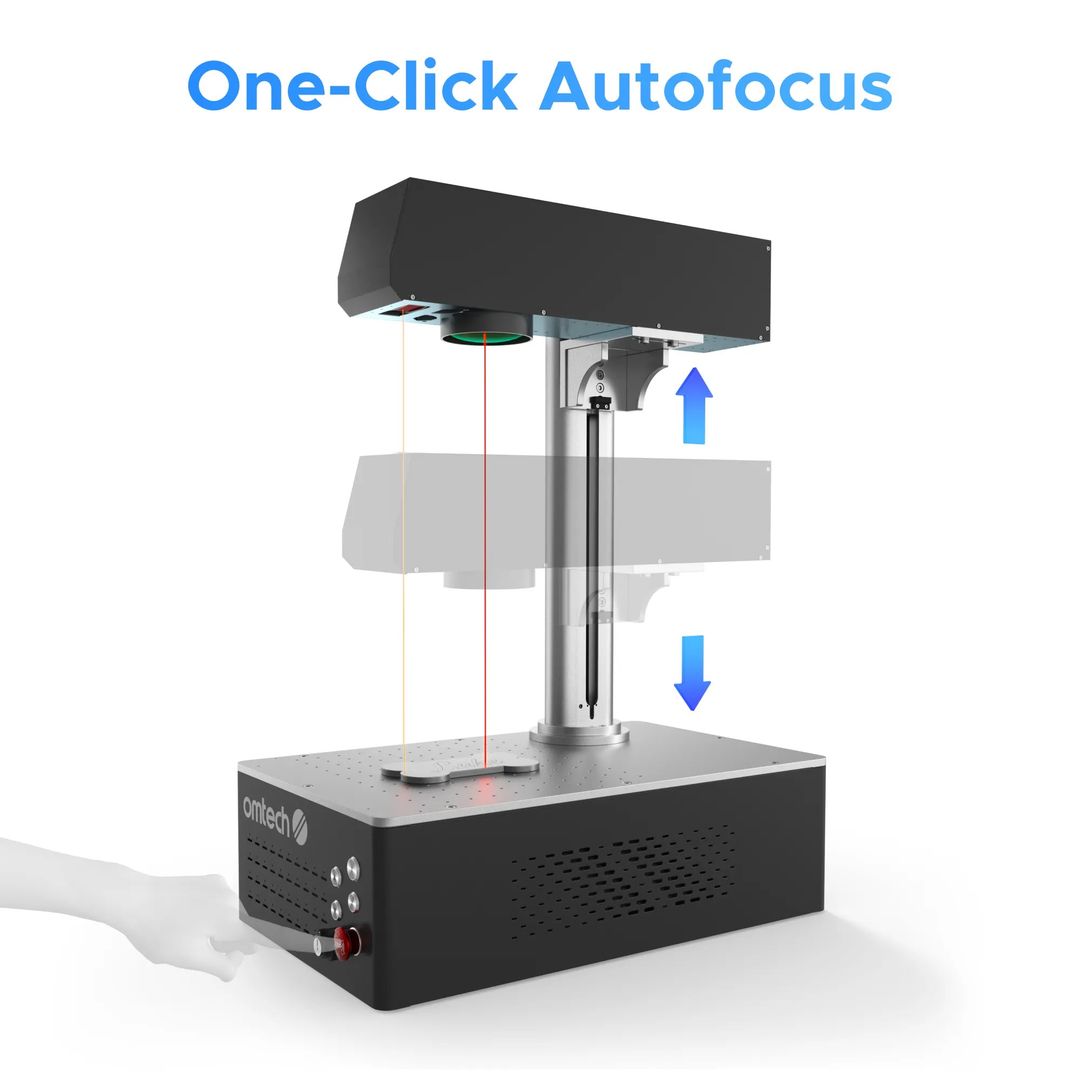

- Automatic focusing with +/-1 mm positioning accuracy
- Marks stainless steel, gold, wood, leather and other materials; suited to jewelry and serial numbers

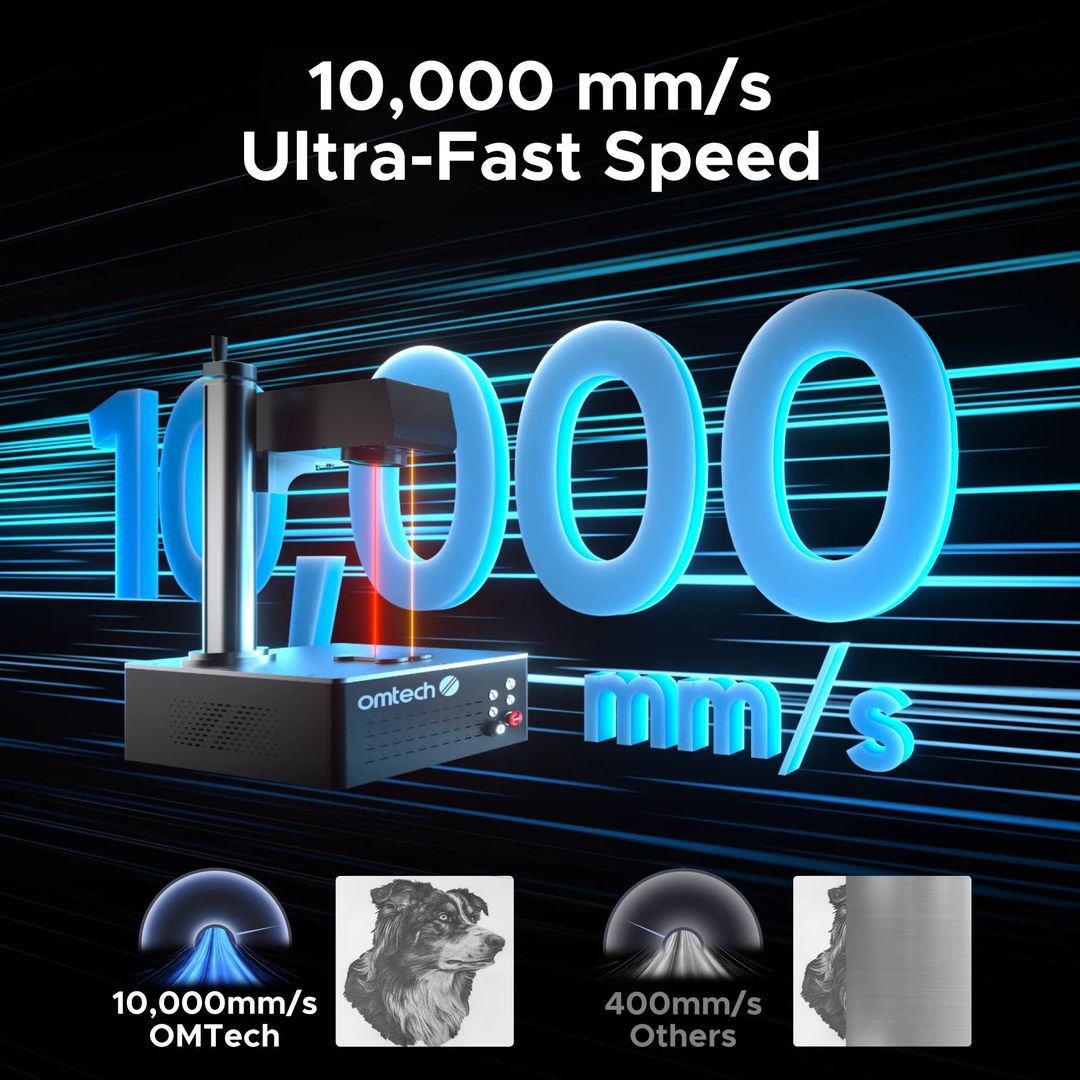

- Up to 10,000 mm/s marking speed with 0.01 mm marking accuracy and 100,000 hr laser life (MTTF)

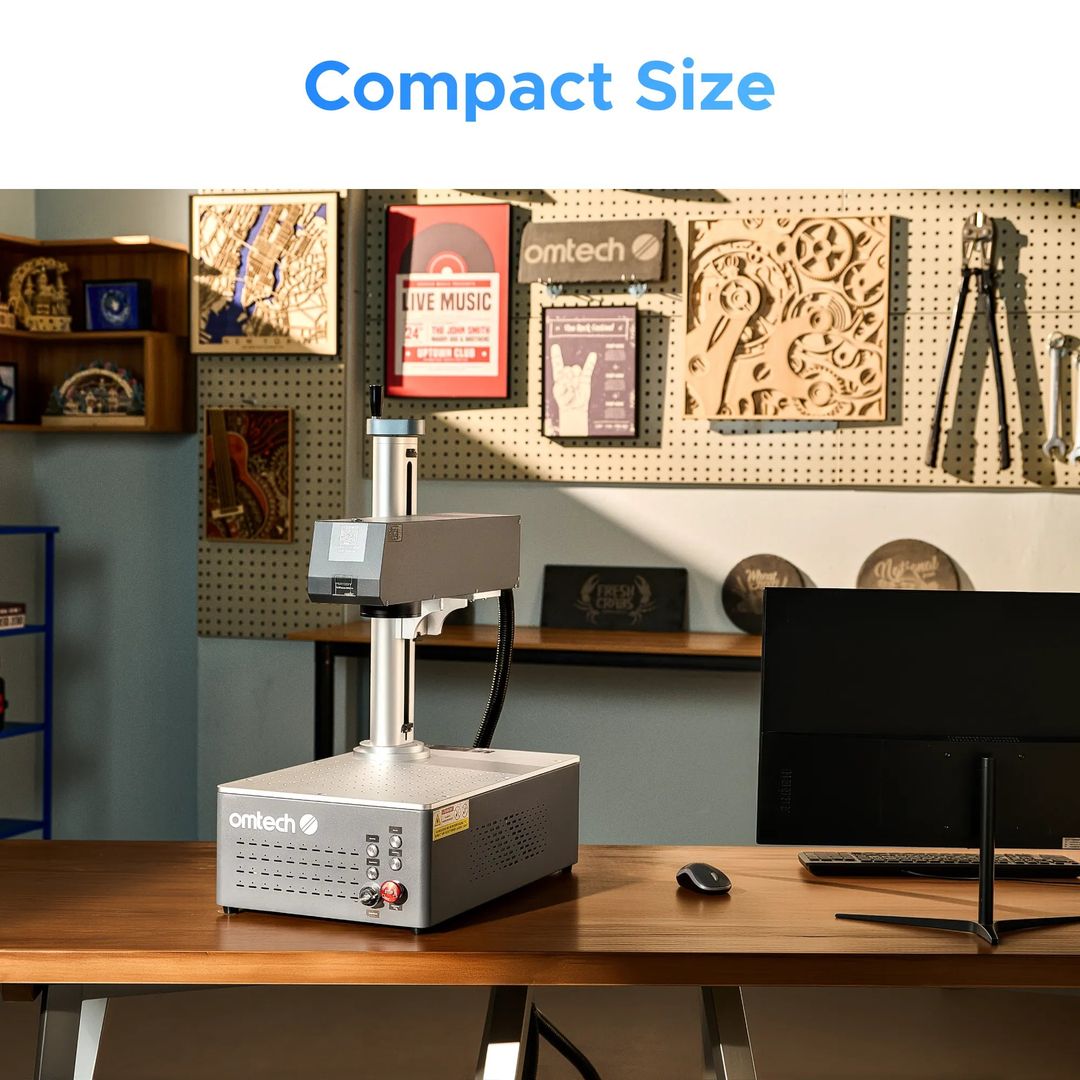

- Compact enclosed-arm design, Class 4 laser, safety goggles included; works with EzCad2 and LightBurn
Specifications
| Brand | OMTech |
|---|---|
| Model / SKU | FMM-J6AF-US |
| Laser Power (family) | 20W / 30W / 60W (this SKU: 60W) |
| Laser Wavelength | 1064 nm |
| Laser Frequency | 1-4000 kHz |
| Pulse Width | 2-500 ns |
| Field Lens Focal Length | 9.3 in. (210 mm) |
| Processing Area | 5.9 x 5.9 in. (150 x 150 mm) |
| Workbed Area | 11.8 x 13.4 in. (300 x 340 mm) |
| Max. Engraving Speed | 393.7 ips (10,000 mm/s) |
| Max. Engraving Depth | 0.04 mm to 0.1 mm |
| Positioning Accuracy | +/-0.04 in. (+/-1 mm) |
| Marking Accuracy | +/-0.0004 in. (+/-0.01 mm) |
| Est. Laser Service Life (MTTF) | 100,000 hr. |
| Laser Class Level | 4 |
| Operating Temperature | 32-104 F (0-40 C) |
| Operating Software | EzCad2 for Windows 7, 8, 10, 11 |
| Supported Image Formats | .ai, .bmp, .dx, .dxf, .gif, .jpg, .plt, .png, .tga, .tif |
| Product Dimensions (L x W x H) | 55.5 x 33.5 x 72 cm / 21.8 x 13.2 x 28.3 in. |
| Net Weight | 28 kg / 62 lb. |
| Package Dimensions (L x W x H) | 77 x 46 x 46 cm / 30.3 x 18.1 x 18.1 in. |
| Package Weight | 32 kg / 70 lb. |
What's Included
- 1 x Control box with laser arm
- 1 x Support column
- 1 x Power cord
- 1 x USB cable
- 1 x USB flash drive
- 2 x Laser keys
- 1 x Ruler
- 1 x Hex wrench set
- 2 x Position lock bars
- 1 x Installation screw set
- 1 x Pair of safety goggles
- 1 x Remote control terminal
- 1 x Screwdriver
- 1 x Manual
