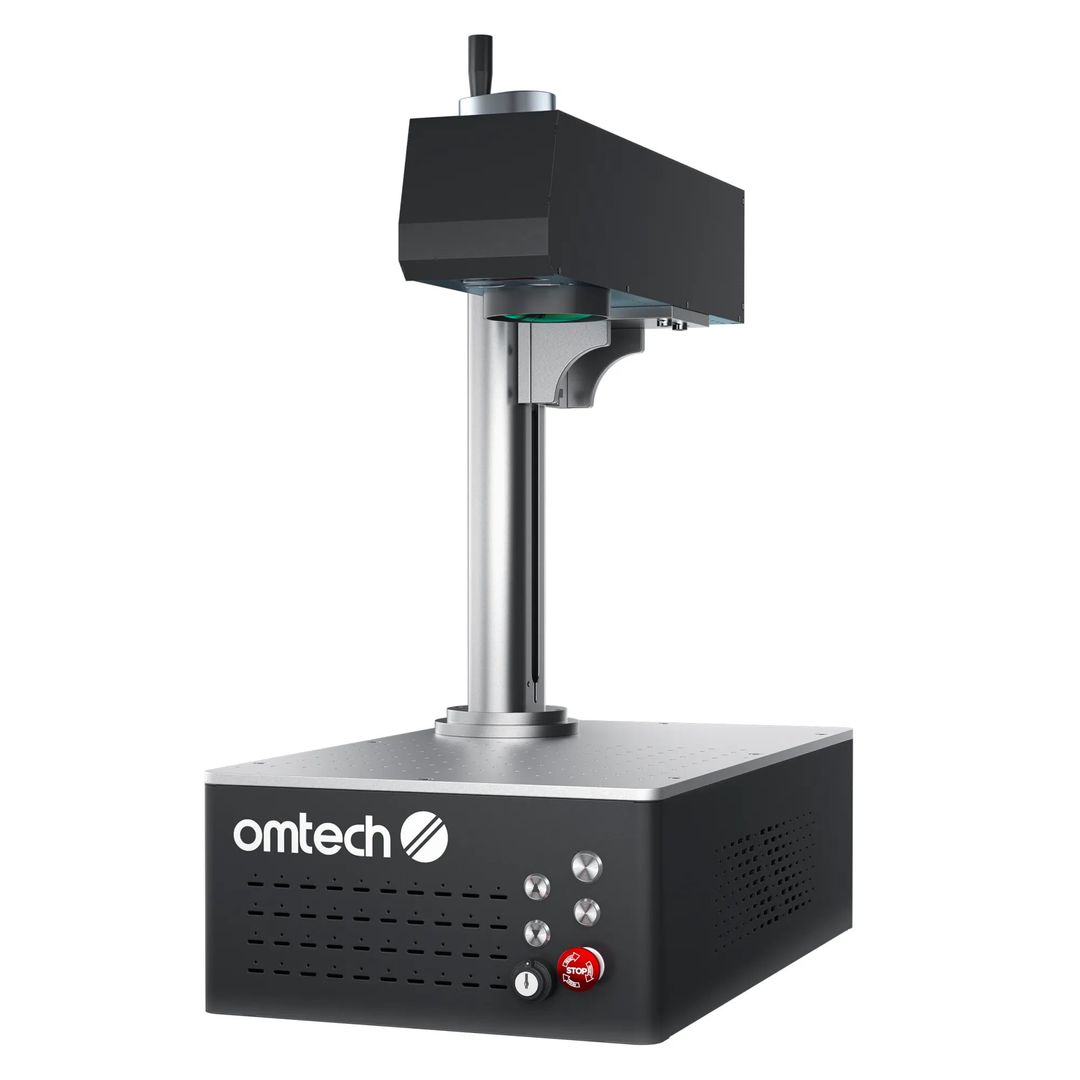

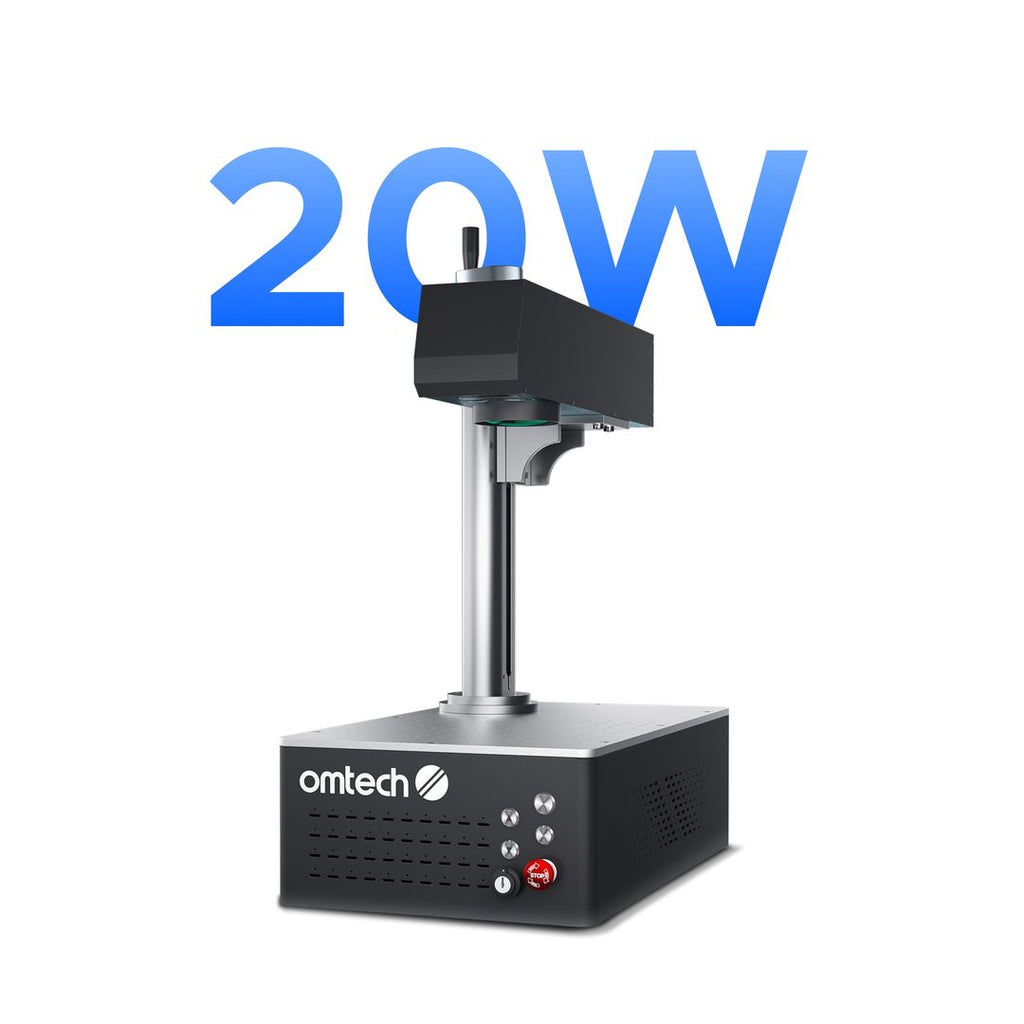

OMTech MOPA 20W Auto-Focus Fiber Laser Marking Machine - FMM-J2AF-US product photo 1 of 6

OMTech MOPA 20W Auto-Focus Fiber Laser Marking Machine - FMM-J2AF-US product photo 2 of 6

OMTech MOPA 20W Auto-Focus Fiber Laser Marking Machine - FMM-J2AF-US product photo 3 of 6

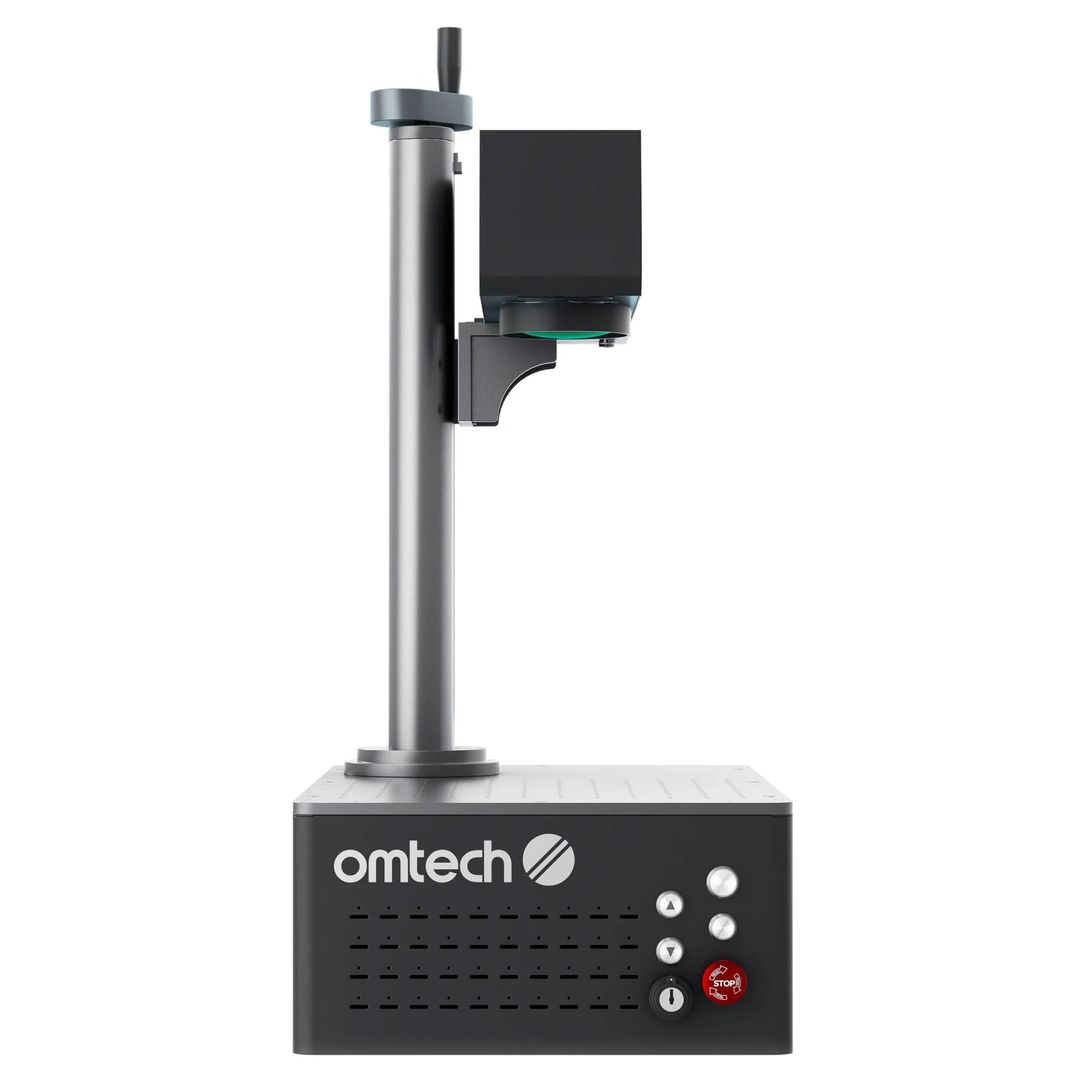

OMTech MOPA 20W Auto-Focus Fiber Laser Marking Machine - FMM-J2AF-US product photo 4 of 6

OMTech MOPA 20W Auto-Focus Fiber Laser Marking Machine - FMM-J2AF-US product photo 5 of 6

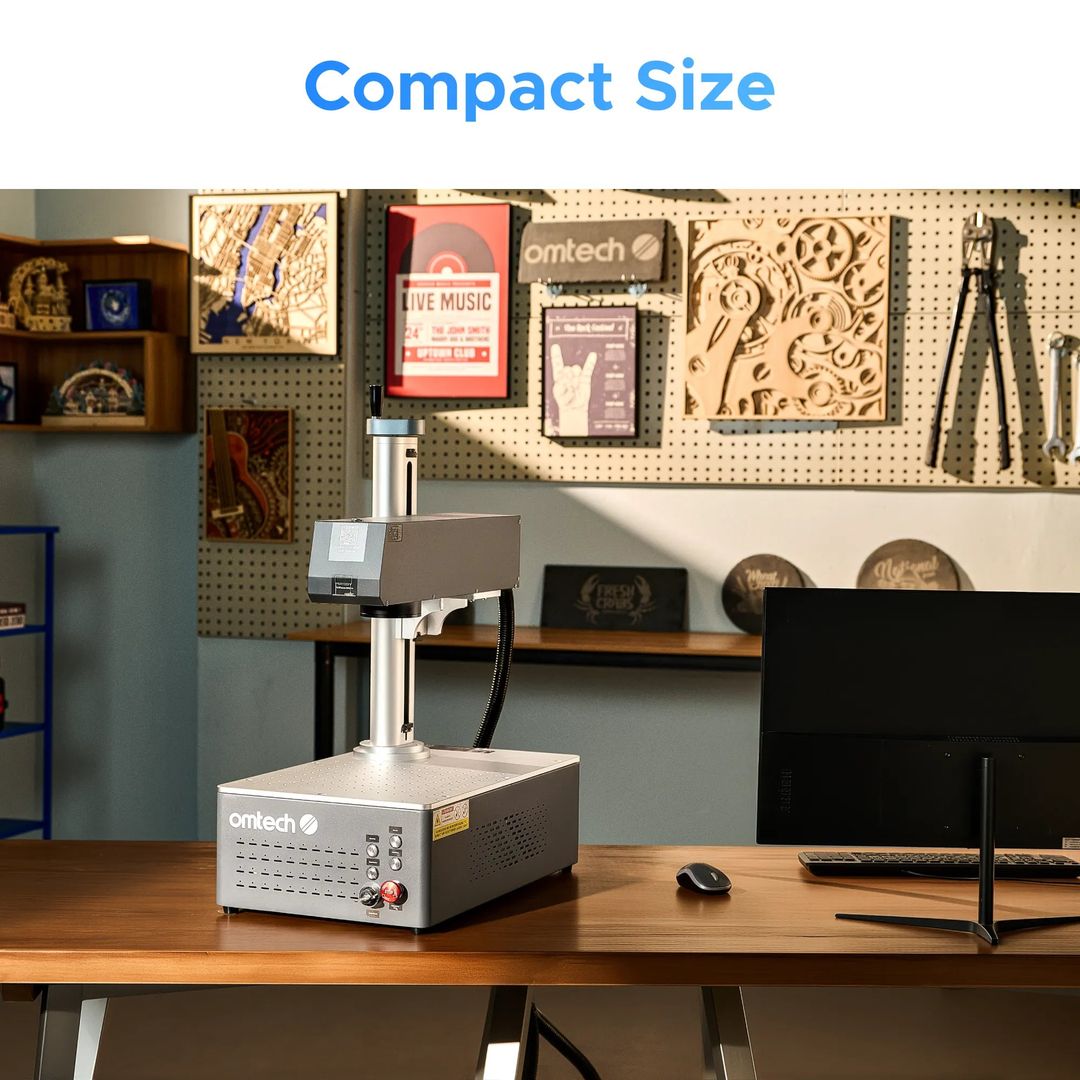

OMTech MOPA 20W Auto-Focus Fiber Laser Marking Machine - FMM-J2AF-US product photo 6 of 6

Roll over image to zoom in Click on image to zoom

OMTech MOPA 20W Auto-Focus Fiber Laser Marking Machine

Name: OMTech MOPA 20W Auto-Focus Fiber Laser Marking Machine
Brand: OMTech
SKU: FMM-J2AF-US
Price: 2399.00 USD
Availability: InStock

★★★★★

Iron Line Verified

Authorized Dealer: OMTech

Official Partner

IN STOCK & READY TO SHIP

SKU: FMM-J2AF-US

Price:

$2,399.00

Quantity:

Financing as low as ~$39 / month (60 mo. terms) Estimate your payment

We pay your sales tax! (IL excluded) 📦

Share this product

Laser power (page lists 20W/30W/60W): 20W/30W/60W
Laser wavelength: 1064 nm
Laser frequency: 1-4000 kHz
Pulse width: 2-500 ns
Field lens focal length: 9.3 in. (210 mm)
Processing area: 5.9 x 5.9 in. (150 x 150 mm)

Order Placed

Ships Out

Delivered

*Please Note: This timeline is an estimate. Certain products may require an additional 1 week for manufacturing. Please speak with your sales rep, Matthew, for official details and confirmation before placing your order.

CALL US FOR THE MOST ACCURATE AND COMPETITIVE LTL SHIPPING RATE, (888) 308-5580

Get Questions Answered Fast

Experience: 20+ Years B2B • Origin: US-Based Support

EXPRESS SHIPPING

Most orders process in 1-3 days. Yes, even if it weights 400lb

Hassle-Free Returns

No restocking fees. Ever.

Manufacturer Warranty

Fully backed by the brands you trust.

Dedicated Rep Mathew

Speak to a US-Based Equipment Specialist: (888) 308-5580

Flexible Financing

Get Upto 60 Months Financing

OMTech • Fiber Laser Markers • Laser power (page lists 20W/30W/60W): 20W/30W/60W • Laser wavelength: 1064 nm

OMTech MOPA 20W Auto-Focus Fiber Laser Marking Machine

The OMTech FMM-J2AF-US: A MOPA fiber laser marker with one-button autofocus for marking metals and other materials, suited to jewelry, serial numbers and detailed designs. The adjustable pulse width/frequency allows color marking effects.

Highlights

MOPA fiber source rated for over 100,000 hours MTTF with adjustable pulse frequency and width for a range of mark colors

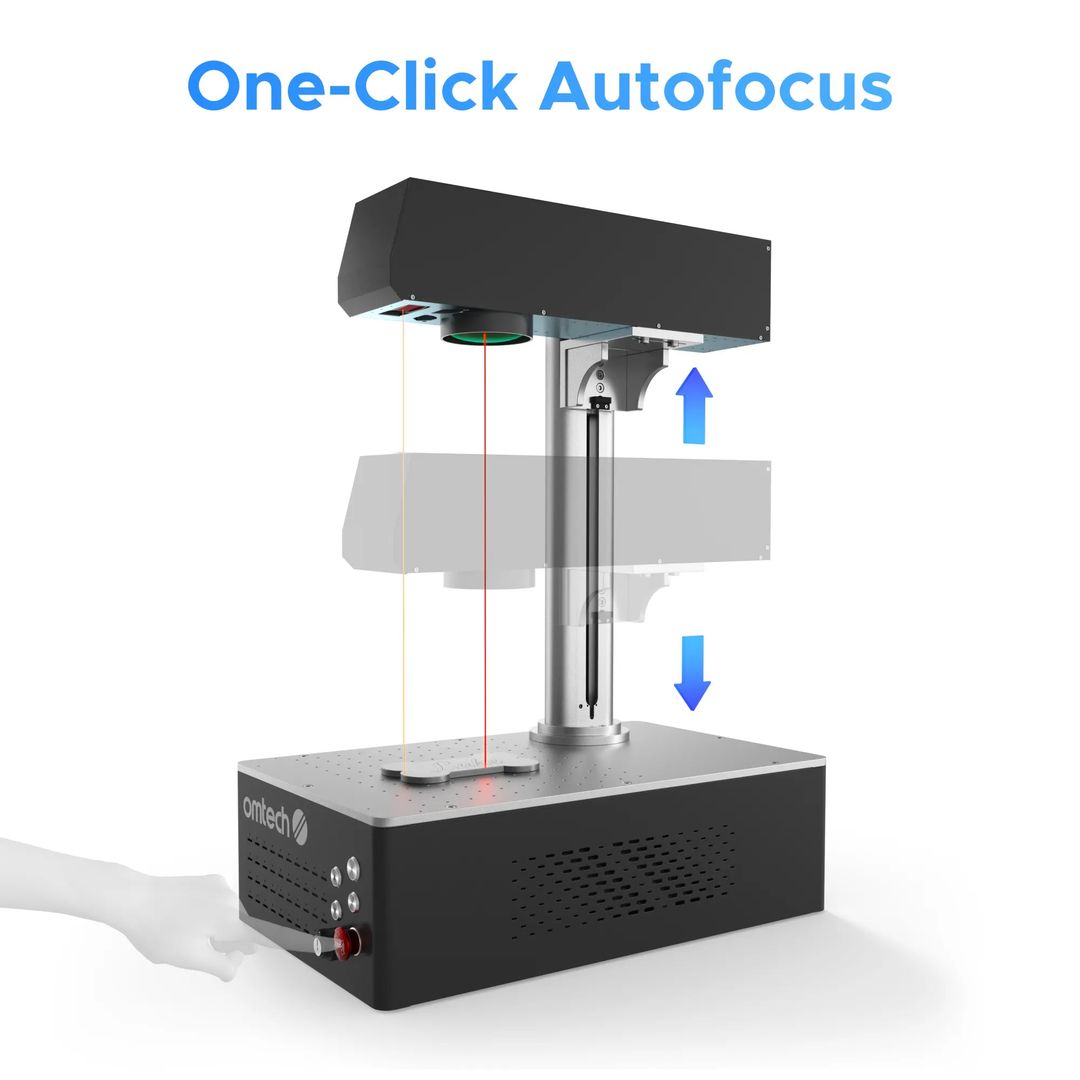

Automatic focusing at the press of a button, stated +/-1 mm accuracy
Up to 10,000 mm/s marking speed with +/-0.01 mm marking accuracy
5.9 x 5.9 in processing area
Compact, quiet design; safety goggles included
Includes two free 90-minute virtual technical support sessions

Specifications

Brand	OMTech
Model / SKU	FMM-J2AF-US
Laser power (page lists 20W/30W/60W)	20W/30W/60W
Laser wavelength	1064 nm
Laser frequency	1-4000 kHz
Pulse width	2-500 ns
Field lens focal length	9.3 in. (210 mm)
Processing area	5.9 x 5.9 in. (150 x 150 mm)
Workbed area	11.8 x 13.4 in. (300 x 340 mm)
Max engraving speed	393.7 ips (10,000 mm/s)
Max engraving depth	0.04 mm - 0.1 mm
Positioning accuracy	+/-0.04 in. (+/-1 mm)
Marking accuracy	+/-0.0004 in. (+/-0.01 mm)
Est. laser service life (MTTF)	100,000 hr.
Laser class	4
Operating temperature	32-104 F (0-40 C)
Operating software	EzCad2 for Windows 7, 8, 10 & 11
Supported image formats	.ai, .bmp, .dx, .dxf, .gif, .jpg, .plt, .png, .tga, .tif
Product dimensions (L x W x H)	55.5 x 33.5 x 72 cm / 21.8 x 13.2 x 28.3 in.
Net weight	28 kg / 62 lb.
Package dimensions (L x W x H)	77 x 46 x 46 cm / 30.3 x 18.1 x 18.1 in.
Package weight	32 kg / 70 lb.

What's Included

Control box with laser arm
Support column
Power cord
USB cable
USB flash drive
Laser keys x2
Ruler
Hex wrench set
Position lock bars x2
Installation screw set
Pair of safety goggles
Remote control terminal
Screwdriver
Manual
Plus (20W variant promo): 1 random OMTech tumbler set, 12-pack
