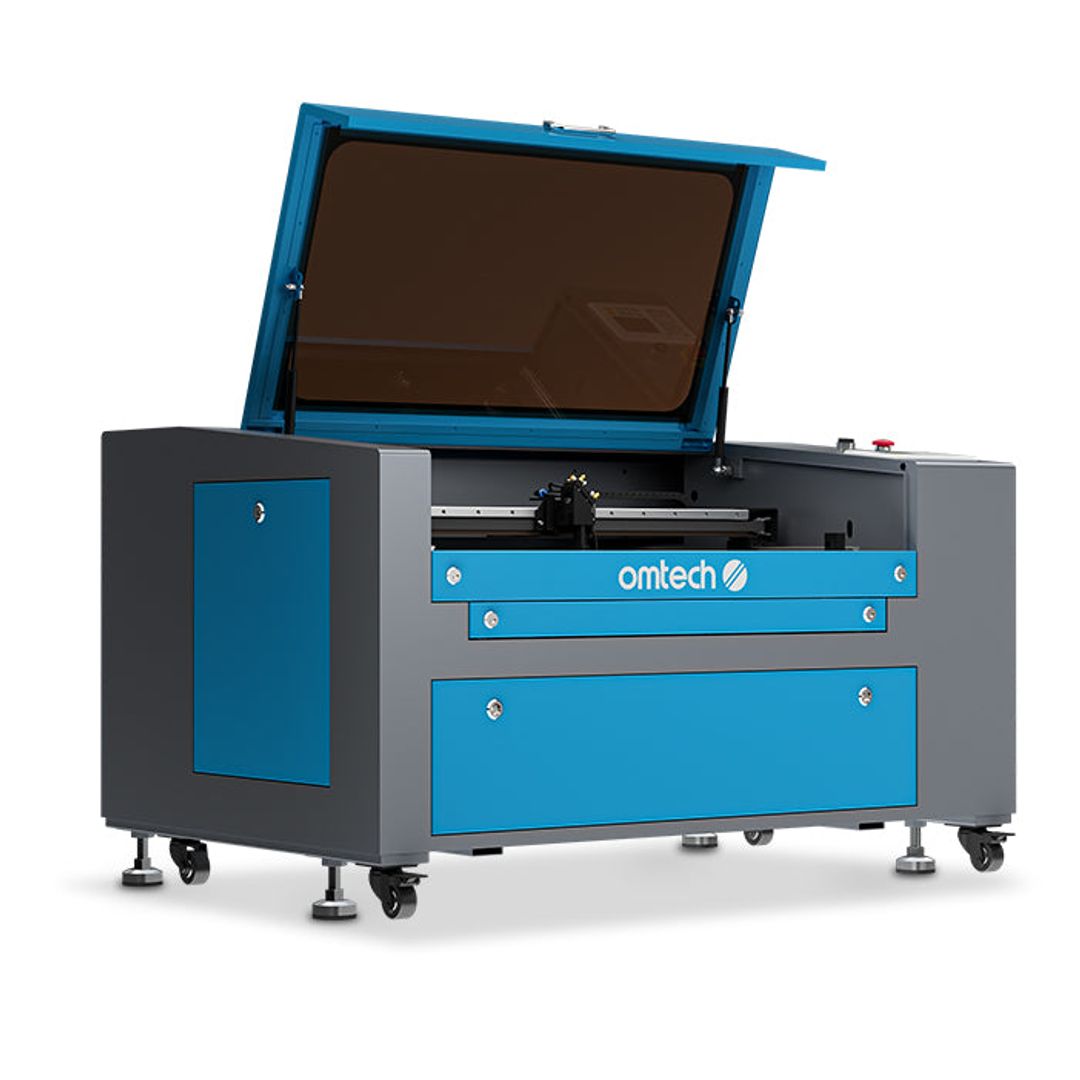

OMTech Maker MF1624-60 60W CO2 Laser Engraving and Cutting Machine with 16" x 24" Working Area - USB-0604-US product photo 1 of 6

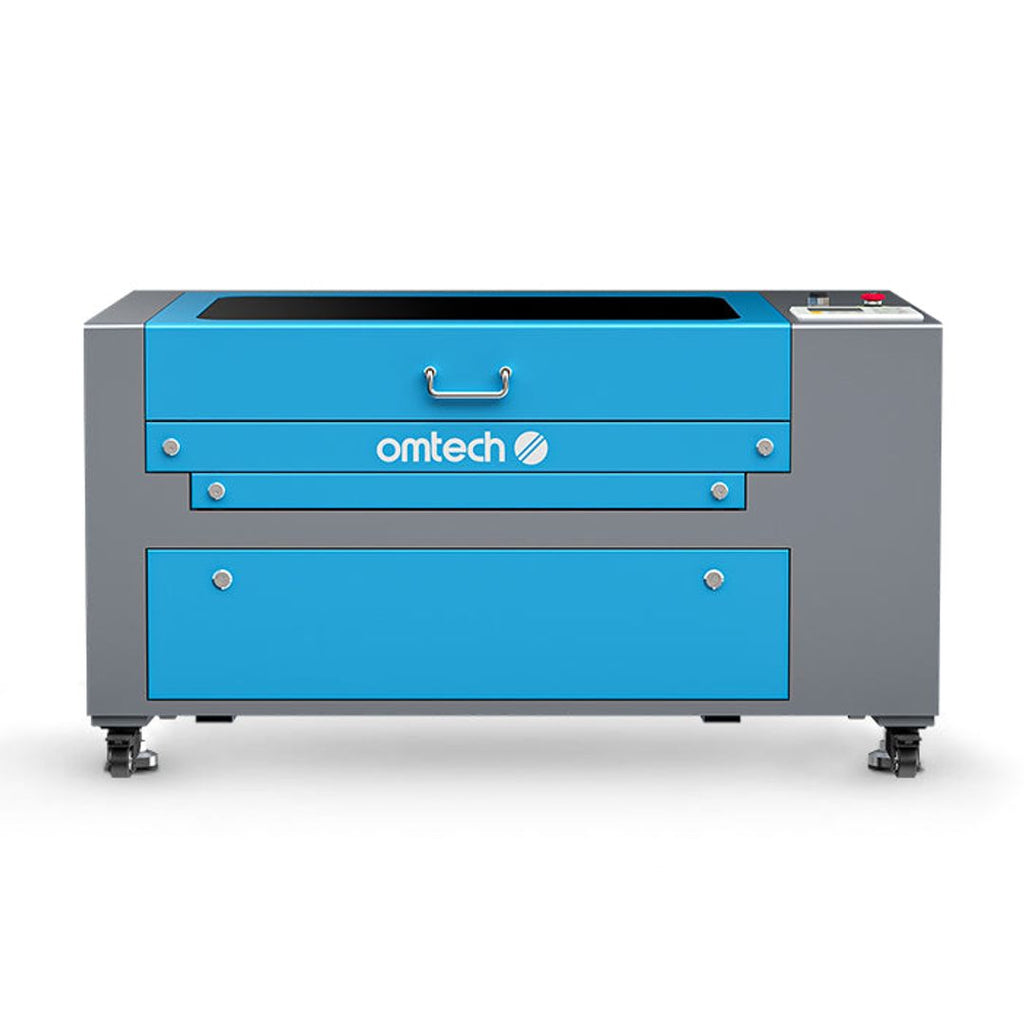

OMTech Maker MF1624-60 60W CO2 Laser Engraving and Cutting Machine with 16" x 24" Working Area - USB-0604-US product photo 2 of 6

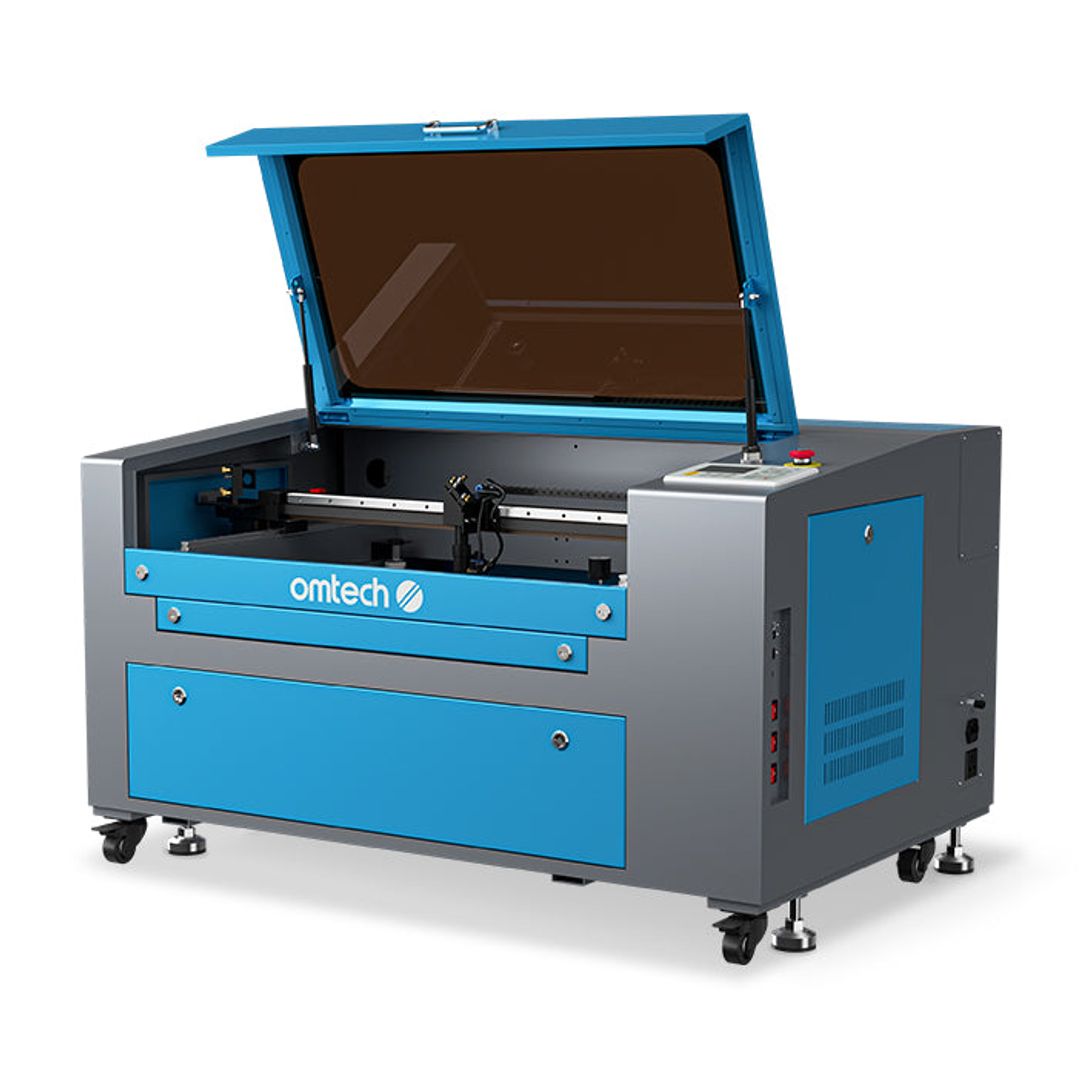

OMTech Maker MF1624-60 60W CO2 Laser Engraving and Cutting Machine with 16" x 24" Working Area - USB-0604-US product photo 3 of 6

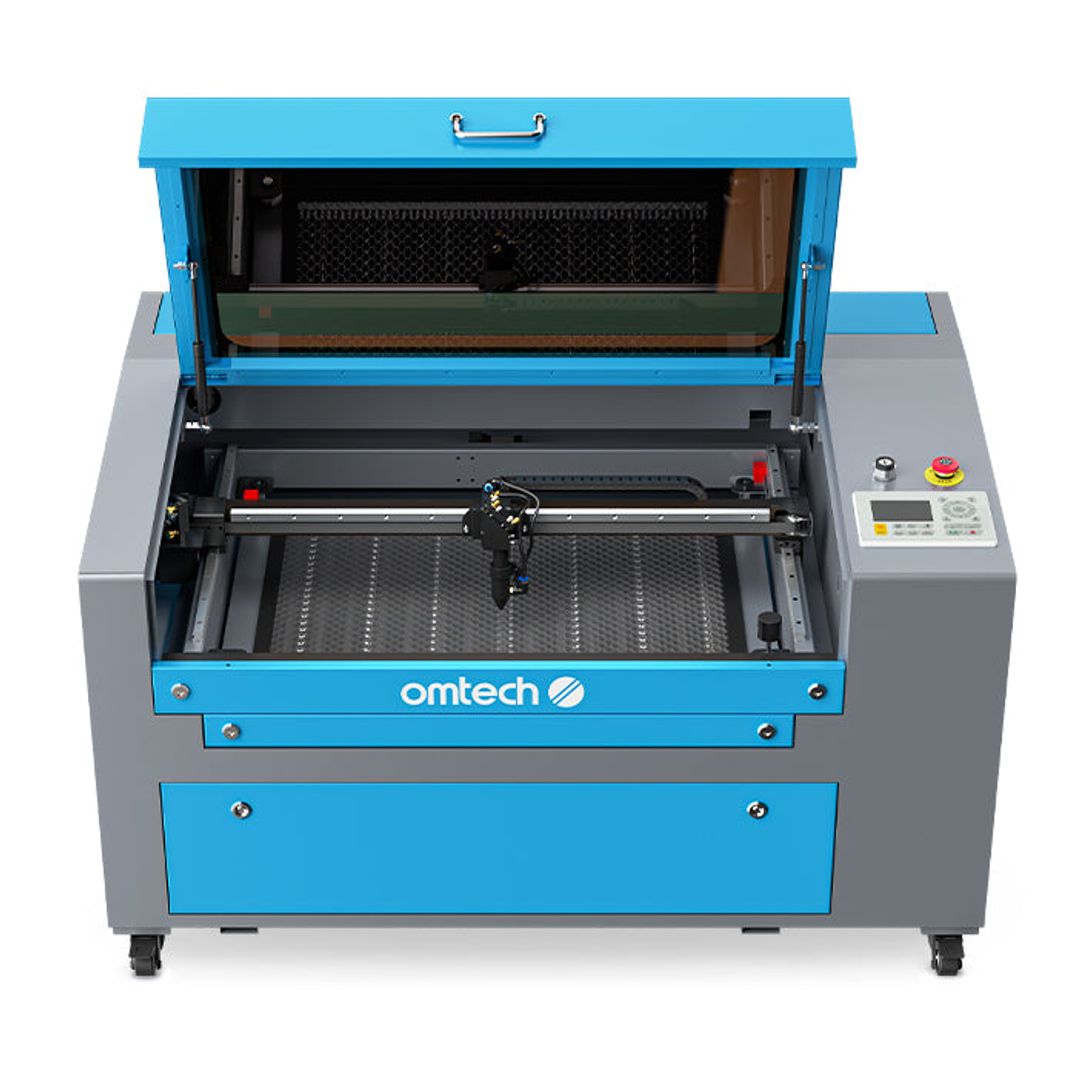

OMTech Maker MF1624-60 60W CO2 Laser Engraving and Cutting Machine with 16" x 24" Working Area - USB-0604-US product photo 4 of 6

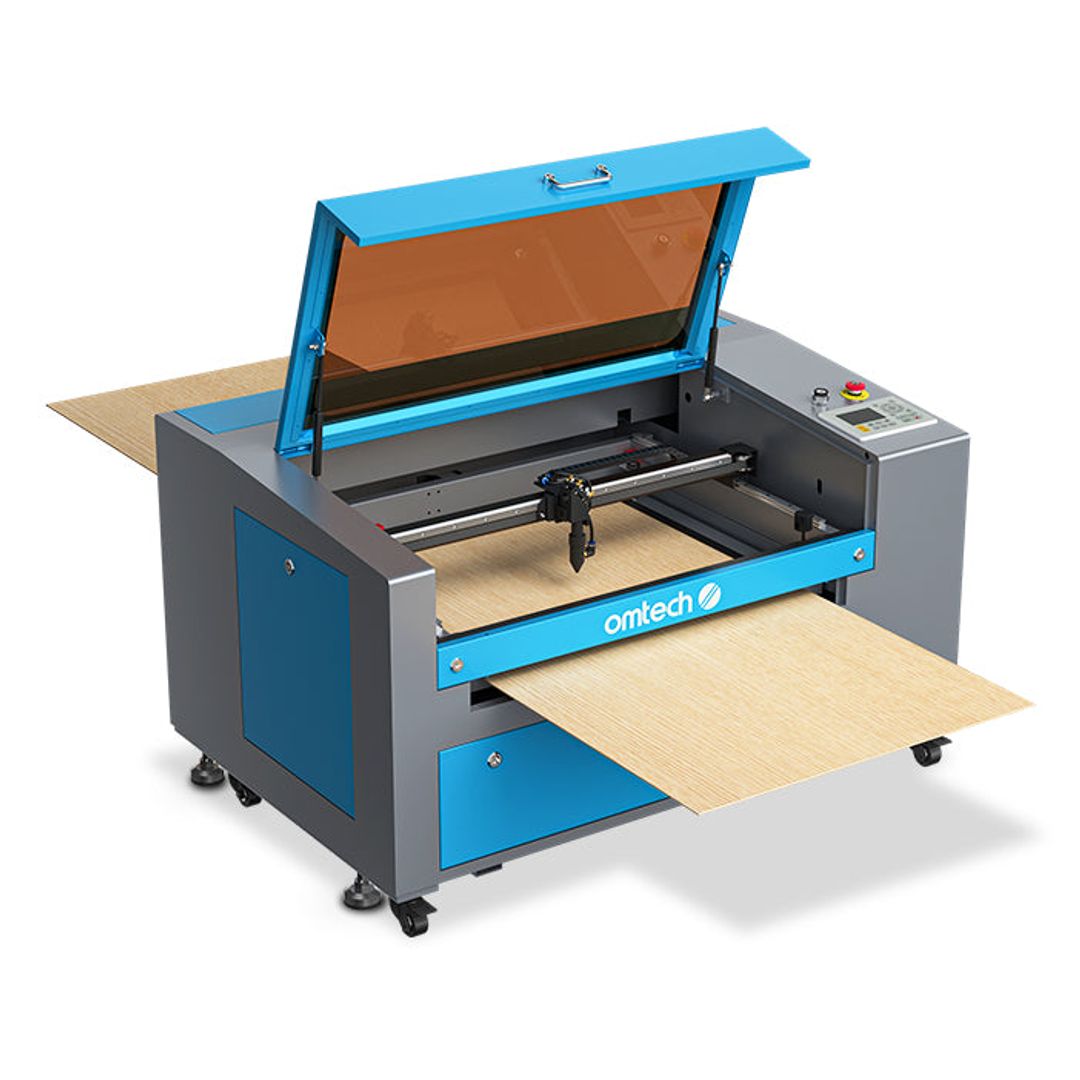

OMTech Maker MF1624-60 60W CO2 Laser Engraving and Cutting Machine with 16" x 24" Working Area - USB-0604-US product photo 5 of 6

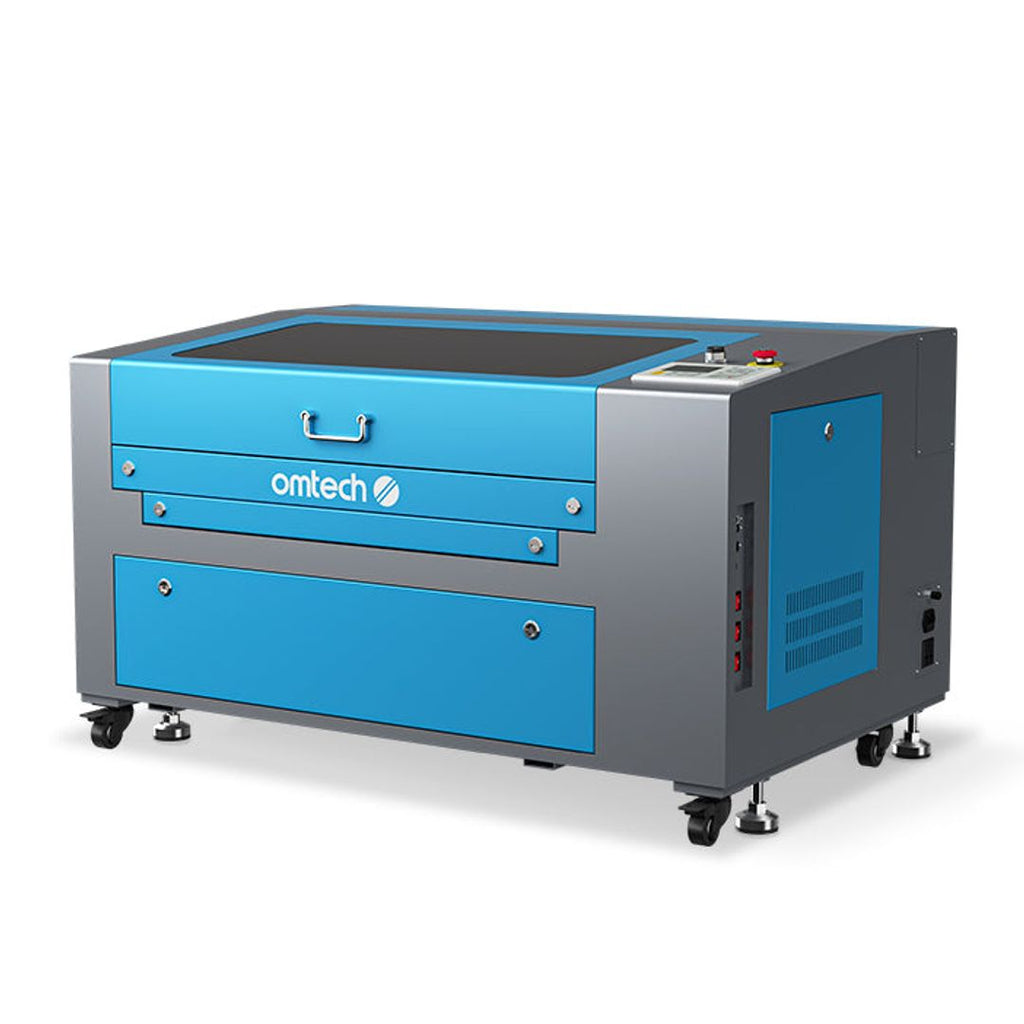

OMTech Maker MF1624-60 60W CO2 Laser Engraving and Cutting Machine with 16" x 24" Working Area - USB-0604-US product photo 6 of 6

Roll over image to zoom in Click on image to zoom

OMTech Maker MF1624-60 60W CO2 Laser Engraving and Cutting Machine with 16" x 24" Working Area

Name: OMTech Maker MF1624-60 60W CO2 Laser Engraving and Cutting Machine with 16" x 24" Working Area
Brand: OMTech
SKU: USB-0604-US
Price: 2399.99 USD
Availability: InStock

★★★★★

Iron Line Verified

Authorized Dealer: OMTech

Official Partner

IN STOCK & READY TO SHIP

SKU: USB-0604-US

Price:

$2,399.99

Quantity:

Financing as low as ~$39 / month (60 mo. terms) Estimate your payment

We pay your sales tax! (IL excluded) 📦

Share this product

Color: Blue, Gray
Product Dimensions (L x W x H): 44.9 x 29.5 x 26.0 in (1140 x 750 x 660 mm)
Package Dimensions (L x W x H): 48.8 x 33.9 x 33.1 in (1240 x 860 x 840 mm)
Engraving Area: 16 x 24 in (400 x 600 mm)
Front & Back Pass-Through Size: 28.3 x 1.9 in (720 x 50 mm)
Rated Power: 60 W

Order Placed

Ships Out

Delivered

*Please Note: This timeline is an estimate. Certain products may require an additional 1 week for manufacturing. Please speak with your sales rep, Matthew, for official details and confirmation before placing your order.

CALL US FOR THE MOST ACCURATE AND COMPETITIVE LTL SHIPPING RATE, (888) 308-5580

Get Questions Answered Fast

Experience: 20+ Years B2B • Origin: US-Based Support

EXPRESS SHIPPING

Most orders process in 1-3 days. Yes, even if it weights 400lb

Hassle-Free Returns

No restocking fees. Ever.

Manufacturer Warranty

Fully backed by the brands you trust.

Dedicated Rep Mathew

Speak to a US-Based Equipment Specialist: (888) 308-5580

Flexible Financing

Get Upto 60 Months Financing

OMTech • CO2 Laser Engravers • Color: Blue, Gray

OMTech Maker MF1624-60 60W CO2 Laser Engraving and Cutting Machine with 16" x 24" Working Area

The OMTech USB-0604-US: A 60W CO2 laser engraver and cutter with a 16 x 24 in work area, a Ruida digital control panel and dual work platforms. Sold on the page as the base machine inside several chiller, rotary and LightBurn bundles.

Highlights

Engraves at up to 600 mm/s (23.6 ips) and cuts to about 10 mm (0.4 in) depth on suitable materials
Includes two work platforms: a honeycomb bed and an aluminum blade bed, both 16 x 24 in
Ruida digital control panel for setting power and speed, viewing files and framing jobs
Accepts any rotary axis for 360 degree engraving of cylindrical items
Files can be sent by USB cable, Ethernet or USB flash drive, or run offline
Front and back pass-through slot for longer material; 2-year warranty and 24/7 support

Specifications

Brand	OMTech
Model / SKU	USB-0604-US
Color	Blue, Gray
Product Dimensions (L x W x H)	44.9 x 29.5 x 26.0 in (1140 x 750 x 660 mm)
Package Dimensions (L x W x H)	48.8 x 33.9 x 33.1 in (1240 x 860 x 840 mm)
Engraving Area	16 x 24 in (400 x 600 mm)
Front & Back Pass-Through Size	28.3 x 1.9 in (720 x 50 mm)
Rated Power	60 W
Est. Service Life	2,000 hr
Max. Engraving Speed	23.6 ips (600 mm/s)
Max. Engraving Depth	0.4 in (10 mm)
Laser Tube Length	40 in (1000 mm)
Laser Tube Diameter	2 in (50 mm)
Compatible Operating Systems	Windows 2000, XP, Vista, 7, 8, 10
Bundled Software	RDWorks
Compatible Software (not included)	LightBurn, CorelDRAW, AutoCAD
Supported Image Formats	.ai, .bmp, .dxf, .emf, .gif, .hpgl, .jpeg, .pdf, .plt, .png, .rd, .svg, .tiff, .tga, .wmf
Data Transmission	USB Cable, Ethernet Cable, USB Flash Drive, Offline
Certification	CE, FDA
Net Weight	187 lb (85 kg)
Warranty	2 Years (6 Months for Parts)

What's Included

1x 60W CO2 Laser Engraver
1x Power Cord
1x USB Flash Drive
1x USB Cable
1x Ethernet Cable
1x Wrench Set
1x Tube of Silicone Insulation
1x Ceramic Resistor
1x Exhaust Pipe
1x Pipe Clamp
2x Water Pipes
1x Wire Set
6x Keys
1x User Manual

Key Information

Order Cutoff Time: 2:00 PM EST
Order Handling Time: 1–3 business days (Monday–Friday)
Transit Time: 1–7 business days (Monday–Friday)
Total Estimated Delivery Time: 3–11 business days (Monday–Friday)
Shipping Availability: Free Shipping On some Items In The Contiguous United States only
