Available Configurations
| Model | Model / SKU |
|---|---|
| AF2028-60 (60W, Autofocus) | USB-5701-U1 |
| AF2028-80 (90W, Autofocus) | USB-5701-U3 |
| MF2028-80 (90W) | USB-5701-U2 |
| MF2028-100 (100W) | USB-5701-U5 |

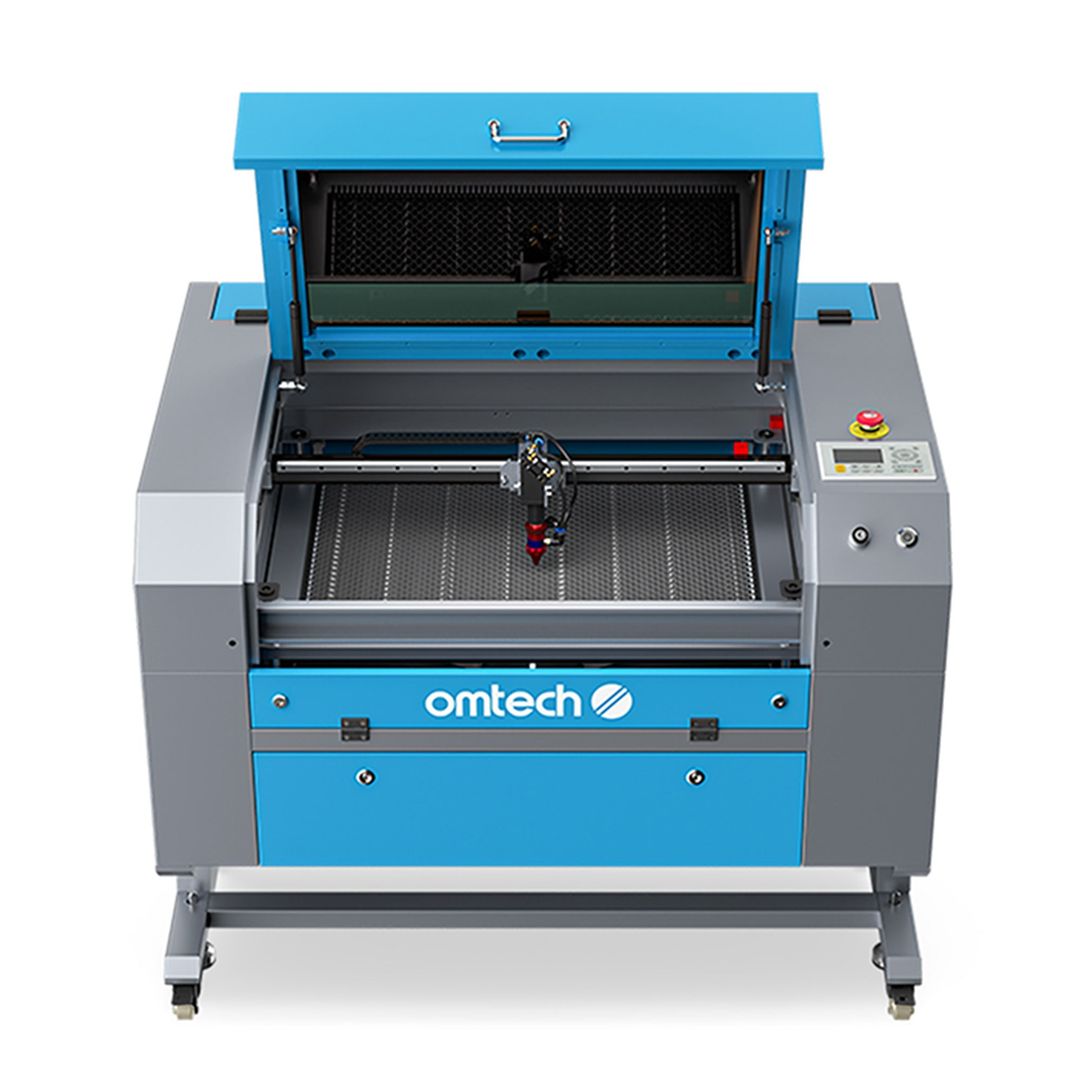

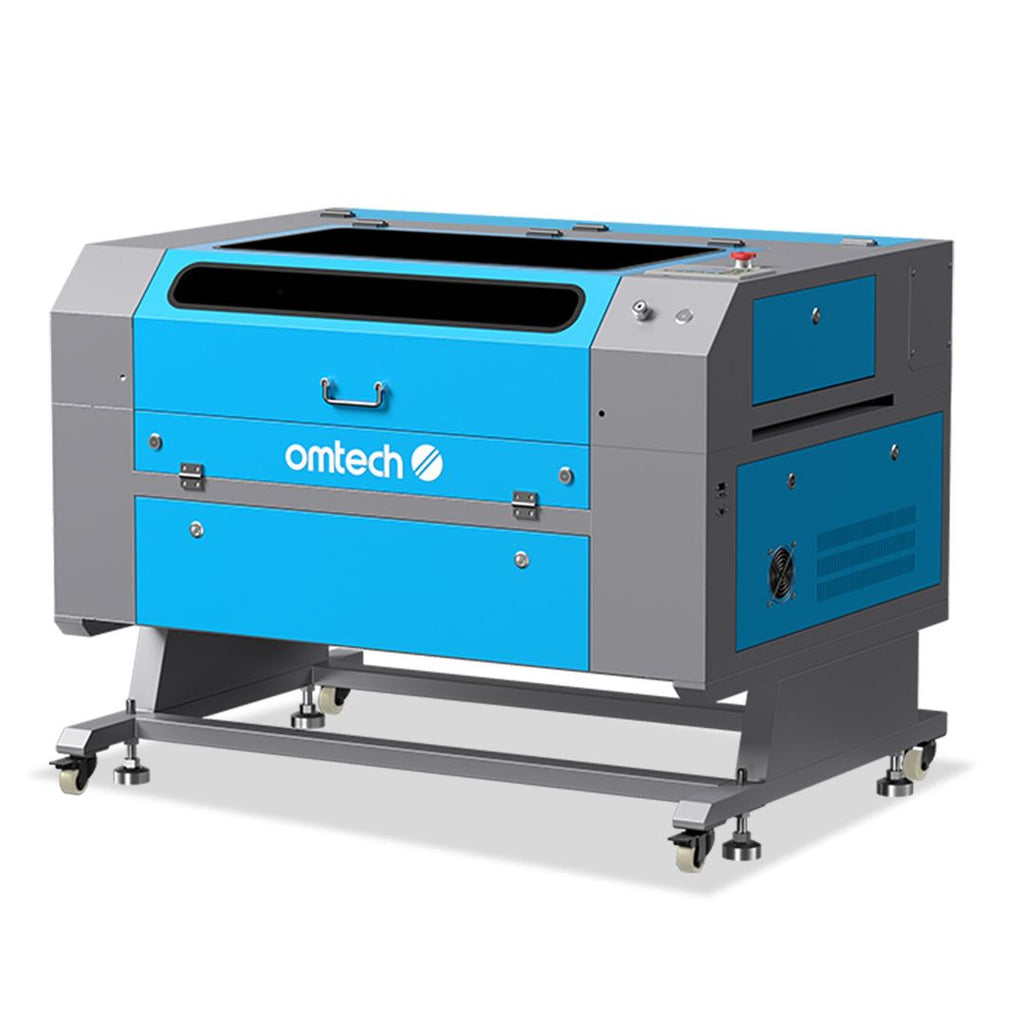

AF2028-60 (60W, Autofocus) (USB-5701-U1)
- Autofocus with a 20 x 28 in. working area and two beds (honeycomb and aluminum blade)
- Engraving speed up to 600 mm/s and cutting depth up to 0.4 in. on many materials
- Connects by Ethernet, USB or flash drive, with a KT332 digital control panel
- Rotary-axis compatible for engraving cylindrical items
- Front/back and side-to-side pass-through slots for oversized material
| Brand | OMTech |
|---|---|
| Model / SKU | USB-5701-U1 |
| Color | Blue, Gray |
| Product Dimensions (L x W x H) | 47.2 x 34.3 x 36.6 in. (1200 x 870 x 930 mm) |
| Package Dimensions (L x W x H) | 52.0 x 39.0 x 44.9 in. (1320 x 990 x 1140 mm) |
| Engraving Area | 20 x 28 in. (500 x 700 mm) |
| Front & Back Pass-Through Size | 32.8 x 3.7 in. (835 x 95 mm) |
| Side to Side Pass-Through Size | 20.4 x 0.7 in. (520 x 20 mm) |
| Rated Power | 60 W |
| Est. Service Life | 2000 hr. |
| Max. Engraving Speed | 23.6 ips (600 mm/s) |
| Max. Engraving Depth | 0.4 in. (10 mm) |
| Laser Tube Length | 40 in. (1000 mm) |
| Laser Tube Diameter | 2 in. (50 mm) |
| Compatible Operating Systems | Windows 2000, XP, Vista, 7, 8, 10 |
| Bundled Software | RDWorks |
| Compatible Software (not included) | LightBurn, CorelDRAW, AutoCAD |
| Supported Image Formats | .ai, .bmp, .dxf, .emf, .gif, .hpgl, .jpeg, .pdf, .plt, .png, .rd, .svg, .tiff, .tga, .wmf |
| Data Transmission | USB Cable, Ethernet Cable, USB Flash Drive, Offline |
| Certification | CE, FDA |
| Net Weight | 249 lb. (113 kg) |
| Warranty | 2 Years (6 Months for Parts) |
| What's Included | 60W CO2 Laser Engraver; Power Cord; USB Flash Drive; USB Cable; Ethernet Cable; Double-Sided Tape; Wrench Set; Tube of Silicone Insulation; Ceramic Resistor; Exhaust Pipe; Pipe Clamp; Water Pump; Water Pipe; Wire Set; 6x Keys; User Manual; Water Tank; 2x Focusing Rulers |

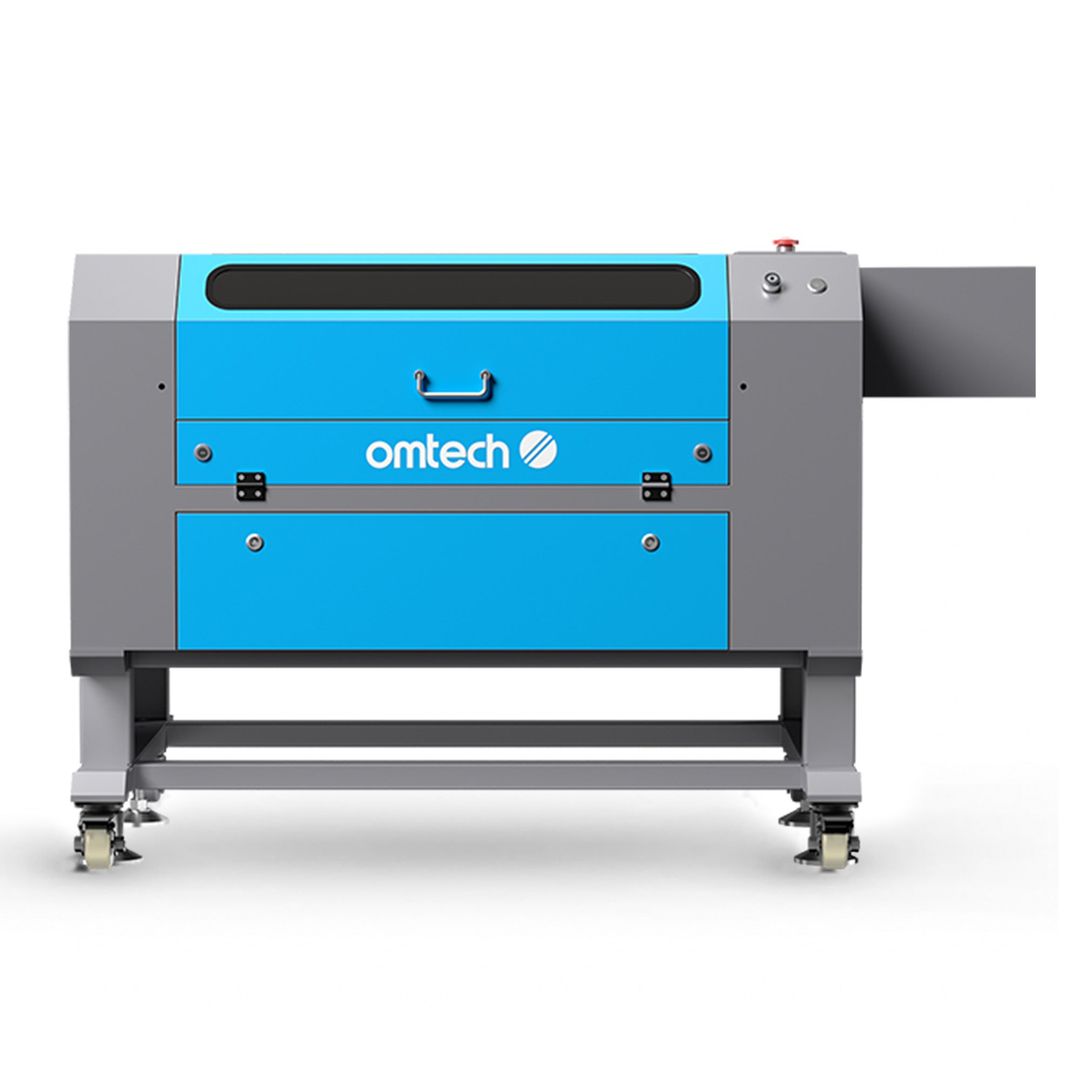

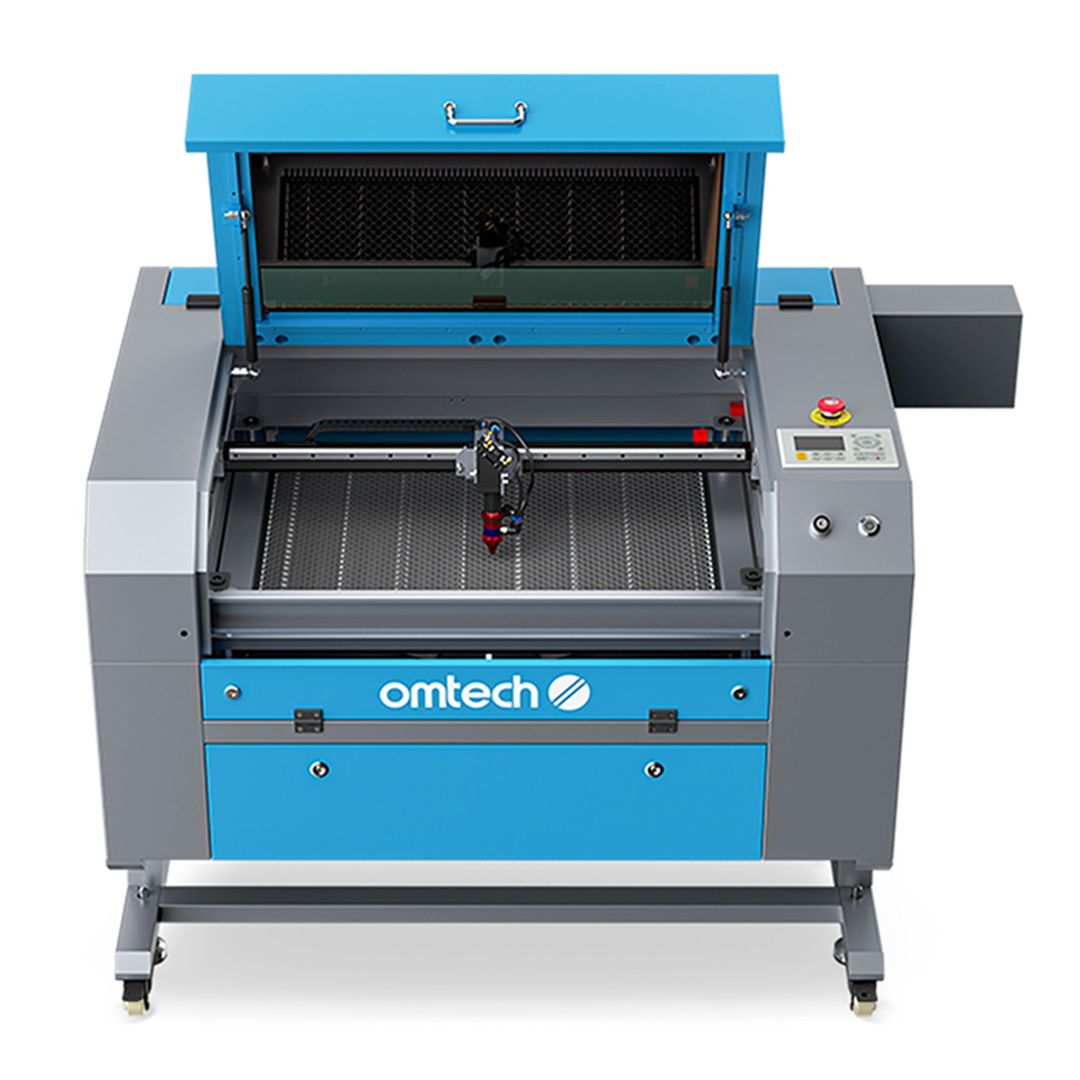

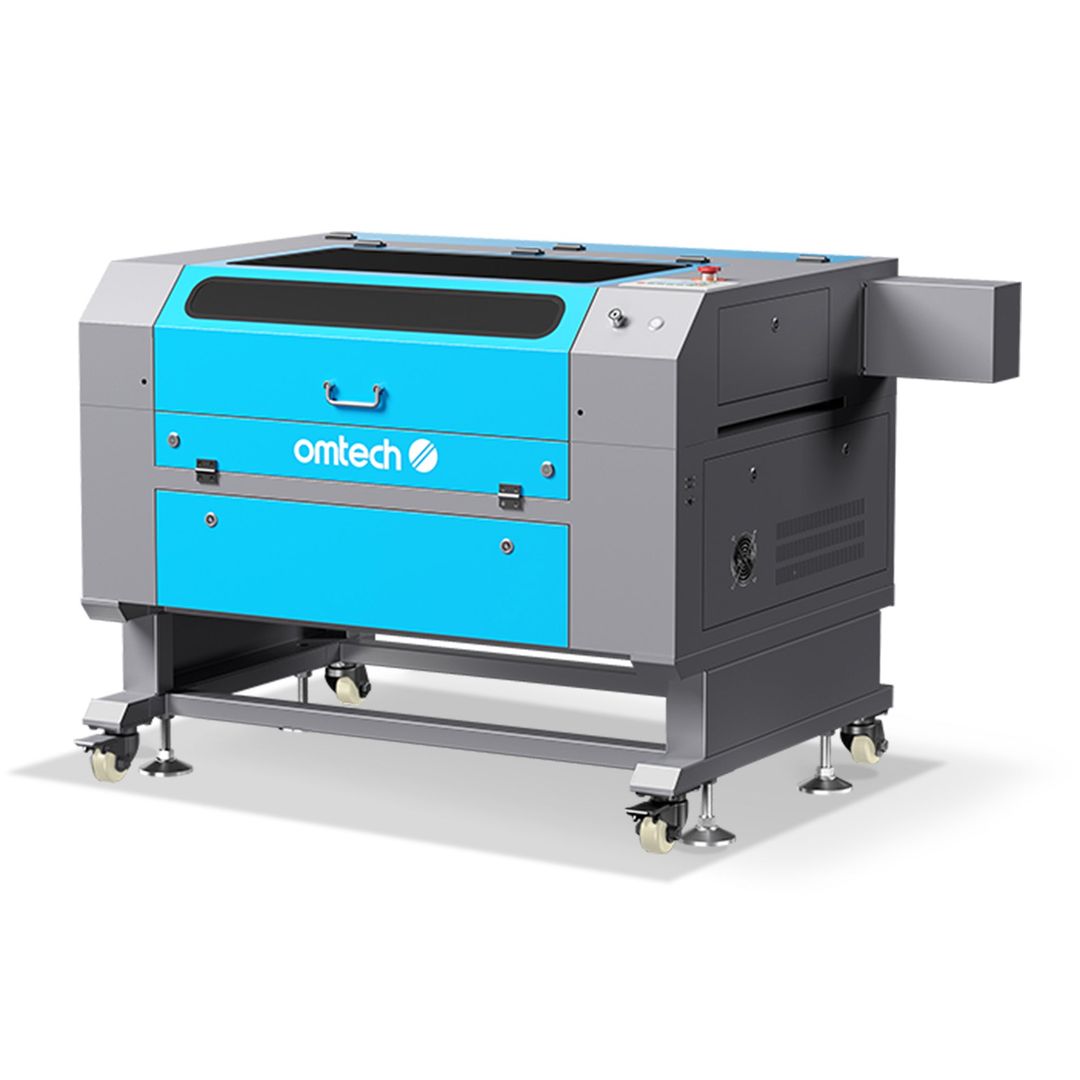

AF2028-80 (90W, Autofocus) (USB-5701-U3)
- Autofocus for automatic focal-height setting
- Engraving speed up to 600 mm/s
- Dual 20 x 28 in work beds: honeycomb and aluminum blade
- Yongli H2 90W CO2 tube
- Ruida control panel for pause/stop, power and speed adjustment, file viewing and framing
- Works with any rotary axis for 360-degree engraving of cylindrical items; cuts to about 0.4 in deep
| Brand | OMTech |
|---|---|
| Model / SKU | USB-5701-U3 |
| Laser Type | CO2 |
| Rated Power | 90W |
| Working Area | 20" x 28" |
| Engraving Area | 20 x 28 in. (500x700 mm) |
| Focus Mode | Auto Focus |
| Max. Engraving Speed | 600 mm/s (23.6 ips) |
| Max. Engraving Depth | 0.4 in. (10 mm) |
| Est. Service Life | 12,000 hr. |
| Laser Tube Length | 49.2 in. (1250 mm) |
| Laser Tube Diameter | 2.4 in. (60 mm) |
| Product Dimensions (LxWxH) | 59.1 x 34.3 x 36.6 in. (1500 x 870 x 930 mm) |
| Package Dimensions (LxWxH) | 61.4 x 39.0 x 44.9 in. (1560 x 990 x 1140 mm) |
| Front & Back Pass-Through Size | 32.8 x 3.7 in. (835x95 mm) |
| Side to Side Pass-Through Size | 20.4 x 0.7 in. (520x20 mm) |
| Net Weight | 258 lb. (117 kg) |
| Color | Blue, Gray |
| Built-in Water Chiller | No |
| LightBurn Compatibility | Yes |
| Certification | CE, FDA |
| Compatible Operating Systems | Windows 2000, XP, Vista, 7, 8, 10 |
| Bundled Software | RDWorks |
| Compatible Software (not included) | LightBurn, CorelDRAW, AutoCAD |
| Supported Image Formats | .ai, .bmp, .dxf, .gif, .hpgl, .jpeg, .pdf, .plt, .png, .rd, .svg, .tiff, .tga |
| Data Transmission | USB Cable, Ethernet Cable, USB Flash Drive, Offline |
| Warranty | 2 Years (1 Year for Parts) |
| What's Included | 1x 90W CO2 Laser Engraver; 1x Power Cord; 1x USB Flash Drive; 1x USB Cable; 1x Ethernet Cable; 1x Double-Sided Tape; 1x Wrench Set; 1x Tube of Silicone Insulation; 1x Ceramic Resistor; 1x Exhaust Pipe; 1x Pipe Clamp; 1x Water Pump; 2x Water Pipes; 1x Wire Set; 6x Keys; 1x User Manual; 1x Water Tank; 2x Focusing Rulers |

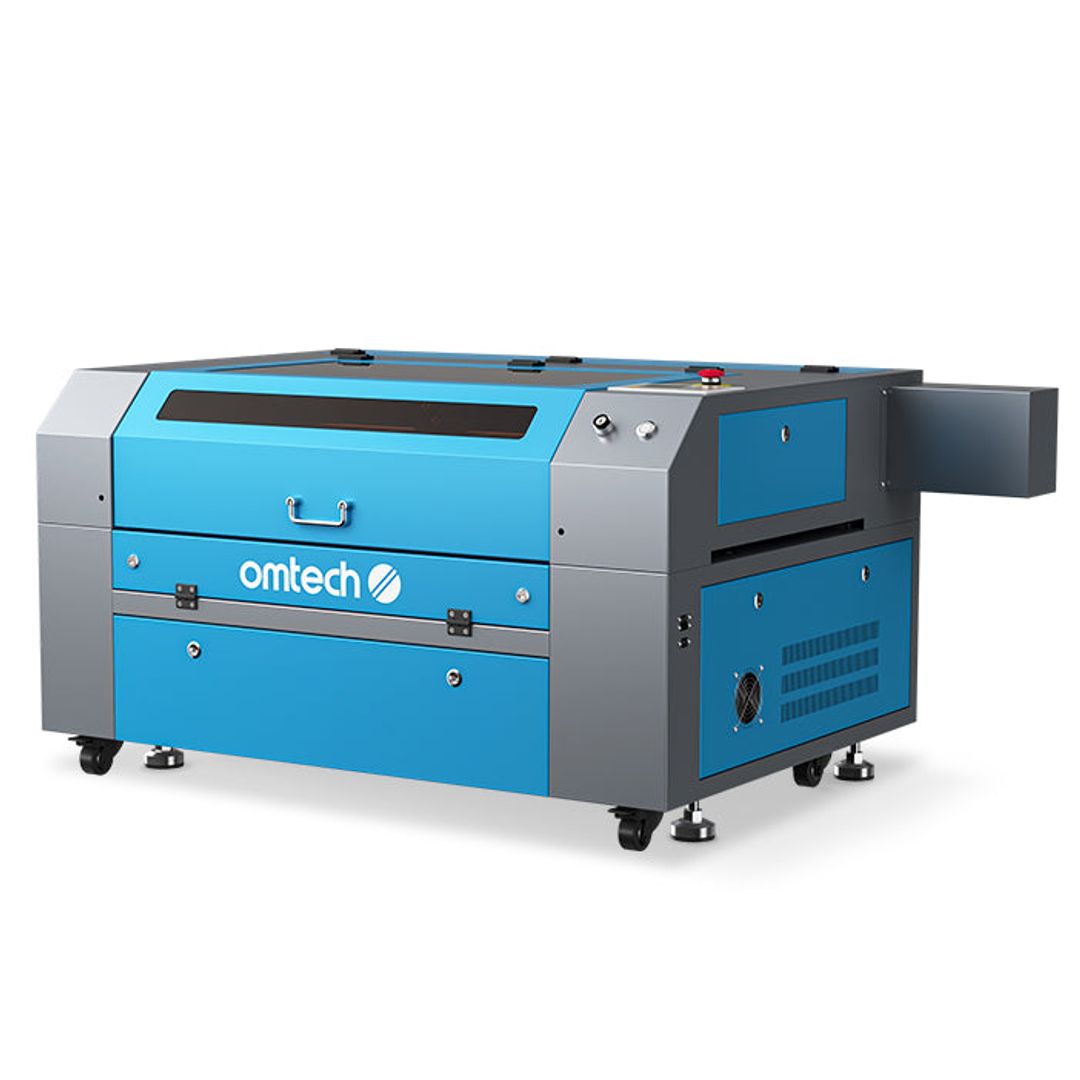

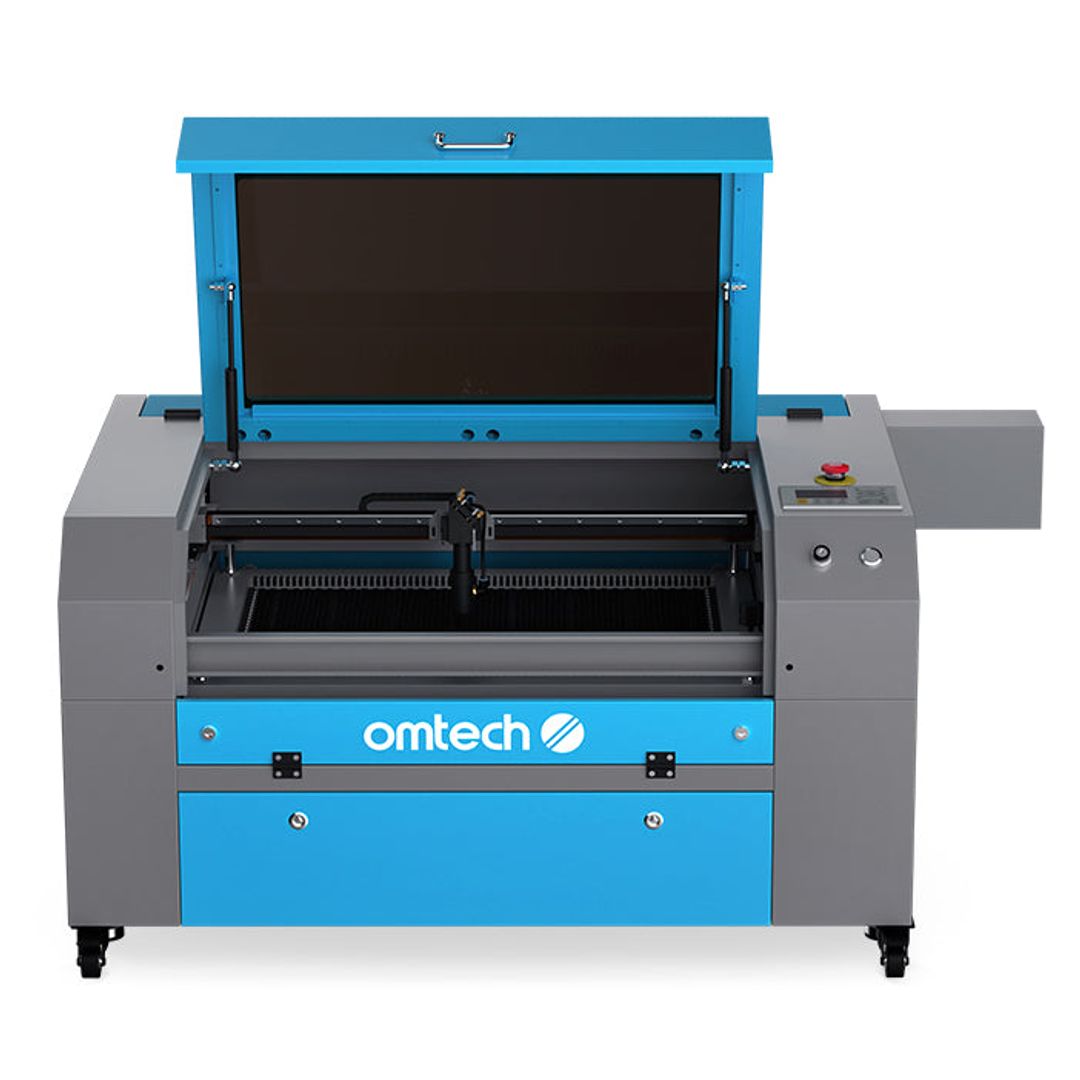

MF2028-80 (90W) (USB-5701-U2)
- 90W Yongli H2 CO2 tube for cutting up to about 0.4 in. (10 mm) deep in a range of materials
- Engraving speed up to 600 mm/s on a 20 x 28 in. work area with honeycomb and aluminum blade beds
- Ruida digital panel to pause, adjust power and speed, preview files and frame jobs
- Upload designs by Ethernet, USB cable, USB flash drive or offline from a PC, iPad or phone
- Compatible with any rotary axis for 360 degree engraving on cylindrical items
- Water chiller required for stable operation; two free tech-support sessions included
| Brand | OMTech |
|---|---|
| Model / SKU | USB-5701-U2 |
| Color | Blue, Gray |
| Product Dimensions (L x W x H) | 57.1 x 34.3 x 26.8 in. (1450 x 870 x 680 mm) |
| Package Dimensions (L x W x H) | 61.4 x 39.0 x 34.3 in. (1560 x 990 x 870 mm) |
| Engraving Area | 20 x 28 in. (500 x 700 mm) |
| Front & Back Pass-Through Size | 32.8 x 3.7 in. (835 x 95 mm) |
| Side to Side Pass-Through Size | 20.5 x 0.8 in. (520 x 20 mm) |
| Rated Power | 90 W |
| Estimated Service Life | 12,000 hr. |
| Max. Engraving Speed | 23.6 ips (600 mm/s) |
| Max. Engraving Depth | 0.4 in. (10 mm) |
| Laser Tube Length | 49.2 in. (1250 mm) |
| Laser Tube Diameter | 2.4 in. (60 mm) |
| Compatible Operating Systems | Windows 2000, XP, Vista, 7, 8, 10 |
| Bundled Software | RDWorks |
| Compatible Software (not included) | LightBurn, CorelDRAW, AutoCAD |
| Supported Image Formats | .ai, .bmp, .dxf, .gif, .hpgl, .jpeg, .pdf, .plt, .png, .rd, .svg, .tiff, .tga |
| Data Transmission | USB Cable, Ethernet Cable, USB Flash Drive, Offline |
| Focus Mode | Manual Focus |
| Built-in Water Chiller | No |
| Certification | CE, FDA |
| Net Weight | 227.1 lb. (103 kg) |
| Warranty | 2 Years (1 Year for Parts) |
| What's Included | 1x 90W CO2 Laser Engraver; 1x Power Cord; 1x USB Flash Drive; 1x USB Cable; 1x Ethernet Cable; 1x Double-Sided Tape; 1x Wrench Set; 1x Tube of Silicone Insulation; 1x Ceramic Resistor; 1x Exhaust Pipe; 1x Pipe Clamp; 1x Water Pump; 2x Water Pipes; 1x Wire Set; 6x Keys; 1x User Manual; 1x Water Tank; 2x Focusing Rulers |

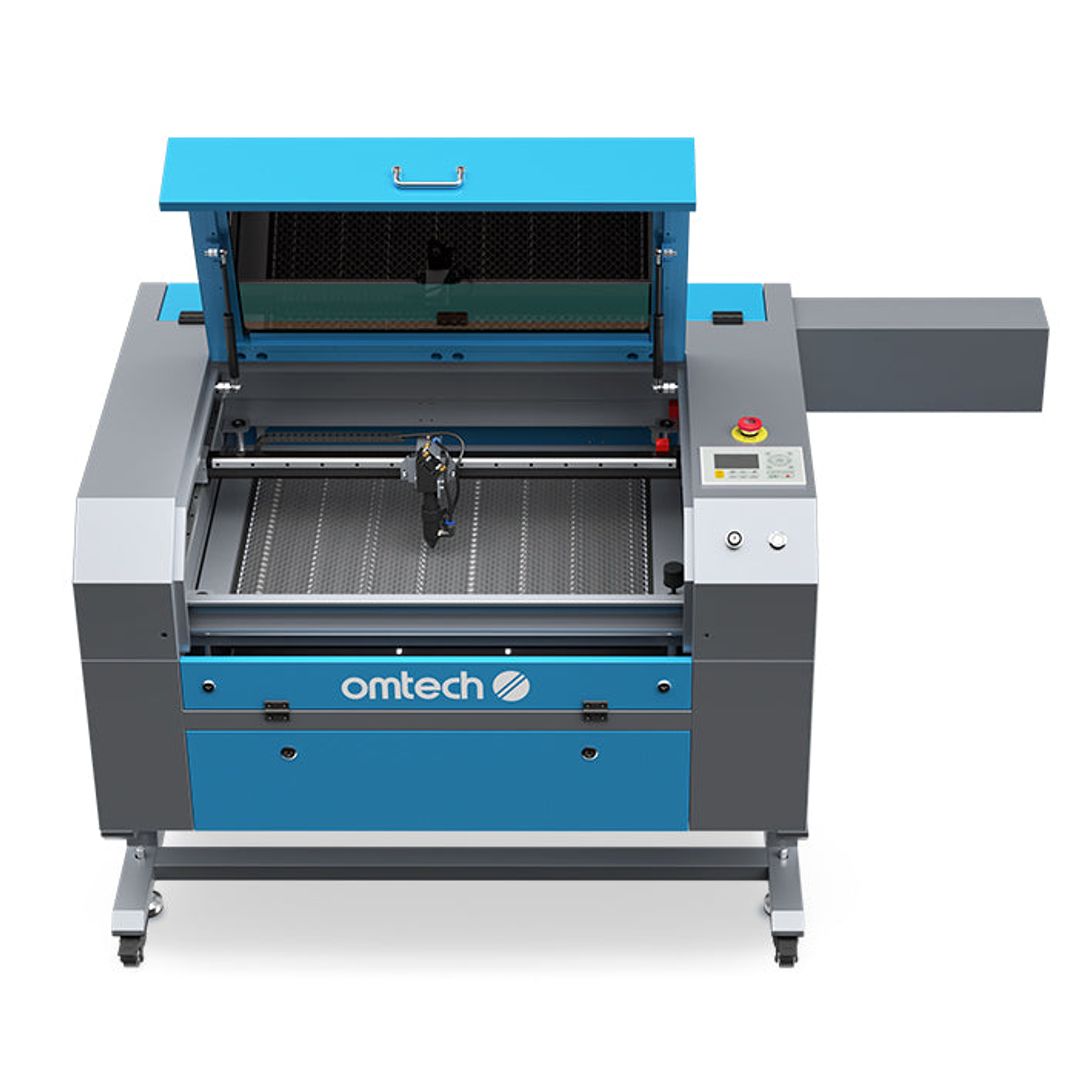

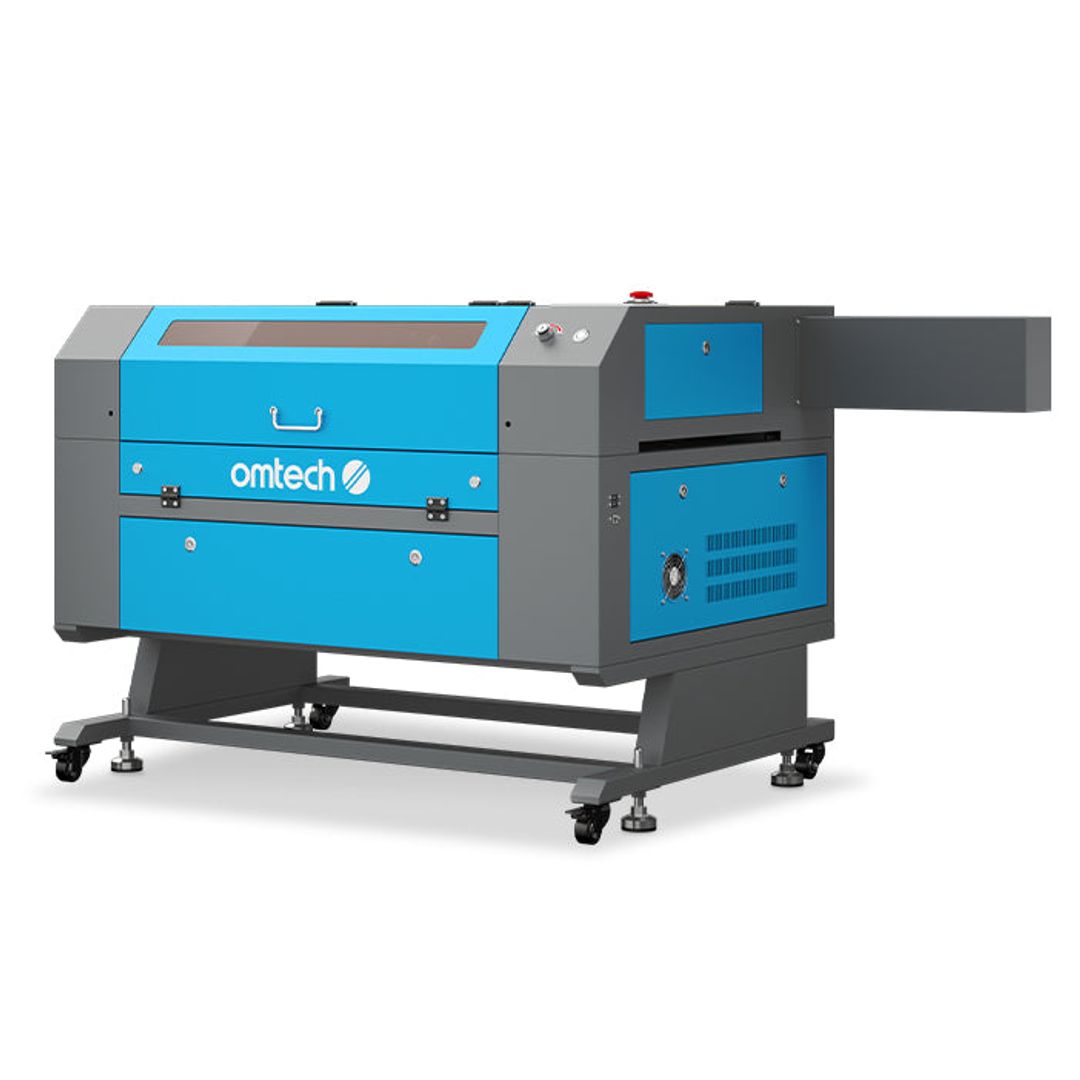

MF2028-100 (100W) (USB-5701-U5)
- 100W Yongli H4 CO2 tube, rated up to 8,000 hours per the page, with engraving speeds up to 600 mm/s
- 20" x 28" work area with honeycomb and aluminum-blade workbeds plus front/back and side pass-through slots
- Ruida control panel for pause/stop, power and speed adjustment, file viewing and framing
- Ethernet and USB connectivity for sending jobs from a PC, iPad or phone
- Compatible with rotary axes for 360-degree engraving on cylindrical items
- Requires a water chiller (not built in); two free virtual tech support sessions and a 2-year warranty
| Brand | OMTech |
|---|---|
| Model / SKU | USB-5701-U5 |
| Color | Blue, Gray |
| Product Dimensions (L x W x H) | 64.96 x 34.25 x 36.61 in. (1650 x 870 x 930 mm) |
| Package Dimensions (L x W x H) | 69.7 x 39.0 x 44.9 in. (1770 x 990 x 1140 mm) |
| Engraving Area | 20 x 28 in. (500 x 700 mm) |
| Front & Back Pass-Through Size | 32.8 x 3.7 in. (835 x 95 mm) |
| Side-to-Side Pass-Through Size | 20.4 x 0.7 in. (520 x 20 mm) |
| Rated Power | 100 W |
| Estimated Service Life | 12,000 hr. |
| Max Engraving Speed | 23.6 ips (600 mm/s) |
| Max Engraving Depth | 0.4 in. (10 mm) |
| Max Cut Depth (acrylic) | 2/5 in. |
| Laser Tube Length | 57.1 in. (1450 mm) |
| Laser Tube Diameter | 2.4 in. (60 mm) |
| Focus Mode | Manual |
| Net Weight | 251.3 lb. (114 kg) |
| Power Input | 110 V / 60 Hz, approx. 900 W |
| Built-in Water Chiller | No |
| LightBurn Compatibility | Yes |
| Compatible Operating Systems | Windows 2000, XP, Vista, 7, 8, 10 |
| Bundled Software | RDWorks |
| Compatible Software (not included) | LightBurn, CorelDRAW, AutoCAD |
| Supported Image Formats | .ai, .bmp, .dxf, .gif, .hpgl, .jpeg, .pdf, .plt, .png, .rd, .svg, .tiff, .tga |
| Data Transmission | USB cable, Ethernet cable, USB flash drive, offline |
| Certification | CE, FDA |
| Warranty | 2 years (12 months for parts) |
| What's Included | 1x 100W CO2 laser engraver; 1x power cord; 1x USB flash drive; 1x USB cable; 1x Ethernet cable; 1x double-sided tape; 1x wrench set; 1x tube of silicone insulation; 1x ceramic resistor; 1x exhaust pipe; 1x pipe clamp; 1x water pump; 2x water pipes; 1x wire set; 6x keys; 1x user manual; 1x water tank; 2x focusing rulers |
