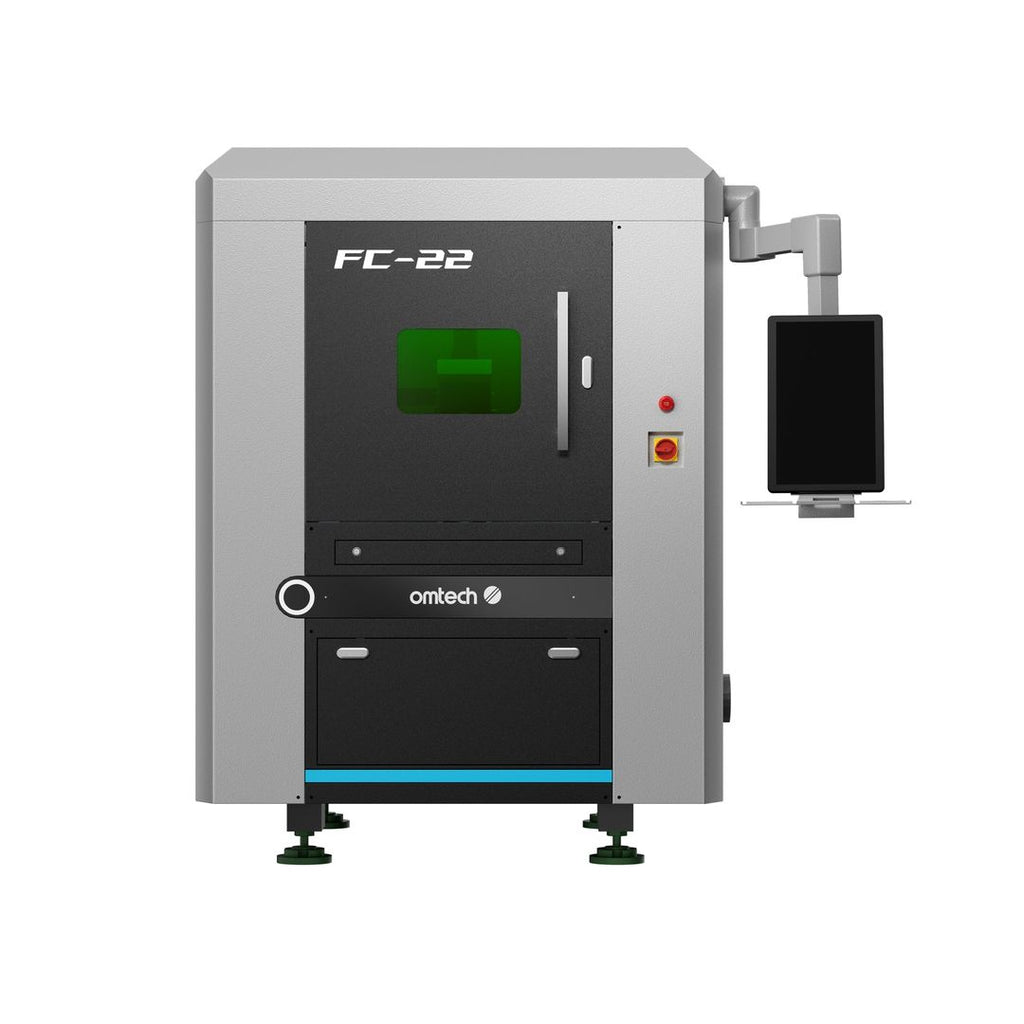

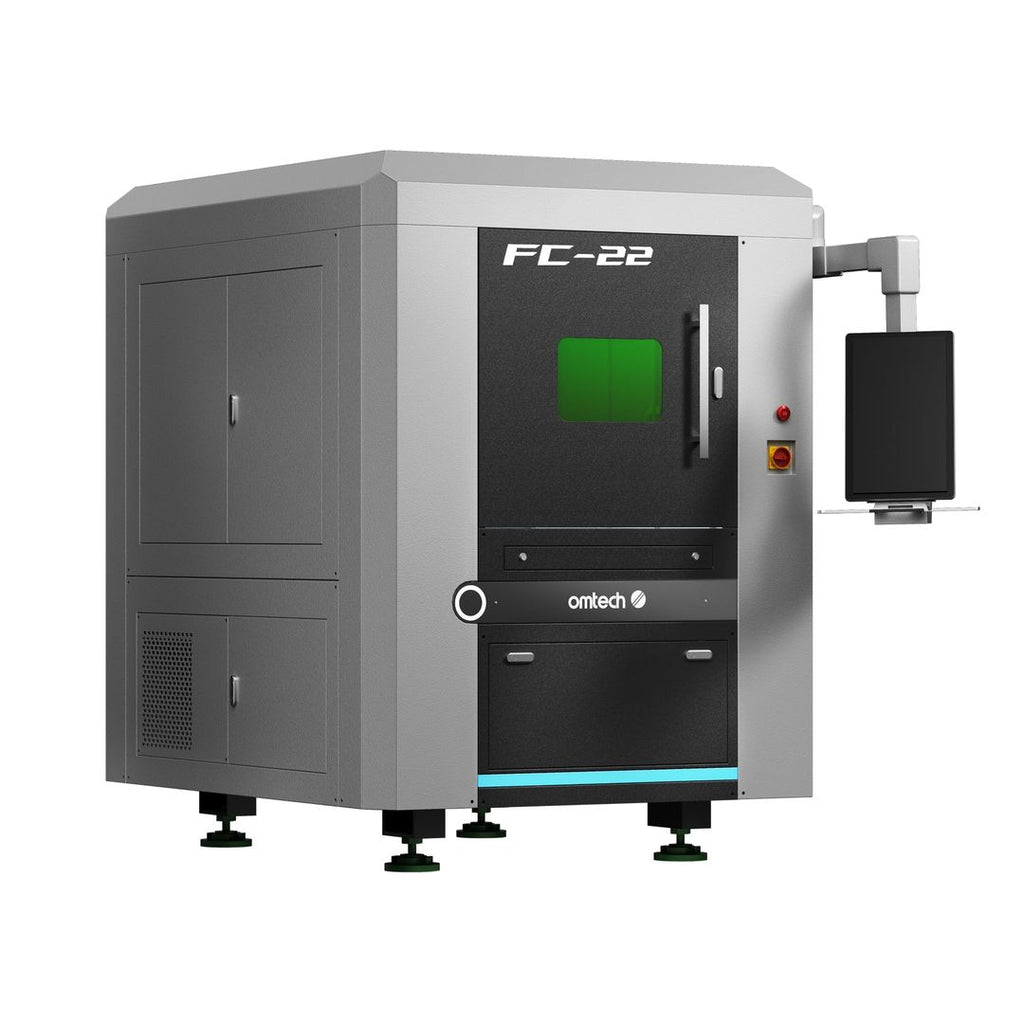

OMTech FC-22 1500W Fully Enclosed Fiber Laser Cutting Machine with Front & Back Pass Through & Built-in Water Chiller

Name: OMTech FC-22 1500W Fully Enclosed Fiber Laser Cutting Machine with Front & Back Pass Through & Built-in Water Chiller
Brand: OMTech
SKU: FCO-G15M-US
Price: 29999.99 USD
Availability: InStock

★★★★★

Iron Line Verified

Authorized Dealer: OMTech

Official Partner

IN STOCK & READY TO SHIP

SKU: FCO-G15M-US

Price:

$29,999.99

Quantity:

Financing as low as ~$499 / month (60 mo. terms) Estimate your payment

We pay your sales tax! (IL excluded) 📦

Share this product

Model: FC-22
Laser Rated Power: 1500 W
Wavelength: 1080 nm
Max. Input Power: 12 kW
Rated Voltage/Frequency: AC 220 V, 60 Hz
Processing Area: 23.6 x 23.6 in. / 600 x 600 mm

Order Placed

Ships Out

Delivered

*Please Note: This timeline is an estimate. Certain products may require an additional 1 week for manufacturing. Please speak with your sales rep, Matthew, for official details and confirmation before placing your order.

CALL US FOR THE MOST ACCURATE AND COMPETITIVE LTL SHIPPING RATE, (888) 308-5580

Get Questions Answered Fast

Experience: 20+ Years B2B • Origin: US-Based Support

EXPRESS SHIPPING

Most orders process in 1-3 days. Yes, even if it weights 400lb

Hassle-Free Returns

No restocking fees. Ever.

Manufacturer Warranty

Fully backed by the brands you trust.

Dedicated Rep Mathew

Speak to a US-Based Equipment Specialist: (888) 308-5580

Flexible Financing

Get Upto 60 Months Financing

OMTech • Fiber Laser Cutters • Model: FC-22 • Laser Rated Power: 1500 W

OMTech FC-22 1500W Fully Enclosed Fiber Laser Cutting Machine with Front & Back Pass Through & Built-in Water Chiller

The OMTech FCO-G15M-US: A fully enclosed 1500W fiber laser cutter for stainless and carbon steel with a 23.6 x 23.6 in work area. The chiller and laser source are built in, and front and back pass-throughs accept longer stock.

Highlights

Cuts stainless steel up to 0.2 in and carbon steel up to 0.4 in thick
Fully enclosed body with OD8+ viewing window, safety relays and interlocks

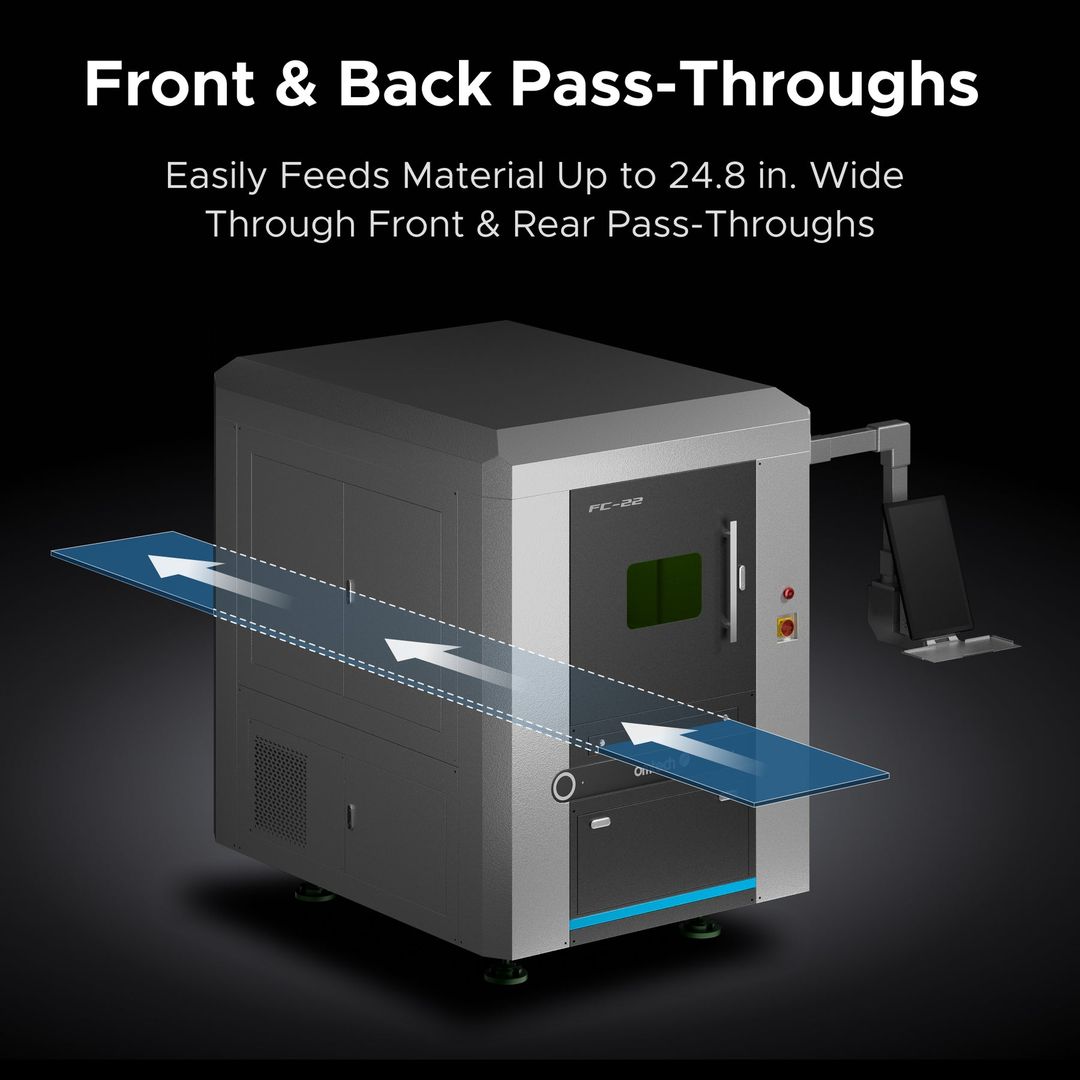

23.6 x 23.6 in processing area with front and back pass-throughs
Integrated chiller and laser source for out-of-the-box setup
Weihong LS2000 control system with external 2060 cfm exhaust fan

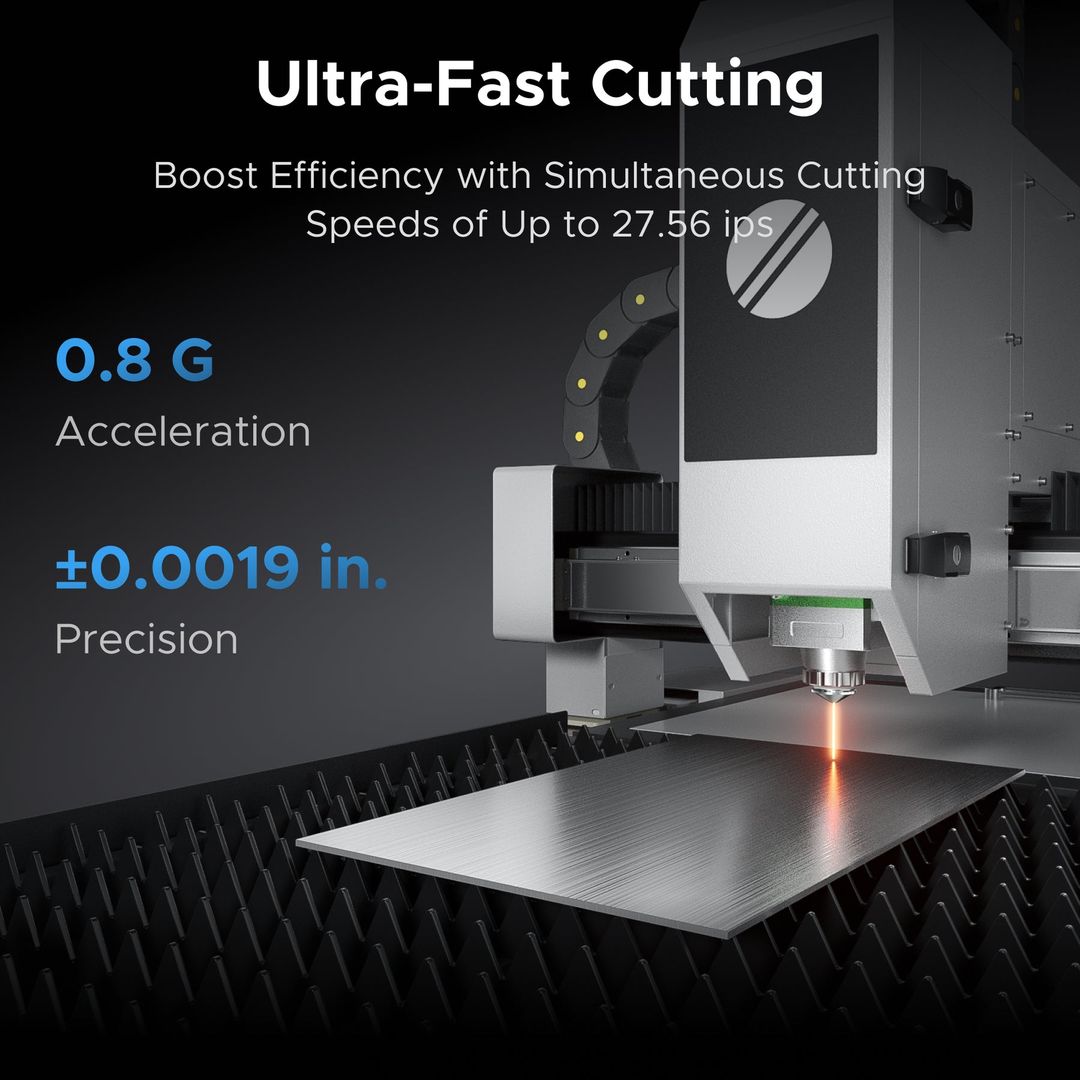

Cutting speed up to 27.56 ips

Specifications

Brand	OMTech
Model / SKU	FCO-G15M-US
Model	FC-22
Laser Rated Power	1500 W
Wavelength	1080 nm
Max. Input Power	12 kW
Rated Voltage/Frequency	AC 220 V, 60 Hz
Processing Area	23.6 x 23.6 in. / 600 x 600 mm
Front Pass-Through Size	23.6 x 1.97 in. / 600 x 50 mm
Back Pass-Through Size	23.6 x 1.97 in. / 600 x 50 mm
Max. Material Height	0.39 in. / 10 mm
Max. Cutting Depth (Carbon Steel)	0.39 in. / 10 mm
Positioning Accuracy	±0.0019 in. / ±0.05 mm
Work Table Maximum Load	110 lb. / 50 kg
Max. Processing Speed (Idle)	1.96 IPS / 50 mm/s
X/Y Axis Max Speed	19.68 IPS / 30 m/min
X/Y Axis Max Acceleration	231.5 ips² / 0.6G
X-Axis Travel	23.6 in. / 600 mm
Y-Axis Travel	23.6 in. / 600 mm
Z-Axis Travel	3.15 in. / 80 mm
Control System	Weihong LS2000
Certification	CE, FDA
Total Power Supply Protection Level	IP54
Dimensions	106.3 x 70.9 x 80.9 in. / 2700 x 1800 x 2055 mm
Net Weight	2976.2 lb. / 1350 kg
External Fan Max. Input Power	1500 W
External Fan Max. Airflow (±10%)	2060 cfm / 3500 m³/h
External Fan Port Diameter	5.91 in. / 150 mm
External Fan Exhaust Hose	Ø5.91 x 118.1 in. / Ø150 x 3000 mm
Integrated Chiller Max. Input Power	1800 W
Integrated Chiller Nominal Cooling Capacity	12624.9 ±5% Btu/h / 3181.4 ±5% kcal/h / 3.7 ±5% kW
Integrated Chiller Temp Range	77-86 °F / 25-30 °C

What's Included

Voltage Stabilizer x1
External Fan x1
Exhaust Hoses x2
Hose Clamps x2
Keyboard x1
Mouse x1
Laser Keys x2
Laser Head Cover Keys x2
Pass-Through Door Keys x2
Access Door Keys x8
Handle x1
Tool Box x1
Hex Wrenches x1 set
Flathead and Phillips Screwdrivers (6x100 & 3x75) x4
Adjustable Wrench (12 inches) x1
8G USB Flash Drive x1
QBH Cap (for maintenance) x1
Laser Safety Glasses x1
Cotton Swab x1
Laser Calibration Paper x1
Transparent Tape x1
Double-Sided Tape x1
Ceramic Body x1
Collimation Protective Lens (D24.9x1.5) x1
Focus Protective Lenses (D27.9x4.1) x10
Single-Layer Nozzles x4
Single-Layer Nozzles x6
