Available Configurations
| Laser Type & Power | Model / SKU |
|---|---|
| MOPA 60W | FMM-J6MN-U1 |
| MOPA 30W | FMM-J3MN-U1 |
| MOPA 20W | FMM-J2MN-U1 |
| Galvo 50W | FMM-R5MN-U1 |
| Galvo 30W | FMM-R3MN-U1 |
| Galvo 20W | FMM-R2MN-U1 |
MOPA 60W (FMM-J6MN-U1)
- 60W JPT MOPA source with independently adjustable pulse frequency and pulse width
- Marks at up to 10,000 mm/s; color marking such as dark marks on anodized aluminum and colors on stainless steel/titanium
- Laser source rated above 100,000 hours mean time to failure
- F-theta lens keeps the spot consistent across the field, with under 1% distortion
- Dual red-dot positioner for alignment and focusing
- Works with LightBurn and EzCad2; includes two 90-minute virtual support sessions and up to 2-year machine warranty
| Brand | OMTech |
|---|---|
| Model / SKU | FMM-J6MN-U1 |
| Material | Metal, Cast Aluminum |
| Laser Source | JPT |
| Laser Power | 60 W |
| Marking Area | 5.9 x 5.9 in (150 x 150 mm) |
| Max. Marking Speed | 394 ips (10,000 mm/s) |
| Max. Marking Depth | 0.1 mm |
| Engraving Accuracy | +/-0.01 mm |
| Laser Wavelength | 1064 nm |
| Compatible Software | LightBurn for Windows 7, 8, 10, 11 or macOS (also EzCad2) |
| Supported Image Formats | .bmp, .gif, .jpg, .jpeg, .dxf, .dst, .ai |
| Est. Laser Service Life | 100,000 hr |
| Product Dimensions (L x W x H) | 40 x 34 x 55 cm (15.7 x 13.3 x 21.6 in) |
| Net Weight | 17.5 kg (38 lb) |
| Package Dimensions (L x W x H) | 61 x 47 x 34 cm (24 x 18.5 x 13.3 in) |
| Package Weight | 20 kg (44 lb) |
| What's Included | Fiber Laser Engraver x1; Tool Box x1; Protective Eyewear x1; USB Flash Drive x1; Ruler x1; USB Cable x1; Set of Hex Wrenches x1; Instruction Manual x1 |

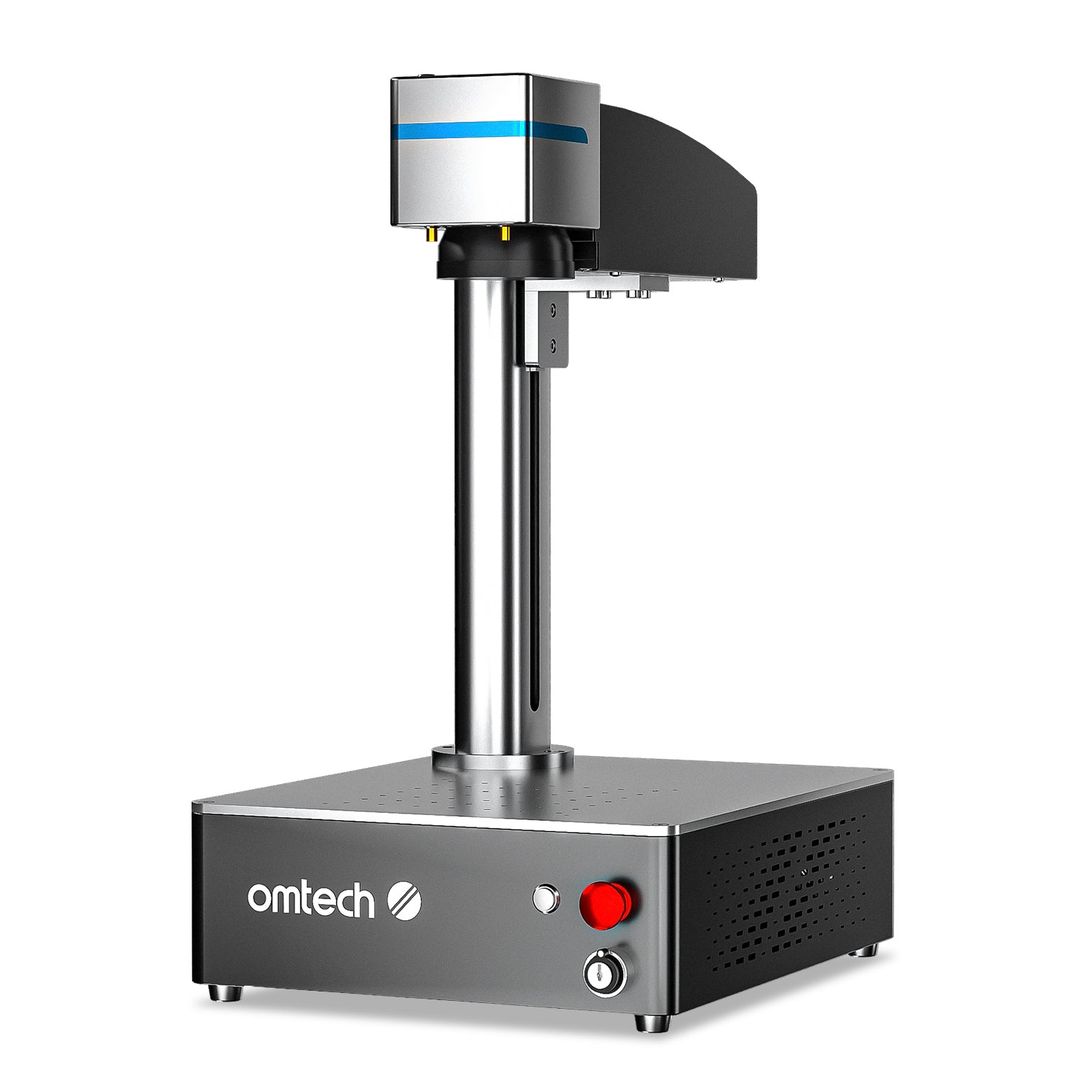

MOPA 30W (FMM-J3MN-U1)
- 30W JPT MOPA fiber source, 1064 nm, with independently adjustable pulse frequency and width
- 5.9" x 5.9" marking area with an F-theta field lens (distortion listed under 1%)
- Marking speed up to 10,000 mm/s with +/-0.01 mm engraving accuracy
- Dark marks on anodized aluminum and color marking on stainless steel, titanium and chromium
- Integrated design weighing about 36 lb net; works with LightBurn on Windows and macOS
| Brand | OMTech |
|---|---|
| Model / SKU | FMM-J3MN-U1 |
| Material | Metal, cast aluminum |
| Laser Source | JPT |
| Laser Power | 30 W |
| Marking Area | 5.9 x 5.9 in (150 x 150 mm) |
| Max. Marking Speed | 394 ips (10,000 mm/s) |
| Max. Marking Depth | 0.08 mm |
| Engraving Accuracy | +/-0.01 mm |
| Laser Wavelength | 1064 nm |
| Compatible Software | LightBurn for Windows 7, 8, 10, 11 or macOS |
| Supported Image Formats | .bmp, .gif, .jpg, .jpeg, .dxf, .dst, .ai |
| Estimated Laser Service Life | 100,000 hr |
| Product Dimensions (L x W x H) | 40 x 34 x 55 cm (15.7 x 13.3 x 21.6 in) |
| Net Weight | 16.5 kg (36 lb) |
| Package Dimensions (L x W x H) | 61 x 47 x 34 cm (24 x 18.5 x 13.3 in) |
| Package Weight | 19 kg (42 lb) |
| Warranty | Up to 2 years (machine only) |
| What's Included | 1 x Fiber Laser Engraver; 1 x Tool Box; 1 x Protective Eyewear; 1 x USB Flash Drive; 1 x Ruler; 1 x USB Cable; 1 x Set of Hex Wrenches; 1 x Instruction Manual |
MOPA 20W (FMM-J2MN-U1)
- MOPA design with adjustable pulse frequency and pulse width for dark marks on anodized aluminum and color marking on stainless, titanium and chromium
- JPT laser source rated over 100,000 hours
- Marking speed up to 10,000 mm/s
- F-theta lens keeps a consistent spot over the 150 x 150 mm field with under 1% distortion
- Dual red-dot positioner for alignment and focusing
- Compatible with LightBurn and EzCad2; compact 32 lb body
| Brand | OMTech |
|---|---|
| Model / SKU | FMM-J2MN-U1 |
| Material | Metal, Cast Aluminum |
| Laser Source | JPT |
| Laser Power | 20W |
| Marking Area | 5.9 x 5.9 in. (150 x 150 mm) |
| Max. Marking Speed | 394 ips (10,000 mm/s) |
| Max. Marking Depth | 0.04 mm |
| Engraving Accuracy | ±0.01 mm |
| Laser Wavelength | 1064 nm |
| Compatible Software | LightBurn for Windows 7, 8, 10, 11, or macOS |
| Supported Image Formats | .bmp, .gif, .jpg, .jpeg, .dxf, .dst, .ai |
| Est. Laser Service Life | 100,000 hr. |
| Product Dimensions (LxWxH) | 40 x 34 x 55 cm / 15.7 x 13.3 x 21.6 in. |
| Net Weight | 14.5 kg / 32 lb. |
| Package Dimensions (LxWxH) | 61 x 47 x 34 cm / 24 x 18.5 x 13.3 in. |
| Package Weight | 17 kg / 37 lb. |
| Warranty | Up to 2 years (machine only) |
| What's Included | 1x Fiber Laser Engraver; 1x Tool Box; 1x Protective Eyewear; 1x USB Flash Drive; 1x Ruler; 1x USB Cable; 1x Set of Hex Wrenches; 1x Instruction Manual |

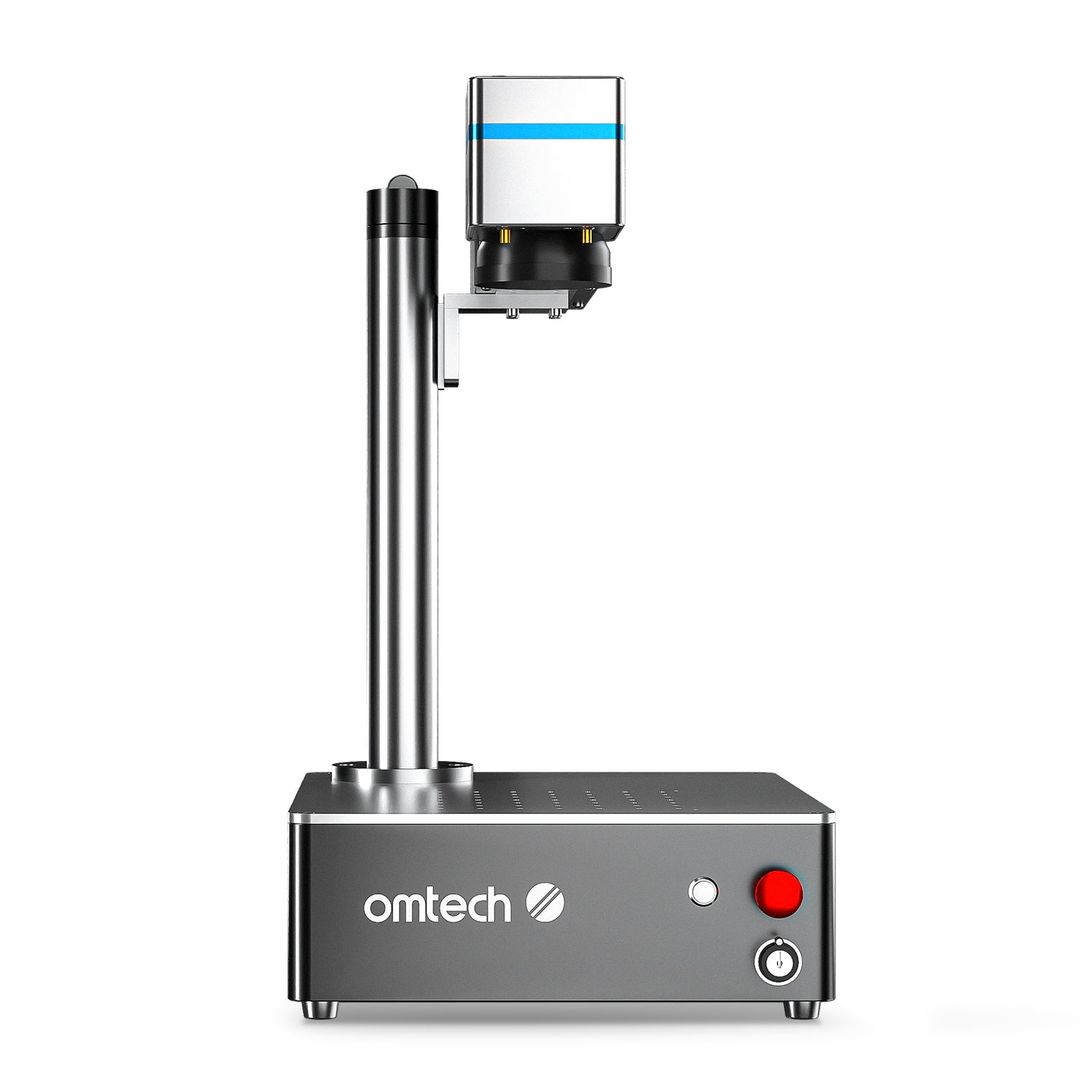

Galvo 50W (FMM-R5MN-U1)
- 50W fiber source with 1064 nm wavelength and ~100,000 hr service life
- Fθ field lens gives a consistent focused spot across the 150 x 150 mm area
- Marking speed up to 10,000 mm/s with accuracy to 0.01 mm
- Dual red-dot positioner for alignment and focusing
- Rotary axis port for rings, bracelets and curved items
- Works with LightBurn and EzCad2; marks brass, carbide, granite, stainless steel, metal and plastic
| Brand | OMTech |
|---|---|
| Model / SKU | FMM-R5MN-U1 |
| Material | Metal, Cast Aluminum |
| Galvanometer Source | Galvo-Tech |
| Laser Power | 50 W |
| Marking Area | 5.9 x 5.9 in. (150 x 150 mm) |
| Max. Marking Speed | 394 ips (10,000 mm/s) |
| Max. Marking Depth | 0.1 mm |
| Engraving Accuracy | ±0.01 mm |
| Laser Wavelength | 1064 nm |
| Compatible Software | LightBurn for Windows 7, 8, 10, 11 or macOS |
| Supported Image Formats | .bmp, .gif, .jpg, .jpeg, .dxf, .dst, .ai |
| Est. Laser Service Life | 100,000 hr |
| Product Dimensions (L x W x H) | 40 x 34 x 55 cm / 15.7 x 13.3 x 21.6 in. |
| Net Weight | 16.5 kg / 36 lb |
| Package Dimensions (L x W x H) | 61 x 47 x 34 cm / 24 x 18.5 x 13.3 in. |
| Package Weight | 19 kg / 42 lb |
| What's Included | Fiber Laser Engraver; Tool Box; Protective Eyewear; USB Flash Drive; Ruler; USB Cable; Set of Hex Wrenches; Instruction Manual |
Galvo 30W (FMM-R3MN-U1)
- 30W fiber source rated for over 100,000 hours
- 5.9 x 5.9 in marking area, up to 10,000 mm/s
- Engraving accuracy of ±0.01 mm with under 1% distortion
- Dual red-dot positioner for alignment
- Independently adjustable pulse frequency and width
- Compact integrated body of about 39 lb
| Brand | OMTech |
|---|---|
| Model / SKU | FMM-R3MN-U1 |
| Material | Metal, Cast Aluminum |
| Galvanometer Source | Galvo-Tech |
| Laser Power | 30 W |
| Marking Area | 5.9 x 5.9 in (150 x 150 mm) |
| Max. Marking Speed | 394 ips (10,000 mm/s) |
| Max. Marking Depth | 0.08 mm |
| Engraving Accuracy | ±0.01 mm |
| Laser Wavelength | 1064 nm |
| Compatible Software | LightBurn for Windows 7, 8, 10, 11, or macOS |
| Supported Image Formats | .bmp, .gif, .jpg, .jpeg, .dxf, .dst, .ai |
| Est. Laser Service Life | 100,000 hr |
| Product Dimensions (L x W x H) | 40 x 34 x 55 cm (15.7 x 13.3 x 21.6 in) |
| Net Weight | 18 kg (39 lb) |
| Package Dimensions (L x W x H) | 61 x 47 x 34 cm (24 x 18.5 x 13.3 in) |
| Package Weight | 20.5 kg (45 lb) |
| Warranty | Up to 2 years (machine only) |
| What's Included | 1x Fiber Laser Engraver; 1x Tool Box; 1x Protective Eyewear; 1x USB Flash Drive; 1x Ruler; 1x USB Cable; 1x Set of Hex Wrenches; 1x Instruction Manual |
Galvo 20W (FMM-R2MN-U1)
- 20W 1064 nm fiber source with a 110 x 110 mm (4.3 x 4.3 in.) marking area
- Marking speed up to 10,000 mm/s with +/-0.01 mm accuracy
- Adjustable pulse frequency (30-60 kHz) and pulse width (80-120 ns)
- F-theta lens keeps a consistent spot across the field; laser rated about 100,000 hours
- Works with LightBurn and marks brass, carbide, granite, stainless steel, metal and plastic
- Portable at about 36 lb (16.5 kg); two free 90-minute virtual support sessions included
| Brand | OMTech |
|---|---|
| Model / SKU | FMM-R2MN-U1 |
| Material | Metal, Cast Aluminum |
| Galvanometer Source | Galvo-Tech |
| Laser Power | 20 W |
| Laser Type | Fiber |
| Marking Area | 4.3 x 4.3 in (110 x 110 mm) |
| Max. Marking Speed | 394 ips (10,000 mm/s) |
| Max. Marking Depth | 0.04 mm |
| Engraving Accuracy | +/-0.01 mm |
| Laser Wavelength | 1064 nm |
| Laser Frequency | 30-60 kHz |
| Pulse Width | 80-120 ns |
| Focus Mode | Manual Focus |
| Color Marking | No |
| Compatible Software | LightBurn for Windows 7, 8, 10, 11, or macOS |
| Supported Image Formats | .bmp, .gif, .jpg, .jpeg, .dxf, .dst, .ai |
| Est. Laser Service Life | 100,000 hr |
| Product Dimensions (L x W x H) | 40 x 34 x 55 cm / 15.7 x 13.3 x 21.6 in |
| Net Weight | 16.5 kg / 36 lb |
| Package Dimensions (L x W x H) | 61 x 47 x 34 cm / 24 x 18.5 x 13.3 in |
| Package Weight | 19 kg / 42 lb |
| Warranty | Up to 2 years (machine only) |
| What's Included | 1 x Fiber Laser Engraver; 1 x Tool Box; 1 x Protective Eyewear; 1 x USB Flash Drive; 1 x Ruler; 1 x USB Cable; 1 x Set of Hex Wrenches; 1 x Instruction Manual |
