Available Configurations
| Laser Type & Power | Model / SKU |
|---|---|
| MOPA 60W | FMM-J6AF-US |
| Galvo 50W | FMM-M5AF-US |
| MOPA 20W | FMM-J2AF-US |
| Galvo 20W | FMM-M2AF-US |
MOPA 60W (FMM-J6AF-US)
- MOPA fiber source with adjustable pulse frequency (1-4000 kHz) and width (2-500 ns) for color marking and fine etching

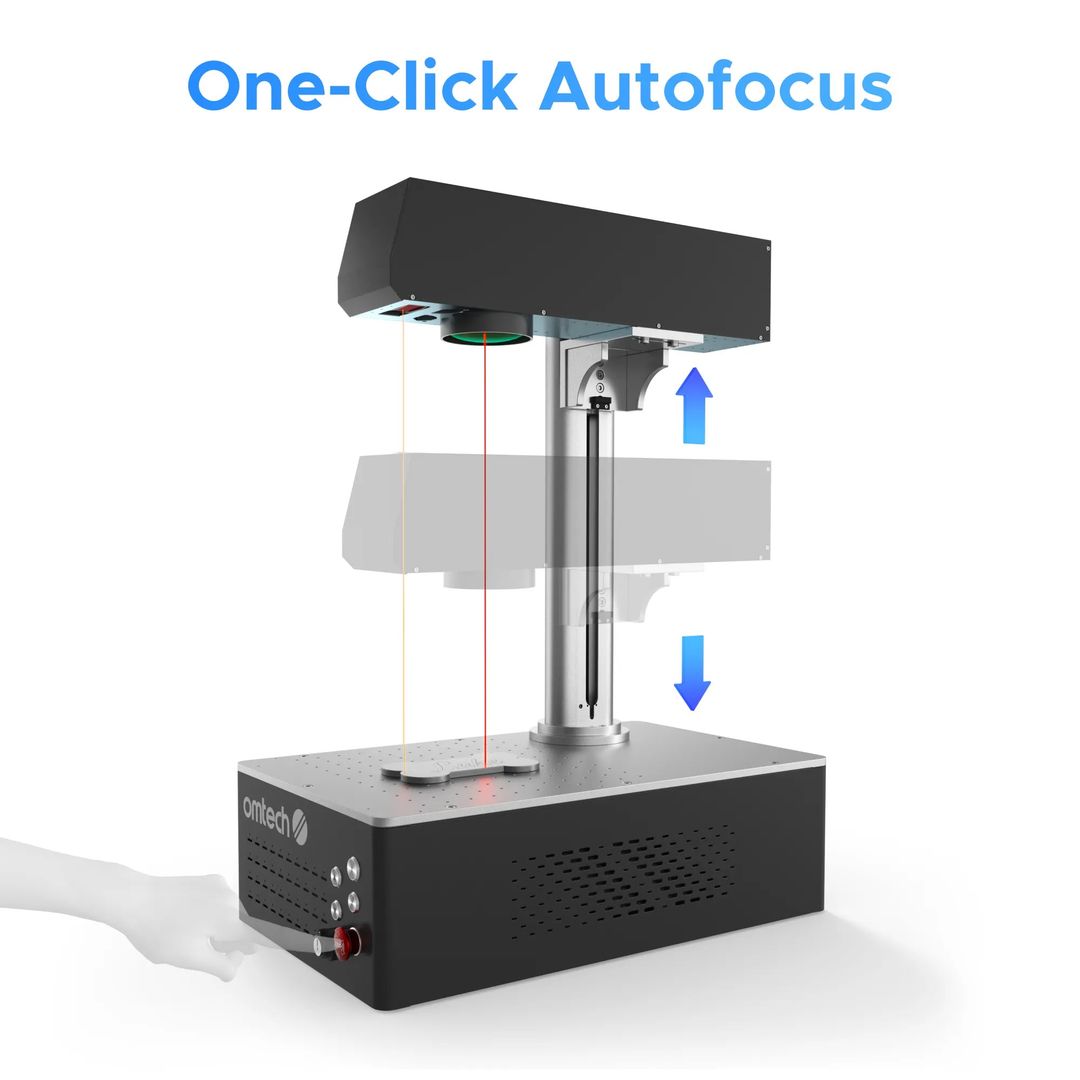

- Automatic focusing with +/-1 mm positioning accuracy
- Marks stainless steel, gold, wood, leather and other materials; suited to jewelry and serial numbers
- Up to 10,000 mm/s marking speed with 0.01 mm marking accuracy and 100,000 hr laser life (MTTF)

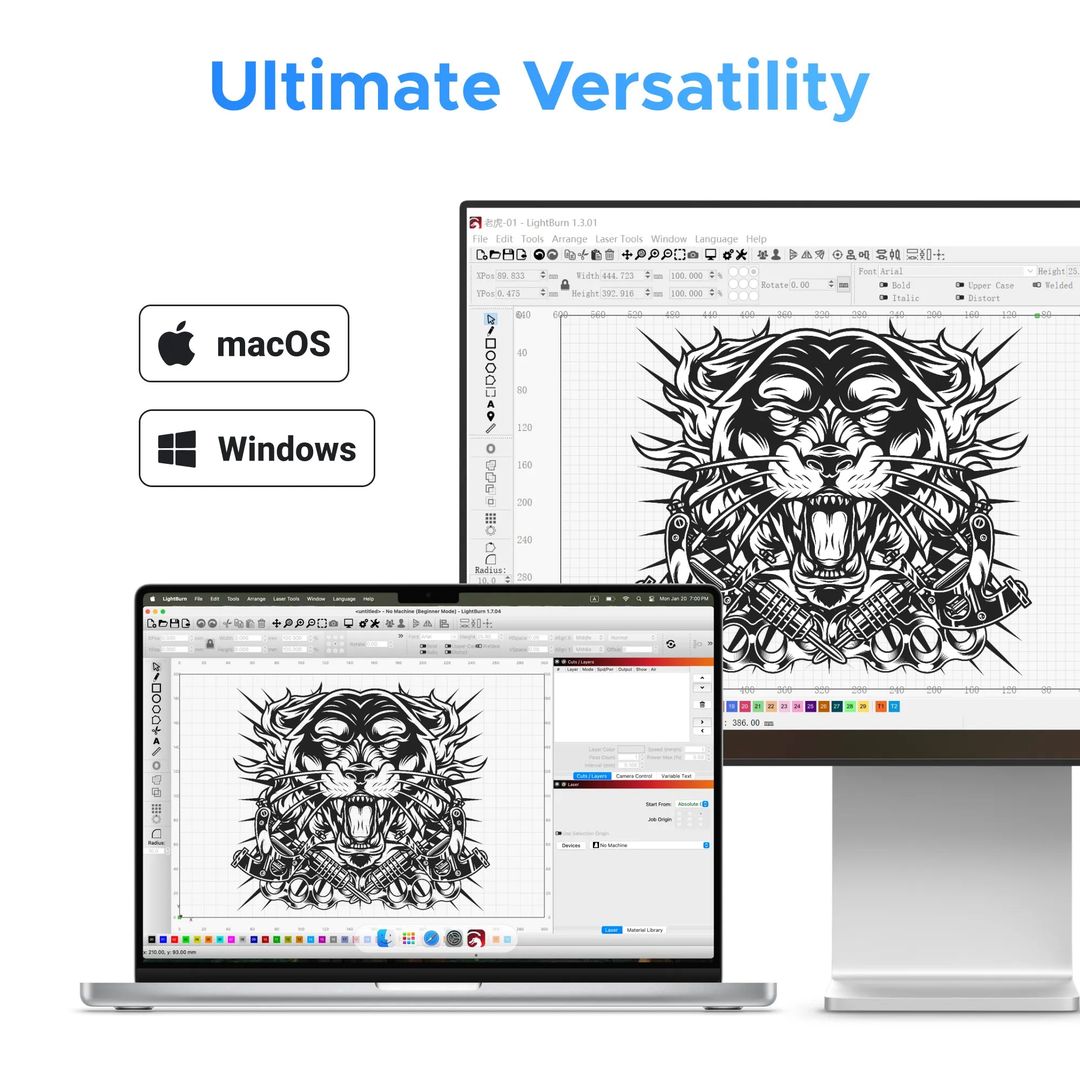

- Compact enclosed-arm design, Class 4 laser, safety goggles included; works with EzCad2 and LightBurn
| Brand | OMTech |
|---|---|
| Model / SKU | FMM-J6AF-US |
| Laser Power (family) | 20W / 30W / 60W (this SKU: 60W) |
| Laser Wavelength | 1064 nm |
| Laser Frequency | 1-4000 kHz |
| Pulse Width | 2-500 ns |
| Field Lens Focal Length | 9.3 in. (210 mm) |
| Processing Area | 5.9 x 5.9 in. (150 x 150 mm) |
| Workbed Area | 11.8 x 13.4 in. (300 x 340 mm) |
| Max. Engraving Speed | 393.7 ips (10,000 mm/s) |
| Max. Engraving Depth | 0.04 mm to 0.1 mm |
| Positioning Accuracy | +/-0.04 in. (+/-1 mm) |
| Marking Accuracy | +/-0.0004 in. (+/-0.01 mm) |
| Est. Laser Service Life (MTTF) | 100,000 hr. |
| Laser Class Level | 4 |
| Operating Temperature | 32-104 F (0-40 C) |
| Operating Software | EzCad2 for Windows 7, 8, 10, 11 |
| Supported Image Formats | .ai, .bmp, .dx, .dxf, .gif, .jpg, .plt, .png, .tga, .tif |
| Product Dimensions (L x W x H) | 55.5 x 33.5 x 72 cm / 21.8 x 13.2 x 28.3 in. |
| Net Weight | 28 kg / 62 lb. |
| Package Dimensions (L x W x H) | 77 x 46 x 46 cm / 30.3 x 18.1 x 18.1 in. |
| Package Weight | 32 kg / 70 lb. |
| What's Included | 1 x Control box with laser arm; 1 x Support column; 1 x Power cord; 1 x USB cable; 1 x USB flash drive; 2 x Laser keys; 1 x Ruler; 1 x Hex wrench set; 2 x Position lock bars; 1 x Installation screw set; 1 x Pair of safety goggles; 1 x Remote control terminal; 1 x Screwdriver; 1 x Manual |

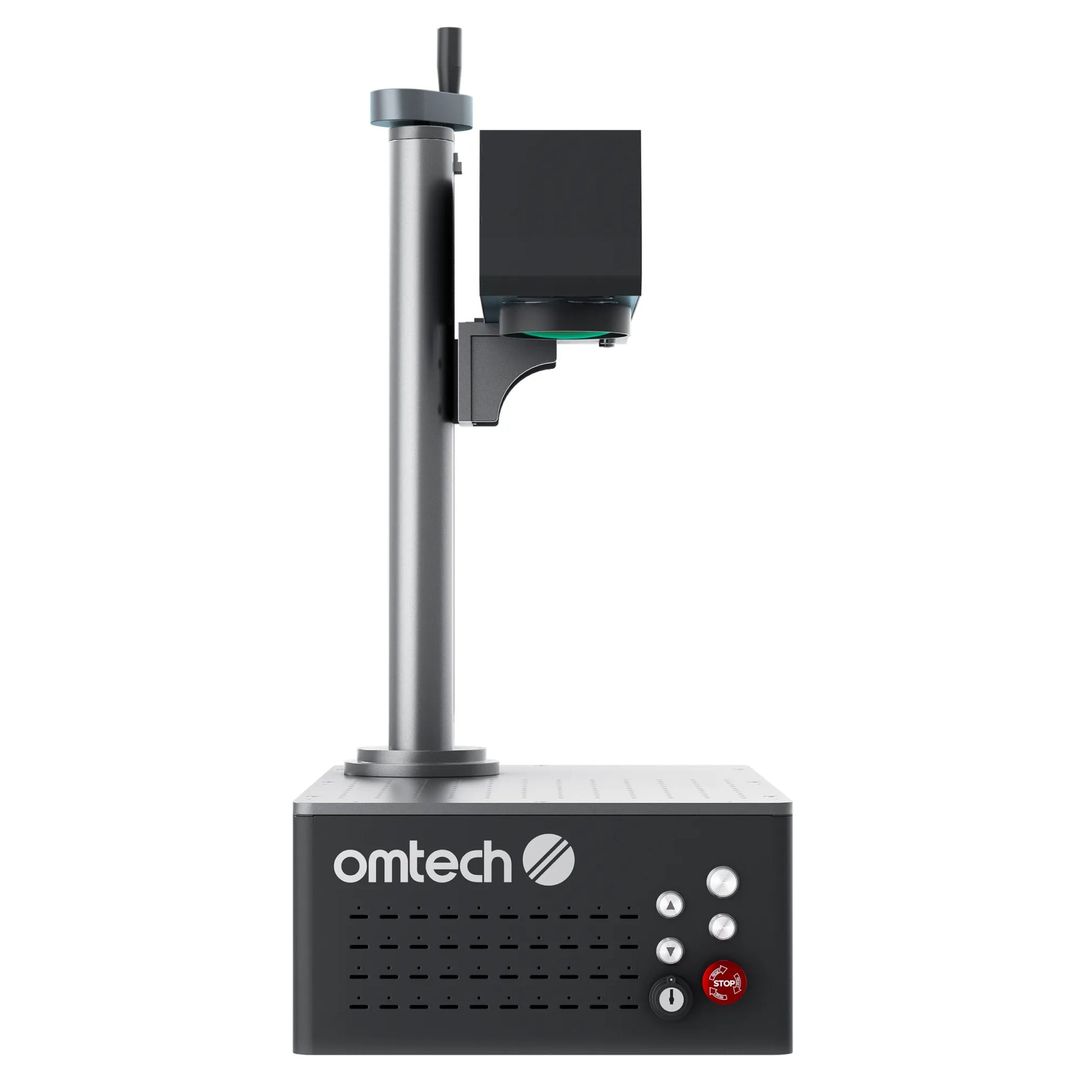

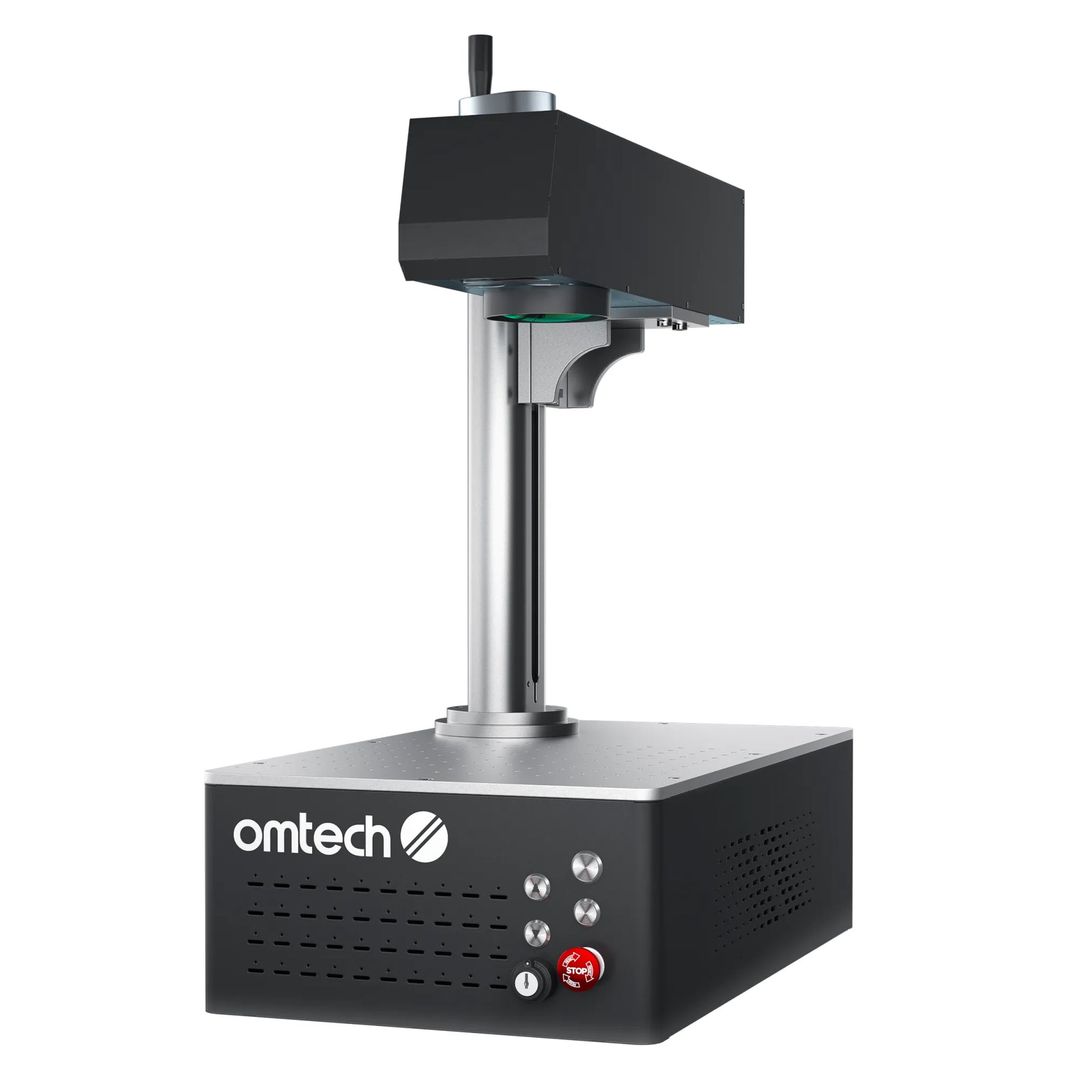

Galvo 50W (FMM-M5AF-US)
- One-click autofocus with about ±1 mm positioning accuracy
- 50W fiber source rated for over 100,000 hours
- Up to 10,000 mm/s marking speed with ±0.01 mm marking accuracy
- Compact Class 4 unit; safety goggles included
- Controlled with EzCad2 on Windows
| Brand | OMTech |
|---|---|
| Model / SKU | FMM-M5AF-US |
| Laser Power | 50 W |
| Laser Wavelength | 1064 nm |
| Laser Frequency | 30-60 kHz |
| Pulse Width | 80-120 ns |
| Field Lens Focal Length | 9.3 in (210 mm) |
| 30W/50W Processing Area | 5.9 x 5.9 in (150 x 150 mm) |
| Workbed Area | 9.8 x 13.4 in (250 x 340 mm) |
| Max. Engraving Speed | 393.7 ips (10,000 mm/s) |
| Max. Engraving Depth | 0.1 mm |
| Positioning Accuracy | ±0.04 in (±1 mm) |
| Marking Accuracy | ±0.0004 in (±0.01 mm) |
| Est. Laser Service Life (MTTF) | 100,000 hr |
| Laser Class Level | 4 |
| Operating Temp. | 32-104°F (0-40°C) |
| Operating Software | EzCad2 for Windows 7, 8, 10, & 11 |
| Supported Image Formats | .ai, .bmp, .dx, .dxf, .gif, .jpg, .plt, .png, .tga, .tif |
| Product Dimensions (L×W×H) | 55.5 × 33.5 × 72 cm (21.8 × 13.2 × 28.3 in) |
| Net Weight | 27 kg (59 lb) |
| Package Dimensions (L×W×H) | 77 × 46 × 46 cm (30.3 × 18.1 × 18.1 in) |
| Package Weight | 31 kg (68 lb) |
| What's Included | 1x Control Box with Laser Arm; 1x Support Column; 1x Power Cord; 1x USB Cable; 1x USB Flash Drive; 2x Laser Keys; 1x Ruler; 1x Hex Wrench Set; 2x Position Lock Bars; 1x Installation Screw Set; 1x Pair of Safety Goggles; 1x Remote Control Terminal; 1x Screwdriver; 1x Manual |

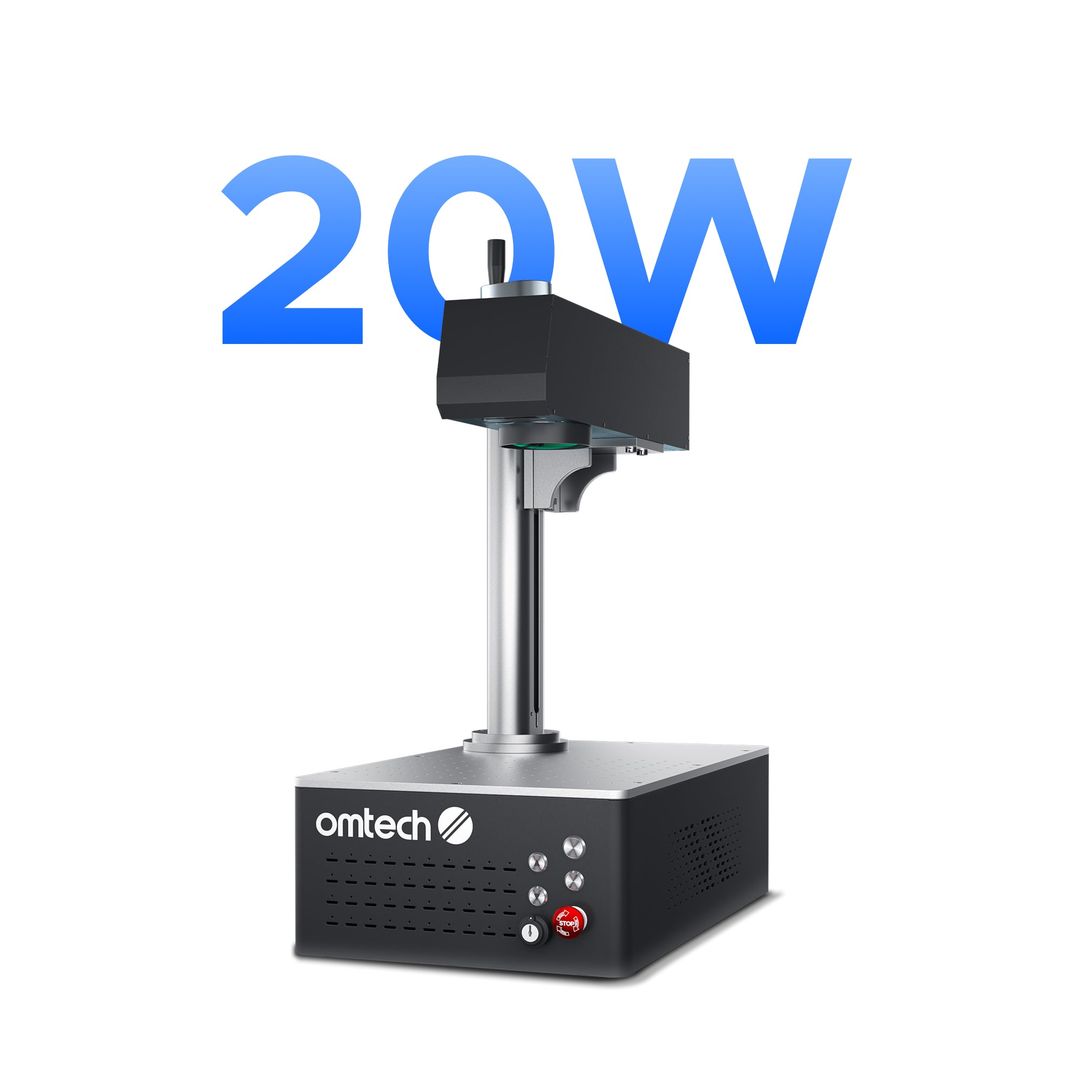

MOPA 20W (FMM-J2AF-US)
- MOPA fiber source rated for over 100,000 hours MTTF with adjustable pulse frequency and width for a range of mark colors
- Automatic focusing at the press of a button, stated +/-1 mm accuracy
- Up to 10,000 mm/s marking speed with +/-0.01 mm marking accuracy
- 5.9 x 5.9 in processing area
- Compact, quiet design; safety goggles included
- Includes two free 90-minute virtual technical support sessions
| Brand | OMTech |
|---|---|
| Model / SKU | FMM-J2AF-US |
| Laser power (page lists 20W/30W/60W) | 20W/30W/60W |
| Laser wavelength | 1064 nm |
| Laser frequency | 1-4000 kHz |
| Pulse width | 2-500 ns |
| Field lens focal length | 9.3 in. (210 mm) |
| Processing area | 5.9 x 5.9 in. (150 x 150 mm) |
| Workbed area | 11.8 x 13.4 in. (300 x 340 mm) |
| Max engraving speed | 393.7 ips (10,000 mm/s) |
| Max engraving depth | 0.04 mm - 0.1 mm |
| Positioning accuracy | +/-0.04 in. (+/-1 mm) |
| Marking accuracy | +/-0.0004 in. (+/-0.01 mm) |
| Est. laser service life (MTTF) | 100,000 hr. |
| Laser class | 4 |
| Operating temperature | 32-104 F (0-40 C) |
| Operating software | EzCad2 for Windows 7, 8, 10 & 11 |
| Supported image formats | .ai, .bmp, .dx, .dxf, .gif, .jpg, .plt, .png, .tga, .tif |
| Product dimensions (L x W x H) | 55.5 x 33.5 x 72 cm / 21.8 x 13.2 x 28.3 in. |
| Net weight | 28 kg / 62 lb. |
| Package dimensions (L x W x H) | 77 x 46 x 46 cm / 30.3 x 18.1 x 18.1 in. |
| Package weight | 32 kg / 70 lb. |
| What's Included | Control box with laser arm; Support column; Power cord; USB cable; USB flash drive; Laser keys x2; Ruler; Hex wrench set; Position lock bars x2; Installation screw set; Pair of safety goggles; Remote control terminal; Screwdriver; Manual; Plus (20W variant promo): 1 random OMTech tumbler set, 12-pack |
Galvo 20W (FMM-M2AF-US)
- Solid-state 1064 nm fiber laser with a rated MTTF of over 100,000 hours
- One-button autofocus with about +/-1 mm positioning accuracy
- Marking speed up to 10,000 mm/s with +/-0.01 mm marking accuracy
- Adjustable pulse frequency and width for color marks and fine work on metals
- Safety goggles included; two free 90-minute virtual tech support sessions
| Brand | OMTech |
|---|---|
| Model / SKU | FMM-M2AF-US |
| Laser Power | 20W |
| Laser Wavelength | 1064 nm |
| Laser Frequency | 30-60 kHz |
| Pulse Width | 80-120 ns |
| Field Lens Focal Length | 9.3 in. (210 mm) |
| Processing Area, 20W | 4.3 x 4.3 in. (110 x 110 mm) |
| Workbed Area | 9.8 x 13.4 in. (250 x 340 mm) |
| Max. Engraving Speed | 393.7 ips (10,000 mm/s) |
| Max. Engraving Depth | 0.04 mm - 0.1 mm |
| Positioning Accuracy | ±0.04 in. (±1 mm) |
| Marking Accuracy | ±0.0004 in. (±0.01 mm) |
| Est. Laser Service Life (MTTF) | 100,000 hr. |
| Laser Class Level | 4 |
| Operating Temperature | 32-104°F (0-40°C) |
| Operating Software | EzCad2 for Windows 7, 8, 10 and 11 |
| Supported Image Formats | .ai, .bmp, .dx, .dxf, .gif, .jpg, .plt, .png, .tga, .tif |
| Product Dimensions (L x W x H) | 55.5 x 33.5 x 72 cm / 21.8 x 13.2 x 28.3 in. |
| Net Weight | 28 kg / 62 lb. |
| Package Dimensions (L x W x H) | 77 x 46 x 46 cm / 30.3 x 18.1 x 18.1 in. |
| Package Weight | 32 kg / 70 lb. |
| What's Included | Control Box with Laser Arm x1; Support Column x1; Power Cord x1; USB Cable x1; USB Flash Drive x1; Laser Keys x2; Ruler x1; Hex Wrench Set x1; Position Lock Bars x2; Installation Screw Set x1; Pair of Safety Goggles x1; Remote Control Terminal x1; Screwdriver x1; Manual x1 |
