OMGA TRF 527 VIS 8.5" Double Mitre Chop Saw Applications
- Glass beading strip fabrication and processing
- Window and glazing manufacturing operations
- Aluminum profile and extrusion cutting
- PVC and vinyl profile fabrication
- Precision mitre and straight cut applications
- Architectural aluminum component processing
- Light industrial fabrication and assembly shops
- Production environments requiring accurate small-profile cutting

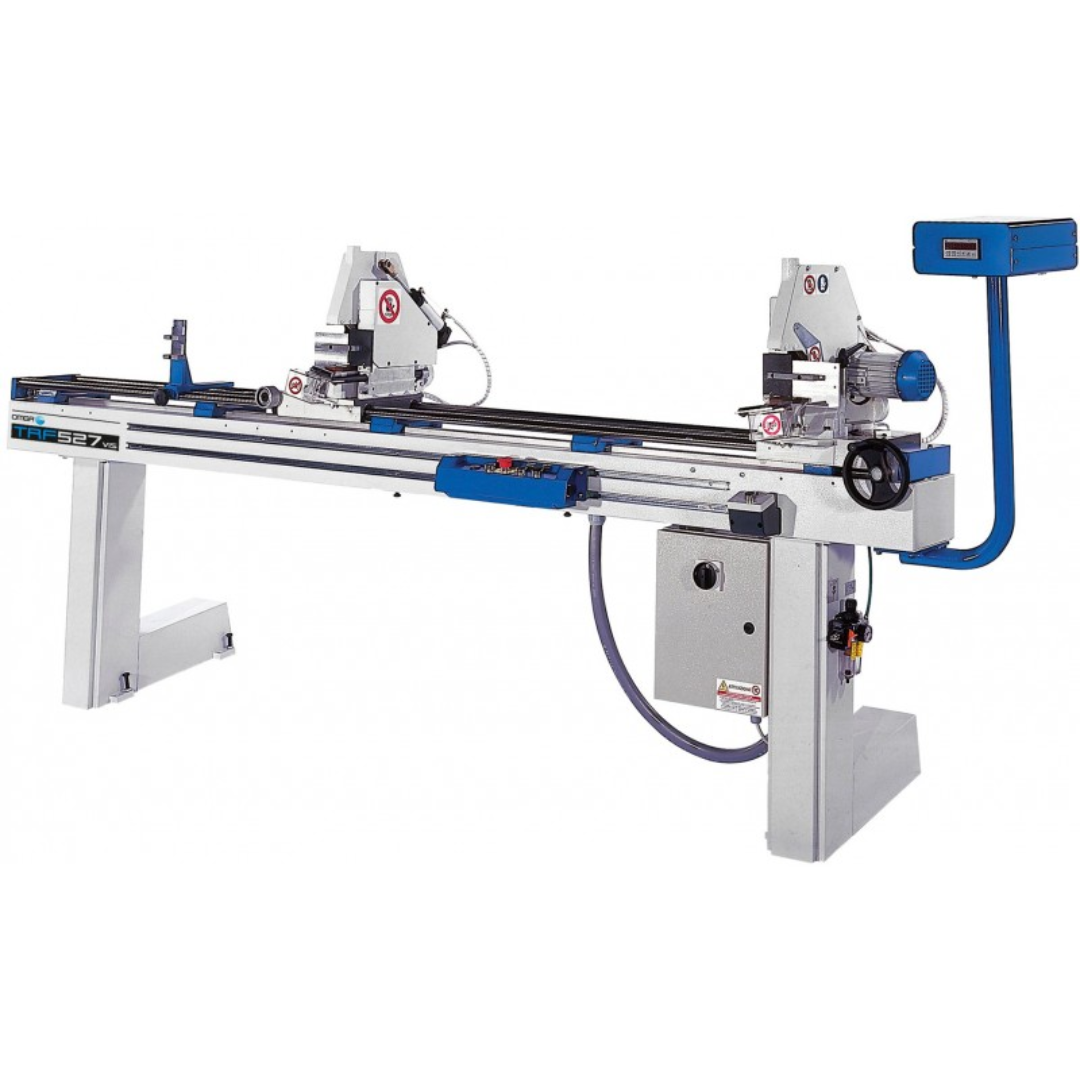

The OMGA TRF 527 VIS 8.5" Double Mitre Chop Saw is ideal for fabrication operations requiring accurate glass bead and profile cutting with digital positioning assistance and repeatable precision.
OMGA TRF 527 VIS 8.5" Double Mitre Chop Saw Specifications
| Model | TRF 527 VIS 8.5" Double Mitre Chop Saw |
|---|---|
| Saw Blade Diameter | 8.5" (220 mm) |
| Saw Bore | 30 mm |
| Motor Power | 2 × 1.5 HP |
| Arbor Speed | 3200 RPM |
| Maximum Distance Between Saws | 7'10" |
| Minimum Distance Between Saws | 6 1/4" |
| Minimum Distance Between Saws at 45° | 6 1/4" |
| Cross Cut Capacity at 90° | 2 5/32" |
| Cross Cut Capacity at 45° | 1 9/16" |
| Maximum Width Cutting Capacity | 2" |
| Maximum Thickness Capacity | 1 1/2" |
| Maximum Beveled Cross Cut | N/A |
| Dust Chute Size | 2 × 3 1/8" |
| Approximate Shipping Weight | 650 lbs. |
| Crated Dimensions | 137" × 27" × 59" |
| Positioning System | Digital Read-Out with Manual Transmission |
OMGA TRF 527 VIS 8.5" Double Mitre Chop Saw Features & Performance
- Dual 1.5 HP industrial motors provide reliable cutting performance for glass beading strips and profile fabrication applications.
- Digital read-out positioning system allows operators to accurately position the movable head and verify measurements during setup.
- Manual transmission adjustment system uses a hand wheel combined with a toothed belt for smooth and precise movable head positioning.
- Ball bushing and hardened steel guide system ensures easy movement and highly accurate positioning performance.

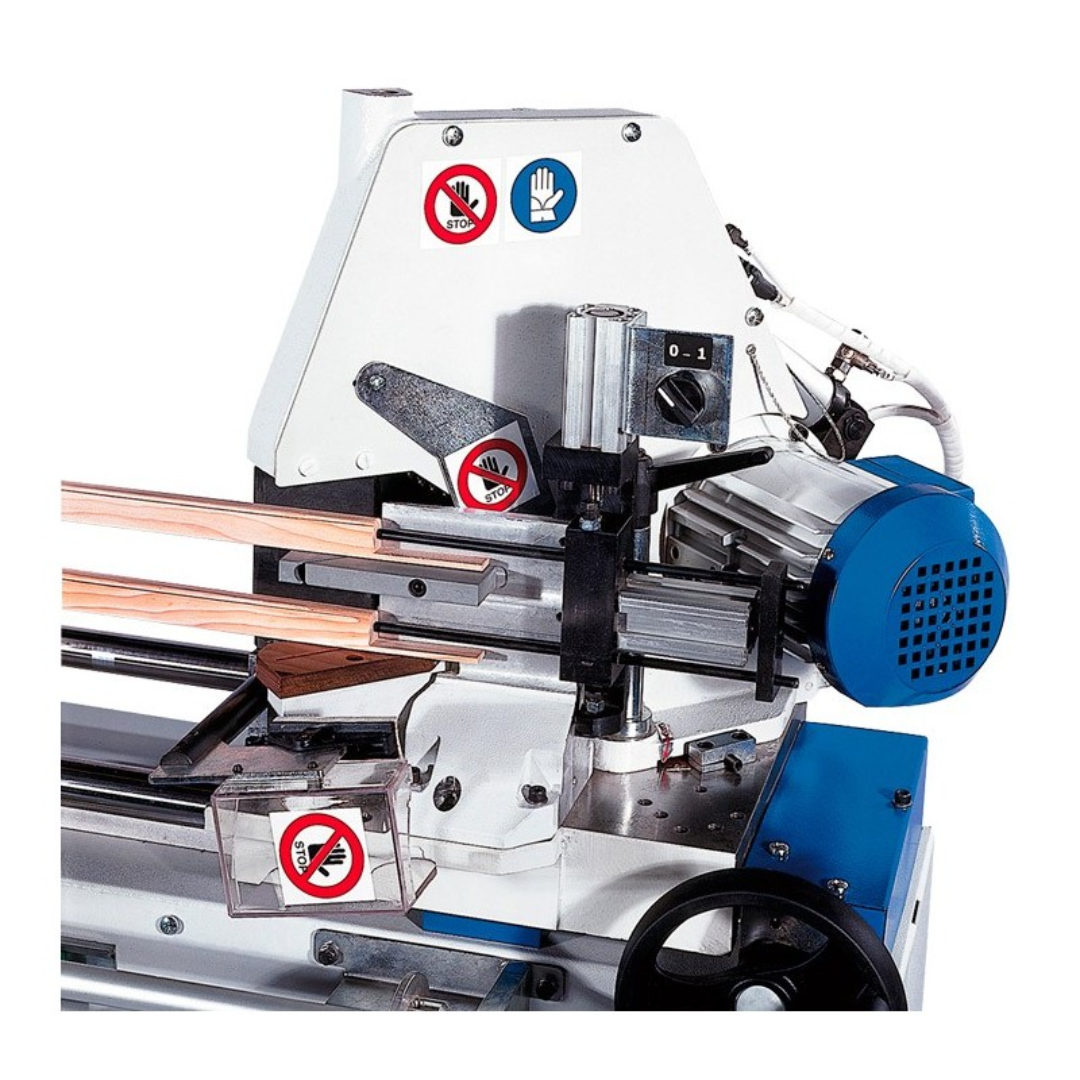

- Dual fence configuration on both cutting heads allows simultaneous cutting of two strips for increased production efficiency.
- Removable intermediate fence enables cutting of larger workpieces with increased cross-sectional dimensions.
- Two 90-degree pneumatic clamps simplify material loading and securely stabilize workpieces during cutting operations.
- Dual carbide tipped 8.5" blades provide clean cuts, excellent finish quality, and long-lasting blade performance.
- Precision mitre and straight cutting capability supports glazing bead fabrication and profile processing applications.
- Compact industrial footprint allows efficient installation in fabrication shops with limited floor space.
- 3200 RPM arbor speed delivers smooth and consistent cutting performance across aluminum and profile materials.
- Heavy-duty machine construction designed for dependable production operation and long-term durability.
OMGA TRF 527 VIS 8.5" Double Mitre Chop Saw Optional Equipment
- Additional pneumatic clamping systems for specialized material support
- Extended profile support accessories
- Custom cutting fixtures for specialized fabrication applications
- Additional production handling accessories
- Blade and tooling upgrades for specific material requirements
- Custom support systems for unique profile configurations
Optional accessories allow the OMGA TRF 527 VIS 8.5" Double Mitre Chop Saw to be customized for specialized glazing bead and profile fabrication applications.
Why Choose the OMGA TRF 527 VIS 8.5" Double Mitre Chop Saw
- Precision glass beading and profile cutting for fabrication environments.
- Digital read-out system improves positioning accuracy and repeatability.
- Dual fence system increases productivity by cutting two strips simultaneously.
- Compact industrial design maximizes shop floor efficiency.
- Manual hand wheel positioning provides smooth and accurate adjustments.
- Carbide tipped blades deliver clean cuts and extended service life.
- Ideal for glazing bead, aluminum profile, and precision mitre cutting applications.
The OMGA TRF 527 VIS 8.5" Double Mitre Chop Saw combines precision digital positioning, industrial durability, and accurate profile cutting performance to deliver an efficient solution for modern glazing and fabrication facilities.
