OMGA TRF 527 NC 8.5" Double Mitre Chop Saw Applications
- Glass beading strip cutting and processing
- Aluminum glazing bead fabrication
- Window and door manufacturing operations
- PVC and extrusion profile processing
- Precision mitre and straight cut applications
- Light industrial fabrication and assembly shops
- Architectural aluminum component manufacturing
- Production environments requiring accurate small-profile cutting

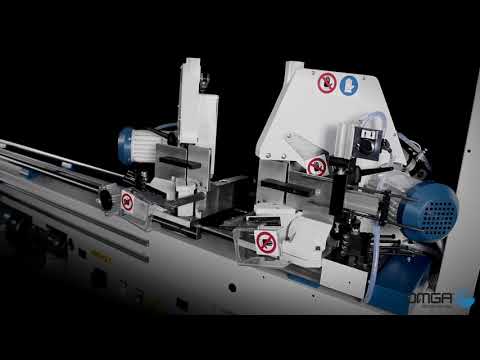

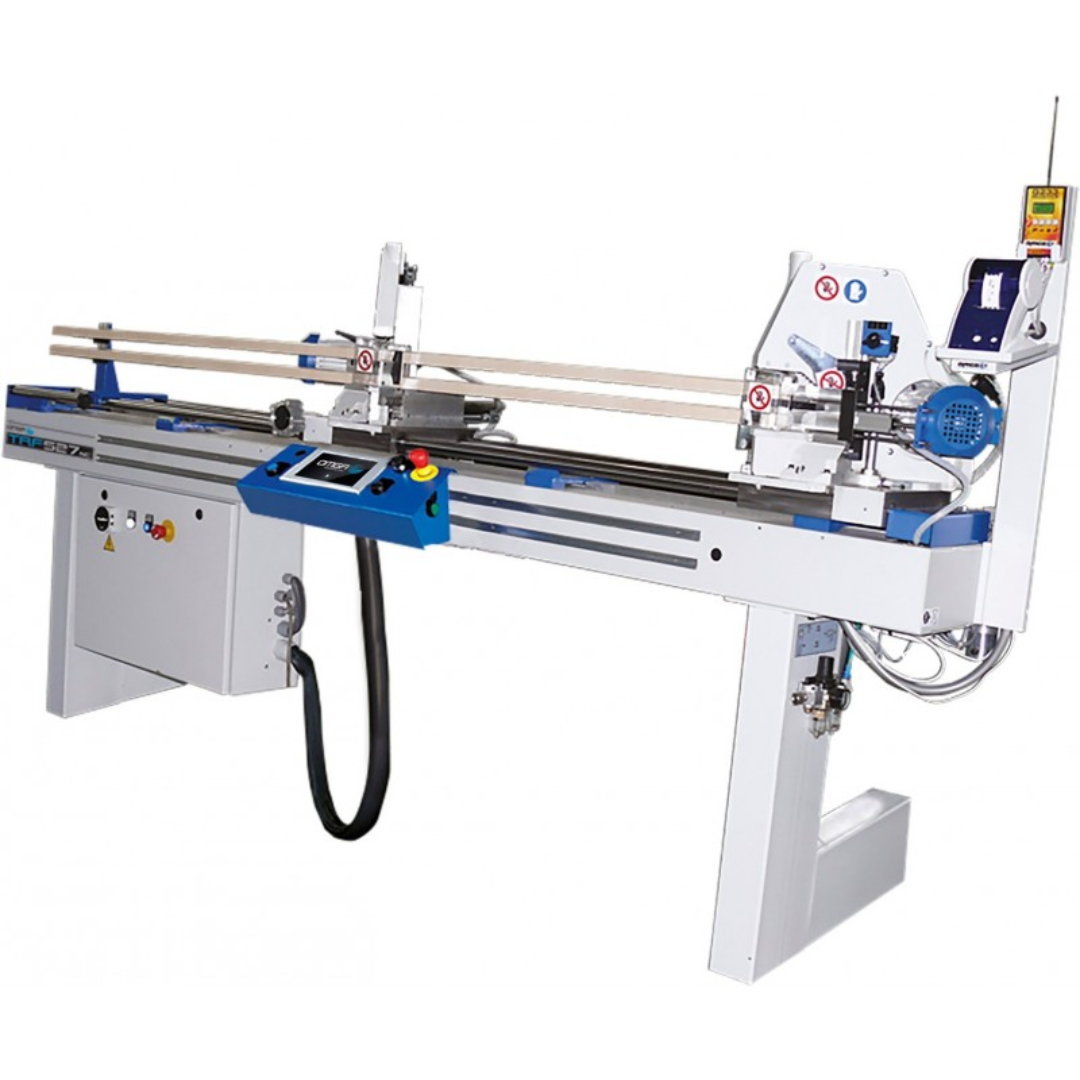

The OMGA TRF 527 NC 8.5" Double Mitre Chop Saw is designed for fabrication operations requiring accurate glass bead and profile cutting with programmable positioning and repeatable precision.
OMGA TRF 527 NC 8.5" Double Mitre Chop Saw Specifications
| Model | TRF 527 NC 8.5" Double Mitre Chop Saw |
|---|---|
| Saw Blade Diameter | 8.5" (220 mm) |
| Saw Bore | 30 mm |
| Motor Power | 2 × 1.5 HP |
| Arbor Speed | 3200 RPM |
| Maximum Distance Between Saws | 7'10" |
| Minimum Distance Between Saws | 6 1/4" |
| Minimum Distance Between Saws at 45° | 6 1/4" |
| Cross Cut Capacity at 90° | 2 5/32" |
| Cross Cut Capacity at 45° | 1 9/16" |
| Maximum Width Cutting Capacity | 2" |
| Maximum Thickness Capacity | 1 1/2" |
| Maximum Beveled Cross Cut | N/A |
| Dust Chute Size | 2 × 3 1/8" |
| Approximate Shipping Weight | 650 lbs. |
| Crated Dimensions | 137" × 27" × 59" |
| Control System | 7" Touch-Screen NC Controller |
OMGA TRF 527 NC 8.5" Double Mitre Chop Saw Features & Performance
- Dual 1.5 HP industrial motors provide reliable cutting performance for glass beading strips and profile fabrication applications.

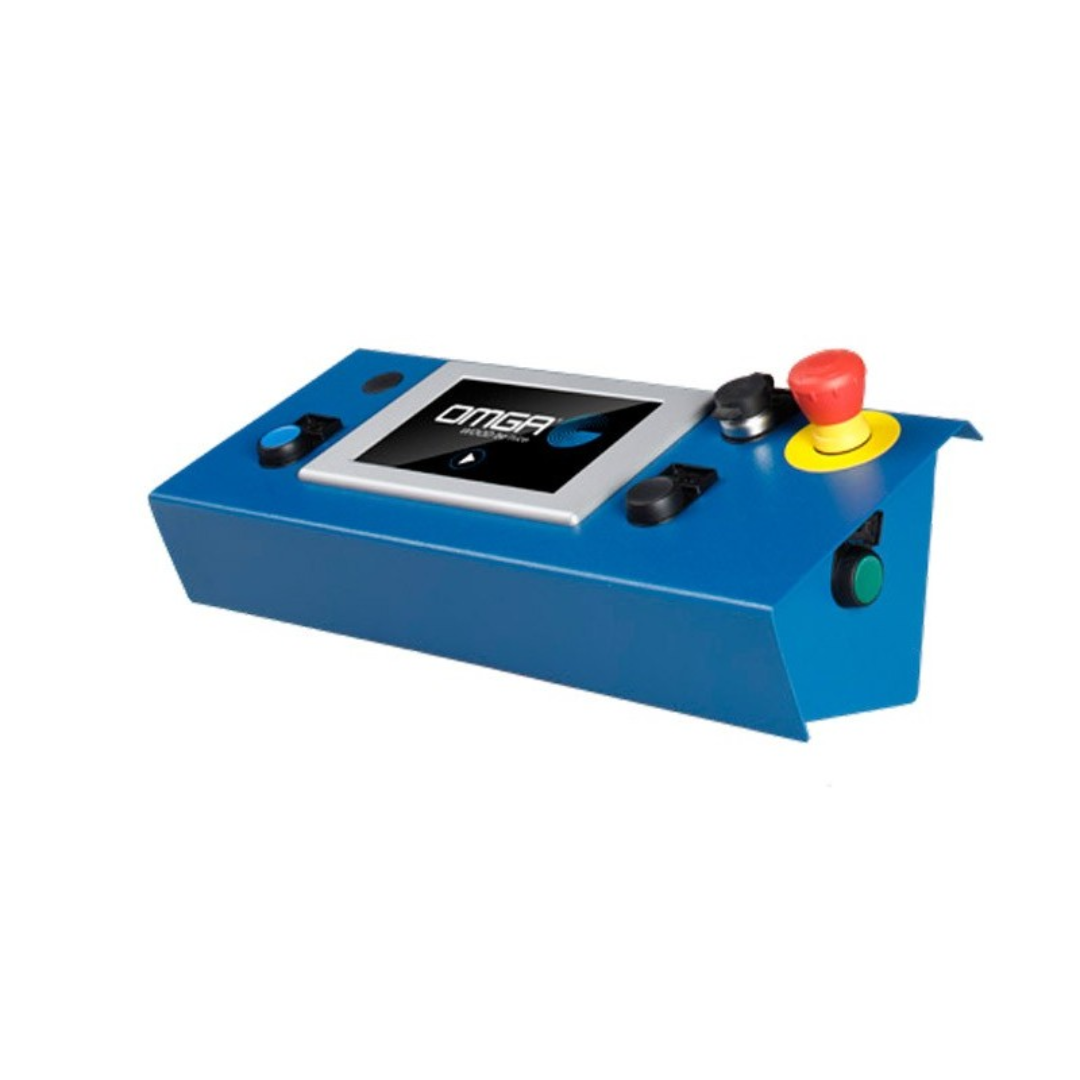

- Computerized NC positioning system allows operators to position the movable head accurately through the integrated 7" touch-screen display.

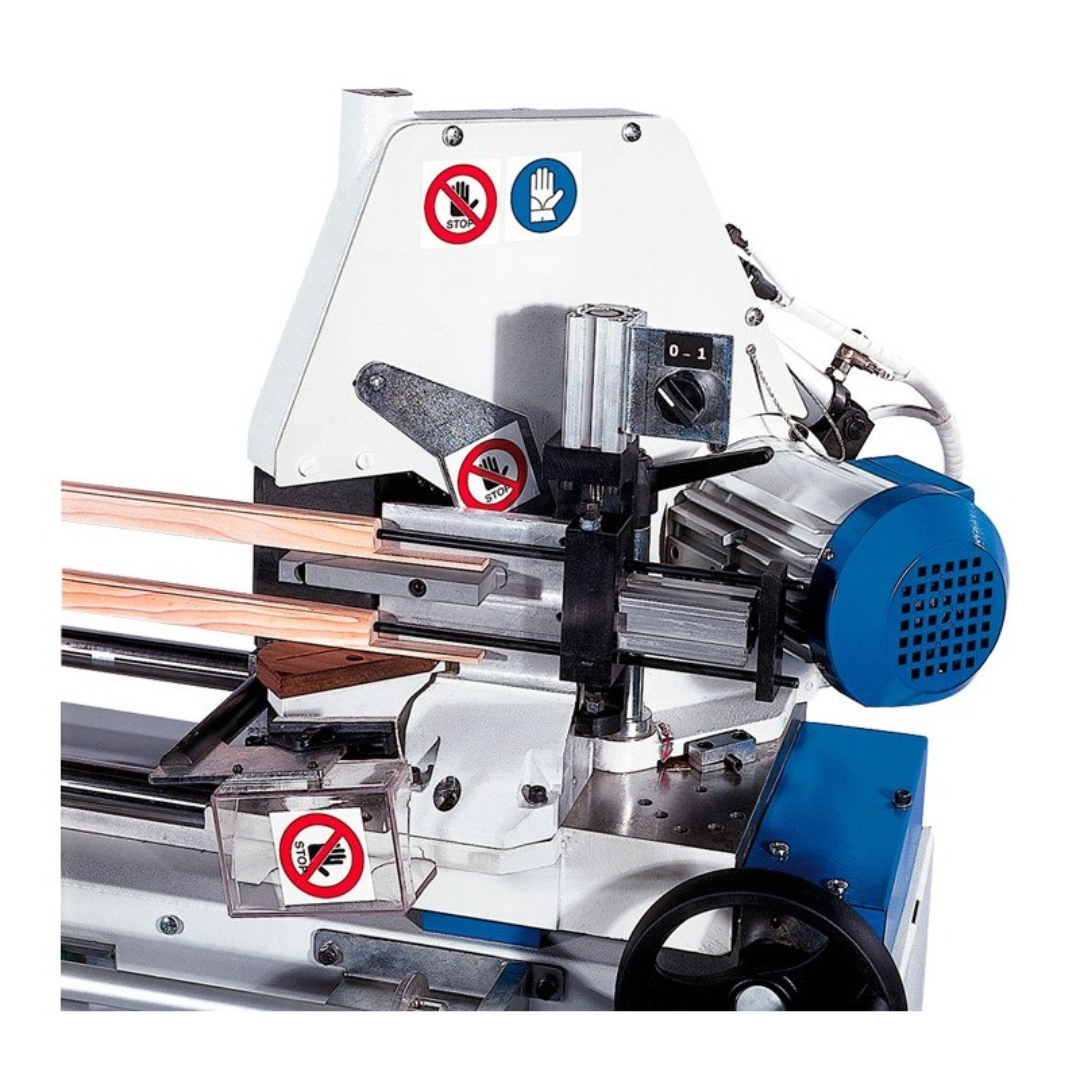

- Motorized movable left cutting head operates smoothly through a precision transmission system for repeatable positioning accuracy.
- Ball bushing and hardened steel guide system ensures smooth movement, minimal resistance, and precise head positioning.
- Dual fence configuration on each cutting head allows simultaneous cutting of two strips for increased productivity.
- Removable intermediate fence enables the cutting of larger workpieces with increased cross-sectional dimensions.
- Two 90-degree pneumatic clamps simplify material loading while securely stabilizing workpieces during cutting operations.
- Dual carbide tipped 8.5" blades provide clean, accurate cuts and long-lasting cutting performance.
- Positive mitre positioning supports accurate straight cuts and mitre cutting applications.
- Compact industrial footprint allows efficient installation in fabrication facilities with limited floor space.
- 3200 RPM arbor speed delivers smooth and consistent cutting quality across aluminum and glazing bead materials.
- Heavy-duty machine construction designed for dependable daily production use and long-term operational durability.
OMGA TRF 527 NC 8.5" Double Mitre Chop Saw Optional Equipment
- Additional pneumatic clamping systems for specialized material support
- Extended profile support accessories
- Specialized cutting fixtures for unique fabrication requirements
- Additional production automation accessories
- Custom material handling configurations
- Blade and tooling upgrades for specific profile materials
Optional accessories allow the OMGA TRF 527 NC 8.5" Double Mitre Chop Saw to be configured for specialized glazing, extrusion, and profile fabrication applications.
Why Choose the OMGA TRF 527 NC 8.5" Double Mitre Chop Saw
- Precision glass beading and profile cutting for fabrication environments.
- Computerized NC positioning improves repeatability and operator efficiency.
- Dual fence system increases productivity by cutting two strips simultaneously.
- Compact industrial design maximizes shop floor efficiency.
- Ball bushing guide system ensures smooth and precise movement.
- Carbide tipped blades deliver clean cuts and long service life.
- Ideal for glazing bead, aluminum profile, and precision mitre cutting applications.
The OMGA TRF 527 NC 8.5" Double Mitre Chop Saw combines programmable positioning, compact industrial durability, and precision cutting performance to deliver an efficient solution for modern glazing and profile fabrication facilities.
