OMGA TRF 527 8.5" Double Mitre Chop Saw Applications
- Glass beading strip fabrication and processing
- Window and glazing manufacturing operations
- Aluminum profile and extrusion cutting
- PVC and vinyl profile fabrication
- Precision mitre and straight cut applications
- Architectural aluminum component processing
- Light industrial fabrication and assembly shops
- Production environments requiring accurate small-profile cutting

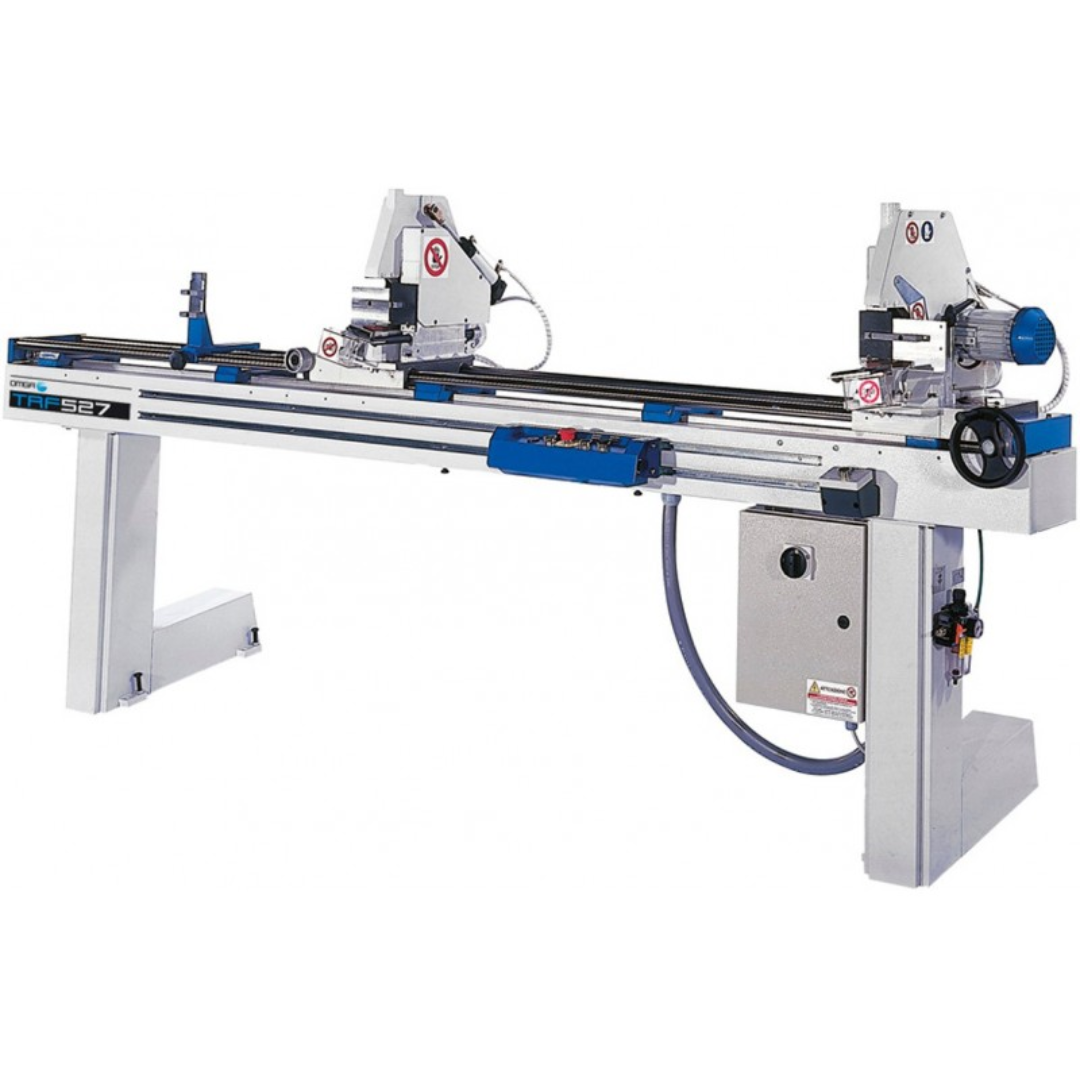

The OMGA TRF 527 8.5" Double Mitre Chop Saw is designed for fabrication operations requiring accurate glass bead and profile cutting with dependable manual positioning and repeatable precision.
OMGA TRF 527 8.5" Double Mitre Chop Saw Specifications
| Model | TRF 527 8.5" Double Mitre Chop Saw |
|---|---|
| Saw Blade Diameter | 8.5" (220 mm) |
| Saw Bore | 30 mm |
| Motor Power | 2 × 1.5 HP |
| Arbor Speed | 3200 RPM |
| Maximum Distance Between Saws | 7'10" |
| Minimum Distance Between Saws | 6 1/4" |
| Minimum Distance Between Saws at 45° | 6 1/4" |
| Cross Cut Capacity at 90° | 2 5/32" |
| Cross Cut Capacity at 45° | 1 9/16" |
| Maximum Width Cutting Capacity | 2" |
| Maximum Thickness Capacity | 1 1/2" |
| Maximum Depth of Cut | 1 9/16" |
| Maximum Beveled Cross Cut | N/A |
| Dust Chute Size | 2 × 3 1/8" |
| Approximate Shipping Weight | 650 lbs. |
| Crated Dimensions | 137" × 27" × 59" |
| Positioning System | Manual Transmission with Mechanical Display |
OMGA TRF 527 8.5" Double Mitre Chop Saw Features & Performance
- Dual 1.5 HP industrial motors provide reliable cutting performance for glass beading strips and precision profile fabrication applications.
- Manual transmission positioning system allows smooth and accurate movable head adjustment for repeatable cutting operations.
- Hand wheel and toothed belt adjustment mechanism provides easy movable head positioning with precise manual control.
- Mechanical measurement display allows operators to quickly verify cutting dimensions during setup and production.
- Ball bushing and hardened steel guide system ensures smooth movement and accurate head positioning performance.
- Dual fence configuration on both cutting heads allows simultaneous cutting of two strips for increased productivity.
- Removable intermediate fence enables cutting of larger workpieces with increased cross-sectional dimensions.
- Two 90-degree pneumatic clamps simplify material placement while securely stabilizing workpieces during cutting operations.

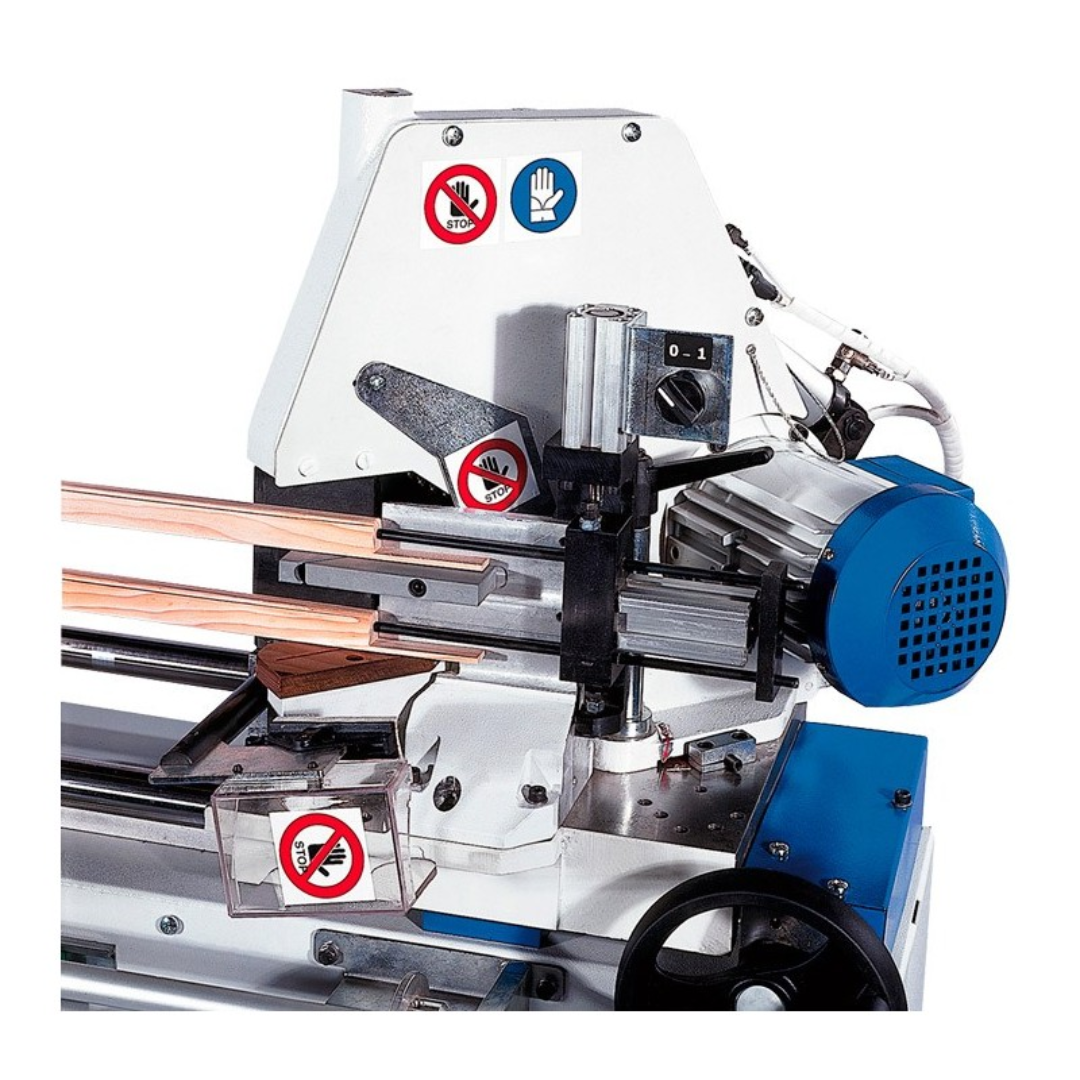

- Dual carbide tipped 8.5" blades provide clean cuts, excellent finish quality, and long-lasting cutting performance.
- Precision mitre and straight cutting capability supports glazing bead fabrication and aluminum profile processing applications.
- Compact industrial footprint allows efficient installation in fabrication facilities with limited floor space.
- 3200 RPM arbor speed delivers smooth and consistent cutting quality across aluminum and profile materials.
- Heavy-duty machine construction designed for dependable daily production use and long-term durability.
OMGA TRF 527 8.5" Double Mitre Chop Saw Optional Equipment
- Additional pneumatic clamping systems for specialized material support
- Extended profile support accessories
- Custom cutting fixtures for specialized fabrication applications
- Additional production handling accessories
- Blade and tooling upgrades for specific material requirements
- Custom support systems for unique profile configurations
Optional accessories allow the OMGA TRF 527 8.5" Double Mitre Chop Saw to be configured for specialized glazing bead and profile fabrication applications.
Why Choose the OMGA TRF 527 8.5" Double Mitre Chop Saw
- Precision glass beading and profile cutting for fabrication environments.
- Manual hand wheel positioning provides smooth and accurate adjustments.
- Dual fence system increases productivity by cutting two strips simultaneously.
- Compact industrial design maximizes shop floor efficiency.
- Mechanical display system supports repeatable positioning accuracy.
- Carbide tipped blades deliver clean cuts and extended service life.
- Ideal for glazing bead, aluminum profile, and precision mitre cutting applications.
The OMGA TRF 527 8.5" Double Mitre Chop Saw combines dependable manual positioning, industrial durability, and precision profile cutting performance to deliver an efficient solution for modern glazing and fabrication facilities.
