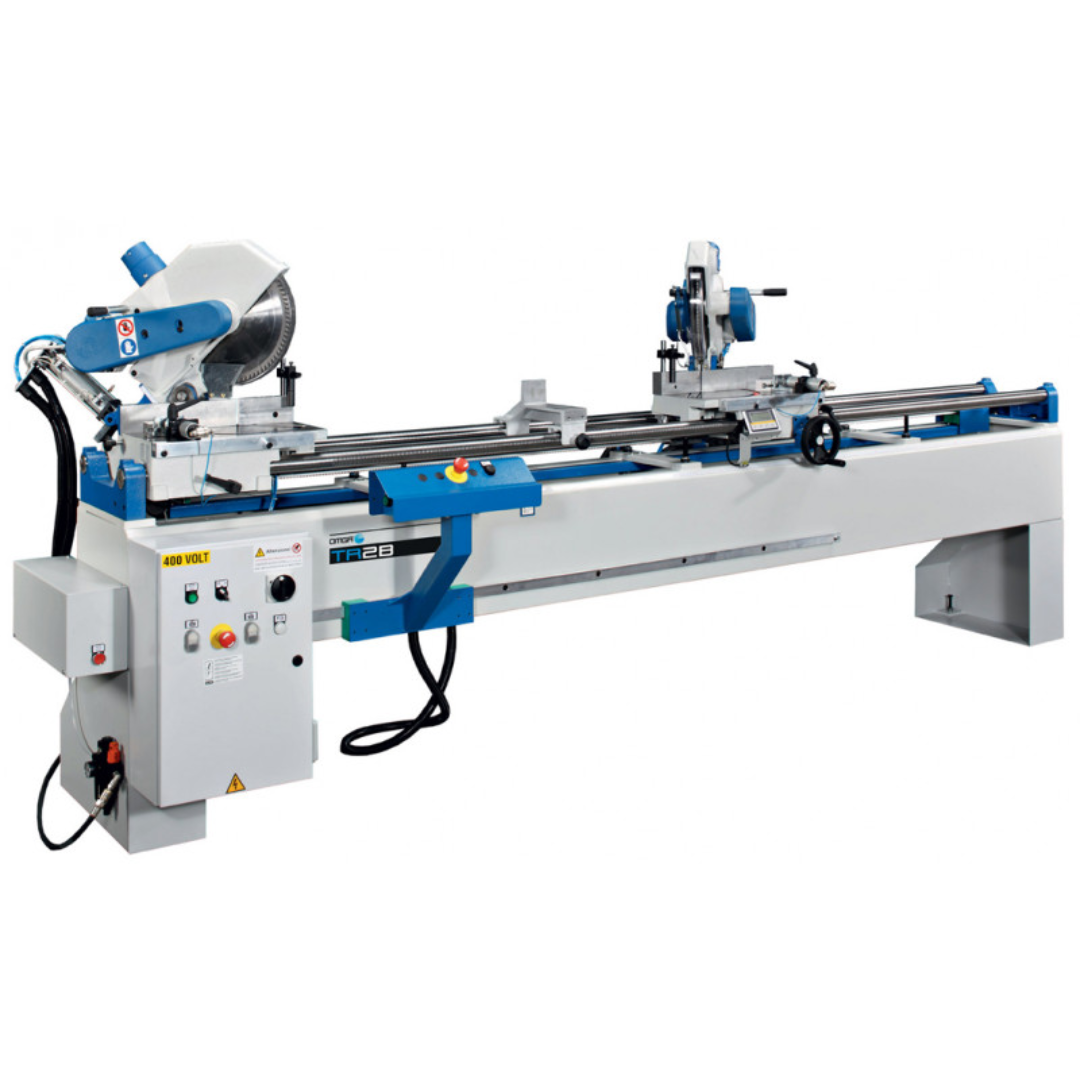

OMGA TR 2B VIS 14" Double Mitre Chop Applications
- Aluminum window and door fabrication facilities
- Architectural aluminum and extrusion processing
- Curtain wall and storefront manufacturing
- PVC and vinyl profile cutting applications
- Precision industrial mitre cutting operations
- Commercial fabrication and assembly shops
- Production environments requiring repeatable angle cutting
- Industrial profile processing and frame manufacturing
The OMGA TR 2B VIS 14" Double Mitre Chop is ideal for fabrication shops requiring accurate 45° and 90° mitre cutting with reliable digital positioning and industrial-grade production performance.
OMGA TR 2B VIS 14" Double Mitre Chop Specifications
| Model | TR 2B VIS 14" Double Mitre Chop |
|---|---|
| Saw Blade Diameter | 14" |
| Saw Bore | 1" |
| Motor Power | 2 × 3 HP |
| Arbor Speed | 3200 RPM |
| Maximum Distance Between Saws | 9'2" |
| Minimum Distance Between Saws | 13 3/16" |
| Minimum Distance Between Saws at 45° | 18 1/8" or 9 7/16" (+ optional alternate setup) |
| Cross Cut Capacity at 90° | 6 1/2" |
| Cross Cut Capacity at 45° | 4 1/2" |
| Maximum Width Cutting Capacity | 6 5/8" |
| Maximum Thickness Capacity | 4 1/8" |
| Maximum Depth of Cut | 4 1/4" |
| Dust Chute Size | 2 × 3 1/8" |
| Approximate Shipping Weight | 1,573 lbs. |
| Crated Dimensions | 150" × 39" × 53" |
| Positioning System | Digital Read-Out |
OMGA TR 2B VIS 14" Double Mitre Chop Features & Performance
- Dual 3 HP industrial motors provide consistent cutting performance and dependable operation in demanding fabrication environments.

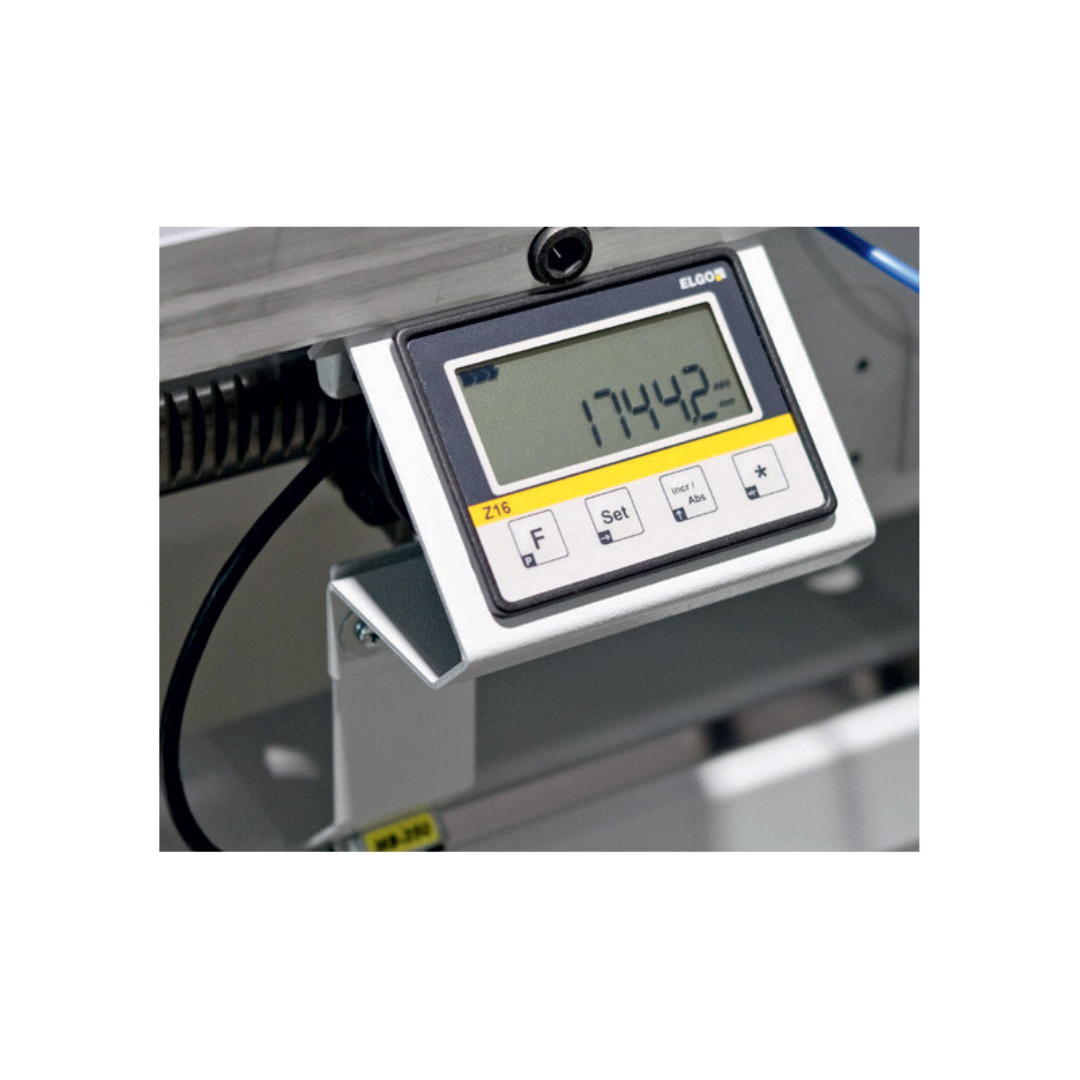

- Digital read-out positioning system improves measuring accuracy and allows precise repeatable positioning during production cutting.

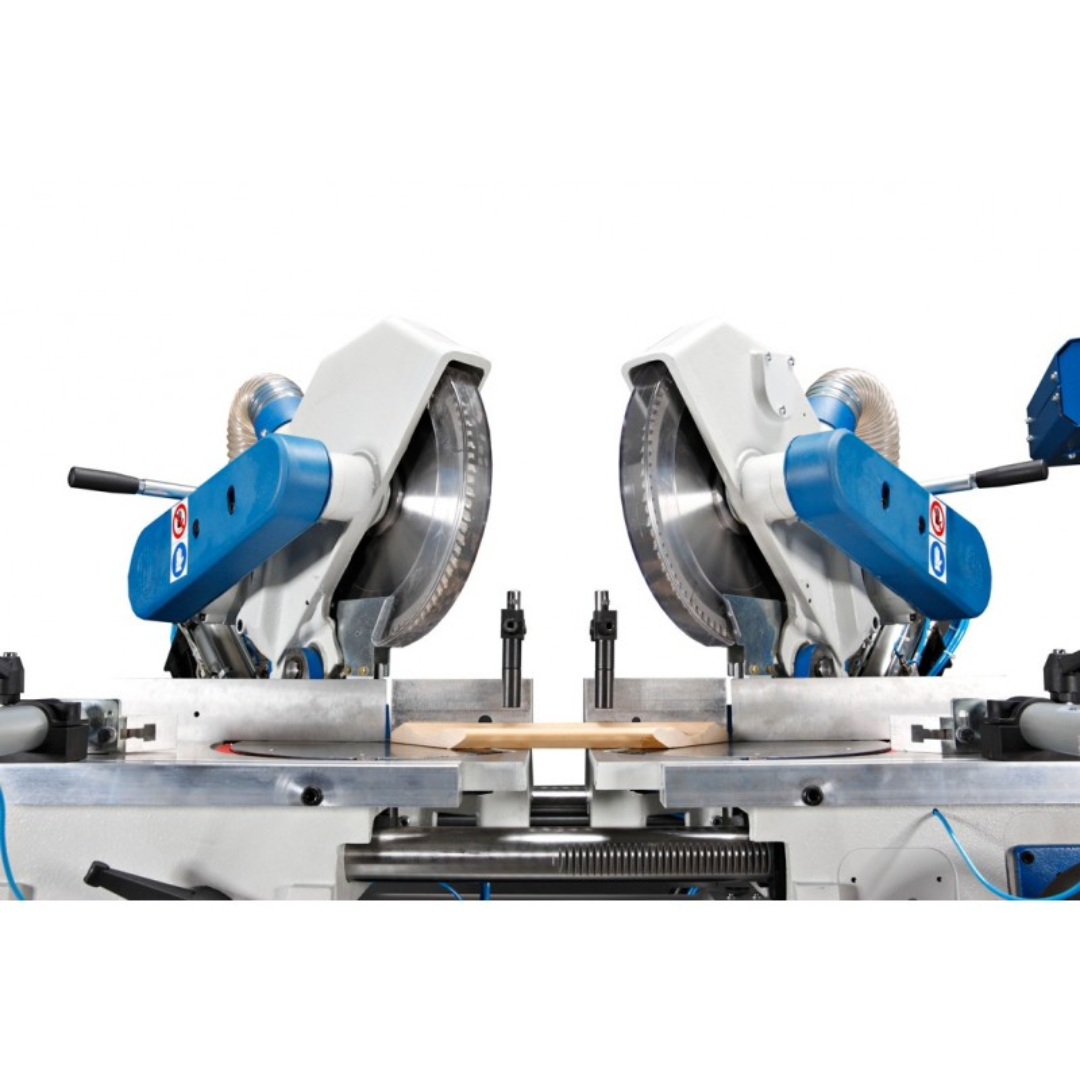

- Dual-head saw configuration includes one fixed left cutting head and one movable right cutting head for flexible cutting operations.
- Positive mitering stops at +45°, -45°, and 90° ensure fast and accurate angle setup for common fabrication applications.
- Electro-pneumatic machine control system provides smooth automated operation and reliable production cycling.
- Three automatic working cycles support simultaneous blade cycling, alternate blade cycling, and single-head cutting operation.
- Alternate cutting cycle capability enables safe and precise cutting of extremely short pieces at 45-degree angles.
- Standard pneumatic vertical clamps securely stabilize workpieces for improved cut quality, operator safety, and dimensional accuracy.
- Integrated overload protection on both motors helps protect the electrical system and extend machine service life.
- 3200 RPM arbor speed produces smooth, accurate cuts in aluminum and profile materials.
- Large 9'2" cutting capacity accommodates long profiles and extrusion materials for industrial fabrication applications.
- Heavy-duty industrial frame construction designed for long-term durability and daily production use.
- Dual dust chute system supports cleaner operation and improved dust extraction performance.
OMGA TR 2B VIS 14" Double Mitre Chop Optional Equipment
- Additional vertical pneumatic clamps for enhanced material stability
- Horizontal pneumatic clamping systems
- Extended cutting length configurations
- Short-piece support brackets for small component cutting
- Air-over-oil head descent system for smoother blade operation
- Spray mist lubrication system for improved blade cooling and cut quality
- Additional production accessories for specialized fabrication applications
Optional accessories allow the OMGA TR 2B VIS 14" Double Mitre Chop to be customized for specialized production requirements, increased efficiency, and enhanced cutting performance.
Why Choose the OMGA TR 2B VIS 14" Double Mitre Chop
- Precision double mitre cutting for aluminum and profile fabrication.
- Digital read-out system improves positioning accuracy and repeatability.
- Dual 3 HP motors provide industrial-grade cutting performance.
- Flexible operating cycles support multiple production applications.
- Heavy-duty construction built for continuous fabrication environments.
- Large cutting capacity accommodates long extrusion materials.
- Reliable electro-pneumatic controls ensure dependable daily operation.
The OMGA TR 2B VIS 14" Double Mitre Chop combines precision digital positioning, industrial durability, and versatile cutting performance to deliver an efficient and dependable solution for modern fabrication facilities.
