OMGA TR 2B NC 14" Double Mitre Chop Applications
- Aluminum window and door manufacturing operations
- Curtain wall and storefront fabrication facilities
- PVC and vinyl extrusion profile cutting applications
- Architectural aluminum frame production
- Industrial profile and extrusion processing lines
- Precision miter cutting for fabrication shops
- Production environments requiring repeatable angle accuracy
- High-volume manufacturing operations needing programmable cutting cycles
The OMGA TR 2B NC 14" Double Mitre Chop is ideal for fabrication facilities requiring accurate 45° and 90° mitre cutting with automated positioning and industrial-duty reliability.
OMGA TR 2B NC 14" Double Mitre Chop Specifications
| Model | TR 2B NC 14" Double Mitre Chop |
|---|---|
| Saw Blade Diameter | 14" |
| Saw Bore | 1" |
| Motor Power | 2 × 3 HP |
| Arbor Speed | 3200 RPM |
| Maximum Distance Between Saws | 9'2" |
| Minimum Distance Between Saws | 13 3/16" |
| Minimum Distance Between Saws at 45° | 18 1/8" or 9 7/16" (+ optional alternate setup) |
| Cross Cut Capacity at 90° | 6 1/2" |
| Cross Cut Capacity at 45° | 4 1/2" |
| Maximum Depth of Cut | 4 1/4" |
| Dust Chute Size | 2 × 3 1/8" |
| Approximate Shipping Weight | 1,573 lbs. |
| Crated Dimensions | 150" × 39" × 53" |
| Control System | 7" Touch-Screen NC Computerized Traverse |
OMGA TR 2B NC 14" Double Mitre Chop Features & Performance
- Dual 3 HP industrial motors provide reliable cutting power and consistent blade performance for demanding production applications.
- Computerized NC traverse system allows accurate programmable positioning and repeatable production cutting operations.

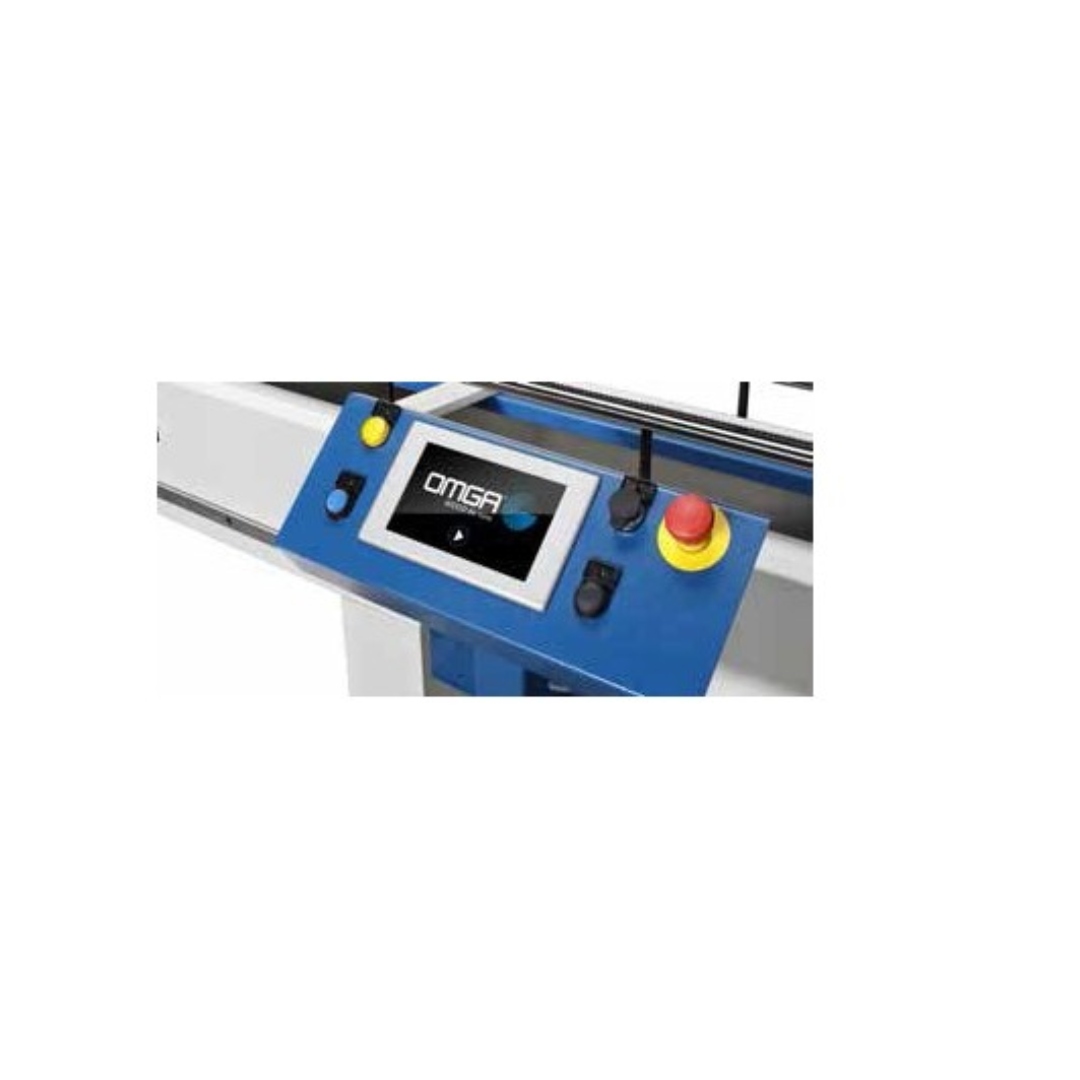

- 7" touch-screen control interface simplifies machine setup, positioning adjustments, and operational programming.

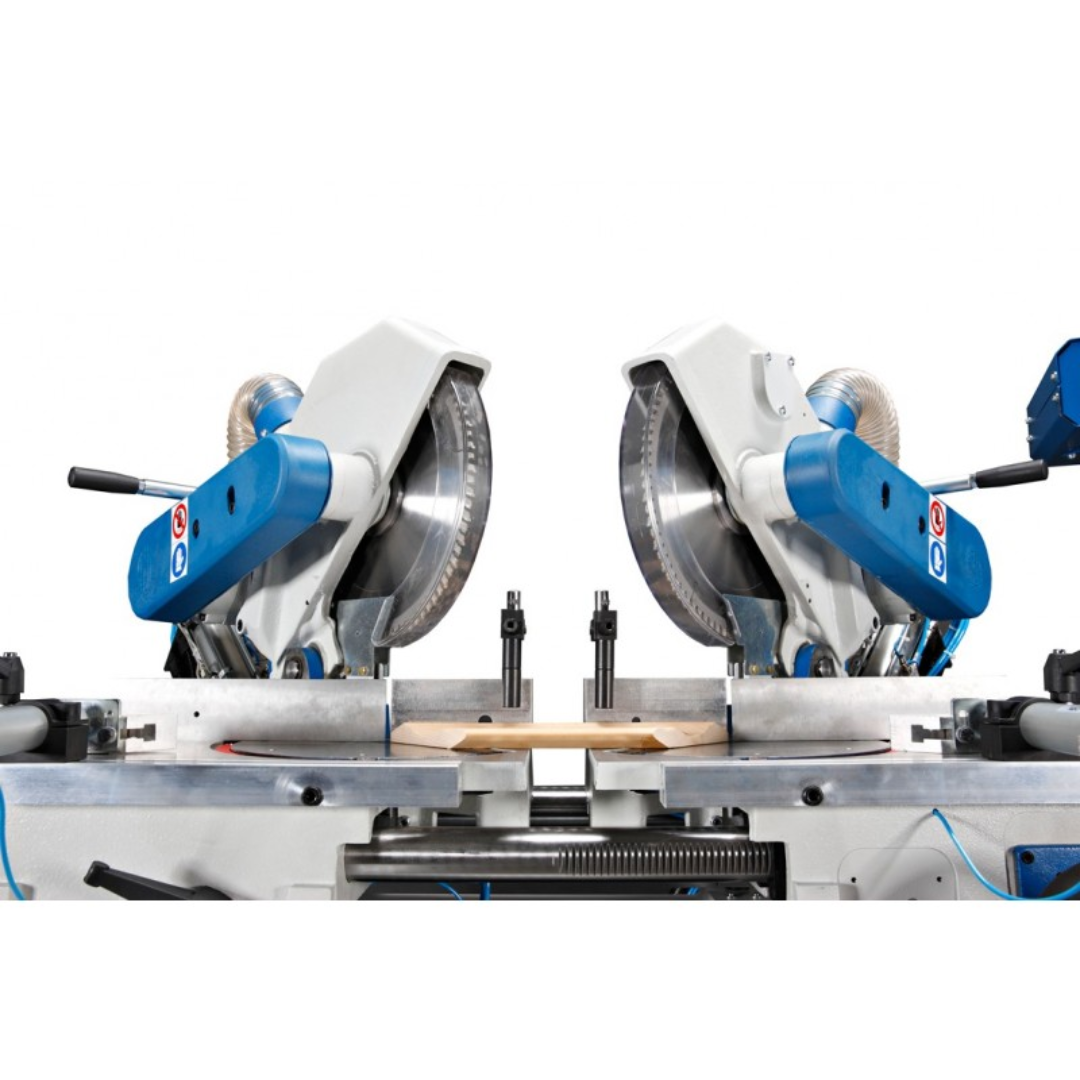

- Dual-head cutting configuration includes one fixed left cutting head and one movable right cutting head for flexible processing capabilities.
- Positive mitering stops at +45°, -45°, and 90° ensure fast and accurate angular positioning.
- Electro-pneumatic control system provides smooth machine operation and dependable automated cycle performance.
- Three automatic cutting cycles allow simultaneous blade cycling, alternate blade cycling for short pieces, and single-head operation.
- Alternate cycle capability enables safe and accurate cutting of extremely short parts at 45 degrees.
- Standard pneumatic vertical clamps securely stabilize workpieces during cutting operations for improved accuracy and operator safety.
- Integrated overload protection on both main motors helps protect electrical components and extend machine life.
- 3200 RPM arbor speed delivers smooth, clean cuts across aluminum and profile materials.
- Large 9'2" cutting length capacity supports long extrusion and profile processing applications.
- Heavy-duty industrial construction designed for continuous production use in fabrication environments.
- Dual dust chutes improve dust extraction and help maintain cleaner cutting environments.
OMGA TR 2B NC 14" Double Mitre Chop Optional Equipment
- Additional vertical pneumatic clamps for increased workpiece stability
- Horizontal pneumatic clamping systems
- Extended cutting length configurations
- Short-piece support brackets
- Air-over-oil descent system for smoother cutting action
- Spray mist lubrication system for improved blade cooling and finish quality
- Custom production support accessories for specialized applications
Optional equipment allows the OMGA TR 2B NC 14" Double Mitre Chop to be configured for specialized fabrication requirements, increased automation, and enhanced production efficiency.
Why Choose the OMGA TR 2B NC 14" Double Mitre Chop
- Precision programmable double mitre cutting for industrial fabrication.
- Computerized traverse system improves repeatability and production efficiency.
- Dual 3 HP motors deliver reliable cutting performance for aluminum and profiles.
- Flexible automatic operating cycles support multiple production requirements.
- Large cutting capacity handles long profiles and extrusion materials.
- Industrial electro-pneumatic controls provide dependable daily operation.
- Heavy-duty construction built for high-production manufacturing environments.
The OMGA TR 2B NC 14" Double Mitre Chop combines programmable automation, industrial-grade durability, and precision angular cutting performance to deliver an ideal solution for modern aluminum and profile fabrication facilities.
