OMGA TR 2B I INT NC Compound Double Mitre Saw Applications
- Aluminum window and door manufacturing operations
- PVC extrusion and profile fabrication facilities
- Architectural metal fabrication and precision miter cutting
- Industrial production environments requiring automated double mitre cutting
- Cabinet, furniture, and custom frame manufacturing applications
- High-volume production cutting requiring repeatable compound angle accuracy
- Precision cutting operations for extrusions, profiles, and structural components
Ideal for manufacturers requiring automated positioning, precise compound angle cutting, and smooth high-production workflow performance.
OMGA TR 2B I INT NC Compound Double Mitre Saw Specifications
| Model | TR 2B I INT NC |
|---|---|
| Machine Type | 14" Compound Double Mitre Chop Saw |
| Saw Blade Diameter | 370 mm (15") |
| Saw Bore | 1" |
| Motor Power | 2 × 4 HP |
| Arbor Speed | 3200 RPM |
| Maximum Distance Between Saws | 9' 2" |
| Minimum Distance Between Saws | 23 5/8" |
| Minimum Distance Between Saws at 45° | 23 5/8" |
| Cross Cut Capacity at 90° | 6 3/4" |
| Cross Cut Capacity at 45° | 4 1/2" |
| Maximum Beveled Cross Cut | 6 3/4" |
| Maximum Depth of Cut | 4 1/4" |
| Width Cutting Capacity | 6 1/2" |
| Thickness Capacity | 4 11/16" |
| Dust Chute | 2 × 3 1/8" |
| Approximate Shipping Weight | 1,753 lbs. |
| Crated Dimensions | 152" × 45" × 65" |

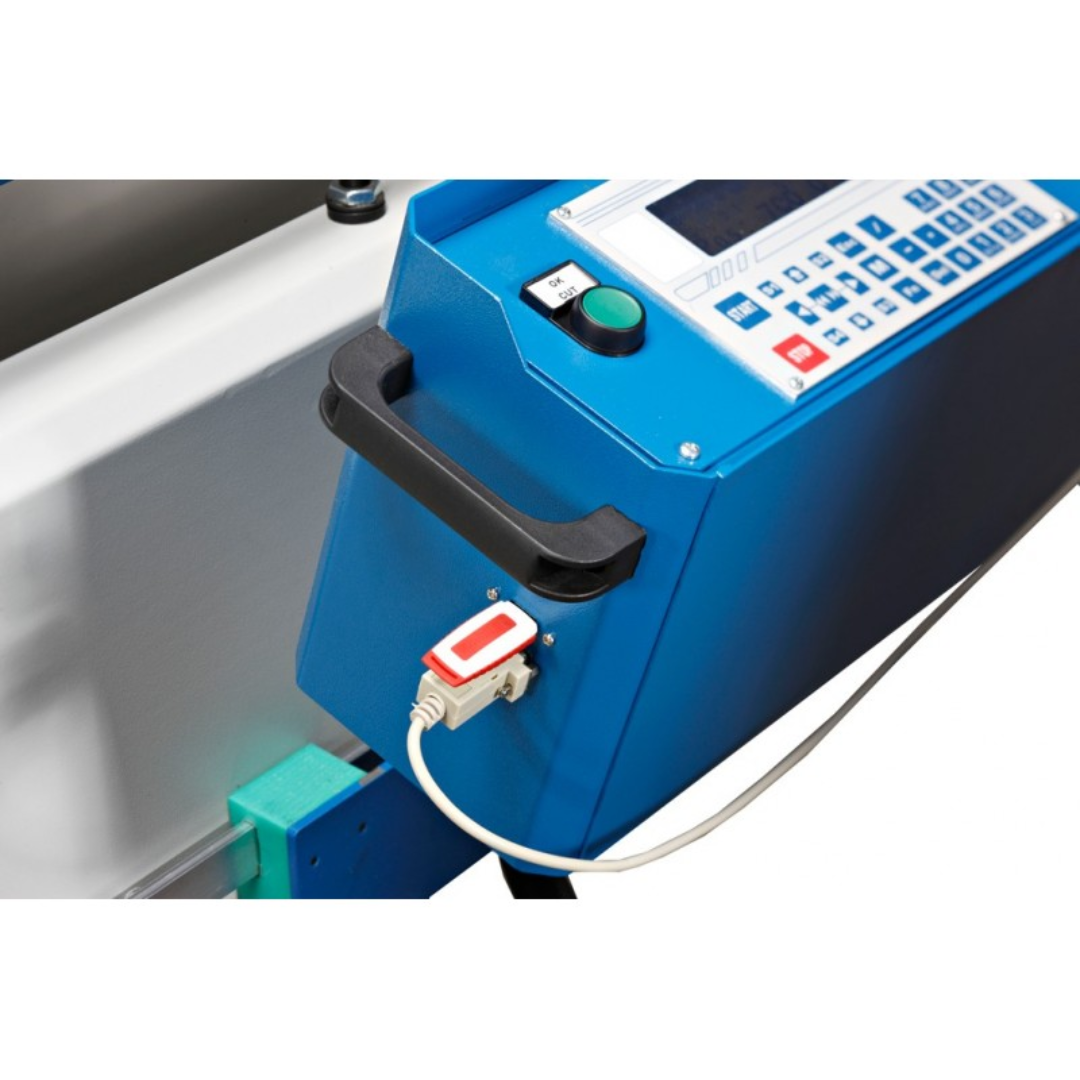

| Control System | 7" Touch-Screen NC Computerized Traverse |
OMGA TR 2B I INT NC Compound Double Mitre Saw Performance & Construction

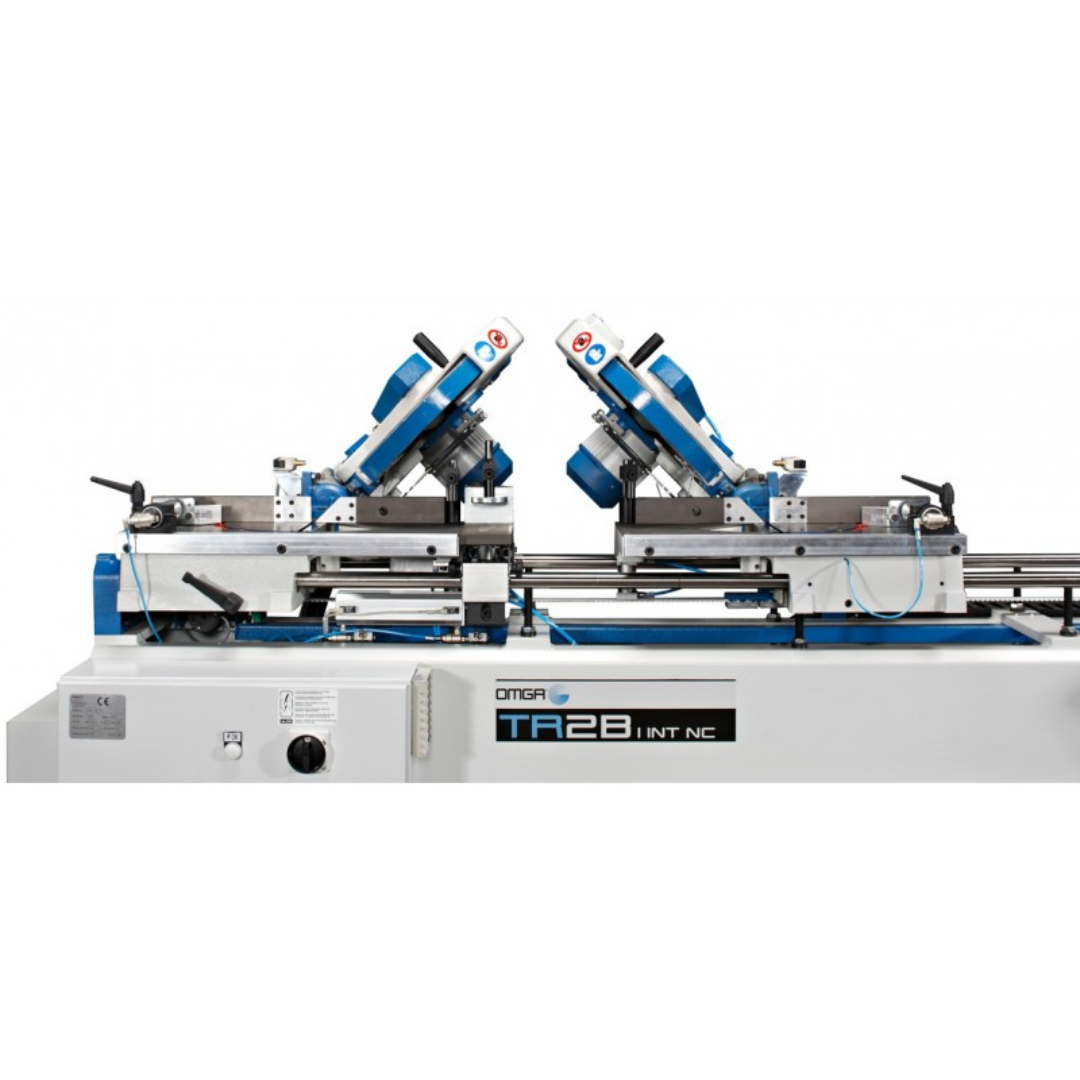

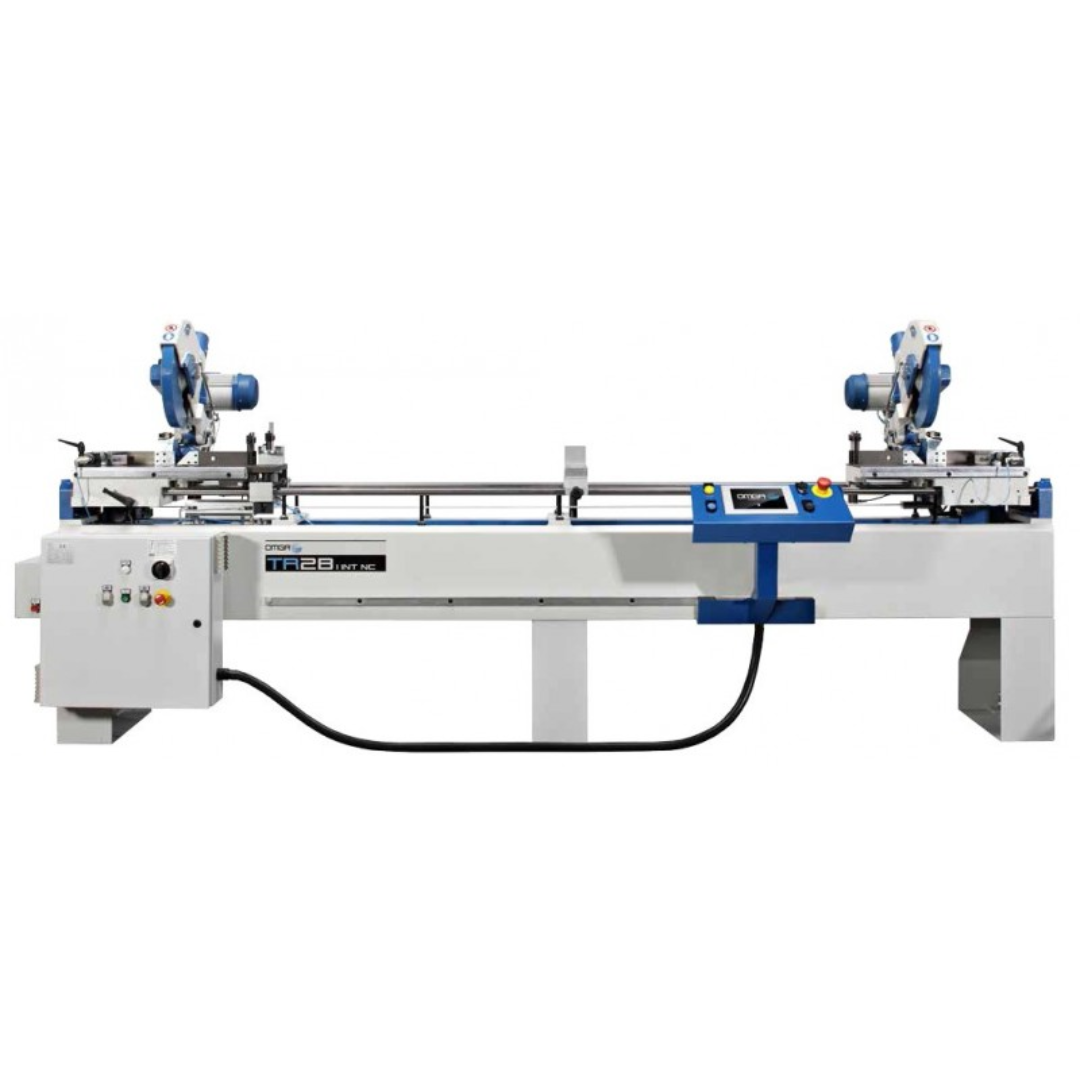

- Dual-head compound mitre configuration features one fixed left cutting head and one movable right cutting head for flexible and accurate cutting operations.

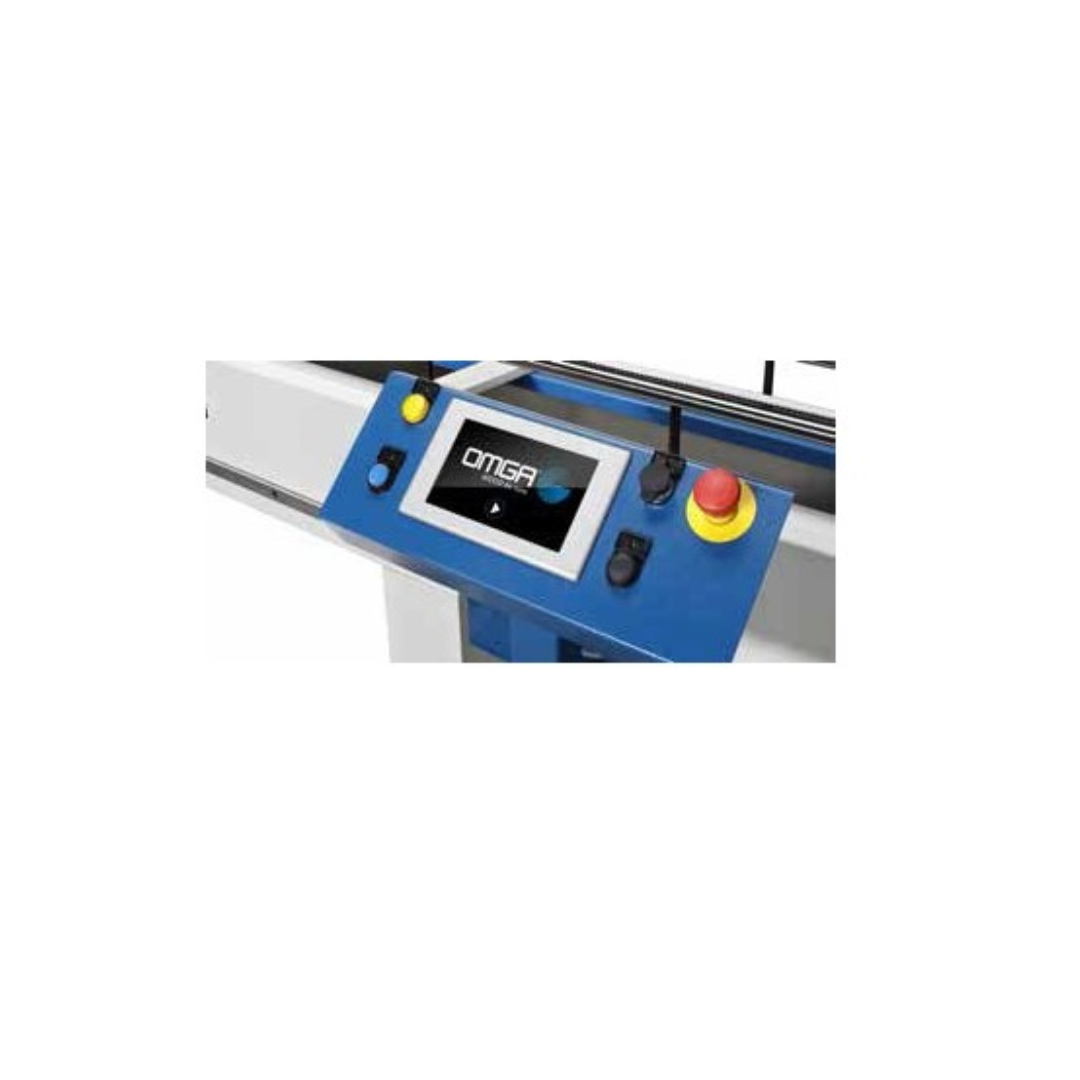

- Computerized automatic traverse system allows precise programmable positioning through an integrated 7" touch-screen NC display interface.
- Precision ball bushing guide system ensures exceptionally smooth movable head travel and accurate positioning during repeated production cycles.
- Dual 4 HP industrial motors provide consistent cutting power for aluminum, PVC, and profile materials in demanding production environments.
- Positive angle stops on both heads deliver fast setup and repeatable cutting accuracy for common mitre angles.
- Pneumatic vertical clamping system stabilizes material during cutting to improve safety, precision, and repeatability.
- Large cutting capacity supports profile widths up to 6 1/2" and material thicknesses up to 4 11/16".
- 3200 RPM arbor speed provides smooth cutting performance with reduced material tear-out and improved cut quality.
- Heavy-duty industrial construction designed for continuous production use and long-term operational reliability.
- Integrated dust chute system helps improve shop cleanliness and supports dust collection system integration.
- Expandable machine platform can be equipped with additional pneumatic clamps, air-over-oil descent systems, short-piece brackets, and spray mist lubrication systems.
OMGA TR 2B I INT NC Compound Double Mitre Saw Optional Equipment
- Additional horizontal pneumatic clamps
- Additional vertical pneumatic clamps
- Extended cutting length configurations
- Air-over-oil controlled blade descent system
- Short-piece support brackets
- Spray mist lubrication system
- Custom automation and production enhancements
The modular design of the OMGA TR 2B I INT NC Compound Double Mitre Saw allows manufacturers to configure the machine for specialized production requirements and increased throughput.
Why Choose the OMGA TR 2B I INT NC Compound Double Mitre Saw
- Automated computerized traverse system improves production efficiency and positioning accuracy.
- Dual industrial 4 HP motors provide powerful and reliable cutting performance.
- Precision ball bushing guides ensure smooth movement and repeatable cuts.
- Compound mitre capability supports advanced fabrication and profile cutting applications.
- Heavy-duty industrial construction built for continuous manufacturing environments.
- Expandable options allow customization for specific production needs.
- Touch-screen NC controls simplify machine setup and operation.
The OMGA TR 2B I INT NC Compound Double Mitre Saw combines computerized automation, industrial durability, and precision compound cutting performance, making it an ideal solution for modern aluminum, PVC, and profile fabrication operations.
