OMGA TR 2B 14" Double Mitre Chop Saw Applications
- Aluminum window and door manufacturing
- Architectural extrusion and profile fabrication
- Curtain wall and storefront production facilities
- PVC and vinyl profile cutting operations
- Precision mitre cutting for fabrication shops
- Industrial frame and extrusion processing
- Commercial aluminum fabrication environments
- Production operations requiring repeatable angular cutting accuracy

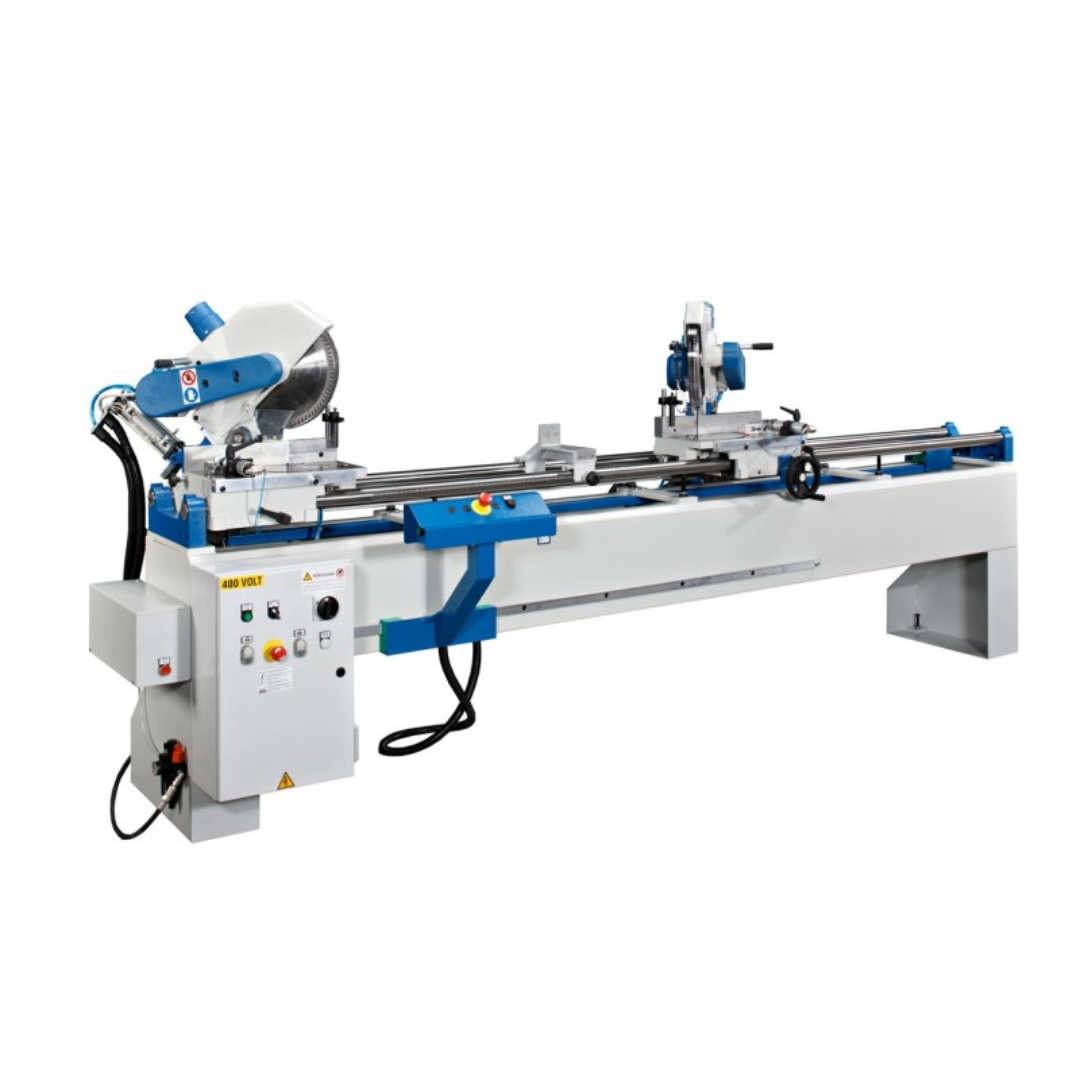

The OMGA TR 2B 14" Double Mitre Chop Saw is designed for fabrication facilities that require accurate 45° and 90° mitre cutting with dependable industrial production performance.
OMGA TR 2B 14" Double Mitre Chop Saw Specifications
| Model | TR 2B 14" Double Mitre Chop Saw |
|---|---|
| Saw Blade Diameter | 14" |
| Saw Bore | 1" |
| Motor Power | 2 × 3 HP |
| Arbor Speed | 3200 RPM |
| Maximum Distance Between Saws | 9'2" |
| Minimum Distance Between Saws | 13 3/16" |
| Minimum Distance Between Saws at 45° | 18 1/8" or 9 7/16" (+ optional alternate setup) |
| Cross Cut Capacity at 90° | 6 1/2" |
| Cross Cut Capacity at 45° | 4 1/2" |
| Maximum Width Cutting Capacity | 6 5/8" |
| Maximum Thickness Capacity | 4 1/8" |
| Maximum Depth of Cut | 4 1/4" |
| Maximum Beveled Cross Cut | N/A |
| Dust Chute Size | 2 × 3 1/8" |
| Approximate Shipping Weight | 1,573 lbs. |
| Crated Dimensions | 150" × 39" × 53" |
OMGA TR 2B 14" Double Mitre Chop Saw Features & Performance
- Dual 3 HP industrial motors provide powerful and consistent cutting performance for demanding production environments.

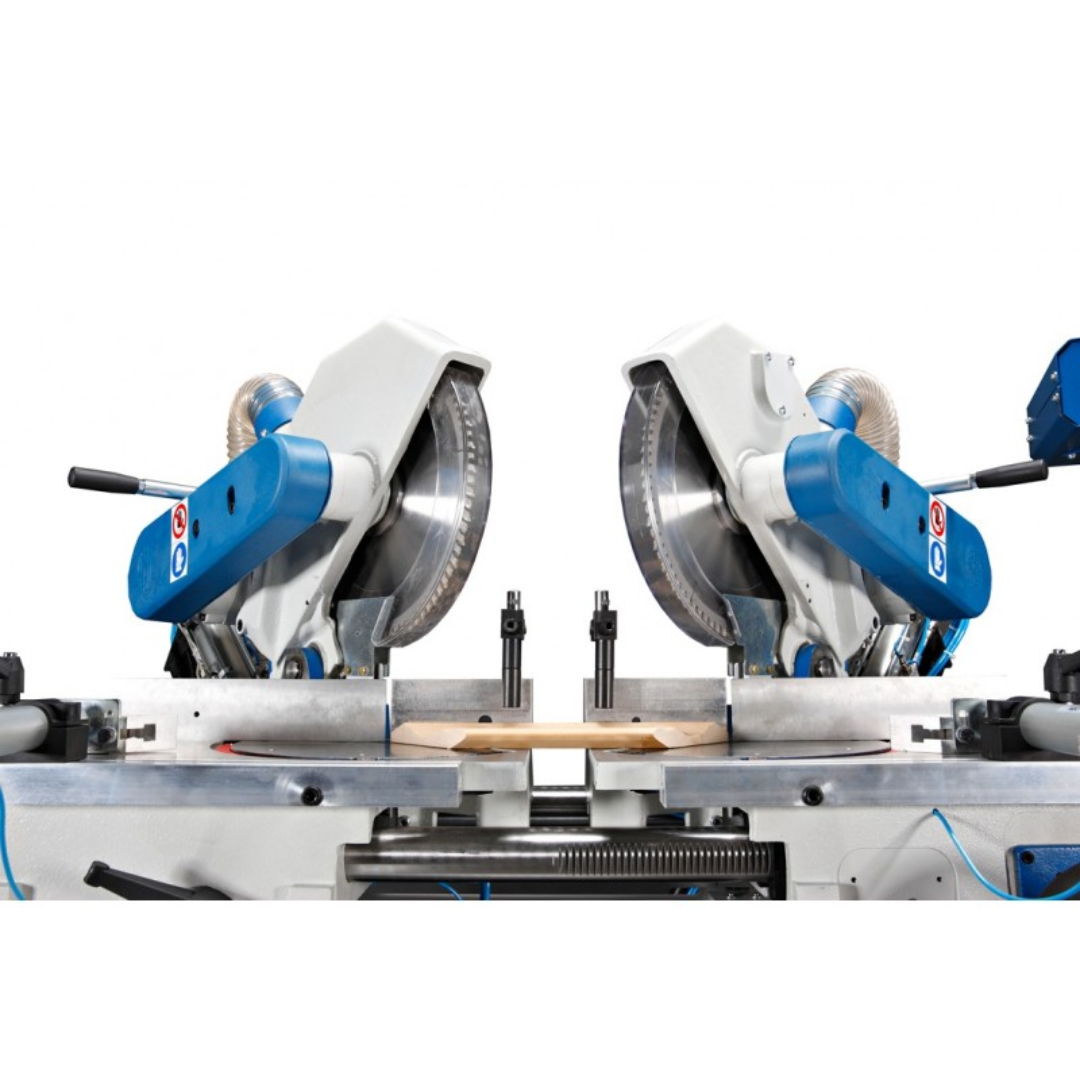

- Dual-head cutting configuration features one fixed left cutting head and one movable right cutting head for flexible cutting operations.
- Positive mitering stops at +45°, -45°, and 90° allow fast and accurate angle setup for precision fabrication work.
- Electro-pneumatic control system delivers smooth automated operation and dependable production cycling.
- Three automatic operating cycles allow simultaneous blade cycling, alternate blade cycling, and single-head cutting operation.
- Alternate cycle functionality enables precise cutting of very short components at 45-degree angles.
- Standard pneumatic vertical clamps securely stabilize materials during cutting for enhanced accuracy and safety.
- Integrated overload protection on both motors helps protect electrical components and increase equipment longevity.
- 3200 RPM arbor speed provides smooth and clean cutting performance across aluminum and profile materials.
- Large cutting length capacity supports processing of long profiles and extrusion materials up to 9'2".
- Heavy-duty industrial frame construction designed for continuous fabrication and production applications.
- Dual dust chutes improve dust extraction efficiency and support cleaner operating conditions.
OMGA TR 2B 14" Double Mitre Chop Saw Optional Equipment
- Additional vertical pneumatic clamps for enhanced material support
- Horizontal pneumatic clamping systems
- Extended cutting length configurations
- Brackets for short-piece cutting applications
- Air-over-oil descent system for smoother cutting performance
- Spray mist lubrication system for improved blade cooling and finish quality
- Additional production accessories for specialized fabrication operations
Optional accessories allow the OMGA TR 2B 14" Double Mitre Chop Saw to be configured for specialized fabrication requirements and increased production efficiency.
Why Choose the OMGA TR 2B 14" Double Mitre Chop Saw
- Precision double mitre cutting for aluminum and profile fabrication.
- Dual 3 HP motors provide reliable industrial cutting performance.
- Flexible automatic operating cycles support multiple production applications.
- Heavy-duty construction designed for continuous fabrication environments.
- Large cutting capacity accommodates long extrusion materials.
- Electro-pneumatic controls ensure smooth and dependable machine operation.
- Ideal for precision fabrication requiring repeatable angular accuracy.
The OMGA TR 2B 14" Double Mitre Chop Saw combines industrial durability, precise angular cutting capability, and production-ready automation to deliver dependable performance for modern aluminum and profile fabrication facilities.
