OMGA TR 2A NC 12" Double Mitre Chop Saw Applications
- Aluminum window and door fabrication facilities
- Architectural aluminum extrusion processing
- Curtain wall and storefront manufacturing operations
- PVC and vinyl profile cutting applications
- Industrial frame and profile fabrication
- Precision mitre cutting for commercial production shops
- High-accuracy angular cutting environments
- Production facilities requiring programmable positioning and repeatability
The OMGA TR 2A NC 12" Double Mitre Chop Saw is ideal for fabrication operations requiring accurate 45° and 90° mitre cutting with automated traverse positioning and industrial production reliability.
OMGA TR 2A NC 12" Double Mitre Chop Saw Specifications
| Model | TR 2A NC 12" Double Mitre Chop Saw |
|---|---|
| Saw Blade Diameter | 12" |
| Saw Bore | 1" |
| Motor Power | 2 × 2.2 HP |
| Arbor Speed | 3200 RPM |
| Maximum Distance Between Saws | 9'2" |
| Minimum Distance Between Saws | 23 5/8" |
| Minimum Distance Between Saws at 45° | 23 5/8" |
| Cross Cut Capacity at 90° | 6 3/4" |
| Cross Cut Capacity at 45° | 4 1/2" |
| Maximum Width Cutting Capacity | 6" |
| Maximum Thickness Capacity | 3 1/2" |
| Maximum Depth of Cut | 4 1/4" |
| Maximum Beveled Cross Cut | 6 3/4" |
| Dust Chute Size | 2 × 3 1/8" |
| Approximate Shipping Weight | 1,753 lbs. |
| Crated Dimensions | 152" × 45" × 65" |
| Control System | 7" Touch-Screen NC Computerized Traverse |
OMGA TR 2A NC 12" Double Mitre Chop Saw Features & Performance
- Dual 2.2 HP industrial motors provide dependable cutting performance for aluminum, PVC, and profile fabrication applications.

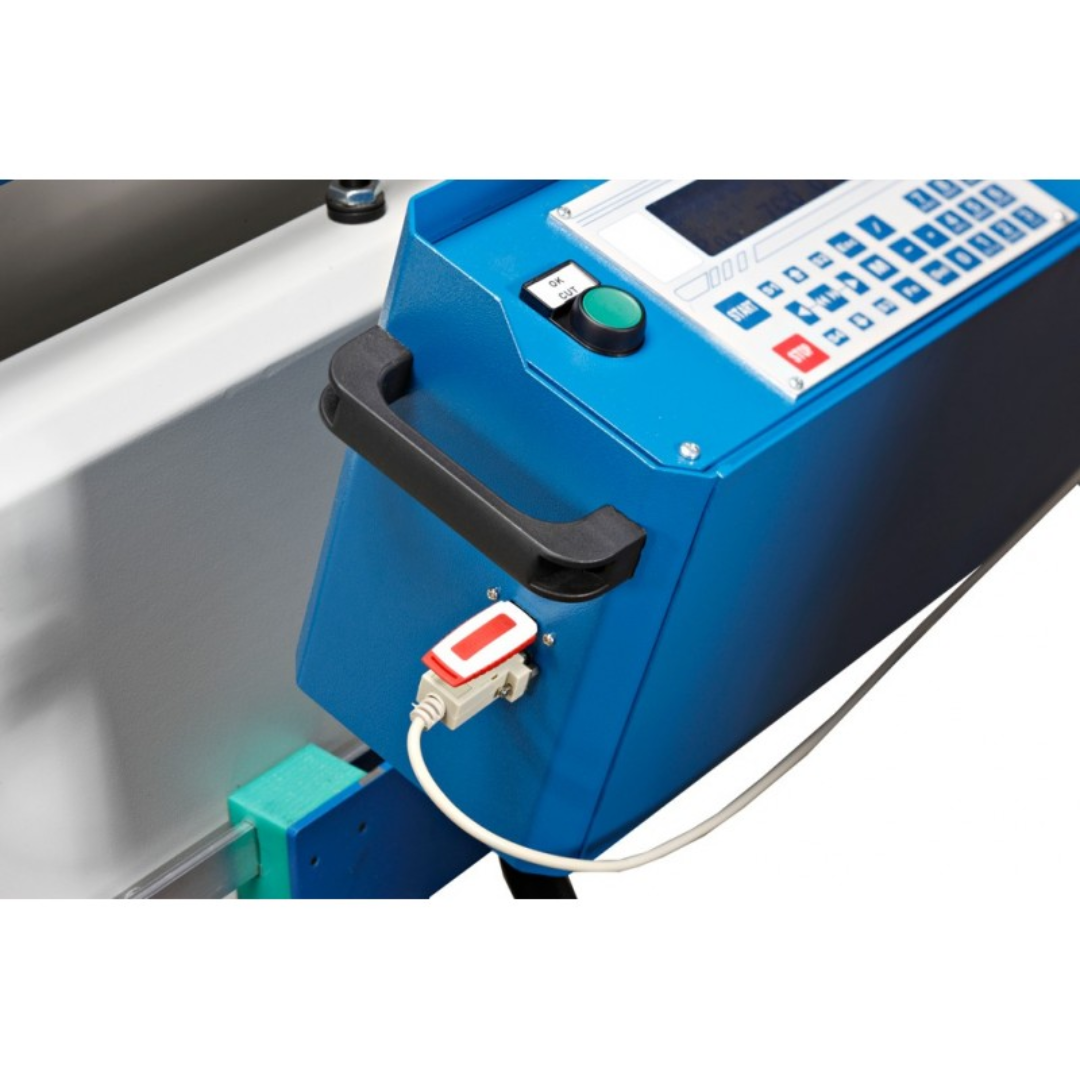

- Computerized traverse system enables accurate programmable positioning and repeatable production cutting operations.

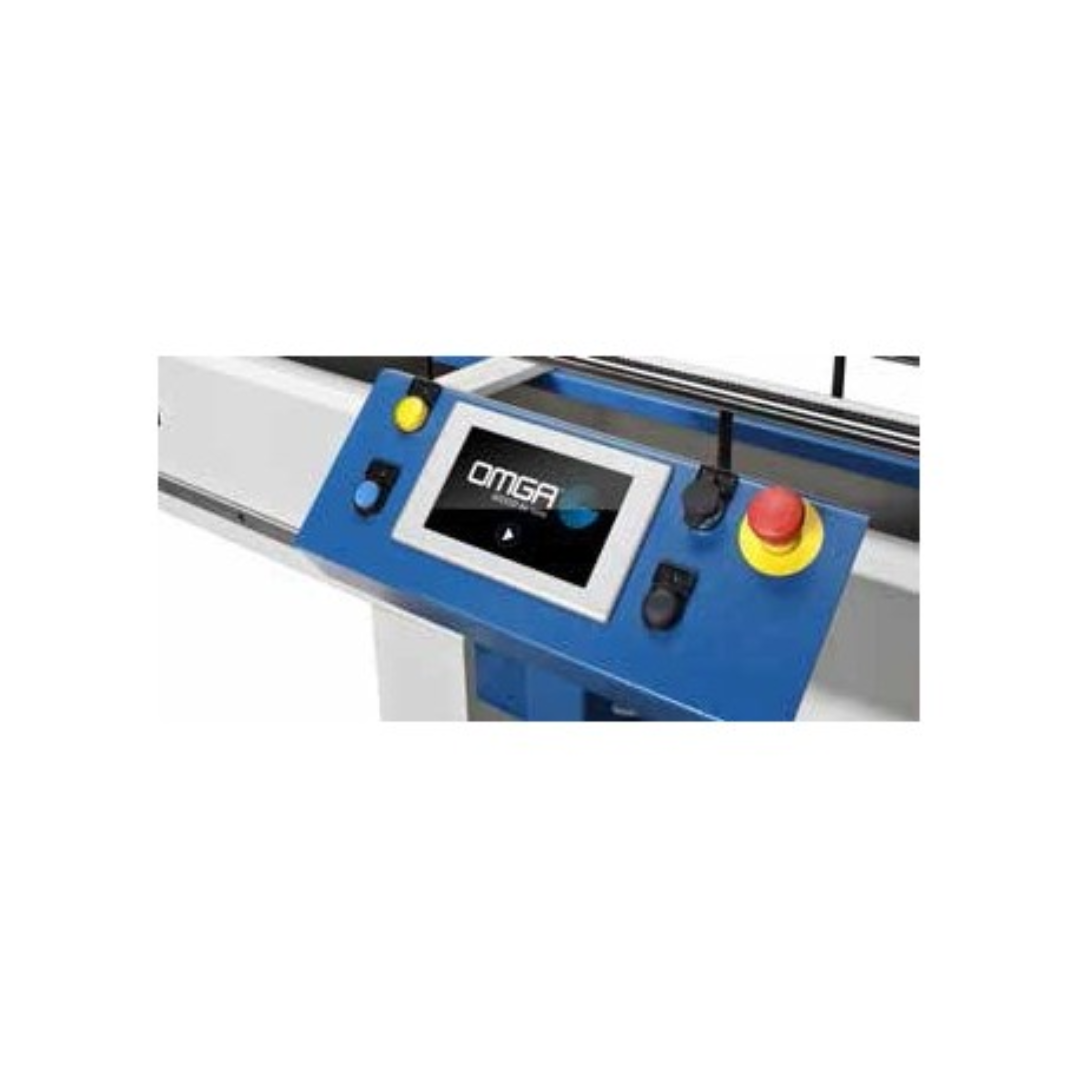

- 7" touch-screen NC control interface simplifies setup, positioning adjustments, and automated machine control.

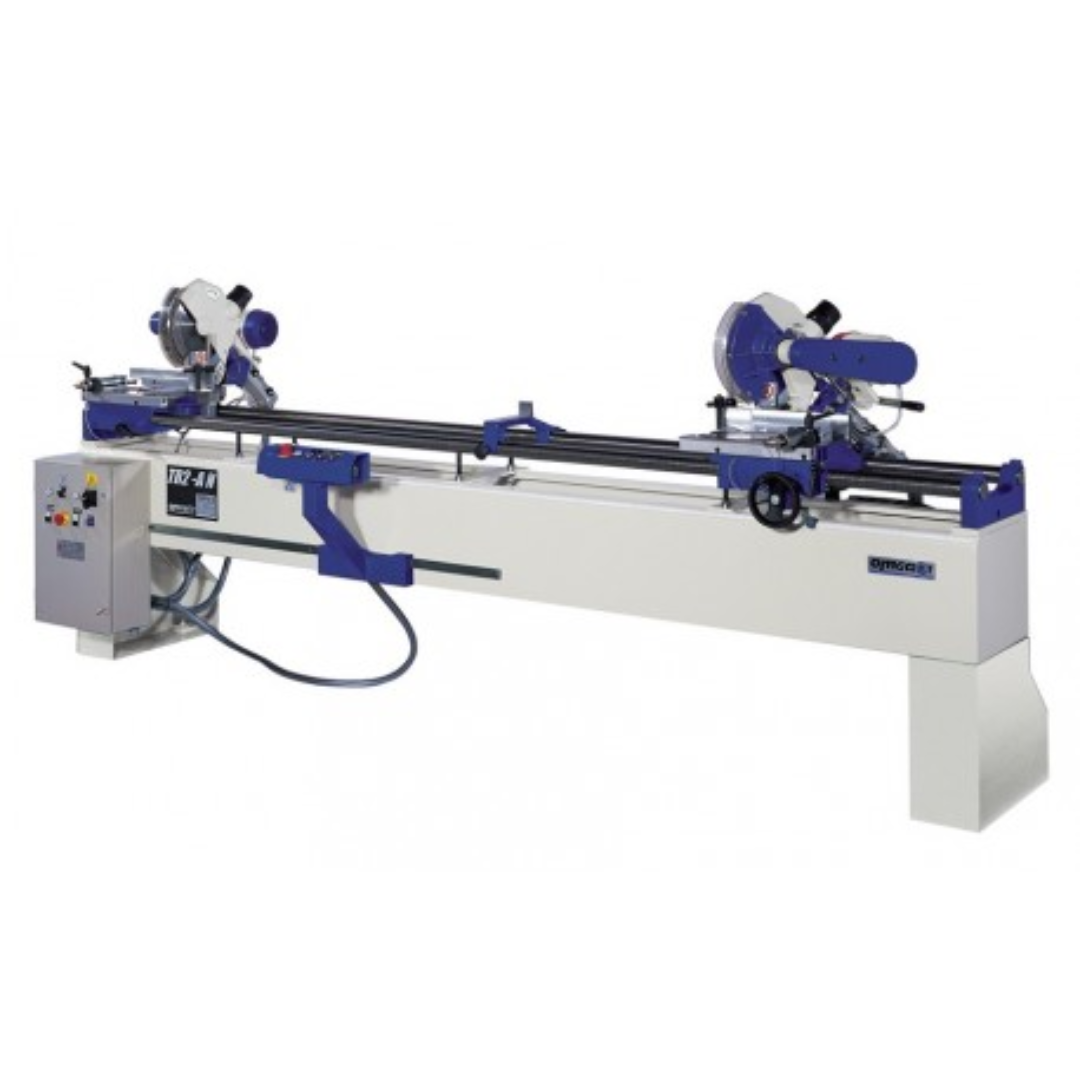

- One fixed and one movable cutting head provide flexibility for handling both short and long profile materials.
- Positive mitering stops at +45°, -45°, and 90° allow fast and accurate angular positioning.
- Electro-pneumatic operating system delivers smooth automated functionality and reliable production performance.
- Three automatic operating cycles support simultaneous blade cycling, alternate blade cycling, and single-head operation.
- Alternate cutting cycle capability allows safe and precise cutting of extremely short pieces at 45-degree angles.
- Standard pneumatic vertical clamps ensure secure workpiece stabilization for improved accuracy and operator safety.
- Integrated overload protection on both motors helps protect machine components and increase equipment lifespan.
- 3200 RPM arbor speed provides smooth, clean, and precise cutting performance.
- Large 9'2" cutting capacity supports industrial extrusion and profile processing applications.
- Heavy-duty industrial frame construction designed for continuous production environments and long-term durability.
- Dual dust chute system improves dust extraction and supports cleaner shop conditions.
OMGA TR 2A NC 12" Double Mitre Chop Saw Optional Equipment
- Additional vertical pneumatic clamps for increased material stability
- Horizontal pneumatic clamping systems
- Extended cutting length configurations
- Brackets for short-piece cutting applications
- Air-over-oil descent systems for smoother cutting action
- Spray mist lubrication systems for blade cooling and finish improvement
- Additional production accessories for specialized fabrication applications
Optional equipment allows the OMGA TR 2A NC 12" Double Mitre Chop Saw to be customized for advanced production requirements, increased automation, and improved fabrication efficiency.
Why Choose the OMGA TR 2A NC 12" Double Mitre Chop Saw
- Computerized traverse system improves positioning accuracy and repeatability.
- Precision double mitre cutting for aluminum and profile fabrication.
- Dual 2.2 HP motors provide reliable industrial cutting performance.
- Flexible automatic operating cycles support multiple production applications.
- Large cutting capacity accommodates long extrusion materials.
- Heavy-duty construction designed for demanding fabrication environments.
- Advanced touch-screen NC controls simplify production setup and operation.
The OMGA TR 2A NC 12" Double Mitre Chop Saw combines programmable automation, industrial durability, and precise angular cutting capability to deliver reliable performance for modern aluminum and profile fabrication facilities.
