OMGA Stop 6 - RH Programmable Stop/Positioner System Applications
- Automated woodworking production systems

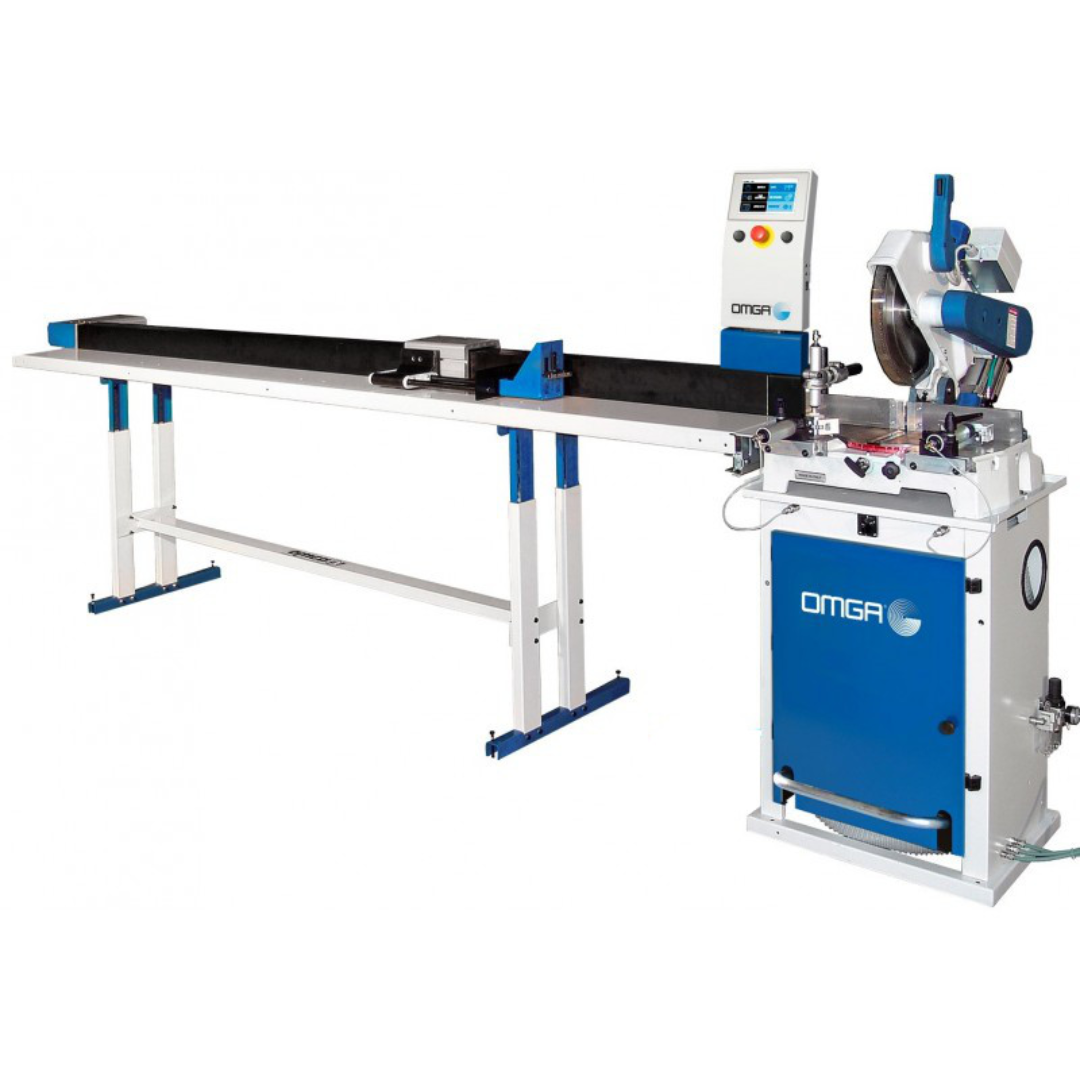

- Mitre saw and double mitre saw positioning applications

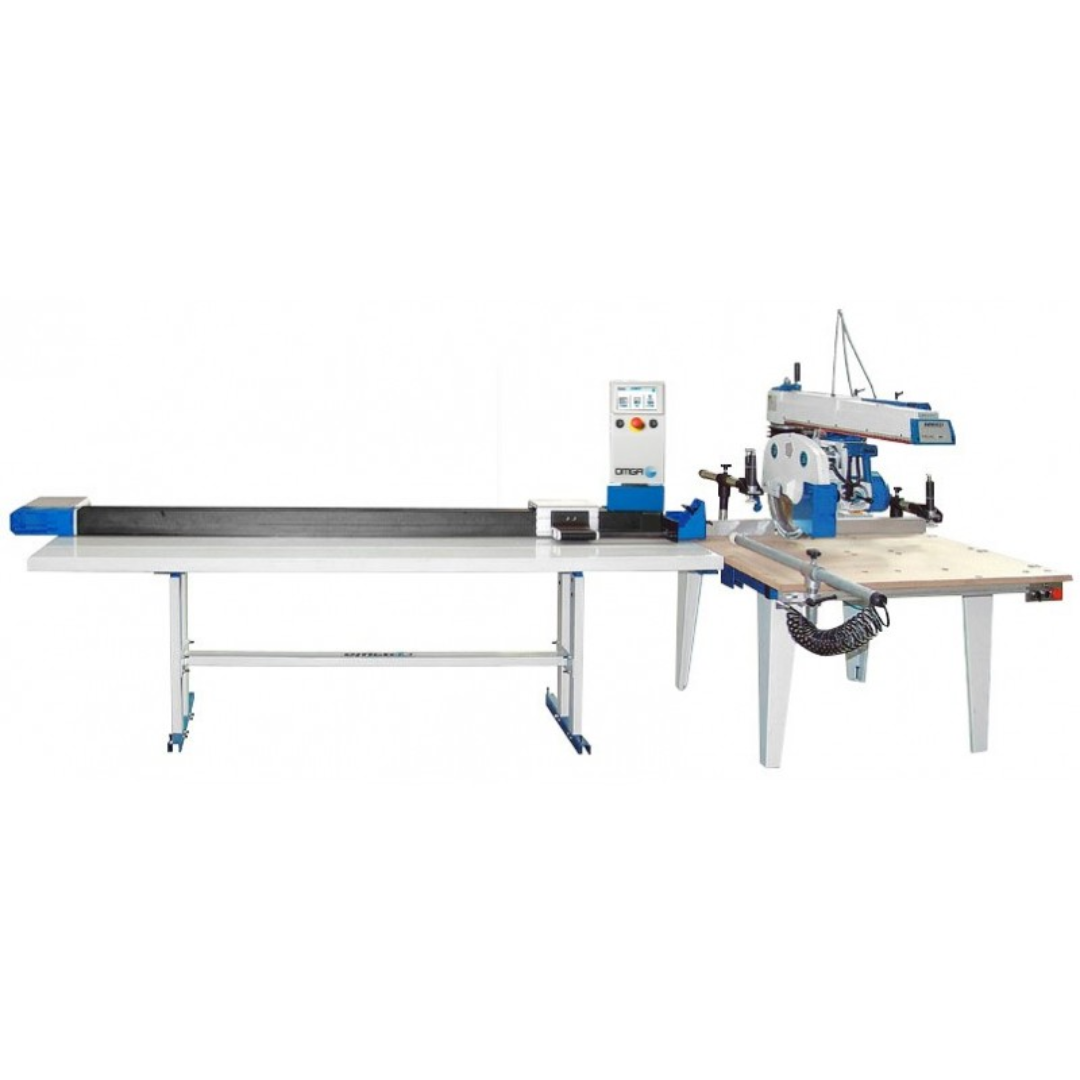

- Up-cut saw and radial arm saw automation
- Table saw and drilling station positioning systems
- Picture frame manufacturing operations
- Plastic fabrication and metalworking production

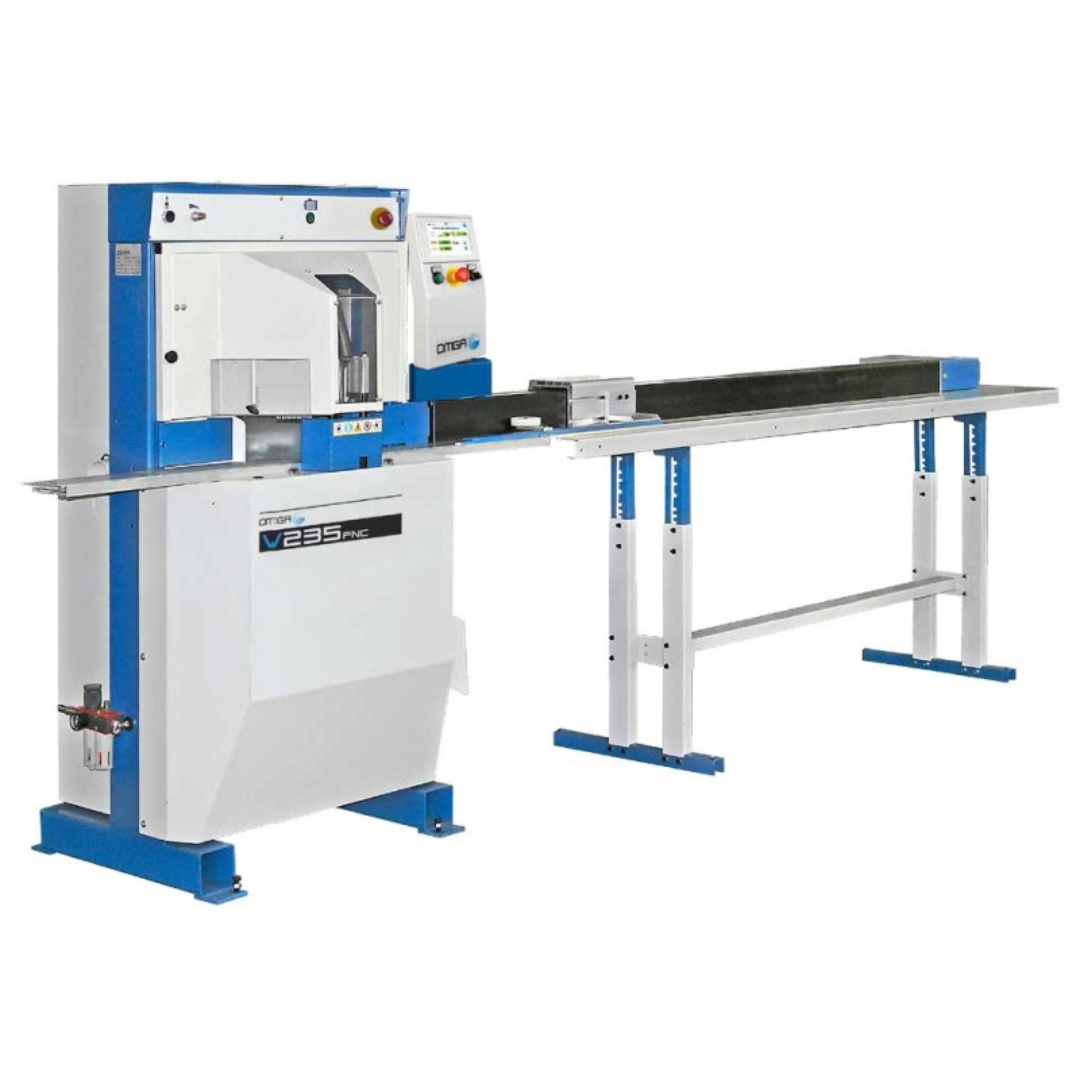

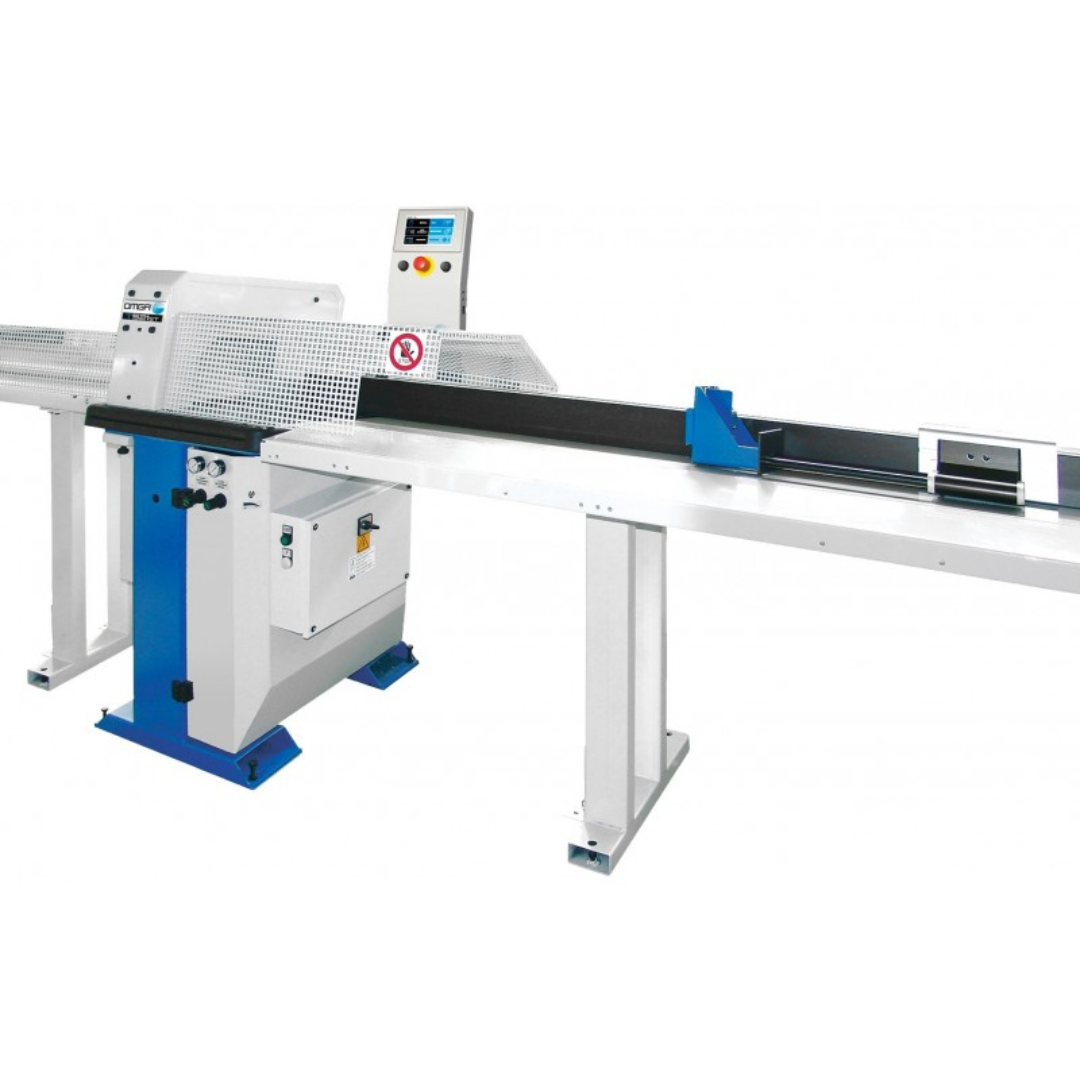

- Repetitive cutting and positioning applications
- Industrial manufacturing cells requiring compact programmable stop systems
The OMGA Stop 6 - RH Programmable Stop/Positioner System is ideal for manufacturers seeking compact programmable positioning with industrial-grade accuracy, speed, and repeatable production performance.
OMGA Stop 6 - RH Programmable Stop/Positioner System Specifications
| Model | OMGA Stop 6 - RH |
|---|---|
| Machine Type | Programmable Stop/Positioner System |
| Usable Traverse | 6'6" |
| Motor Type | Brushless Motor |
| Brushless Motor Power | 0.66 kW (0.9 HP) |
| Maximum Traversing Speed | 200 FPM |
| Positioning Accuracy | ±0.004" |
| Software Versions Included | Pusher Basic, Advanced Pusher, and Picture Frame |
| Maximum Number of Programs | 500 |
| Connection Ports | 2 x USB, 2 x RS 232, and 1 x RJ45 |
| Removable Media Support | USB Port and Ethernet Port |
| Measurement Units | Millimeters and Inches |
| Input Formats | Fractional and Decimal |
| Controller Interface | Touch-Screen Controller |
| System Orientation | Right Hand Configuration |
OMGA Stop 6 - RH Programmable Stop/Positioner System Features & Performance
- Compact programmable positioning system improves production efficiency while minimizing repetitive manual measuring tasks.
- 6'6" usable traverse capacity supports accurate positioning and material handling for a wide range of production applications.
- Precision positioning accuracy of ±0.004" ensures highly repeatable and consistent manufacturing results.
- High-speed traversing performance of up to 200 FPM improves operational productivity and processing efficiency.
- Industrial brushless motor drive system delivers smooth positioning movement with dependable long-term reliability and reduced maintenance requirements.

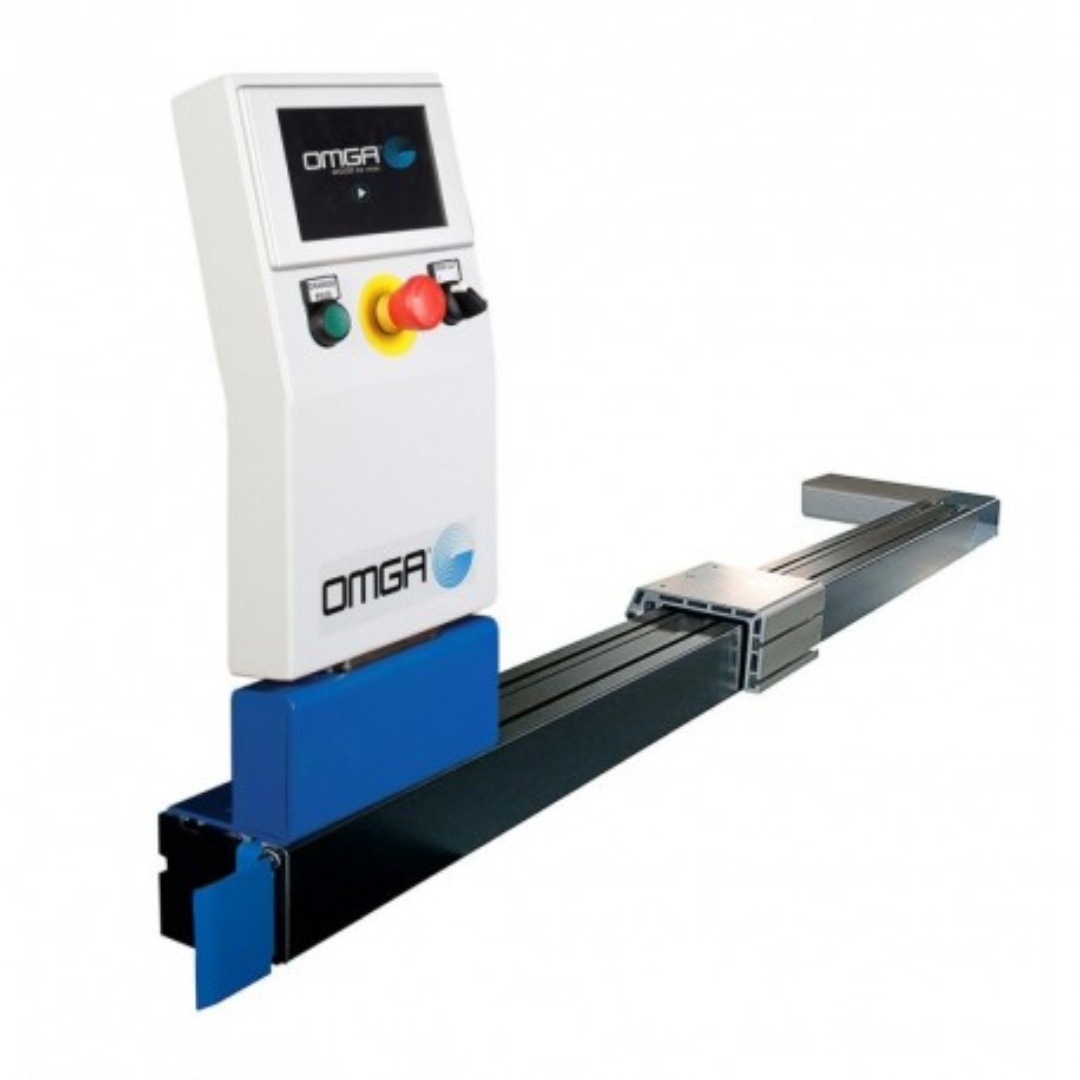

- Integrated touchscreen operator controller simplifies programming, setup, and machine operation.
- Complete software package included featuring Pusher Basic, Advanced Pusher, and Picture Frame applications without additional software costs.
- Large programmable memory storage allows operators to save up to 500 production programs for fast recall and repeat manufacturing operations.
- Compatible with numerous industrial machine types including saws, drills, and processing equipment used in woodworking, plastics, and metalworking industries.
- Supports both metric and imperial measurements for flexible international production compatibility.
- Fractional and decimal input capability provides additional programming flexibility for operators and production environments.
- Multilingual touchscreen interface available in multiple languages for global manufacturing operations.
- Advanced onboard diagnostics assist with troubleshooting and help minimize unnecessary production downtime.
- Extensive communication connectivity including USB, RS 232, and RJ45 Ethernet ports for interfacing with computers, barcode readers, printers, USB memory devices, and manufacturing networks.
- Optional Interlink Kits available for advanced machine integration and varying levels of production automation.
- Transforms conventional manual machinery into intelligent manufacturing systems capable of handling repetitive processing applications with greater consistency and efficiency.
Why Choose the OMGA Stop 6 - RH Programmable Stop/Positioner System
- Improves positioning precision and production repeatability.
- Eliminates repetitive tape measuring and manual positioning errors.
- Converts manual machinery into efficient programmable production systems.
- Compact footprint ideal for space-conscious manufacturing environments.
- Compatible with woodworking, plastics, and metalworking applications.
- Advanced touchscreen controls simplify operation and production setup.
- Large program storage capacity supports efficient repeat production scheduling.
- Industrial-grade construction designed for demanding manufacturing operations.
The OMGA Stop 6 - RH Programmable Stop/Positioner System combines compact programmable positioning, intelligent touchscreen controls, and industrial automation technology into a highly effective solution for repetitive cutting and material positioning applications.
