OMGA Stop 22 - LH Programmable Stop/Positioner System Applications
- Automated woodworking production systems

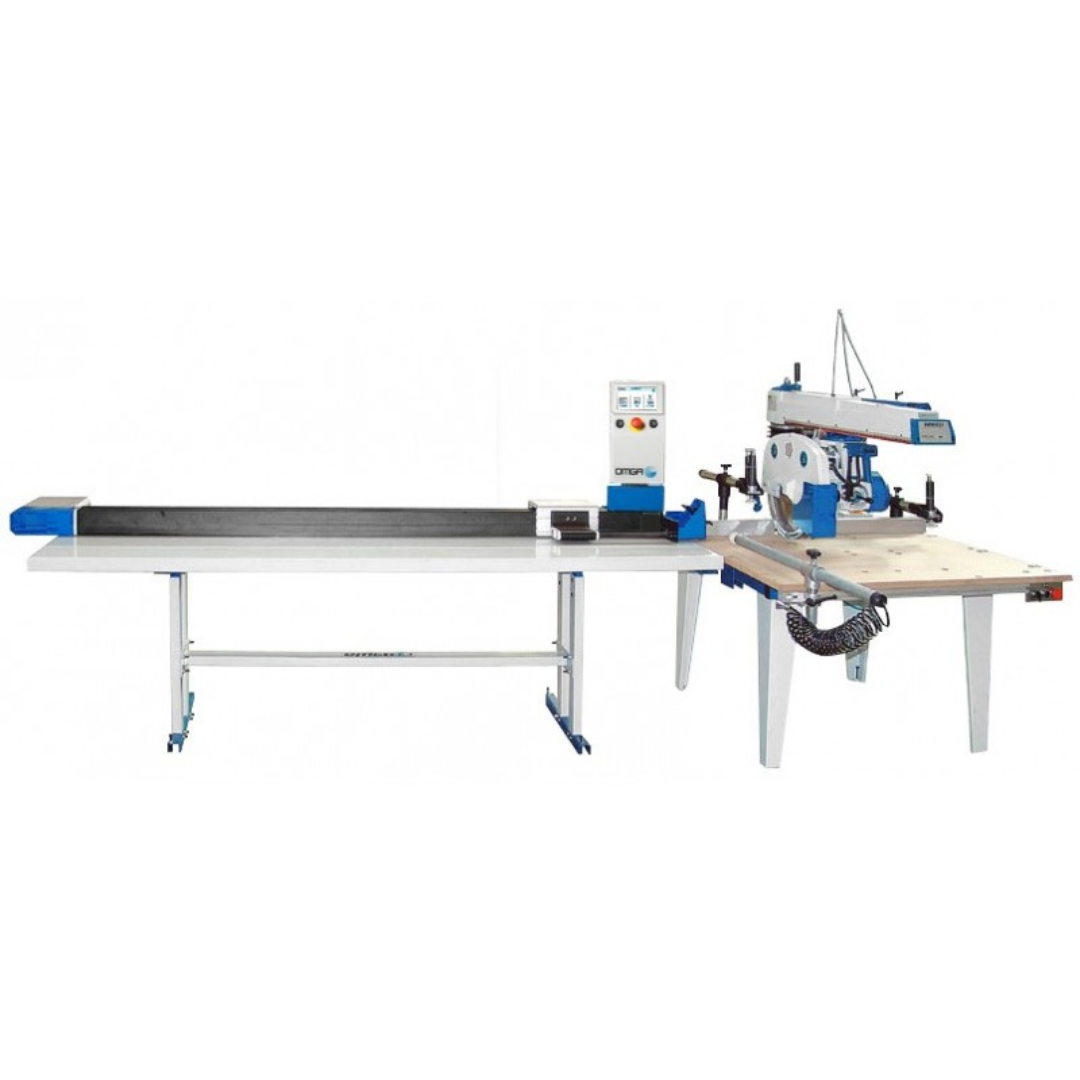

- Up-cut saw and radial arm saw positioning applications

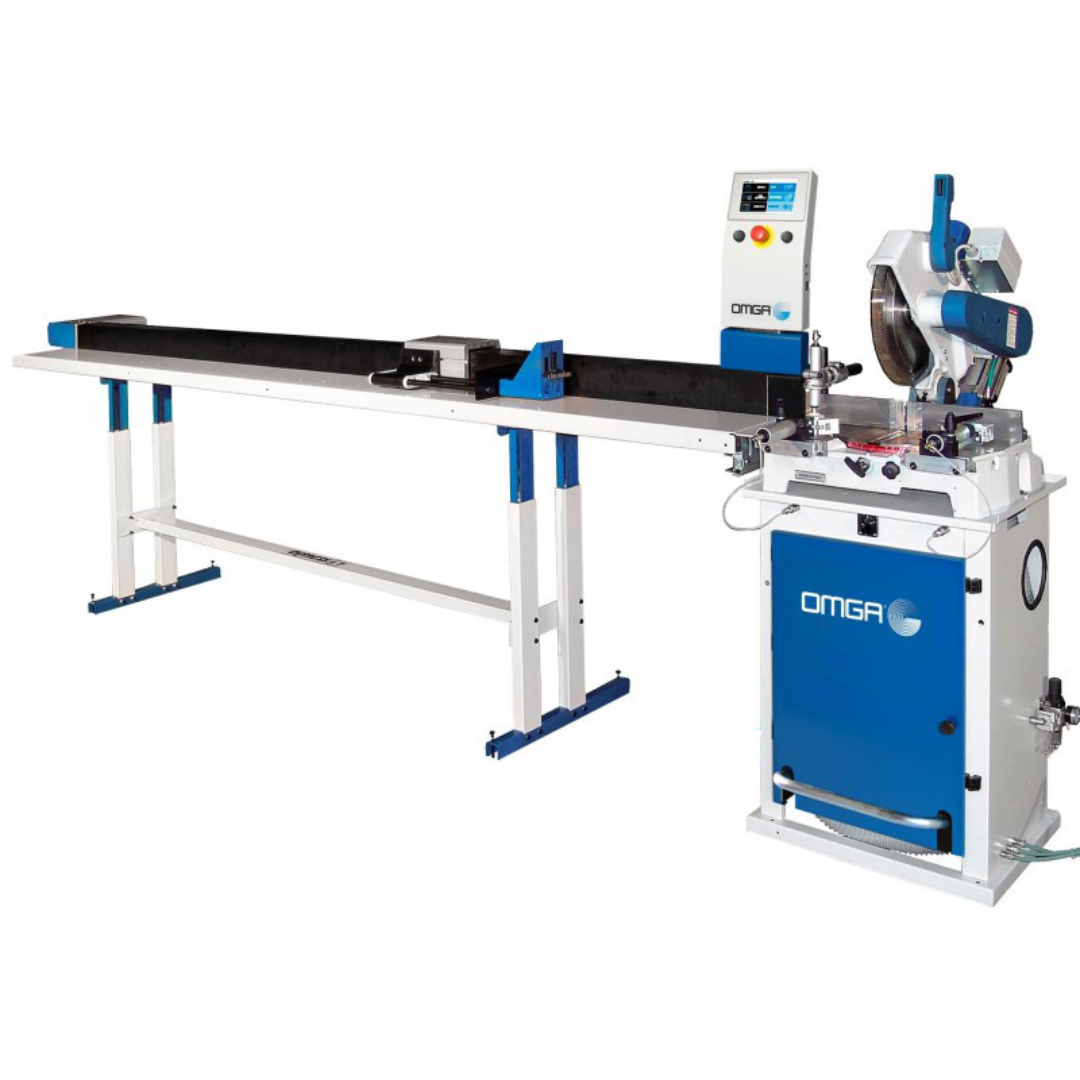

- Mitre saw and double mitre saw production lines
- Table saw and drilling station automation
- Picture frame manufacturing systems
- Metalworking and plastic fabrication operations
- Precision repetitive cutting and positioning tasks
- Industrial manufacturing cells requiring programmable material positioning
The OMGA Stop 22 - LH Programmable Stop/Positioner System is ideal for manufacturers seeking highly accurate programmable positioning, increased production speed, and improved material processing consistency.
OMGA Stop 22 - LH Programmable Stop/Positioner System Specifications
| Model | OMGA Stop 22 - LH |
|---|---|
| Machine Type | Programmable Stop/Positioner System |
| Usable Traverse | 22' |
| Motor Type | Brushless Motor |
| Brushless Motor Power | 0.66 kW (0.9 HP) |
| Maximum Traversing Speed | 200 FPM |
| Positioning Accuracy | ±0.004" |
| Software Versions Included | Pusher Basic, Advanced Pusher, and Picture Frame |
| Maximum Number of Programs | 500 |
| Connection Ports | 2 x USB, 2 x RS 232, and 1 x RJ45 |
| Removable Media Support | USB Port and Ethernet Port |
| Measurement Units | Millimeters and Inches |
| Input Formats | Fractional and Decimal |
| Controller Interface | Touch-Screen Controller |
| System Orientation | Left Hand Configuration |
OMGA Stop 22 - LH Programmable Stop/Positioner System Features & Performance

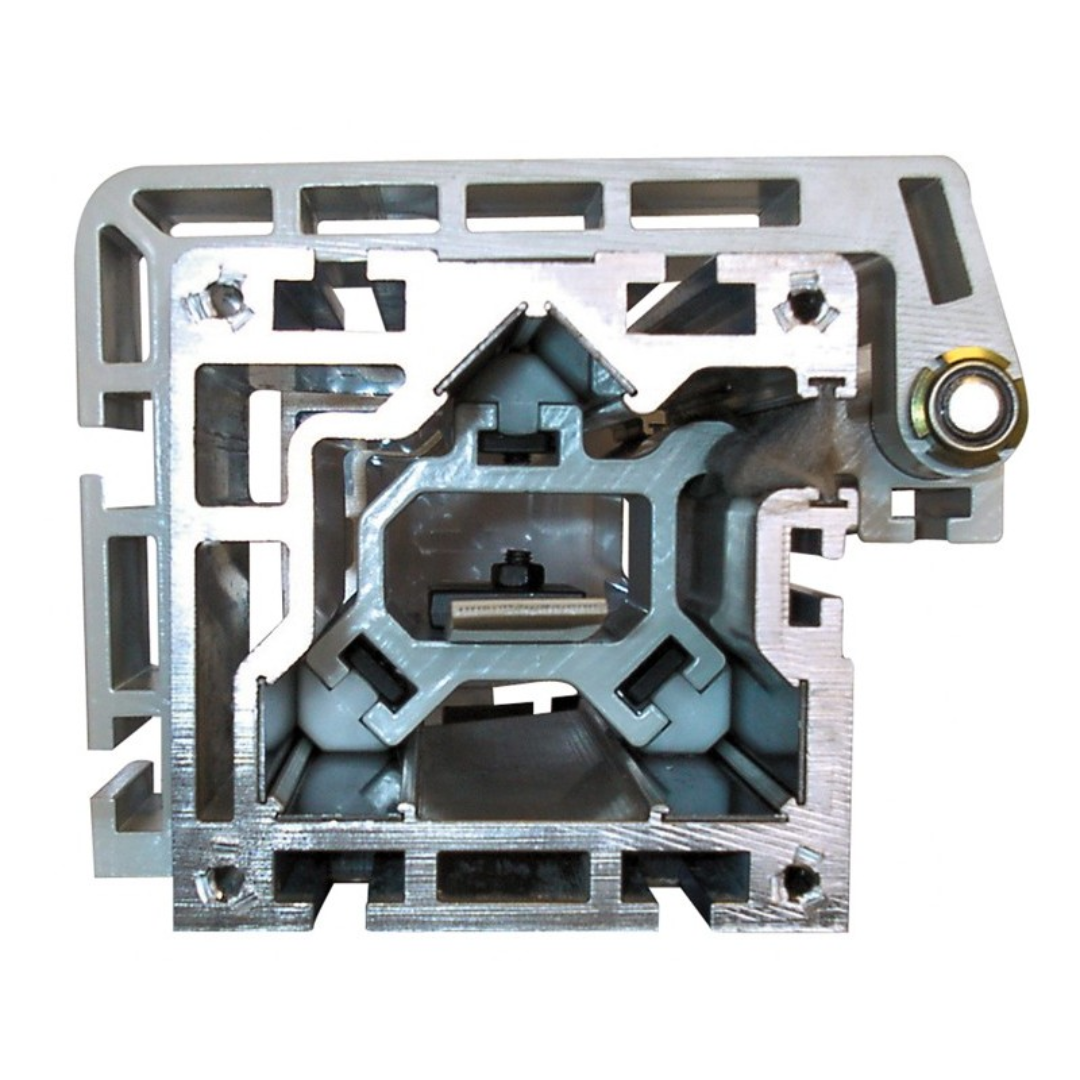

- Precision linear encoder system delivers highly accurate positioning performance with repeatable ±0.004" precision.
- 22 feet of usable traverse supports long material handling applications and flexible production workflows.
- High-speed traversing capability of up to 200 FPM improves production throughput and operational efficiency.
- Brushless motor drive system provides smooth positioning movement, reduced maintenance requirements, and reliable long-term operation.

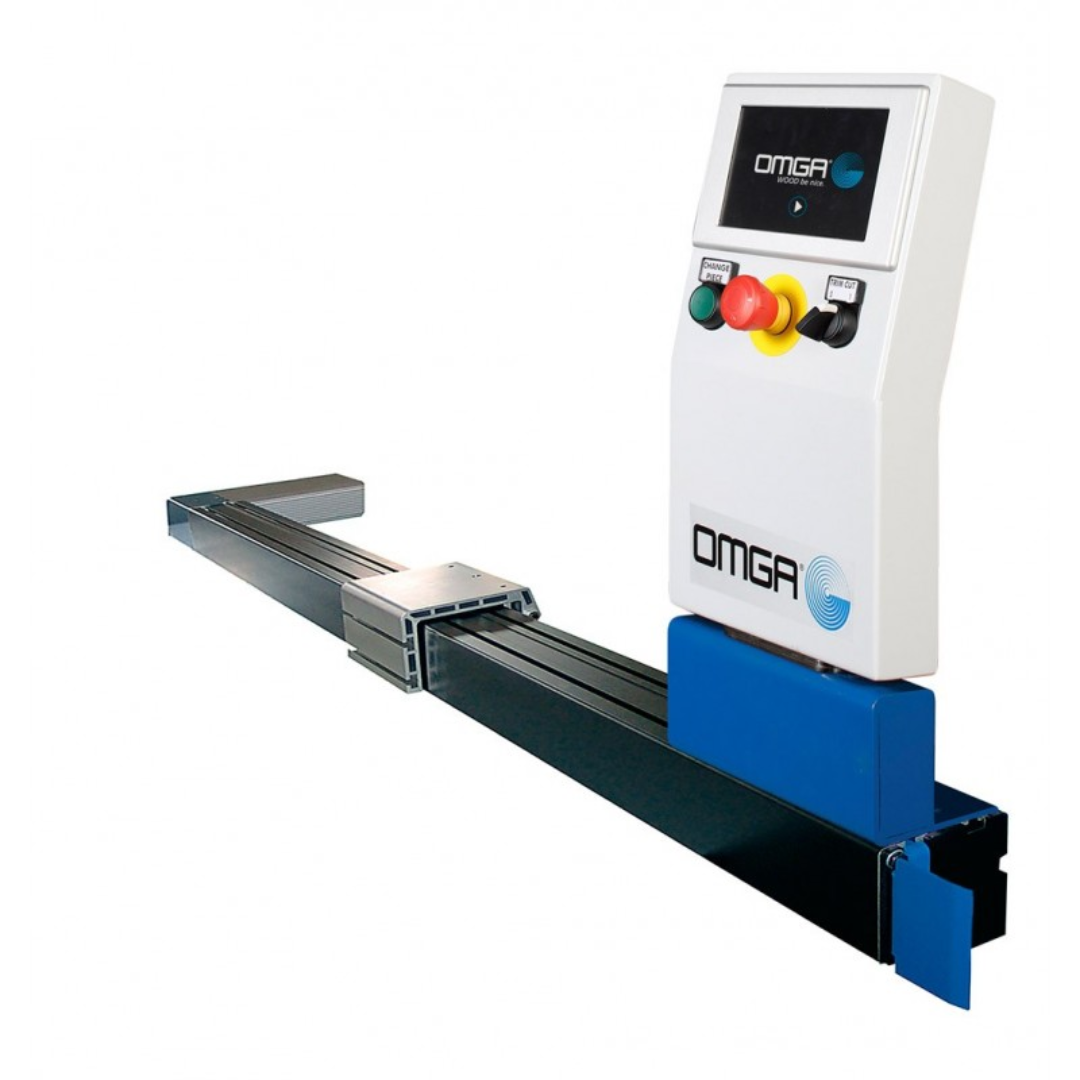

- Touch-screen controller interface simplifies machine operation, programming, and production setup.
- Integrated software packages included for Pusher Basic, Advanced Pusher, and Picture Frame applications with no additional software purchase required.
- Programmable memory storage allows operators to store up to 500 production programs for rapid job recall.

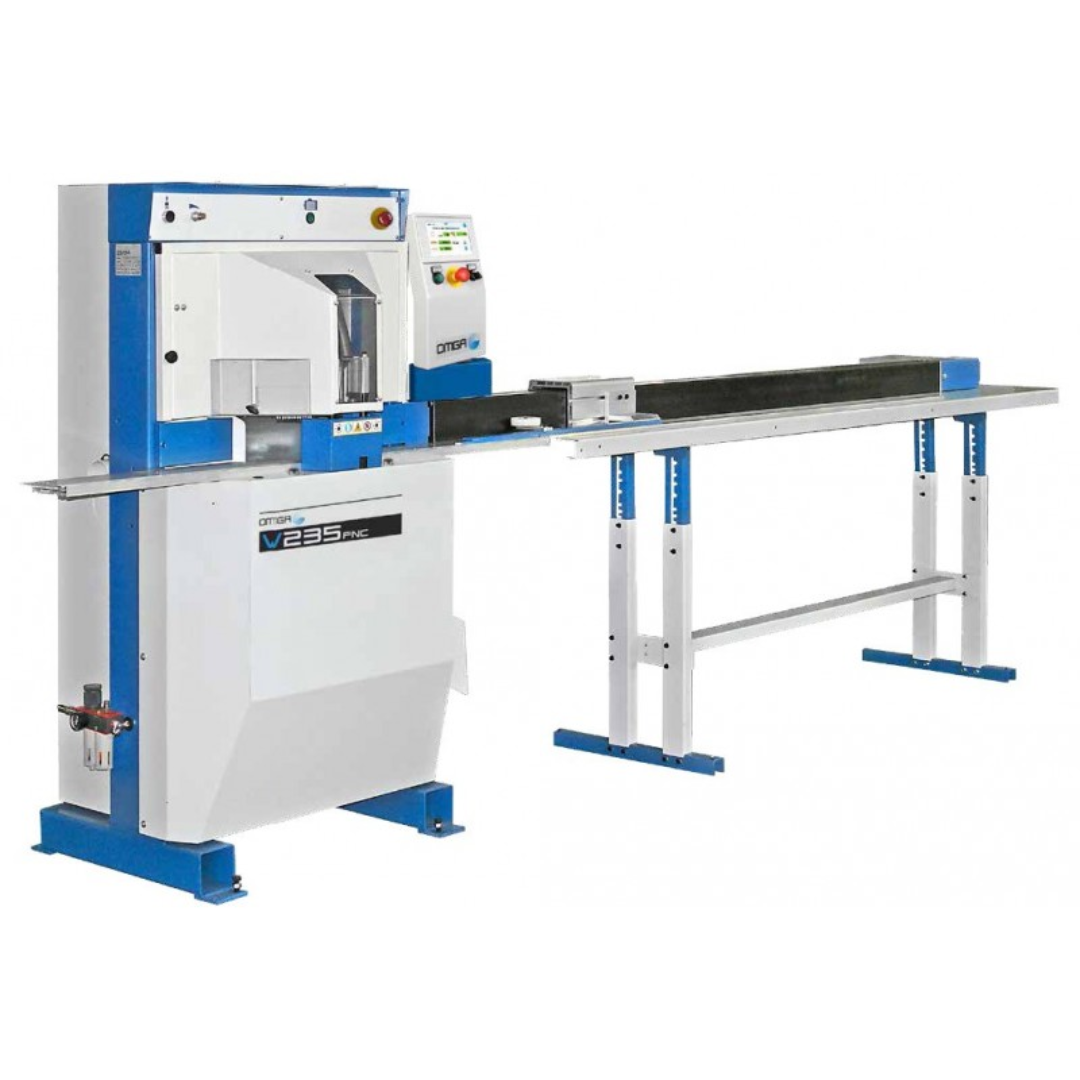

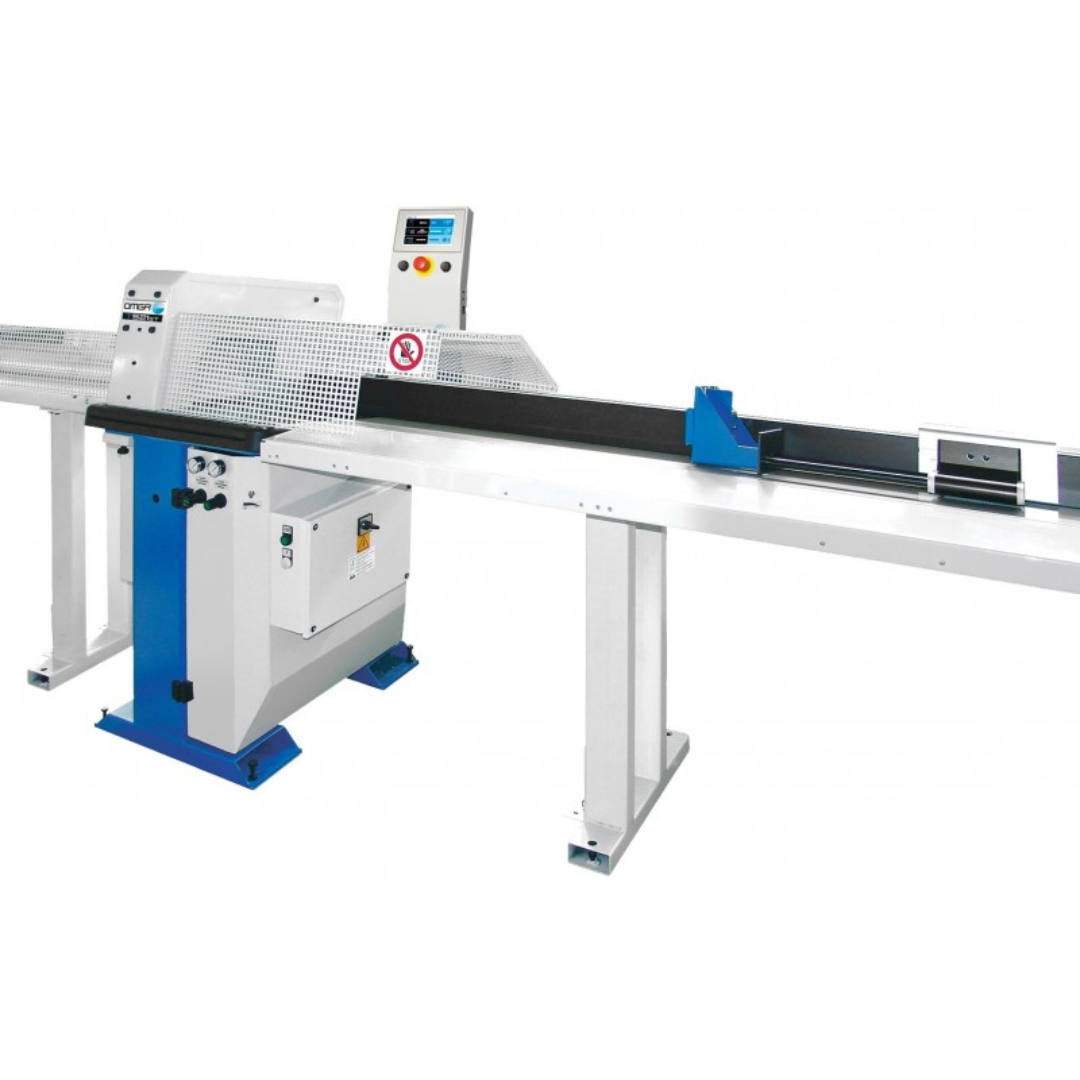

- Compatible with multiple machine types including saws, drills, and automated cutting systems.
- Supports both inch and metric operation for flexible international manufacturing compatibility.
- Fractional and decimal input capability improves operator convenience and programming flexibility.
- Multilingual touchscreen interface available in multiple languages for global industrial operations.
- Advanced onboard diagnostic system simplifies troubleshooting and minimizes production downtime.
- Extensive connectivity options including USB, RS 232, and RJ45 Ethernet ports for integration with computers, barcode readers, printers, USB memory devices, and network systems.
- Automation expansion capability through optional Interlink Kits for varying levels of machine integration and automation.
- Eliminates repetitive manual measuring while improving cutting consistency and production repeatability.
Why Choose the OMGA Stop 22 - LH Programmable Stop/Positioner System
- Highly accurate programmable positioning improves manufacturing precision.
- Transforms manual machinery into intelligent semi-automated production systems.
- Compatible with woodworking, plastics, and metalworking operations.
- Fast traversing speed improves production throughput and efficiency.
- Advanced connectivity allows seamless integration with external devices and computers.
- Supports complex repetitive cutting and positioning applications.
- Large program storage capacity improves workflow management.
- Industrial-grade construction designed for demanding manufacturing environments.
The OMGA Stop 22 - LH Programmable Stop/Positioner System combines precision encoder technology, intelligent touchscreen control, and high-speed programmable positioning into a powerful automation solution for modern industrial manufacturing operations.
