OMGA Stop 16 - RH Programmable Stop/Positioner System Applications
- Automated woodworking production systems
- Mitre saw and double mitre saw positioning applications

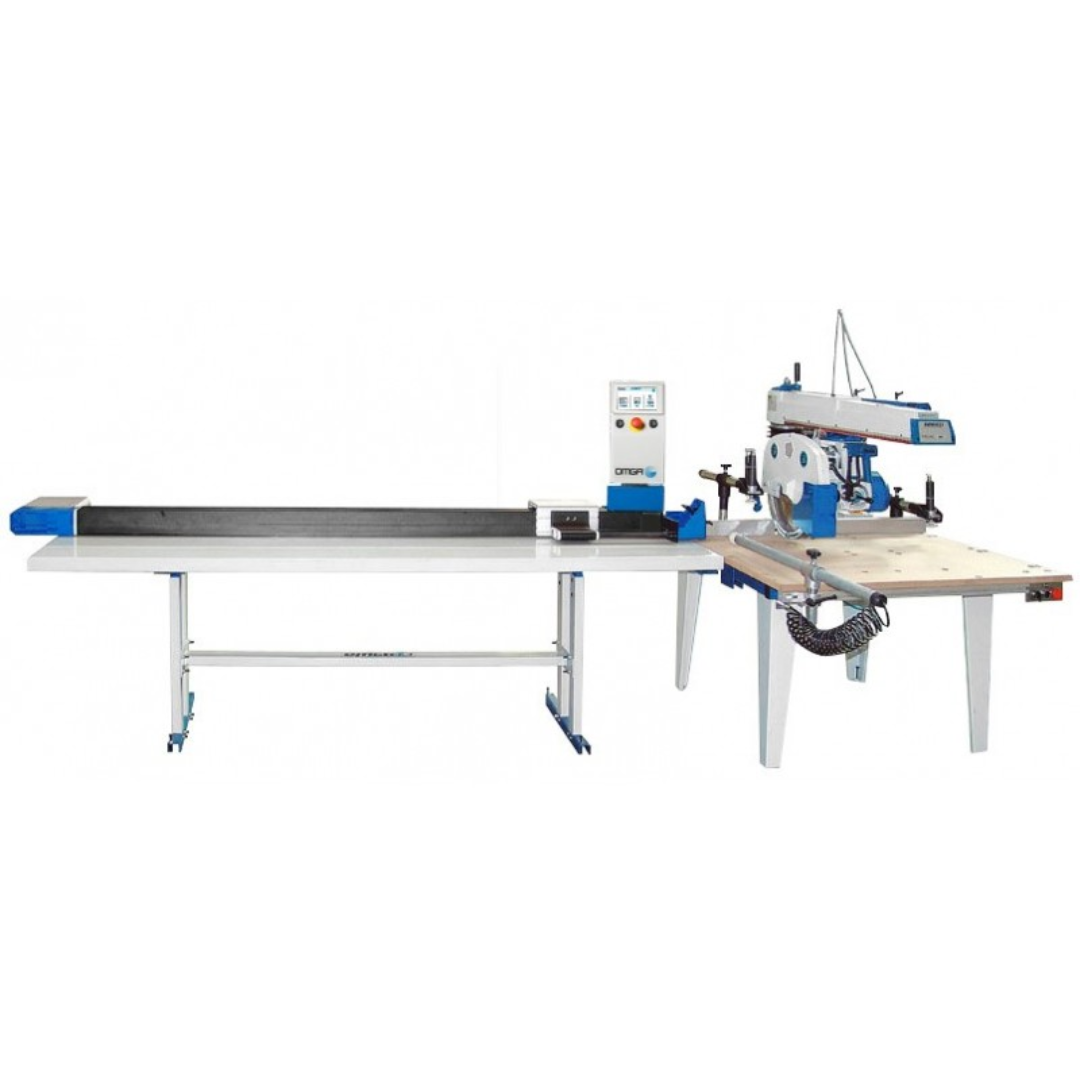

- Up-cut saw and radial arm saw production lines
- Table saw and drilling station automation
- Picture frame manufacturing systems
- Plastic fabrication and metalworking operations
- Precision repetitive cutting and positioning tasks
- Industrial manufacturing cells requiring programmable stop systems
The OMGA Stop 16 - RH Programmable Stop/Positioner System is ideal for manufacturers seeking highly accurate programmable positioning, increased processing speed, and improved production consistency.
OMGA Stop 16 - RH Programmable Stop/Positioner System Specifications
| Model | OMGA Stop 16 - RH |
|---|---|
| Machine Type | Programmable Stop/Positioner System |
| Usable Traverse | 16' 4" |
| Motor Type | Brushless Motor |
| Brushless Motor Power | 0.66 kW (0.9 HP) |
| Maximum Traversing Speed | 200 FPM |
| Positioning Accuracy | ±0.004" |
| Software Versions Included | Pusher Basic, Advanced Pusher, and Picture Frame |
| Maximum Number of Programs | 500 |
| Connection Ports | 2 x USB, 2 x RS 232, and 1 x RJ45 |
| Removable Media Support | USB Port and Ethernet Port |
| Measurement Units | Millimeters and Inches |
| Input Formats | Fractional and Decimal |
| Controller Interface | Touch-Screen Controller |
| System Orientation | Right Hand Configuration |
OMGA Stop 16 - RH Programmable Stop/Positioner System Features & Performance

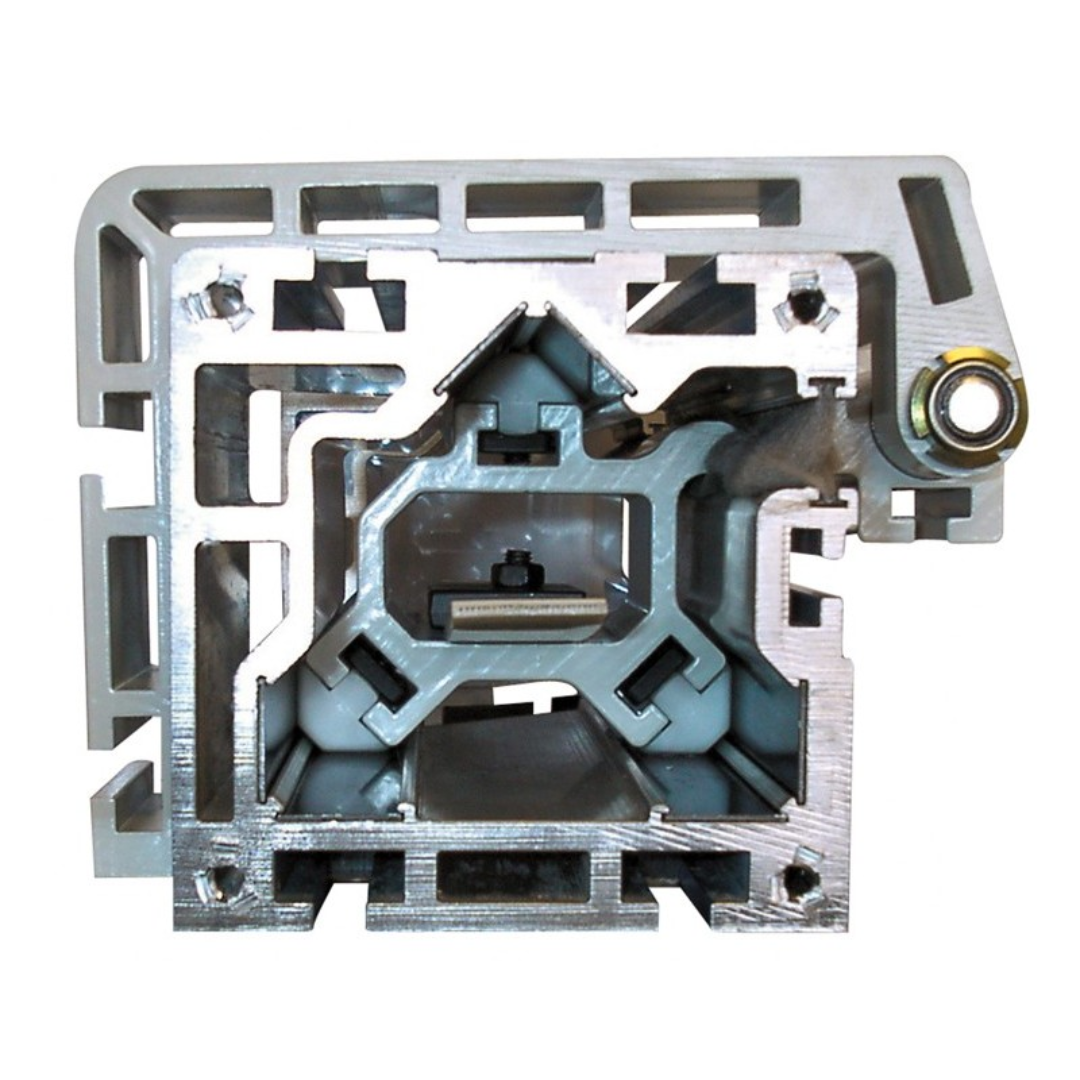

- Precision linear encoder positioning system delivers highly accurate and repeatable positioning with ±0.004" precision.
- 16' 4" of usable traverse supports efficient handling of long workpieces and production material processing.
- High-speed traversing performance of up to 200 FPM improves production throughput and operational efficiency.
- Industrial brushless motor system provides smooth movement, low maintenance operation, and dependable long-term reliability.

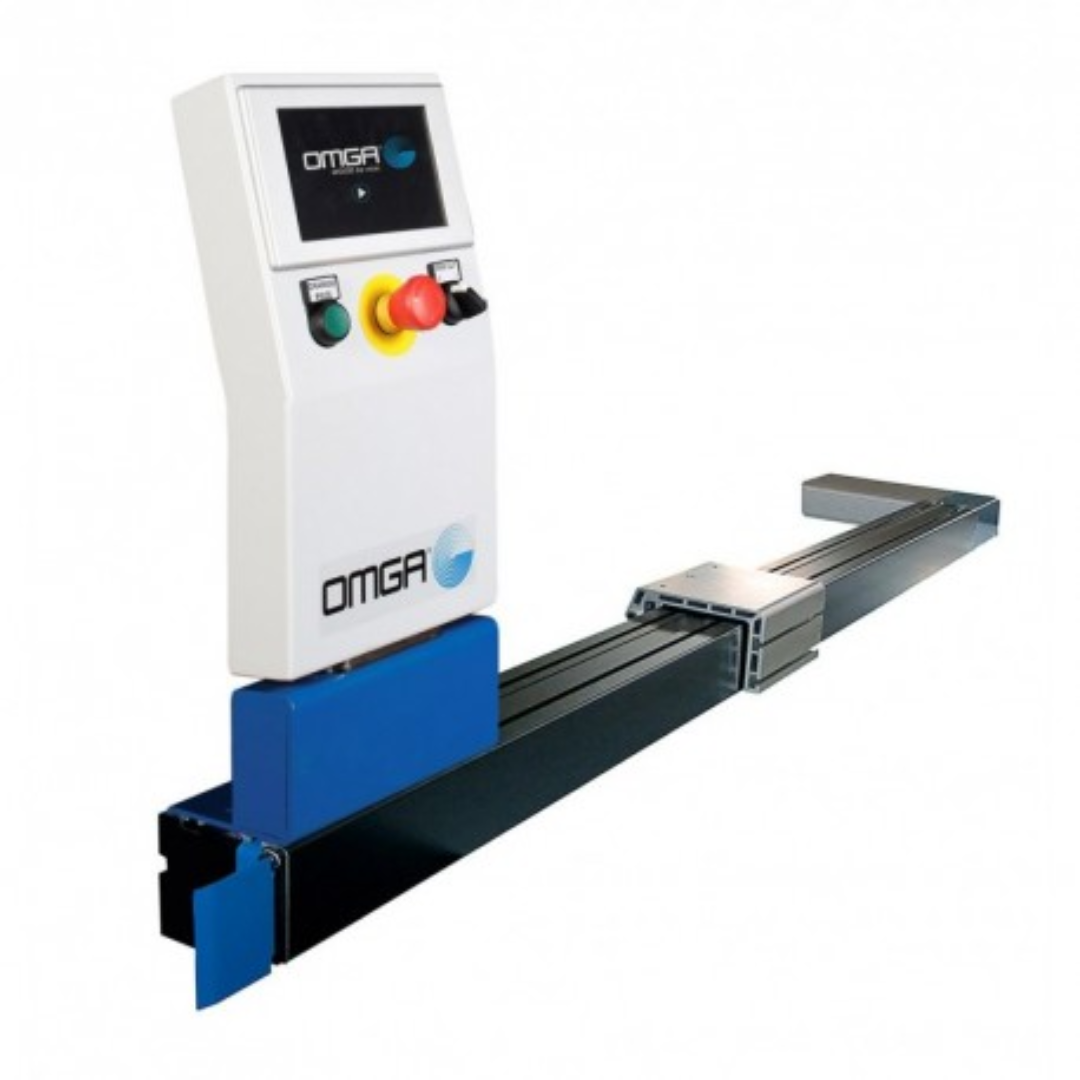

- Touch-screen operator controller simplifies programming, production setup, and machine operation.
- Integrated software packages included for Pusher Basic, Advanced Pusher, and Picture Frame applications with no additional software purchases required.
- Programmable memory storage allows operators to store up to 500 production programs for fast job recall and repeat processing.
- Compatible with multiple industrial machine types including saws, drills, and automated cutting systems.
- Supports inch and metric operation for flexible manufacturing compatibility across different production standards.
- Fractional and decimal input capability improves programming convenience and operator flexibility.
- Multilingual touchscreen interface available in multiple languages for international manufacturing environments.
- Advanced onboard diagnostics simplify troubleshooting and help minimize production downtime.
- Extensive communication ports including USB, RS 232, and RJ45 Ethernet connectivity for integration with barcode readers, printers, computers, USB memory devices, and network systems.
- Optional Interlink Kits available for varying levels of machine automation and production integration.
- Eliminates repetitive manual tape measuring while improving production consistency and material processing accuracy.
Why Choose the OMGA Stop 16 - RH Programmable Stop/Positioner System
- Highly accurate programmable positioning improves production precision.
- Converts manual machinery into intelligent semi-automated production systems.
- Compatible with woodworking, plastics, and metalworking applications.
- Fast traversing speeds improve workflow efficiency and productivity.
- Advanced connectivity options support integration with modern manufacturing systems.
- Large program memory capacity simplifies repetitive production jobs.
- Industrial-grade construction designed for demanding manufacturing environments.
- Ideal for repetitive cutting, drilling, and positioning applications requiring maximum consistency.
The OMGA Stop 16 - RH Programmable Stop/Positioner System combines precision encoder technology, intelligent touchscreen control, and industrial automation performance into a powerful positioning solution for modern production environments requiring speed, accuracy, and repeatability.
