OMGA RN 700 14" Radial Arm Saw Applications
- Furniture manufacturing and woodworking production facilities
- Cabinet shops and architectural millwork operations
- Frame manufacturing and trim production applications
- Sawmills processing hardwoods and dimensional lumber
- Professional carpentry and custom woodworking shops
- Precision cross cutting and ripping operations
- Bevel cutting, angle cutting, and specialty woodworking applications
- Industrial woodworking environments requiring versatile cutting capability

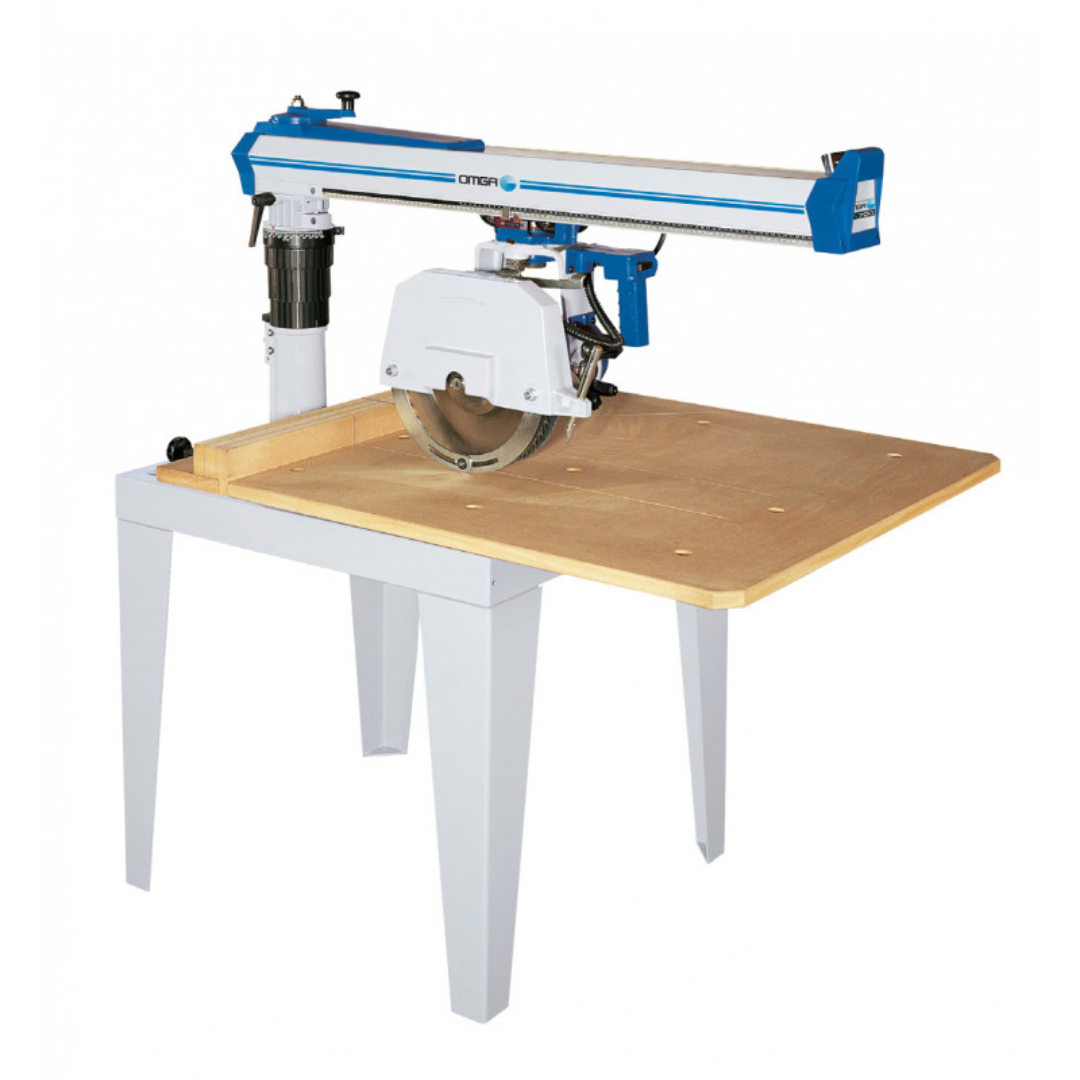

The OMGA RN 700 14" Radial Arm Saw is engineered for professional woodworking operations that require smooth carriage movement, precise positioning, and dependable industrial cutting performance.
OMGA RN 700 14" Radial Arm Saw Specifications
| Model | RN 700 |
|---|---|
| Saw Type | 14" Industrial Radial Arm Saw |
| Motor Power | 5 HP |
| Saw Diameter | 14" |
| Saw Bore | 1" |
| Arbor Speed | 3200 RPM |
| Cross Cut Capacity | 27 1/2" |
| Ripping Capacity | 36 5/8" |
| Maximum Depth of Cut at 90° | 4 1/2" |
| Maximum Depth of Cut at 45° | 3 3/16" |
| Maximum Dado Capacity | 1 1/2" |
| Miter Positive Stops | 45° – 0° – 45° |
| Bevel Positive Stops | 0° – 45° |
| Table Size | 35" × 35" |
| Overall Dimensions | 35" × 50" |
| Crated Dimensions | 52" × 38" × 63" |
| Shipping Weight | 368 lbs. |
OMGA RN 700 14" Radial Arm Saw Performance & Construction

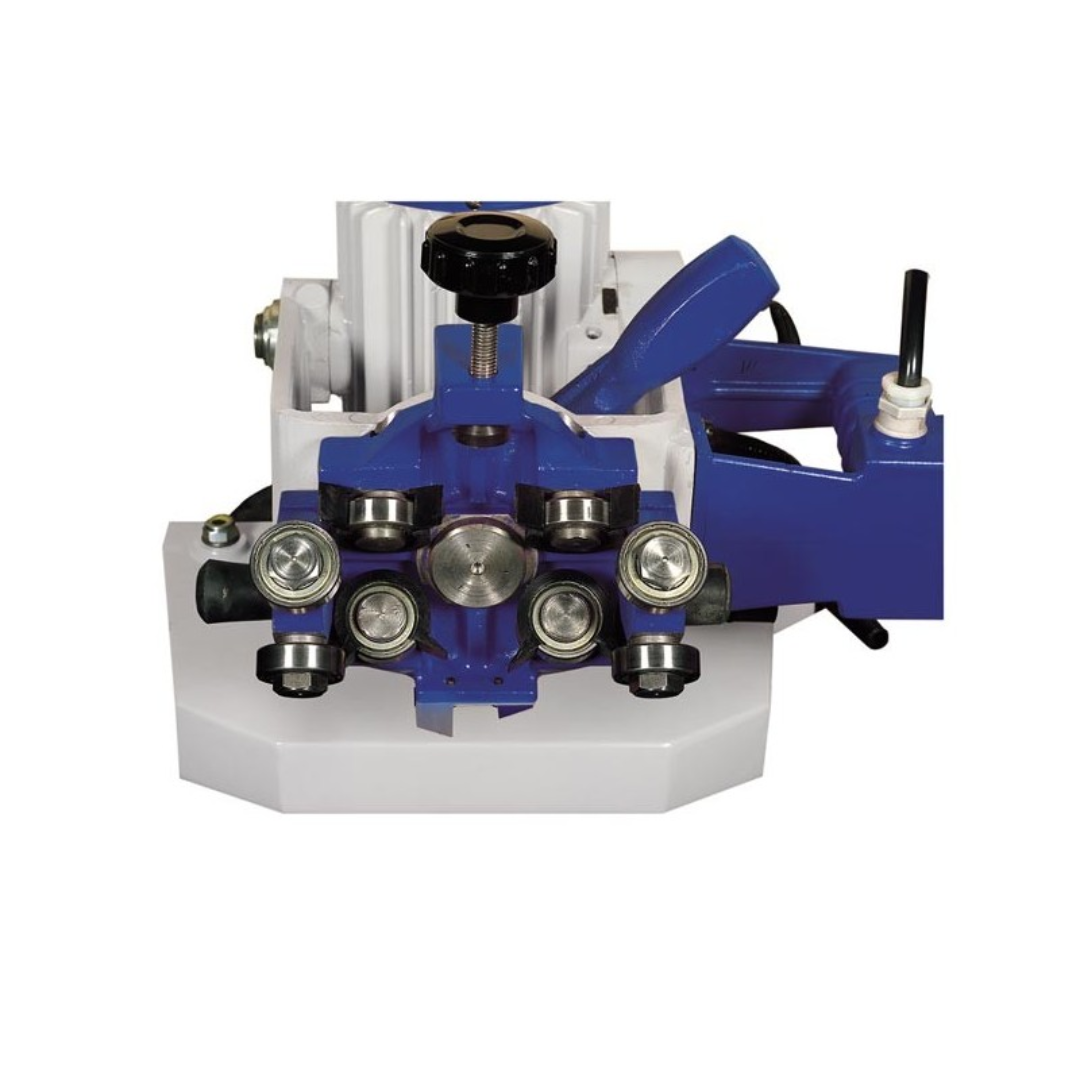

- Precision 8-bearing carriage system provides exceptionally smooth saw travel and highly accurate cutting performance for industrial woodworking applications.
- Integrated dust scrapers maintain cleanliness of the interchangeable steel tracks and bearing system for improved reliability and consistent operation.
- Reliable 5 HP industrial motor delivers dependable cutting power through hardwoods, softwoods, and engineered wood materials.
- Self-centering locking system automatically positions and locks the arm, motor, and carriage at primary angle settings for faster setup and improved repeatability.
- Manual intermediate angle locking allows precise custom positioning for specialty cuts and advanced woodworking applications.

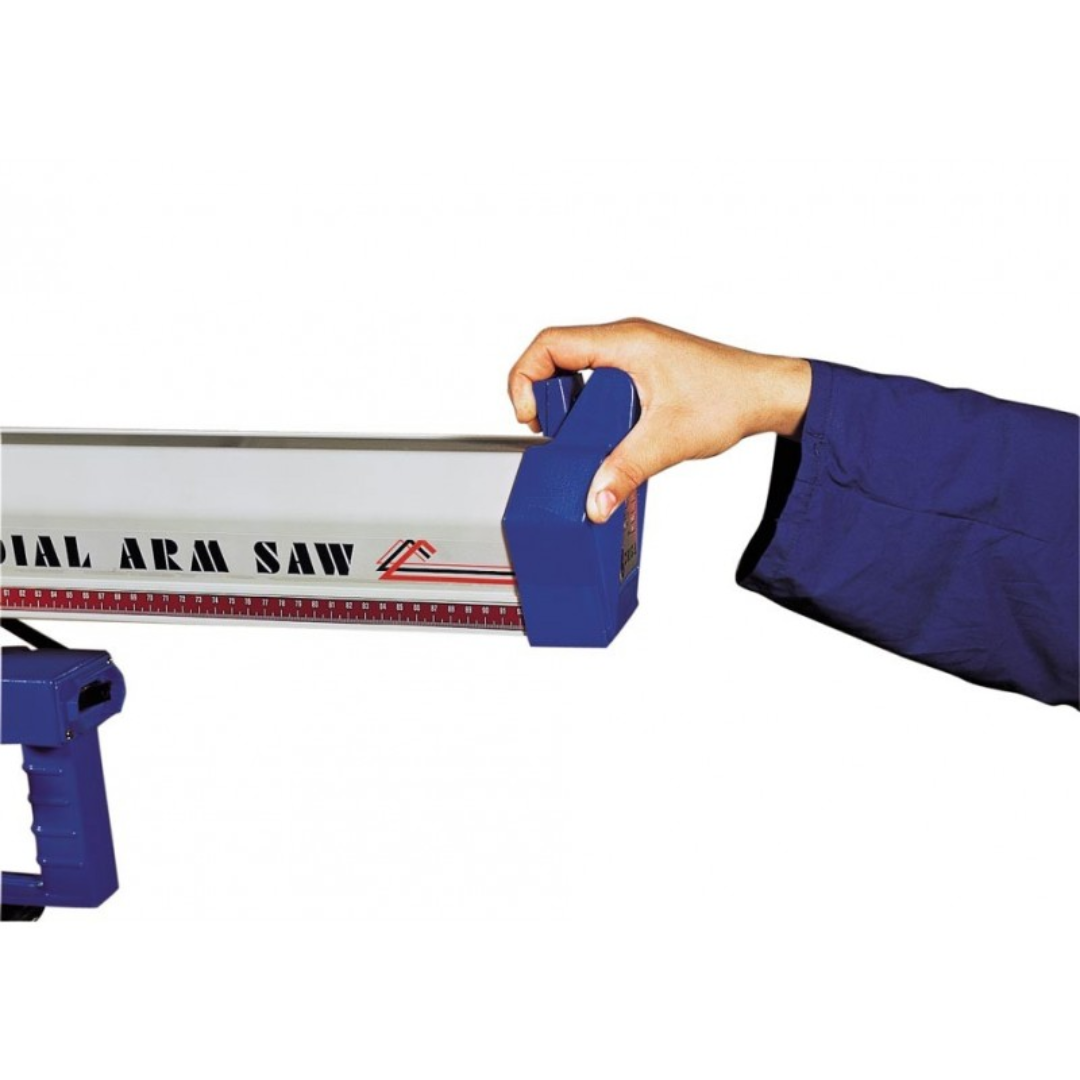

- Front-mounted arm unlocking system provides quick and practical adjustment control for efficient machine positioning.
- Swiveling and tilting radial arm capability on both horizontal and vertical axes increases machine versatility for complex cutting operations.
- Automatic head reversal system improves operational workflow and efficiency during repetitive production cutting.
- Motor brake functionality provides faster blade stopping performance for enhanced operator safety.
- Standard overload protection with no-volt coil helps protect the electrical system and motor during demanding industrial use.
- 3200 RPM arbor speed delivers smooth cutting action, efficient material processing, and clean cutting finishes.
- Industrial-grade machine construction is engineered for continuous daily use in demanding woodworking and production environments.
Why Choose the OMGA RN 700 14" Radial Arm Saw
- Precision 8-bearing carriage system ensures smooth and accurate cutting performance.
- Reliable 5 HP motor designed for industrial woodworking applications.
- Self-centering locking system improves cutting consistency and setup efficiency.
- Swiveling and tilting radial arm functionality supports versatile cutting operations.
- Integrated dust scraper system improves track cleanliness and operational reliability.
- Automatic head reversal and motor brake enhance safety and production efficiency.
- Ideal for furniture manufacturers, cabinet shops, sawmills, frame makers, and carpentry operations.
The OMGA RN 700 14" Radial Arm Saw combines precision engineering, industrial-grade durability, and versatile radial arm functionality to deliver dependable cutting performance for professional woodworking environments.
