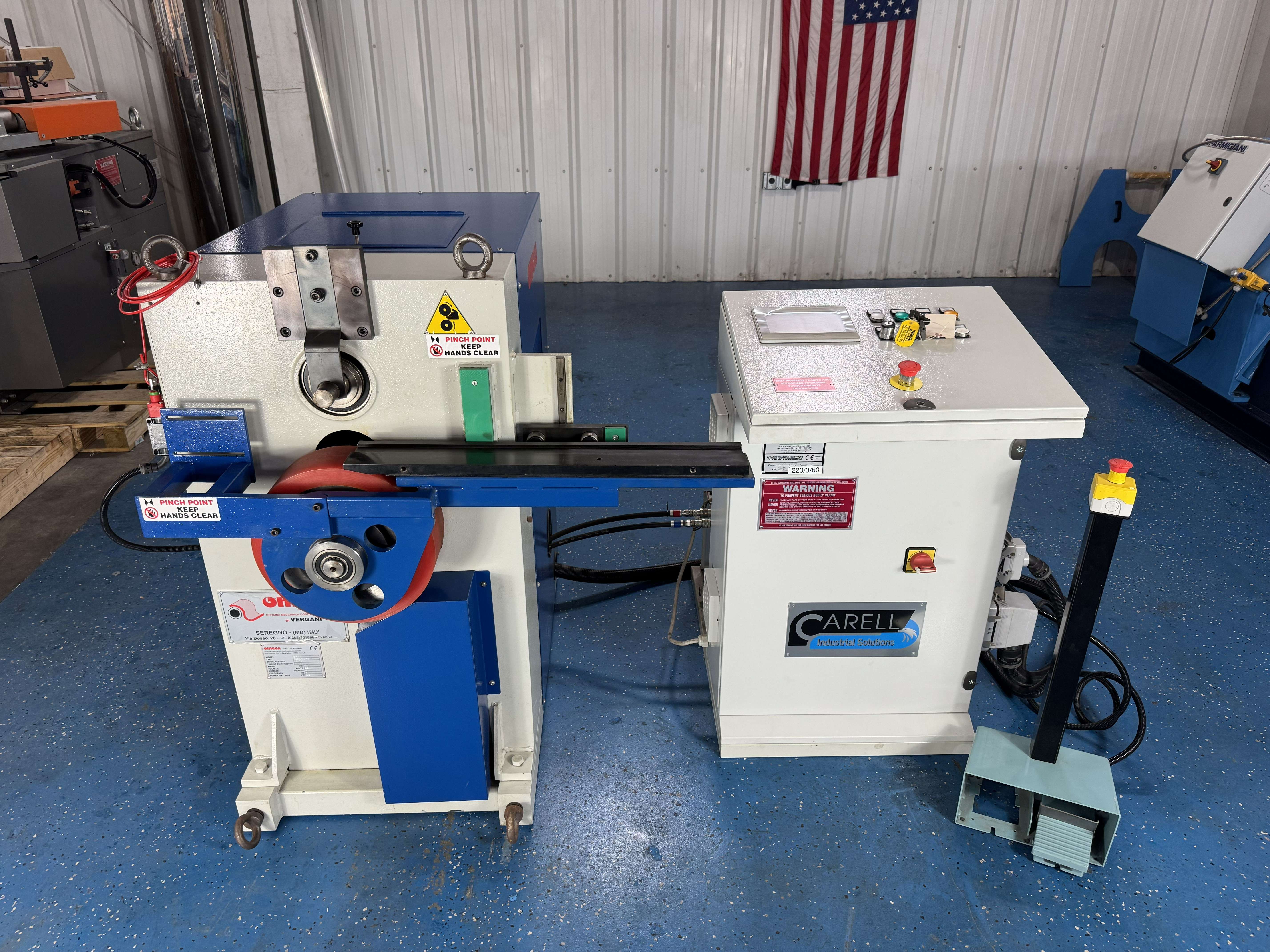

Omcca 2 RM Applications
- High-efficiency manufacturing of precise cylindrical parts from sheet metal and strip stock.
- Continuous-duty automatic rolling cycles for repetitive commercial production runs.
- Versatile diameter rolling from tight 1.500" cylinders up to massive 52" rings.
- Processing delicate or finished materials using the non-marring urethane-coated lower pressure roll.
Engineered specifically for repetitive manufacturing environments that demand rapid automatic cycling, extreme precision, and unyielding structural reliability.
Technical Specifications
| Machine Type | 2-Roll Electro/Hydraulic Ring Roll |
|---|---|
| Maximum Strip / Sheet Width | 3.5" (0.5" shorter than max shaft length) |
| Strip Width Capacity | 0.20" to 90.83" |
| Material Thickness Capacity | 0.044" to 0.196" |
| Diameter Range | 1.500" to 52" (Scales with thickness) |
| Control System | 7" Weintek HMI Touchscreen Panel |
| Roll Drive | Electric Motor with Inverter & Gear Reduction |
| Included Mandrels | 2 Top Shaft Mandrels (1 Min, 1 Max for ACE stamping) |
| Lubrication System | Manual Forced Lubrication |
Performance & Engineering Controls
- Urethane-Coated Pressure Roll: Driven by an inverter-controlled electric motor and gear reduction, providing powerful, slip-free material feeding without surface marring.

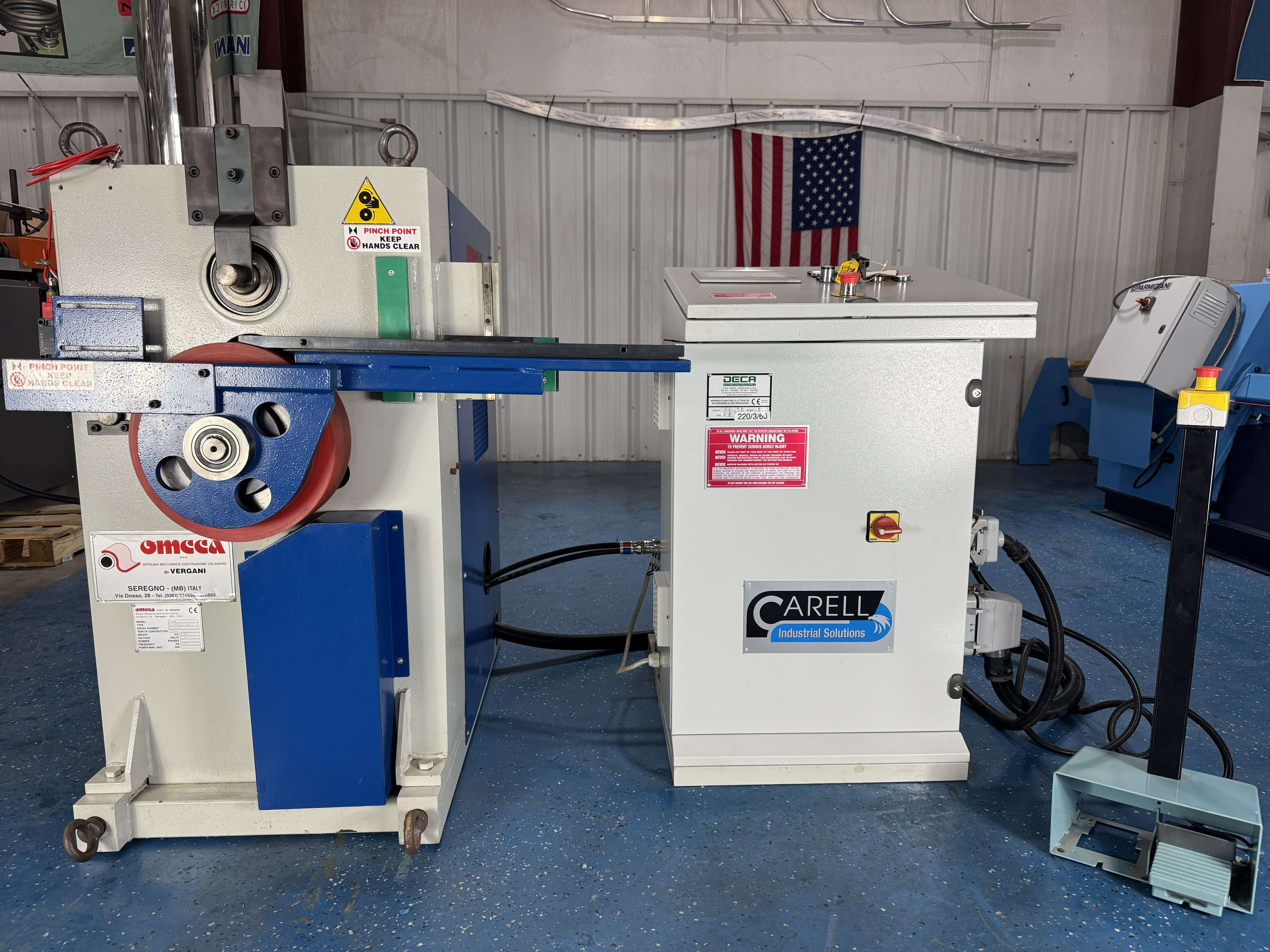

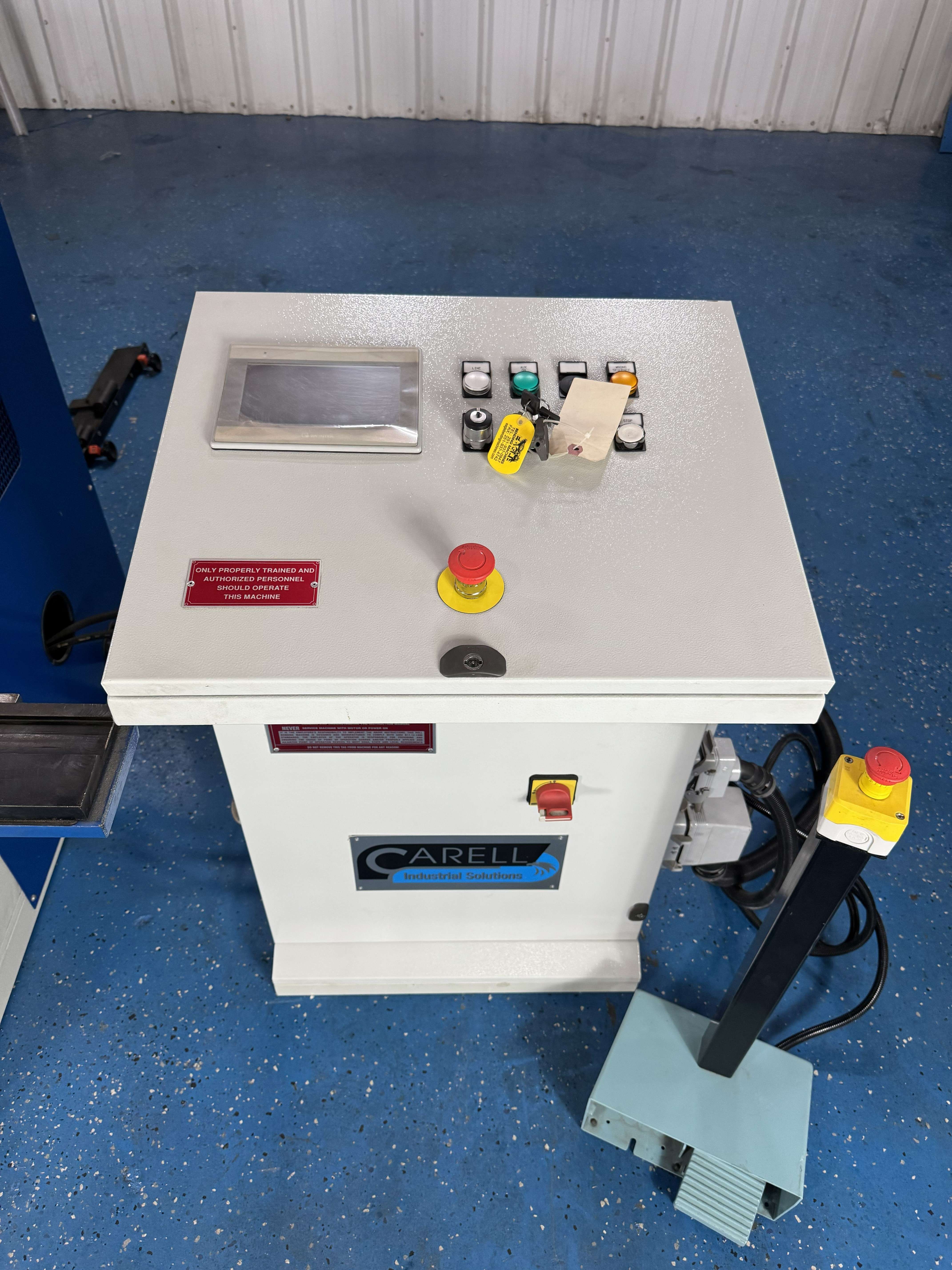

- 7" Weintek HMI Interface: Offers intuitive, low-voltage command over the automatic cycle, easily programming the lower roll ascent, rolling action, descent, and cycle stop.
- Dual-Stage Roll Adjustment: Features an electric jack screw box for precise pre-set positioning of the lower urethane roll, while hydraulic pistons deliver the final high-pressure working stroke.
- Cantilevered Shaft Design: Both the lower roller and top mandrel extend outward from the machine frame, allowing for fast, unobstructed removal of the finished rolled parts.
- Integrated Part Support: Comes standard with a manually adjusted overhead material support (up to 52" diameter) and an out-feed calibrating roller to sustain the part on exit.
Documents & Downloads
Why Invest in This Omcca Ring Roll
- Dramatically reduces cycle times in batch production with its fully automated sequence—just feed the part, pinch, roll, and remove.
- The heavy steel plate, CNC-machined and stress-relieved frame eliminates flex, guaranteeing exact repeatability across thousands of cycles.
- Surrounded by a safety trip cable that effectively limits operator access to the working area, maintaining high shop floor safety standards.
- Spherical roller bearings on all rolls ensure smooth, frictionless power transfer and an exceptionally long service life under heavy load.
The Omcca 2 RM establishes a high-speed, repetitive-accuracy foundation for your commercial rolling operations, delivering flawless cylindrical parts cycle after cycle.
