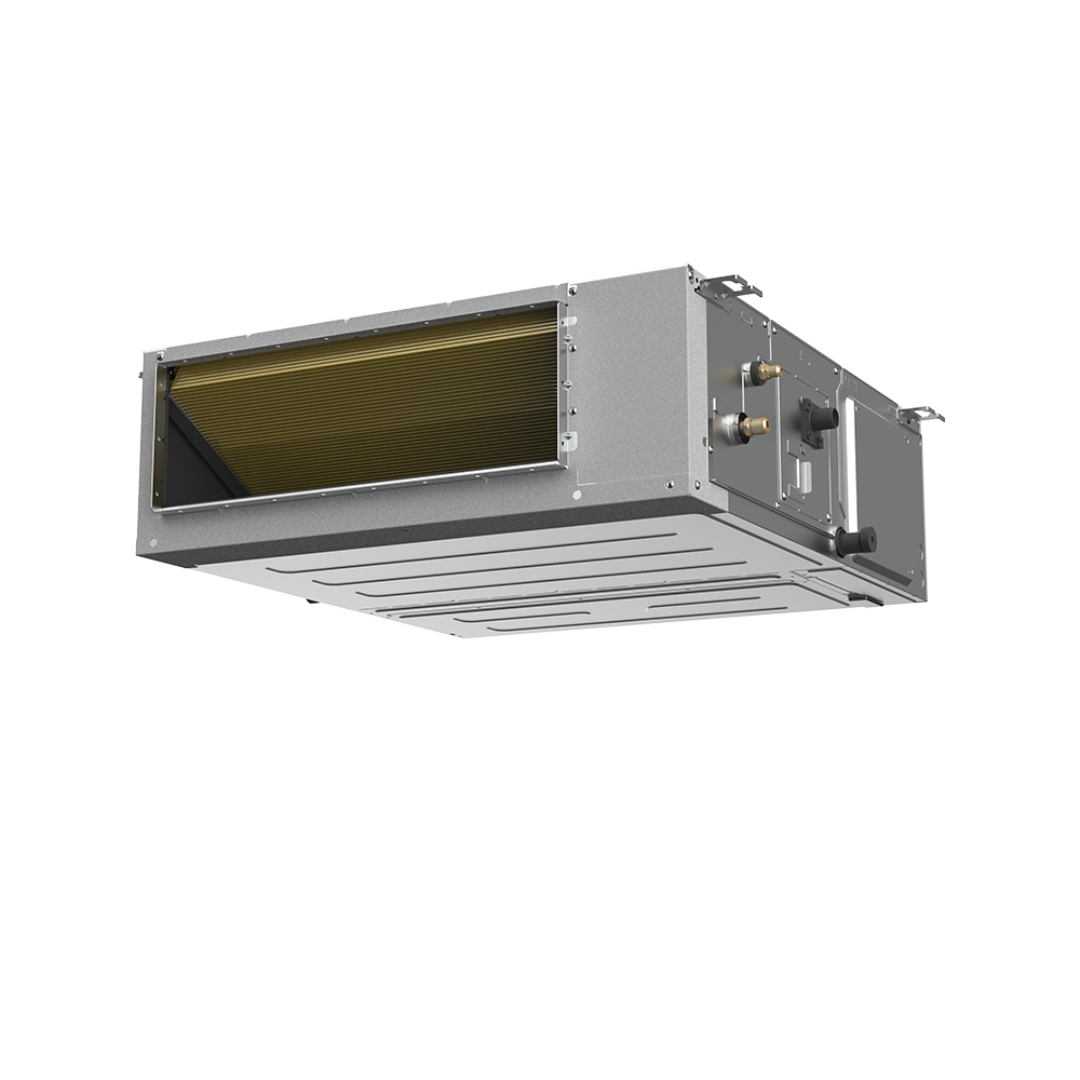

Mrcool Olympus Duct DUCT-24HP-230B-O horizontal ducted mini split unit with slim design for ceiling installation

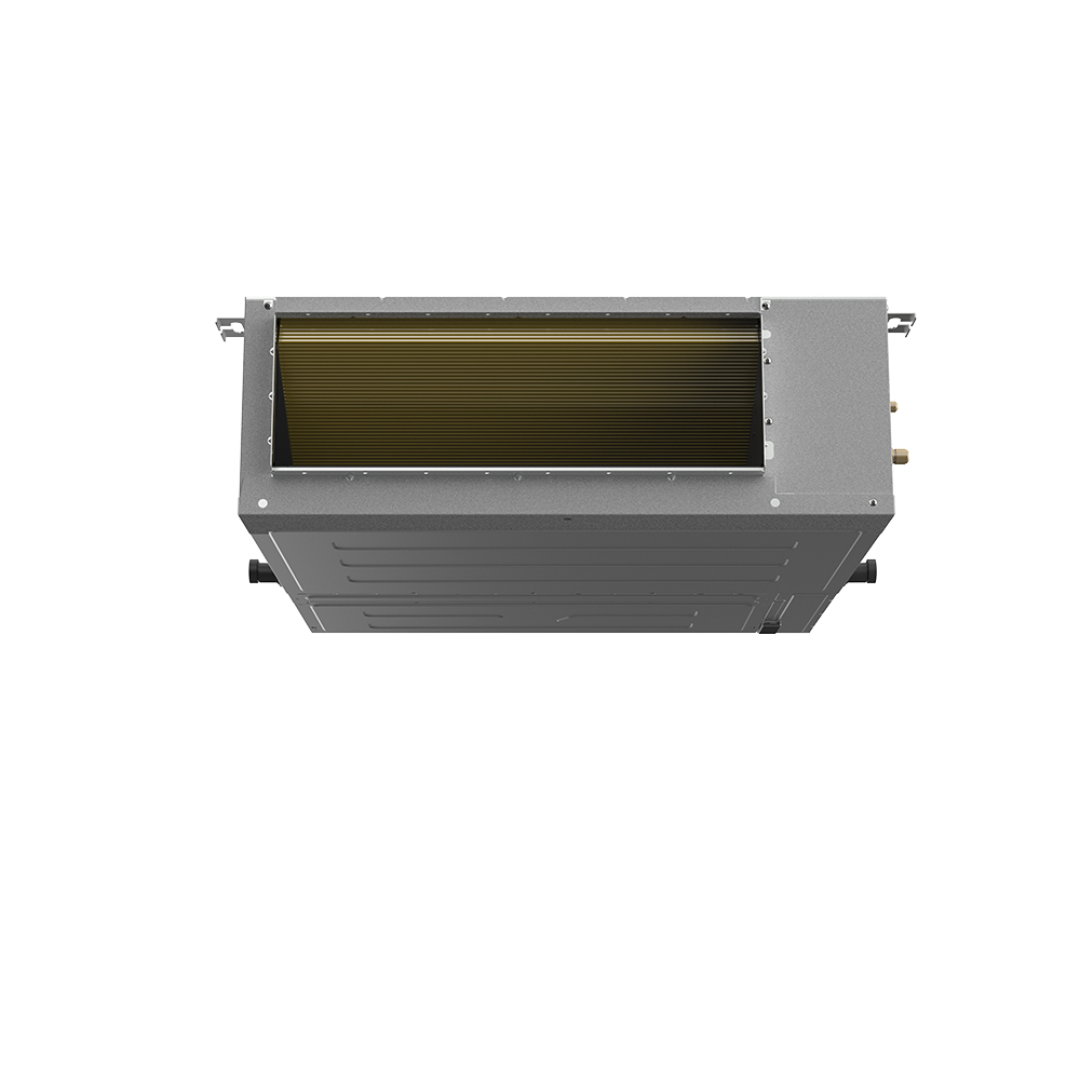

Mrcool Olympus Duct DUCT-24HP-230B-O front view highlighting air outlet and concealed mounting configuration

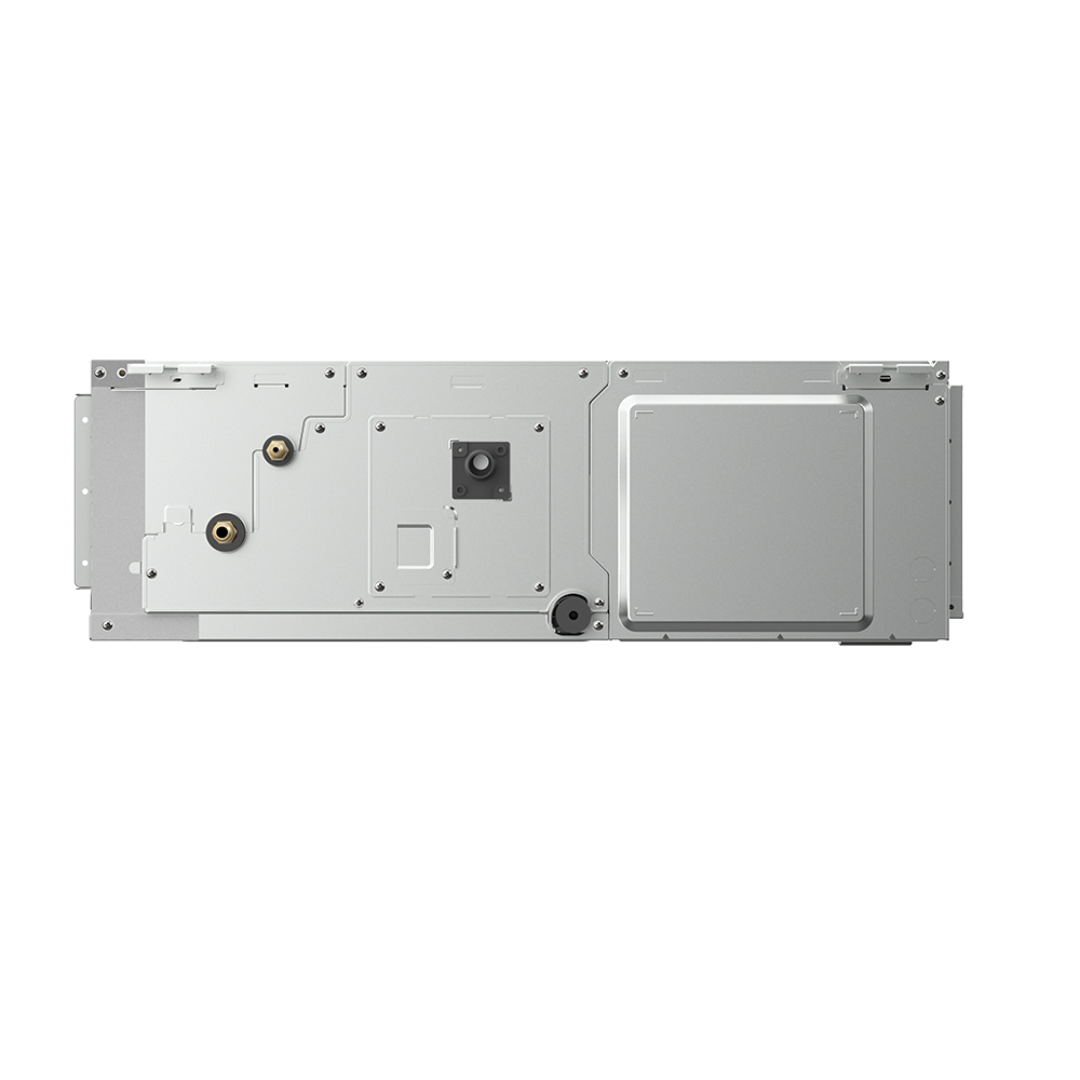

Mrcool Olympus Duct DUCT-24HP-230B-O rear panel view showing connection ports and service access panel

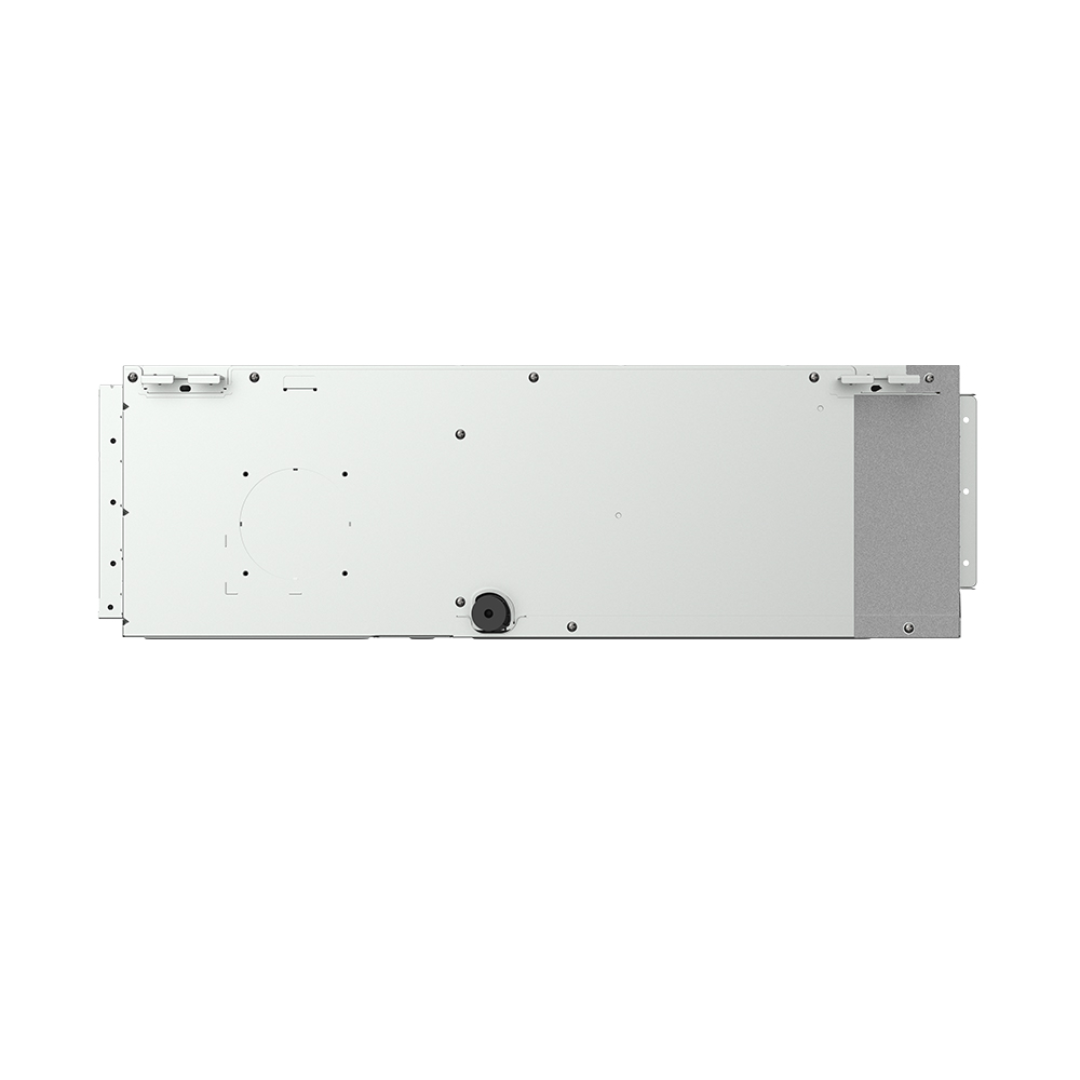

Mrcool Olympus Duct DUCT-24HP-230B-O side panel view with electrical access and structural housing details

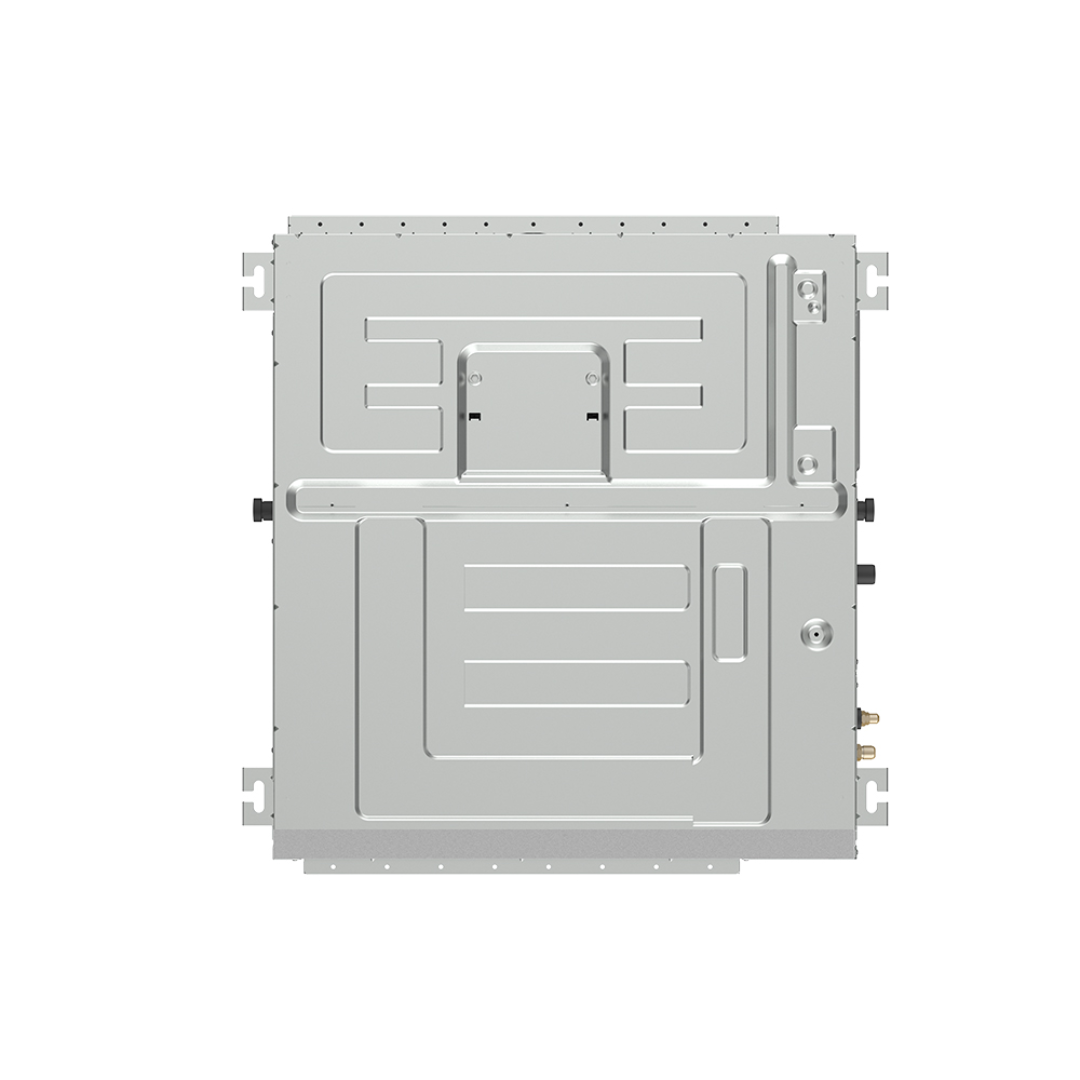

Mrcool Olympus Duct DUCT-24HP-230B-O bottom view showing mounting structure and internal access panel layout

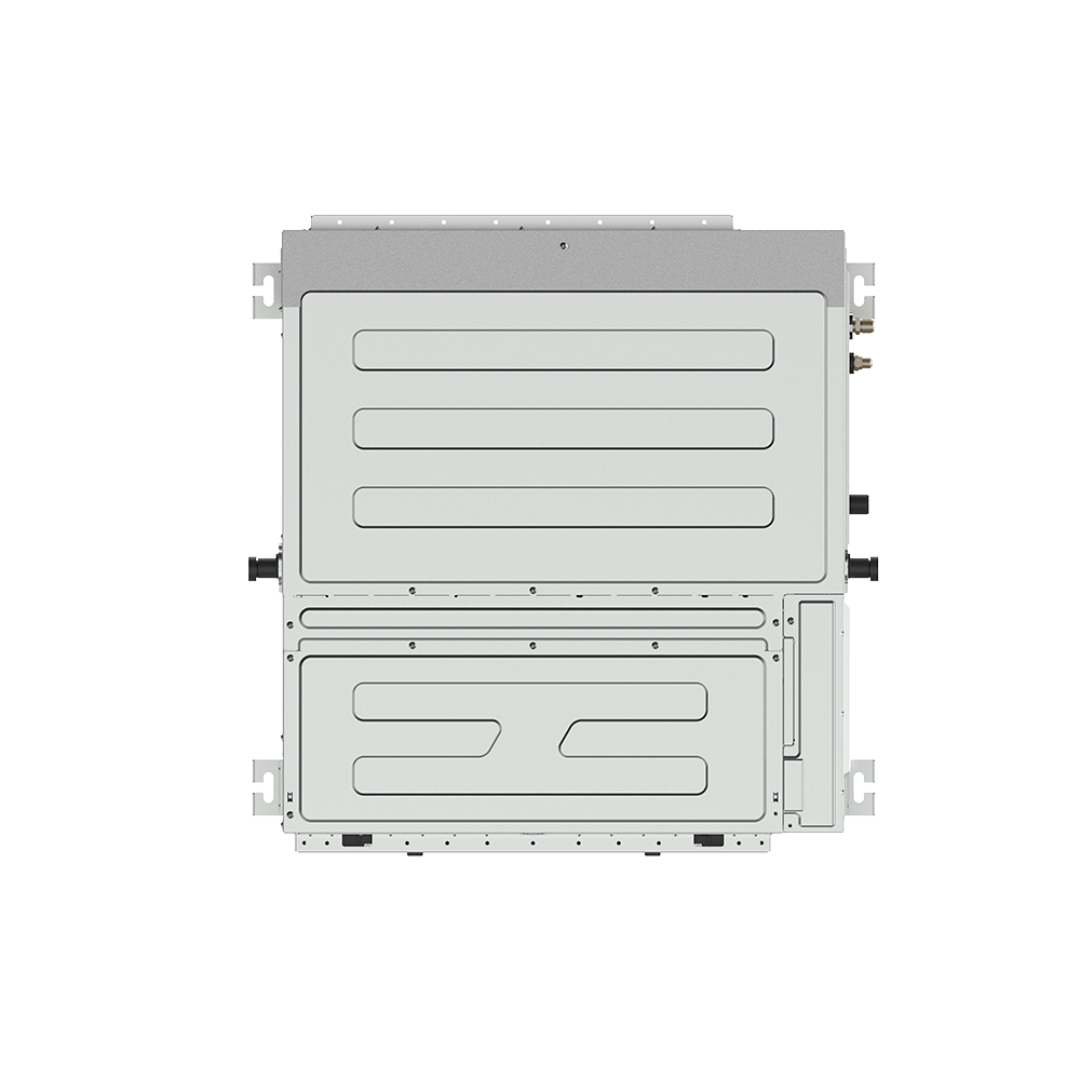

Mrcool Olympus Duct DUCT-24HP-230B-O back housing design with ventilation pattern and structural reinforcement

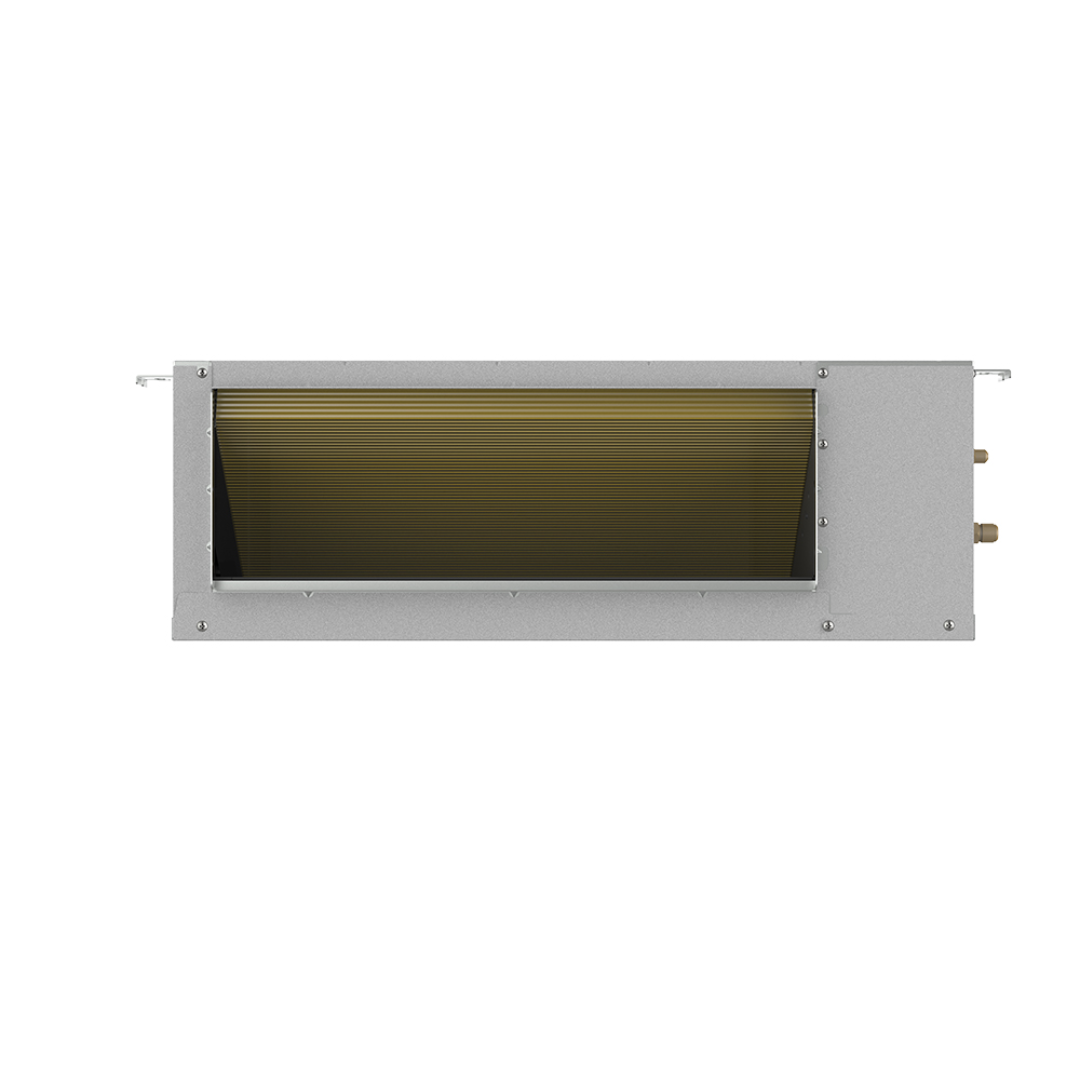

Mrcool Olympus Duct DUCT-24HP-230B-O front duct opening emphasizing airflow distribution design

Roll over image to zoom in Click on image to zoom

Mrcool Olympus Duct DUCT-24HP-230B-O

Name: Mrcool Olympus Duct DUCT-24HP-230B-O
Brand: MRCOOL
SKU: Olympus DUCT-24HP-230B-O
Price: 1038.00 USD
Availability: InStock

★★★★★

Iron Line Verified

Authorized Dealer: MRCOOL

Official Partner

IN STOCK & RECEIVE IN 2-7 DAYS

SKU: Olympus DUCT-24HP-230B-O

Price:

$1,038.00

Quantity:

Financing as low as ~$17 / month (60 mo. terms) Estimate your payment

We pay your sales tax! (IL excluded) 📦 Order before 7 PM CST for same-day shipping.

Share this product

Section 179
Tax Savings

Save up to $217.98 on this equipment Estimate Your Tax Deduction

Calculate Savings →

Commercial Buyer?

Unlock volume pricing and dedicated facility support with Trade Accounts
(Requires minimum of 2+ items)

24K BTU concealed ducted air handler for the Olympus line
Mounts above the ceiling and connects to short ductwork, fully hidden
Runs on 230V power
Pairs with a matching Olympus condenser
Meant for professional installation

Order Placed

Ships Out

Delivered

*Please Note: This timeline is an estimate. Certain products may require an additional 1 week for manufacturing. Please speak with your sales rep, Matthew, for official details and confirmation before placing your order.

CALL US FOR THE MOST ACCURATE AND COMPETITIVE LTL SHIPPING RATE, (888) 308-5580

Get Questions Answered Fast

Experience: 20+ Years B2B • Origin: US-Based Support

EXPRESS SHIPPING

Most orders process in 1-3 days. Yes, even if it weights 400lb

Hassle-Free Returns

No restocking fees. Ever.

Manufacturer Warranty

Fully backed by the brands you trust.

Dedicated Rep Mathew

Speak to a US-Based Equipment Specialist: (888) 308-5580

Flexible Financing

Get Upto 60 Months Financing

High Capacity • Concealed Installation • Energy Efficient Comfort

Mrcool Olympus Duct DUCT-24HP-230B-O

The Mrcool Olympus Duct DUCT-24HP-230B-O is a high-capacity 24,000 BTU (2 Ton) ducted mini-split air handler designed to deliver powerful, efficient heating and cooling for spaces up to 1,050 square feet. Featuring a low-profile ceiling-concealed design, this system integrates seamlessly into residential and light commercial environments, maintaining a clean, modern aesthetic while maximizing comfort. Engineered with advanced R-454B refrigerant, this unit provides exceptional performance with reduced environmental impact, making it an ideal solution for energy-conscious applications.

Mrcool Olympus Duct DUCT-24HP-230B-O Applications

Large residential spaces including master bedrooms and open living areas up to 1,050 sq ft
Home offices, studios, and multi-purpose rooms requiring higher capacity HVAC
Light commercial environments such as offices, retail shops, and small businesses
Ceiling-concealed ducted systems where aesthetics and space-saving design are critical
New construction and retrofit installations with hidden air distribution

Ideal for larger areas requiring powerful airflow, quiet operation, and a completely concealed HVAC solution.

Mrcool Olympus Duct DUCT-24HP-230B-O Specifications

Brand	MRCOOL
Series	Olympus Duct
Model	DUCT-24HP-230B-O
Unit Type	Mini-Split Air Handler (Ducted)
Cooling Capacity	24,000 BTU (2 Ton)
Voltage	208/230V
Phase	1
Frequency	60 Hz
Max Fuse Breaker	15 A
Min Circuit Ampacity	3 A
Refrigerant	R-454B
Coverage Area	Up to 1,050 sq ft
Airflow Speeds	5 (Variable)
Sound Level	29.5 – 40 dBA
Liquid Line Size	3/8"
Suction Line Size	5/8"
Mount Type	Ceiling Concealed (Ducted)
Dimensions (W x D x H)	39.37" x 29.53" x 9.65"
Net Weight	80.47 lbs

Mrcool Olympus Duct DUCT-24HP-230B-O Performance & Features

High-capacity 2-ton performance delivers strong heating and cooling for larger spaces.
Ceiling concealed ducted design ensures a clean, flush installation with minimal visual impact.
Advanced R-454B refrigerant reduces environmental impact while maintaining superior system efficiency.
Quiet operation with sound levels as low as 29.5 dBA for comfortable indoor environments.
5-speed variable blower motor enables precise airflow control and balanced temperature distribution.
Convenient controls include both wired wall controller and included remote control.
Fan-only and sleep modes provide flexible comfort and energy-saving operation.
Durable metal construction ensures long-lasting performance and reliability.

Mrcool Olympus Duct DUCT-24HP-230B-O Compatibility

O-ES-24-HP-C-230C-O1
MULTI4-27HP230C-O
MULTI5-36HP230C-O
MULTI6-48HP230C-O

Compatible with MRCOOL Olympus multi-zone condensers for flexible system configurations and zoned climate control.

Why Choose the Mrcool Olympus Duct DUCT-24HP-230B-O

Powerful 24,000 BTU capacity for larger residential and commercial spaces.
Discreet, ceiling-concealed design with ducted airflow distribution.
Quiet and energy-efficient operation for year-round comfort.
Environmentally friendly refrigerant with strong performance output.
Backed by MRCOOL reliability and a 5-year parts warranty.

The Mrcool Olympus Duct DUCT-24HP-230B-O is a premium solution for high-capacity, hidden climate control, combining performance, efficiency, and modern design.

Key Information

Order Cutoff Time: 2:00 PM EST
Order Handling Time: 1–3 business days (Monday–Friday)
Transit Time: 1–7 business days (Monday–Friday)
Total Estimated Delivery Time: 3–11 business days (Monday–Friday)
Shipping Availability: Free Shipping On some Items In The Contiguous United States only

For more information Click Here

Request Expert Consultation

Our tool specialists are ready to help you find the perfect solution for your specific application.

CAPITAL ACCESS

EQUIPMENT FINANCING

AVAILABLE

Preserve cash flow with up to 60 month financing.

Job Site Proven

Trusted by Facilities and manufacturing centers

JLT #180A-M2 Pneumatic Panel Flattener Customer review image

Travis Farwell | Farwell's Fine Woodworking Field Verified

I hope this helps

"I have attached the pictures of how I use my panel flattener. I hope this helps."

JLT #180A-M2 Pneumatic Panel Flattener

Mike Yaross Field Verified

Just what I needed

"Saw works great. Just what I needed. You may want to update the specs though. It says 110v but it’s 220v. I don’t think it will an 10” saw blade either. Haven’t tried but I don’t think it’s set up for one like it says. Ordering process was nice and easy. Thank you."

Castaly 12" Radial Arm Saw RS-612

FRANCISCO, Shop Manager Field Verified

Built for 24/7 Production

"Got the JLT #717C for our shop and it’s an absolute beast for narrow stile doors. The 2-second squaring cycle is legit—we’re easily pushing 100+ perfect doors a day now without stressing over glue joint alignment. Setup is super fast with the pin system, and the heavy-duty build takes daily abuse without losing accuracy."

JLT #717C Cabinet Door Clamp

JLT Pressurized A8 Glue Tank for PVA Glue PIZ.9001 in shop

Lincoln Lakes Ind | Lincoln Lakes Industries LLC Field Verified

Thanks for the service!

"Here are 2 pictures of the glue tank in our shop. I hesitated to send anything as it is not in its final place but perhaps it's good enough for you. We are using it for our drawer box station and assembly station. Thanks for the service!"

JLT Pressurized A8 Glue Tank for PVA Glue PIZ.9001

Gedalya Glauber Field Verified

Purchased Machine for Partner

"I purchased this machine for our partner in China to use. We had some issues but we were able to get them fixed thanks to iron line tools."

Virutex CE53S Edge Lipping Planer for Perfect Flush Edges 5300199

Virutex TWOO AB200 Corded Dowel Jointer (120V) 7900799 vertical dowel joint cutting on panel surface ensuring precise alignment and repeatable results

David & Joyce West Field Verified

I know this will meet my requirements

"haven't had a chance to use it but it looks like a well built product have a few projects down the road and I know this will meet my requirements. so hats off to your team! David"

Virutex TWOO AB200 Corded Dowel Jointer (120V) 7900799

Virutex AU93 Double Edge Trimmer And Scraper + RC21E Manual End Trimmer SET 2800086 complete edge finishing tool set shown with dual edge trimmer and manual end trimmer.

Stuart Casterlin | Stuart Casterlin Custom Cabinets and Fine Woodworking, Inc. Field Verified

Both Tools Work Great

"Both tools work great and are real time savers . The two tools that I received from your company were replacements for the exact same tools that I've used for the past years, I think its safe to say 20+ years. Extremely pleased with product and service."

Virutex AU93 Double Edge Trimmer And Scraper + RC21E Manual End Trimmer SET 2800086

Bradley Cole, CB Anderson Shutter Co Field Verified

They are just what we needed

"We use these clamps daily, and they're very helpful for our work. We are always happy to support a small business."

JLT #812B Clamp Design

California Air Tools 10020DCAD-22060 2.0 Hp Ultra Quiet Oil-Free 10 Gallon Air Compressor angled view with dual piston pump

Mike T., Shop Manager Field Verified

Quiet, Fast, and Totally Worth It

"Bought this California Air Tools compressor for the shop and it’s an absolute game changer. It’s incredibly quiet—you can actually have a normal conversation right next to it without yelling. It fills up fast, keeps up with all our nailers and blowguns with zero issues, and the oil-free pump means no maintenance. If you're tired of loud, annoying compressors ruining the vibe on your floor, grab this bad boy. Worth every penny."

Jet 16" x 40" Engine Lathe: Geared Head, 230 V 3 Phase, 3-1/8" Spindle Bore Dia, 25 to 1,800 RPM JT9-321381

Mark D. | Machine Shop Foreman Field Verified

Heavy Duty & Precise

"Brought this Jet 16" x 40" Engine Lathe into the shop recently and it’s an absolute beast. The 3-1/8" spindle bore is exactly what we needed for turning larger bar stock, and the geared head runs incredibly smooth from 25 all the way up to 1,800 RPM. It handles our heavy daily metalwork without breaking a sweat, and you can see how solid the build is right in the photo. If you need a reliable 3-phase lathe that holds tight tolerances all day, grab this bad boy. Worth every penny."

Jet Tools Lathe

Euroboor TCT 1" Depth Annular Cutter tungsten carbide tipped annular cutter designed for high-performance drilling in hard steel and abrasive materials.

LEKS KAMIHIRA Field Verified

Yep we got the cutter

"Yep we got the cutter. We haven’t used it, the project we purchased it for has ended. Shipping was fast and I had no issues getting my order"

Euroboor TCT 1" Depth Annular Cutter

Virutex Hand-Held Hot Air Edgebander Set AG52F AG98F AU93 RC21E 5200199 showing complete kit with edgebander, tape roll holder, and accessories

Jesse Pegorsch Field Verified

The edge bender is working great!

"The edge bender is working great! I’ll keep you in mind next time I need something for my shop"

Virutex Hand-Held Hot Air Edgebander Set AG52F: AG98F + AU93 + RC21E 5200199

Virutex Wheel Cutter Set of 2 Wheel Cutters for Laminate and Veneer 1527075 in retail packaging showing replacement cutting wheels

Bryce Bamsey Field Verified

Thanks for checking in.

"I believe they are working well judging by none of the guys have said anything about them other than a thank you for swapping them out for them hahah. So thanks for checking in."

Virutex Wheel Cutter Set Of 2 Wheel Cutters For Laminate And Veneer 1527075

Jesse Browning Field Verified

Figured it out

"I had issues initially with the order but iron line tools helped me figure it out and sent me another Handheld Gluer. Very good service."

Virutex EM125T Handheld Gluer With Upper Roller 2500300

Frequently Asked Questions

This 24,000 BTU (2 ton) ducted air handler is rated for spaces up to 1,050 sq ft.

It works with the Olympus O-ES-24-HP-C-230C-O1 single-zone condenser and the MULTI4-27HP230C-O, MULTI5-36HP230C-O, and MULTI6-48HP230C-O multi-zone condensers.

It is a low-profile ceiling-concealed ducted unit that sends air through ductwork, and it connects with a 3/8" liquid line and a 5/8" suction line.

The indoor unit runs on 208/230V, single-phase, 60Hz power with a 15 A maximum fuse/breaker and a 3 A minimum circuit ampacity.

It operates between 29.5 and 40 dBA across its 5-speed variable blower, and it can be run from a wired wall controller or the included remote.

It measures 39.37" W x 29.53" D x 9.65" H and weighs 80.47 lbs.
