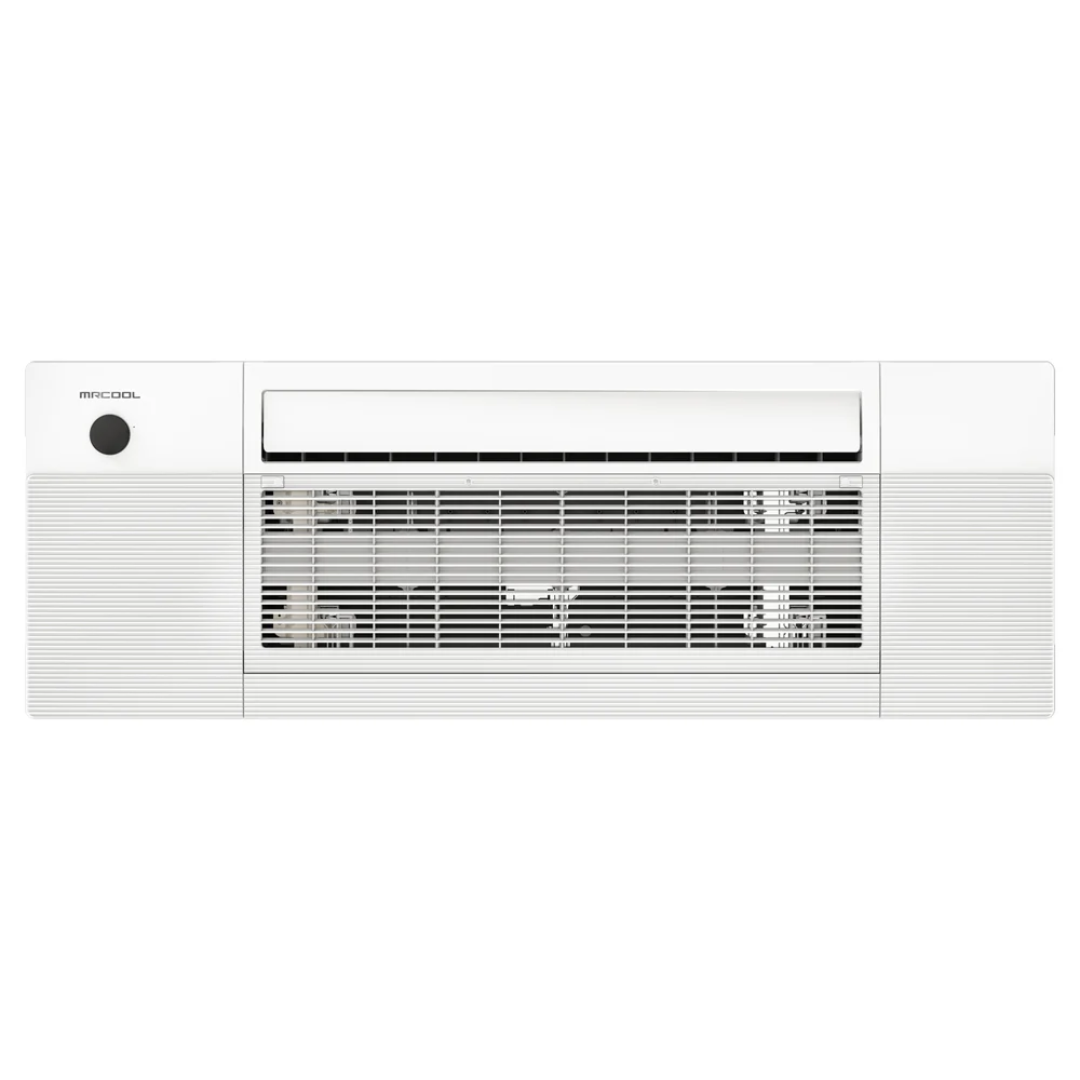

Mrcool DIY 5th Gen OuttaSight DIYCASSETTE06HP-230D25-O Applications
- Residential bedrooms, living rooms, and home additions
- Light commercial offices, studios, and retail environments
- Spaces requiring concealed HVAC solutions with minimal visual impact
- Retrofit or new construction projects with limited ceiling clearance
- Single-zone or multi-zone mini split system configurations
Ideal for applications where quiet performance, clean ceiling aesthetics, and efficient air distribution are critical.
Mrcool DIY 5th Gen OuttaSight DIYCASSETTE06HP-230D25-O Specifications
| Model | DIYCASSETTE06HP-230D25-O |
|---|---|
| Voltage | 208/230V, 1 Phase |
| Frequency | 60 Hz |
| Minimum Circuit Ampacity | 3 A |
| Maximum Coverage Area | Up to 250 sq. ft. |
| Fan Motor Output | 30 W |
| Fan Speed (Hi/Mi/Lo) | 1024 / 944 / 784 r/min |
| Airflow (Turbo/Hi/Mi/Lo/Silent) | 580 / 500 / 440 / 400 / 400 m³/h (341 / 294 / 259 / 235 / 235 CFM) |
| Noise Level (Turbo/Hi/Mi/Lo/Silent) | 46.5 / 37.5 / 35.5 / 26 / 23.5 dB(A) |
| Evaporator Design | 2-row coil, inner groove tube, hydrophilic aluminum fins |
| Tube Diameter | Φ7 mm |
| Fin Spacing | 1.3 mm |
| Number of Circuits | 3 |
| Dimensions (W × D × H) | 50.3" × 13.1" × 8.9" |
| Shipping Dimensions | 57.6" × 22.4" × 22.6" |
| Net / Gross Weight | 45 lb / 88 lb (20.5 / 40 kg) |
| Certifications | UL Listed, AHRI Certified |
| Refrigerant | R-454B |
Mrcool DIY 5th Gen OuttaSight DIYCASSETTE06HP-230D25-O Performance & Features

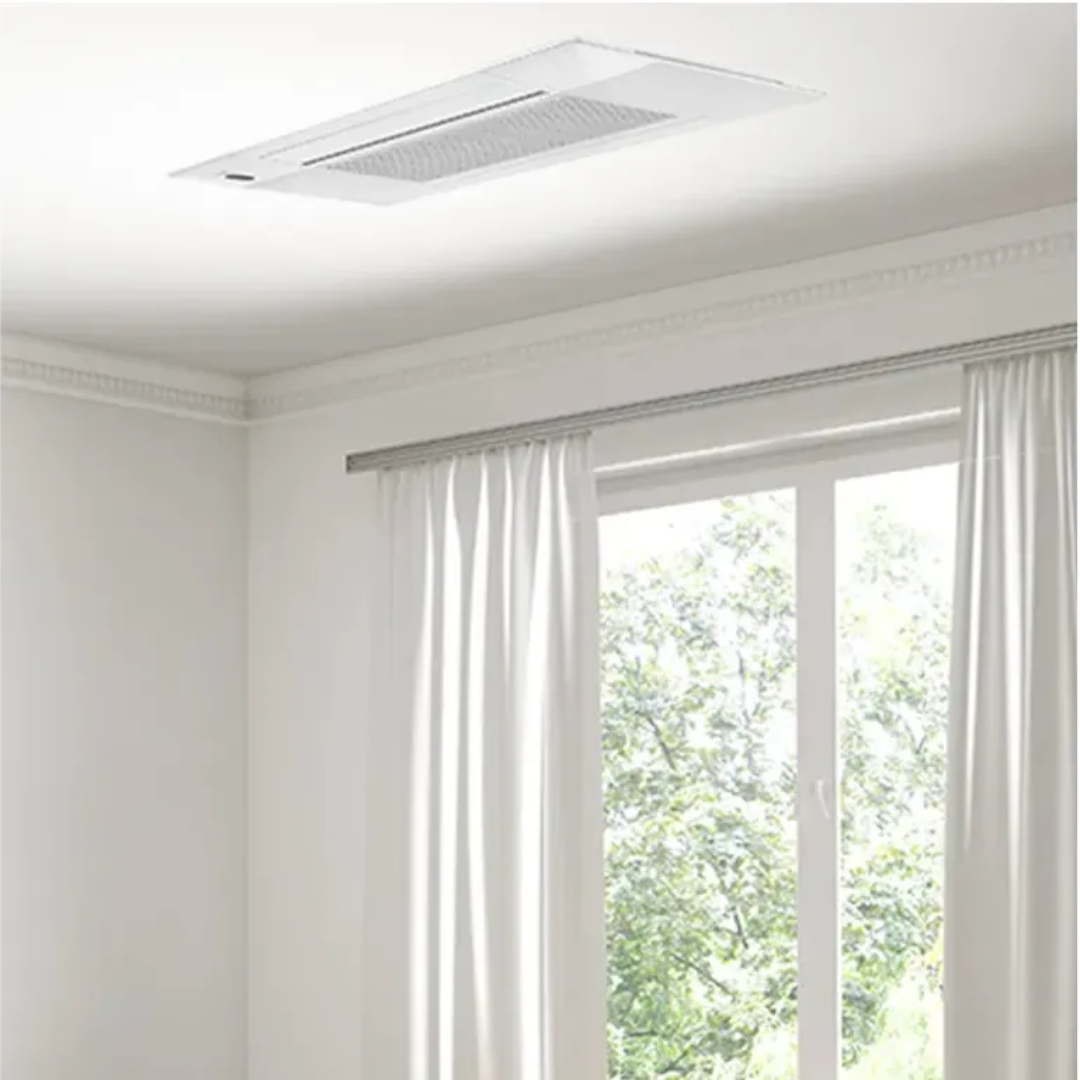

- Ultra Low Profile Design fits between standard 16” ceiling joists for a clean, flush-mounted appearance.
- Quiet Operation Technology delivers sound levels as low as 23.5 dB for near-silent comfort.
- Multiple Operating Modes including Turbo, High, Medium, Low, and Silent for precise climate control.
- Advanced Air Distribution with swing technology for even airflow throughout the room.
- High-Efficiency Airflow Performance up to 580 m³/h ensures consistent temperature regulation.
- Easy Access Filter System simplifies maintenance and improves indoor air quality.
- Advanced Filtration helps capture airborne particles for cleaner indoor environments.
- DIY-Friendly Installation Compatibility integrates with MRCOOL DIY systems for simplified setup.
- Energy-Efficient Operation supported by modern refrigerant technology (R-454B).
- Remote Control Included for convenient operation and system adjustments.
- Flexible System Integration supports both single-zone and multi-zone configurations.
Why Choose the Mrcool DIY 5th Gen OuttaSight DIYCASSETTE06HP-230D25-O
- Discreet ceiling cassette design ideal for modern interiors.
- Whisper-quiet operation suitable for bedrooms and offices.
- Compact size with powerful airflow performance.
- Easy integration into DIY mini split systems.
- Reliable, certified performance with UL and AHRI compliance.
The Mrcool DIY 5th Gen OuttaSight DIYCASSETTE06HP-230D25-O delivers a perfect balance of hidden design, efficient performance, and quiet comfort—making it an ideal solution for spaces where traditional wall-mounted units are not desired.
