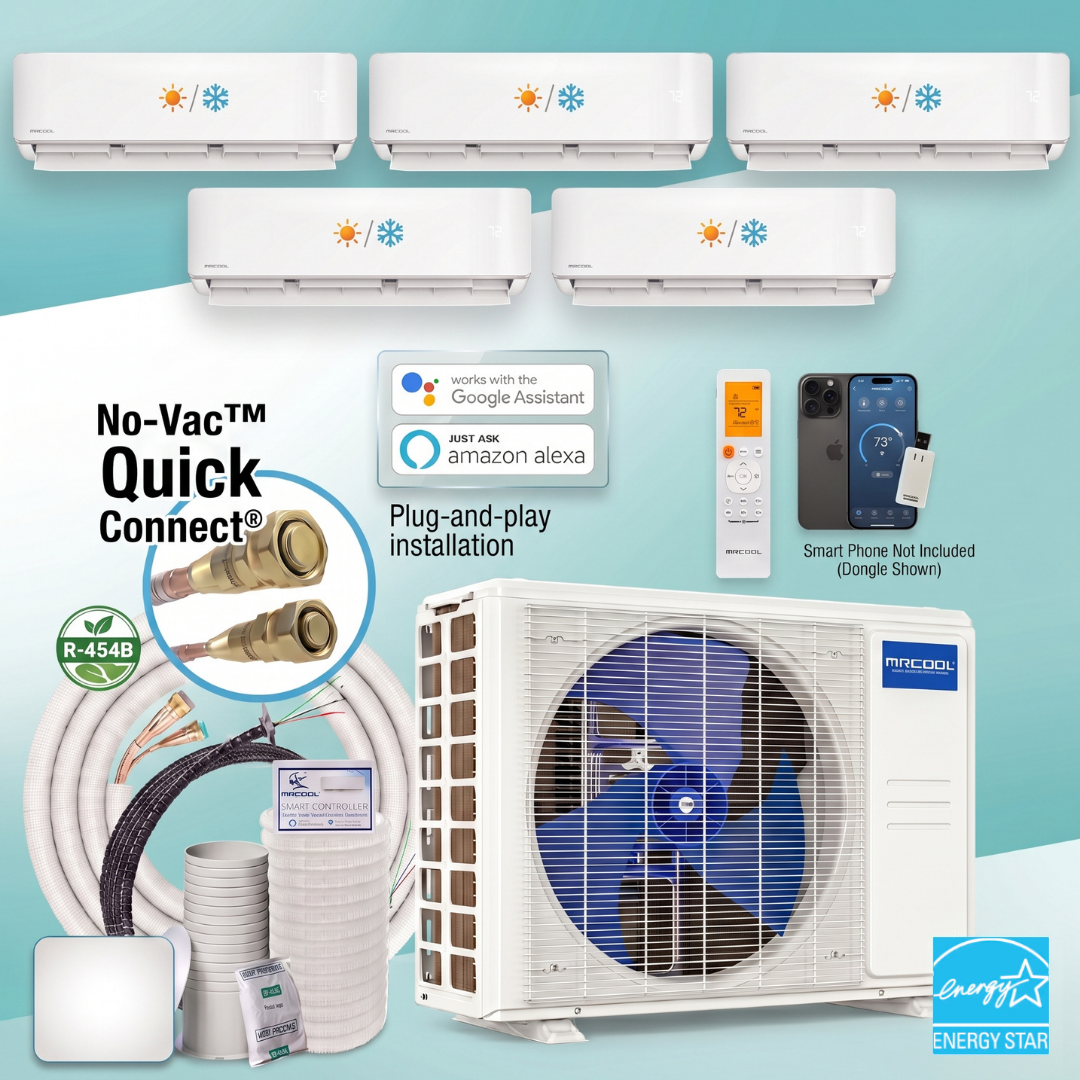

MRCOOL DIY 5th Gen 5-Zone 36,000 BTU Ductless Mini Split Air Conditioner & Heat Pump (6K+6K+6K+9K+9K), DIY5-B-36HP0606060909 No Vac Quick connect

Roll over image to zoom in Click on image to zoom

MRCOOL DIY 5th Gen 5-Zone 36,000 BTU Ductless Mini Split Air Conditioner & Heat Pump (6K+6K+6K+9K+9K), DIY5-B-36HP0606060909

Name: MRCOOL DIY 5th Gen 5-Zone 36,000 BTU Ductless Mini Split Air Conditioner & Heat Pump (6K+6K+6K+9K+9K), DIY5-B-36HP0606060909
Brand: MRCOOL
SKU: DIY5-B-36HP0606060909
Price: 7023.00 USD
Availability: InStock

★★★★★

Iron Line Verified

Authorized Dealer: MRCOOL

Official Partner

IN STOCK & RECEIVE IN 2-7 DAYS

SKU: DIY5-B-36HP0606060909

Price:

$7,023.00

Quantity:

Financing as low as ~$117 / month (60 mo. terms) Estimate your payment

We pay your sales tax! (IL excluded) 📦 Order before 7 PM CST for same-day shipping.

Share this product

Section 179
Tax Savings

Save up to $1,474.83 on this equipment Estimate Your Tax Deduction

Calculate Savings →

Commercial Buyer?

Unlock volume pricing and dedicated facility support with Trade Accounts
(Requires minimum of 2+ items)

Order Placed

Ships Out

Delivered

*Please Note: This timeline is an estimate. Certain products may require an additional 1 week for manufacturing. Please speak with your sales rep, Matthew, for official details and confirmation before placing your order.

CALL US FOR THE MOST ACCURATE AND COMPETITIVE LTL SHIPPING RATE, (888) 308-5580

Get Questions Answered

Fast & Free

Experience: 20+ Years B2B • Origin: US-Based Support

EXPRESS SHIPPING

Most orders process in 1-3 days. Yes, even if it weights 400lb

Hassle-Free Returns

No restocking fees. Ever.

Manufacturer Warranty

Fully backed by the brands you trust.

Dedicated Rep Mathew

Speak to a US-Based Equipment Specialist: (888) 308-5580

Flexible Financing

Get Upto 60 Months Financing

36,000 BTU Connected Capacity • Compact Triple Plus Twin Zoning • 5-Zone Capable Condenser

MRCOOL® DIY® 5th Gen 5-Zone Wall Mount Mini Split (6K+6K+6K+9K+9K)

The MRCOOL® DIY® 5th Generation 36,000 BTU 5-Zone Wall Mount Mini Split pairs a 5-zone capable 36K BTU condenser — sized exactly for this kit — with three matched 6K and two matched 9K wall mount air handlers. Three small rooms round out this system alongside two bedrooms, with every zone the condenser supports fully populated. Ships with 25 ft pre-charged line sets on every zone; longer runs available on request.

System Highlights

Compact Triple Plus Twin Zoning: Three matched 6K air handlers at 200 sq. ft. each, plus two matched 9K bedroom units at 400 sq. ft. each.
Right-Sized Condenser: The 36K condenser is purpose-built for 5 zones — no unused capacity, no premium for headroom you won't use.
True DIY Installation: Patented pre-charged Quick Connect® line sets eliminate vacuuming, charging, and professional trade labor. Every line set in this kit includes the DIYPro® cable.
Smart Control: Wireless remotes, the SmartHVAC app for iOS and Android, plus Amazon Alexa and Google Assistant support out of the box.

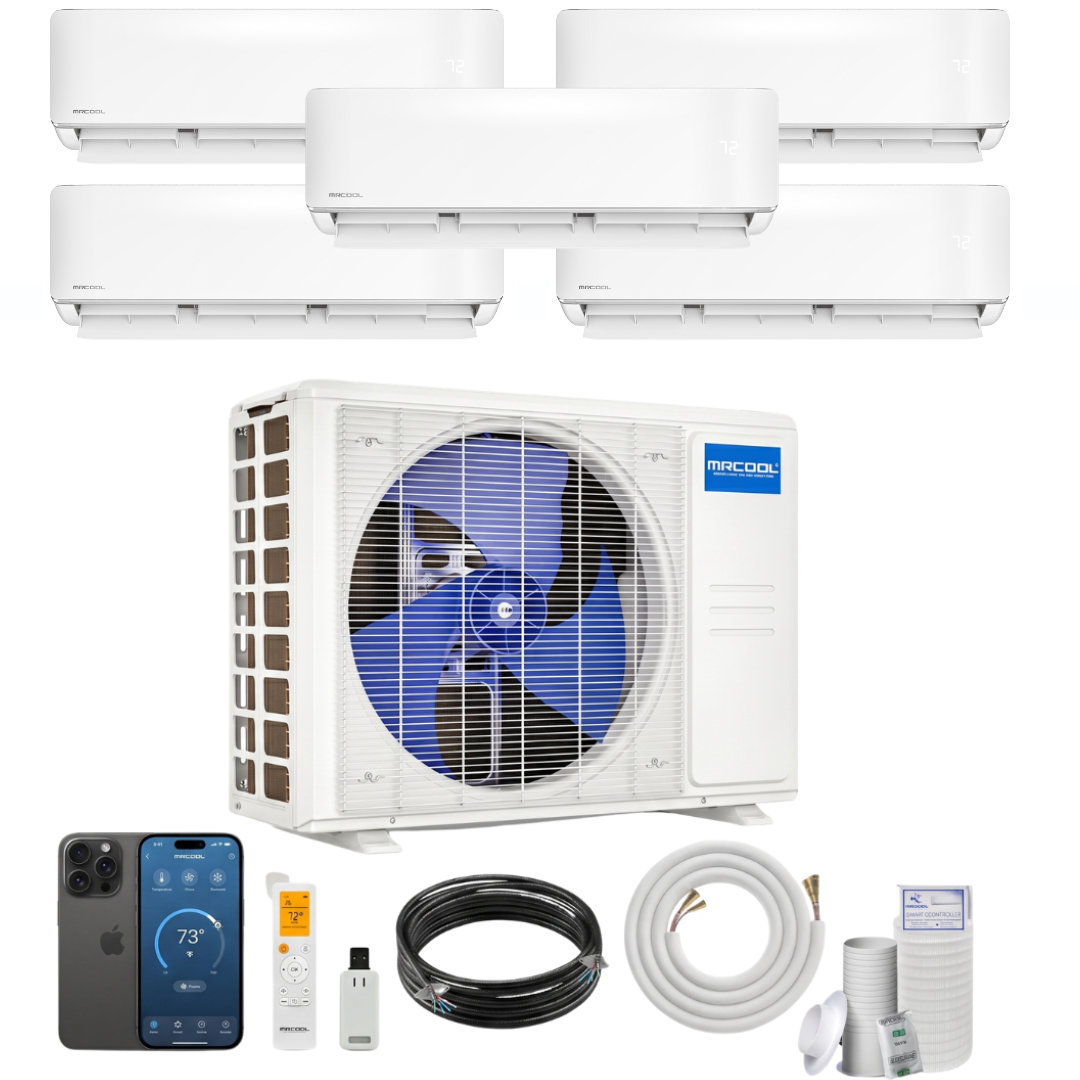

What's Included

1 × DIY-MULTI5-36HP230D-O — 36K BTU Multi-Zone Condenser, 230V (5-zone capable)
3 × DIY-06-HP-WMAH-230D25-O — 6K BTU Wall Mount Air Handler, 230V
2 × DIY-09-HP-WMAH-230D25-O — 9K BTU Wall Mount Air Handler, 230V
5 × Pre-charged 25 ft 1/4" × 3/8" Quick Connect® line sets with DIYPro® cable
Wireless remotes, mounting hardware, and installation documentation

Condenser Specifications — DIY-MULTI5-36HP230D-O

Zone Capacity	5 (5 used in this kit)
Electrical	208–230V, 1 Phase, 60 Hz
Refrigerant	R-454B (pre-charged)
Compressor / Inverter	Rotary / DC

Zone Configuration

Zone	Model	Capacity & Coverage
Zone 1	DIY-06-HP-WMAH-230D25-O	6,000 BTU — up to 200 sq. ft.
Zone 2	DIY-06-HP-WMAH-230D25-O	6,000 BTU — up to 200 sq. ft.
Zone 3	DIY-06-HP-WMAH-230D25-O	6,000 BTU — up to 200 sq. ft.
Zone 4	DIY-09-HP-WMAH-230D25-O	9,000 BTU — up to 400 sq. ft.
Zone 5	DIY-09-HP-WMAH-230D25-O	9,000 BTU — up to 400 sq. ft.

All zones use 1/4" liquid and 3/8" suction lines.

Engineering & Warranty

Gold Fin® Corrosion Protection against humidity and coastal salt exposure.
DC Inverter Drive scales output to match thermal load.
R-454B Refrigerant — more efficient and eco-friendly than R-410A.
Certifications: Intertek listed, UL Listed, ETL Listed, ENERGY STAR® certified, AHRI certified.
Warranty: 5-year parts and 7-year compressor coverage, eligible for the MRCOOL® Care Program.
