30,000 BTU Connected Capacity • Uniform Compact Zoning • 5-Zone Capable Condenser • Ceiling Cassette

MRCOOL® DIY® 5th Gen 5-Zone Ceiling Cassette Mini Split (6K+6K+6K+6K+6K)

The MRCOOL® DIY® 5th Generation 30,000 BTU 5-Zone Ceiling Cassette Mini Split pairs a 5-zone capable 36K BTU condenser — sized exactly for this kit — with five matched 6K ceiling cassette air handlers, delivering low-profile, discreet climate control that mounts flush with the ceiling for a clean architectural look. A uniform system for five evenly sized small rooms, with every zone the condenser supports fully populated. Ships with 25 ft pre-charged line sets on every zone; longer runs available on request.

System Highlights

Uniform Compact Zoning: Five matched 6K ceiling cassette air handlers, each covering up to 200 sq. ft. — ideal for a home full of small rooms.
Discreet Ceiling Cassette Design: Recessed installation sits flush with the ceiling, with a slim decorative panel replacing bulky wall units.
Right-Sized Condenser: The 36K condenser is purpose-built for 5 zones — no unused capacity, no premium for headroom you won't use.
True DIY Installation: Patented pre-charged Quick Connect® line sets eliminate vacuuming, charging, and professional trade labor. Every line set in this kit includes the DIYPro® cable.
Smart Control: Wireless remotes, the SmartHVAC app for iOS and Android, plus Amazon Alexa and Google Assistant support out of the box.

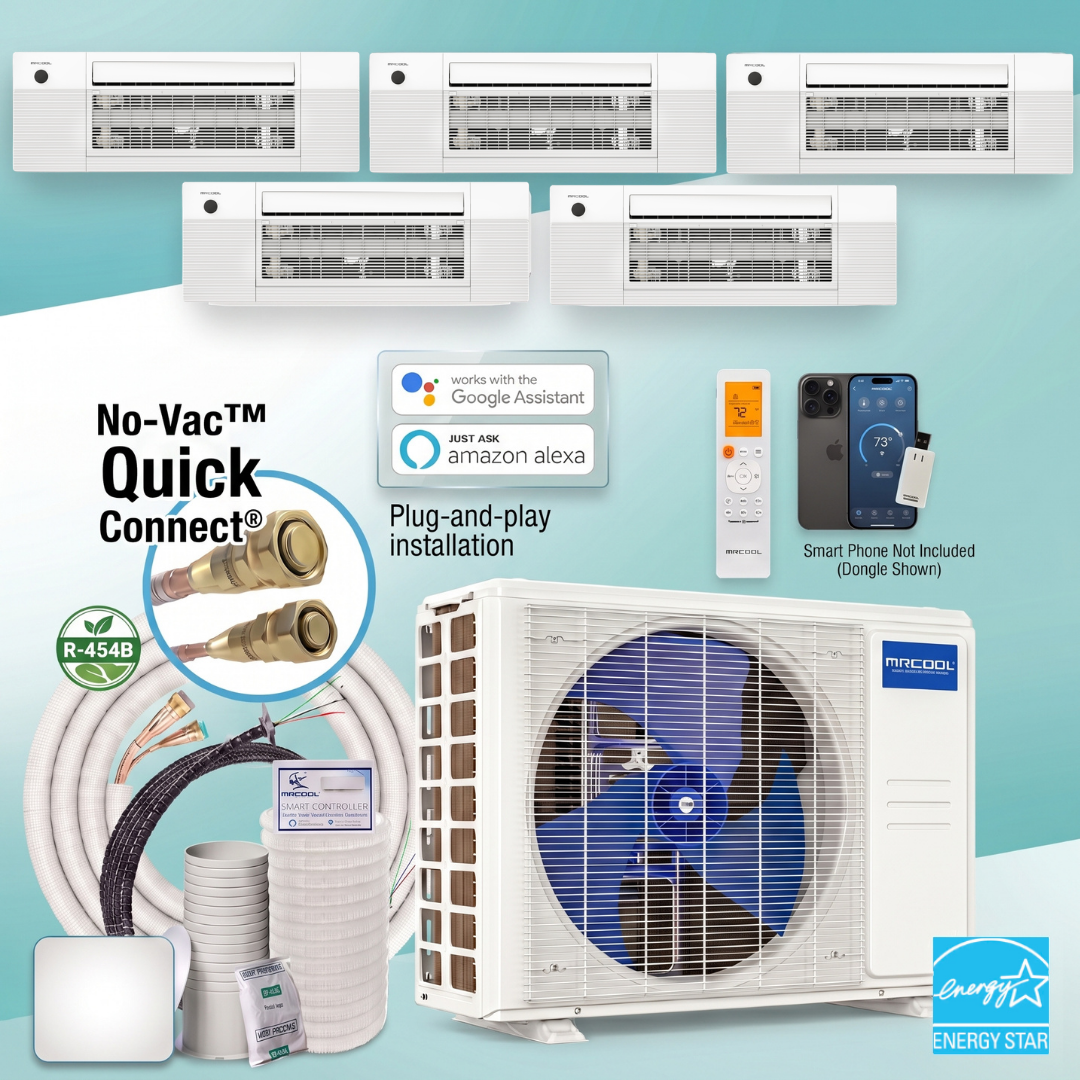

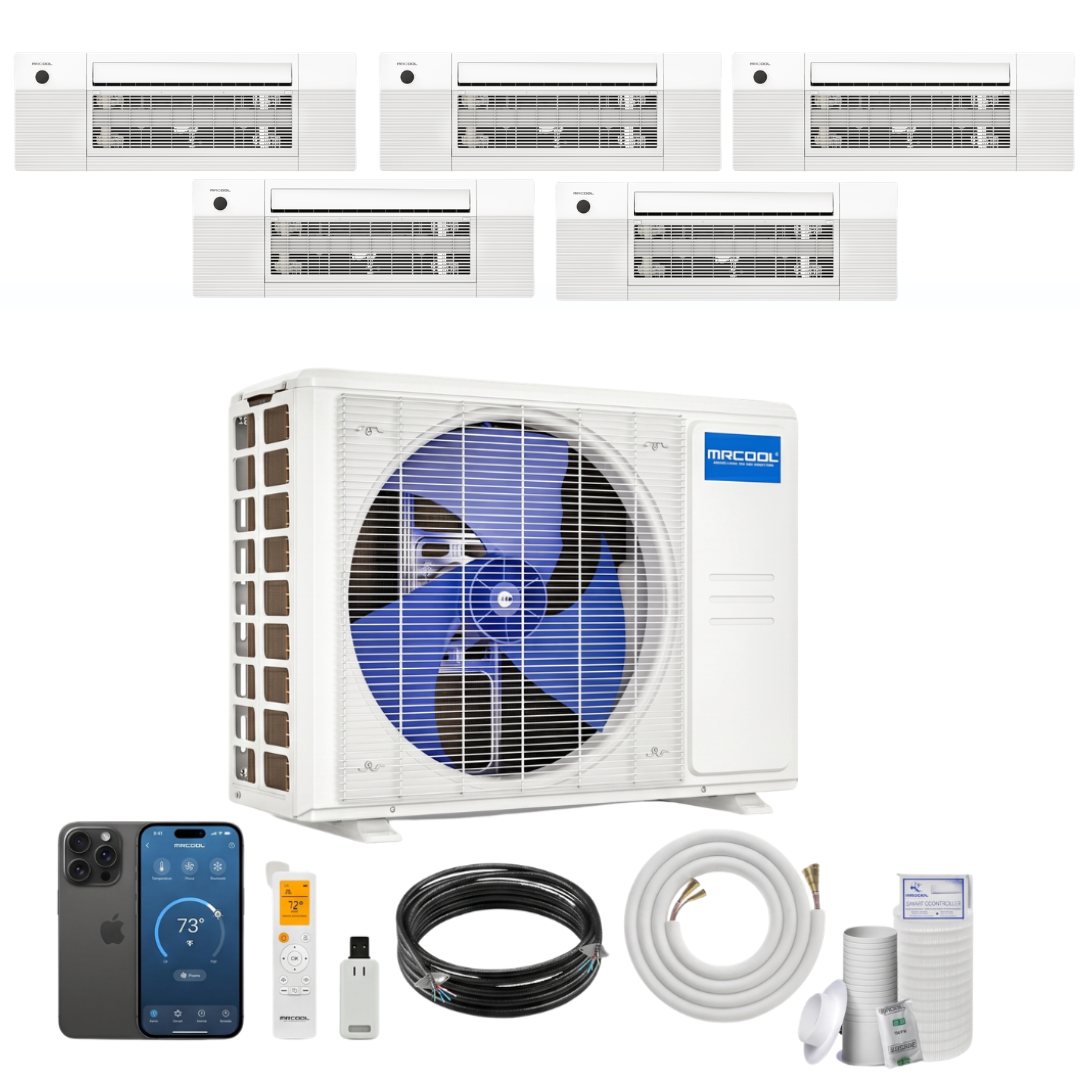

What's Included

1 × DIY-MULTI5-36HP230D-O — 36K BTU Multi-Zone Condenser, 230V (5-zone capable)
5 × DIY-06-HP-C-230D25 — 6K BTU Ceiling Cassette Air Handler, 230V, with decorative panel
5 × Pre-charged 25 ft 1/4" × 3/8" Quick Connect® line sets with DIYPro® cable
Wireless remotes, mounting hardware, and installation documentation

Condenser Specifications — DIY-MULTI5-36HP230D-O

Zone Capacity	5 (5 used in this kit)
Electrical	208–230V, 1 Phase, 60 Hz
Refrigerant	R-454B (pre-charged)
Compressor / Inverter	Rotary / DC

Zone Configuration

Zone	Model	Capacity & Coverage
Zone 1	DIY-06-HP-C-230D25	6,000 BTU — up to 200 sq. ft.
Zone 2	DIY-06-HP-C-230D25	6,000 BTU — up to 200 sq. ft.
Zone 3	DIY-06-HP-C-230D25	6,000 BTU — up to 200 sq. ft.
Zone 4	DIY-06-HP-C-230D25	6,000 BTU — up to 200 sq. ft.
Zone 5	DIY-06-HP-C-230D25	6,000 BTU — up to 200 sq. ft.

All zones use 1/4" liquid and 3/8" suction lines.

Engineering & Warranty

Gold Fin® Corrosion Protection against humidity and coastal salt exposure.
DC Inverter Drive scales output to match thermal load.
R-454B Refrigerant — more efficient and eco-friendly than R-410A.
Certifications: Intertek listed, UL Listed, ETL Listed, ENERGY STAR® certified, AHRI certified.
Warranty: 5-year parts and 7-year compressor coverage, eligible for the MRCOOL® Care Program.

Proposition 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Download the MRCOOL Brochure

Get the full official MRCOOL DIY 5th Generation Brochure PDF — specs, lineup, and details.

Download Brochure (PDF)

Key Information

Order Cutoff Time: 2:00 PM EST
Order Handling Time: 1–3 business days (Monday–Friday)
Transit Time: 1–7 business days (Monday–Friday)
Total Estimated Delivery Time: 3–11 business days (Monday–Friday)
Shipping Availability: Free Shipping On some Items In The Contiguous United States only

For more information Click Here

Request Expert Consultation

Our tool specialists are ready to help you find the perfect solution for your specific application.

CAPITAL ACCESS

EQUIPMENT FINANCING

AVAILABLE

Preserve cash flow with up to 60 month financing.

Frequently Asked Questions for MRCOOL

A ceiling cassette air handler like the ones on MRCOOL DIY 5th Gen 5-Zone 30,000 BTU Ceiling Cassette mini split (6K+6K+6K+6K+6K) mounts recessed into the ceiling with a slim decorative panel and distributes air outward in multiple directions across the room, while a wall-mounted unit sits high on one wall and projects air across the room from a single point; the ceiling cassette's recessed installation also means refrigerant and condensate lines run up into the ceiling cavity rather than down an exterior wall.

Yes — MRCOOL DIY 5th Gen 5-Zone 30,000 BTU Ceiling Cassette mini split (6K+6K+6K+6K+6K) ships with pre-charged 25 ft Quick Connect® line sets on every zone, so the refrigerant circuit is sealed at the factory and a licensed HVAC technician is not required to complete the installation, though cutting into the ceiling for a recessed cassette is more involved than mounting a wall unit.

MRCOOL backs MRCOOL DIY 5th Gen 5-Zone 30,000 BTU Ceiling Cassette mini split (6K+6K+6K+6K+6K) with a 5-year parts and 7-year compressor warranty (eligible for the MRCOOL® Care Program), and with routine maintenance such as periodic filter cleaning, mini split systems of this type are generally expected to provide many years of reliable service.

Yes — MRCOOL DIY 5th Gen 5-Zone 30,000 BTU Ceiling Cassette mini split (6K+6K+6K+6K+6K) is a heat pump system, meaning the same refrigerant cycle that provides cooling in summer can run in reverse to provide heating in colder months, all from the same condenser and indoor units.

Yes — each of the indoor zones in MRCOOL DIY 5th Gen 5-Zone 30,000 BTU Ceiling Cassette mini split (6K+6K+6K+6K+6K) is controlled independently through its own wireless remote or the SmartHVAC app, so every room can be set to its own temperature at the same time.
