System Highlights
- Compact Plus Balanced Zoning: Three matched 9K cassettes at 400 sq. ft. each, plus an 18K cassette at up to 800 sq. ft.
- Flush Ceiling Integration: Low-profile cassettes fit between 16" joists for a clean architectural finish — no ductwork, no wall penetrations.
- Maximum Expansion Headroom: The 55K condenser supports up to six zones, leaving two ports open for future handlers.
- True DIY Installation: Patented pre-charged Quick Connect® line sets eliminate vacuuming, charging, and professional trade labor. Every line set in this kit includes the DIYPro® cable.
- Elevation Filter Access: The panel lowers on demand so filters can be cleaned without dismantling the unit.
- Smart Control: Wireless remotes, the SmartHVAC app for iOS and Android, plus Amazon Alexa and Google Assistant support out of the box.

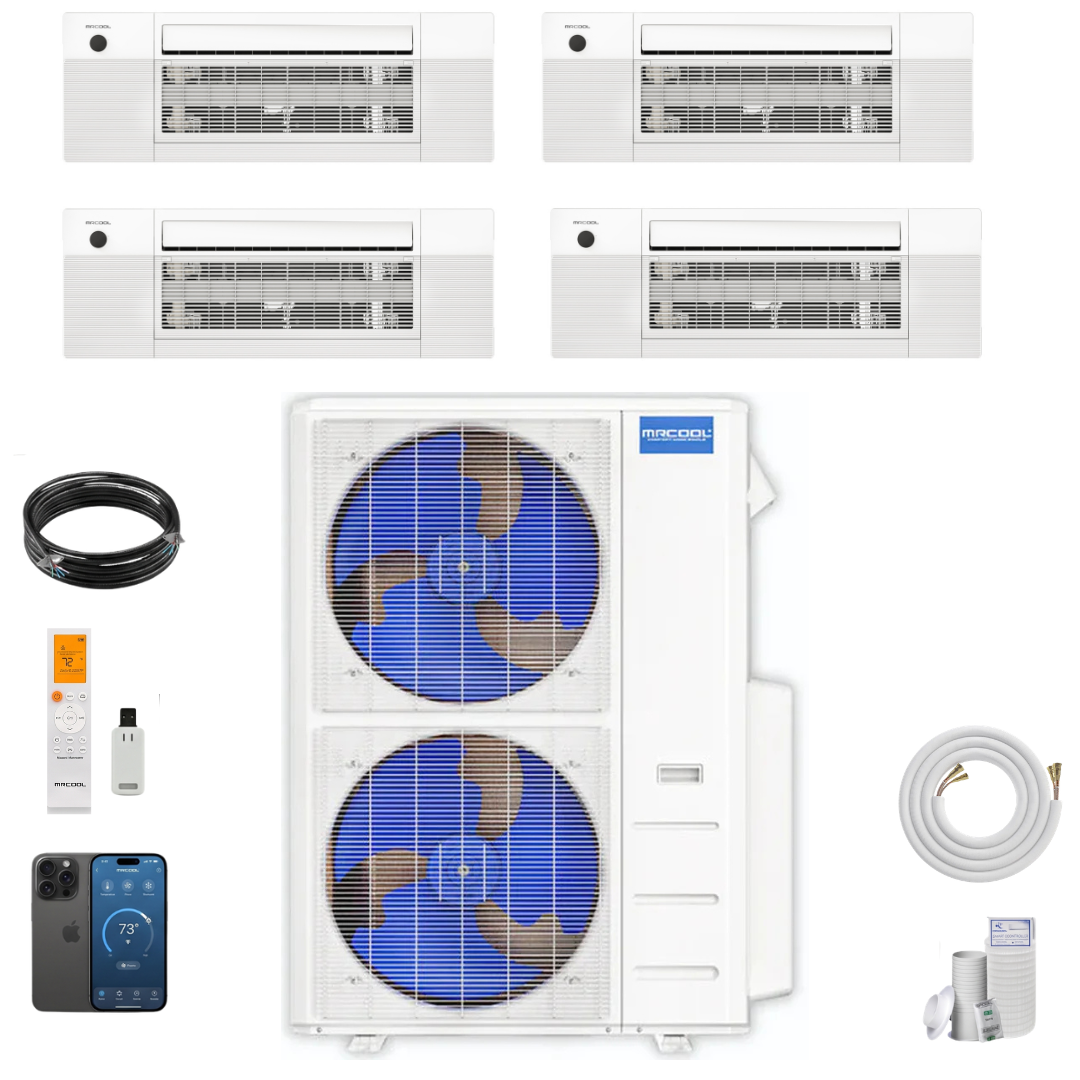

What's Included
- 1 × DIY-MULTI6-55HP230D-O — 55K BTU Multi-Zone Condenser, 230V (6-zone capable)
- 3 × DIYCASSETTE09HP-230D25-O — 9K BTU OuttaSight® One-Way Ceiling Cassette, 230V
- 1 × DIYCASSETTE18HP-230D25-O — 18K BTU OuttaSight® One-Way Ceiling Cassette, 230V
- 3 × Pre-charged 25 ft 1/4" × 3/8" Quick Connect® line sets with DIYPro® cable (Zones 1–3)
- 1 × Pre-charged 25 ft 1/4" × 1/2" Quick Connect® line set with DIYPro® cable (Zone 4)
- Wireless remotes, mounting hardware, and installation documentation
Condenser Specifications — DIY-MULTI6-55HP230D-O
| Cooling / Heating Capacity | 52,000 BTU / 55,000 BTU |
|---|---|
| Tonnage | 4.6 |
| Zone Capacity | 6 (4 used in this kit) |
| Electrical | 208–230V, 1 Phase, 60 Hz |
| Refrigerant | R-454B (pre-charged) |
| Compressor / Inverter | Rotary / DC |
| Max Total Line Set Length | 221.4 ft |
Zone Configuration
| Zone | Model | Capacity & Coverage |
|---|---|---|
| Zone 1 | DIYCASSETTE09HP-230D25-O | 9,000 BTU — up to 400 sq. ft. |
| Zone 2 | DIYCASSETTE09HP-230D25-O | 9,000 BTU — up to 400 sq. ft. |
| Zone 3 | DIYCASSETTE09HP-230D25-O | 9,000 BTU — up to 400 sq. ft. |
| Zone 4 | DIYCASSETTE18HP-230D25-O | 18,000 BTU — up to 800 sq. ft. |
Cassettes measure 50.31"W × 13.19"D × 8.98"H and weigh 45 lbs each. Air flow is 1-Way with Swing Technology and reusable filtration.
Engineering & Warranty
- Gold Fin® Corrosion Protection against humidity and coastal salt exposure.
- DC Inverter Drive scales output to match thermal load.
- R-454B Refrigerant — more efficient and eco-friendly than R-410A.
- Certifications: Intertek listed, UL Listed, ETL Listed, ENERGY STAR® certified, AHRI certified.
- Warranty: 5-year parts and 7-year compressor coverage, eligible for the MRCOOL® Care Program.
Shipping restrictions: Ceiling cassettes cannot be shipped to Guam, Puerto Rico, or the U.S. Virgin Islands.
