System Highlights
- High-Output Asymmetric Zoning: Two 18K cassettes cover up to 800 sq. ft. each, with a 6K unit sized for a 200 sq. ft. room.
- Flush Ceiling Integration: Low-profile cassettes fit between 16" joists for a clean architectural finish — no ductwork, no wall penetrations.
- Major Expansion Headroom: The 55K condenser supports up to six zones, leaving three ports open for future handlers.
- True DIY Installation: Patented pre-charged Quick Connect® line sets eliminate vacuuming, charging, and professional trade labor. Every line set in this kit includes the DIYPro® cable.
- Elevation Filter Access: The panel lowers on demand so filters can be cleaned without dismantling the unit.
- Smart Control: Wireless remotes, the SmartHVAC app for iOS and Android, plus Amazon Alexa and Google Assistant support out of the box.

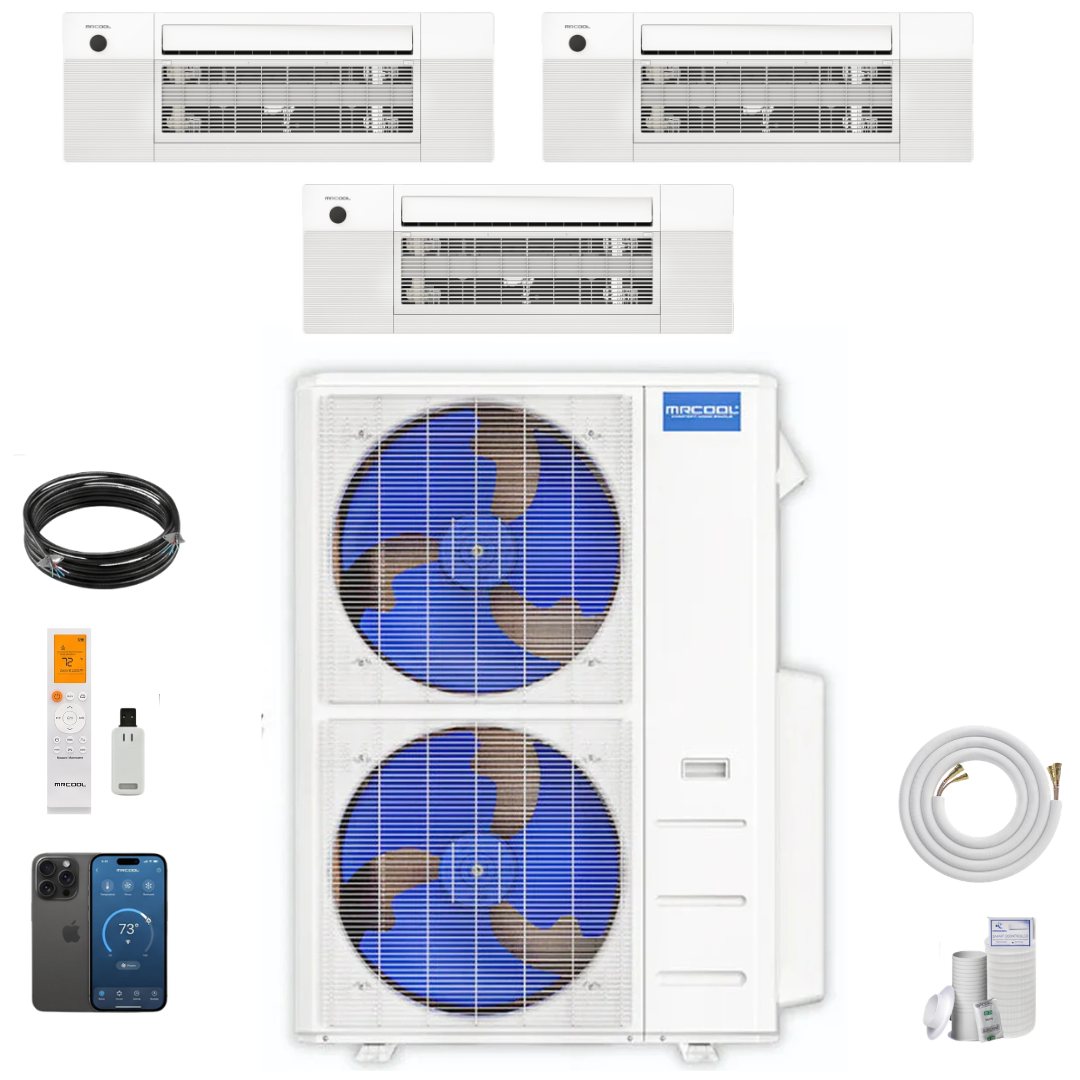

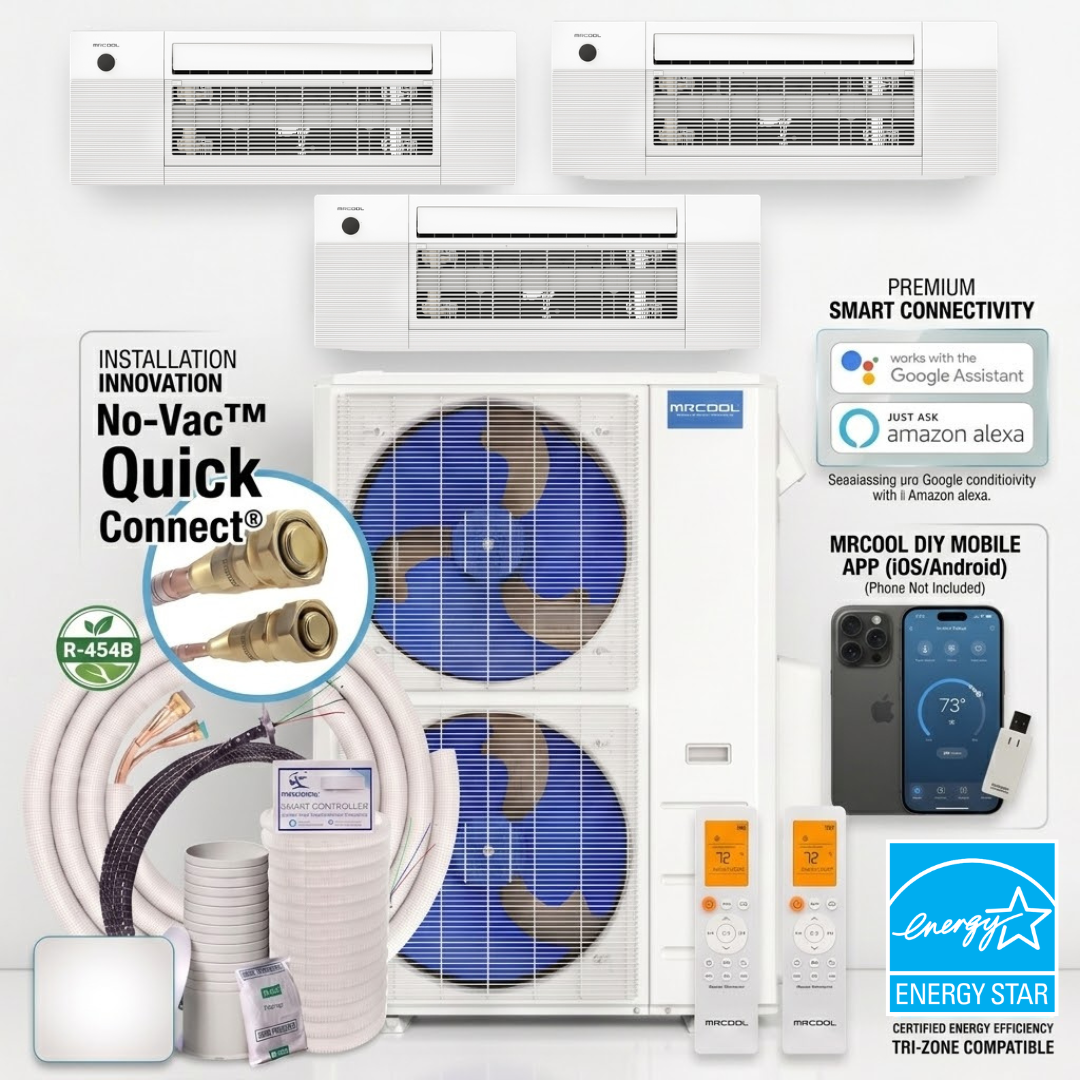

What's Included
- 1 × DIY-MULTI6-55HP230D-O — 55K BTU Multi-Zone Condenser, 230V (6-zone capable)
- 1 × DIYCASSETTE06HP-230D25-O — 6K BTU OuttaSight® One-Way Ceiling Cassette, 230V
- 2 × DIYCASSETTE18HP-230D25-O — 18K BTU OuttaSight® One-Way Ceiling Cassette, 230V
- 1 × Pre-charged 1/4" × 3/8" Quick Connect® line set with DIYPro® cable (Zone 1)
- 2 × Pre-charged 1/4" × 1/2" Quick Connect® line sets with DIYPro® cable (Zones 2 & 3)
- Wireless remotes, mounting hardware, and installation documentation
Condenser Specifications — DIY-MULTI6-55HP230D-O
| SEER2 / EER2 | 22 / 12 |
|---|---|
| HSPF2-4 / HSPF2-5 | 10.6 / 8.5 |
| Cooling / Heating Capacity | 47,000 BTU / 55,000 BTU |
| Tonnage | 4.6 |
| Zone Capacity | 6 (3 used in this kit) |
| Electrical | 208–230V, 1 Phase, 60 Hz |
| Max Fuse Breaker / MCA | 45A / 43A |
| Refrigerant | R-454B, 151.68 oz (pre-charged) |
| Compressor / Inverter | Rotary / DC |
| Sound Level | 64 dBA |
| Max Total Line Set Length | 221.4 ft |
| Net Dimensions (D×H×W) | 16.34" × 52.48" × 37.48" |
| Net Weight | 245.81 lbs |
Zone Configuration
| Zone | Model | Capacity & Coverage | Line Set Size | Sound |
|---|---|---|---|---|
| Zone 1 | DIYCASSETTE06HP-230D25-O | 6,000 BTU — up to 200 sq. ft. | 1/4" × 3/8" | 35.5 dBA (23.5 low / 46.5 high) |
| Zone 2 | DIYCASSETTE18HP-230D25-O | 18,000 BTU — up to 800 sq. ft. | 1/4" × 1/2" | 41.5 dBA (26 low / 44 high) |
| Zone 3 | DIYCASSETTE18HP-230D25-O | 18,000 BTU — up to 800 sq. ft. | 1/4" × 1/2" | 41.5 dBA (26 low / 44 high) |
All cassettes measure 50.31"W × 13.19"D × 8.98"H and weigh 45 lbs each. Air flow is 1-Way with Swing Technology and reusable filtration.
Line Set Options
| Length | Zone 1 (6K) | Zones 2 & 3 (18K) |
|---|---|---|
| 25 ft | DIY25-1438C-O | DIY25-1412C-O |
| 35 ft | DIY35-1438C-O | DIY35-1412C-O |
| 50 ft | DIY50-1438C-O | DIY50-1412C-O |
Line set size is determined by the cassette it serves. All line sets ship pre-charged with R-454B and include the DIYPro® cable.
Engineering & Warranty
- Gold Fin® Corrosion Protection against humidity and coastal salt exposure.
- DC Inverter Drive scales output to match thermal load.
- R-454B Refrigerant — more efficient and eco-friendly than R-410A.
- Certifications: Intertek listed 5031495, UL Listed, ETL Listed, ENERGY STAR® certified, AHRI certified.
- Warranty: 5-year parts and 7-year compressor coverage, eligible for the MRCOOL® Care Program.
Shipping restrictions: Ceiling cassettes cannot be shipped to Guam, Puerto Rico, or the U.S. Virgin Islands.
